Co3O4纳米线阵列@活性炭纤维复合材料的水热合成及电化学应用

doi:10.15541/jim20180343

无机材料学报 ›› 2019, Vol. 34 ›› Issue (5): 487-492.DOI: 10.15541/jim20180343

Co₃O₄纳米线阵列@活性炭纤维复合材料的水热合成及电化学应用

刘伟^1,^2,³,郑凯²,王东红^1,²,雷忆三^1,²(),范怀林³

^1. 电磁防护材料及技术山西省重点实验室, 太原 030032
^2. 中国电子科技集团公司第 33 研究所, 太原 030032
^3. 中国科学院山西煤炭化学研究所, 煤转化国家重点实验室, 太原 030001

收稿日期:2018-07-26 修回日期:2018-10-30 出版日期:2019-05-20 网络出版日期:2019-05-14
作者简介:刘伟(1990-), 男, 工程师. E-mail: lwucas2014@126.com
基金资助:
国家自然科学基金(U1710115);山西省自然科学基金(201701D121050);中国电科联合基金(6401B08110304)

Co₃O₄ Nanowire Arrays@Activated Carbon Fiber Composite Materials: Facile Hydrothermal Synthesis and Its Electrochemical Application

Wei LIU^1,^2,³,Kai ZHENG²,Dong-Hong WANG^1,²,Yi-San LEI^1,²(),Huai-Lin FAN³

^1. Shanxi Key Laboratory of Electromagnetic Protection Material and Technology, Taiyuan 030032, China
^2. The 33rd Institute of China Electronics Technology Group Corporation, Taiyuan 030032, China
^3. State Key Laboratory of Coal Conversion, Institute of Coal Chemistry, Chinese Academy of Sciences, Taiyuan 030001, China

Received:2018-07-26 Revised:2018-10-30 Published:2019-05-20 Online:2019-05-14
Supported by:
National Natural Science Foundation of China U1710115(U1710115);Natural Science Foundation of Shanxi Province(201701D121050);Joint Foundation of China Electronic Technology Group Corporation(6401B08110304)

摘要/Abstract

摘要：

以Co(NO₃)₂·6H₂O为钴源, NH₄F和尿素作为添加剂, 通过水热法在粘胶基活性炭纤维(ACF)的表面生长了Co₃O₄纳米线, 制备了Co₃O₄@ACF复合材料并进行了结构形貌表征及电化学性能测试。结果表明: 针状的Co₃O₄纳米线阵列均匀地垂直生长在活性炭纤维表面, 形成了丰富的介孔结构。通过改变Co(NO₃)₂·6H₂O的用量, 可以获得不同负载量的Co₃O₄@ACF复合材料。当Co₃O₄负载量为47wt%时, Co₃O₄@ACF复合材料在1 A/g电流密度下的比电容高达566.9 F/g, 几乎是纯Co₃O₄的2倍; 在15 A/g的电流密度下, 其比电容仍可达到393.3 F/g, 表现了较好的倍率特性; 经过5000次循环充放电后, 其比电容仍可保持84.2%, 展现了优良的循环稳定性。

关键词: 活性炭纤维, 水热法, 四氧化三钴, 超级电容器

Abstract:

Co₃O₄@activated carbon fibers (ACF) composites were prepared through a facile hydrothermal method followed by calcination process, involving the growth of Co₃O₄ nanowires on ACF surface. Co(NO₃)₂·6H₂O was used as Co source, urea and NH₄F as additives. The structures and morphologies of Co₃O₄@ACF composites were characterized by scanning electron microscopy (SEM), X-ray diffraction (XRD), N₂adsorption/desorption measures, and thermogravimetric analysis (TGA). The electrochemical properties of Co₃O₄@ACF composites were investigated by cyclic voltammetry (CV), galvanostatic charge discharge (GCD) and electrochemical impedance spectroscopy (EIS). The results showed that Co₃O₄ nanowire arrays uniformly grew on the surface of ACF along the vertical direction, forming abundant mesoporous structures. Co₃O₄@ACF composites with various Co₃O₄fractions could be obtained by adding different amount of Co(NO₃)₂·6H₂O. Furthermore, Co₃O₄@ACF composite with 47wt% Co₃O₄fraction exhibited a high specific capacitance of 566.9 F/g at a current density of 1 A/g, which was almost twice as high as that of pure Co₃O₄. Even at 15 A/g, the composite still delivered a specific capacitance of 393.3 F/g, showing good rate capability. The specific capacitance of the composite could retain 84.2% of initial value after 5000 charging/discharging cycles, which indicates its superior cycling stability.

Key words: activated carbon fiber, hydrothermal method, cobaltosic oxide, supercapacitor

中图分类号:

TB34

刘伟, 郑凯, 王东红, 雷忆三, 范怀林. Co₃O₄纳米线阵列@活性炭纤维复合材料的水热合成及电化学应用[J]. 无机材料学报, 2019, 34(5): 487-492.

Wei LIU, Kai ZHENG, Dong-Hong WANG, Yi-San LEI, Huai-Lin FAN. Co₃O₄ Nanowire Arrays@Activated Carbon Fiber Composite Materials: Facile Hydrothermal Synthesis and Its Electrochemical Application[J]. Journal of Inorganic Materials, 2019, 34(5): 487-492.

图/表 8

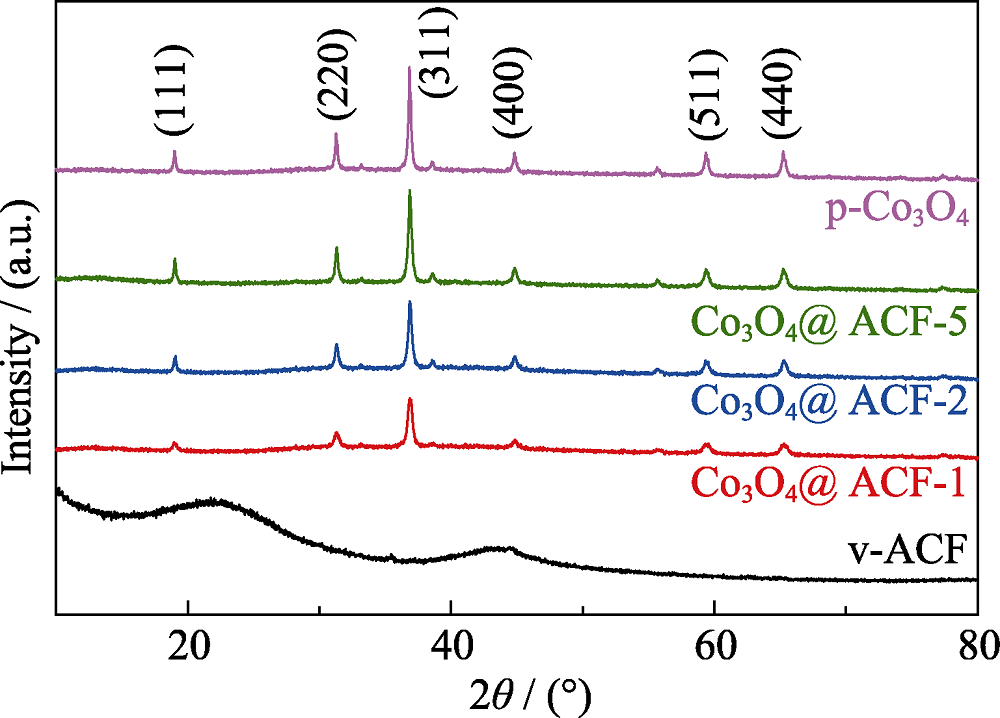

图1 v-ACF、p-Co3O4及Co3O4@ACF复合材料的XRD图谱

Fig. 1 XRD patterns of v-ACF, p-Co3O4 and Co3O4@ACF composites

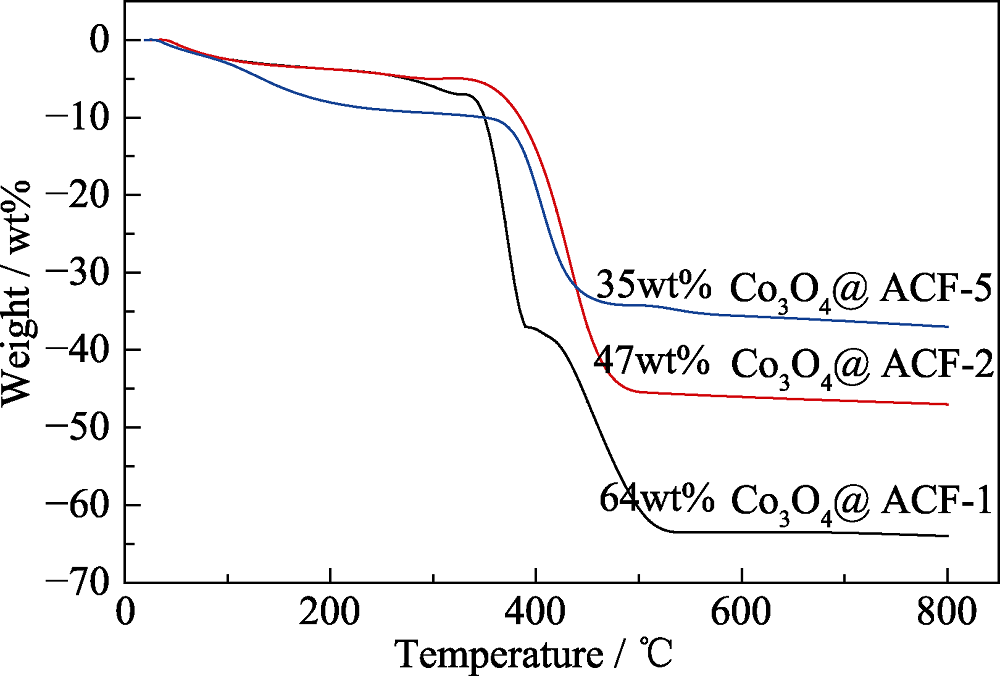

图2 Co3O4@ACF复合材料在空气中的热重曲线

Fig. 2 TG curves of Co3O4@ACF composites in air

图3 Co3O4@ACF复合材料的扫描电镜照片: (a) Co3O4@ACF-2; (b) Co3O4@ACF-1; (c) Co3O4@ACF-2; (d) Co3O4@ACF-5

Fig. 3 SEM images of Co3O4@ACF composites: (a) Co3O4@ACF-2; (b) Co3O4@ACF-1; (c) Co3O4@ACF-2; (d) Co3O4@ACF-5

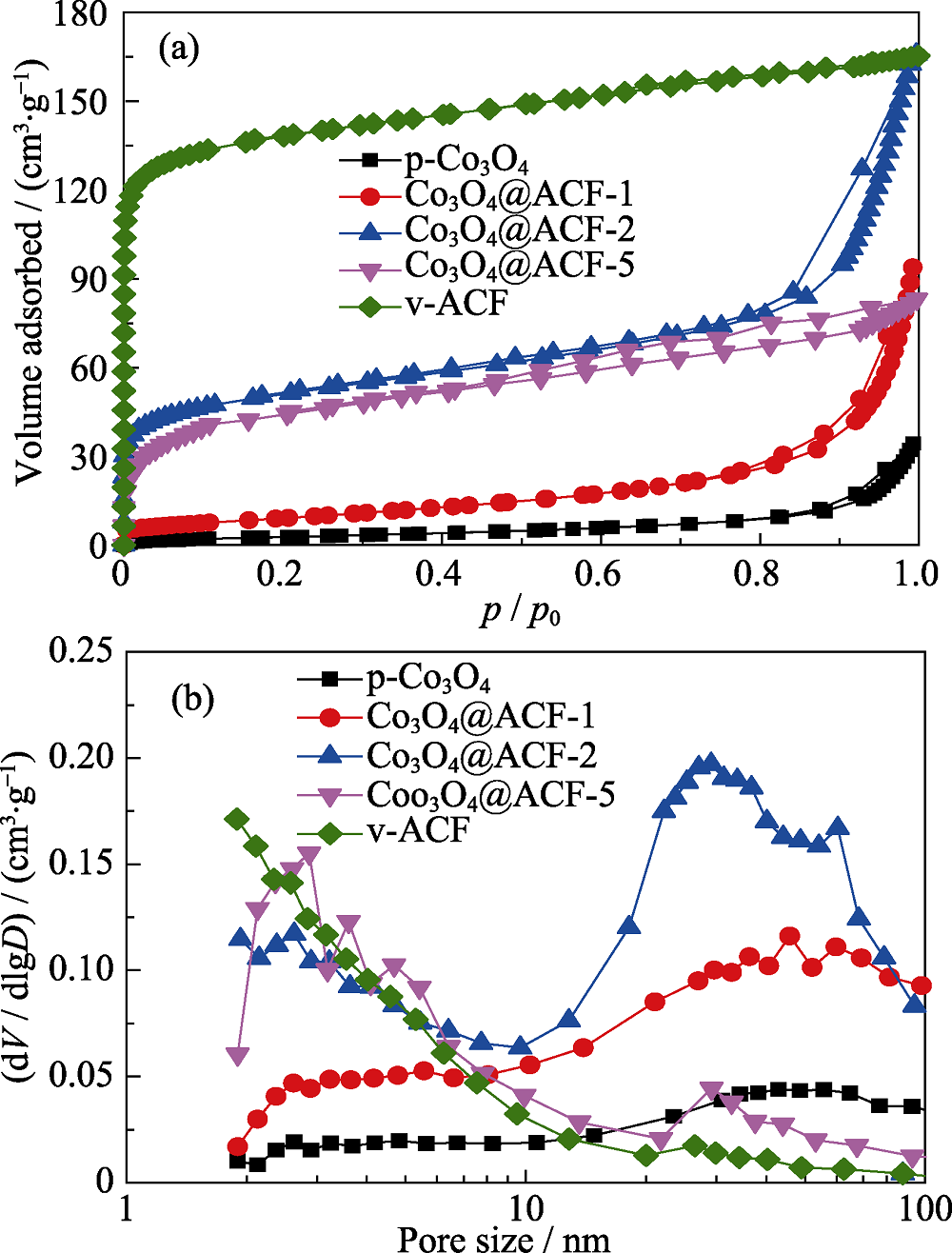

图4 v-ACF、p-Co3O4及Co3O4@ACF复合材料的(a) N2等温吸附曲线和(b) BJH孔径分布曲线

Fig. 4 (a) N2 adsorption-desorption isotherms and (b) BJH pore size distribution curves of v-ACF, p-Co3O4 and Co3O4@ACF composites

表1 v-ACF、p-Co3O4和Co3O4@ACF复合材料的比表面积及孔体积数据

Table 1 Specific surface areas and pore volumes of v-ACF, p-Co3O4 and the Co3O4@ACF composites

Samples	S_total /(m²·g^-1)	S_micropore /(m²·g^-1)	V_total /(m³·g^-1)	V_micropore/(m³·g^-1)
Co₃O₄@ACF-1	153	80	0.21	0.03
Co₃O₄@ACF-2	177	103	0.26	0.04
Co₃O₄@ACF-5	32	-	0.15	-
p-Co₃O₄	20	-	0.07	-
v-ACF	785	693	0.43	0.33

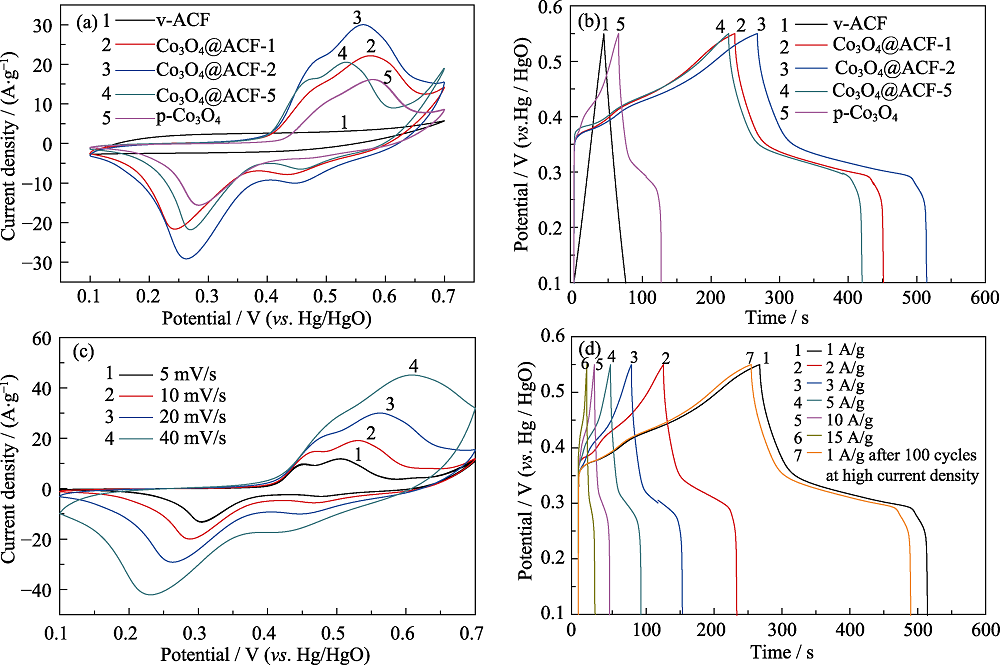

图5 (a) 扫描速率为20 mV/s下各样品的CV曲线; (b)电流密度为1A/g时各样品的GCD曲线; (c) Co3O4@ACF-2在不同扫描速率下的CV曲线; (d) Co3O4@ACF-2在不同电流密度下的GCD曲线

Fig. 5 (a) CV curves of different samples at a scan rate of 20 mV/s; (b) Galvanostatic charge/discharge curves of different samples at 1 A/g; (c) CV curves of Co3O4@ACF-2 at different scan rates; (d) GCD curves of Co3O4@ACF-2 at various current densities

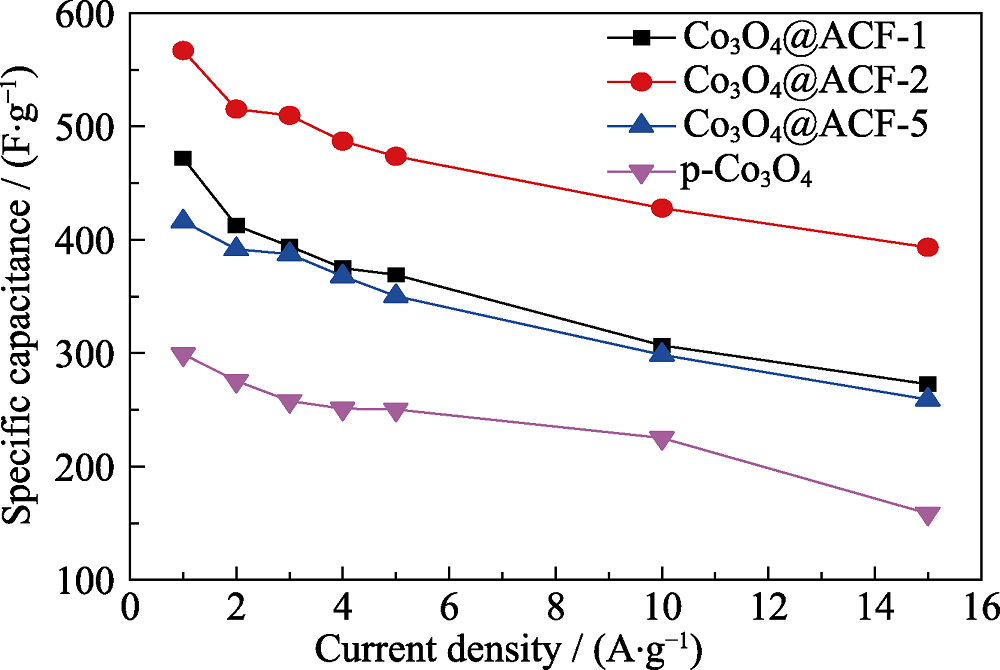

图6 各样品在不同电流密度下的比电容

Fig. 6 Specific capacitances of samples at different current densities

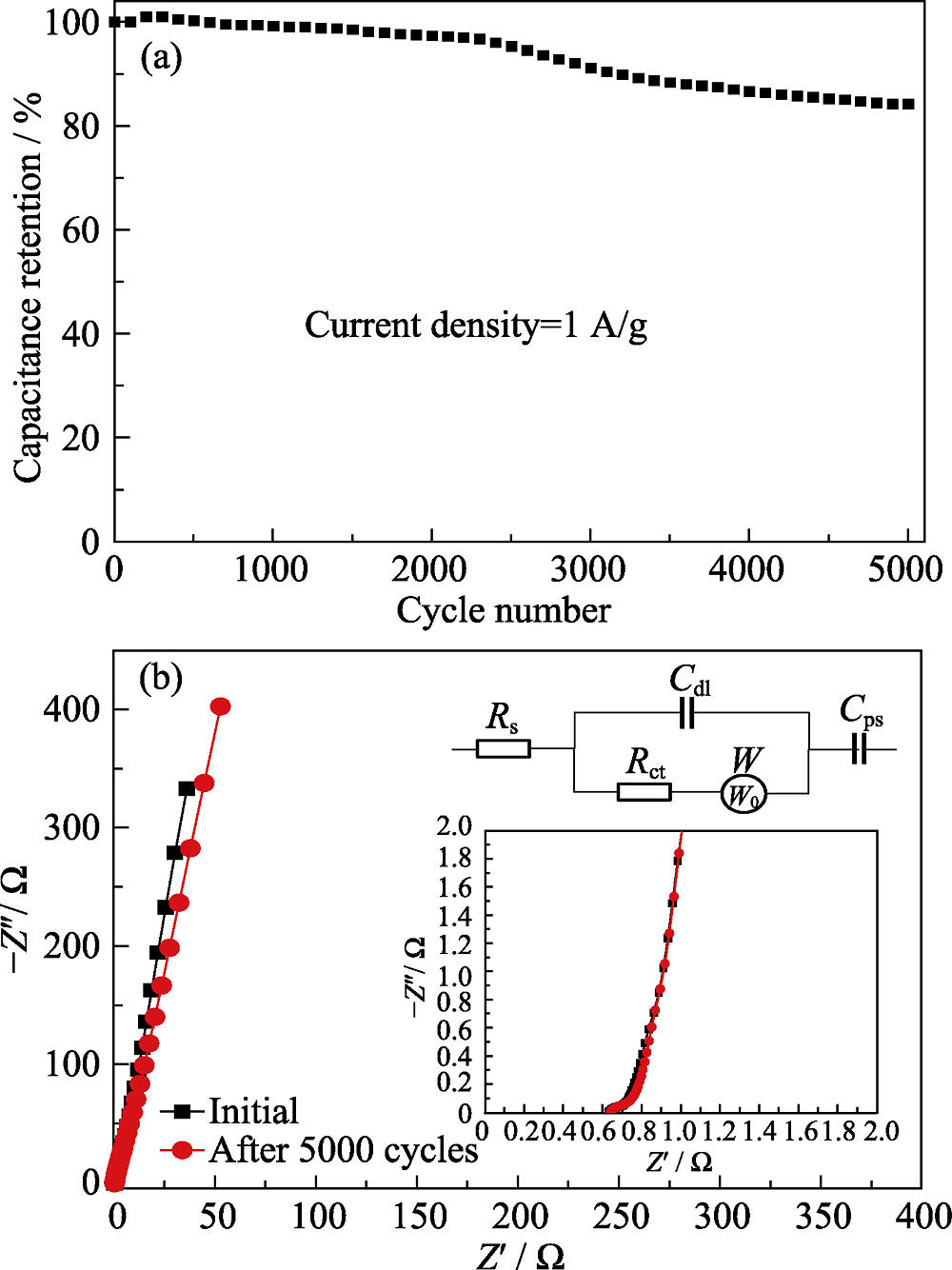

图7 (a) Co3O4@ACF-2样品在1 A/g 电流密度下经5000次充放电循环后比电容的变化曲线; (b) Co3O4@ACF-2样品在5000次充放电循环前后的Nyquist曲线(插图为局部放大图和等效电路图)

Fig. 7 (a) Cycling stability of the Co3O4@ACF-2 at a density of 1 A/g for 5000 cycles; (b) Nyquist plots of the Co3O4@ACF-2 before and after 5000 cycles with inserts showing magnified plots and equivalent circuit

参考文献 24

[1]	SIMON P, GOGOTSI A Y . Materials for electrochemical capacitors. Nature Materials, 2008,7(11):845-854.
[2]	CHEN S M . Recent advancements in electrode materials for the high-performance electrochemical supercapacitors: a review. Internatonal Journal of Electrochemical Science, 2014,9(8):4072-4085.
[3]	WANG G, ZHANG L, ZHANG J . A review of electrode materials for electrochemical supercapacitors. Chemical Society Reviews, 2012,41(2):797-828.
[4]	DYATKIN B, PRESSER V, HEON M , et al. Development of a green supercapacitor composed entirely of environmentally friendly materials. ChemSusChem, 2013,6(12):2269-2280. DOI URL PMID
[5]	FAN H, SHEN W . Gelatin-based microporous carbon nanosheets as high performance supercapacitor electrodes. ACS Sustainable Chemistry & Engineering, 2016,4(3):1328-1337. DOI URL
[6]	TIAN X D, LI X, YANG T , et al. Recent advances on synthesis and supercapacitor application of binary metal oxide. Journal of Inorganic Materials, 2017,32(5):461-468.
[7]	WANG C F, LU S, CHEN H L , et al. One-pot synthesis and application in asymmetric supercapacitors of Mn₃O₄@RGO nanocomposites. Journal of Inorganic Materials, 2016,31(6):581-587. DOI URL
[8]	WANG C W, WANG Y, GRASER J , et al. Solution-based carbohydrate synthesis of individual solid hollow and porous carbon nanospheres using spray pyrolysis. ACS Nano, 2013,7(12):11156-11165. DOI URL PMID
[9]	LI M, ZHANG Y Q, YANG L L , et al. Hollow melamine resin- based carbon spheres/graphene composite with excellent performance for supercapacitors. Electrochimica Acta, 2015,166:310-319. DOI URL
[10]	DENG D, KIM B S, GOPIRAMAN M , et al. Needle-like MnO₂/activated carbon nanocomposites derived from human hair as versatile electrode materials for supercapacitors. RSC Advances, 2015,5(99):81492-81498.
[11]	NAVEEN A N, MANIMARAN P, SELLADURAI S . Cobalt oxide (Co₃O₄)/graphene nanosheets (GNS) composite prepared by novel route for supercapacitor application. Journal of Materials Science: Materials in Electronics, 2015,26(11):8988-9000. DOI URL
[12]	HE G Y, LI J H, CHEN H Q , et al. Hydrothermal preparation of Co₃O₄@graphene nanocomposite for supercapacitor with enhanced capacitive performance. Materials Letters, 2012,82:61-63. DOI URL
[13]	DENG M G, WANG R Q, FENG Y H . Effect of petroleum coke expanding by HNO₃ on the performance of supercapacitor based on the activated carbon. Journal of Inorganic Materials, 2014,29(3):1-8. DOI URL
[14]	WANG R, SUI Y W, HUANG S F , et al. High-performance flexible all-solid-state asymmetric supercapacitors from nanostructured electrodes prepared by oxidation-assisted dealloying protocol. Chemical Engineering Journal, 2018,331:527-535. DOI URL
[15]	ZHOU X, CHEN Q, WANG A Q , et al. Bamboo-like composites of V₂O₅/polyindole and activated carbon cloth as electrodes for all-solid-state flexible asymmetric supercapacitors. ACS Applied Materials & Interfaces, 2016,8(6):3776-3783. DOI URL PMID
[16]	COTTINEAU T, TOUPIN M, DELAHAYE T , et al. Nanostructured transition metal oxides for aqueous hybrid electrochemical supercapacitors. Applied Physics A-Materials Science & Processing, 2006,82(4):599-606.
[17]	ZHANG C M, XIE L J, SONG W , et al. Electrochemical performance of asymmetric supercapacitor based on Co₃O₄/AC materials. Journal of Electroanalytical Chemistry, 2013,706(1):1-6. DOI URL
[18]	XIA X H, TU J P, MAI Y J , et al. Self-supported hydrothermal synthesized hollow Co₃O₄ nanowire arrays with high supercapacitor capacitance. Journal of Materials Chemistry, 2011,21(25):9319-9325. DOI URL
[19]	XIE L J, SU F Y, XIE L F , et al. Self-assembled 3D graphene- based aerogel with Co₃O₄ nanoparticles as high-performance asymmetric supercapacitor electrode. ChemSusChem, 2015,8(17):2917-2926. DOI URL PMID
[20]	KUMAR N, YU Y C, LU Y H , et al. Fabrication of carbon nanotube/cobalt oxide nanocomposites via electrophoretic deposition for supercapacitor electrodes. Journal of Materials Science, 2016,51(5):2320-2329. DOI URL
[21]	ZHU P, CAI T, HAN G Y , et al. Preparation and electrochemical performance of PPy/GO-RuO₂ film electrode for micro- supercapacitor. Journal of Inorganic Materials, 2015,30(5):505-510.
[22]	WANG K, ZHAO N, LEI S , et al. Promising biomass-based activated carbons derived from willow catkins for high performance supercapacitors. Electrochimica Acta, 2015,166:1-11. DOI URL
[23]	FENG C, ZHANG J F, HE Y , et al. Sub-3 nm Co₃O₄ nanofilms with enhanced supercapacitor properties. ACS Nano, 2015,9(2):1730-1739.
[24]	MA L, ZHOU H, SHEN X , et al. Facile synthesis of Co₃O₄ porous nanosheets/reduced graphene oxide composites and their excellent supercapacitor performance. RSC Advanced, 2014,4(95):53180-53187.
