DCP法W/ZrC金属陶瓷的激光烧蚀行为研究

doi:10.15541/jim20170089

摘要/Abstract

摘要：

采用DCP法制备了W/ZrC金属陶瓷, 然后研究了在不同激光能量和烧蚀时间下W/ZrC金属陶瓷的激光烧蚀行为。研究表明: W/ZrC金属陶瓷在激光烧蚀过程中产生了一个较小的烧蚀坑, 烧蚀坑的深度随着激光能量的增加和烧蚀时间的延长而增大。在烧蚀坑的周围, 许多不同种类和结构的氧化物堆积组成了几个同心环。铜的挥发和氧化锆层的形成对防止W/ZrC金属陶瓷进一步氧化有着重要作用。

关键词: W/ZrC金属陶瓷, 激光烧蚀, 微观结构

Abstract:

W/ZrC cermet was successfully fabricated by a Displacive Compensation of Porosity method, and then laser ablation behaviors of W/ZrC cermet under different laser energy and ablation time were studied. Results showed that a small ablation pit was produced on the W/ZrC cermet during the laser ablation, and depth of the ablation pit increased with increasing laser power and prolonging ablation time. Besides, several homocentric loops which had different kinds and microstructures of oxides were formed around the ablation pit. The volatilization of residual Cu and formation of ZrO₂ layer played significant roles in protecting W/ZrC cermet from being further oxidized during the laser ablation.

Key words: W/ZrC cermet, laser ablation, microstructure

中图分类号:

TQ174

余艺平, 王松, 李伟. DCP法W/ZrC金属陶瓷的激光烧蚀行为研究[J]. 无机材料学报, 2017, 32(12): 1332-1336.

YU Yi-Ping, WANG Song, LI Wei. Laser Ablation Behavior of W/ZrC Cermet Fabricated by Displacive Compensation of Porosity (DCP) Method[J]. Journal of Inorganic Materials, 2017, 32(12): 1332-1336.

图/表 5

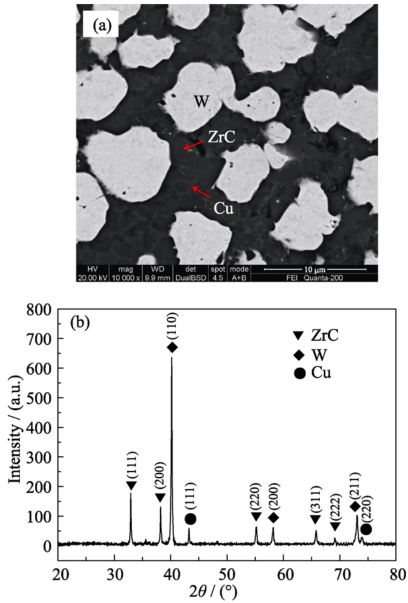

Fig. 1 Backscattered electron image (a) and XRD pattern (b) of W/ZrC cermet fabricated by DCP method

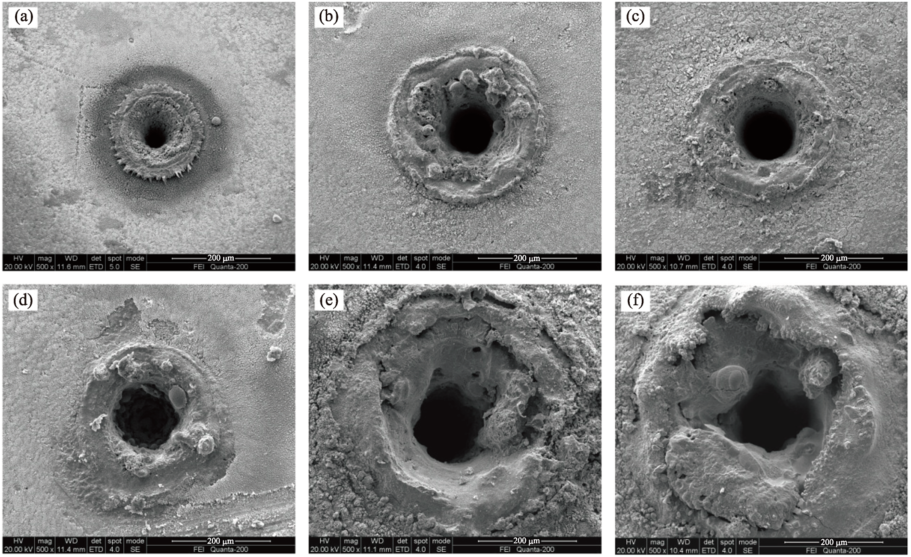

Fig. 2 Morphologies of the laser ablation surface of W/ZrC cermet Under different laser energy for 30 s: (a) 10 J/s; (b) 20 J/s; (c) 30 J/s Under different ablation time with a 30 J/s laser: (d) 5 s; (e) 60 s; (f) 120 s

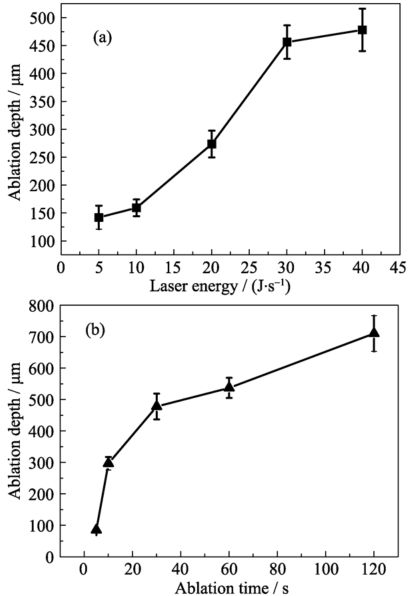

Fig. 3 The laser ablation depth of W/ZrC cermet (a) Under different laser energy for 30 s; (b) Under different ablation time with a 30 J/s laser

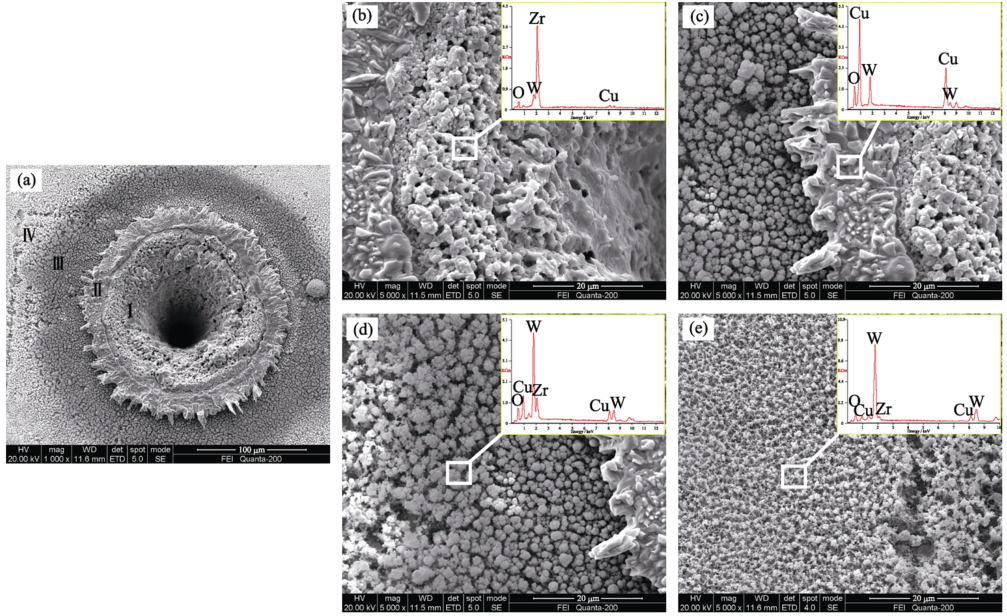

Fig. 4 Morphologies and EDS analysis of the laser ablation surface of W/ZrC cermet^(a) Macro morphology; (b-e) Micro morphologies relative to part I -IV, respectively

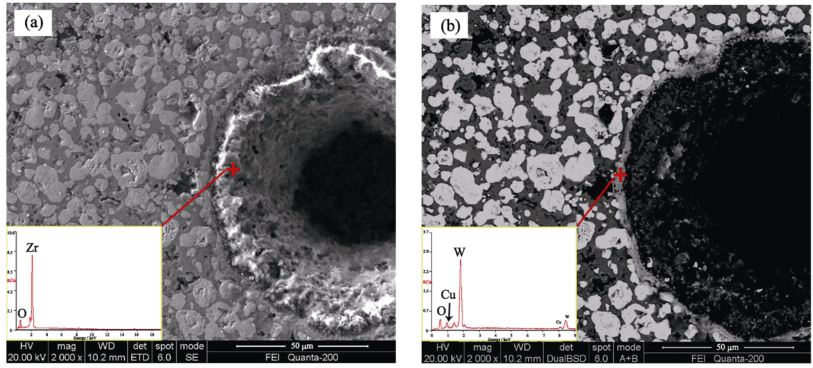

Fig. 5 Secondary electron image and backscattered electron image of the polished surface of ablation pit of W/ZrC cermet

参考文献 16

[1]	YIH S W, WANG C T.Tungsten-sources, Metallurgy, Properties and Application. New York: Plenum, 1979: 35.
	LASSNER E, SCHUBERT W D.Tungsten Properties Chemistry Technology of the Element Alloys and Chemical Compounds. New York: Plenum, 1999: 13, 16.
[2]	CIFUENTES S C, MONGE M A, PEREZ P.On the oxidation mechanism of pure tungsten in the temperature range 600 - 800℃. Corrosion Science, 2012, 57: 114-121.
[3]	DICKERSON M B, SNYDER R L, SANDHAGE K H.Dense, near net-shaped, carbide/refractory metal composites at modest temperatures by the displacive compensation of porosity (DCP) method.Journal of the American Ceramic Society, 2002, 85(3): 730-732.
[4]	ZHANG S M, SONG W, LI W,et al Microstructure and properties of W-ZrC composites prepared by the displacive compensation of porosity (DCP) method.Journal of Alloys and Compounds, 2011, 509: 8327-8332.
[5]	DICKERSON M B, WURM P J, SCHORR J R,et al. Near net- shape, ultra-high melting, recession-resistant ZrC/W-based rocket nozzle liners via the displacive compensation of porosity (DCP) method. Journal of Materials Science, 2004, 39: 6005-6015.
[6]	SONG G M, ZHOU Y, WANG Y J.Effect of carbide particles on the ablation properties of tungsten composites.Materials Characterization, 2003, 50: 293-303.
[7]	WANG Y J, ZHOU Y, SONG G M,et al Plasma ablation behavior of ZrCp/W composites.Rare Metal Materials and Engineering, 2009, 38(5): 830-833.
[8]	WANG Y J, ZHOU Y, SONG G M,et al. High temperature tensile properties of 30 vol. pct ZrCp/W composite. Journal of Materials Science and Technology, 2003, 19(2): 167-170.
[9]	ZHANG T Q, WANG Y J, ZHOU Y,et al. Effect of ZrC particle size on microstructure and room temperature mechanical properties of ZrCp/W composites. Materials Science and Engineering A, 2010, 527: 4021-4027.
[10]	SONG G M, WANG Y J, ZHOU Y.The mechanical and thermophysical properties of ZrC/W composites at elevated temperature.Materials Science and Engineering A, 2002, 334: 223-232.
[11]	KIM J H, SEO M, KANG S.Effect of carbide particle size on the properties of W-ZrC composites.Journal of Refractory Metals and Hard Materials, 2012, 35: 49-54.
[12]	ZHANG S C, HILMAS G E, FAHERNHOLTZ W G.Zirconium carbide- tungsten cermets prepared by in situ reaction sintering. Journal of the American Ceramic Society, 2007, 90: 1930-1933.
[13]	ROOSTA M, BAHARVANDI H.The change occurred in W/ZrC composite properties by using nano reactants.Journal of Refractory Metals and Hard Materials, 2013, 37: 29-32.
[14]	ZHANG S M, SONG W, LI W, ,et al. Fabrication of W-ZrC cermets by reactive melt infiltration with polycarbosilane as preforms’ adhesive.Materials Science Forum, 2011, 675-677: 819-822.
[15]	LIU Q M, ZHANG L T, JIANG F R,et al Laser ablation behaviors of SiC-ZrC coated carbon/carbon composites.Surface & Coatings Technology, 2011, 205: 4299-4303.
[16]	ZHU Y L, WANG S, LI W,et al Preparation of carbon fiber- reinforced zirconium carbide matrix composites by reactive melt infiltration at relative low temperature.Scripta Materialia, 2012, 67: 822-825.
