Journal of Inorganic Materials ›› 2020, Vol. 35 ›› Issue (2): 158-164.DOI: 10.15541/jim20190105

Special Issue: 生物材料论文精选(2020) 【虚拟专辑】抗菌材料(2020~2021)

• RESEARCH PAPER • Previous Articles     Next Articles

Titanium Modified by Copper Ion Implantation: Anti-bacterial and Cellular Behaviors

LI Kun-Qiang1,2,QIAO Yu-Qin1,LIU Xuan-Yong1,2()

  1. 1. The State Key Lab of High Performance Ceramics and Superfine Microstructure, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China
    2. Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China
  • Received:2019-03-09 Revised:2019-04-03 Published:2020-02-20 Online:2019-05-29
  • Supported by:
    National Key Research and Development Program of China(2016YFC1100604);National Natural Science Foundation of China(51831011);Science Foundation for Youth Scholar of State Key Laboratory of High Performance Ceramics and Superfine Microstructures(SKL201606)

Abstract:

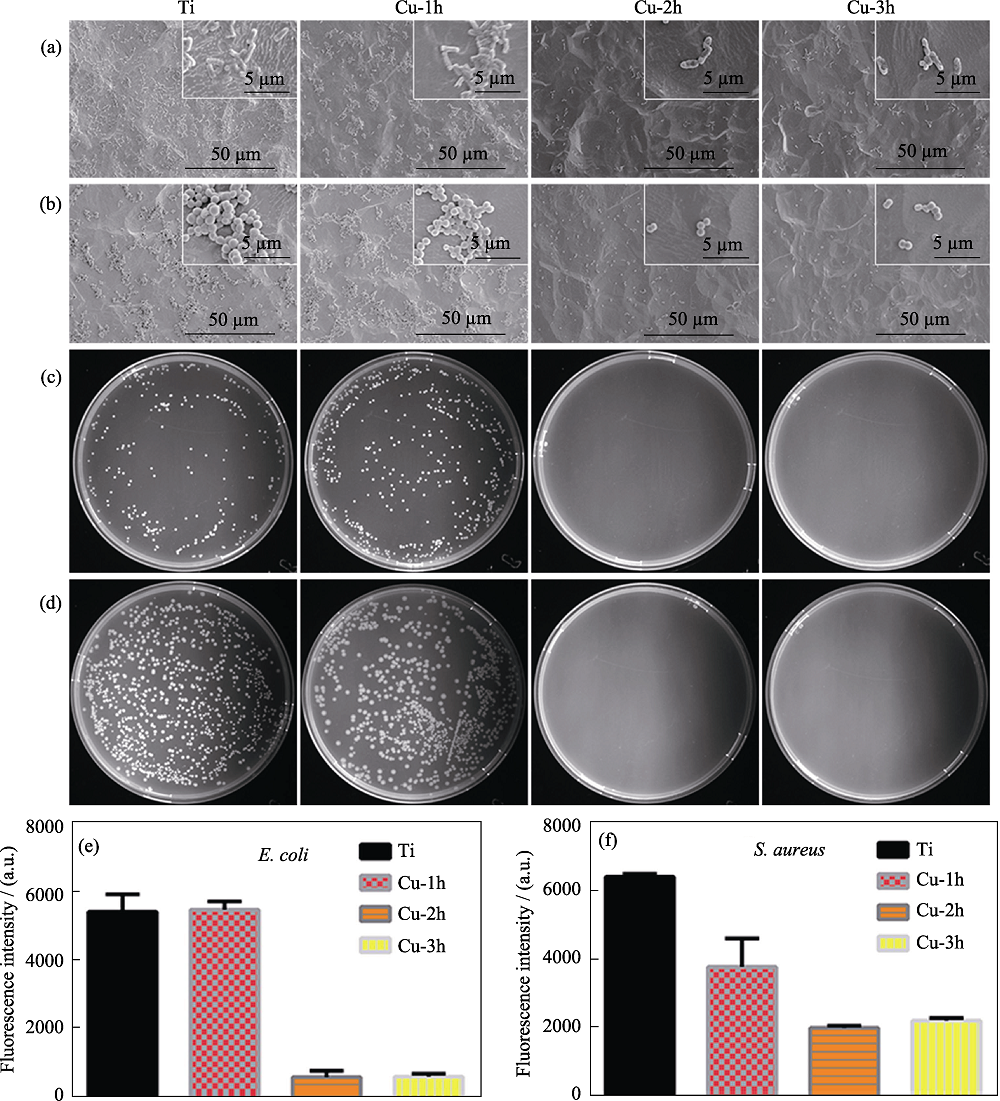

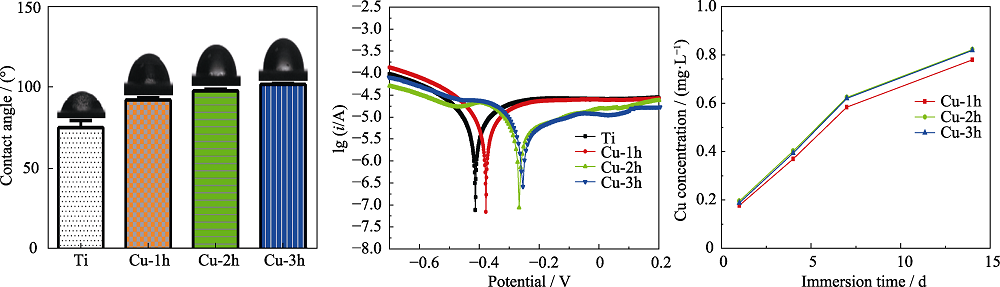

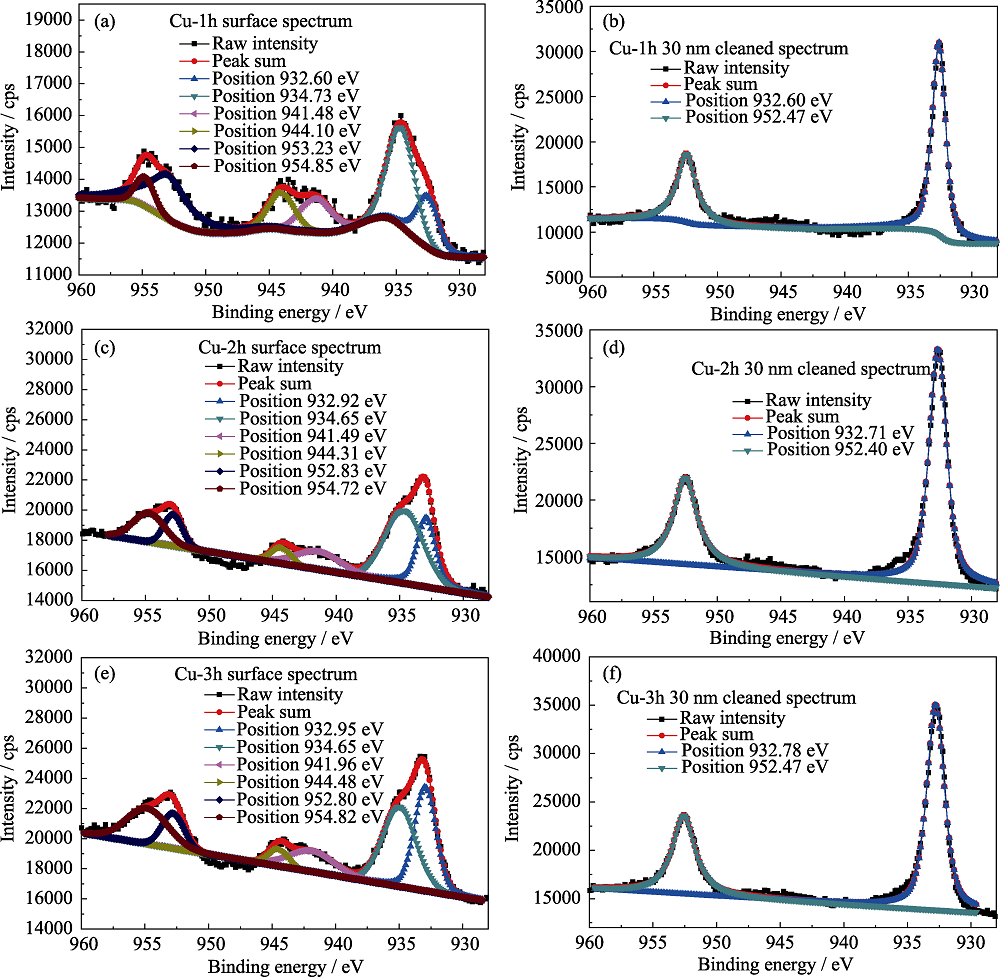

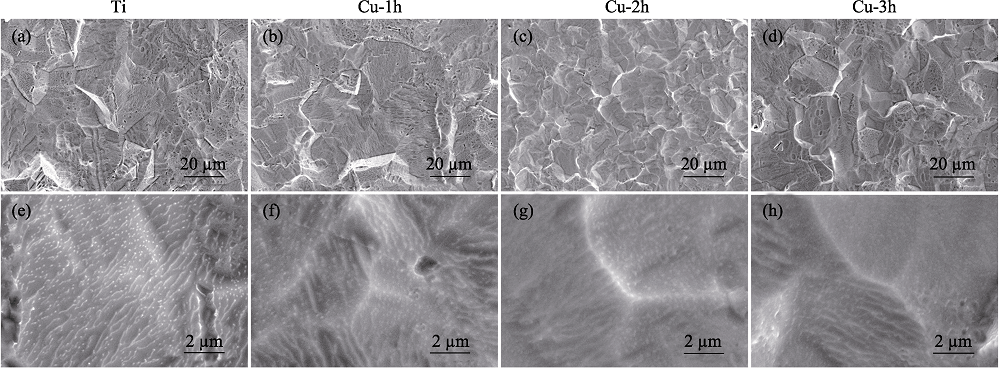

Titanium and its alloys have been wildly used as bone implants. However, it is still facing a severer issue: implant related infections due to the lack of antibacterial ability. Copper (Cu) has good antibacterial ability and can be used to improve the anti-infection capability of titanium. In this study, three kinds of Ti samples with different contents of Cu in the modified layer were prepared by plasma immersion ion implantation (PIII) technology, and their responses to bacteria and cells were explored in vitro. The results showed that the sample with low Cu content at the surface could promote the proliferation of rat bone marrow mesenchymal stem cells (rBMSCs) and human umbilical vein endothelial cells (HUVECs) but not inhibit the proliferation of Escherichia coli (E. coli) and Staphylococcus aureus (S. aureus). As the implantation time extends, antibacterial ability of the samples with high Cu content at the surface was significantly enhanced, and no obvious cytotoxicity was observed. Therefore, it is possible to acquire a balance between antibacterial ability and biocompatibility of Ti by controlling the contents of Cu in the modified layer.

Key words: ion implantation, biocompatibility, copper, antibacterial

CLC Number:
