Shi-Qiang LUO, Chun-Man ZHENG, Wei-Wei SUN, Wei XIE, Jian-Huang KE, Shuang-Ke LIU, Xiao-Bin HONG, Yu-Jie LI, Jing XU. Controllable Preparation of Co-NC Nanoporous Carbon Derived from ZIF-67 for Advanced Lithium-sulfur Batteries[J]. Journal of Inorganic Materials, 2019, 34(5): 502-508.

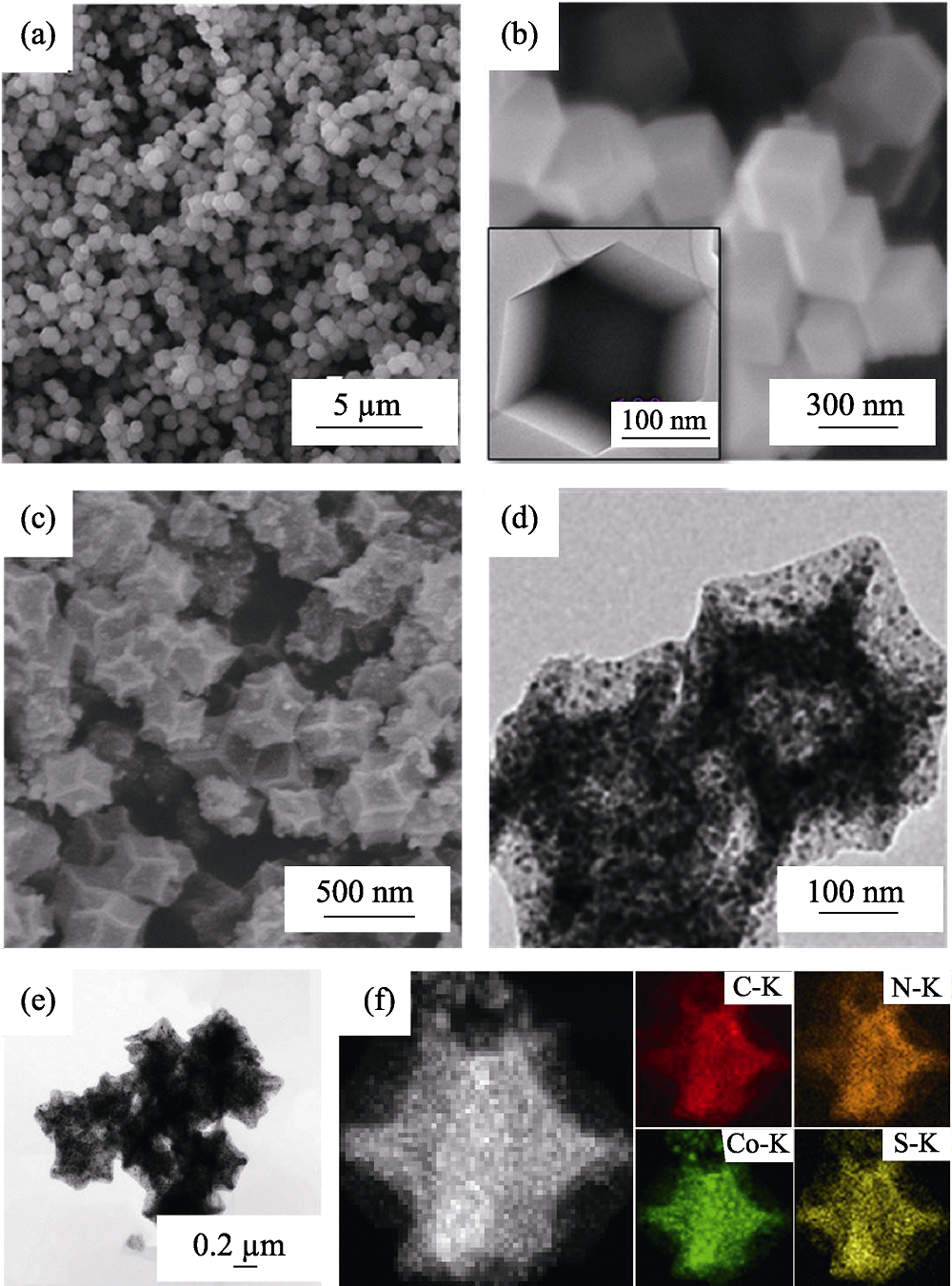

Fig. 2 (a,c) SEM and (b,d) TEM images of (a-b) ZIF-67 precursors and (c-d) Co-NC (48 h); (e) TEM image and (f) EDS elemental mappings of S/Co-NC (48 h) composite
Sample | BET surface area/(m2?g-1) | Pore diameter /nm | Pore volume /(cm3?g-1) |
---|---|---|---|
ZIF-67 | 1481.22 | 1.9919 | 0.7252 |
Co-NC(0 h) | 272.15 | 8.2433 | 0.5608 |
Co-NC(6 h) | 301.73 | 8.7121 | 0.6571 |
Co-NC(24 h) | 344.41 | 9.6929 | 0.7016 |
Co-NC(48 h) | 360.50 | 9.7984 | 0.8124 |
Table 1 BET results of ZIF-67 and Co-NC composites
Sample | BET surface area/(m2?g-1) | Pore diameter /nm | Pore volume /(cm3?g-1) |
---|---|---|---|
ZIF-67 | 1481.22 | 1.9919 | 0.7252 |
Co-NC(0 h) | 272.15 | 8.2433 | 0.5608 |
Co-NC(6 h) | 301.73 | 8.7121 | 0.6571 |
Co-NC(24 h) | 344.41 | 9.6929 | 0.7016 |
Co-NC(48 h) | 360.50 | 9.7984 | 0.8124 |
Fig. 4 (a) N2 adsorption-desorption isotherms and (b) pore size distributions of ZIF-67 and Co-NC(0~48 h) samples, (c) curves of variation trend of BET surface area and pore volume of Co-NC composites with increased etching time
Sample | Co-NC(0 h) | Co-NC(6 h) | Co-NC(24 h) | Co-NC(48 h) |
---|---|---|---|---|
Co/wt% | 37.55 | 23.29 | 16.24 | 15.93 |
N/wt% | 6.68 | 8.36 | 8.79 | 8.78 |
N/C | 0.1070 | 0.1089 | 0.1056 | 0.1045 |
Table 2 Elemental content of Co and N in Co-NC composites and N/C ratio data
Sample | Co-NC(0 h) | Co-NC(6 h) | Co-NC(24 h) | Co-NC(48 h) |
---|---|---|---|---|
Co/wt% | 37.55 | 23.29 | 16.24 | 15.93 |
N/wt% | 6.68 | 8.36 | 8.79 | 8.78 |
N/C | 0.1070 | 0.1089 | 0.1056 | 0.1045 |

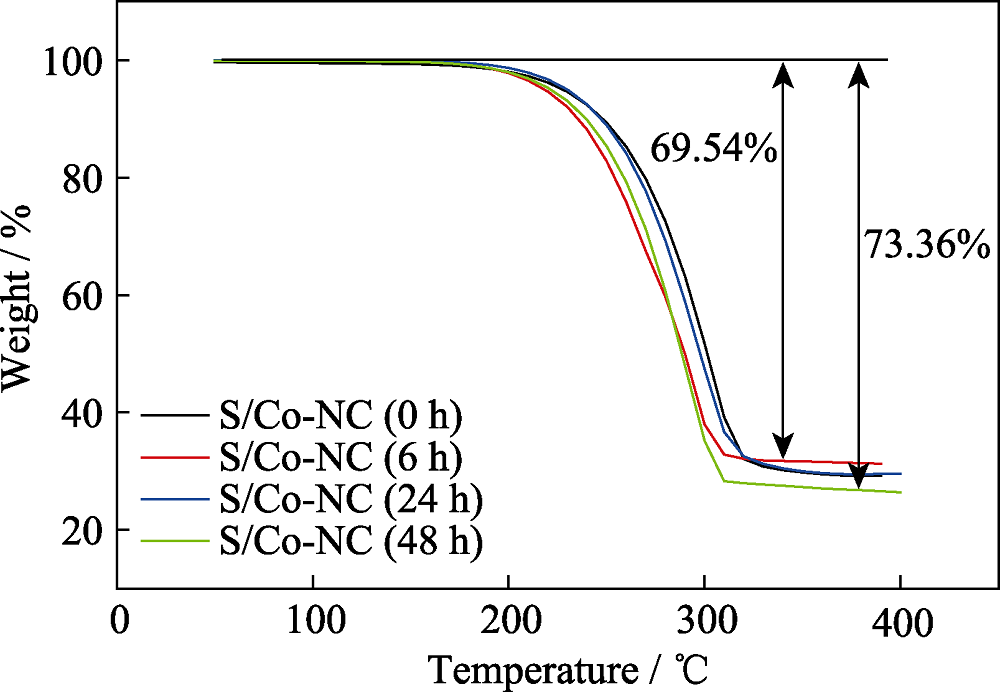

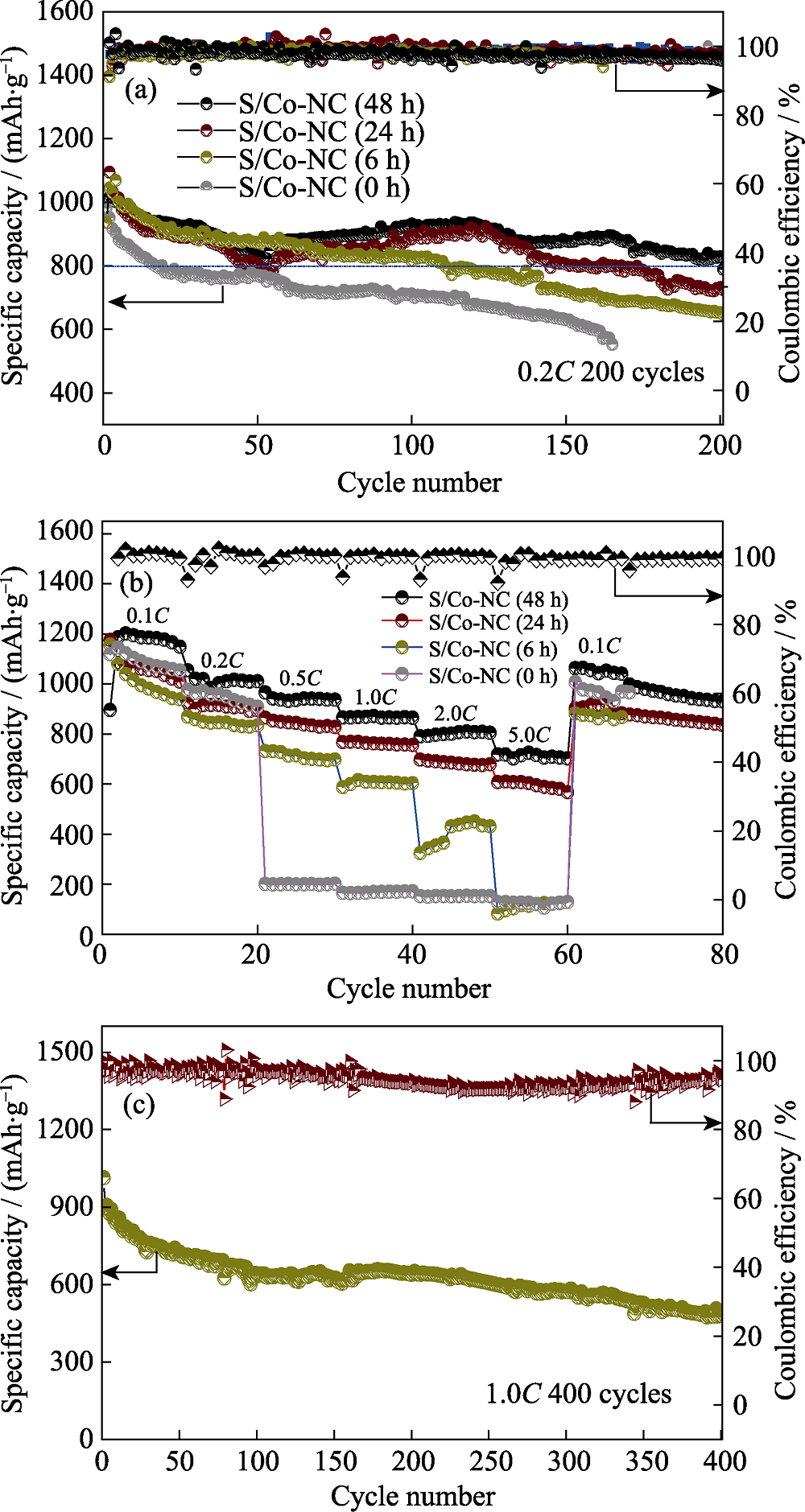

Fig. 7 (a) Cycle performances and (b) rate capabilities of S/Co-NC(0~48 h) electrodes with different Co contents; (c) Long-cycle performance of S/Co-NC(48 h) at 1.0C current density
