Effect of Calcination Temperature of Cu-Mn/γ-Al2O3 Catalysts on Performance for Catalytic Oxidation of Toluene

doi:10.15541/jim20140672

Abstract

Abstract:

Cu-Mn/γ-Al₂O₃ catalysts were prepared by impregnation method and calcined at different temperatures (300-600℃), which were characterized by XRD, BET, H₂-TPR and XPS. Their performances for catalytic oxidation of toluene were evaluated in a fixed-bed tubular reactor, and the correlation of catalytic activity with active phases or mole ratios of both Cu⁺/(Cu⁺+Cu²⁺) and Mn⁴⁺/(Mn⁴⁺+Mn³⁺) was discussed. Among all catalysts, the Cu-Mn/ γ-Al₂O₃ catalyst calcined at 550℃ shows the best catalytic activity, with a lowest reaction temperature (T₉₅is 286℃) and 100% selectivity of CO₂. The generation of new phase (Cu_1.4Mn_1.6O₄) and more amount of Cu⁺ and Mn⁴⁺ ions present on the surface of the catalyst calcined at 550℃ are responsible for its high activity.

Key words: copper-manganese oxide, catalytic oxidation, toluene, calcination temperature

CLC Number:

TQ174

ZHENG Yi-Fan, ZHONG Shu-Bin, LV De-Yi, ZHOU Huan, HUAN Chang-Yong. Effect of Calcination Temperature of Cu-Mn/γ-Al₂O₃ Catalysts on Performance for Catalytic Oxidation of Toluene[J]. Journal of Inorganic Materials, 2015, 30(7): 694-698.

Figures/Tables 8

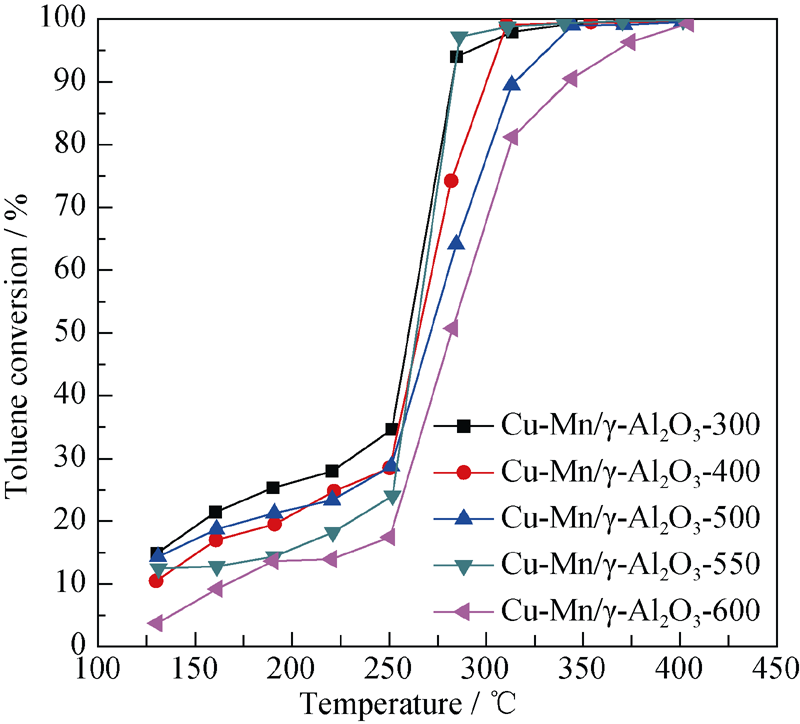

Fig. 1 Toluene conversion as a function of the reaction temperature for Cu-Mn/γ-Al2O3 catalysts calcined at various temperatures

Table 1 T50, T95 and speciﬁc surface areas (SSA) for Cu-Mn/γ-Al2O3 catalysts calcined at various temperatures

Catalysts	T₅₀/℃	T₉₅/℃	SSA/(m²•g^-1)
Cu-Mn/γ-Al₂O₃-300	263	287	78
Cu-Mn/γ-Al₂O₃-400	265	301	73
Cu-Mn/γ-Al₂O₃-500	277	324	75
Cu-Mn/γ-Al₂O₃-550	276	286	70
Cu-Mn/γ-Al₂O₃-600	282	369	57

Table 2 Crystalline phases and crystalline size of Cu-Mn/γ-Al2O3 catalysts calcined at various temperatures

Calcination temperature/℃	Crystalline phases	Crystalline phases
Calcination temperature/℃	Crystalline phases	CuO	Cu_1.4Mn_1.6O₄
300	CuO, Cu_0.451Mn_0.549O₂, γ-Al₂O₃	18.5	-
400	CuO, Cu_0.451Mn_0.549O₂, γ-Al₂O₃	20.0	-
500	CuO, Cu_0.451Mn_0.549O₂, γ-Al₂O₃	21.0	-
550	CuO, Cu_1.4Mn_1.6O₄, γ-Al₂O₃	23.0	20
600	CuO, Cu_1.4Mn_1.6O₄, γ-Al₂O₃	26.0	25

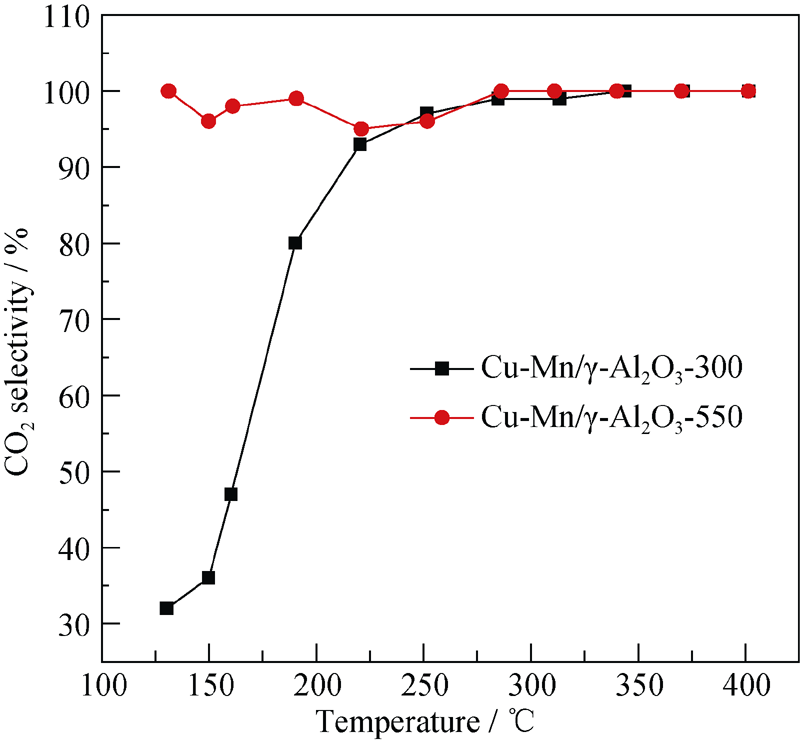

Fig. 2 CO2 selectivity as a function of the reaction temperature for Cu-Mn/γ-Al2O3 catalysts calcined at 300℃and 550℃

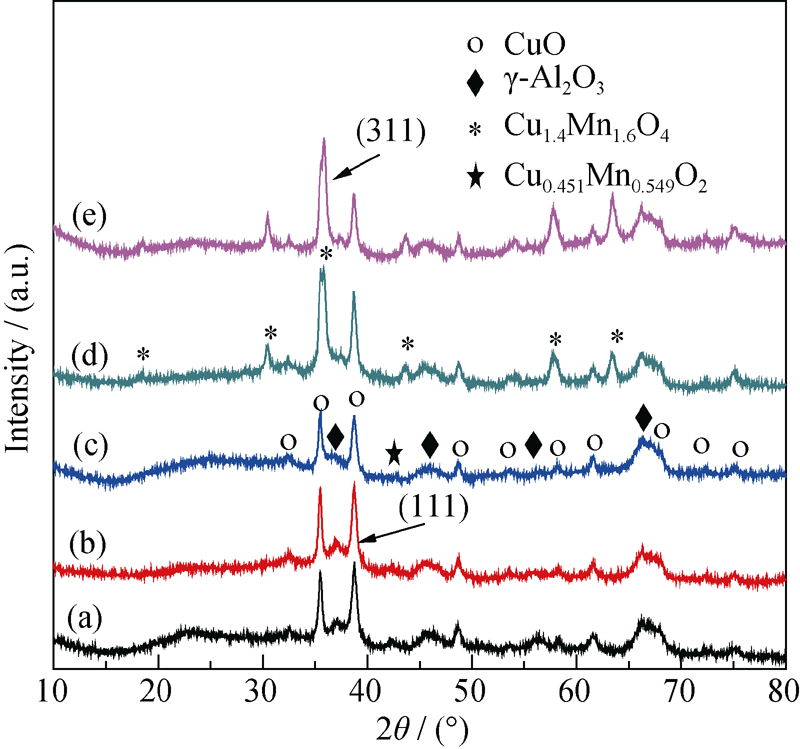

Fig. 3 XRD patterns of Cu-Mn/γ-Al2O3 catalysts calcined at various temperatures (a) Cu-Mn/γ-Al2O3-300; (b) Cu-Mn/γ-Al2O3-400; (c) Cu-Mn/γ-Al2O3-500; (d) Cu-Mn/γ-Al2O3-550; (e) Cu-Mn/γ-Al2O3-600

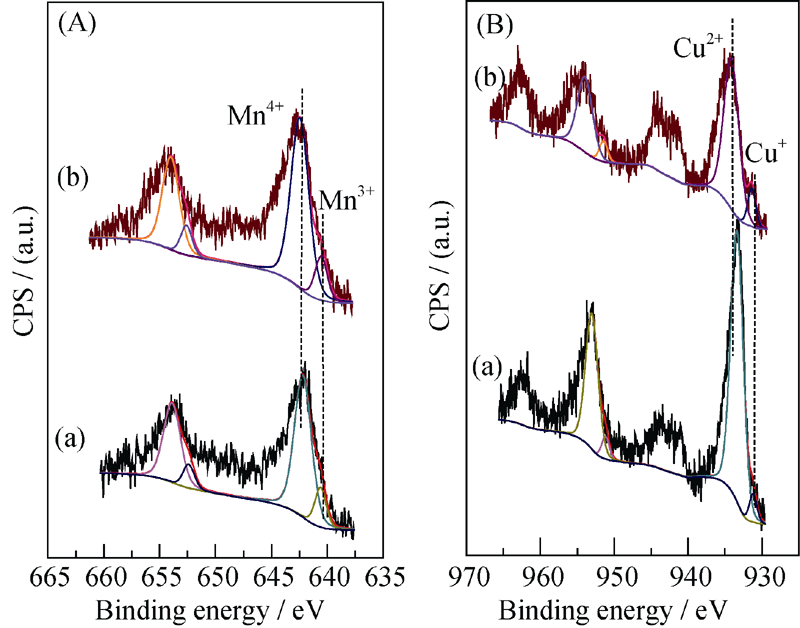

Fig. 4 Mn2p (A) and Cu2p (B) XPS spectra of Cu-Mn/γ- Al2O3 catalysts calcined at various temperatures (a) Cu-Mn/γ-Al2O3-400; (b) Cu-Mn/γ-Al2O3-550

Table 3 Binding energy of Cu2p and Mn2p and proportion of Cu +and Mn4+ in all Cu and Mn of Cu-Mn/γ-Al2O3 catalysts calcined at various temperatures

Catalysts	Binding energy/eV				Cu⁺/(Cu⁺+Cu²⁺)	Mn^{4 +}/(Mn³⁺+Mn^{4 +})
Catalysts	Cu⁺	Cu²⁺	Mn^{3 +}	Mn⁴⁺	Cu⁺/(Cu⁺+Cu²⁺)	Mn^{4 +}/(Mn³⁺+Mn^{4 +})
Cu-Mn/γ-Al₂O₃-300	-	933.8	641.2	642.5	-	0.85
Cu-Mn/γ-Al₂O₃-400	931.2	933.4	641.1	642.4	0.06	0.82
Cu-Mn/γ-Al₂O₃-500	931.1	933.4	641.0	642.3	0.07	0.80
Cu-Mn/γ-Al₂O₃-550	931.4	934.1	641.0	642.5	0.12	0.86
Cu-Mn/γ-Al₂O₃-600	931.4	934.1	641.1	642.5	0.11	0.81

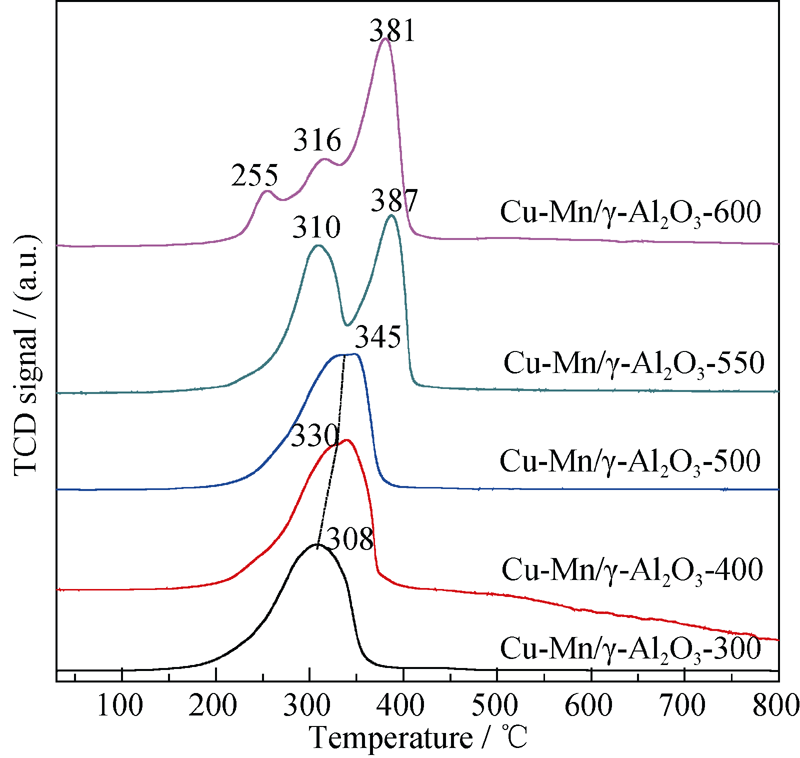

Fig. 5 H2-TPR profiles of Cu-Mn/γ-Al2O3 catalysts calcined at various temperatures

References 17

[1]	LAMB ARTHUR B, BRAY WILLIAM C, FRAZER J C W. The removal of carbon monoxide from air.Journal of Industrial and Engineering Chemistry, 1920, 12(3): 213-221.
[2]	AGUERO FABIOLA N, BARBERO BIBIANA P, GAMBARO LUIS, et al.Catalytic combustion of volatile organic compounds in binary mixtures over MnOx/Al2O3 catalyst.Applied Catalysis B: Environmental, 2009, 91(1/2): 108-112.
[3]	JONES CHRISTOPHER, COLE KIERAN J, TAYLOR STUART H, et al.Copper manganese oxide catalysts for ambient temperature carbon monoxide oxidation: Effect of calcination on activity.Journal of Molecular Catalysis A: Chemical, 2009, 305(1/2):121-124.
[4]	DOGGALI PRADEEP, TERAOKA Y, MUNGSE P, et al.Combustion of volatile organic compounds over Cu-Mn based mixed oxide type catalysts supported on mesoporous Al2O3, TiO2 and ZrO2.Journal of Molecular Catalysis A:Chemical, 2012, 358: 23-30.
[5]	ROXANA MORALES MARIA, BARBERO BIBIANA P, LOPEZ TESSY, et al.Evaluation and characterization of Mn-Cu mixed oxide catalysts supported on TiO2 and ZrO2 for ethanol total oxidation.Fuel, 2009, 88(11): 2122-2129.
[6]	MORALES MARIA ROXANA, BARBERO BIBIANA P, CADUS LUIS E.Evaluation and characterization of Mn-Cu mixed oxide catalysts for ethanol total oxidation:Influence of copper content.Fuel, 2008, 87(7): 1177-1186.
[7]	CAO HONGYAN, LI XIAOSHUANG, CHEN YAOQIANG, et al.Effect of loading content of copper oxides on performance of Mn-Cu mixed oxide catalysts for catalytic combustion of benzene.Journal of Rare Earths, 2012, 30(9): 871-877.
[8]	BEHAR SIHAM, GONZALEZ PHILIPPE, AGULHON PIERRE, et al.New synthesis of nanosized Cu-Mn spinels as efficient oxidation catalysts.Catalysis Today, 2012, 189(1): 35-41.
[9]	LI W B, ZHUANG M, WANG J X.Catalytic combustion of toluene on Cu-Mn/MCM-41 catalysts:Influence of calcination temperature and operating conditions on the catalytic activity.Catalysis Today, 2008, 137(2/3/4): 340-344.
[10]	VU VAN HINH, BELKOUCH JARNAL, OULD-DRIS AIESSA, et al.Catalytic oxidation of volatile organic compounds on manganese and copper oxides supported on titania.American Institute of Chemical Engineers Journal, 2008, 54(6): 1585-1591.
[11]	CHEN HONG, WANG JIHUI, LI HE, et al. Low temperature combustion of ethylene in a carbon dioxide stream over a cordierite monolith-supported Cu-Mn Hopcalite catalyst. Applied Catalysis A:General, 2012, 427-428: 73-78.
[12]	VEPREK S, COCKE D L, KEHL S, et al.Mechanism of the deactivation of hopcalite catalysts studied by XPS, ISS and other techniques.Journal of Catalysis, 1986, 100: 250-263.
[13]	OKU MASAOKI, HIROKAWA KICHINOSUKE.X-ray photoelectron spectroscopy of Co3O4, Fe3O4, Mn3O4 and related compounds.Journal of Electron Spectroscopy and Related Phenomena, 1976, 8: 475-481.
[14]	MIRZAEI A A, SHATERIAN H R, KAYKHAII M.The X-ray photoelectron spectroscopy of surface composition of aged mixed copper manganese oxide catalysts.Applied Surface Science, 2005, 239(2): 246-254.
[15]	TANG QINGHU, GONG XIAONAN, ZHAO PEIZHENG, et al.Copper-manganese oxide catalysts supported on alumina:Physicochemical features and catalytic performances in the aerobic oxidation of benzyl alcohol.Applied Catalysis A:General, 2010, 389(1/2): 101-107.
[16]	CHEN HONG, TONG XINLI, LI YONGDAN.Mesoporous Cu-Mn Hopcalite catalyst and its performance in low temperature ethylene combustion in a carbon dioxide stream.Applied Catalysis A: General, 2009, 370(1/2): 59-65.
[17]	MORALES M R, BARBERO B P, CADUS L E.Total oxidation of ethanol and propane over Mn-Cu mixed oxide catalysts.Applied Catalysis B: Environmental, 2006, 67(3/4): 229-236.
