混合超微孔材料中CO2/N2吸附与分离的理论研究

doi:10.15541/jim20190214

摘要/Abstract

摘要：

碳捕获与封存技术是一种具有前景的CO₂减排策略。本工作采用巨正则蒙特卡洛模拟研究了温度为298 K、压强在0~5 kPa范围内三种混合超微孔材料SIFSIX-X-Cu(以SiF₆ ^2-排列, Cu为金属中心, X=2, 3, O)中CO₂/N₂吸附与分离的行为。结果显示, 相比于SIFSIX-2-Cu, SIFSIX-3-Cu和SIFSIX-O-Cu中CO₂在0.5 kPa就达到吸附饱和, 且在1 kPa下的吸附量分别达到了2.70与2.39 mmol·g ^-1。CO₂/N₂混合气体中CO₂的吸附量几乎没有下降。SIFSIX-3-Cu和SIFSIX-O-Cu具有接近于CO₂分子动力学直径的孔径, 对CO₂亲和力较大, 吸附热分别达到了59和66 kJ·mol ^-1。密度泛函理论分析发现, 在两种结构中每个孔隙只吸附一个CO₂分子, 且几乎处于孔道的中心。本工作为低压下吸附与分离CO₂的混合超微孔材料的开发提供了理论指导。

关键词: 巨正则蒙特卡洛, 混合超微孔材料, 吸附, 分离

Abstract:

Carbon capture and storage (CCS) is a promising strategy for reduction of CO₂ emissions. Herein, CO₂/N₂ adsorption and separation in three SIFSIX-X-Cu (arrayed via SiF₆ ^2- with Cu metal center, X = 2, 3, O) hybrid ultramicroporous materials at 298 K within 0-5 kPa were investigated by using grand canonical Monte Carlo (GCMC) simulation. Results showed that, in contrast to SIFSIX-2-Cu, CO₂ adsorption in SIFSIX-3-Cu and SIFSIX-O-Cu reached saturation at 0.5 kPa and their CO₂ adsorption capacity were 2.70 and 2.39 mmol·g ^-1 at 1 kPa, respectively. The CO₂ adsorption capacity in CO₂/N₂ mixture barely decreased. SIFSIX-3-Cu and SIFSIX-O-Cu owned close pore sizes to CO₂ dynamics diameter, thereby exhibiting high CO₂ affinity with adsorption heat of 59 and 66 kJ·mol ^-1, respectively. Density functional theory (DFT) analyses showed only one CO₂ molecule could be adsorbed in each hole and located at the center of SIFSIX-3-Cu and SIFSIX-O-Cu. Our results provide a theoretical guidance for developing ultramicroporous materials in adsorption and separation of CO₂ at low pressure.

Key words: grand-canonical Monte Carlo, hybrid microporous materials, adsorption, separation

中图分类号:

O611

鲁效庆,王茂槐. 混合超微孔材料中CO₂/N₂吸附与分离的理论研究[J]. 无机材料学报, 2020, 35(4): 469-474.

LU Xiaoqing,WANG Maohuai. Theoretical Investigation on Adsorption and Separation of CO₂/N₂ in Hybrid Ultramicroporous Materials[J]. Journal of Inorganic Materials, 2020, 35(4): 469-474.

图/表 8

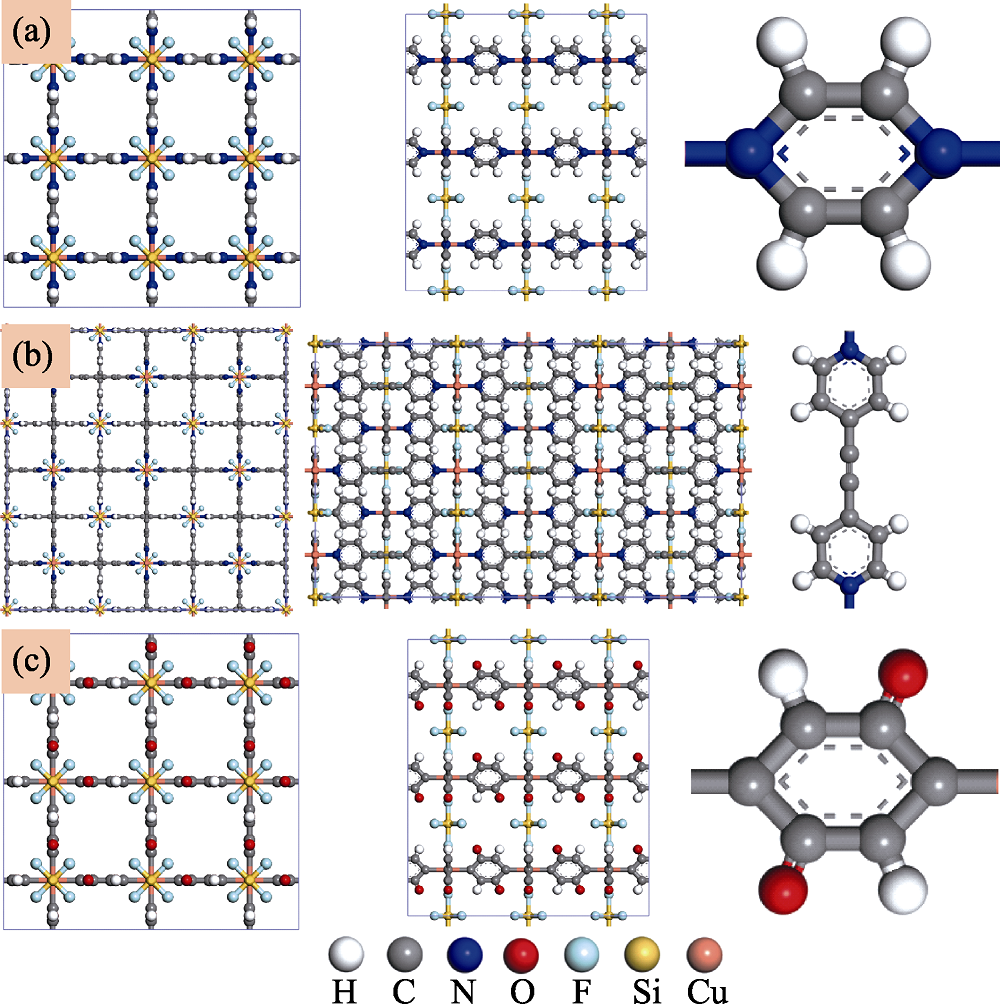

图1 (a) SIFSIX-3-Cu、(b) SIFSIX-2-Cu和(c) SIFSIX-O-Cu的SIFSIX-X-Cu结构

Fig. 1 Structures of SIFSIX-X-Cu: (a) SIFSIX-3-Cu; (b) SIFSIX-2-Cu; (c) SIFSIX-O-Cu

表1 SIFSIX-X-Cu结构的孔隙结构物理特性

Table 1 Physical characteristics of SIFSIX-X-Cu

	V_P/(cm³·g^-1)	D/nm	Porosity, Φ/%	Surface area, A/(m²·g^-1)
SIFSIX-3-Cu	0.27	0.34	32.48	300
SIFSIX-2-Cu	0.40	0.52	35.70	735
SIFSIX-O-Cu	0.22	0.34	37.00	300

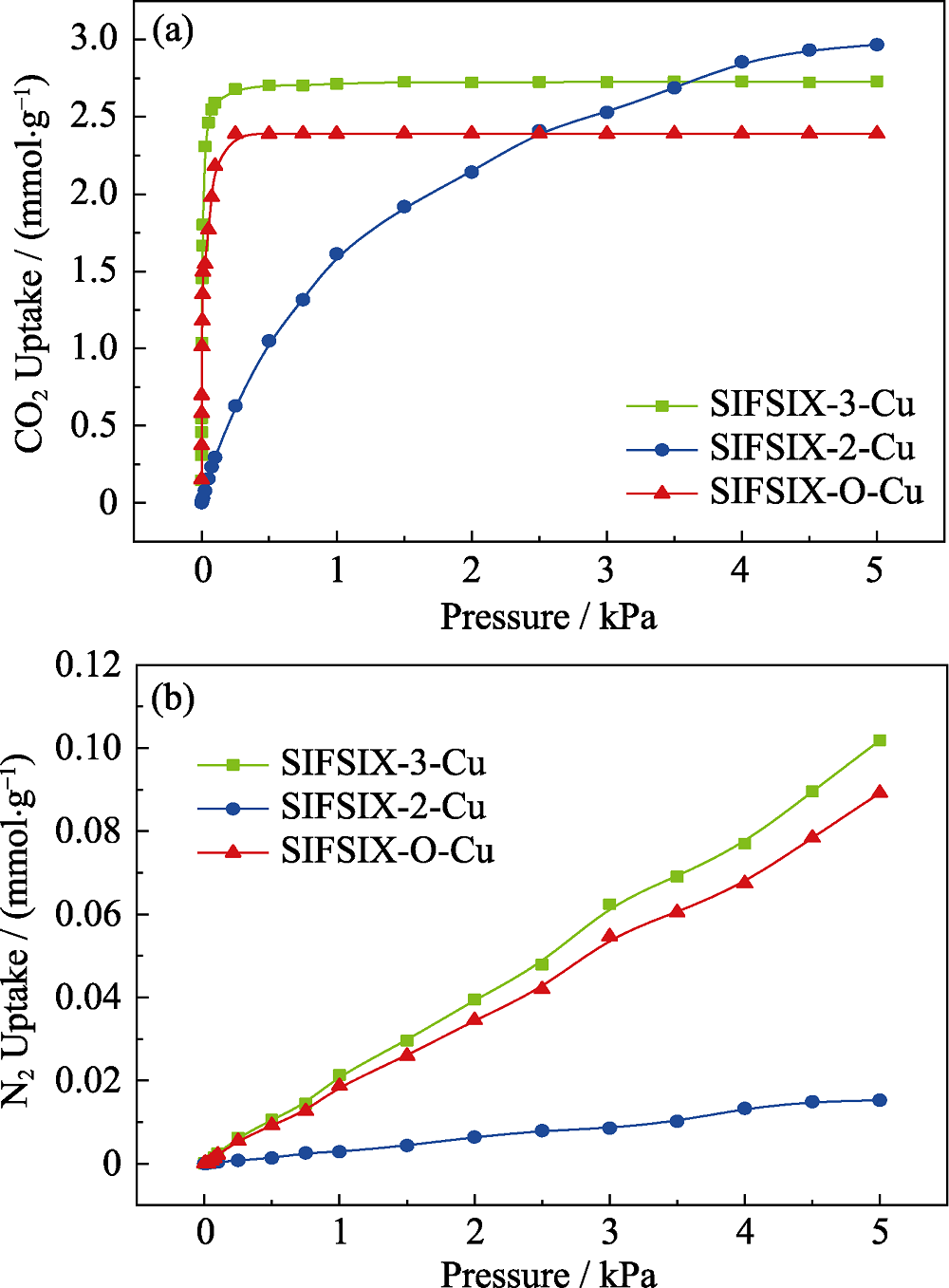

图2 298 K下SIFSIX-X-Cu中CO2 (a)和N2 (b)的吸附等温线

Fig. 2 Adsorption isotherms of CO2 (a) and N2 (b) in SIFSIX-X-Cu at 298 K

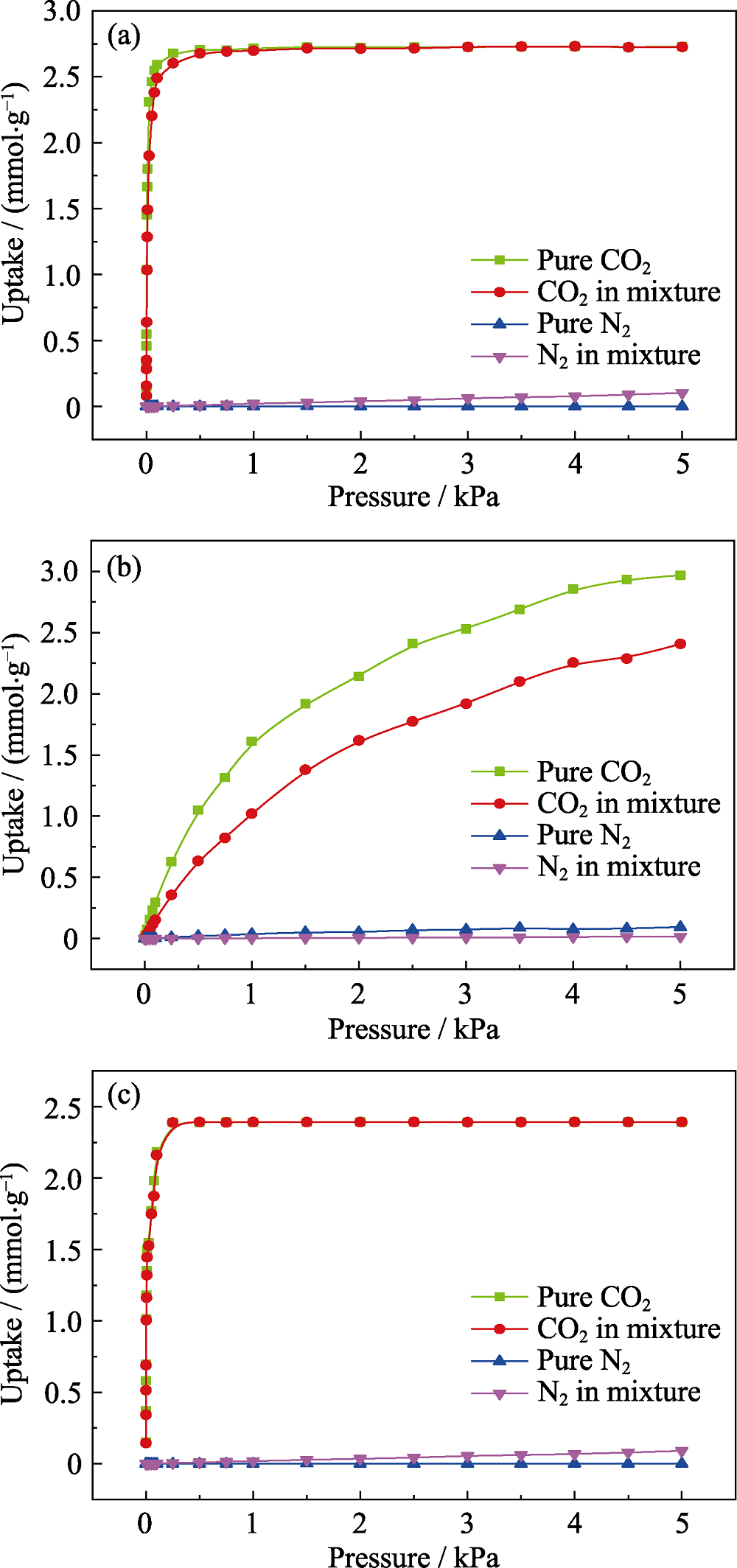

图3 298 K下(a)SIFSIX-3-Cu, (b)SIFSIX-2-Cu, (c)SIFSIX-O-Cu中CO2/N2单组份与混合组份的吸附等温线

Fig. 3 Adsorption isotherms of single component and mixture of CO2/N2 in (a) SIFSIX-3-Cu, (b) SIFSIX-2-Cu, and (c) SIFSIX-O-Cu at 298 K

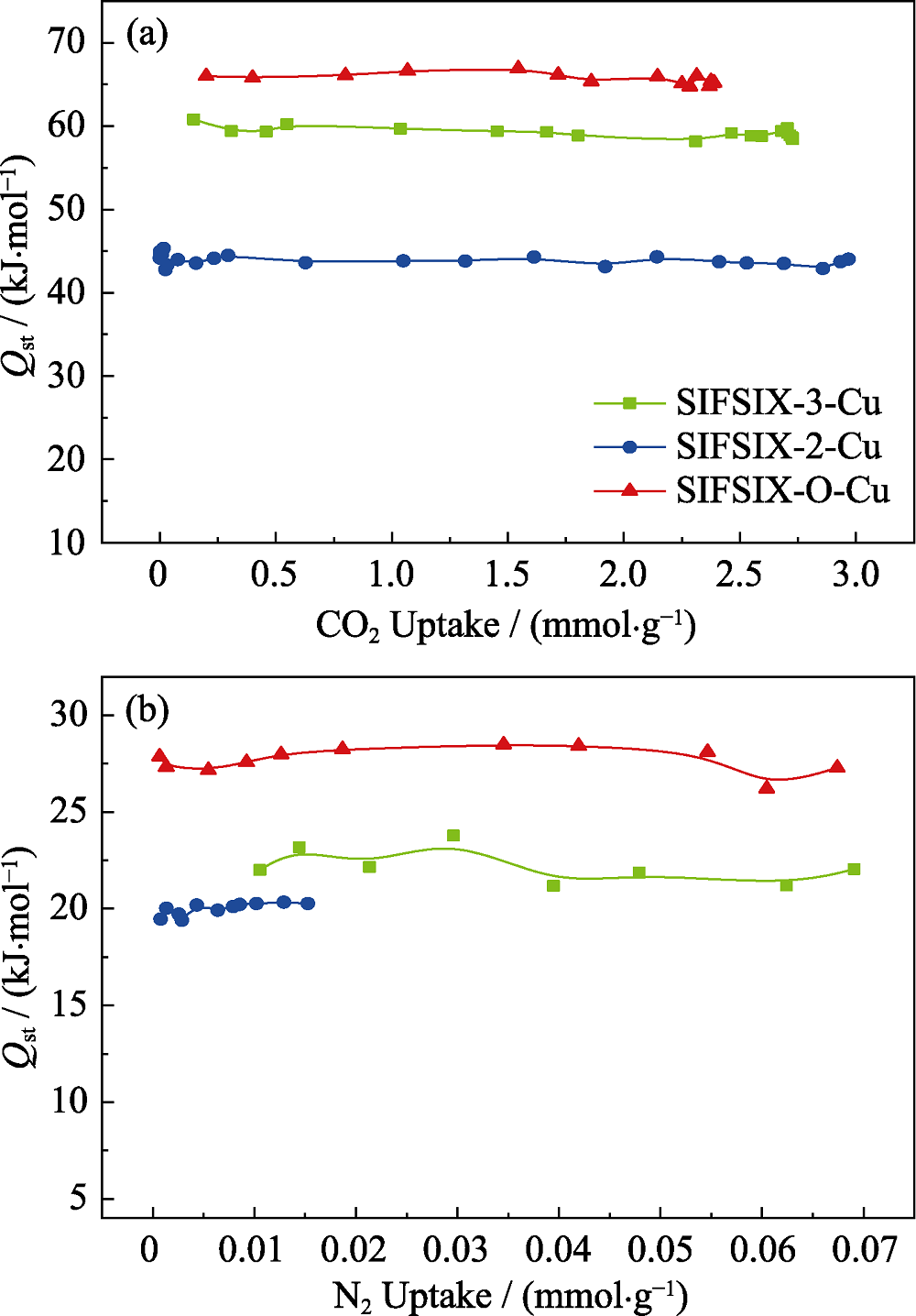

图4 (a) CO2与(b) N2在SIFSIX-X-Cu中的吸附热

Fig. 4 Isosteric heat of (a) CO2 and (b) N2 in SIFSIX-X-Cu

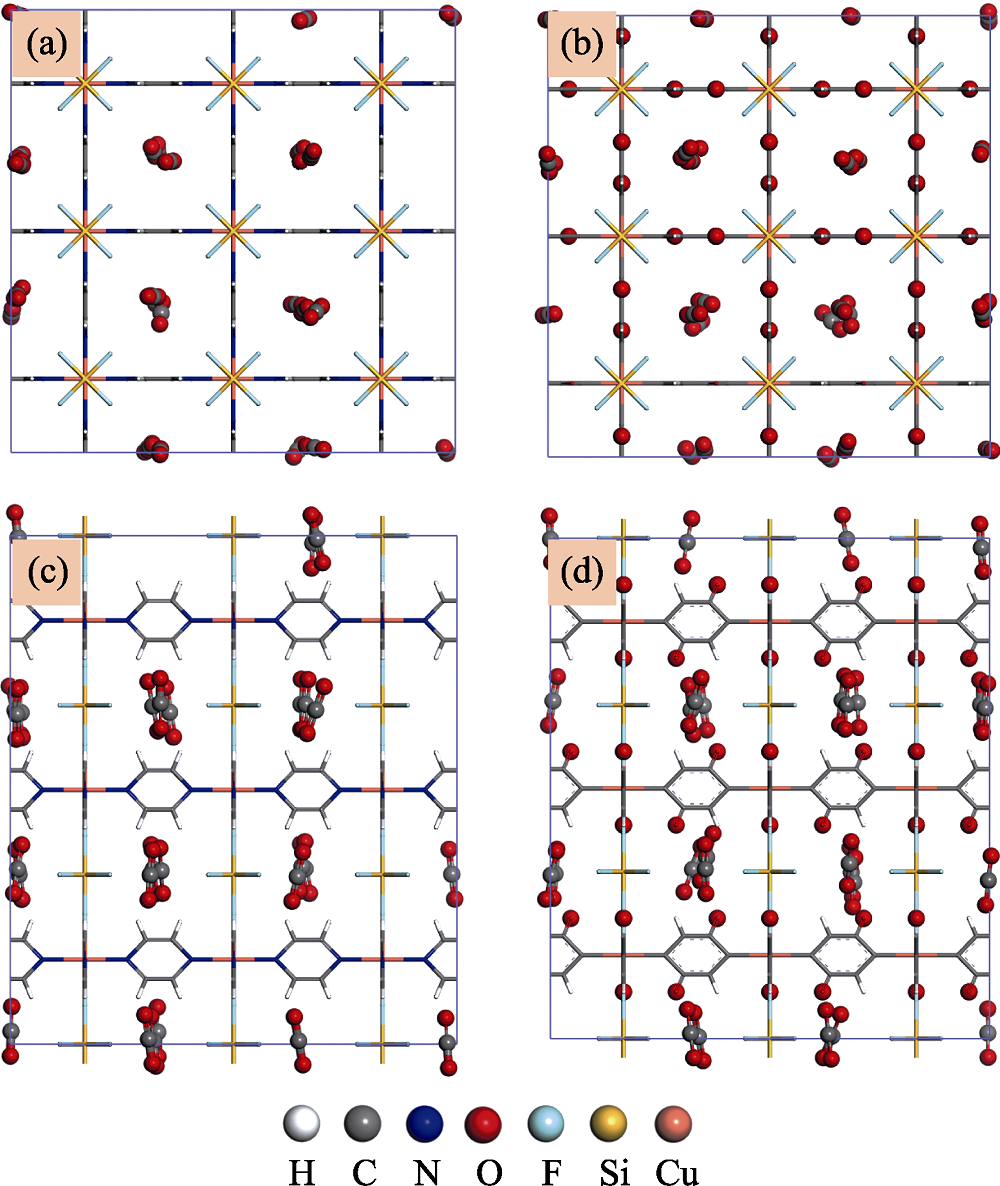

图5 SIFSIX-3-Cu (a-俯视图, c-侧视图)和SIFSIX-O-Cu (b-俯视图, d-侧视图)中CO2的吸附位点

Fig. 5 CO2 adsorption sites in SIFSIX-3-Cu (a-top view, c-side view) and SIFSIX-O-Cu (b-top view, d-side view)

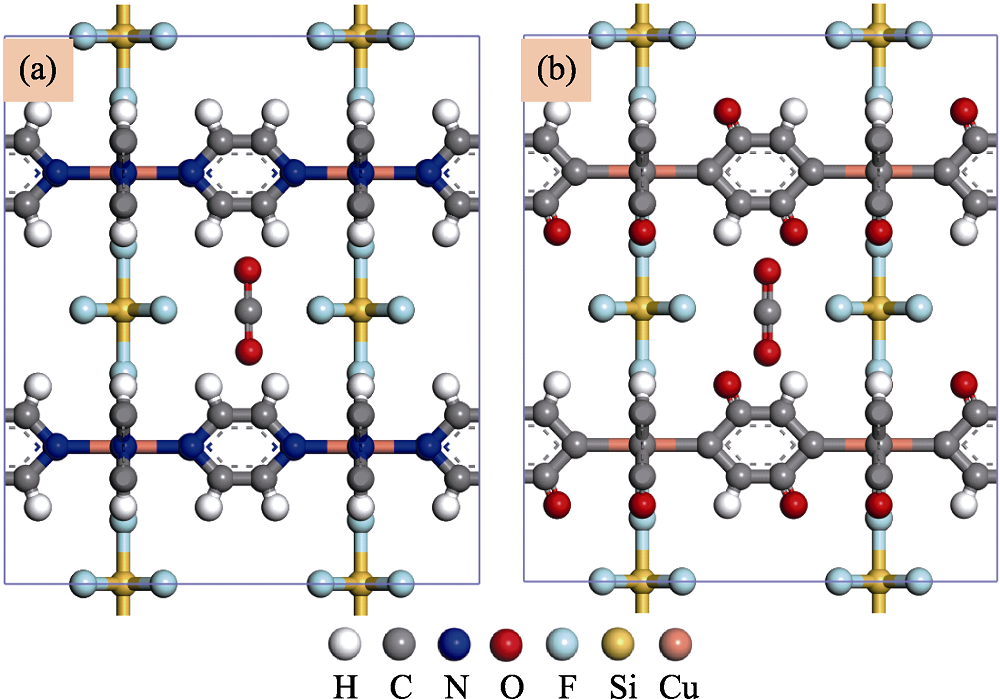

图6 (a) SIFSIX-3-Cu和(b) SIFSIX-O-Cu中CO2的最稳定吸附位点

Fig. 6 The most stable CO2 adsorption sites in (a) SIFSIX-3-Cu and (b) SIFSIX-O-Cu

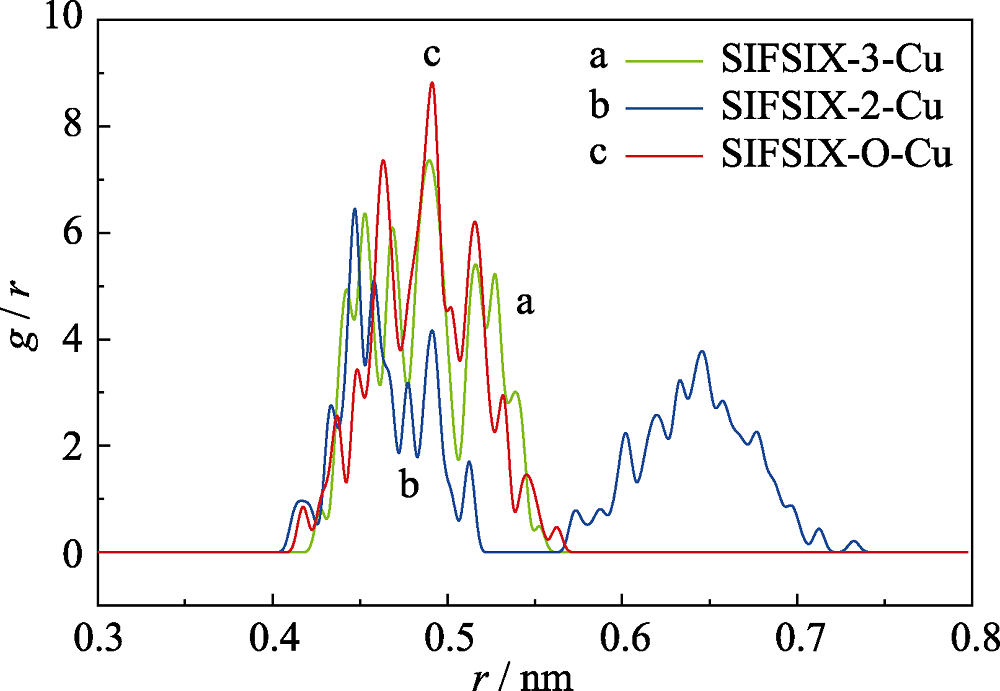

图7 CO2与骨架Si原子之间的径向分布函数

Fig. 7 Radial distribution functions of CO2 around Si atoms in frameworks

参考文献 25

[1]	KARL T R, TRENBERTH K E . Modern global climate change. Science, 2003,302(5651):1719-1723.
[2]	LU X Q, JIN D L, WEI S X , et al. Strategies to enhance CO₂ capture and separation based on engineering absorbent materials. Journal of Materials Chemistry A, 2015,3(23):12118-12132.
[3]	LYNGFELT A . Carbon capture and storage update. Energy & Environmental Science, 2014,7(1):130-189.
[4]	WANG M H, WEI S H, WU Z H , et al. Alkylamine functionalized triphenylamine-based covalent organic frameworks for high- efficiency CO₂ capture and separation over N₂. Materials Letters, 2018,230:28-31.
[5]	SHEKHAH O, BELMABKHOUT Y, CHEN Z , et al. Made-to- order metal-organic frameworks for trace carbon dioxide removal and air capture. Nature Communications, 2011,5:4228.
[6]	ROCHELLE G T . Amine scrubbing for CO₂ capture. Science, 2009,325(5948):1652-1654.
[7]	FURUKAWA H, KO N, YONG B G , et al. Ultrahigh porosity in metal-organic frameworks. Science, 2010,329(5990):424-428.
[8]	LIN Y, KONG C, ZHANG Q , et al. Metal-organic frameworks for carbon dioxide capture and methane storage. Advanced Energy Materials, 2017,7(4):1601296.
[9]	CHOI S, WATANABE T, BAE T H , et al. Modification of the Mg/DOBDC MOF with amines to enhance CO₂ adsorption from ultradilute gases. The Journal of Physical Chemistry Letters, 2012,3(9):1136-1141.
[10]	MCDONALD T M, LEE W R, MASON J A ,et al. Capture of carbon dioxide from air and flue gas in the alkylamine-appended metal-organic framework mmen-Mg₂(dobpdc). Journal of the American Chemical Society, 2012,134(16):7056-7065.
[11]	BIEN C E, CHEN K K, CHIEN S C , et al. Bioinspired metal- organic framework for trace CO₂ tapture. Journal of the American Chemical Society, 2018,140(40):12662-12666.
[12]	XUE D X, CAIRNS A J, BELMABKHOUT Y , et al. Tunable rare-earth fcu-MOFs: a platform for systematic enhancement of CO₂ adsorption energetics and uptake. Journal of the American Chemical Society, 2013,135(20):7660-7667.
[13]	HANAUER D A, MEI Q, MALIN B , et al. Porous materials with optimal adsorption thermodynamics and kinetics for CO₂ separation. Nature, 2013,495(7439):80-84.
[14]	POTOFF J J, SIEPMANN J I . Vapor-liquid equilibria of mixtures containing alkanes, carbon dioxide, and nitrogen. AIChE Journal, 2001,47(7):1676-1682.
[15]	MAYO S L, OLAFSON B D, GODDARD W A . DREIDING: a generic force field for molecular simulations. Journal of Physical Chemistry, 1990,94(26):8897-8909.
[16]	RAPPÉ A K, CASEWIT C J, COLWELL K , et al. UFF, a full periodic table force field for molecular mechanics and molecular dynamics simulations. Journal of the American Chemical Society, 1992,114(25):10024-10035.
[17]	GUPTA A, CHEMPATH S, SANBORN M J , et al. Object- oriented programming paradigms for molecular modeling. Molecular Simulation, 2003,29(1):29-46.
[18]	DELLEY B . From molecules to solids with the DMol³ approach. Journal of Chemical Physics, 2000,113(18):7756-7764.
[19]	PERDEW J P, BURKE K, ERNZERHOF M . Generalized gradient approximation made simple. Physical Review Letters, 1996,77(18):3865-3868.
[20]	GRIMME S, ANTONY J, EHRLICH S , et al. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. The Journal of Chemical Physics, 2010,132(15):154104.
[21]	SARKISOV L, HARRISON A . Computational structure characterisation tools in application to ordered and disordered porous materials. Molecular Simulation, 2011,37(15):1248-1257.
[22]	DÜREN T, MILLANGE F, FÉREY G , et al. Calculating geometric surface areas as a characterization tool for metal- organic frameworks. The Journal of Physical Chemistry C, 2007,111(42):15350-15356.
[23]	BELMABKHOUT Y, GUILLERM V, EDDAOUDI M . Low concentration CO₂ capture using physical adsorbents: are metal- organic frameworks becoming the new benchmark materials? Chemical Engineering Journal, 2016,296:386-397.
[24]	SAYARI A, BELMABKHOUT Y, SERNA-GUERRERO R . Flue gas treatment via CO₂ adsorption. Chemical Engineering Journal, 2011,171(3):760-774.
[25]	ZIAEE A, CHOVAN D, LUSI M , et al. Theoretical optimization of pore size and chemistry in SIFSIX-3-M hybrid ultramicroporous materials. Crystal Growth & Design, 2016,16(7):3890-3897.
