表面活性剂对羟基磷灰石纤维形貌的影响

doi:10.15541/jim20150487

无机材料学报 ›› 2016, Vol. 31 ›› Issue (7): 726-730.DOI: 10.15541/jim20150487 CSTR: 32189.14.10.15541/jim20150487

表面活性剂对羟基磷灰石纤维形貌的影响

齐美丽^1,2,3, 亓佳^1,2, 肖桂勇^1,2,3, 吕宇鹏^1,2,3

(1. 山东大学材料液固结构演变与加工教育部重点实验室, 济南 250061; 2. 山东大学材料科学与工程学院, 济南250061; 3. 山东大学苏州研究院, 苏州 215123)

收稿日期:2015-10-10 修回日期:2015-12-29 出版日期:2016-07-20 网络出版日期:2016-06-22
作者简介:齐美丽(1988–), 女, 博士研究生. E-mail: beauty0507@163.com
基金资助:
山东大学基本科研业务费专项基金(2015JC018);江苏省青年科学基金(BK20140412);山东省优秀中青年科学家科研奖励基金(BS2013CL030)

Effect of Surfactants on the Morphology of Hydroxyapatite Fibers

QI Mei-Li^{1, 2, 3}, QI Jia^{1, 2}, XIAO Gui-Yong^{1, 2, 3}, LU Yu-Peng^{1, 2, 3}

(1. Key Laboratory for Liquid-Solid Structural Evolution and Processing of Materials, Ministry of Education, Shandong University, Ji’nan, 250061, China; 2. School of Materials Science and Engineering, Shandong University, Ji’nan, 250061, China; 3. Shandong University Suzhou Institute, Suzhou, 215123)

Received:2015-10-10 Revised:2015-12-29 Published:2016-07-20 Online:2016-06-22
About author:QI Mei-Li. E-mail: beauty0507@163.com
Supported by:
Special Fund of Shandong University Basic Research (2015JC018);Jiangsu Province Science Foundation for Youths (BK20140412);Shangdong Province Young and Middle-Aged Scientists Research Awards Fund (BS2013CL030)

摘要/Abstract

摘要：

以Ca(NO₃)₂·4H₂O和(NH₄)₂HPO₄水溶液为前驱体, 采用水热均相沉淀法制备了结晶度较高的羟基磷灰石纤维, 研究了表面活性剂十六烷基三甲基溴化胺(CTAB)、十二烷基硫酸钠(SDS)和聚乙二醇(PEG)及其含量对产物形貌和相组成的影响。结果表明, 采用这三种表面活性剂制备的产物都是羟基磷灰石, 部分样品含有少量碳酸钙杂质。加入CTAB和SDS均会对纤维的生长起到抑制作用, 得到纤维与球形团聚体并存的产物, 而PEG的加入在一定程度上促进了纤维的生长。

关键词: 羟基磷灰石纤维, 表面活性剂, 水热均相沉淀, 形貌

Abstract:

Hydroxyapatite fiber with high crystallinity was successfully fabricated by hydrothermal homogeneous precipitation synthesis with Ca(NO₃)₂·4H₂O and (NH₄)₂HPO₄ as precursors. Effects of the surfactants include cetyltrimethylammonium bromide (CTAB), sodium dodecyl sulfate (SDS) and polyethylene glycol (PEG), and different amounts of them on the morphology and phase composition of the obtained products were investigated. Results show that the products obtained by using the three surfactants are all hydroxyapatite with minor CaCO₃in some samples. The addition of both CTAB and SDS inhibits the growth of the fibers, leading to the coexistence of fibers and spherical aggregates. However, the addition of PEG can promote the growth of fibers to some extent.

Key words: hydroxyapatite fibers, surfactants, hydrothermal homogeneous precipitation, morphology

中图分类号:

TB321

齐美丽, 亓佳, 肖桂勇, 吕宇鹏. 表面活性剂对羟基磷灰石纤维形貌的影响[J]. 无机材料学报, 2016, 31(7): 726-730.

QI Mei-Li, QI Jia, XIAO Gui-Yong, LV Yu-Peng. Effect of Surfactants on the Morphology of Hydroxyapatite Fibers[J]. Journal of Inorganic Materials, 2016, 31(7): 726-730.

图/表 4

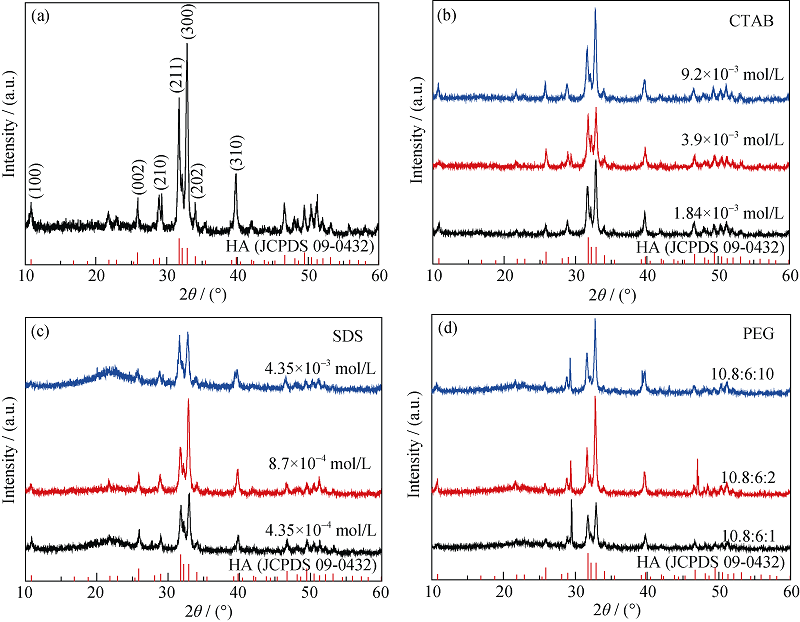

图1 未添加及分别添加不同量的表面活性剂后制备产物的XRD图谱

Fig. 1 XRD patterns of the products synthesized without (a) and with the addition of different amounts of surfactants (b-d)

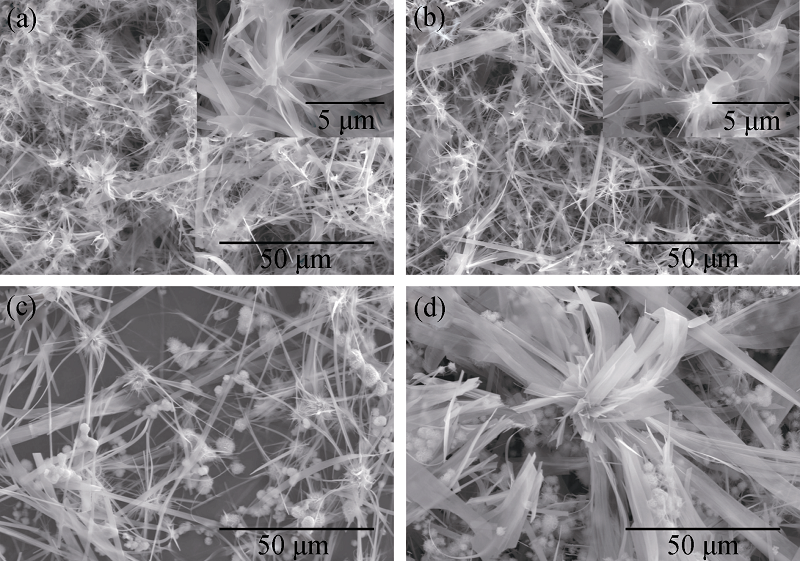

图2 未添加及分别添加不同量的CTAB后制备的产物SEM照片

Fig. 2 SEM images of the products with addition of different amounts of CTAB (a) 0 mmol/L; (b) 1.84 mmol/L; (c) 3.9 mmol/L; (d) 9.2 mmol/L

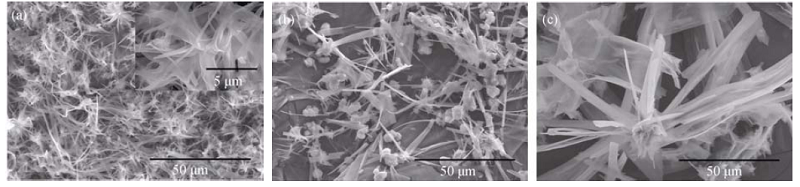

图3 添加不同量的SDS后制备的产物SEM照片

Fig. 3 SEM images of the products with addition of different amounts of SDS (a) 0.435 mmol/L; (b) 0.87 mmol/L; (c) 4.35 mmol/L

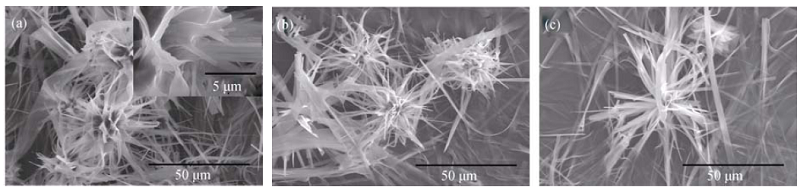

图4 添加不同量的PEG后制备的产物SEM照片

Fig. 4 SEM images of the products with addition of different amounts of PEG (a) n(Ca2+):n(PO43-):n(PEG)=10.8:6:1; (b) n(Ca2+):n(PO43-):n(PEG)=10.8:6:2; (c) n(Ca2+):n(PO43-):n(PEG)=10.8:6:10

参考文献 24

[1]	CHEN C W, OAKES C S, BYRAPPA K, et al.Synthesis, characterization, and dispersion properties of hydroxyapatite prepared by mechanochemical-hydrothermal methods.Journal of Materials Chemistry, 2004, 14(15): 2425-2432.
[2]	VALLET-REGI M, GONZALEZ-CALBET J M. Calcium phosphates as substitution of bone tissues.Progress in Solid State Chemistry, 2004, 32(1/2): 1-31.
[3]	MA Y J, HAO L J, DU S L, et al.Synthesis of hydroxyapatite microspheres by hydrothermal method under the control of sodium citrate.Journal of Inorganic Materials, 2014, 29(3): 284-288.
[4]	LAHIRI D, GHOSH S, AGARWAL A.Carbon nanotube reinforced hydroxyapatite composite for orthopedic application: a review.Materials Science and Engineering C, 2012, 32(7): 1727-1758.
[5]	AFZALl M A F, KESARWANI P, REDDY K M, et al. Functionally graded hydroxyapatite-alumina-zirconia biocomposite: synergy of toughness and biocompatibility.Materials Science and Engineering C, 2012, 32(5): 1164-1173.
[6]	YANG C, GUO Y K, ZHANG M L.Thermal decomposition and mechanical properties of hydroxyapatite ceramic.Transactions of Nonferrous Metals Society of China, 2010, 20(2): 254-258.
[7]	MITTAL M, NATH S K, PRAKASH S.Improvement in mechanical properties of plasma sprayed hydroxyapatite coatings by Al2O3 reinforcement.Materials Science and Engineering C. 2013, 33(5): 2838-2845.
[8]	YOSHIMURA M, SUDA H, OKAMOTO K, et al.Hydrothermal synthesis of biocompatible whiskers.Journal of Materials Science, 1994, 29(13): 3399-3402
[9]	OTA Y, IWASHITA T.Novel preparation method of hydroxyapatite fibers.Journal of the American Ceramic Society, 1998, 81(6): 1665-1668.
[10]	TAS A C.Molten salt synthesis of calcium hydroxyapatite whiskers.Journal of the American Ceramic Society, 2001, 84(2): 295-300.
[11]	LI C H, LIU S G, LI G C, et al.Hydrothermal synthesis of large-sized hydroxyapatite whiskers regulated by glutamic acid in solutions with low supersaturation of precipitation.Advanced Powder Technology, 2011, 22(4): 537-543.
[12]	FRANCO P Q, JOAO C F C, SILVA J C, et al. Electrospun hydroxyapatite fibers from a simple Sol-Gel system.Materials Letters, 2012, 67(1): 233-236.
[13]	ZHANG H, DARVELL B W.Morphology and structural characteristics of hydroxyapatite whiskers: effect of the initial Ca concentration, Ca/P ratio and pH.Acta Biomaterialia, 2011, 7(7): 2960-2968.
[14]	HAO L J, YANG H, ZHAO N R, et al.Controlled growth of hydroxyapatite fibers precipitated by propionamide through hydrothermal synthesis.Powder Technology, 2014, 253: 172-177.
[15]	WANG J, HUANG S P, HU K, et al.Effect of cetyltrimethylammonium bromide on morphology and porous structure of mesoporous hydroxyapatite.Transacfions of Nonferrous Metals Society of China, 2015, 25(2): 483-489.
[16]	YAN L, LI Y D, DENG Z X, et al.Surfactant-assisted hydrothermal synthesis of hydroxyapatite nanorods.International Journal of Inorganic Materials, 2001, 3(7): 633-637.
[17]	高珊. 表面活性剂对羟基磷灰石纳米线合成的影响研究. 济南: 山东大学硕士学位论文, 2012.
[18]	GAO S, SUN K N, LI A M, et al.Synthesis and characterization of hydroxyapatite nanofiber by chemical precipitation method using surfactants.Materials Research Bulletin, 2013, 48(3): 1003-1006.
[19]	ROEDER R K, CONVERSE G L, LENG H J, et al.Kinetic effects on hydroxyapatite whiskers synthesized by the chelate decomposition method.Journal of the American Ceramic Society, 2006, 89(7): 2096-2104.
[20]	VISWANATH B, RAVISHANKAR N.Controlled synthesis of plate-shaped hydroxyapatite and implications for the morphology of the apatite phase in bone.Biomaterials, 2008, 29(36): 4855-4863.
[21]	张海斌. 羟基磷灰石晶粒/粒子的水热控制合成. 长沙: 中南大学博士学位论文, 2011.
[22]	IIJIMA M, KAMEMIZU H, WAKAMATSU N, et al.Effects of Ca addition on the formation of octacalcium phosphate and apatite in solution at pH 7.4 and at 37℃.Journal of Crystal Growth, 1998, 193(1/2): 182-188.
[23]	BALASUNDARAM G, SATO M, WEBSTER T J.Using hydroxyapatite nanoparticles and decreased crystallinity to promote osteoblast adhesion similar to functionalizing with RGD.Biomaterials, 2006, 27(14): 2798-2805.
[24]	邱超凡. 球状羟基磷灰石的生物矿化合成研究. 福州: 福建师范大学硕士学位论文, 2007.

表面活性剂对羟基磷灰石纤维形貌的影响

Effect of Surfactants on the Morphology of Hydroxyapatite Fibers

RichHTML

PDF (PC)

可视化

被引次数

摘要/Abstract

引用本文

使用本文

图/表 4

参考文献 24

相关文章 15

编辑推荐

Metrics

本文评价

[1]	马俊杰, 杨钰莹, 高名扬, 齐冰杰, 吴玉龙, 黄雪莉, 黄河. 纳米CeO₂的制备及其在CO₂合成聚碳酸酯中的活性[J]. 无机材料学报, 2025, 40(1): 70-76.
[2]	张叶, 曾宇平. 自蔓延高温合成氮化硅多孔陶瓷的研究进展[J]. 无机材料学报, 2022, 37(8): 853-864.
[3]	李乔磊, 顾玥, 于雪华, 张朝威, 邹明科, 梁静静, 李金国. 烧结温度对3D打印硅基陶瓷型芯表面形貌及粗糙度的影响[J]. 无机材料学报, 2022, 37(3): 325-332.
[4]	孙鹏, 张绍宁, 毕辉, 董武杰, 黄富强. 基于结构调节碳材料的掺氮种类和含量及其超级电容器储能应用[J]. 无机材料学报, 2021, 36(7): 766-772.
[5]	肖昱旻, 李彬, 覃礼钊, 林华, 李庆, 廖斌. 用CuCl₂为铜源高效制备形貌可控CuGeO₃的研究[J]. 无机材料学报, 2021, 36(1): 69-74.
[6]	徐晶威,李政,王泽普,于涵,何祺,付念,丁帮福,郑树凯,闫小兵. 交错能带结构钕掺杂钒酸铋形貌与光催化性能调控[J]. 无机材料学报, 2020, 35(7): 789-795.
[7]	李学林, 朱建锋, 焦宇鸿, 黄家璇, 赵倩楠. 二氧化锰形貌对Ti₃C₂T_x@MnO₂复合材料电化学性能的影响[J]. 无机材料学报, 2020, 35(1): 119-125.
[8]	耿瑞文, 杨晓京, 谢启明, 李芮, 罗良. 基于划刻实验的单晶锗材料去除机理研究[J]. 无机材料学报, 2019, 34(8): 867-872.
[9]	姚秀敏, 王晓洁, 刘学建, 陈忠明, 黄政仁. 碳化硅/碳化钨硬面密封摩擦副的摩擦磨损性能和机理研究[J]. 无机材料学报, 2019, 34(6): 673-678.
[10]	万宇驰,湛菁,陈军. 不同形貌纳米NiCo₂O₄的研究进展[J]. 无机材料学报, 2019, 34(2): 121-129.
[11]	刘小元, 刘宝丹, 姜亚南, 王柯, 周洋, 杨兵, 张兴来, 姜辛. 形貌可控及光学吸收性能可调的钙钛矿型SrTiO₃纳米结构的原位生长[J]. 无机材料学报, 2019, 34(1): 65-71.
[12]	蒋青松, 陈若婷, 李文波, 程文杰, 黄业晓, 胡光. 透明硫化钴对电极在染料敏化太阳能电池中的应用[J]. 无机材料学报, 2018, 33(8): 832-838.
[13]	代光, 肖欢, 郝文明, 马静红, 李瑞丰. 具有多级孔结构的丝光沸石的合成与性能研究[J]. 无机材料学报, 2018, 33(4): 397-402.
[14]	张国雄, 陈月梅, 何臻妮, 林川, 陈益钢, 郭海波. 表面活性剂对NiCo₂S₄纳米薄膜的电化学性能影响的研究[J]. 无机材料学报, 2018, 33(3): 289-294.
[15]	吕玉珍, 孙倩,李超, 单秉亮, 齐波, 李成榕. 油酸修饰TiO₂纳米棒的溶剂热合成及形貌调控研究[J]. 无机材料学报, 2017, 32(7): 719-724.
