锂硫电池石墨烯/硫复合正极材料的制备及其电化学性能

doi:10.3724/SP.J.1077.2014.13485

无机材料学报 ›› 2014, Vol. 29 ›› Issue (6): 627-632.DOI: 10.3724/SP.J.1077.2014.13485 CSTR: 32189.14.SP.J.1077.2014.13485

锂硫电池石墨烯/硫复合正极材料的制备及其电化学性能

陈飞彪¹, 王英男¹, 吴伯荣^1,2, 熊云奎³, 廖维林³, 吴锋^1,2, 孙喆²

(1. 北京理工大学化工与环境学院, 北京100081; 2. 动力电池及化学能源材料北京市高等学校工程研究中心, 北京100081; 3. 江西师范大学精细化工重点实验室, 南昌 330027)

收稿日期:2013-09-24 修回日期:2013-11-25 出版日期:2014-06-20 网络出版日期:2014-05-27
作者简介:陈飞彪(1983-), 男, 博士研究生. E-mail: chengfeibiao@163.com
基金资助:
国家863计划(2013AA050903) 863 Program(2013AA050903)

Preparation and Electrochemical Performance of Activation Graphene/Sulfur Complex Cathode Material for Lithium-sulfur Batteries

CHEN Fei-Biao¹, WANG Ying-Nan¹, WU Bo-Rong^{1, 2}, XIONG Yun-Kui³, LIAO Wei-Ling³, WU Feng^{1, 2}, SUN Zhe²

(1. School of Chemical Engineering and Environment, Beijing Institute of Technology, Beijing 100081, China; 2. Beijing Higher Institution Engineering Research Center of Power Battery and Chemical Energy Materials, Beijing 100081, China; 3. Jiangxi Fine Chemical Key Laboratory , Jiangxi Normal University, Jiangxi 330027, China)

Received:2013-09-24 Revised:2013-11-25 Published:2014-06-20 Online:2014-05-27
About author:CHEN Fei-Biao. E-mail: chengfeibiao@163.com

摘要/Abstract

摘要：

以经活化处理的石墨烯(AG)为主体材料, 通过化学还原法制备了石墨烯负载硫的复合正极材料AG/S。SEM、EDX和TEM测试结果表明经活化处理后形成手风琴结构的AG, 有利于电解液的浸润; 活性物质硫均匀地负载在AG表面, 同时沉积在AG的层间。电化学测试表明: 在400 mA/g电流密度下, AG/S复合正极材料首次放电比容量为1452.9 mAh/g, 经过200次循环之后, 放电比容量仍保持在909.7 mAh/g; 在1000 mA/g电流密度下, AG/S复合材料首次放电比容量为1309.9 mAh/g, 经过200次循环之后, 放电比容量仍保持在717.1 mAh/g。AG/S复合正极材料的倍率性能、库仑效率和循环性能优异, 这得益于小尺寸的硫在材料中均匀分布, 活化石墨烯优良的导电性以及其结构对硫的固化作用。

关键词: 锂硫电池, 石墨烯, 复合正极材料, 循环性能

Abstract:

Novel accordion structure activation graphene/sulfur (AG/S) complex cathode materials were prepared by solution-based reaction-deposition method using activation graphene (AG) as precursors. SEM, EDX and TEM measurement were conducted. The result indicated that the AG/S had accordion structure with a uniform S coating on accordion structure AG. At the same time, sulfur was also found to be deposited on the interlayer of AG. Constant current charge-discharge tests showed that the AG/S complex cathode material with 65wt% sulfur delivered a high initial discharge speciﬁc capacity of 1452.9 mAh/g at the current density of 400 mA/g, with 909.7 mAh/g remained after 200 cycles. Meanwhile, an initial discharge speciﬁc capacity of 1309.9 mAh/g could be obtained for the material at the larger current density of 1000 mA/g, keeping 717.1 mAh/g after 200 cycles at the same current density. The rate performance, coulombic efficiency and cycling stability of the AG/S complex cathode materials were confirmed to be excellent, which may be originated from the homogeneous distribution of the sulfur with small powder size in the composites, the excellent electrical conductivity of AG and the fixation effect of the functional groups on the surface of AG for S.

Key words: lithium-sulfur battery, graphene, complex cathode material, cycling performance

中图分类号:

O646

陈飞彪, 王英男, 吴伯荣, 熊云奎, 廖维林, 吴锋, 孙喆. 锂硫电池石墨烯/硫复合正极材料的制备及其电化学性能[J]. 无机材料学报, 2014, 29(6): 627-632.

CHEN Fei-Biao, WANG Ying-Nan, WU Bo-Rong, XIONG Yun-Kui, LIAO Wei-Ling, WU Feng, SUN Zhe. Preparation and Electrochemical Performance of Activation Graphene/Sulfur Complex Cathode Material for Lithium-sulfur Batteries[J]. Journal of Inorganic Materials, 2014, 29(6): 627-632.

图/表 8

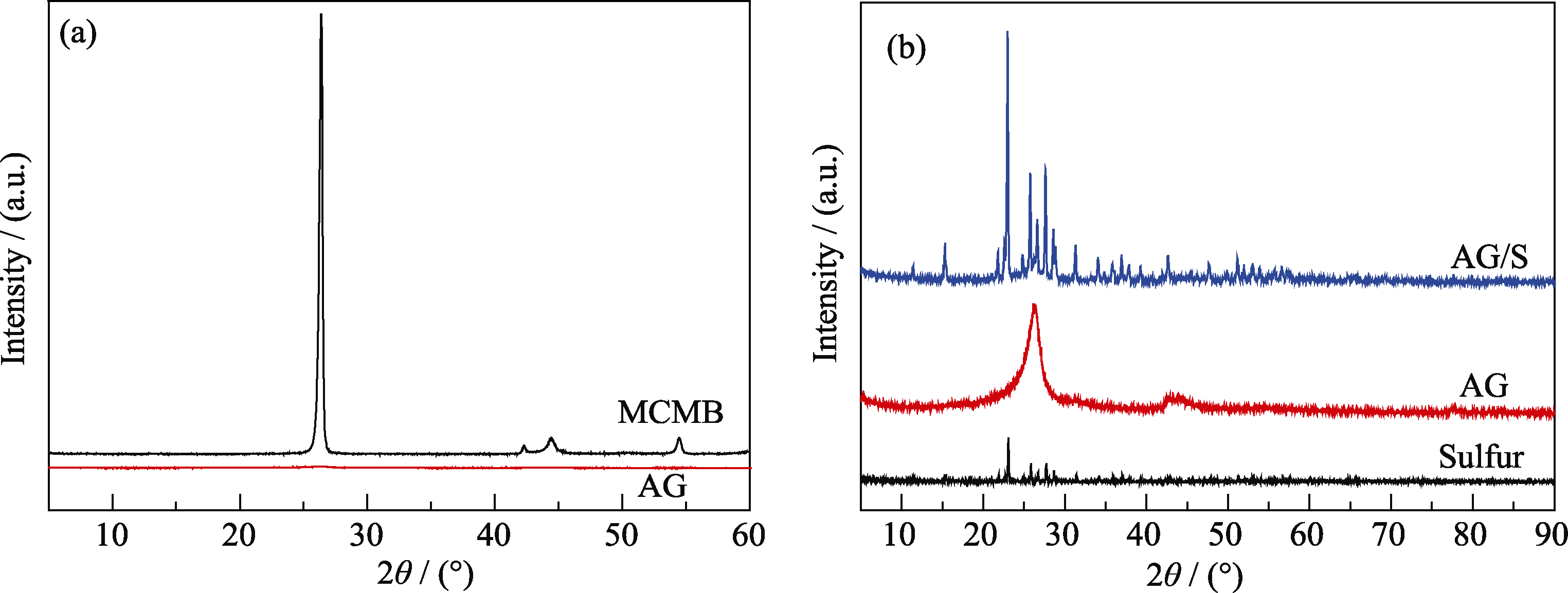

图1 MCMB和AG (a)及AG、AG/S和S (b)的XRD图谱

Fig. 1 XRD patterns of MCMB and AG (a) and AG, AG/S and S (b)

图2 AG(a)和AG/S(b)的SEM照片, AG/S的能谱分析(c), C元素图(d)和S元素图(e)

Fig. 2 SEM images of AG (a) and AG/S (b), EDX analysis of AG/S (c), elemental maps of C (d) and S (e)

图3 AG (a, b)和AG/S (c, d)的TEM照片

Fig. 3 TEM images of AG (a, b) and AG/S (c, d)

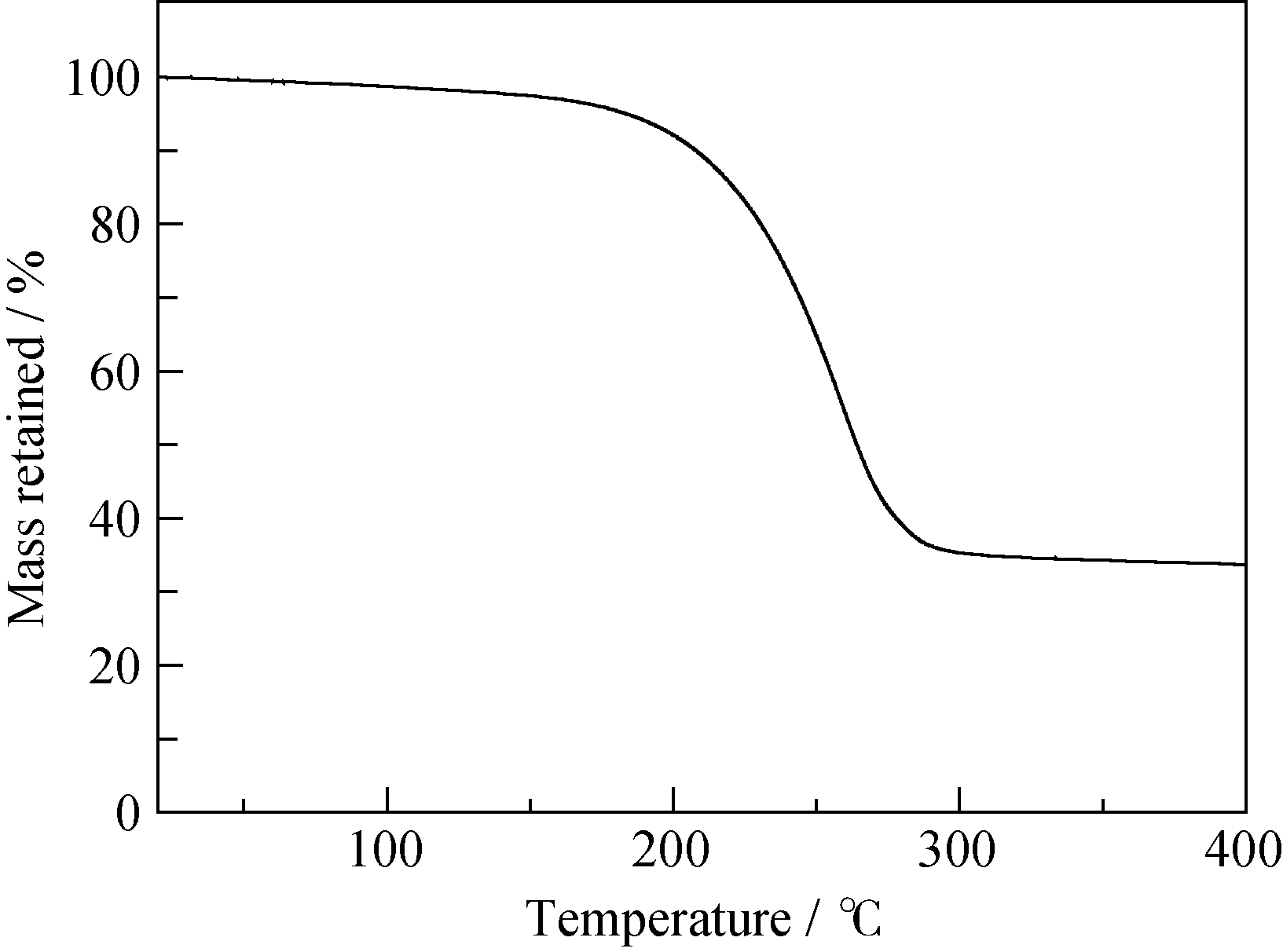

图4 AG/S复合正极材料的TGA曲线

Fig. 4 Thermo gravimetric analysis (TGA) curves of AG/S complex cathode materials

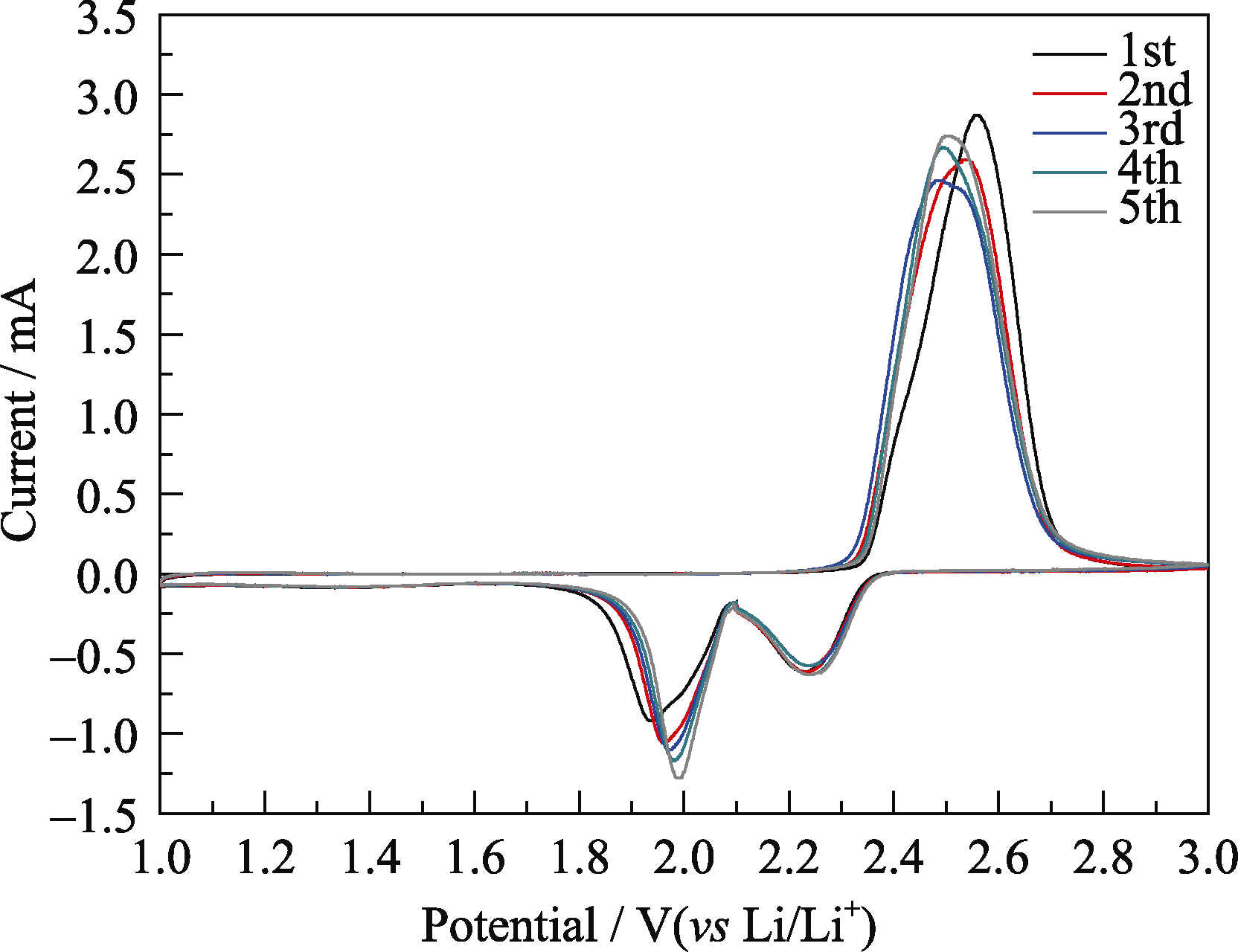

图5 AG/S复合正极材料的CV曲线

Fig. 5 Cyclic voltammogram curves of AG/S complex cathode materials

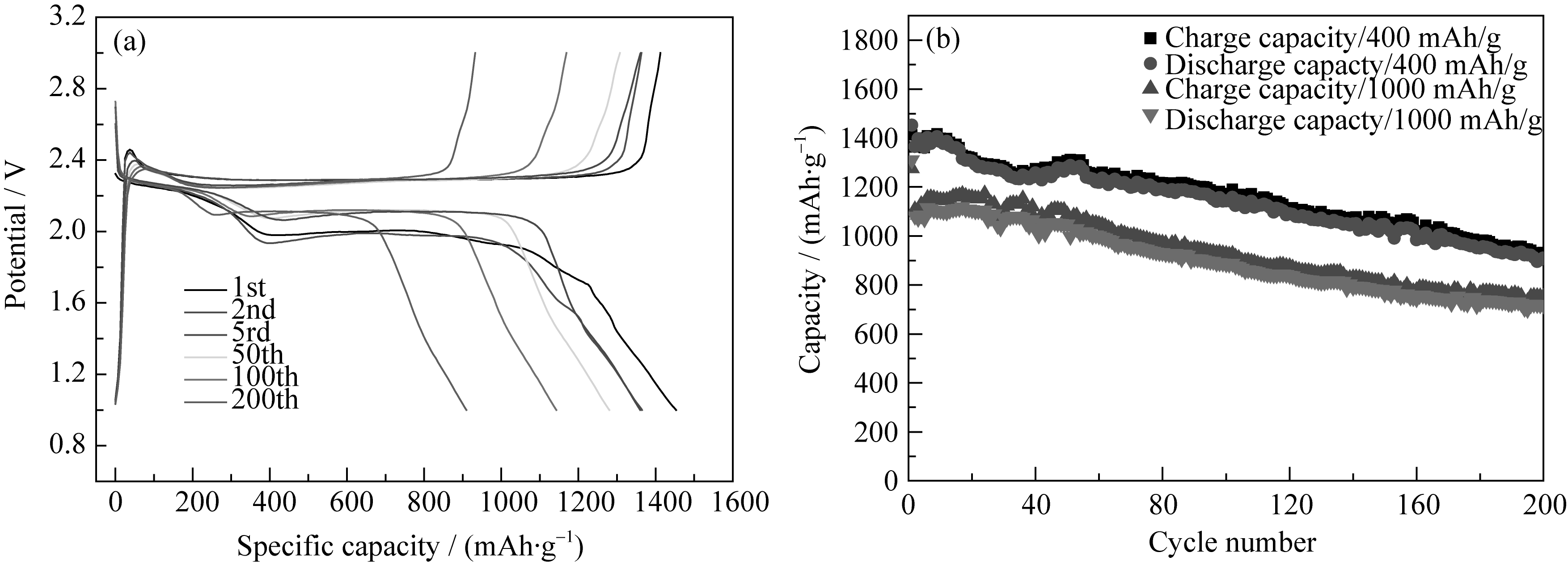

图6 AG/S复合正极材料的充放电平台曲线(a)和循环性能(b)

Fig. 6 Charge-discharge profiles of the AG/S composite after different cycles at 400 mA/g rate (a) and cycling performance of the AG/S composite (b)

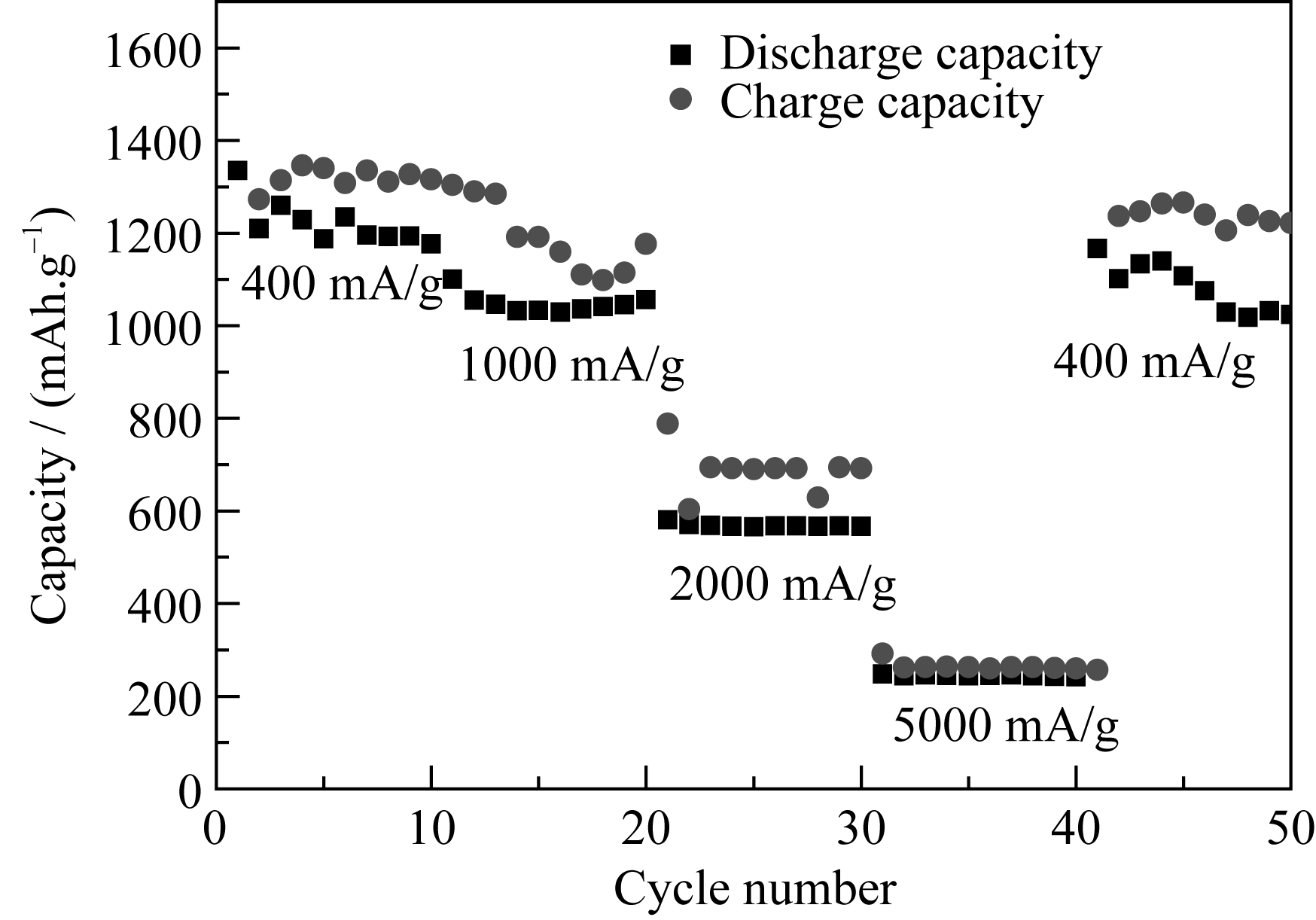

图7 AG/S复合正极材料的倍率性能

Fig.7 Rate capabilities of the AG/S composite cathodes

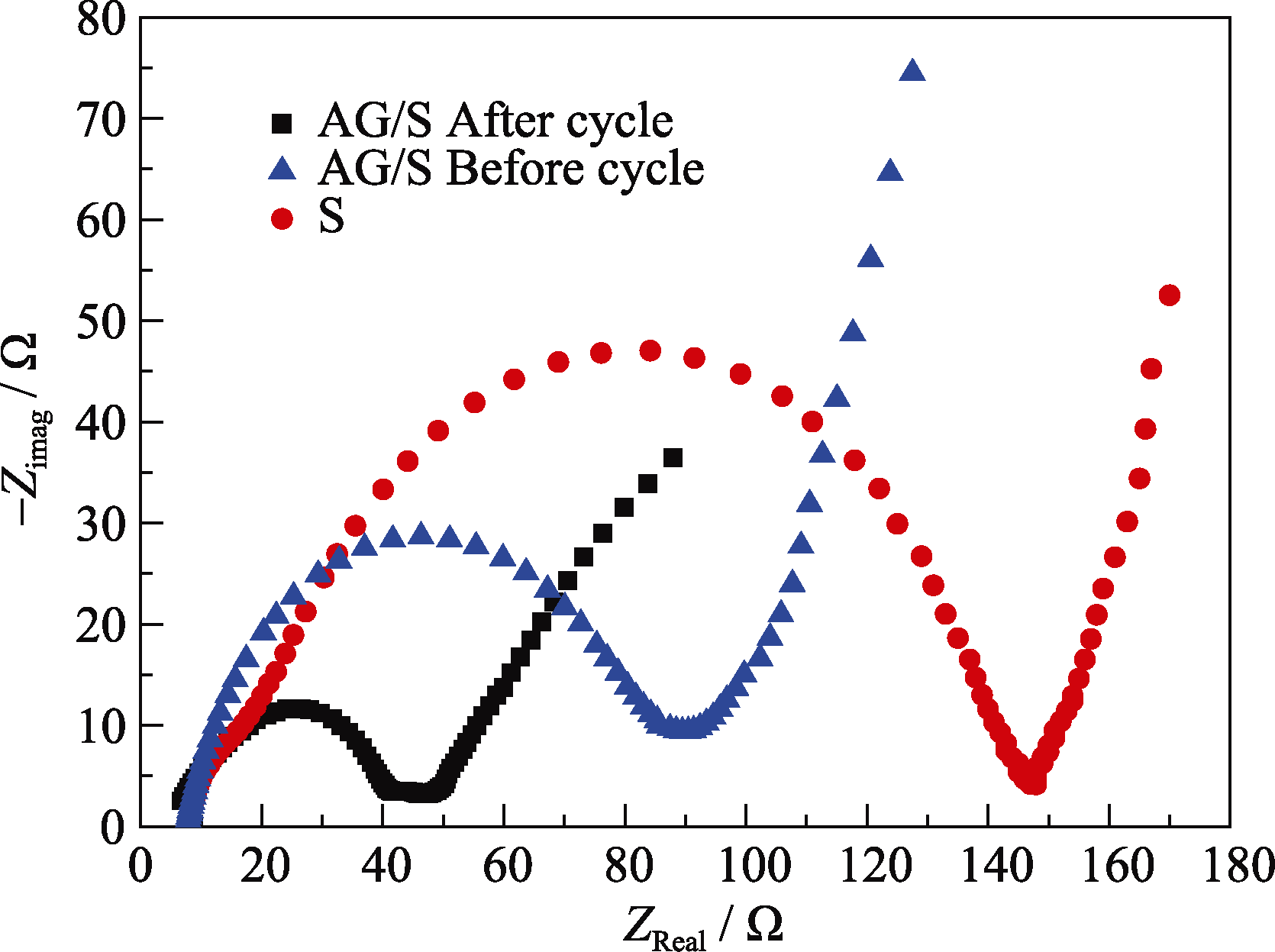

图8 单质S及AG/S复合正极材料的交流阻抗曲线

Fig. 8 Impedance spectra for electrodes of the pure S and AG/S composite

参考文献 21

[1]	RYU HO-SUK, AHN HYO-JUN, KIM KI-WON, et al. Discharge behavior of lithium/sulfur cell with TEGDME based electrolyte at low temperature. Journal of Power Sources, 2006, 163(1): 201-206.
[2]	JI XIU-LEI, LEE K T, NAZAR L F. A highly ordered nanostructured carbon-sulphur cathode for lithium-sulphur batteries. Nature Materials, 2009, 8: 500-506.
[3]	HU JING-JING, LI GUO-RAN, GAO XUE-PING. Current status, problems and challenges in lithium-sulfur batteries .Journal of Inorganic Materials, 2013,28(11): 1181-1186.
[4]	CHOI YOUNG-JIN, CHUNG YOUNG-DONG, BAEK CHANG-YOUNG, et al. Effects of carbon coating on the electrochemical properties of sulfur cathode for lithium/sulfur cell .Journal of Power Sources, 2008, 184(2): 548-552.
[5]	SHIM J, STRIEBEL K A, CAIRNS E J. The lithium/sulfur rechargeable cell. Journal of the Electrochemical Society, 2002, 149(10): A1321-A1325.
[6]	CHEON SANG-EUN, KO KI-SEOK, CHO JI-HOON, et al. Rechargeable lithium sulfur battery ii. rate capability and cycle characteristics. Journal of The Electrochemical Society, 2003, 150(6): A800-A805.
[7]	JEON B H, YEON J H, KIM K M, et al. Preparation and electrochemical properties of lithium-sulfur polymer batteries. Journal of Power Sources, 2002, 109(1): 89-97.
[8]	SHE ZHI-WEI, LI WEI-YANG, CHA JUDY J, et al. Sulphur-TiO2 yolk-shell nanoarchitecture with internal void space for long-cycle lithium-sulphur batteries. Nature communications, 2013, 4: 1331.
[9]	ZHANG SHI-CHAO, ZHANG LAN, WANG WEI-KUN, et al. A novel cathode material based on polyaniline used for lithium/sulfur secondary battery. Synthetic Metals, 2010, 160(17/18): 2041-2044.
[10]	LIANG XIAO, LIU YU, WEN ZHAO-YIN, et al. A nano-structured and highly ordered polypyrrole-sulfur cathode for lithium-sulfur batteries. Journal of Power Sources, 2011, 196(16): 6951-6955.
[11]	WU FENG, WU SHEN-XIAN, CHEN REN-JIE, et al. Sulfur-polythiophene composite cathode materials for rechargeable lithium batteries. Electrochemical and Solid-State Letters, 2010, 13(4): A29-A31.
[12]	ZHANG SHENG-S, Foster Donald, Read Jeffrey. A high energy density lithium/sulfur-oxygen hybrid battery. Journal of Power Sources, 2010, 195(11): 3684-3688.
[13]	LIANG XIAO, WEN ZHAO-YIN, LIU YU, et al. Highly dispersed sulfur in ordered mesoporous carbon sphere as a composite cathode for rechargeable polymer Li/S battery. Journal of Power Sources, 2011,196(7): 3655-3658.
[14]	CHOI YOUNG-JIN, KIM KI-WON, AHN HYO-JUN, et al. Improvement of cycle property of sulfur electrode for lithium/sulfur battery. Journal of Alloys and Compounds, 2008, 449(1/2): 313-316.
[15]	CHEN JIA-JIA, JIA XIN, SHE QIU-JIE, et al. The preparation of nano-sulfur/MWCNTs and its electrochemical performance. Electrochimica Acta, 2010, 55(27): 8062-8066.
[16]	WANG JIA-ZHAO, LU LIN, CHOUCAIR MOHAMMAD, et al. Sulfurgraphene composite for rechargeable lithium batteries. Journal of Power Sources, 2011, 196(16): 7030-7034.
[17]	HIRATA M, GOTOU T, HORIUCHI S, et al. Thin-film particles of graphite oxide 1:High-yield synthesis and flexibility of the particles. Carbon, 2004, 42(14): 2929-2937.
[18]	BERGER C, SONG Z M, LI T B, et al. Ultrathin epitaxial graphite: 2D electron gas properties and a route toward graphene-based nanoel-ec-tro-ni-cs. Journal of Physical Chemistry B, 2004, 108(52): 19912-19916.
[19]	GEIM A K, NOVOSELOV K S. The rise of graphene. Nature materials, 2007, 6: 183-191.
[20]	CHAE HEE K, SIBERIO-PREZ D Y, KIM JAHEON, et al. A route to high surface area, porosity and inclusion of large molecules in crystals. Nature, 2004, 427: 523-527.
[21]	NOVOSELOV K S, GEIM A K, MOROZOV S V, et al. Electric field effect in atomically thin carbon films. Science, 2004, 306: 666-669.
