不锈钢表面渗铜扩散复合处理合金层的抗菌性能研究

doi:10.3724/SP.J.1077.2012.00519

无机材料学报 ›› 2012, Vol. 27 ›› Issue (5): 519-523.DOI: 10.3724/SP.J.1077.2012.00519 CSTR: 32189.14.SP.J.1077.2012.00519

不锈钢表面渗铜扩散复合处理合金层的抗菌性能研究

张翔宇, 蒋立, 黄晓波, 马永, 范爱兰, 唐宾

(太原理工大学表面工程研究所, 太原 030024)

收稿日期:2011-06-27 修回日期:2011-08-12 出版日期:2012-05-10 网络出版日期:2012-03-31
作者简介:张翔宇(1984-), 男, 博士研究生. E-mail: zxyclwl@126.com
基金资助:
山西省科技攻关项目(20110321051);国家自然科学基金(51171125);山西省研究生优秀创新项目(20103024)

Improvement of Antibacterial Properties of Stainless Steel by Combining Plasma Cu and Thermal Diffusion

ZHANG Xiang-Yu, JIANG Li, HUANG Xiao-Bo, MA Yong, FAN Ai-Lan, TANG Bin

(Research Institute of Surface Engineering, Taiyuan University of Technology, Taiyuan 030024, China)

Received:2011-06-27 Revised:2011-08-12 Published:2012-05-10 Online:2012-03-31
About author:ZHANG Xiang-Yu. E-mail: zxyclwl@126.com
Supported by:
Programs for Science and Technology Development of Shanxi (20110321051);National Natural Science Foundation of China(51171125);Graduate Innovation Project of Shanxi Province (20103024)

摘要/Abstract

摘要：

采用等离子表面合金化及辉光轰击热扩散复合处理技术在不锈钢表面进行了铜合金化处理. 利用薄膜密贴法对改性层的抗菌性能进行了测试. 通过扫描电子显微镜(SEM)、辉光放电光谱分析仪(GDOES)和X射线光电子能谱(XPS)等手段, 研究了铜合金层的微观组织、化学成分分布及抗菌前后表面铜的价态变化. 结果表明, 铜合金层对大肠杆菌(E. coli)和金黄色葡萄球菌(S. aureus)都展现了优良抗菌性能; 合金层表面铜约为5.7wt%, 合金层厚度约2.7 µm; 表面铜合金化不锈钢与菌液接触后, 不锈钢表面的铜元素以铜离子析出, 并且与试验菌种发生作用, 杀灭试验细菌.

关键词: 不锈钢, 复合处理, 铜合金层, 抗菌性能

Abstract:

The duplex treatment consisting of plasma surface alloyed with copper followed by thermal diffusion under the bombardment of glow was carried out on AISI 304 stainless steel in order to improve its antibacterial properties. The antibacterial properties against Gram-negative E.coli ATCC10536 and Gram-positive S.aureus ATCC25923 of the untreated and duplex-treated stainless steel were investigated by using a spread plate method. The microstructure, chemical composition and the change of the chemical state of copper on the surface of the duplex treated stainless steel were characterized using scanning electron microscope (SEM), glow discharge optical emission spectroscope (GDOES) and X-ray photoelectron spectroscope (XPS). The results show that the antibacterial rates gradually rise with increase of the contact time between the bacteria and the copper-alloyed stainless steel, and the alloyed surface exhibits excellent antibacterial properties against both E.coli and S.aureus within 12 h. The copper concentration on the alloyed surface reaches to 5.7wt% and the thickness of the alloyed layer is about 2.7 µm. XPS analysis indicated that Cuions was released when the copper-alloyed surface contacted with bacterial solution, which led to death of the bacteria.

Key words: stainless steel, duplex treatment, copper alloyed layer, antibacterial property

中图分类号:

TQ174

张翔宇, 蒋立, 黄晓波, 马永, 范爱兰, 唐宾. 不锈钢表面渗铜扩散复合处理合金层的抗菌性能研究[J]. 无机材料学报, 2012, 27(5): 519-523.

ZHANG Xiang-Yu, JIANG Li, HUANG Xiao-Bo, MA Yong, FAN Ai-Lan, TANG Bin. Improvement of Antibacterial Properties of Stainless Steel by Combining Plasma Cu and Thermal Diffusion[J]. Journal of Inorganic Materials, 2012, 27(5): 519-523.

图/表 5

Table 1 Calculated antibacterial rate of Cu-alloyed stainless steel after a designated contact time with bacterial

Bacterial kinds	Antibacterial rates
Bacterial kinds	1 h	3 h	12 h
E．coli	80%	96%	99.9%
S．aureus	73%	94%	99.9%

图1 对照不锈钢和铜合金化不锈钢分别对大肠杆菌(a、b)和金黄色葡萄球菌(c、d)抗菌性能检测效果图

Fig. 1 Photos of antibacterial effects of the tested stainless steel against E.coli: (a) control and (b) Cu-alloyed, and S.aureus: (c) control and (d) Cu-alloyed

图2 铜合金化不锈钢表面形貌照片及面扫描EDS分析

Fig. 2 SEM image of Cu-alloyed stainless steel and corresponding EDS analysis

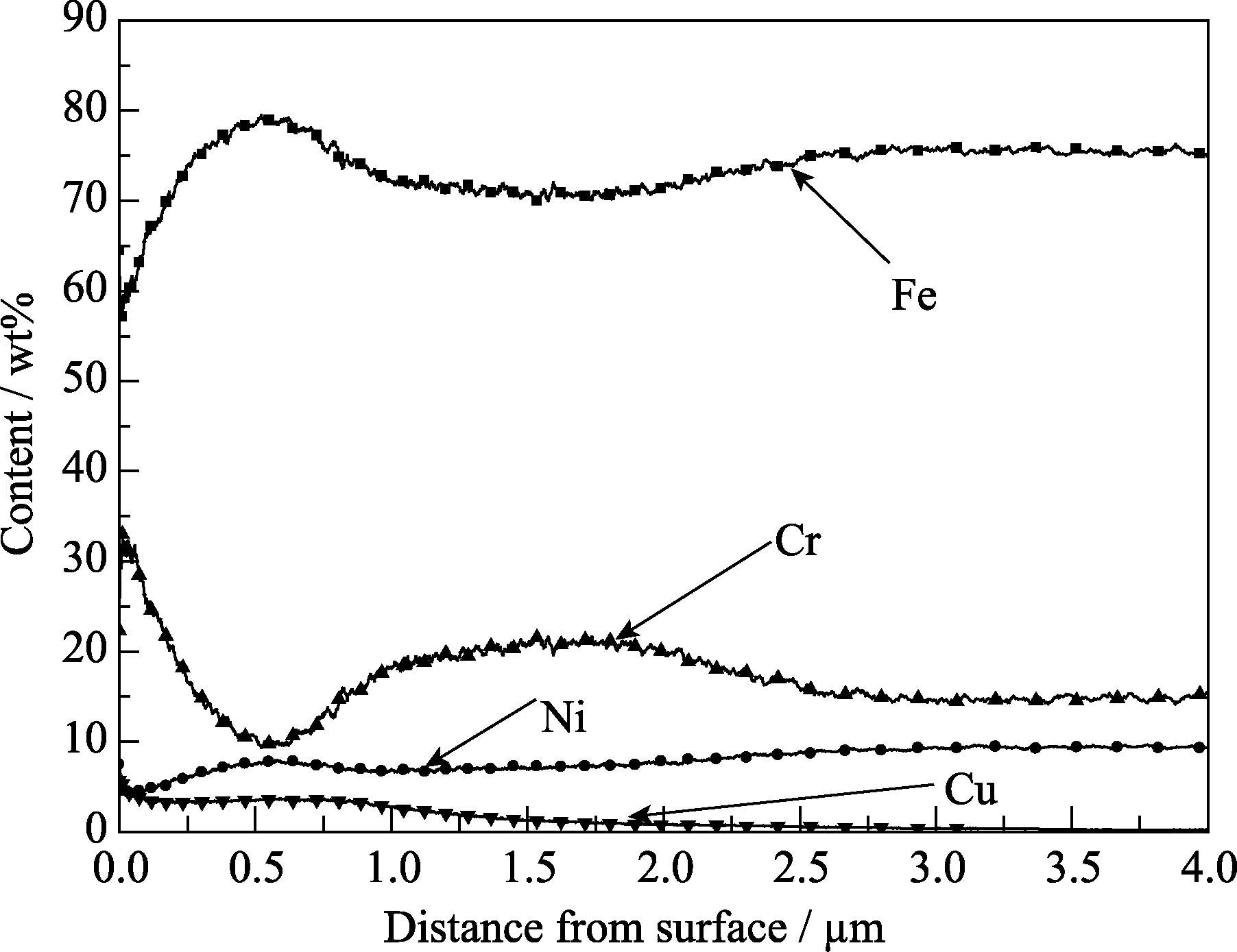

图3 铜合金层各元素成分分布

Fig. 3 Alloy elements distribution of the Cu-alloyed layer

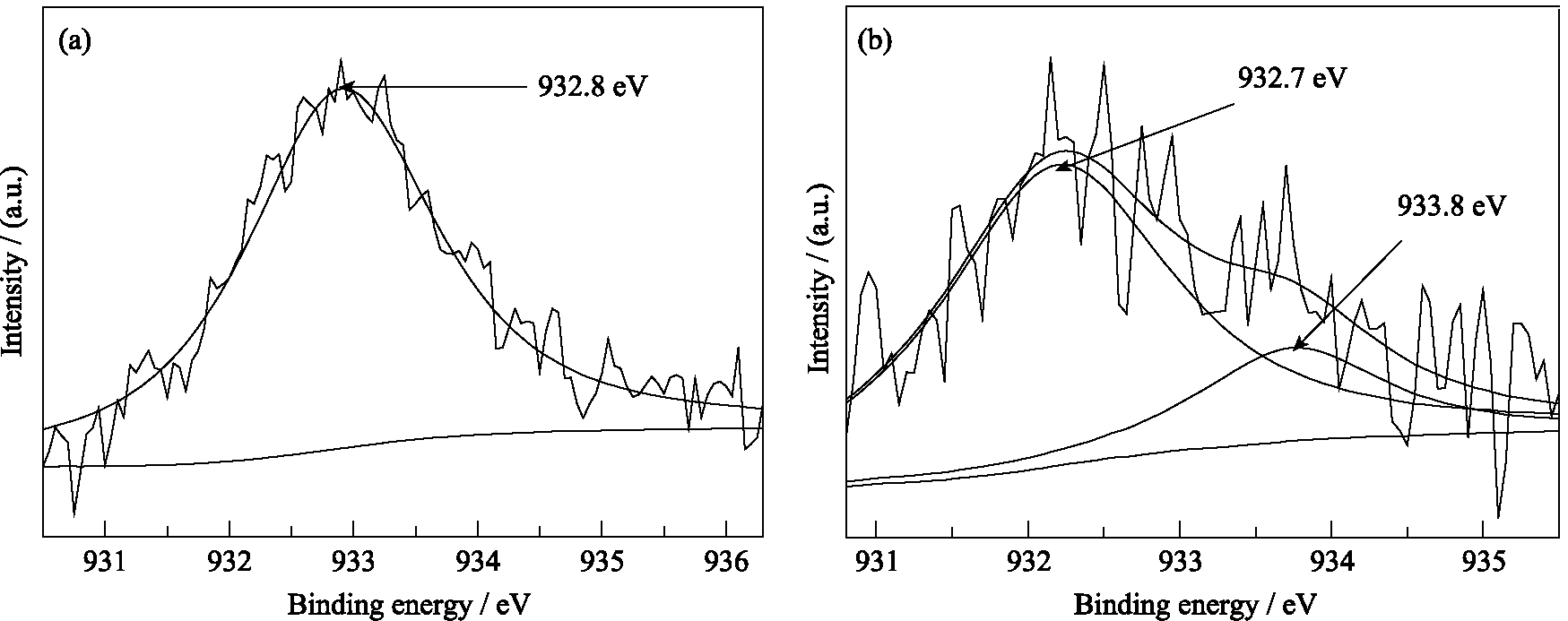

图4 与细菌作用前(a)、后(b)合金化不锈钢表面Cu2p3/2的XPS能谱

Fig. 4 XPS spectra of Cu2p3/2 for Cu-alloyed stainless steel before (a) and after (b) contacting the bacterial
