原位引入BN-SiC燃烧合成Si3N4-BN-SiC复合材料

doi:10.15541/jim20210422

无机材料学报 ›› 2022, Vol. 37 ›› Issue (5): 574-578.DOI: 10.15541/jim20210422

所属专题：【结构材料】超高温结构陶瓷；【结构材料】陶瓷基复合材料

原位引入BN-SiC燃烧合成Si₃N₄-BN-SiC复合材料

张叶¹^,²(), 姚冬旭¹, 左开慧¹, 夏咏锋¹, 尹金伟¹, 曾宇平¹()

1. 中国科学院上海硅酸盐研究所, 高性能陶瓷和超微结构国家重点实验室, 上海 200050
2. 中国科学院大学, 材料科学与光电工程中心, 北京 100049

收稿日期:2021-07-05 修回日期:2021-09-06 出版日期:2022-05-20 网络出版日期:2021-09-27
通讯作者: 曾宇平, 研究员. E-mail: yuping-zeng@mail.sic.ac.cn
作者简介:张叶(1994–), 男, 博士研究生. E-mail: zhangyezn@student.sic.ac.cn

Combustion Synthesis of Si₃N₄-BN-SiC Composites by in-situ Introduction of BN and SiC

ZHANG Ye¹^,²(), YAO Dongxu¹, ZUO Kaihui¹, XIA Yongfeng¹, YIN Jinwei¹, ZENG Yuping¹()

1. State Key Laboratory of High Performance Ceramics and Superfine Microstructure, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China
2. Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China

Received:2021-07-05 Revised:2021-09-06 Published:2022-05-20 Online:2021-09-27
Contact: ZENG Yuping, male, professor. E-mail: yuping-zeng@mail.sic.ac.cn
About author:ZHANG Ye (1994–), male, PhD candidate. E-mail: zhangyezn@student.sic.ac.cn
Supported by:
National Key R&D Program of China(2018YFF01013605);National Natural Science Foundation of China(51902327)

摘要/Abstract

摘要：

Si₃N₄-BN-SiC复合材料以其良好的力学性能和抗氧化性能而具有良好的工程应用前景。本研究以Si、Si₃N₄稀释剂、B₄C和Y₂O₃为原料, 采用燃烧合成法成功制备了Si₃N₄-BN-SiC复合材料。通过Si、B₄C和N₂气之间的反应, 在Si₃N₄陶瓷中原位引入BN和SiC, 制备的Si₃N₄-BN-SiC复合材料由长棒状的β-Si₃N₄和空心球形复合材料组成。实验研究了空心球微结构的形成机理, 结果表明, 生成的SiC、BN颗粒及玻璃相覆盖在原料颗粒上, 当原料颗粒反应完全时, 形成空心球形微结构。并进一步研究了B₄C含量对Si₃N₄-BN-SiC复合材料力学性能的影响。原位引入SiC和BN在一定程度上可以提高复合材料的力学性能。当B₄C添加量为质量分数0~20%时, 获得了抗弯强度为28~144 MPa、断裂韧性为0.6~2.3 MPa·m ^1/2, 杨氏模量为17.4~54.5 GPa, 孔隙率为37.7%~51.8%的Si₃N₄-BN-SiC复合材料。

关键词: 燃烧合成, Si₃N₄-BN-SiC复合材料, 原位引入, 相组成, 空心球, 形成机理

Abstract:

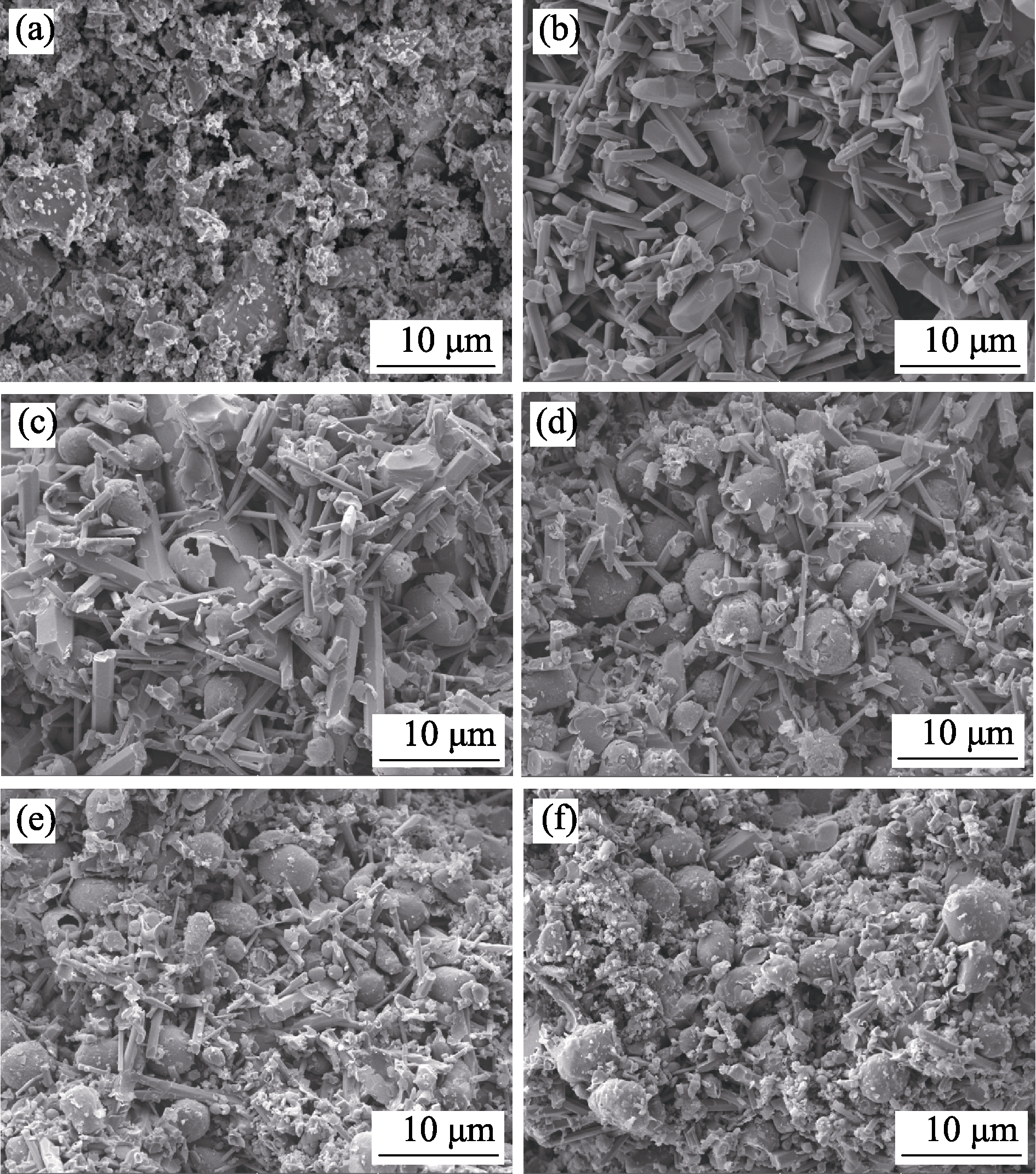

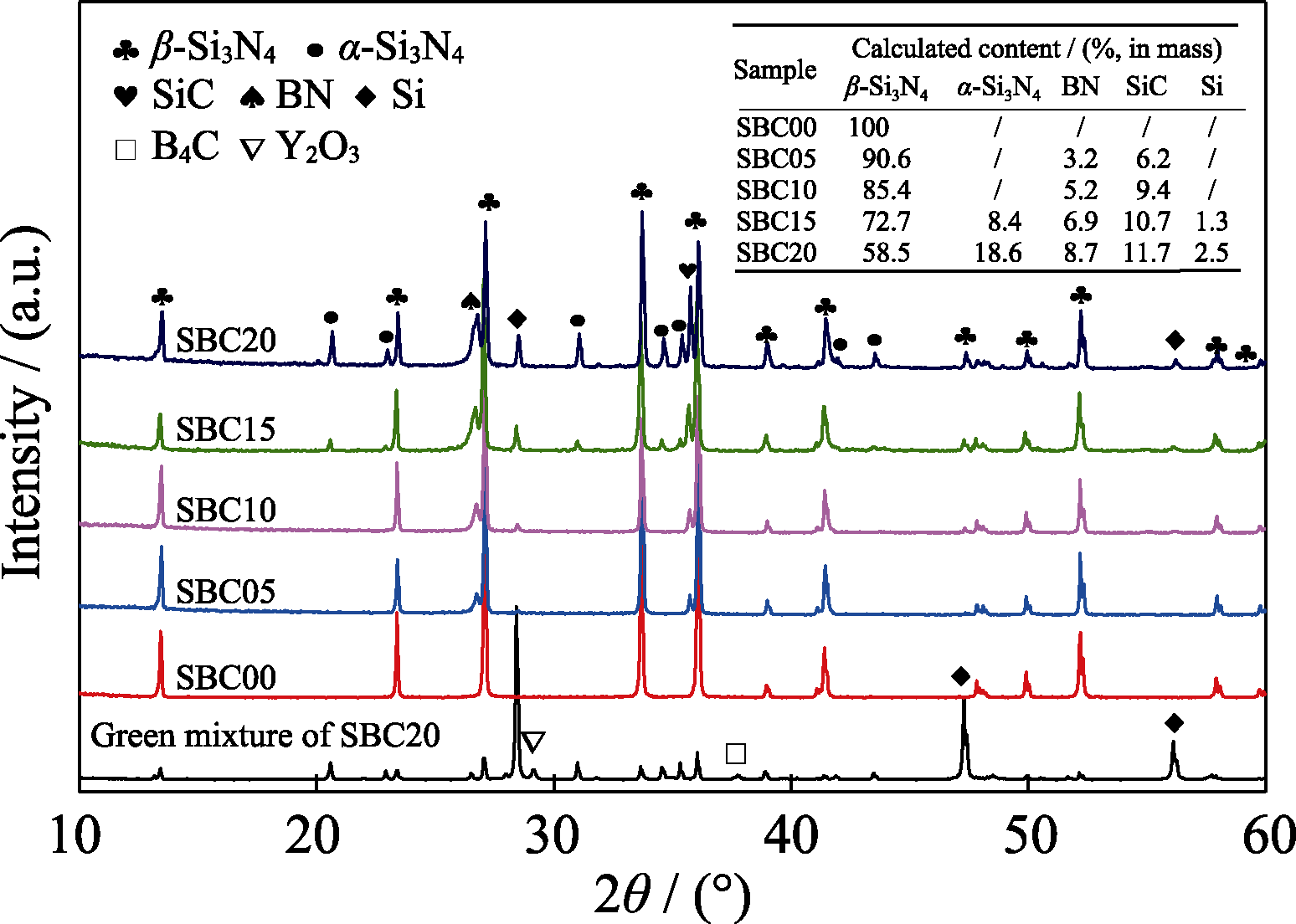

Si₃N₄-BN-SiC composites present desirable potential for engineering applications because of their improved mechanical properties and oxidation resistance. In present work, Si₃N₄-BN-SiC composites were successfully fabricated by combustion synthesis using Si, Si₃N₄ diluent, B₄C, and Y₂O₃ as initial powders. BN and SiC were in situ introduced into Si₃N₄ ceramics by the reaction between Si, B₄C, and N₂ gas. The obtained Si₃N₄-BN-SiC composites were composed of elongated β-Si₃N₄ matrix and hollow spherical composites. The formation mechanism of the hollow spherical microstructure was investigated. The results show that the generated SiC and BN particles and glass phase cover on the raw materials, and hollow spherical microstructure is formed when raw particles are depleted. Furthermore, the impacts of B₄C content on the mechanical properties of Si₃N₄-BN-SiC composites were investigated in detail. The in-situ introduction of BN and SiC is beneficial to improving mechanical properties of the composites to some extent. Finally, Si₃N₄-BN-SiC composites with bending strength of 28-144 MPa, fracture toughness of 0.6-2.3 MPa·m ^1/2, Young's modulus of 17.4-54.5 GPa, and porosity of 37.7%-51.8% were obtained for the samples with 0-20% (in mass) B₄C addition.

Key words: combustion synthesis, Si₃N₄-BN-SiC composites, in situ introduction, phase compositions, hollow sphere, formation mechanism

中图分类号:

TQ174

张叶, 姚冬旭, 左开慧, 夏咏锋, 尹金伟, 曾宇平. 原位引入BN-SiC燃烧合成Si₃N₄-BN-SiC复合材料[J]. 无机材料学报, 2022, 37(5): 574-578.

ZHANG Ye, YAO Dongxu, ZUO Kaihui, XIA Yongfeng, YIN Jinwei, ZENG Yuping. Combustion Synthesis of Si₃N₄-BN-SiC Composites by in-situ Introduction of BN and SiC[J]. Journal of Inorganic Materials, 2022, 37(5): 574-578.

图/表 4

参考文献 24

[1]	WANG W D, YAO D X, CHEN H B, et al. ZrSi₂-MgO as novel additives for high thermal conductivity of β-Si₃N₄ ceramics. J. Am. Ceram. Soc., 2020,103(3):2090-2100.
[2]	SUN S Y, XIE Z P, CHEN K X. Precisely controlled carbothermal synthesis of spherical β-Si₃N₄ granules. Ceram. Int., 2020,46(8):10879-10884.
[3]	HAMPSHIRE S. Silicon nitride ceramics-review of structure, processing and properties. J. Achieve. Mater. Manuf. Eng., 2007,24(1):43-50.
[4]	LI X Q, YAO D X, ZUO K H, et al. Microstructure and gas permeation performance of porous silicon nitride ceramics with unidirectionally aligned channels. J. Am. Ceram. Soc., 2020,103(11):6565-6574.
[5]	KALEMTAS A, TOPATES G, OZCOBAN H, et al. Mechanical characterization of highly porous β-Si₃N₄ ceramics fabricated via partial sintering & starch addition. J. Eur. Ceram. Soc., 2013,33(9):1507-1515.
[6]	YANG J G, WU P, ZHANG Y P, et al. Synthesis of Si₃N₄ whiskers by rapid nitridation of silicon droplets. Int. J. Appl. Ceram. Technol., 2020,17(1):296-303.
[7]	MATSUNAGA C, ZHOU Y, KUSANO D, et al. Nitridation behavior of silicon powder compacts of various thicknesses with Y₂O₃ and MgO as sintering additives. Int. J. Appl. Ceram. Technol., 2017,14(6):1157-1163.
[8]	ZHI Q, WANG B, ZHAO S, et al. Synthesis and mechanical properties of highly porous ultrafine-grain Si₃N₄ ceramics via carbothermal reduction-nitridation combined with liquid phase sintering. Ceram. Int., 2019,45(17):21359-21364.
[9]	ZHANG Y, YU X, GU H, et al. Microstructure evolution and high-temperature mechanical properties of porous Si₃N₄ ceramics prepared by SHS with a small amount of Y₂O₃ addition. Ceram. Int., 2021,47(4):5656-5662.
[10]	CANO I G, BOROVINSKAYA I P, RODRIGUEZ M A, et al. Effect of dilution and porosity on self-propagating high-temperature synthesis of silicon nitride. J. Am. Ceram. Soc., 2002,85(9):2209-2211.
[11]	LOJANOVÁ S, TATARKO P, CHLUP Z, et al. Rare-earth element doped Si₃N₄/SiC micro/nano-composites—RT and HT mechanical properties. J. Eur. Ceram. Soc., 2010,30(9):1931-1944.
[12]	LI X L, ZHANG L, YIN X, et al. Mechanical and dielectric properties of porous Si₃N₄-SiC(BN) ceramic. J. Alloys Compd., 2010,490(1/2):40-43.
[13]	WANG S J, JIA D C, YANG Z H, et al. Effect of BN content on microstructures, mechanical and dielectric properties of porous BN/Si₃N₄ composite ceramics prepared by gel casting. Ceram. Int., 2013,39(4):4231-4237.
[14]	WANG S J, YANG Z H, DUAN X M, et al. Fabrication and characterization of in situ porous Si₃N₄-Si₂N₂O-BN ceramic. Int. J. Appl. Ceram. Technol., 2014,11(5):832-838.
[15]	KUSUNOSE T, SEKINO T, CHOA Y H, et al. Fabrication and microstructure of silicon nitride/boron nitride nanocomposites. J. Am. Ceram. Soc., 2002,85(11):2678-2688.
[16]	ZHENG Y T, LI H B, ZHOU T. Microstructure and mechanical properties of h-BN-SiC ceramic composites prepared by in situ combustion synthesis. Mater. Sci. Eng. A-Struct., 2012,540(1):102-106.
[17]	ZHANG Y, YAO D, ZUO K, et al. Fabrication and mechanical properties of porous Si₃N₄ ceramics prepared via SHS. Ceram. Int., 2019,45(12):14867-14872.
[18]	LI H B, ZHENG Y T, HAN J C. In-situ combustion synthesis of h-BN-SiC high-temperature ceramics. Key Eng. Mater., 2007, 353-358:1501-1504.
[19]	ZHANG Y, YAO D, ZUO K, et al. Effects of N₂ pressure and Si particle size on mechanical properties of porous Si₃N₄ ceramics prepared via SHS. J. Eur. Ceram. Soc., 2020,40(13):4454-4461.
[20]	LAI K R, TIEN T Y. Kinetics of β-Si₃N₄ grain-growth in Si₃N₄ ceramics sintered under high nitrogen pressure. J. Am. Ceram. Soc., 1993,76(1):91-96.
[21]	RIEDEL R, KIENZLE A, DRESSLER W, et al. A silicoboron carbonitride ceramic stable to 2,000 ℃. Nature, 1996,382(6594):796-798.
[22]	THIYAGARAJAN G B, DEVASIA R. Simple and low-cost synthetic route for SiBCN ceramic powder from a boron-modified cyclotrisilazane. J. Am. Ceram. Soc., 2019,102(1):476-489.
[23]	YANG J F, ZHANG G J, OHJI T. Fabrication of low-shrinkage, porous silicon nitride ceramics by addition of a small amount of carbon. J. Am. Ceram. Soc., 2001,84(7):1639-1641.
[24]	FABER K T, EVANS A G. Crack deflection processes-Ⅰ. Theory. Acta Metall., 1983,31(4):565-576.

Sample	Reaction temperature/℃	Reaction time/s	Open porosity/%	Total porosity/%	Bending strength/MPa	Fracture toughness/ (MPa·m^1/2)	Young's modulus/GPa
SBC00	(1850±15)	(16±3)	(51.8±1.0)	52.0	(120±12.0)	(2.2±0.4)	(49.5±1.6)
SBC05	(1825±20)	(18±5)	(47.3±0.5)	48.5	(144±8.4)	(2.3±0.2)	(54.5±1.7)
SBC10	(1795±12)	(21±2)	(43.3±0.6)	47.5	(108±5.0)	(1.7±0.2)	(46.2±3.0)
SBC15	(1778±20)	(26±5)	(42.3±0.5)	46.9	(30±7.4)	(0.7±0.2)	(18.5±2.1)
SBC20	(1765±14)	(30±3)	(37.7±1.7)	45.2	(28±3.9)	(0.6±0.1)	(17.4±1.2)

Sample	Reaction temperature/℃	Reaction time/s	Open porosity/%	Total porosity/%	Bending strength/MPa	Fracture toughness/ (MPa·m^1/2)	Young's modulus/GPa
SBC00	(1850±15)	(16±3)	(51.8±1.0)	52.0	(120±12.0)	(2.2±0.4)	(49.5±1.6)
SBC05	(1825±20)	(18±5)	(47.3±0.5)	48.5	(144±8.4)	(2.3±0.2)	(54.5±1.7)
SBC10	(1795±12)	(21±2)	(43.3±0.6)	47.5	(108±5.0)	(1.7±0.2)	(46.2±3.0)
SBC15	(1778±20)	(26±5)	(42.3±0.5)	46.9	(30±7.4)	(0.7±0.2)	(18.5±2.1)
SBC20	(1765±14)	(30±3)	(37.7±1.7)	45.2	(28±3.9)	(0.6±0.1)	(17.4±1.2)
