Cu 2+、Tb 3+共掺杂BaZrO3高近红外反射颜料的制备及其性能研究

doi:10.15541/jim20180387

摘要/Abstract

摘要：

环保型高近红外反射颜料可以有效缓解城市“热岛效应”和能源危机, 对推动绿色建筑节能产业发展具有重要的意义。离子掺杂是实现高近红外反射颜料呈色多样性的有效手段, 本研究采用溶胶-凝胶法制备了一系列铜离子和稀土铽离子共掺杂的高近红外反射Ba_1-_xCu_xZr_1-_yTb_yO₃(x=0.15, 0.25, 0.35; y=0, 0.15)无机颜料。利用X射线衍射仪(XRD)、紫外/可见/近红外分光光度计、CIE 1976 L ^*a ^*b ^*色度坐标等对所合成的颜料粉体的晶体结构、反射性能、颜色性能等进行表征。结果表明, 在煅烧温度为1100 ℃时, 所合成的样品均为立方钙钛矿结构; Cu ²⁺、Tb ³⁺共掺杂进入BaZrO₃晶格中, 随着掺杂量的增加, 颜料样品颜色由白色逐渐变为灰色再变为黄色。而且所得颜料在780~2500 nm波长范围内具有较高的近红外太阳光反射率, 其平均反射率(R ^*)可达到 80%左右。因此, 这种Ba_1-_xCu_xZr_1-_yTb_yO₃“冷”颜料粉体在建筑涂料等方面具有广阔的应用前景。

关键词: 溶胶-凝胶法, 共掺杂, 近红外反射, “冷”颜料;

Abstract:

The urban island effect and energy crisis can be relieved usefully by environmentally benign and high near-infrared reflective pigments, which is of great significance to develop of green energy-saving industry. Ions doping is an effective way to achieve the color diversity of high near infrared reflective pigments. In this work, a series of high near-infrared reflection Ba_1-_xCu_xZr_1-_yTb_yO₃ (x=0.15, 0.25, 0.35; y=0, 0.15) inorganic pigment co-doped with Cu ²⁺and rare earth Tb ³⁺was prepared by a Sol-Gel process. Its phase structure, ultraviolet/visible/near-infrared reflectance, and color parameters of the synthesized pigment samples were investigated and characterized by X-ray diffraction (XRD), UV/Vis/NIR spectroscopy, and color CIE-L ^*a ^*b ^* 1976 color scales. The results demonstrate that all synthesized pigments have cubic perovskite structure after calcined at 1100 ℃. The co-doping of Cu ²⁺ and Tb ³⁺ is successfully introduced into the BaZrO₃lattice, and the color increasingly changes from white to gray, and to yellow with the increase of Cu ²⁺and Tb ³⁺concentration. Meanwhile, the obtained pigments possess high near-infrared solar reflectance in the range of 780-2500 nm, the average reflectance is up to 80%. Therefore, these Ba_1-_xCu_xZr_1-_yTb_yO₃cool powdered pigment have great application prospect in the building coatings.

Key words: Sol-Gel, co-doping, near-infrared reflectance, cool pigment

中图分类号:

TQ622

张少丹, 包维维, 马海萍. Cu ²⁺、Tb ³⁺共掺杂BaZrO₃高近红外反射颜料的制备及其性能研究[J]. 无机材料学报, 2019, 34(6): 599-604.

Shao-Dan ZHANG, Wei-Wei BAO, Hai-Ping MA. Near-infrared Reflective Pigments Based on Cu ²⁺ and Tb ³⁺ Codoped BaZrO₃: Preparation and Performance[J]. Journal of Inorganic Materials, 2019, 34(6): 599-604.

图/表 8

表1 Ba1-xCuxZr1-yTbyO3颜料样品符号和组成说明

Table 1 Symbols and compositions of Ba1-xCuxZr1-yTbyO3 pigments samples

Ref.	Composition
BZ	BaZrO₃
BC 015	Ba_0.85Cu_0.15ZrO₃
BC 025	Ba_0.75Cu_0.25ZrO₃
BC 035	Ba_0.65Cu_0.35ZrO₃
BC 015 T	Ba_0.85Cu_0.15Zr_0.85Tb_0.15O₃
BC 025 T	Ba_0.75Cu_0.25Zr_0.85Tb_0.15O₃
BC 035 T	Ba_0.65Cu_0.35Zr_0.85Tb_0.15O₃

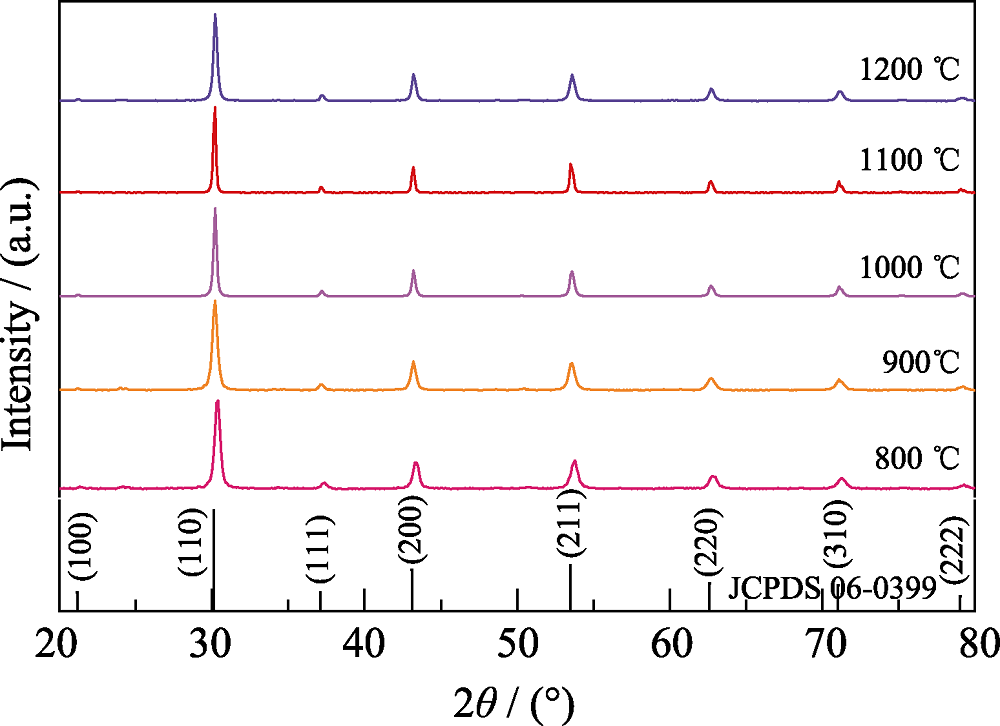

图1 不同煅烧温度下BaZrO3颜料的XRD图谱

Fig. 1 XRD patterns of BaZrO3 pigment calcined at different temperature

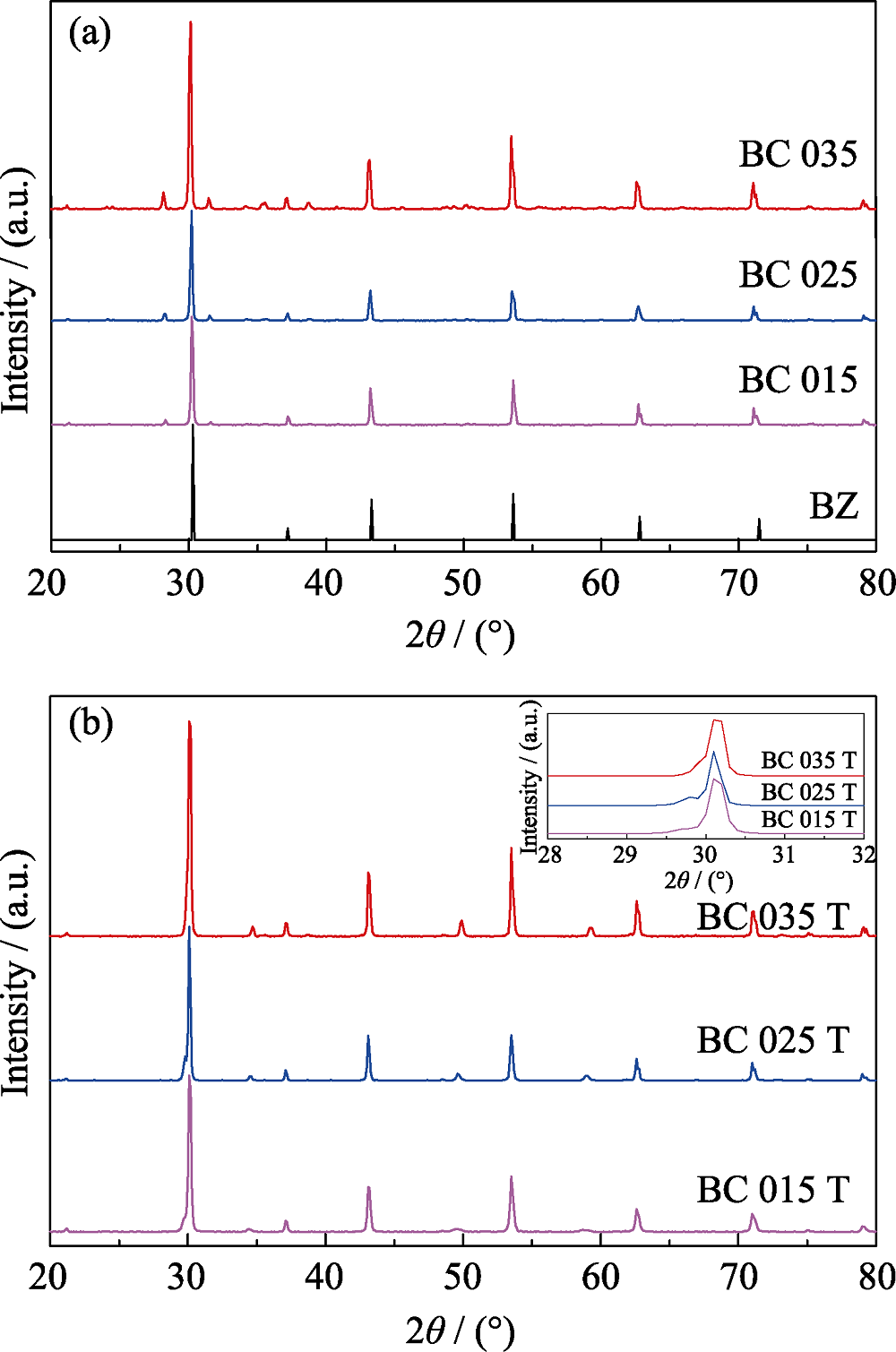

图2 Ba1-xCuxZr1-yTbyO3系列颜料样品的XRD谱图

Fig. 2 XRD patterns of Ba1-xCuxZr1-yTbyO3 pigments

表2 Ba1-xCuxZr1-yTbyO3系列颜料的晶胞参数

Table 2 Cell parameters of the cubic cell of Ba1-xCuxZr1-yTbyO3 pigments

Ref.	(hkl)	(110)	(111)	(211)	(220)	(310)	Average/nm	Volume/nm³
BZ	a=b=c/nm	0.41915	0.41889	0.41908	0.41907	0.41917	0.41907	0.07360
BC 015	a=b=c/nm	0.41705	0.41916	0.41909	0.41880	0.41926	0.41867	0.07339
BC 025	a=b=c/nm	0.41814	0.41811	0.41846	0.41870	0.41885	0.41845	0.07327
BC 035	a=b=c/nm	0.41703	0.41819	0.41849	0.41929	0.41885	0.41837	0.07323
BC 015 T	a=b=c/nm	0.42057	0.41943	0.41925	0.41938	0.41937	0.41960	0.07388
BC 025 T	a=b=c/nm	0.41945	0.41930	0.41922	0.41926	0.41937	0.41932	0.07373
BC 035 T	a=b=c/nm	0.41925	0.41922	0.41917	0.41884	0.41908	0.41911	0.07362

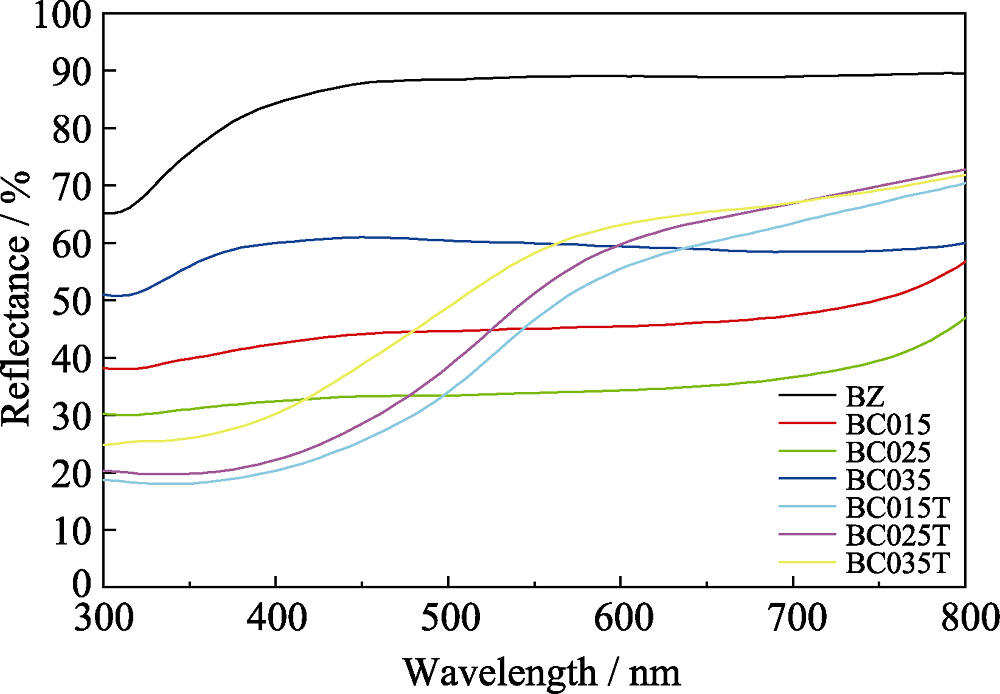

图3 Ba1-xCuxZr1-yTbyO3系列颜料的紫外-可见漫反射光谱图

Fig. 3 UV-Vis diffuse reflectance spectra of Ba1-xCuxZr1-yTbyO3 pigments

表3 粉体颜料Ba1-xCuxZr1-yTbyO3 (x=0.15, 0.25, 0.35; y=0, 0.15)的色度坐标和禁带宽度

Table 3 Color coordinates of the Ba1-xCuxZr1-yTbyO3 (x=0.15, 0.25, 0.35; y=0, 0.15) powdered pigments and band gap values

Pigment composition	Color coordinates				Band gap/eV
Pigment composition	L^*	a^*	b^*	c^*	Band gap/eV
BZ	95.51	-0.21	0.91	0.93	2.71
BC 015	72.94	0.22	1.18	1.20	2.54
BC 025	64.87	0.56	0.94	1.09	2.53
BC 035	81.78	-0.39	-0.82	0.91	3.25
BC 015 T	73.30	6.28	26.02	26.77	2.59
BC 025 T	76.07	5.08	26.03	26.52	2.64
BC 035 T	80.04	1.33	19.03	19.08	2.70

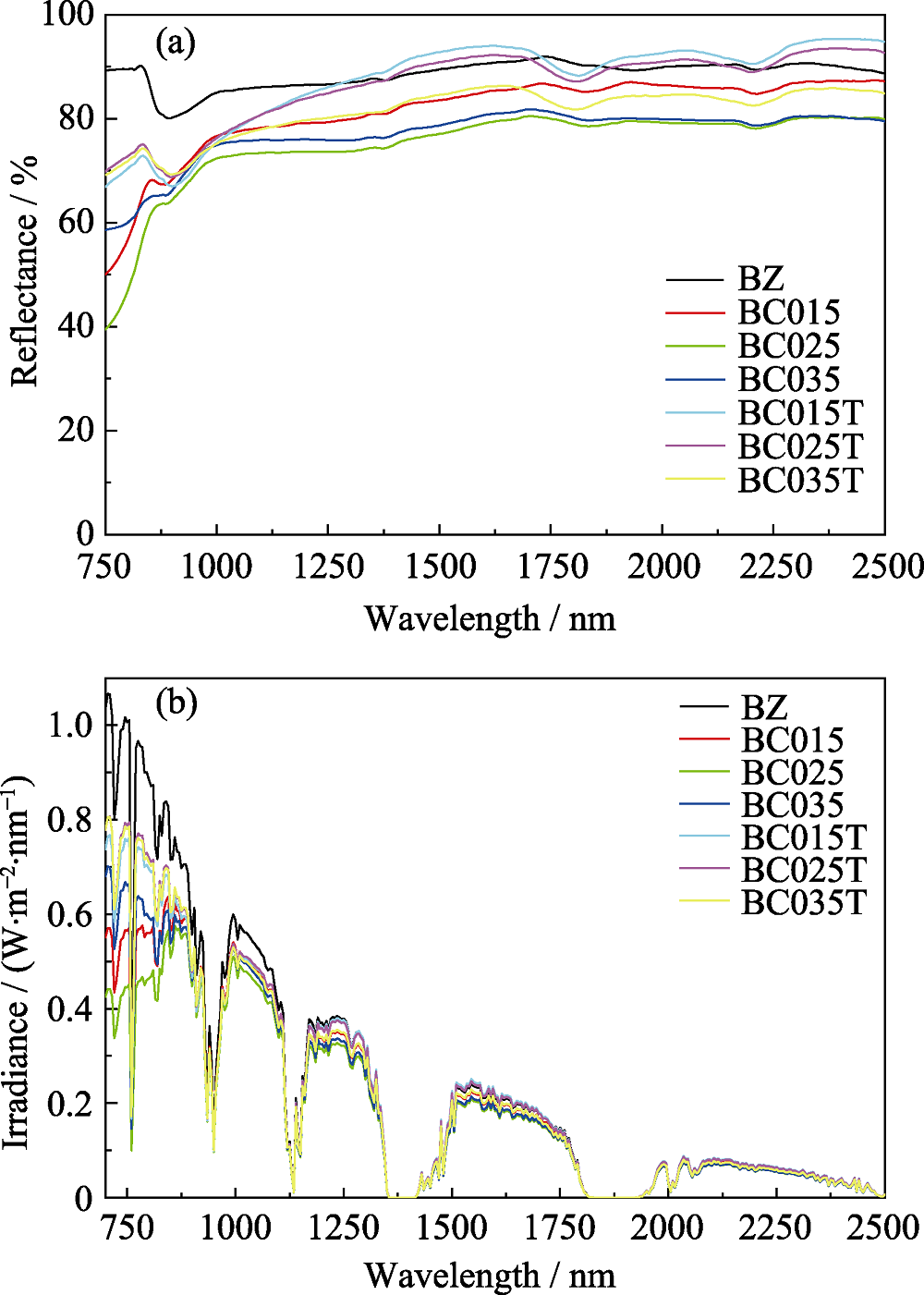

图4 粉体颜料Ba1-xCuxZr1-yTbyO3的近红外反射光谱图(a)和近红外太阳光反射谱图(b)

Fig. 4 NIR reflectance (a) and NIR solar reflectance (b) of Ba1-xCuxZr1-yTbyO3 powdered pigments

表4 粉体颜料Ba1-xCuxZr1-yTbyO3 (x=0.15, 0.25, 0.35; y=0, 0.15)的近红外太阳光反射率

Table 4 NIR solar reflectance of Ba1-xCuxZr1-yTbyO3 (x=0.15, 0.25, 0.35; y=0, 0.15) powdered pigments

Pigment composition	BZ	BC 015	BC 025	BC 035	BC 015 T	BC 025 T	BC 035 T
NIR solar reflectance	86.8%	74.8%	68.8%	72.5%	79.8%	80.1%	77.2%

参考文献 30

[1]	LIU LI-LI, HAN AI-JUN, YE MING-QUAN , et al. Synthesis and characterization of Al ³+ doped LaFeO₃ compounds: a novel inorganic pigments with high near-infrared reflectance . Solar Energy Materials & Solar Cells, 2015,132:377-384.
[2]	SAMEERA S, RAO P P, DIVYA S , et al. High IR reflecting BiVO₄-CaMoO₄ based yellow pigments for cool roof applications. Energy & Buildings, 2017,154:491-498.
[3]	THONGKANLUANG T, KITTIAUCHAWAL T, LIMSUWAN P . Preparation and characterization of Cr₂O₃-TiO₂-Al₂O₃-V₂O₅ green pigment. Ceramics International, 2011,37(2):543-548. DOI URL
[4]	SANTAMOURIS M, SYNNEFA A, KARLESSIi T . Using advanced cool materials in the urban built environment to mitigate heat islands and improve thermal comfort conditions. Solar Energy, 2011,85(12):3085-3102. DOI URL
[5]	LEVINSON R, AKBARI H, REILLY J C . Cooler tile-roofed buildings with near-infrared-reflective non-white coatings. Building & Environment, 2007,42(7):2591-2605.
[6]	SYNNEFA A, SANTAMOURIS M, LIVADA I . A study of the thermal performance of reflective coatings for the urban environment. Solar Energy, 2006,80(8):968-981. DOI URL
[7]	SYNNEFA A, SANTAMOURIS M, APOSTOLAKIS K . On the development, optical properties and thermal performance of cool colored coatings for the urban environment. Solar Energy, 2007,81(4):488-497. DOI URL
[8]	LEVINSON R, AKBARI H, BERDAHL P , et al. A novel technique for the production of cool colored concrete tile and asphalt shingle roofing products. Solar Energy Materials & Solar Cells, 2010,94(6):946-954.
[9]	SONG ZHONG-NAN, ZHANG WEI-DONG, SHI YUN-XING , et al. Optical properties across the solar spectrum and indoor thermal performance of cool white coatings for building energy efficiency. Energy & Buildings, 2013,63(7):49-58.
[10]	VISHNU V S, GEORGE G, DIVYA V , et al. Synthesis and characterization of new environmentally benign tantalum-doped Ce_0.8Zr_0.2O₂, yellow pigments: applications in coloring of plastics. Dyes & Pigments, 2009,82(1):53-57.
[11]	BIEZA M, GUZIK M, TOMASZEWICZ E , et al. Cubic Yb ³+-activated Y₆MoO₁₂ micro-powder - optical material operating in NIR region . Optical Materials, 2016,63:1-10.
[12]	JIANG JUN, YAO BO-LONG, GAO XU-RUI , et al. Preparation and optical properties of copper ion doped Y₂Ba₂O₅ high near infrared reflective pigment. Journal of Inorganic Materials, 2016,31(6):641-646. DOI URL
[13]	RAJ A K V, RAO P P, DIVYA S , et al. Terbium doped Sr₂MO₄ [M=Sn and Zr] yellow pigments with high infrared reflectance for energy saving applications. Powder Technology, 2017,311:52-58. DOI URL
[14]	VISHNU V S, GEORGE G, REDDY M L P . Effect of molybdenum and praseodymium dopants on the optical properties of Sm₂Ce₂O₇: tuning of band gaps to realize various color hues. Dyes & Pigments, 2010,85(3):117-123.
[15]	JOVANI M, SANZ A, BELTRAN-MIR H , et al. New red-shade environmental-friendly multifunctional pigment based on Tb and Fe doped Y₂Zr₂O₇ for ceramic applications and cool roof coatings. Dyes & Pigments, 2016,133:33-40.
[16]	MIKHAILOV M M, NESHCHIMENKO V V, UTEBEKOV T A , et al. Features high-temperature synthesis of barium zirconium titanate powder by using zirconium dioxide nanopowders. Journal of Alloys & Compounds, 2015,652:364-370.
[17]	GUAN LI, JIN LI-TAO, GUO SHU-QING , et al. Luminescent properties of Eu ³+ doped BaZrO₃ phosphor for UV white light emitting diode . Journal of Rare Earths, 2010,28(1):292-294 DOI URL
[18]	MOREIRA M L, ANDRÉS J, VARELA J A , et al. Synthesis of fine micro-sized BaZrO₃ powders based on a decaoctahedron shape by the microwave-assisted hydrothermal method. Crystal Growth & Design, 2009,2(2):833-839.
[19]	PARIDA S, BISEN A, SINHA E , et al. Dielectric-resonant antenna studies of dysprosium doped barium zirconate ceramic. Journal of Materials Engineering and Performance, 2013,22(9):2634-2640. DOI URL
[20]	YANG YU-JIA, WANG JING, HE HUI-FEN . Synthesis and luminescence properties of Tb ³+ doped BaZrO₃ powders . Journal of Inorganic Materials, 2016,31(1):27-33. DOI URL
[21]	WU YING, MA WEI-MIN, MA LEI , et al. Preparation and luminescence properties of BaZrO₃: (Ce, Pr) nanoparticles. Journal of Synthetic Crystals, 2015,44(4):1063-1068.
[22]	GUO LI-MIN, ZHONG CAI-FU, WANG XIAO-HUI , et al. Synthesis and photoluminescence properties of Er ³+ doped BaZrO₃ nanotube arrays . Journal of Alloys & Compounds, 2012,530(10):22-25.
[23]	LIU LI-LI, HAN AI-JUN, YE MING-QUAN , et al. The evaluation of thermal performance of cool coatings colored with high near-infrared reflective nano-brown inorganic pigments: magnesium doped ZnFe₂O₄ compounds. Solar Energy, 2015,113:48-56. DOI URL
[24]	BAO WEI-WEI, MA FEI, Zhang YING-TANG , et al. Synthesis and characterization of Fe ³+ doped Co_0.5Mg_0.5Al₂O₄ inorganic pigments with high near-infrared reflectance . Powder Technology, 2016,292:7-13. DOI URL
[25]	YANG RUI, HAN AI-JUN, YE MING-QUAN , et al. Synthesis, characterization and thermal performance of Fe/N co-doped MgTiO₃ as a novel high near-infrared reflective pigment. Solar Energy Materials & Solar Cells, 2017,160:307-318.
[26]	JING JIE, ZHANG YAN-SHUANG, SUN JIA-XIANG , et al. A comparative study on different RE-doped (RE=Pr, Nd, Sm) SrCuSi₄O₁₀ blue pigments with high near-infrared reflectance. Dyes and Pigments, 2018,150:9-15. DOI URL
[27]	ZHANG XIAO-YU, ZHANG YU-JUN, GONG HONG-YU , et al. Preparation of high near-infrared reflective nano pigments. Jounal of Synthetic Crystals, 2013,42(3):482-486.
[28]	HEDAYATI H R, ALVANI A A S, SAMEIE H , et al. Synthesis and characterization of Co_1-xZn_xCr_2-yAl_yO₄ as a near-infrared reflective color tunable nano-pigment. Dyes & Pigments, 2015,113:588-595.
[29]	HAN AI-JUN, YE MING-QUAN, LIU LI-LI , et al. Estimating thermal performance of cool coatings colored with high near-infrared reflective inorganic pigments: iron doped La₂Mo₂O₇, compounds. Energy & Buildings, 2014,84:698-703.
[30]	SHI YONG, ZHONG MING-FENG, ZHANG ZHI-JIE , et al. Crystal structure and near-infrared reflective properties of Fe ³+ doped AlPO₄ pigments . Ceramics International, 2017,43:5979-5983. DOI URL
