高效CdS量子点敏化B/S共掺杂纳米TiO2太阳能电池的制备及光电性能研究

doi:10.15541/jim20150518

无机材料学报 ›› 2016, Vol. 31 ›› Issue (6): 627-633.DOI: 10.15541/jim20150518

高效CdS量子点敏化B/S共掺杂纳米TiO₂太阳能电池的制备及光电性能研究

李玲¹, 肖俊莹¹, 崔米豆¹, 太优一², 庞永文¹, 韩松¹, 李晓苇¹

(1. 河北大学物理科学与技术学院, 河北省光电信息材料重点实验室, 保定 071002; 2. 四川大学材料科学与工程学院, 成都 610064)

收稿日期:2015-10-23 修回日期:2015-12-01 出版日期:2016-06-20 网络出版日期:2016-05-19
作者简介:李玲(1980–), 女, 副教授. E-mail: lilinghbu@163.com
基金资助:
国家自然科学基金(21201053);高等学校博士学科点专项科研基金新教师类资助课题(20121301120005);河北省自然科学基金(F2014201078, 2015201050);河北省应用基础研究计划重点基础研究项目(14964306D);河北省教育厅基金(ZD2016055, QN2014057);河北省大学创新创业训练计划项目(2015066, 2015161, 201510075047, 026);河北大学学生综合素质培养项目(2015zh0442;2015zh0443);河北大学杰出青年基金(2015JQ02)

Boron and Sulfur Co-doped TiO₂ Nanofilm as High Efficiency CdS Quantum-dot-sensitized Solar Cells

LI Ling¹, XIAO Jun-Ying¹, CUI Mi-Dou¹, TAI You-Yi², PANG Yong-Wen¹, HAN Song¹, LI Xiao-Wei¹

(1. Hebei Key Lab of Optic-electronic Information and Materials, College of Physics Science and Technology, Hebei University, Baoding 071002, China; College of Materials and Engineering, Sichuan University, Chengdu 610064, China)

Received:2015-10-23 Revised:2015-12-01 Published:2016-06-20 Online:2016-05-19
About author:LI Ling. E-mail: lilinghbu@163.com
Supported by:
National Natural Science Foundation of China (21201053);Specialized Research Fund for the Doctoral Program of Higher Education (20121301120005);Fund in Hebei Province Natural Science (F2014201078, 2015201050);Applied Basic Research Plan Key Basic Research Project in Hebei Province(14964306D);Youth Fund in Hebei Province Department of Education China (ZD2016055, QN2014057);College Students' Innovative Entrepreneurial Training Program in Hebei Province(2015066;2015161;201510075047, 026);Students' Comprehensive Quality Training Program in Hebei University (2015zh0442;2015zh0443);Outstanding Youth Fund of Hebei University(2015JQ02)

摘要/Abstract

摘要：

采用水热法制备硼硫(B/S)共掺杂纳米二氧化钛(B-S-TiO₂), 并配制成浆料, 利用丝网印刷技术在FTO导电玻璃上制备B-S-TiO₂薄膜; 用化学浴沉积(CBD)法制备了CdS量子点敏化B-S-TiO₂薄膜电极, 并用X射线衍射(XRD)、电子显微镜(TEM)、元素分析能谱(EDS)和紫外-可见光谱对其进行表征分析; 结果显示: B/S共掺杂不会改变TiO₂的晶型, 掺杂后的TiO₂吸收边带发生明显红移, 吸收强度显著增强; 同样用化学浴沉积的方法制备NiS工作电极, 用改性的聚硫化物((CH₃)₄N)₂S/((CH₃)₄N)₂S_n)电解液, 组装CdS量子点敏化硼硫(B/S)共掺杂纳米二氧化钛(B-S-TiO₂)太阳能电池, 并测试电池光电性能。测试结果表明, 在AM1.5G的照射下, 电池的能量转化效率(η)由3.21%增大到3.69%, 提高了14.9%, 电池获得高达 (V_oc)1.218 V的开路电压和3.42 mA/cm²的短路光电流(J_sc), 以及高达88.7%的填充因子(ff)。

关键词: CdS量子点敏化太阳能电池, B/S共掺杂TiO2, 化学浴沉积(CBD), NiS对电极, 多硫电解液

Abstract:

B and S co-doped TiO₂ was prepared by a typical hydrothermal synthesis. Then the obtained B-S-TiO₂ was dissolved in organic solvent to form paste and then coated on FTO conducting glass by screen printing to prepare nanofilm. The CdS/B-S-TiO₂ composite electrodes was obtained by chemical bath deposition (CBD) using B-S-TiO₂ nanofilm and CdS quantum dots (QDs). The obtained samples were characterized by EDS, XRD, TEM and UV-Vis. The results show that B and S do not change the structure of anatase TiO₂. Noticeable shifts of absorbance edge towards longer wavelength were observed and the absorbance intensity of the B-S-TiO₂ nanofilm increases significantly. Furthermore, NiS was prepared as counter electrode by CBD and a modified polysulfide redox couple, ((CH₃)₄N)₂S/((CH₃)₄N)₂S_n, was employed as electrolyte to assemble CdS quantum-dots (QDs)-sensitized solar cells. The measurements show that the cells have an enhanced energy conversion efficiency under AM 1.5 G illuminations which increased from 3.21% to 3.69%, about 14.9% increment, with a significantly high open voltage (V_oc) of 1.218 V, a high filled factor (ff) of 88.7%, and a short-circuit photocurrent (J_sc) of 3.42 mA/cm².

Key words: CdS quantum dots sensitized solar cells, B/S co-doped TiO2, chemical bath deposition (CBD), NiS counter electrode, ((CH3)4N)2S/((CH3)4N)2Sn electrolyte

中图分类号:

O613

李玲, 肖俊莹, 崔米豆, 太优一, 庞永文, 韩松, 李晓苇. 高效CdS量子点敏化B/S共掺杂纳米TiO₂太阳能电池的制备及光电性能研究[J]. 无机材料学报, 2016, 31(6): 627-633.

LI Ling, XIAO Jun-Ying, CUI Mi-Dou, TAI You-Yi, PANG Yong-Wen, HAN Song, LI Xiao-Wei. Boron and Sulfur Co-doped TiO₂ Nanofilm as High Efficiency CdS Quantum-dot-sensitized Solar Cells[J]. Journal of Inorganic Materials, 2016, 31(6): 627-633.

图/表 10

方案1 CdS QD 敏化B/S共掺杂TiO2太阳能电池的结构原理图

Scheme 1 Schematic presentation of the CdS QD sensitized B/S co-doped TiO2 solar cell structure

表1 不同CdS量子点沉积层数下基于纯TiO2电池的J-V曲线参数

Table 1 Parameter of J-V curve in different amounts of CdS quantum deposition layer with pure TiO2

Sample	V_oc/V	J_sc/(mA·cm^-2)	ff	E_ff
TiO₂/TGA/CdS-1	1.102	1.46	75.1%	1.21%
TiO₂/TGA/CdS-2	1.204	2.25	77.7%	2.10%
TiO₂/TGA/CdS-3	1.217	2.96	89.1%	3.21%
TiO₂/TGA/CdS-4	1.207	1.33	68.2%	1.09%
TiO₂/TGA/CdS-5	1.122	2.09	42.3%	0.99%

表2 不同CdS量子点沉积层数下基于B/S-TiO2电池的J-V曲线参数

Table 2 Parameter of J-V curve in different amount of CdS quantum deposition layer with B/S-TiO2

Sample	V_oc/V	J_sc/(mA·cm^-2)	ff	E_ff
B/S/TiO₂/TGA/CdS/1	1.211	1.17	67.8%	0.96%
B/S/TiO₂/TGA/CdS/2	1.225	2.55	83.8%	2.62 %
TiO₂/TGA/CdS-3	1.217	2.96	89.1%	3.21%
B/S/TiO₂/TGA/CdS/3	1.218	3.42	88.7%	3.69 %
B/S/TiO₂/TGA/CdS/4	1.112	1.25	80.9%	1.12%
B/S/TiO₂/TGA/CdS/5	1.211	1.48	48.2%	0.86%

图1 (a)纯TiO2和(b)0.5%B/S 掺杂TiO2的XRD图谱

Fig. 1 XRD patterns of pure TiO2 (a) and 0.5%B/S-doped TiO2 (b)

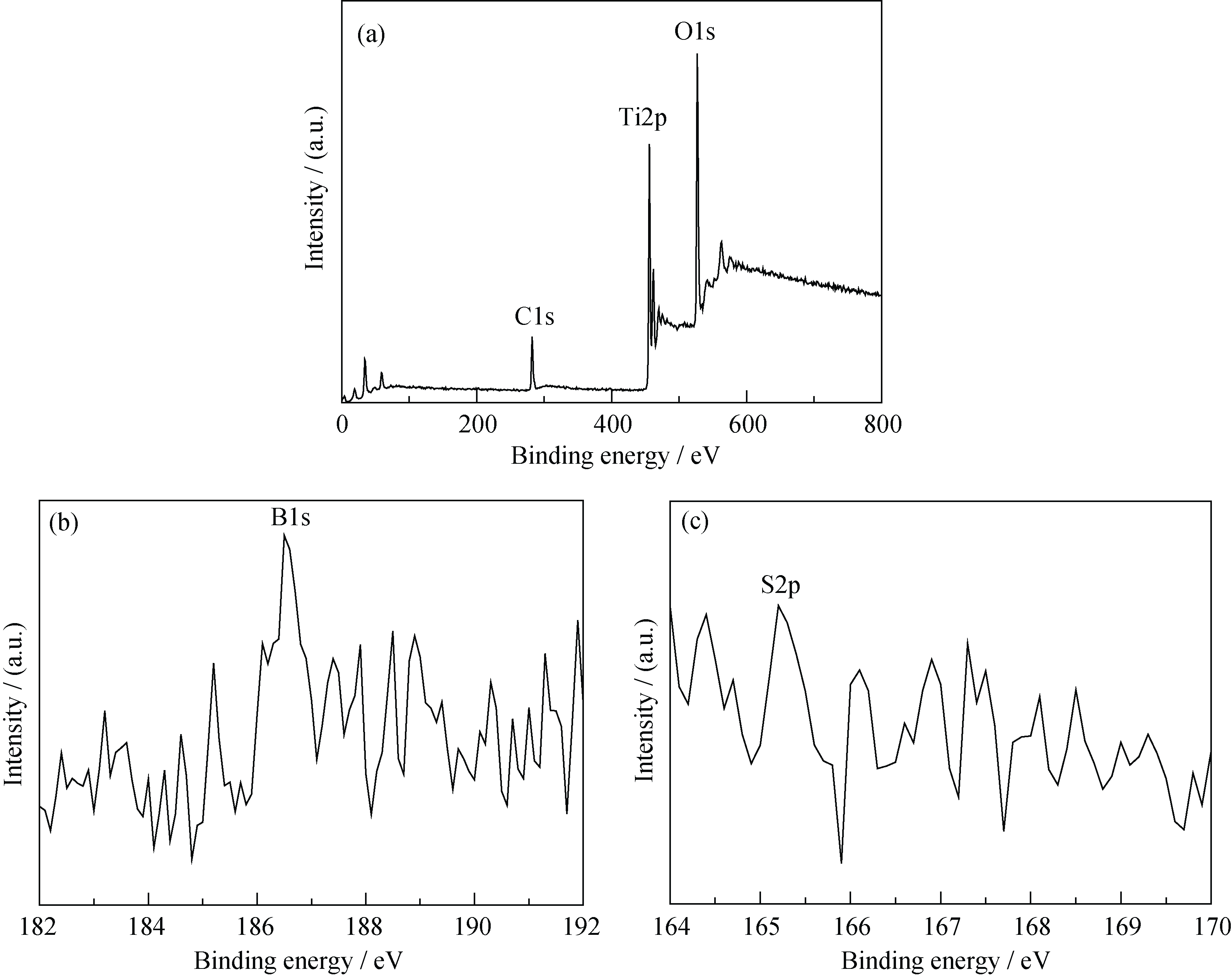

图2 B/S/TiO2样品的XPS图谱

Fig. 2 XPS spectra of B/S/TiO2

图3 B/S共掺杂TiO2薄膜吸附CdS QD的TEM照片

Fig. 3 TEM image of CdS QD sensitized B/S co-doped TiO2 film

图4 (a)纯TiO2薄膜, (b)B/S共掺杂TiO2/TGA/CdS-1 薄膜, (c) B/S共掺杂TiO2/TGA/CdS-3 薄膜和(d) B/S共掺杂TiO2/ TGA/CdS-5的紫外-可见吸收光谱

Fig. 4 UV-vis absorption spectra of (a) pure TiO2 film, (b) B/S doped TiO2/TGA/CdS-1 film, (c) B/S doped TiO2/TGA/ CdS-3 film, and (d) B/S doped TiO2/TGA/CdS-5 film

图5 TiO2与B-S-TiO2电池的J-V特性

Fig. 5 J-V characteristics of the B-S-TiO2/TGA/CdS-3 cell and TiO2/TGA/CdS-3 cell

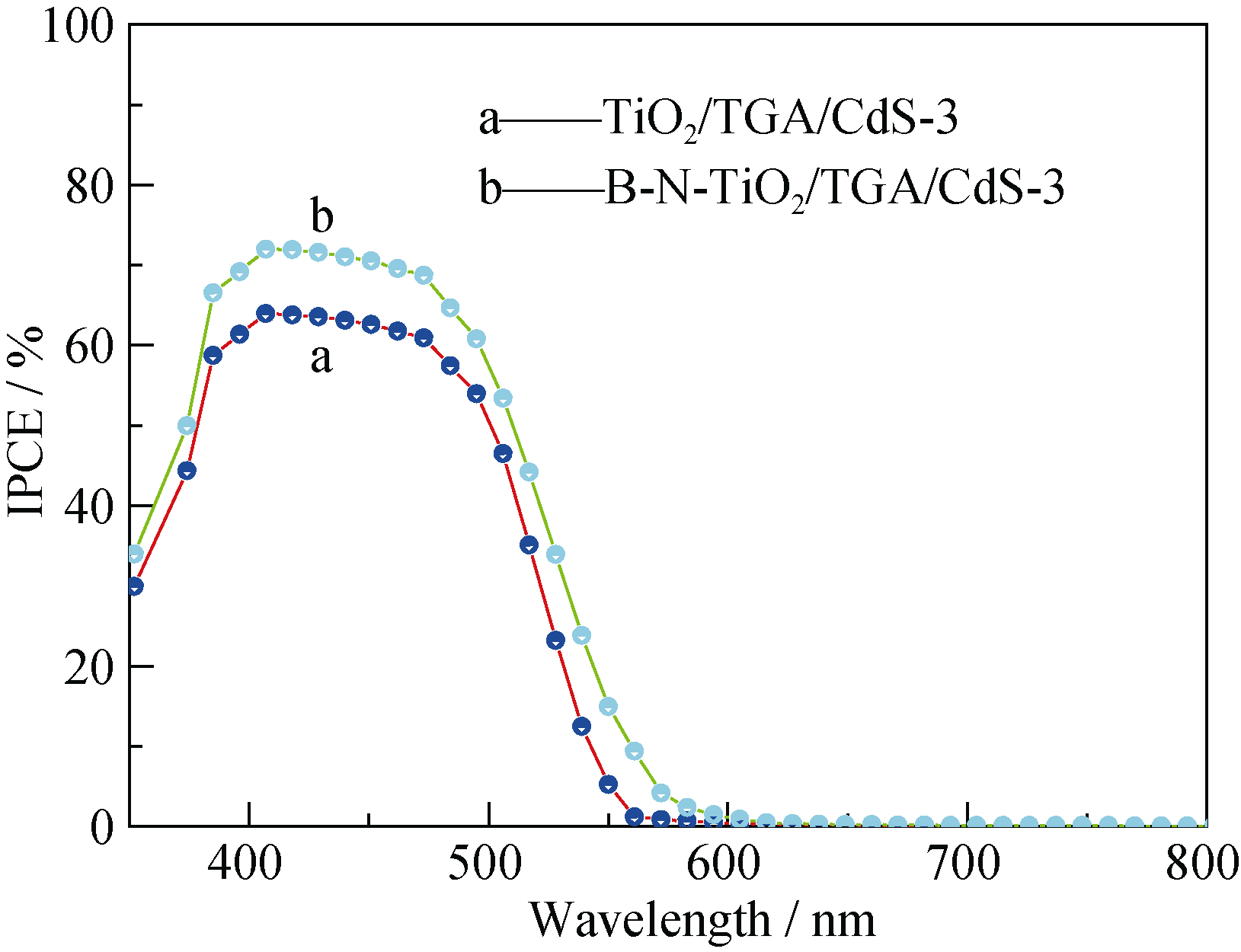

图6 TiO2与B-S-TiO2电池的光电转换效率(IPCE)光谱

Fig. 6 Incident photon-to-current conversion efficiency (IPCE) of the cell based on TiO2/TGA/CdS-3 electrode and B-S-TiO2/ TGA/CdS-3 electrode

图7 NiS和Pt对电极的电化学阻抗谱(EIS)

Fig. 7 Electrochemical impedance spectra for NiS and Pt counter electrodes with the same B-S-TiO2/TGA/CdS-3 film

参考文献 50
