La0.7Ca0.3-xSrxMnO3薄膜的电输运特性研究

doi:10.15541/jim20150397

无机材料学报 ›› 2016, Vol. 31 ›› Issue (3): 274-278.DOI: 10.15541/jim20150397

La_0.7Ca_0.3-_xSr_xMnO₃薄膜的电输运特性研究

张媛媛¹(), 唐晓东¹(), 陈莹², 王根水², 董显林²

1.华东师范大学信息科学技术学院, 上海 200241
2.中国科学院上海硅酸盐研究所, 上海 200050

收稿日期:2015-08-24 修回日期:2015-10-28 出版日期:2016-03-20 网络出版日期:2016-02-24
作者简介:
张媛媛(1982-), 女, 讲师. E-mail: yyzhang@ee.ecnu.edu.cn
基金资助:
国家自然科学基金(51302084, 11304097, 61176011, 61376129, 11374098)

Electrical Transport Properties in La_0.7Ca_0.3-_xSr_xMnO₃ Thin Films

ZHANG Yuan-Yuan¹(), TANG Xiao-Dong¹(), CHEN Ying², WANG Gen-Shui², DONG Xian-Lin²

1. School of Information Science Technology, East China Normal University, Shanghai 200241, China
2. Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China

Received:2015-08-24 Revised:2015-10-28 Published:2016-03-20 Online:2016-02-24
Supported by:
National Natural Science Foundation of China (51302084, 11304097, 61176011, 61376129, 11374098)

摘要/Abstract

摘要：

采用溶胶-凝胶法制备La_0.7Ca_0.3-_xSr_xMnO₃(LCSMO)薄膜, 探讨掺杂对结构、磁性能与电输运特性的影响机制。从X射线衍射(XRD)结果来看, 所有薄膜均具有典型钙钛矿结构。LCSMO薄膜的居里温度(T_C)和金属绝缘体转变温度(T_MI)均随Sr掺杂浓度增加而单调增加。总体看来, 当x ≤0.05时, LCSMO薄膜磁阻率类似于窄带系LCMO 系材料, 在T_MI周围较宽的温度区间内存在相分离, 而相分离过程中多相共存的无序状态是该类材料庞磁阻效应的主要来源。对特定温度下的磁阻率随磁场的变化进行分析, 当温度低于T_MI时, 磁阻率随磁场变化出现双梯度, 低磁场时晶界隧穿效应起主导, 该部分效应对磁场特别敏感, 高磁场时磁阻率主要来源于磁场对自旋波动的压制; 当温度接近或高于T_MI时, 晶界隧穿效应逐渐消失, 磁阻率随磁场线性变化, 磁场对自旋波动的压制起主导作用。

关键词: 锰氧化物, 溶胶-凝胶法, 电输运特性

Abstract:

The influence of the chemical composition on the structure, magnetic and electrical transport properties of La_0.7Ca_0.3-_xSr_xMnO₃ (LCSMO, x≤0.05) thin films was systematically studied. LCSMO thin films were prepared by Sol-Gel method. XRD results show that all the films have typical perovskite structure. With increase of Sr doping concentration, both Curie temperature T_C and metal-insulator transition temperature T_MI of LCSMO thin films increase monotonously. When Sr doping concentration x≤0.05, with increase of temperature, absolute value of MR decreases first, then increases to a maximum value around T_MI, and finally decreases, which indicates that the disorder coming from phase separation around T_MI contributes greatly to MR. The field dependence of MR values at certain temperature can be classified into two kinds. When the temperature is much lower than T_MI, dual gradient of MR with the magnetic field is shown. The tunneling effect on the grain boundaries plays a dominant part in the low magnetic field, and this effect is particularly sensitive to the magnetic field; the suppression of spin fluctuations by magnetic field is the main reason in the high magnetic field range. When the temperature is higher than T_MI, MR of LCSMO thin films changes almost linearly with the magnetic field which is mainly due to suppression of spin fluctuations by magnetic field.

Key words: manganese oxides, Sol-Gel method, transport properties

中图分类号:

TQ174

张媛媛, 唐晓东, 陈莹, 王根水, 董显林. La_0.7Ca_0.3-_xSr_xMnO₃薄膜的电输运特性研究[J]. 无机材料学报, 2016, 31(3): 274-278.

ZHANG Yuan-Yuan, TANG Xiao-Dong, CHEN Ying, WANG Gen-Shui, DONG Xian-Lin. Electrical Transport Properties in La_0.7Ca_0.3-_xSr_xMnO₃ Thin Films[J]. Journal of Inorganic Materials, 2016, 31(3): 274-278.

图/表 4

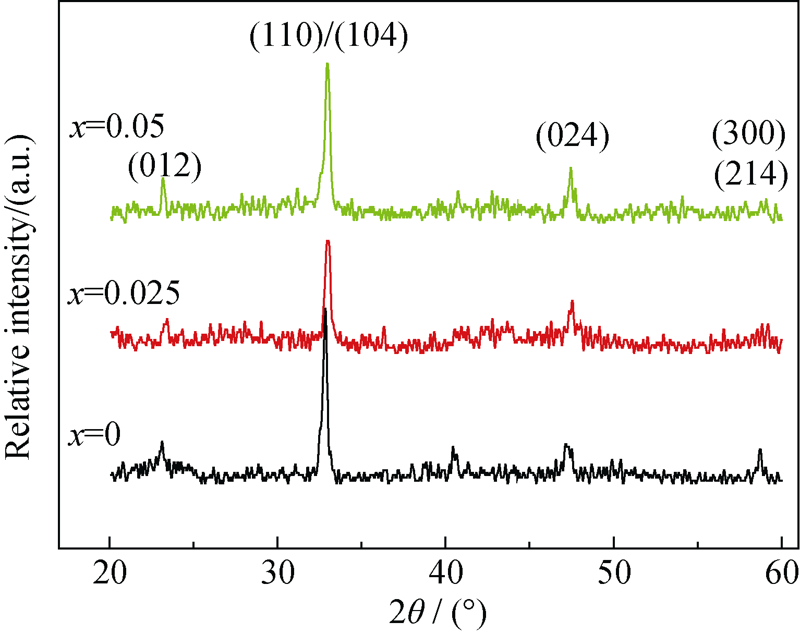

图1 La0.7(Ca0.3-xSrx)MnO3薄膜的XRD图谱

Fig. 1 XRD patterns of La0.7(Ca0.3-xSrx)MnO3 thin films(a) x=0; (b) x=0.025; (c) x=0.05

图2 在外加磁场500Oe时, La0.7(Ca0.3-xSrx)MnO3薄膜归一磁化率随温度变化曲线

Fig. 2 Temperature dependence of the magnetizations under an external magnetic field of 500 Oe of La0.7(Ca0.3-xSrx)MnO3 thin films (a) x=0; (b) x=0.025; (c) x=0.05

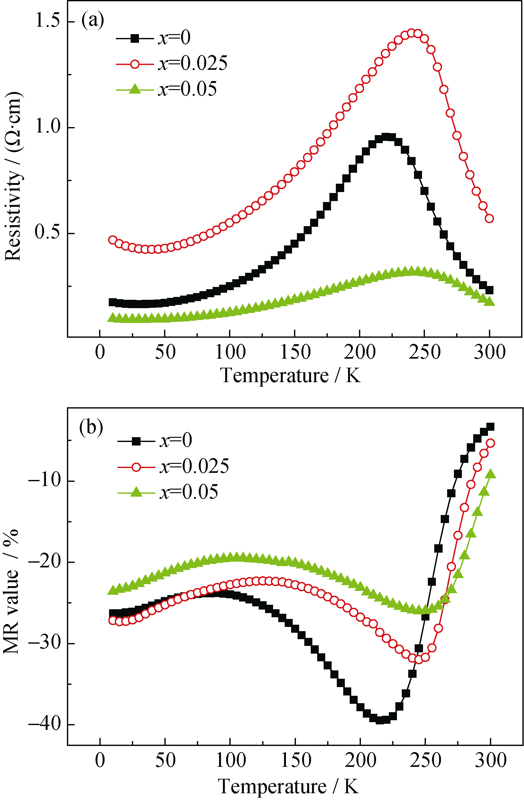

图3 La0.7(Ca0.3-xSrx)MnO3薄膜(a)零磁场时电阻率和(b)外加3T磁场时的磁阻率(ρ(3T)-ρ(0T))/ρ(0T)%)随温度变化曲线

Fig. 3 (a) Temperature dependence of the resistivity without external magnetic field and (b) temperature dependence of magneto-resistance (MR) ratio (here defined as (ρ(3T)-ρ(0T))/ ρ(0T)%) of La0.7(Ca0.3-xSrx)MnO3 thin films)

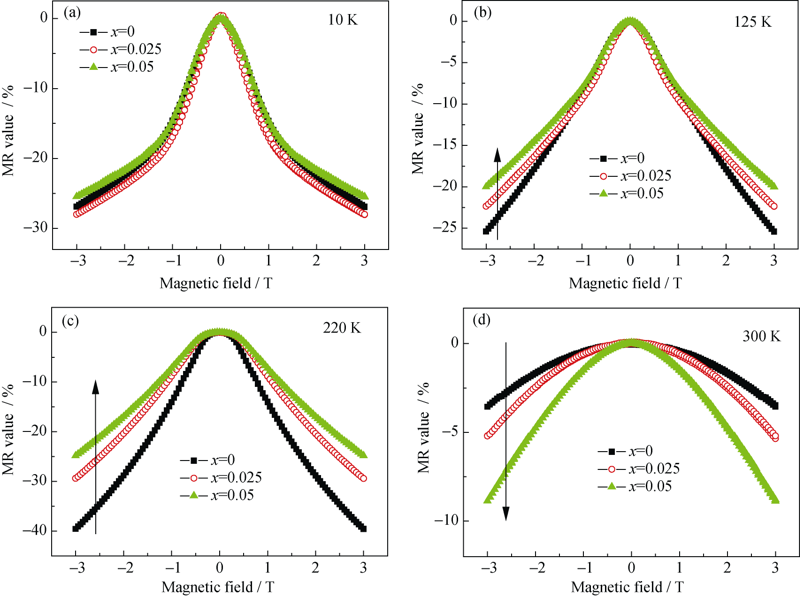

图4 不同温度下LCSMO薄膜的磁阻率MR曲线

Fig. 4 Magnetic field dependence of the MR values at different temperatures(a) 10 K; (b) 125 K; (c) 220 K; (d) 300 K

参考文献 19

[1]	MILLIS A J, LITTLEWOOD P B, SHRAIMAN B I.Double exchange alone does not explain the resistivity of La1-xSrxMnO3. Phys. Rev. Lett., 1995, 74(25): 5144-5147.
[2]	DAGOTTO E, HOTTA T, MOREO A.Colossal magnetoresistant materials: the key role of phase separation.Phys. Rep., 2001, 344(1-3): 1-153.
[3]	TOKURA Y, NAGAOSA N.Orbital physics in transition-metal oxides.Science, 2000, 288(5465): 462-468.
[4]	JONKER G H, VAN SANTEN J H. Ferromagnetic compounds of manganese with perovskite structure.Physica, 1950, 16(3): 337-349.
[5]	JONKER G H, VAN SANTEN J H. Magnetic compounds with perovskite structure III. ferromagnetic compounds of cobalt.Physica, 1953, 19(1-12): 120-130.
[6]	WOLLAN E O, KOEHLER W C.Neutron diffraction study of the magnetic properties of the series of perovskite-type compounds [(1-x)La, xCa]MnO3. Phys. Rev., 1955, 100(2): 545-563.
[7]	ZENER C.Interaction between the d shells in the transition metals.Phys. Rev., 1951, 81(3): 440-444.
[8]	GOODENOUGH J B.Theory of the role of covalence in the perovskite-type manganites [La, M(II)]MnO3.Phys. Rev., 1955, 100(2): 564-573.
	REINEN D.The Jahn-Teller effect in solid state chemistry of transition metal compounds.J. Solid State Chem., 1979, 27(1): 71-85.
[9]	VON HELMOLT R, WECKER J, HOLZAPFEL B.Giant negative magnetoresistance in perovskitelike La2/3Ba1/3MnOx ferromagnetic films. Phys. Rev. Lett., 1993, 71(14): 2331-2333.
[10]	HWANG H Y, CHEONG S W, ONG N P, et al. Spin-polarized intergrain tunneling in La2/3Sr1/3MnO3. Phys. Rev. Lett., 1996, 77: 2041-2044.
[11]	FONTCUBERTA J, MARTLNEZ B, SEFFAR A, et al. Colossal magnetoresistance of ferromagnetic manganites: structural tuning and mechanisms. Phys. Rev. Lett., 1996, 76(7): 1122-1125.
[12]	DAGOTTO E, HOTTA T, MOREO A.Colossal magnetoresistant materials: the key role of phase separation.Phys. Rep., 2001, 344(1/2/3): 1-153.
[13]	DANYAN CAO, YUANYUAN ZHANG, WENXIA DONG, et al. Structure, magnetic and transport properties of La0.7Ca0.3-xsrxMnO3 thin films by Sol-Gel method. Ceram. Int., 2015, 41: S381-S386.
[14]	RADAELLI P G, MAREZIO M, HWANG H Y, et al. Charge localization by static and dynamic distortions of the MnO6 octahedra in perovskite manganites. Phys. Rev. B, 1996, 54(13): 8992-8995.
[15]	THANH T D, NGUYEN L H, MANH D H, et al. Structural, magnetic and magnetotransport behavior of La0.7SrxCa0.3-xMnO3 compounds. Physica, B 2012, 407: 145-152.
[16]	PHAN M H, YU S C, HUR N H.Excellent magnetocaloric properties of La0.7Ca0.3-xSrxMnO3(0.05≤x≤0.25) single crystals. Appl. Phys. Lett., 2005, 86(7): 072504.
[17]	CHEN Y, ZHU J Y, ZHANG S, et al. Preparation and characterization of lanthanum strontium manganite thin films by metal-organic chemical liquid deposition. J. Am. Ceram. Soc., 2011, 94(9): 2783-2787.
[18]	GU J Y, OGALE S B, RAJESWARI M, et al. In-plane grain boundary effects on the magnetotransport properties of La0.7Sr0.3MnO3-δ. Appl. Phys. Lett., 1998, 72(9): 1113-1115.
[19]	CHENG S L, LIN J G.Low-field magnetoresistance in nanocrystalline La0.7Sr0.3MnO3 films.J. Appl. Phys., 2005, 98(11): 114318.
