残余应力对SrRuO3薄膜磁学及电输运性能的影响

doi:10.15541/jim20160190

摘要/Abstract

摘要：

采用射频磁控溅射法在单晶SrTiO₃ (STO)衬底和硅(Si)衬底上制备出不同取向的SrRuO₃ (SRO)薄膜, 对薄膜的残余应力进行了分析, 并研究了应力对不同取向SRO薄膜磁学性能与电输运特性的影响。根据X射线衍射(XRD)结果分析可知, Si基SRO薄膜为多晶单轴取向薄膜, 且应力来源主要为热失配拉应力; STO基SRO薄膜为外延薄膜, 其应力主要为热失配压应力和外延压应力; 磁学性能测试表明, (001)取向SRO薄膜比(110)取向薄膜拥有更高的居里温度T_C; 压应力提高了(001)取向SRO薄膜的T_C, 却降低了(110)取向薄膜的T_C。电阻性能测试表明, 对于在同种类型衬底上沉积的SRO薄膜, (001)取向的薄膜的剩余表面电阻比(RRR)高于(110)取向的薄膜。另外, 拉应力引起了薄膜微结构的无序度增加, 弱化了表面电阻率的温度依赖性, 提高了金属绝缘体转变温度(T_MI)。

关键词: 钌酸锶, 取向, 残余应力, 磁学性能, 电输运特性

Abstract:

A series of SrRuO₃ (SRO) thin films with preferential orientations were grown on SrTiO₃ (STO) and Si substrates respectively by radio frequency (RF) magnetron sputtering technique. XRD results show that STO-based SRO thin films are epitaxial which differ from the one-axis orineted Si-based films. Residual stress type of the deposited films and effect of the stress on magnetic and electrical transport properties were systematically analyzed and summarized. STO-based SRO films suffer from compressive stress due to the lattice and thermal mismatch, while the Si-based films are subjected to tensile stress which is only derived from the thermal mismatch. The compressive stress promotes the Curie temperature (T_C) of (001)-oriented SRO films, but reduces the T_C of (110)-oriented SRO films, which may be due to the different states of rotation and tilt of RuO₆ octahedron. Besides, the (001)-oriented SRO films possess higher T_C than the (110)-oriented SRO films all along. The results of temperature versus resistivity measurements reveal that residual resistivity ratio (RRR) of (001)-oriented SRO films is higher than that of (110)-oriented SRO films which deposited on the same substrate. Moreover, the temperature of metal-insulator transition (T_MI) increases from 16 K to 32 K while the temperature dependence of resistivity is suppressed by the tensile stress.

Key words: SrRuO3, orientation, residual stress, magnetic properties, transport properties

中图分类号:

TQ174

朱明康, 董显林, 陈莹, 丁国际, 王根水. 残余应力对SrRuO₃薄膜磁学及电输运性能的影响[J]. 无机材料学报, 2017, 32(1): 75-80.

ZHU Ming-Kang, DONG Xian-Lin, CHEN Yin, DING Guo-Ji, WANG Gen-Shui. Effect of Residual Stress on Magnetic and Electrical Transport Properties in SrRuO₃ Thin Films[J]. Journal of Inorganic Materials, 2017, 32(1): 75-80.

图/表 6

表1 LNO薄膜和SRO薄膜的溅射工艺

Table1 Sputtering parameters of LNO and SRO films

Sputtering parameters	LNO	SRO
Base pressure /Pa	5×10^-4	5×10^-4
Deposition pressure/Pa	3	10
Power/W	80	80
O₂/(Ar+O₂)	20%	20%
Substrate temperature/℃	450	600

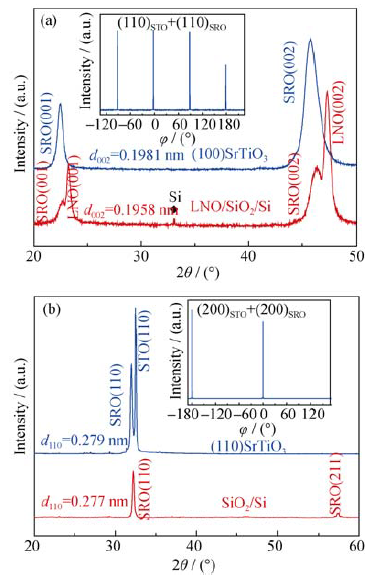

图1 不同衬底上沉积的SRO薄膜的XRD图谱

Fig. 1 XRD patterns of SrRuO3 thin films deposited on different substrates(a) (100)SrTiO3 and LNO/SiO2/Si; (b) (110) SrTiO3 and SiO2/Si

表2 不同SRO薄膜的晶格常数和应变值

Table2 Lattice parameters and strain of different SRO films

SRO	c/nm	ɛ/%
(001) on STO	0.3962	0.814
(001) on Si	0.3916	-0.356
(110) on STO	0.3945	0.383
(110) on Si	0.3917	-0.336

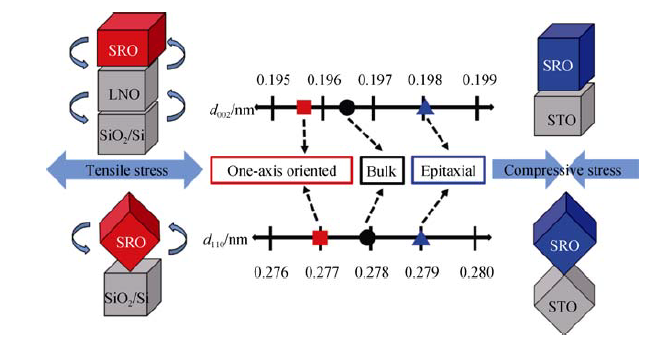

图2 不同衬底上生长的SRO薄膜的应力示意图

Fig. 2 Schematic illustration of stress state for different oriented SRO films on various substates

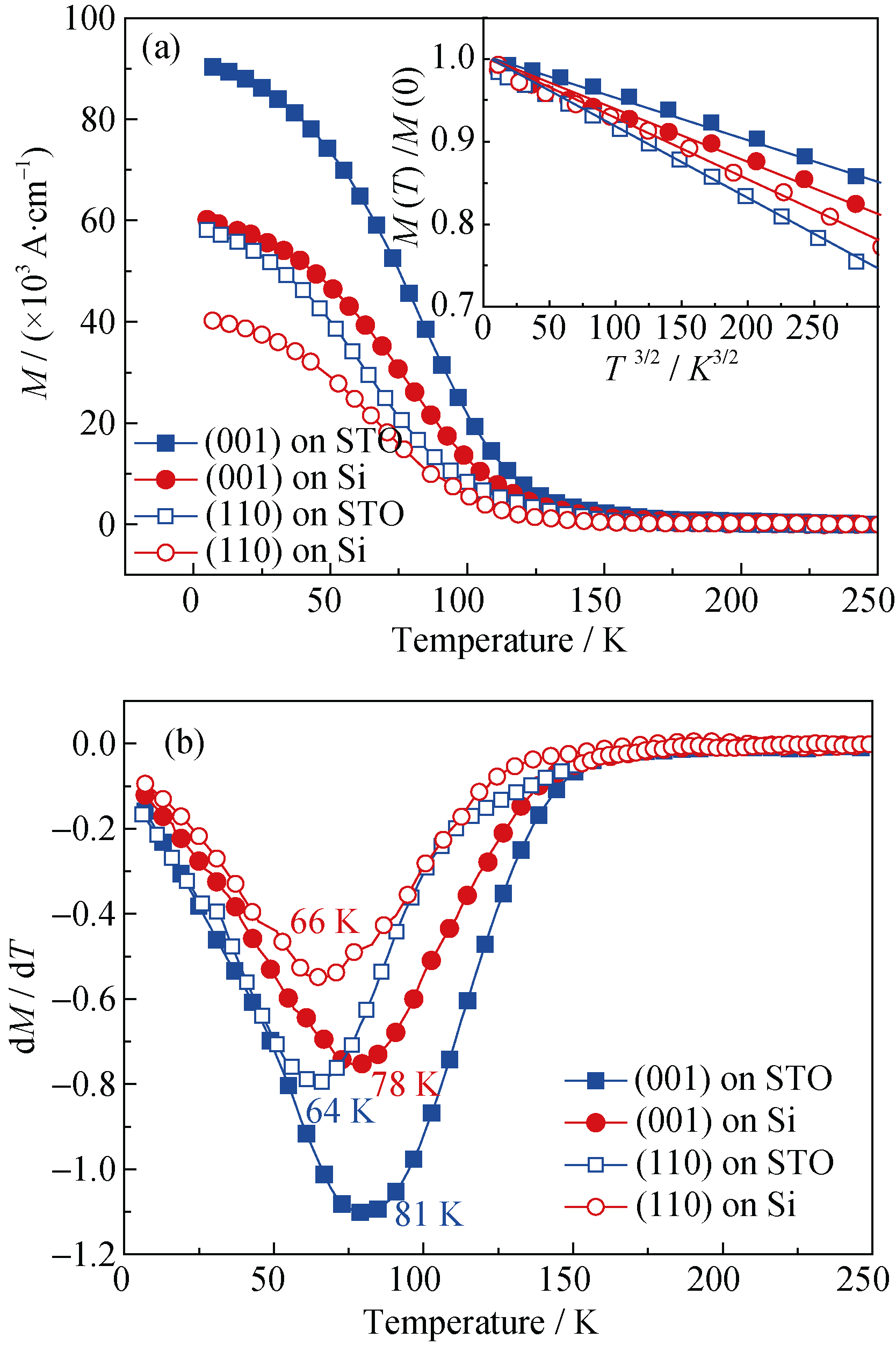

图3 不同衬底上生长的不同取向的SRO薄膜的 (a)磁化强度随温度的变化曲线和(b)磁化强度对温度的求导值随温度的变化曲线

Fig. 3 (a) Temperature versus magnetization under field cooling (FC) conditions and (b) the dM/dT vs temperature for different oriented SRO films on various substrates

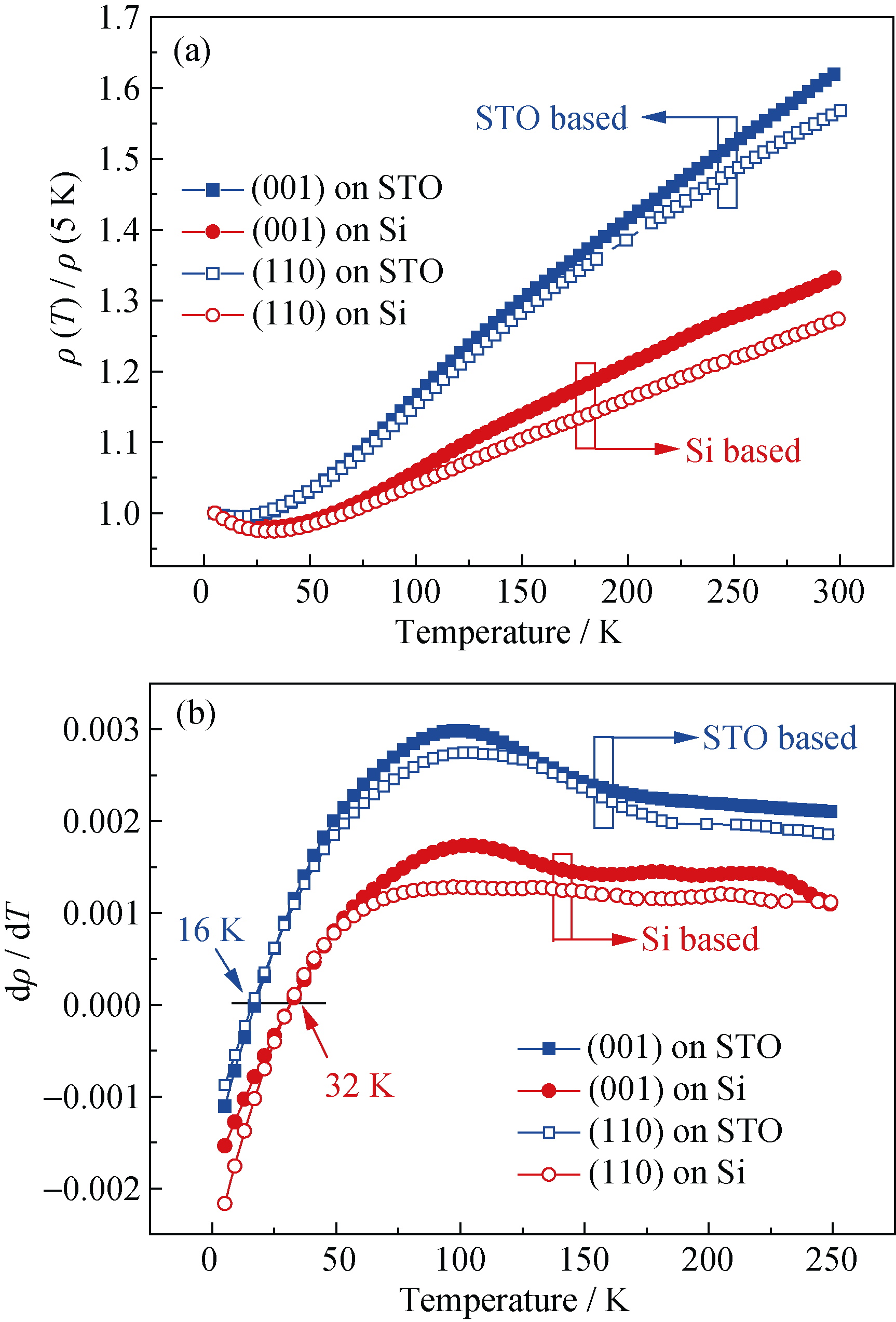

图4 不同SRO薄膜的(a)归一化表面电阻率随温度的变化曲线和(b)表面电阻对温度的求导随温度的变化曲线

Fig. 4 (a) Temperature versus normalized resistivity and (b) the dρ/dT values vs temperature for different oriented SRO films on various substrates

参考文献 22

[1]	JONES C W, BATTLE P D, LIGHTGOOT P,et al.The structure of SrRuO3 by time-of-flight neutron powder diffraction.Acta Crystallographica Section C, 1989, 45(3): 365-367.
[2]	ALLEN P B, BERGER H, CHAUVET O,et al.Transport properties, thermodynamic properties, and electronic structure of SrRuO3.Phys Rev B Condens Matter, 1996, 53(8): 4393-4398.
[3]	CHENG H, LIU Z, YAO K, Rectifying behavior in La2/3Sr1/3MnO3/MgO/SrRuO3 magnetic tunnel junctions,Applied Physics Letters, 2011, 98(17): 172107.
[4]	EOM C B, VANDOVER R B, PHILLIPS J M,et al.Fabrication and properties of epitaxial ferroelectric heterostructures with (SrRuO3) Isotropic Metallic Oxide Electrodes.Applied Physics Letters, 1993, 63(18): 2570-2572.
[5]	TANG Z H, TANG M H, LV X S,et al.Enhanced magnetoelectric effect in La0.67Sr0.33MnO3/PbZr0.52Ti0.48O3 multiferroic nanocomposite films with a SrRuO3 buffer layer.Journal of Applied Physics, 2013, 113(16): 164106.
[6]	SINGAMANENI S R, PUNUGUPATI S, PRATER J T,et al.Ferroelectric and ferromagnetic properties in BaTiO3 thin films on Si (100).Journal of Applied Physics, 2014, 116(9): 094103.
[7]	GRIGERA S, PERRY R, SCHOFIELD A,et al.Magnetic field-tuned quantum criticality in the metallic ruthenate Sr3Ru2O7.Science, 2001, 294(5541): 329-332.
[8]	HERRANZ G., SANCHEZ F, FONTCUBERTA J,et al.Domain structure of epitaxial SrRuO3 thin films.Physical Review B, 2005, 71(17): 174411.
[9]	HERRANZ G, MARTINEZ B, Fontcuberta J,et al.Enhanced electron-electron correlations in nanometric SrRuO3 epitaxial films.Physical Review B, 2003, 67(17): 174423.
[10]	SHEN X, QIU X B, SU D,et al.Thickness-dependent metal-insulator transition in epitaxial SrRuO3 ultrathin films.Journal of Applied Physics, 2015, 117(1): 015307.
[11]	LU W L, HE K H, SONG W D, et al. Effect of oxygen vacancies on the electronic structure Effect of oxygen vacancies on the electronic structure and transport properties of SrRuO3 thin films.Journal of Applied Physics, 2013,113(17): 17E125.
[12]	WANG X W, WANG X, ZHANG Y Q,et al.Magnetic anisotropy and metal-insulator transition in SrRuO3 thin films at different growth temperatures.Journal of Applied Physics, 2010, 107(11): 113925.
[13]	PALAI R, HUHTTINEN H, SCOTT J F,et al.Observation of spin-glass-like behavior in SrRuO3 epitaxial thin films.Physical Review B, 2009, 79(10): 104413.
[14]	ASO R, KAN D, FUJIYOSHI Y,et al.Strong dependence of oxygen octahedral distortions in SrRuO3 films on types of substrate-induced epitaxial strain.Crystal Growth & Design, 2014, 14(12): 6478-6485.
[15]	LU W L, SONG W D, HE K H,et al.The role of octahedral tilting in the structural phase transition and magnetic anisotropy in SrRuO3 thin film.Journal of Applied Physics, 2013, 113(6): 063901.
[16]	NGUYEN M D, DEKKERS M, HOUWMAN E,et al.Misfit strain dependence of ferroelectric and piezoelectric properties of clamped (001) epitaxial Pb(Zr0.52,Ti0.48)O3 thin films.Applied Physics Letters, 2011, 99(25): 252904.
[17]	XU B, YE Y, Cross L E, Dielectric properties and field-induced phase switching of lead zirconate titanate stannate antiferroelectric thick films on silicon substrates.Journal of Applied Physics, 2000, 87(5): 2507-2515.
[18]	YAMANAKA S, MAEKAWA T, MUTA H,et al.Thermophysical properties of SrHfO3 and SrRuO3.Journal of Solid State Chemistry, 2004, 177(10): 3484-3489.
[19]	KLEIN L, DODGE J, GEBALLE T,et al.Perpendicular magnetic anisotropy and strong magneto-optic properties of SrRuO3 epitaxial films.Applied physics letters, 1995, 66(18): 2427-2429.
[20]	LU W, SONG W, YANG P,et al.Strain engineering of octahedral rotations and physical properties of SrRuO3 films.Sci. Rep., 2015, 5: 10245.
[21]	KAN D, ASO R, KURATA H,et al.Epitaxial strain effect in tetragonal SrRuO3 thin films.Journal of Applied Physics, 2013, 113(17): 173912.
[22]	KUMAR S, MAJUMDAR P.Singular effect of disorder on electronic transport in strongly coupled electron-phonon systems.Physical Review Letters, 2005, 94(13): 136601.
