金红石二氧化钛纳米片的性质及其光催化活性

doi:10.15541/jim20150110

摘要/Abstract

摘要：

采用溶胶-凝胶、质子交换和层状剥离的方法, 制备出金红石TiO₂纳米片。利用X射线电子衍射谱(XRD)、透射电子显微镜(TEM)、紫外-可见吸收光谱(UV-Vis)、X光电子能谱(XPS)的价带谱和荧光光谱(PL)等对样品进行了表征, 研究了光生载流子的转移过程。结果证明: 金红石TiO₂纳米片具有较大的比表面积(185.7 m²/g), 厚度约5 nm, 与金红石TiO₂样品相比, 金红石TiO₂纳米片的禁带宽度增加, 氧化还原能力增强; 此外, 纳米片结构能够促使光生载流子快速转移到纳米片的表面并产生有效分离, 阻止了光生电子和空穴的复合, 提高了光催化反应中光生载流子的利用率。金红石纳米片的这些特性导致其具有较高的光催化活性, 紫外光催化降解对氯苯酚的实验表明: 金红石TiO₂纳米片的光催化活性高于金红石TiO₂和锐钛矿TiO₂样品。

关键词: 金红石TiO2纳米片, 比表面积, 能带结构, 光生载流子, 光催化活性

Abstract:

Rutile TiO₂ nanosheets were prepared by Sol-Gel method, proton exchange and delamination method. The samples were characterized by X-ray diffraction (XRD), transmission electron microscope (TEM), UV-Vis diffuse reflectance spectroscope, X-ray photoelectron spectroscope (XPS) and photoluminescence (PL). The transference of photogenerated charge carriers was studied. It is revealed that the rutile TiO₂ nanosheets (thickness 5 nm) exhibit increased specific surface area (185.7 m²/g) and enlarged energy band gap, resulting in enhanced redox ability, when compared with rutile TiO₂ samples. In addition, the photogenerated charge carriers are able to transfer to the surface of nanosheets, due to their unique structure enabling photogenerated charge carriers to be effective separation during photocatalytic reactions. Therefore, the rutile TiO₂ nanosheets can enhance photocatalytic activity. Forthermore, the rutile TiO₂ nanosheets exhibite higher photocatalytic activity than rutile and anatase TiO₂ samples on the photocatalytic degradation of 4-chlorophenol under ultraviolet irradiation.

Key words: rutile TiO2 nanosheet, specific surface area, energy band structure, photogenerated carrier, photo- catalytic activity

中图分类号:

O643
O644

赵丹丹, 于彦龙, 高东子, 曹亚安. 金红石二氧化钛纳米片的性质及其光催化活性[J]. 无机材料学报, 2016, 31(1): 1-6.

ZHAO Dan-Dan, YU Yan-Long, GAO Dong-Zi, CAO Ya-An. Properties and Photocatalytic Activity of Rutile TiO₂ Nanosheets[J]. Journal of Inorganic Materials, 2016, 31(1): 1-6.

图/表 8

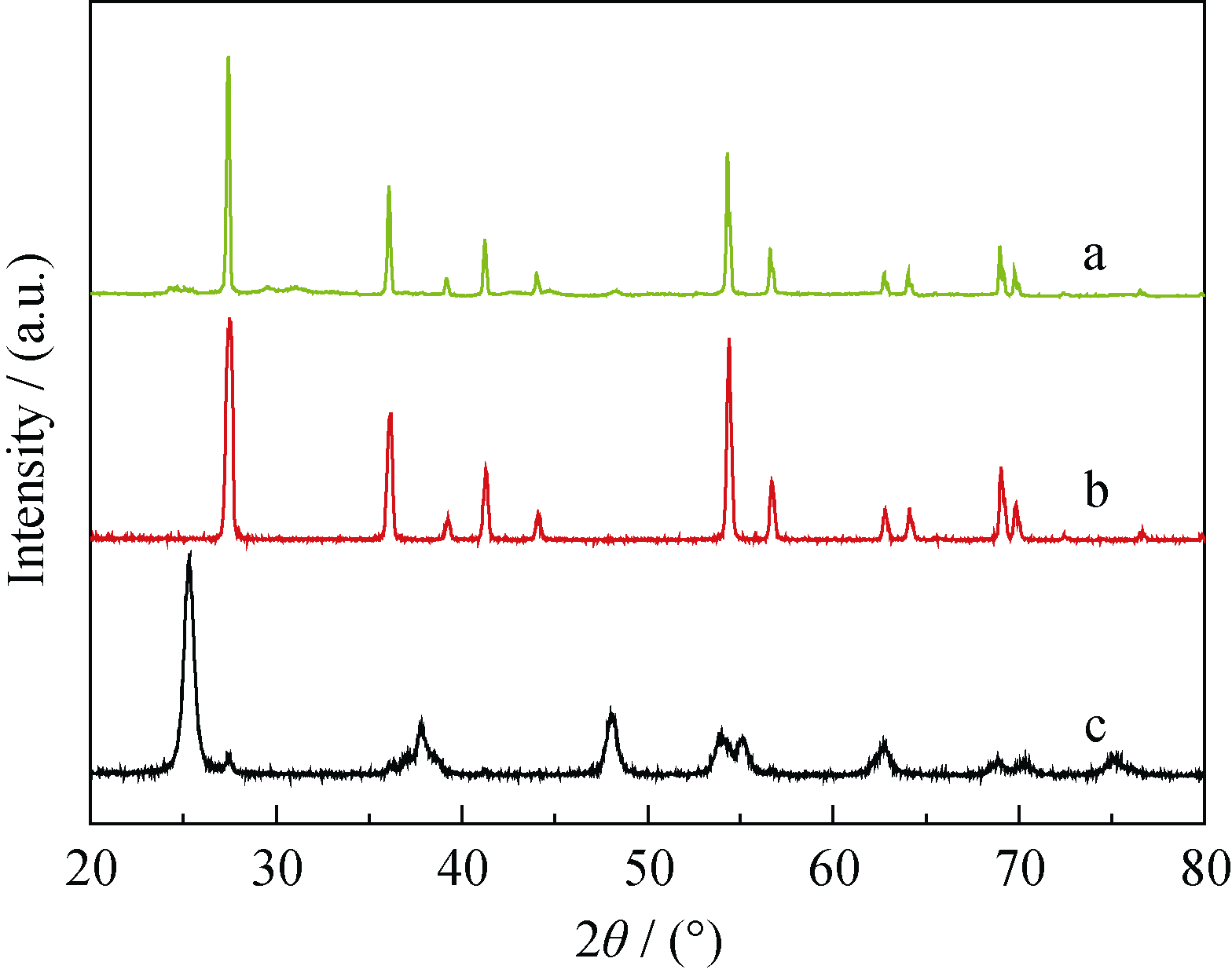

图1 r-TiO2 sheet(a)、r-TiO2(b)和a-TiO2(c)样品的XRD图谱

Fig. 1 XRD patterns of r-TiO2 sheet (a), r-TiO2 (b) and a-TiO2 (c) samples

表1 r-TiO2 sheet、r-TiO2和a-TiO2的晶胞参数、晶胞体积和比表面积

Table 1 Cell parameters, cell volume and specific surface area of r-TiO2 sheet, r-TiO2 and a-TiO2 samples

Sample	Cell parameters /nm		Cell volume /nm³	S_BET/(m²·g^-1)
Sample	a=b	c	Cell volume /nm³	S_BET/(m²·g^-1)
r-TiO₂sheet	0.45966	0.29585	0.06251	185.7
r-TiO₂ a-TiO₂	0.45908	0.29549	0.06228	2.6
r-TiO₂ a-TiO₂	0.37884	0.95180	0.13660	63.8

图2 r-TiO2 sheet(a, b)、r-TiO2(c)和a-TiO2(d)样品的TEM (HRTEM)照片

Fig. 2 TEM (HRTEM) images of r-TiO2 sheet (a, b), r-TiO2 (c) and a-TiO2 (d) samples

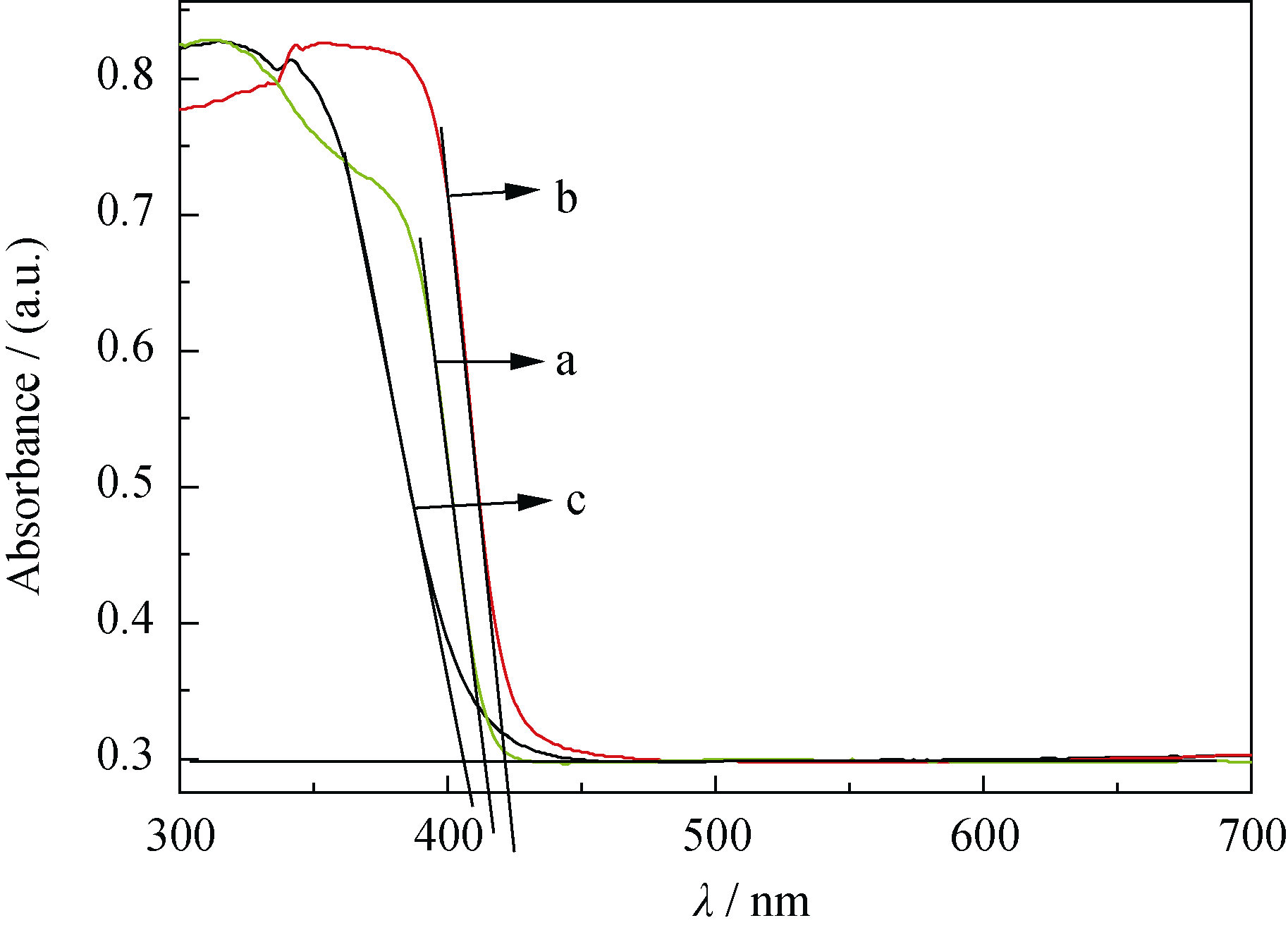

图3 r-TiO2 sheet(a)、r-TiO2(b)和a-TiO2(c)样品的紫外可见光吸收谱

Fig. 3 UV-Vis diffuse reflectance spectra of r-TiO2 sheet (a), r-TiO2 (b) and a-TiO2 (c) samples

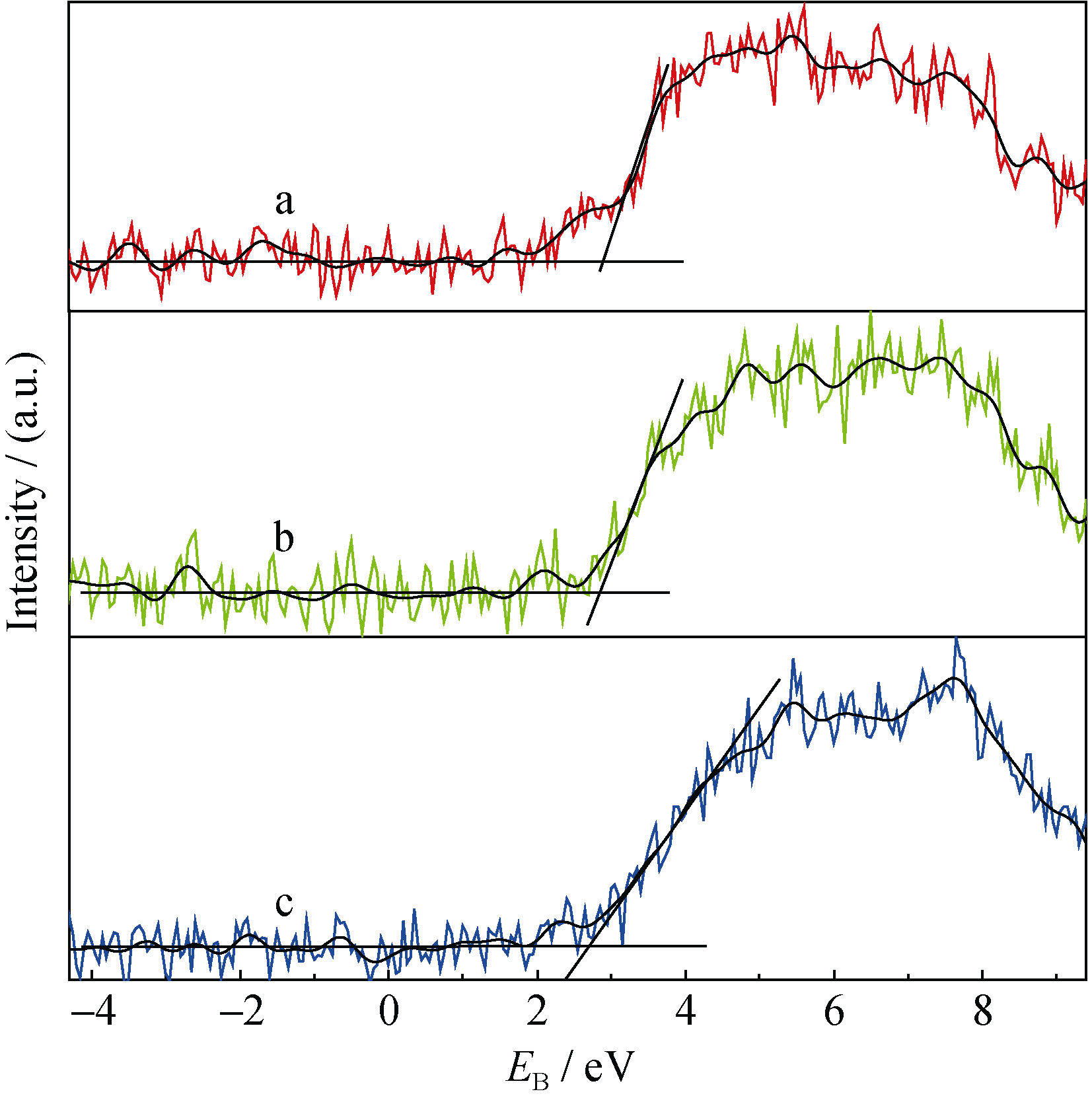

图4 r-TiO2 sheet(a)、r-TiO2(b)和a-TiO2(c)样品的XPS价带谱

Fig. 4 XPS valence band spectra of r-TiO2 sheet (a)、r-TiO2 (b) and a-TiO2 (c) samples

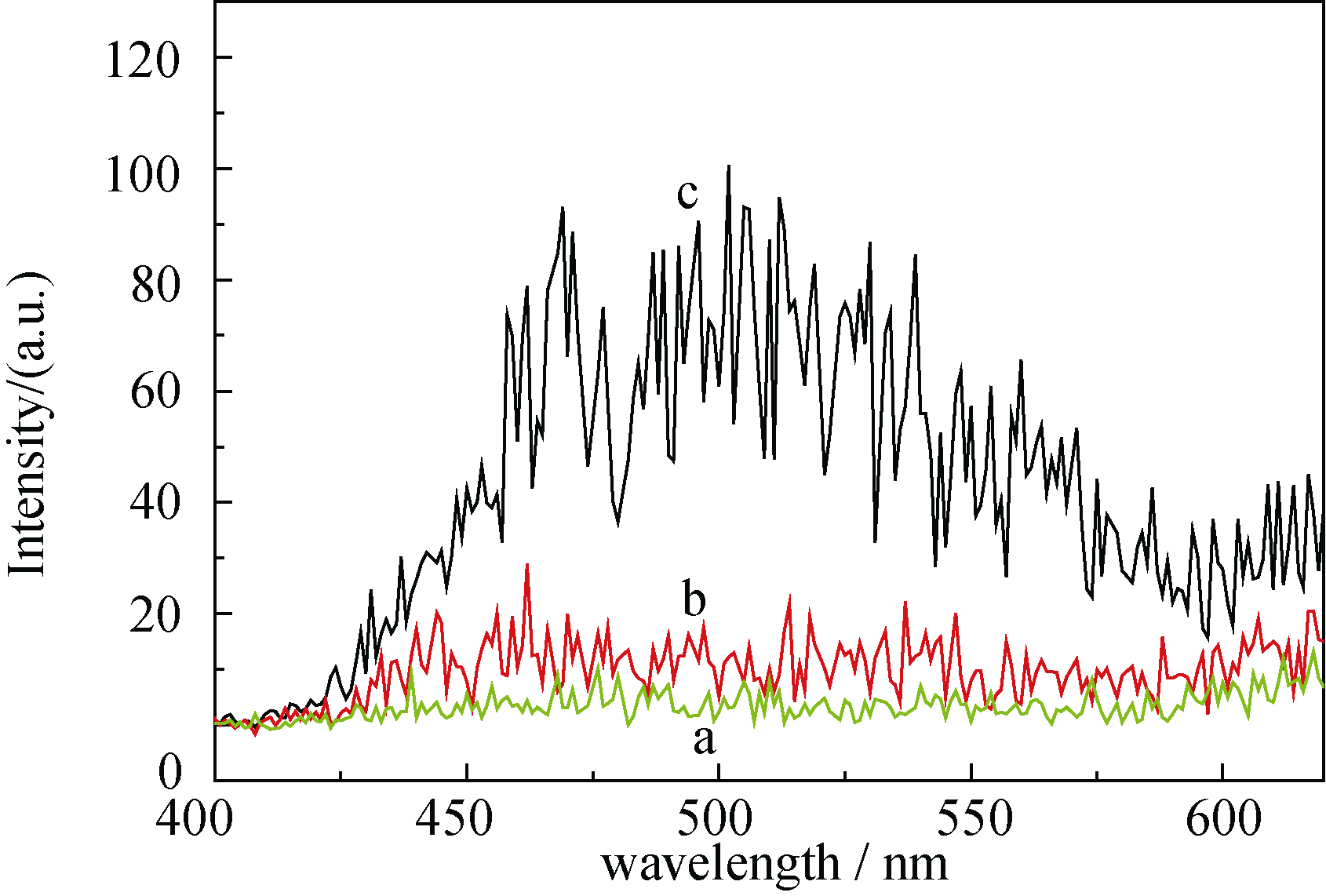

图5 r-TiO2 sheet(a)、r-TiO2(b)和a-TiO2(c)样品的荧光发射谱

Fig. 5 Photoluminescence emission spectra of r-TiO2 sheet (a)、r-TiO2 (b) and a-TiO2 (c) samples

表2 r-TiO2sheet、r-TiO2和a-TiO2样品紫外光催化活性

Table 2 Photocatalytic activity of r-TiO2 sheet, r-TiO2 and a-TiO2 samples under ultra-violet light irradiation

Sample	Degradation ratio^a (Δc/c₀)	K^b/(×10^-3, min^-1)	t_1/2/min	Specific photocatalytic acitivity^c/ (×10^-6, mol·g^-1·h^-1)
Blank^d	0.132	1.80	377	21.78
r-TiO₂	0.469	5.19	128.0	101.6
a-TiO₂	0.776	12.54	60.0	224.0
r-TiO₂sheet	0.979	33.62	22.6	290.5

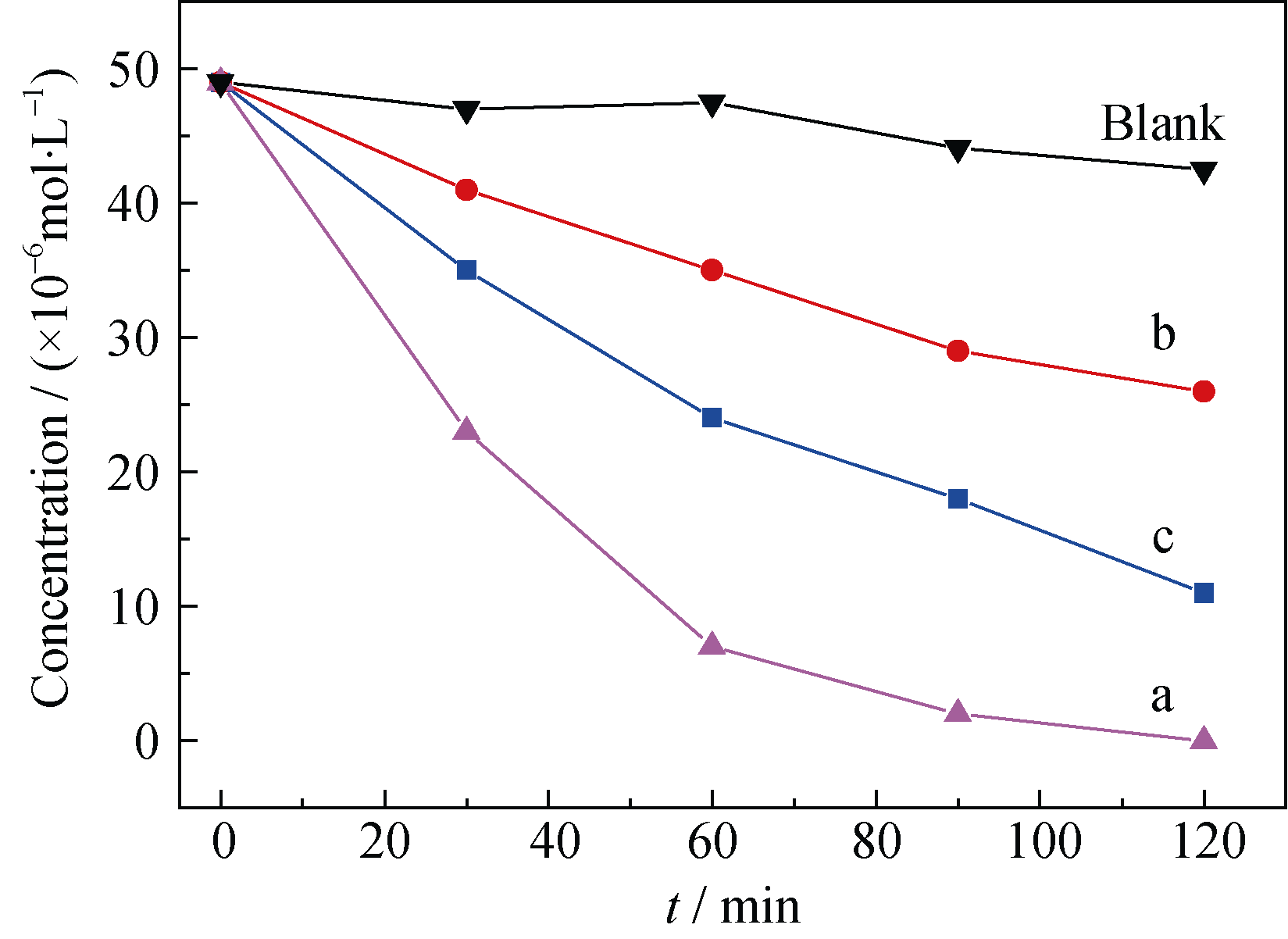

图6 r-TiO2 sheet(a)、r-TiO2(b)和a-TiO2(c)样品光催化降解对氯苯酚的c~t曲线

Fig. 6 The c-t curves of photocatalytic degradation of 4-chlorophenol by r-TiO2 sheet (a), r-TiO2 (b) and a-TiO2 (c) samples
