Facile Synthesis and Supercapacitor Performance of M3O4(M=FeCoCrMnMg) High Entropy Oxide Powders

doi:10.15541/jim20200388

Journal of Inorganic Materials ›› 2021, Vol. 36 ›› Issue (4): 425-430.DOI: 10.15541/jim20200388

Special Issue: 能源材料论文精选(2021)；【能源环境】超级电容器(202409)

• RESEARCH PAPER • Previous Articles Next Articles

Facile Synthesis and Supercapacitor Performance of M₃O₄(M=FeCoCrMnMg) High Entropy Oxide Powders

WANG Yiliang¹^,²(), AI Yunlong², YANG Shuwei², LIANG Bingliang¹^,²(), ZHENG Zhenhuan³, OUYANG Sheng², HE Wen², CHEN Weihua², LIU Changhong¹^,², ZHANG Jianjun², LIU Zhiyong²

1. Key Laboratory for Microstructural Control of Metallic Materials of Jiangxi Province, Nanchang Hangkong University, Nanchang 330063, China
2. School of Materials Science and Engineering, Nanchang Hangkong University, Nanchang 330063, China
3. College of Materials Science and Engineering, Fuzhou University, Fuzhou 350108, China

Received:2020-07-10 Revised:2020-09-26 Published:2021-04-20 Online:2020-09-20
Contact: LIANG Bingliang, PhD. E-mail: lbl@nchu.edu.cn
About author:WANG Yiliang(1995-), male, Master candidate. E-mail: 1801085204040@stu.nchu.edu.cn
Supported by:
Natural Science Foundation of China(51664043);Natural Science Foundation of China(51802140);Natural Science Foundation of Jiangxi Province(20192BAB206007);Key Laboratory for Microstructural Control of Metallic Materials of Jiangxi Province(Nanchang Hangkong University Open Fund)(EJ201901455);The China Scholarship Council(201708360036)

Abstract

Abstract:

High-entropy oxides have attracted more and more attention due to their unique structures and potential applications. In this work, M₃O₄(M=FeCoCrMnMg) high entropy oxide powders were synthesized by a facile solid-state reaction method. The powders were characterized by different methods. Furthermore, M₃O₄/Ni foam (M₃O₄/NF) electrode was prepared by a coating method, followed by investigation of its supercapacitor performance. The results showed that, with the increase of calcining temperature, Fe₂O₃(H)/Co₃O₄(S)/Cr₂O₃(E) and Mn₂O₃(B) dissolved successively in the crystal lattice of spinel structure. After M₃O₄ powders being calcined at 900 ℃ for 2 h, single spinel structure (FCC, Fd-3m, a=0.8376 nm) was obtained with uniform distribution of Fe, Co, Cr, Mn, and Mg elements, the typical characteristic of high entropy oxide. In addition, the mass specific capacitance of M₃O₄/NF composite electrode is 193.7 F·g^-1, with 1 mol/L KOH as electrolyte and 1 A·g^-1 as current density, which indicated that the M₃O₄ high entropy oxide can be considered as a promising candidate for the electrode material in the field of supercapacitor applications.

Key words: M₃O₄ high entropy oxide, solid state reaction method, spinel structure, supercapacitor performance

CLC Number:

TB34

WANG Yiliang, AI Yunlong, YANG Shuwei, LIANG Bingliang, ZHENG Zhenhuan, OUYANG Sheng, HE Wen, CHEN Weihua, LIU Changhong, ZHANG Jianjun, LIU Zhiyong. Facile Synthesis and Supercapacitor Performance of M₃O₄(M=FeCoCrMnMg) High Entropy Oxide Powders[J]. Journal of Inorganic Materials, 2021, 36(4): 425-430.

Figures/Tables 5

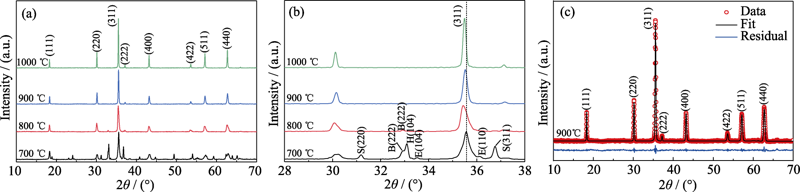

Fig. 1 XRD patterns (a), enlarged XRD patterns (2θ=28°-38°) (b) and Rietveld refined XRD pattern (c) of M3O4 powders calcined at different temperatures

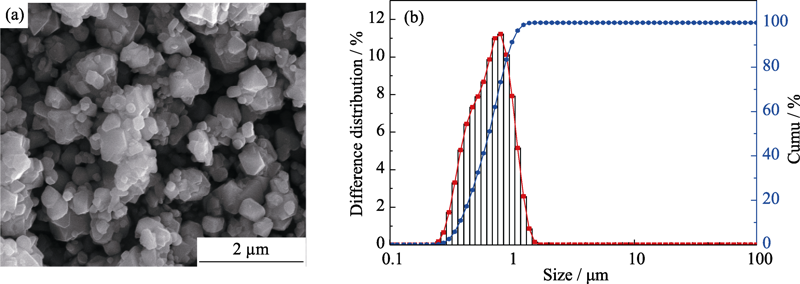

Fig. 2 SEM image(a) and particle size distribution pattern(b) of M3O4 powders

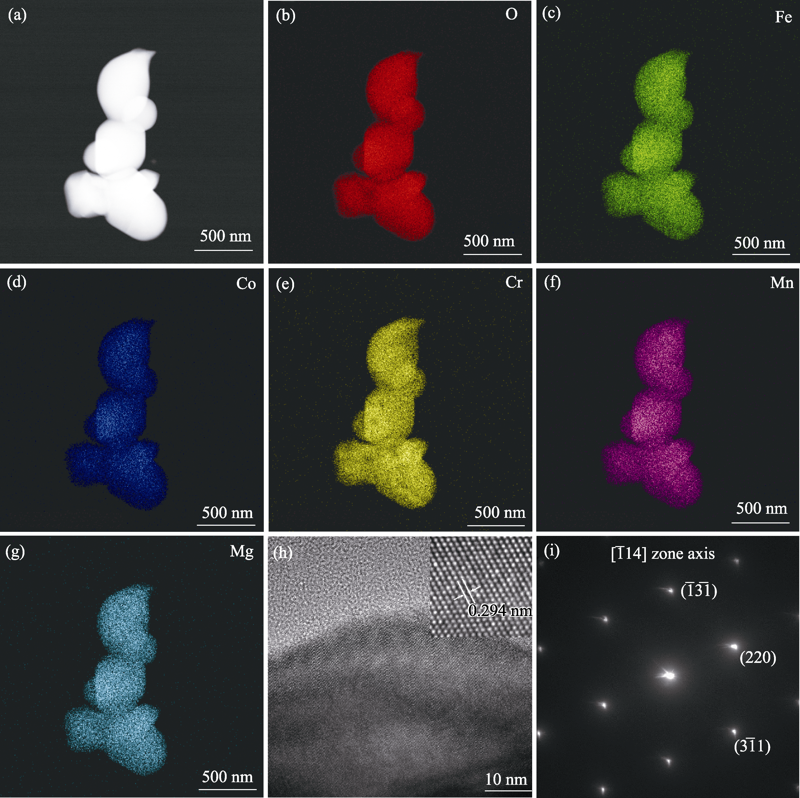

Fig. 3 STEM image(a), EDS mapping of O, Fe, Co, Cr, Mn, Mg(b-g), HRTEM image(h) and corresponding FFT pattern aligned along the $[\bar{1}14]$ zone axis(i) of M3O4

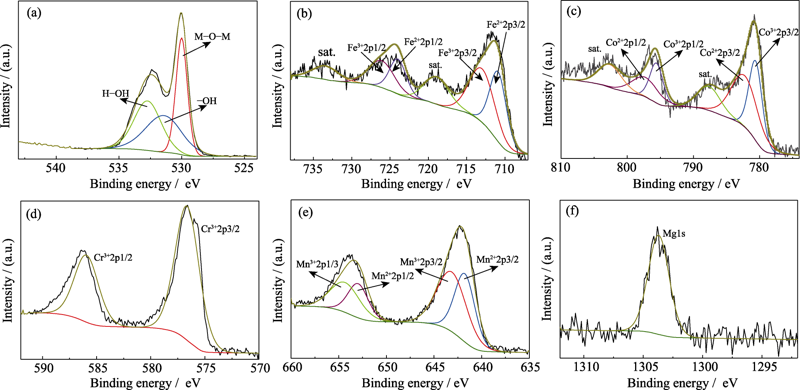

Fig. 4 XPS spectra of M3O4 (a) O1s; (b) Fe2p; (c) Co2p; (d) Cr2p; (e) Mn2p; (f) Mg1s

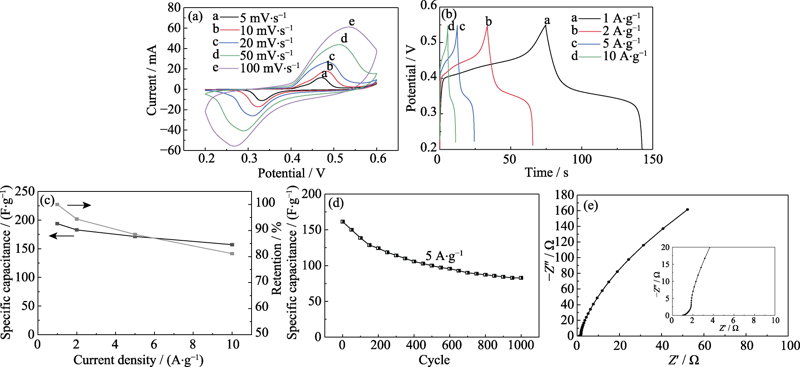

Fig. 5 CV curves at different scan rates (a), CP curves at different current densities (b), specific capacitance and Coulombic efficiency (c), cycle life (d) and EIS curves (e) for M3O4/NF electrode

References 35

[1]	YEH J W, CHEN S K, LIN S J, et al. Nanostructured high-entropy alloys with multiple principal elements: novel alloy design concepts and outcomes. Advanced Engineering Materials, 2004,6(5):299-303.
[2]	TSAI K Y, TSAI M H, YEH J W, et al. Sluggish diffusion in Co-Cr-Fe-Mn-Ni high-entropy alloys. Acta Materialia, 2013,61(13):4887-4897.
[3]	YEH J W. Recent progress in high-entropy alloys. Annales de Chimie Science des Matériaux, 2006,31(6):633-648.
[4]	KIM K B, WARREN P J, CANTOR B, et al. Devitrification of nano-scale icosahedral phase in multicomponent alloys. Materials Science and Engineering A-structural Materials Properties Microstructure and Processing, 2007,449:983-986.
[5]	CHEN C, ZHANG H, FAN Y Z, et al. Improvement of corrosion resistance and magnetic properties of FeCoNiAl_0.2Si_0.2 high entropy alloy via rapid-solidification. Intermetallics, 2020,122:106778.
[6]	EDALATI P, FLORIANO R, TANG Y P, et al. Ultrahigh hardness and biocompatibility of high-entropy alloy TiAlFeCoNi processed by high-pressure torsion. Materials Science and Engineering C, 2020,112:110908.
[7]	NIU C N, LAROSA C R, MIAO J S, et al. Magnetically-driven phase transformation strengthening in high entropy alloys. Nature Communications, 2018,9(1):1363. URL PMID
[8]	ROST C M, SACHET E, BORMAN T, et al. Entropy-stabilized oxides. Nature Communications, 2015,6(1):8485.
[9]	JIN T, SANG X H, UNOCIC R R, et al. Mechanochemical- assisted synthesis of high-entropy metal nitride via a soft urea strategy. Advanced Materials, 2018,30(23):1707512.
[10]	HARRINGTON T J, GILD J, SARKER P, et al. Phase stability and mechanical properties of novel high entropy transition metal carbides. Acta Materialia, 2019,166:271-280.
[11]	WEI X F, LIU J X, LI F, et al. High entropy carbide ceramics from different starting materials. Journal of the European Ceramic Society, 2019,39(10):2989-2994. DOI URL
[12]	DEMIRSKYI D, BORODIANSKA H, SUZUKI T S, et al. High-temperature flexural strength performance of ternary high-entropy carbide consolidated via spark plasma sintering of TaC, ZrC and NbC. Scripta Materialia, 2019,164:12-16.
[13]	ZHANG Y, SUN S K, ZHANG W, et al. Improved densification and hardness of high-entropy diboride ceramics from fine powders synthesized via borothermal reduction process. Ceramics International, 2020,46(9):14299-14303.
[14]	LIU D, WEN T Q, YE B L, et al. Synthesis of superfine high- entropy metal diboride powders. Scripta Materialia, 2019,167:110-114. DOI URL
[15]	ZHANG Y, JIANG Z B, SUN S K, et al. Microstructure and mechanical properties of high-entropy borides derived from boro/carbothermal reduction. Journal of the European Ceramic Society, 2019,39(13):3920-3924. DOI URL
[16]	ZHANG R Z, GUCCI F, ZHU H Y, et al. Data-driven design of ecofriendly thermoelectric high-entropy sulfides. Inorganic Chemistry, 2018,57(20):13027-13033. URL PMID
[17]	BERARDAN D, MEENA A K, FRANGER S, et al. Controlled Jahn-Teller distortion in (MgCoNiCuZn)O-based high entropy oxides. Journal of Alloys and Compounds, 2017,704:693-700.
[18]	SARKAR A, VELASCO L, WANG D, et al. High entropy oxides for reversible energy storage. Nature Communications, 2018,9(1):3400-3409. URL PMID
[19]	DĄBROWA J, STYGAR M, MIKUŁA A, et al. Synthesis and microstructure of the (Co,Cr,Fe,Mn,Ni)₃O₄ high entropy oxide characterized by spinel structure. Materials Letters, 2018,216:32-36.
[20]	MAO A Q, QUAN F, XIANG H Z, et al. Facile synthesis and ferrimagnetic property of spinel (CoCrFeMnNi)₃O₄ high-entropy oxide nanocrystalline powder. Journal of Molecular Structure, 2019,1194:11-18.
[21]	MAO A Q, XIANG H Z, ZHANG Z G, et al. A new class of spinel high-entropy oxides with controllable magnetic properties. Journal of Magnetism and Magnetic Materials, 2020,497:165884.
[22]	STYGAR M, DĄBROWA J, MOŹDZIERZ M, et al. Formation and properties of high entropy oxides in Co-Cr-Fe-Mg-Mn-Ni-O system: novel (Cr,Fe,Mg,Mn,Ni)₃O₄ and (Co,Cr,Fe,Mg,Mn)₃O₄ high entropy spinels. Journal of The European Ceramic Society, 2020,40(4):1644-1650.
[23]	CHEN K P, PEI X T, TANG L, et al. A five-component entropy-stabilized fluorite oxide. Journal of the European Ceramic Society, 2018,38(11):4161-4164.
[24]	GILD J, SAMIEE M, BRAUN J L, et al. High-entropy fluorite oxides. Journal of the European Ceramic Society, 2018,38(10):3578-3584.
[25]	SARKAR A, DJENADIC R, WANG D, et al. Rare earth and transition metal based entropy stabilised perovskite type oxides. Journal of the European Ceramic Society, 2018,38(5):2318-2327.
[26]	WITTE R, SARKAR A, KRUK R, et al. High-entropy oxides: an emerging prospect for magnetic rare-earth transition metal perovskites. Physical Review Materials, 2019,3(3):34406.
[27]	JIANG S C, HU T, GILD J, et al. A new class of high-entropy perovskite oxides. Scripta Materialia, 2018,142:116-120.
[28]	QIU N, CHEN H, YANG Z M, et al. A high entropy oxide (Mg_0.2Co_0.2Ni_0.2Cu_0.2Zn_0.2)O with superior lithium storage performance. Journal of Alloys and Compounds, 2019,777:767-774.
[29]	BERARDAN D, FRANGER S, DRAGOE D, et al. Colossal dielectric constant in high entropy oxides. Physica Status Solidi-Rapid Research Letters, 2016,10(4):328-333.
[30]	MAO A Q, XIANG H Z, ZHANG Z G, et al. Solution combustion synthesis and magnetic property of rock-salt (Co_0.2Cu_0.2Mg_0.2Ni_0.2Zn_0.2)O high-entropy oxide nanocrystalline powder. Journal of Magnetism and Magnetic Materials, 2019,484:245-252.
[31]	BÉRARDAN D, FRANGER S, MEENA A K, et al. Room temperature lithium superionic conductivity in high entropy oxides. Journal of Materials Chemistry A, 2016,4(24):9536-9541.
[32]	WANG H L, GAO Q M, JIANG L, et al. Facile approach to prepare nickel cobaltite nanowire materials for supercapacitors. Small, 2011,7(17):2454-2459. URL PMID
[33]	WEI W F, CUI X W, CHEN W X, et al. Electrochemical cyclability mechanism for MnO₂ electrodes utilized as electrochemical supercapacitors. Journal of Power Sources, 2009,186(2):543-550.
[34]	SUBRAMANIAN V, ZHU H W, VAJTAI R, et al. Hydrothermal synthesis and pseudocapacitance properties of MnO₂ nanostructures. Journal of Physical Chemistry B, 2005,109(43):20207-20214.
[35]	PATIL U M, NAM M S, SOHN J S, et al. Controlled electrochemical growth of Co(OH)₂ flakes on 3D multilayered graphene foam for high performance supercapacitors. Journal of Materials Chemistry, 2014,2(44):19075-19083.
