Bioglass/Polylactic Acid Porous Microspheres: Preparation and Their Application as Cell Microcarriers

doi:10.15541/jim20190593

Abstract

Abstract:

Porous microsphere cell microcarrier with macroporous structure can not only amplify cells in vitro, but also serve as cell delivery tools to deliver cells to damaged tissues by injection. Bioglass (BG) is an inorganic material with excellent biological activity, however, it is difficult to directly prepare microcarriers with macroporous structure. Therefore, in this study, a BG/poly-lactic acid (PLA) porous microspheres was prepared by double emulsion method. The morphology and structure of the microsphere were characterized by SEM, and the load of BG in the microsphere was characterized by thermo gravimetric analysis and its ion release was detected by ICP. Cell proliferation experiments showed that cells could adhere and grow on the surface and inside of the microspheres. The results show that the microsphere with interconnected open-pore microstructure is suit for cell adhesion and proliferation. Bioglass can promote cell proliferation in the microspheres and the obtained BG/PLA composite microsphere has great potential applications in tissue engineering.

Key words: porous microsphere, bioglass, polylactic acid, cell microcarrier, tissue engineering

CLC Number:

R318.08

GAO Long, ZHANG Zhaowenbin, CHANG Jiang. Bioglass/Polylactic Acid Porous Microspheres: Preparation and Their Application as Cell Microcarriers[J]. Journal of Inorganic Materials, 2020, 35(10): 1163-1168.

Figures/Tables 9

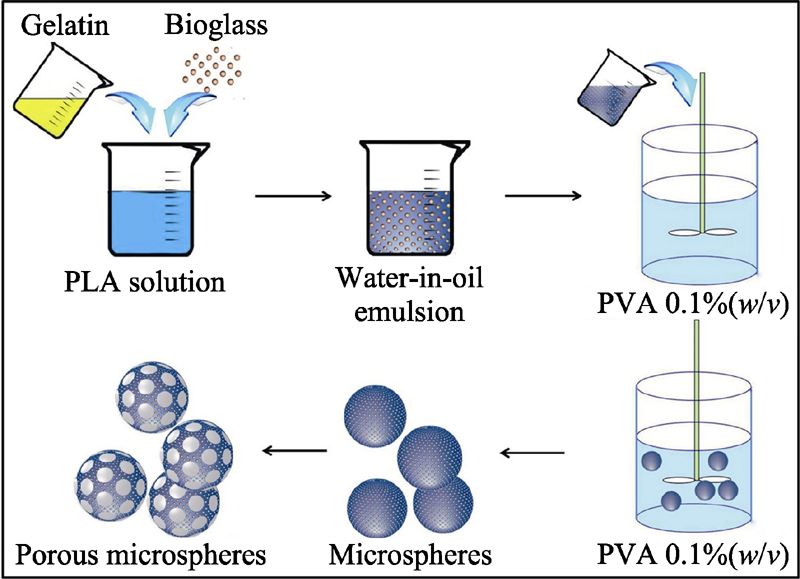

Fig. 1 Schematic illustration for the preparation of BG/PLA composite microsphere cell microcarriers

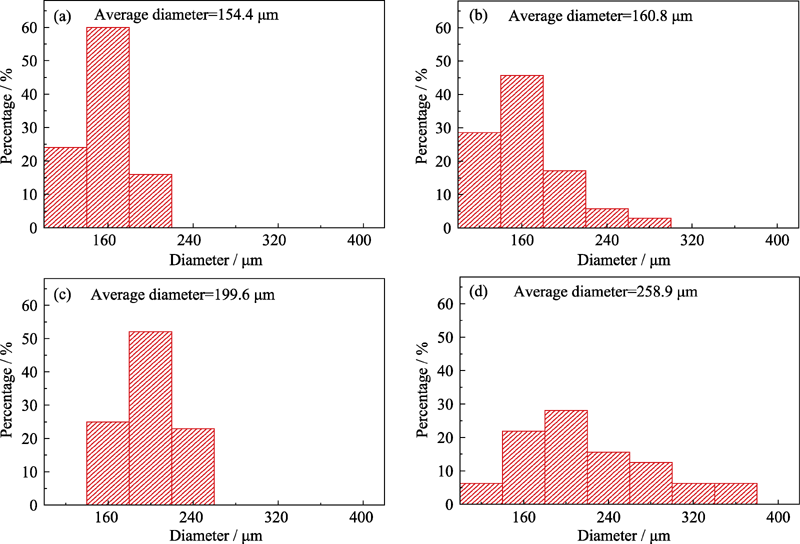

Fig. 2 Particle size distribution of BG/PLA microspheres prepared with PLA solution concentration of (a) 5.0%, (b) 7.5%, (c) 10.0%, and (d) 12.5%

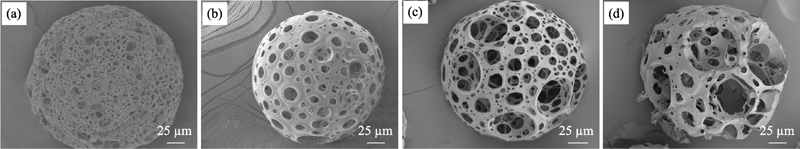

Fig. 3 BG/PLA porous microspheres prepared with (a) 2.0%, (b) 4.0%, (c) 6.0%, and (d) 8.0% pore-forming agent

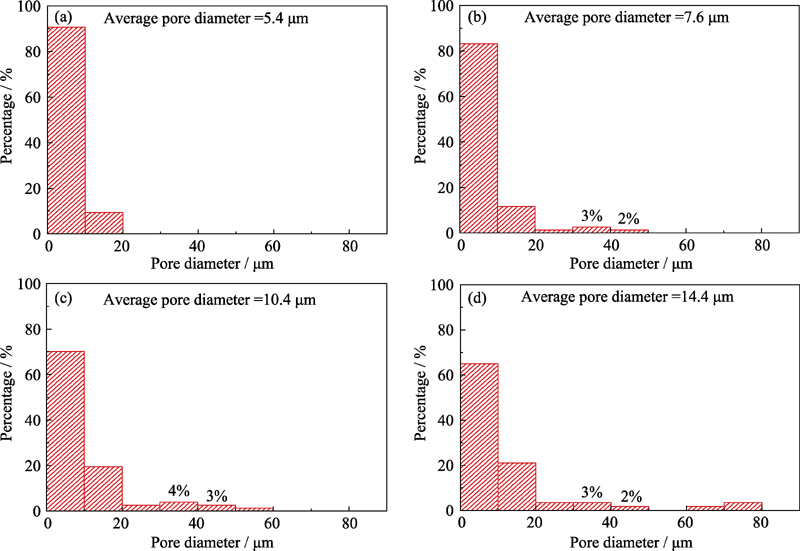

Fig. 4 Pore size distribution of BG/PLA microspheres prepared with (a) 2.0, (b) 4.0, (c) 6.0 and (d) 8.0% pore-forming agent

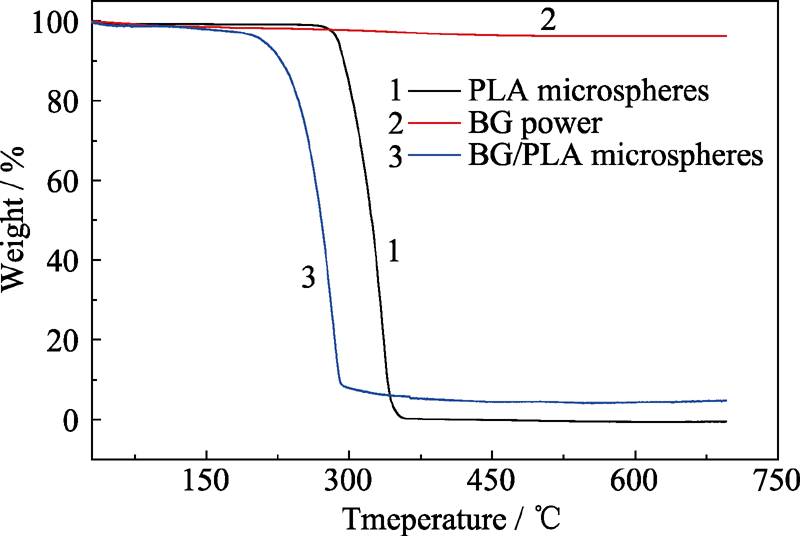

Fig. 5 Thermo gravimetric analysis of BG/PLA microspheres

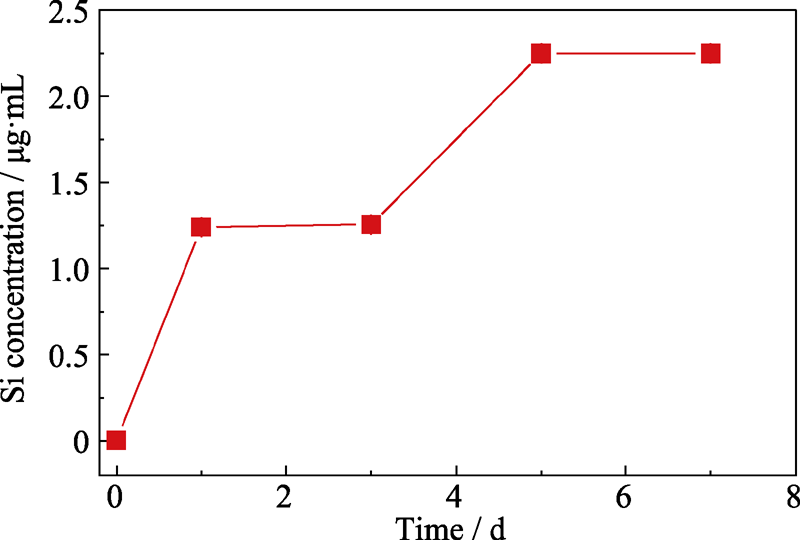

Fig. 6 Si ions released from the BG/PLA microspheres

Fig. 7 Live-dead cell staining of cells on (a) PLA microspheres and (b) BG/PLA microspheres

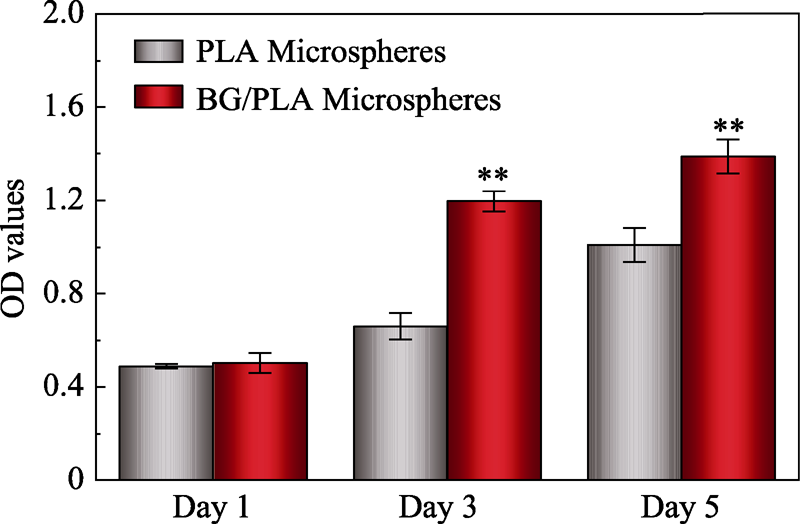

Fig. 8 Proliferation of cells on microspheres

Fig. 9 Distribution of cells on different cross sections of BG/ PLA microspheres

References 17

[1]	MALDA J, FRONDOZA CG . Microcarriers in the engineering of cartilage and bone. Trends in Biotechnology, 2006,24(7):299-304. DOI URL PMID
[2]	R. LANGER, J.P. VACANTI . Tissue engineering, Science. 1993,260(5110):920-926. DOI URL PMID
[3]	ZHOU L, KONG J, ZHUANG Y , et al. Ex vivo expansion of bone marrow mesenchymal stem cells using microcarrier beads in a stirred bioreactor Biotechnology and Bioprocess Engineering, 2013,18(1):173-184.
[4]	QIU QQ, DUCHEYNE P, AYYASWAMY PS . New bioactive, degradable composite microspheres as tissue engineering substrates. Journal of Biomedical Materials Research, 2000,52(1):66-76. DOI URL PMID
[5]	WEI DX, DAO JW, CHEN GQ . A Micro-Ark for Cells: Highly Open Porous Polyhydroxyalkanoate Microspheres as Injectable Scaffolds for Tissue Regeneration. Advanced Materials, 2018,30(31):1802273. DOI URL
[6]	BOO L, SELVARATNAM L, TAI CC , et al. Expansion and preservation of multipotentiality of rabbit bone-marrow derived mesenchymal stem cells in dextran-based microcarrier spin culture. Journal of Materials Science-Materials in Medicine , 2011,22(5):1343-1356. DOI URL
[7]	SU K, GONG Y, WANG C, WANG DA . A novel shell-structure cell microcarrier (SSCM) for cell transplantation and bone regeneration medicine. Pharmaceutical Research, 2011,28(6):1431-1441. DOI URL
[8]	CHUN KW, YOO HS, YOON JJ , et al. Biodegradable PLGA microcarriers for injectable delivery of chondrocytes: Effect of surface modification on cell attachment and function. Biotechnology Progress , 2004,20(6):1797-1801. DOI URL PMID
[9]	YAN S, XIA P, XU S , et al. Nanocomposite porous microcarriers based on Strontium-substituted HA-g-poly (gamma-benzyl-l- glutamate) for bone tissue engineering ACS Applied Materials & Interfaces, 2018,10(19):16270-16281.
[10]	FANG J, YONG Q, ZHANG K , et al. Novel injectable porous poly(γ-benzyl-l-glutamate) microspheres for cartilage tissue engineering: preparation and evaluation. Journal of Materials Chemistry B , 2015,3(6):1020-1031. DOI URL PMID
[11]	FANG J, ZHANG Y, YAN S , et al. Poly (L-glutamic acid)/chitosan polyelectrolyte complex porous microspheres as cell microcarriers for cartilage regeneration. Acta Biomaterialia , 2014,10(1):276-288. DOI URL PMID
[12]	HUANG CC, WEI HJ, YEH YC , et al. Injectable PLGA porous beads cellularized by hAFSCs for cellular cardiomyoplasty. Biomaterials, 2012,33(16):4069-4077. DOI URL PMID
[13]	HENCHL L, XYNOS I, EDGAR A, et al. Preparation and biomineralization research of ultrafine sol-gel bioactive glass power. Journal of Inorganic Materials , 2002,17(5):897-909.
[14]	DING FENG, LI NAN, LI YONG-SHENG , et al. Preparation of hierarchically porous MBG/CPC scaffold and its performance on drug loading and release. Journal of Inorganic Materials, 2013,28(1):97-102.
[15]	ZHOU YAN-LING, FENG XIN-XING, ZHAI WAN-YIN . Study on the loading and releasing behavior of epirubicin hydrochloride from mesoporous bioactive glass (MBGs). Journal of Inorganic Materials, 2011,26(1):68-72.
[16]	MIGUEZ-PACHECO V, HENCH LL, BOCCACCINI AR . Bioactive glasses beyond bone and teeth: emerging applications in contact with soft tissues Acta Biomaterialia, 2015,13(1):1-15.
[17]	MIAO G, CHEN X, DONG H , et al. Investigation of emulsified, acid and acid-alkali catalyzed mesoporous bioactive glass microspheres for bone regeneration and drug delivery. Materials Science & Engineering C-Materials for Biological Applications, 2013,33(7):4236-4243. DOI URL PMID
	BRAUER DS . Bioactive glasses-structure and properties Angewandte Chemie International Edition, 2015,54(14):4160-4181. DOI URL PMID
