Thermo-physical Property of YAG Melt Measured by Aerodynamic Levitation Technique

doi:10.15541/jim20180104

Abstract

Abstract:

As one of the most widely used oxide in many fields, Y₃Al₅O₁₂(YAG: Yttrium Aluminum Garnet) has attracted extensive attention. However, due to its high melting point and complex mechanism for phase selection, accurate knowledge of thermo-physical properties for YAG melt, is much desired. Using an advanced aerodynamic levitation laser-melting technique, here the viscosity, surface tension and density were carefully evaluated on both thermodynamically stable, and metastable supercooled YAG melts in the temperature scope from 1750 K to 2650 K. The results indicate that density of YAG melts has a higher sensitivity than that of Al₂O₃ melts upon temperature change; and YAG melts have one time higher average line thermal expansion coefficient compared to the Al₂O₃ melts. Al₂O₃ melts’ surface tension is almost constant on temperature in the wide temperature scope, while YAG melts have a distinct decrease in surface tension following temperature increase. As to the viscosity-temperature relation, in the supercooled scope, YAG melts have a more obvious rise in viscosity upon cooling.

Key words: thermo-physical property, yttrium aluminum garnet, aerodynamic levitation technique, supercooled region

CLC Number:

TQ171

FENG Sheng, SHAN Zhi-Tao, PAN Rui-Kun, XU Bo, ZU Cheng-Kui, TAO Hai-Zheng. Thermo-physical Property of YAG Melt Measured by Aerodynamic Levitation Technique[J]. Journal of Inorganic Materials, 2018, 33(12): 1297-1302.

Figures/Tables 6

Fig. 1 Schematic diagram of aerodynamic levitator for evaluating thermophysical properties of melts(a) Top and bottom laser sources; (b) Dual color pyrometer and high speed pyrometer; (c) Water-cooled levitation stage; (d) Infrared transparent window separating the levitation gas from the bottom laser; (e) Inlet for levitation gas; (f) Aerodynamic conical converging-diverging levitator nozzle; (g) High speed camera (maximum frame rate 6250 fps; the frame rate for our measurement being set to be 2000 fps); (h) Bandpass filter with 10 nm (FWHM) centered around 532 nm; (i) Back lighting laser source with a wavelength of 532 nm; (j) Beam expanding optics; (k) Acoustic excitation device; (l) Gas mass flow controller

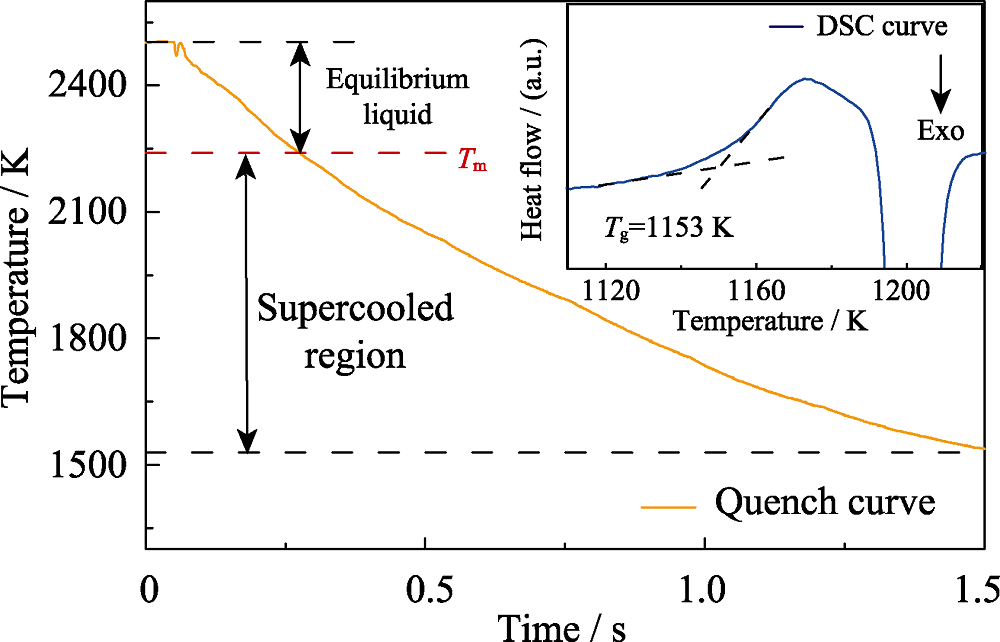

Fig. 2 Apparent temperature versus time curve for YAG melt As shown in the insert Tg is characterized from DSC measurement of the sample obtained by quenching

Fig. 3 Typical frame obtained from high speed camera at a certain temperature The dark hemispherical area is the shadow cast of the melt drop visible above levitation nozzle

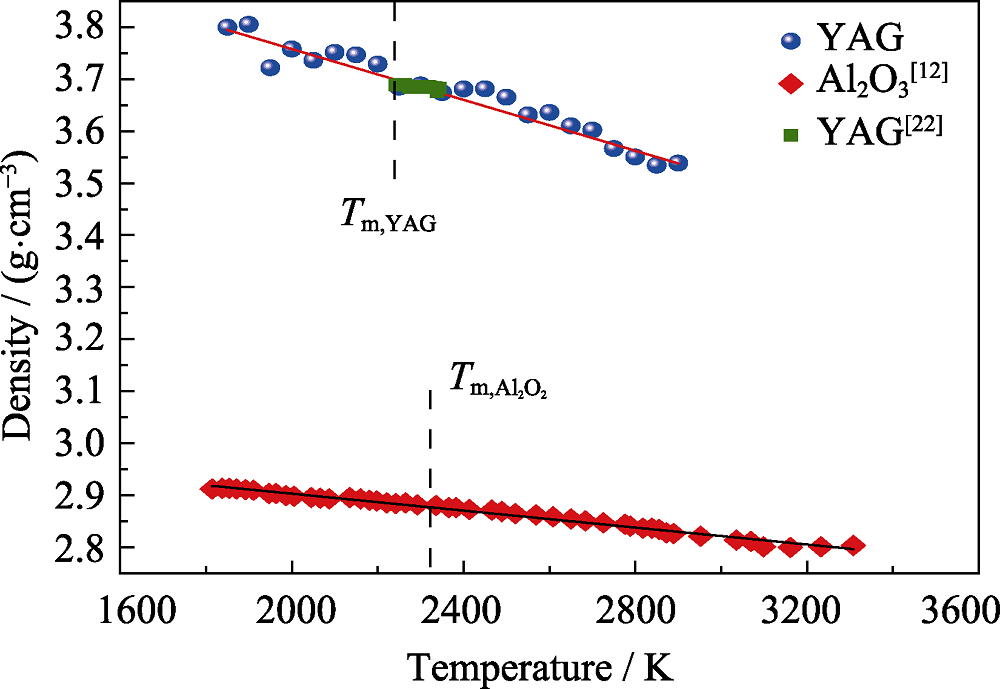

Fig. 4 Temperature dependence of density for YAG and Al2O3 melts[12], earlier work is included[22]

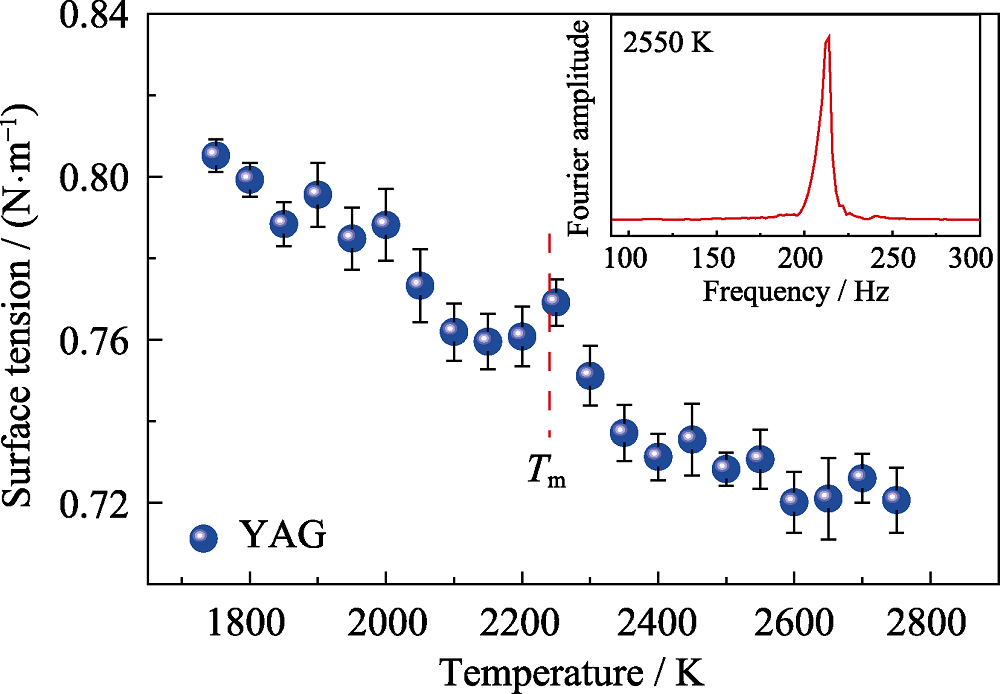

Fig. 5 Temperature dependence of surface tension for YAG melt Insert shows the result of frequency sweeping at 2550 K

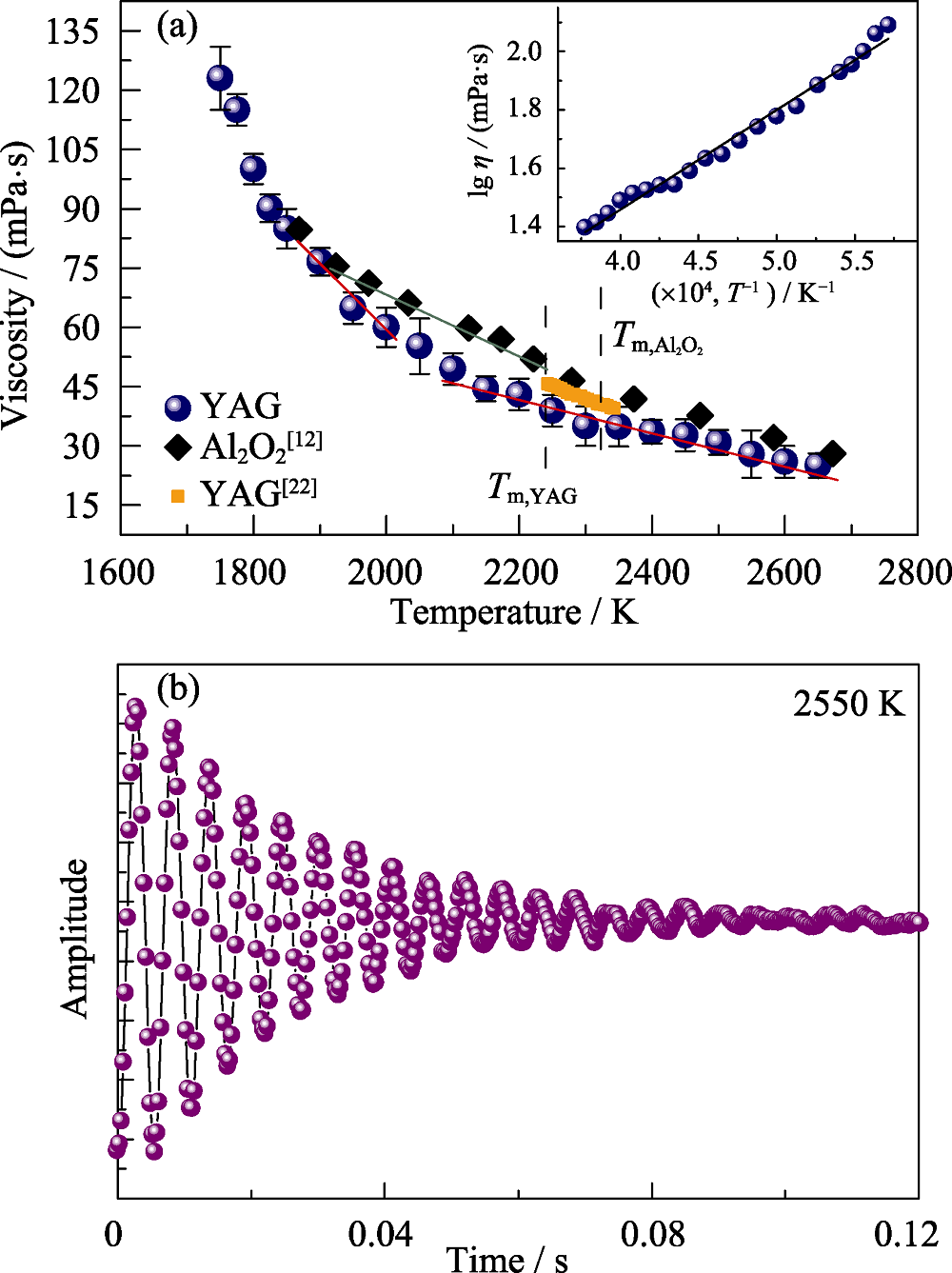

Fig. 6 (a) Temperature dependence of viscosity for YAG melt (Inset: lgη versus 1/T curve for YAG melt) and (b) damping curve according to the recorded radius for YAG melt at 2550 K

References 26
