Multicolor Upconversion Emission Tuning of NaY(WO4)2: Dy3+ via Er3+ Doping

doi:10.15541/jim20170310

Abstract

Abstract:

A series of Dy³⁺and Er³⁺ co-doped NaY(WO₄)₂ phosphors were synthesized by hydrothermal reactions. X-ray diffraction and scanning electron microscope were used to characterize their crystal structure and morphology. The upconversion luminescent properties and the fluorescence lifetime of ⁴F_9/2→⁶H_13/2 transition of the Dy³⁺ ion were also investigated. Moreover, the energy transfer from Dy³⁺ to Er³⁺ ions in NaY(WO₄)₂: Dy³⁺, Er³⁺ was analyzed in detail. The results indicated that all the samples had pure tetragonal crystal structure. Furthermore, the micrometer- sized needle spheres and excellent dispersion of the particles were obtained by adding polyethylene glycol (PEG-2000) as surfactant. Under near infrared light excitation at 780 nm, the NaY(WO₄)₂: Dy³⁺, Er³⁺ samples exhibited blue emission at 480 nm (⁴F_9/2→⁶H_15/2 transition of Dy³⁺), yellow emission at 576 nm (⁴F_9/2→⁶H_13/2 transition of Dy³⁺) and green emission at 531 and 554 nm (²H_11/2→⁴I_15/2 and ⁴S_3/2→⁴I_15/2 transition of Er³⁺, respectively). The energy transfer process from Dy³⁺ to Er³⁺ is a resonant transfer, in which electric dipole-dipole interaction plays a leading role. By adjusting the doping concentration of Er³⁺ in NaY(WO₄)₂: 1.0mol% Dy³⁺, xmol% Er³⁺ phosphors, conversion from quasi white light to blue light can be realized.

Key words: up-conversion luminescence, NaY(WO₄)₂: Dy³⁺, Er³⁺, polyethylene glycol, energy transfer

CLC Number:

TB321

SHI Zhong-Xiang, WANG Jing, GUAN Xin. Multicolor Upconversion Emission Tuning of NaY(WO₄)₂: Dy³⁺ via Er³⁺ Doping[J]. Journal of Inorganic Materials, 2018, 33(5): 521-527.

Figures/Tables 10

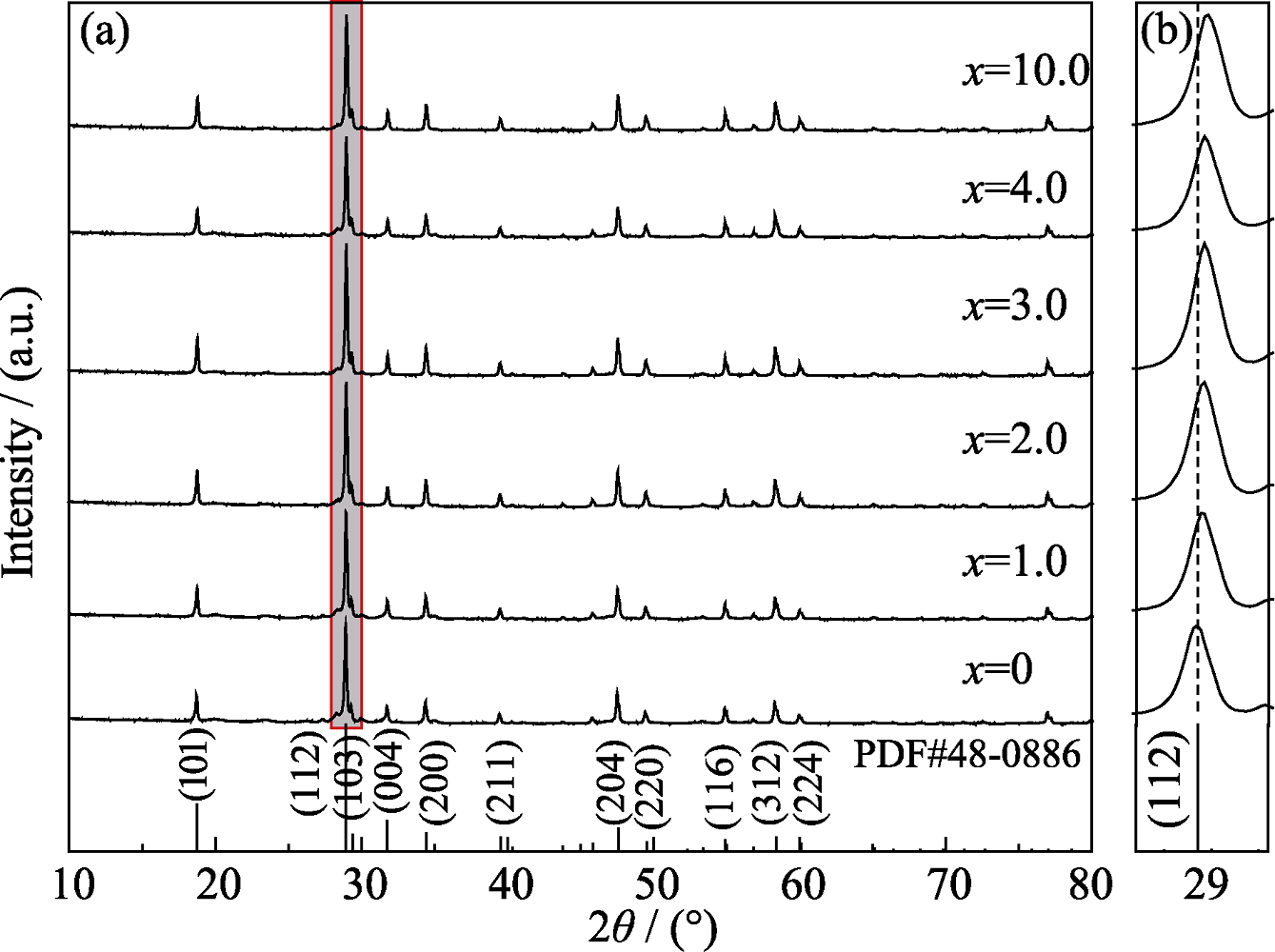

Fig. 1 (a) XRD patterns of NaY(WO4)2 : 1.0mol% Dy3+, xmol% Er3+(x=0-10.0) samples and the standard card of NaY(WO4)2; (b) amplified (112) diffraction peaks

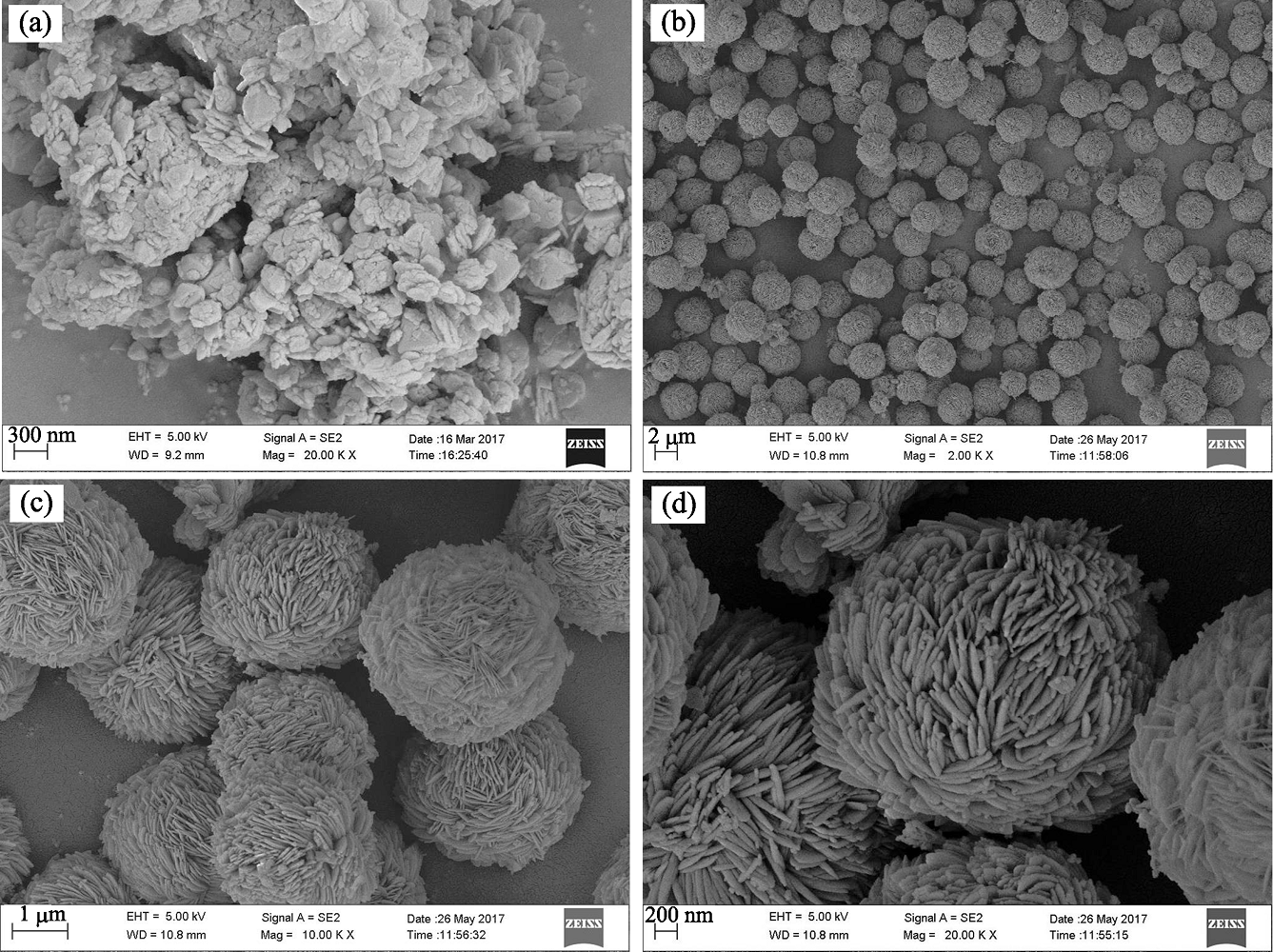

Fig. 2 (a) SEM image of NaY(WO4)2: Dy3+, Er3+ phosphors without PEG-2000; (b)-(d) Different magnification SEM images of NaY(WO4)2: Dy3+, Er3+ phosphors with PEG-2000

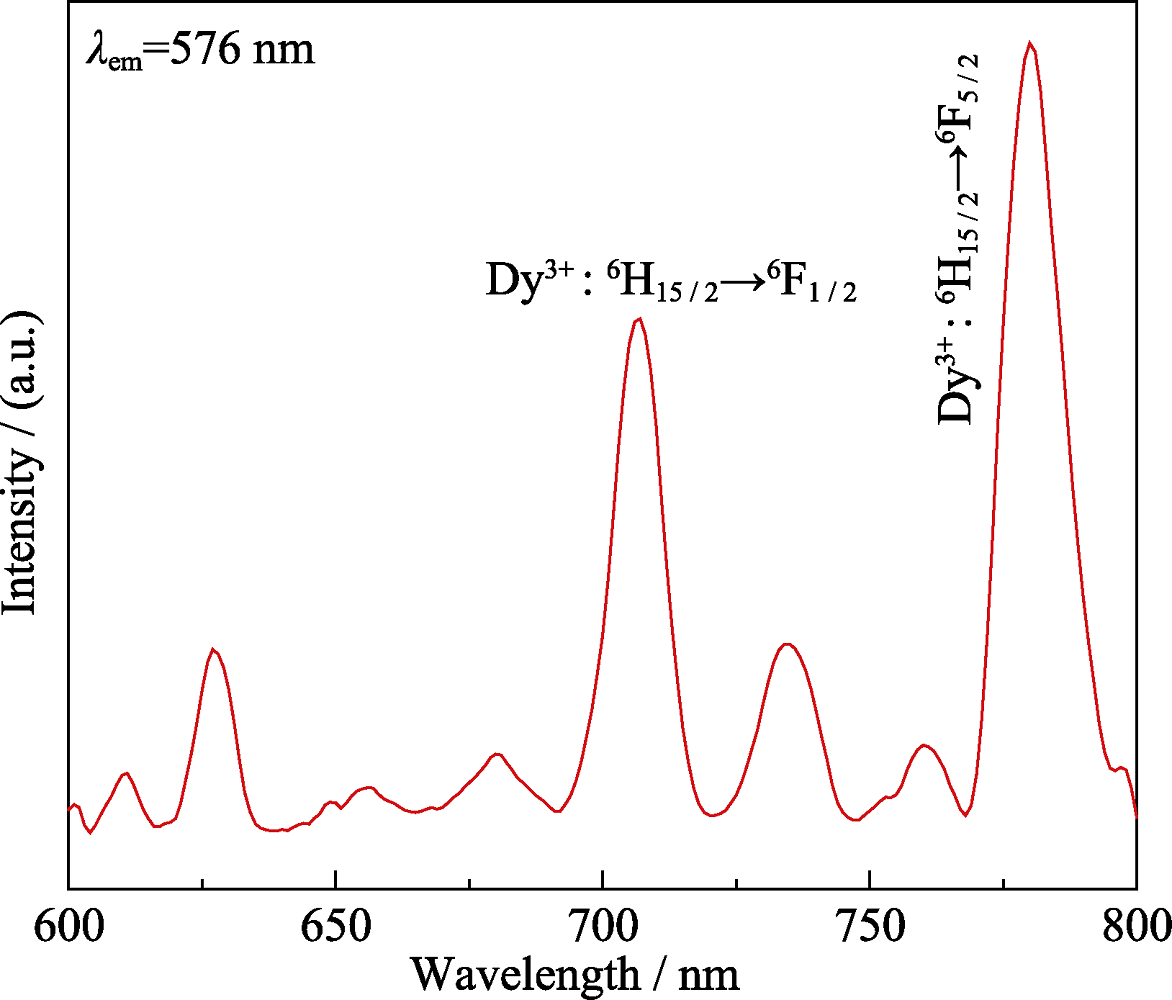

Fig. 3 Excitation spectrum of NaY(WO4)2: Er3+, Dy3+ sample (λem=576 nm)

Fig. 4 Upconversion emission spectra of NaY(WO4)2: 1.0mol% Dy3+ and NaY(WO4)2: 1.0mol% Dy3+, 3.0mol% Er3+ samples

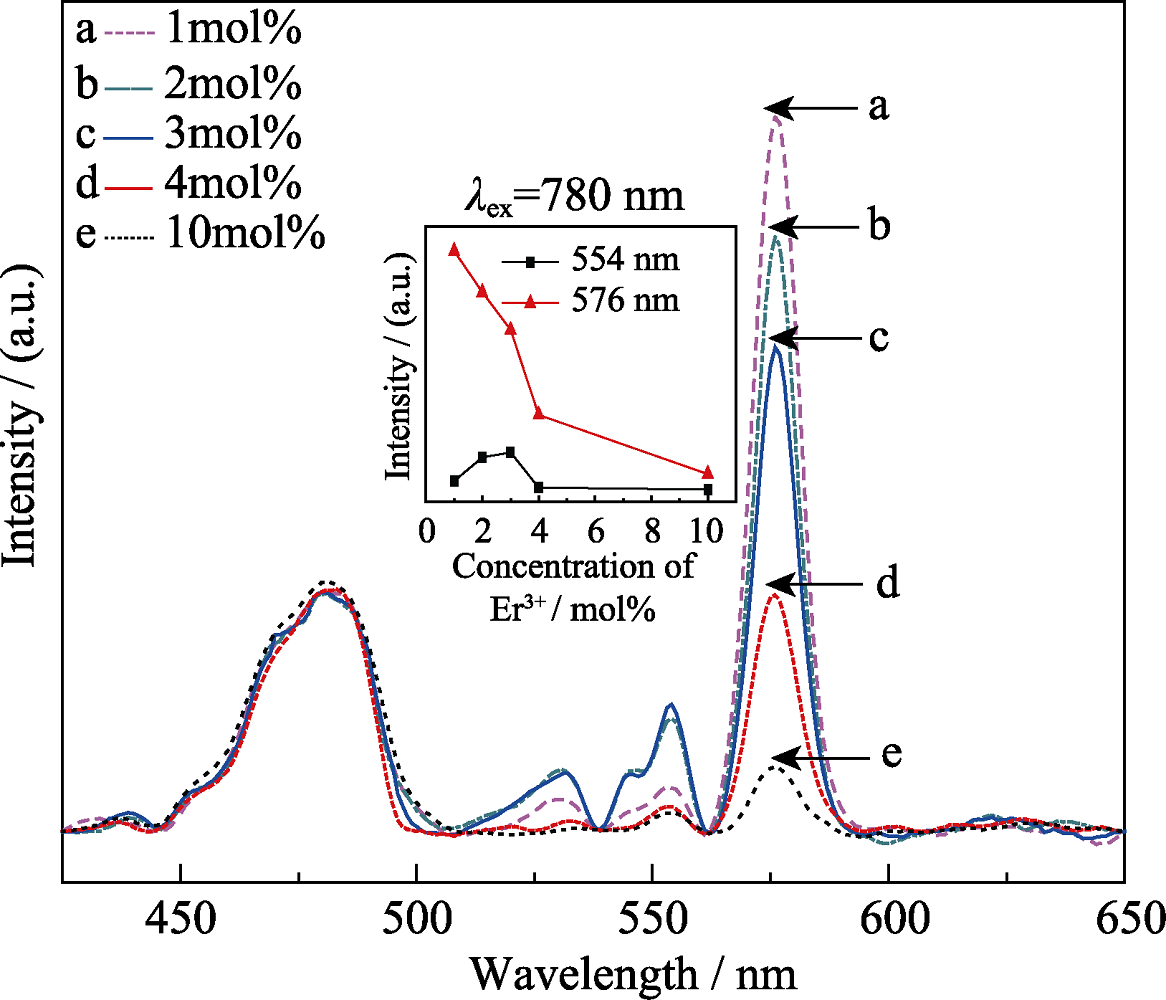

Fig. 5 Upconversion emission spectra of NaY(WO4)2: 1.0mol% Dy3+, xmol% Er3+ (x=1.0-10.0) samples

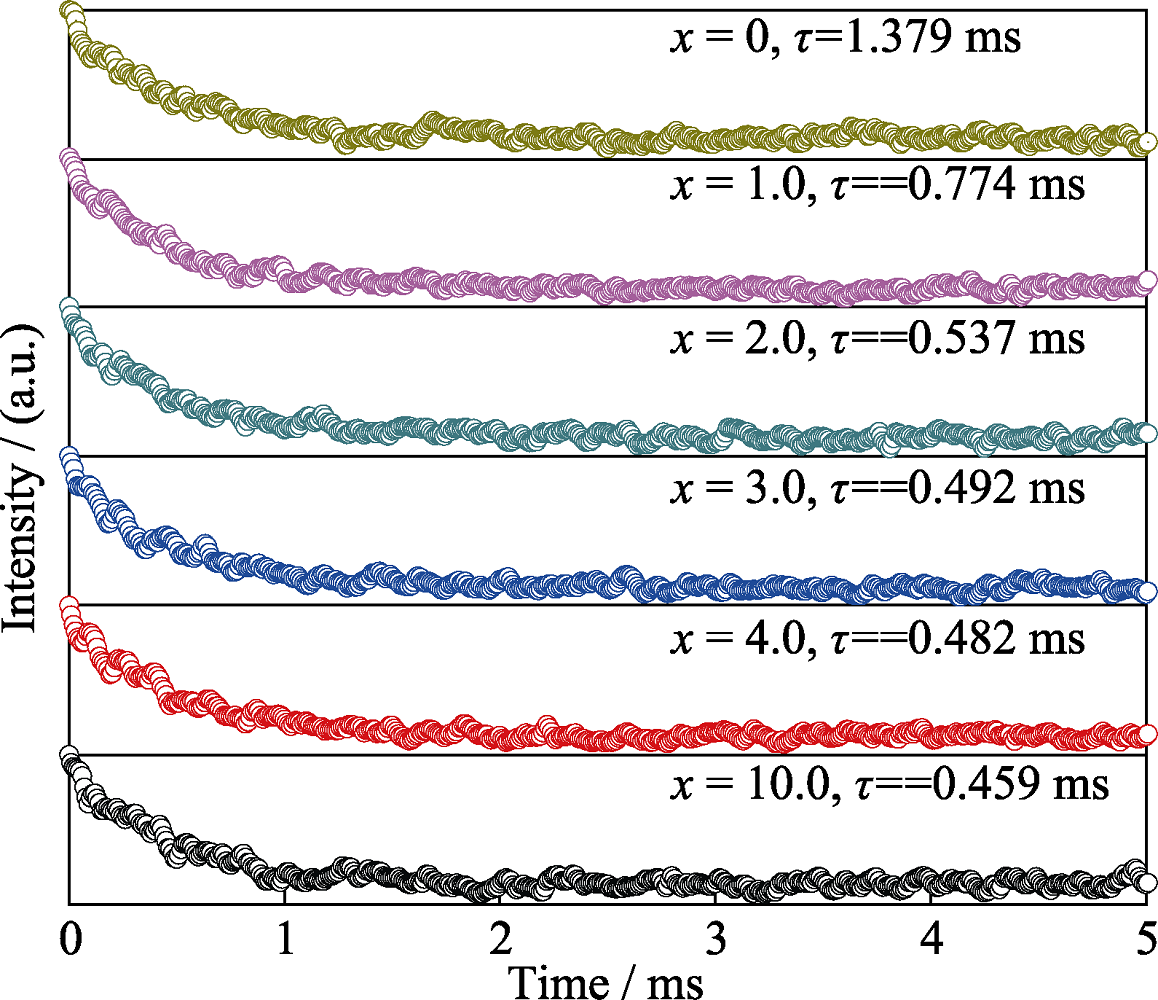

Fig. 6 Decay curves of 576 nm in NaY(WO4)2: 1.0mol% Dy3+, xmol% Er3+ (x=0-10.0) samples

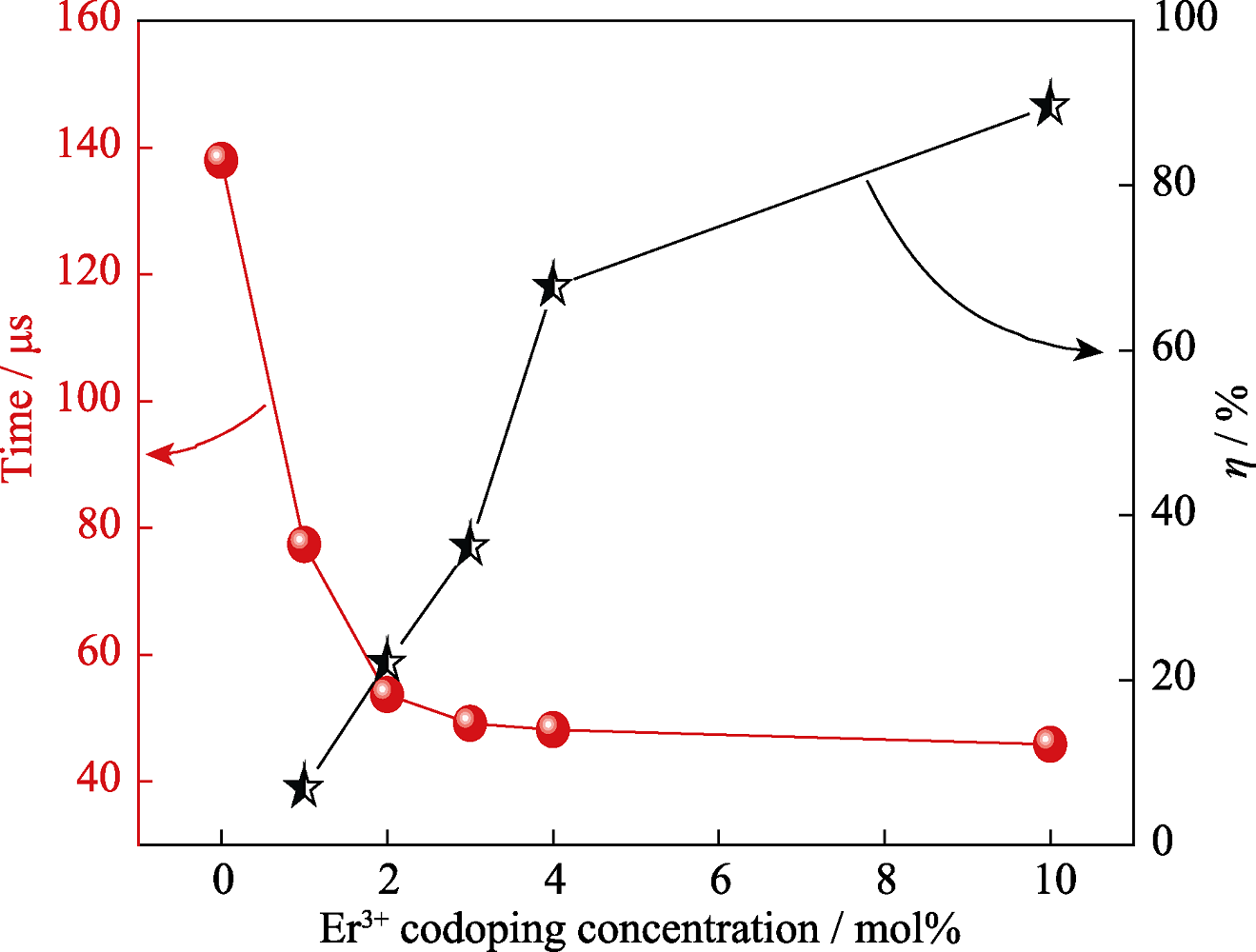

Fig. 7 Dependence of lifetime of Dy3+ on energy transfer efficiency in NaY(WO4)2: 1.0mol% Dy3+, xmol% Er3+ (x=0-10.0) samples

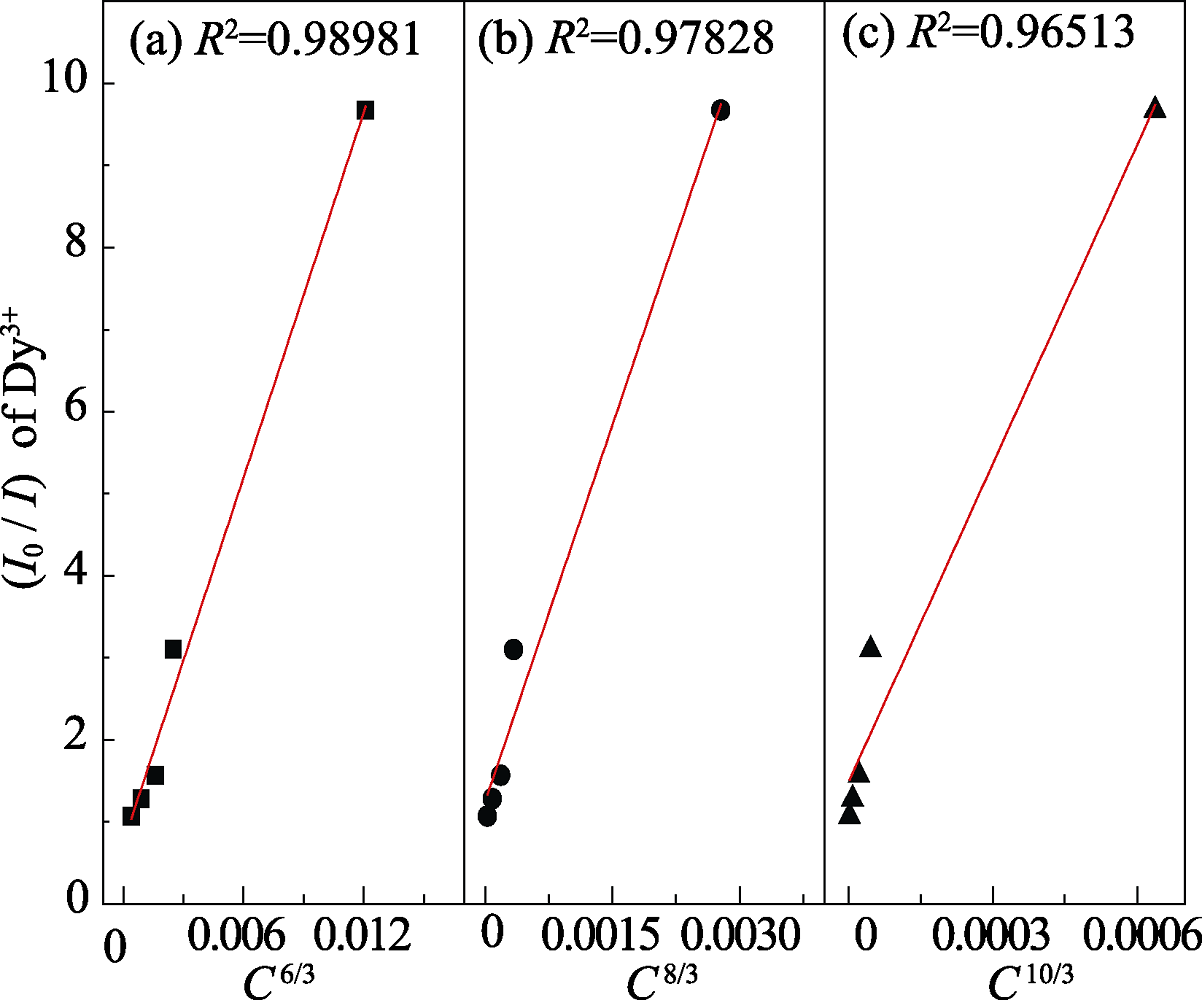

Fig. 8 Dependence of Dy3+ on (a) C 6/3, (b) C 8/3 and (c) C 10/3 in NaY(WO4)2: Dy3+, Er3+

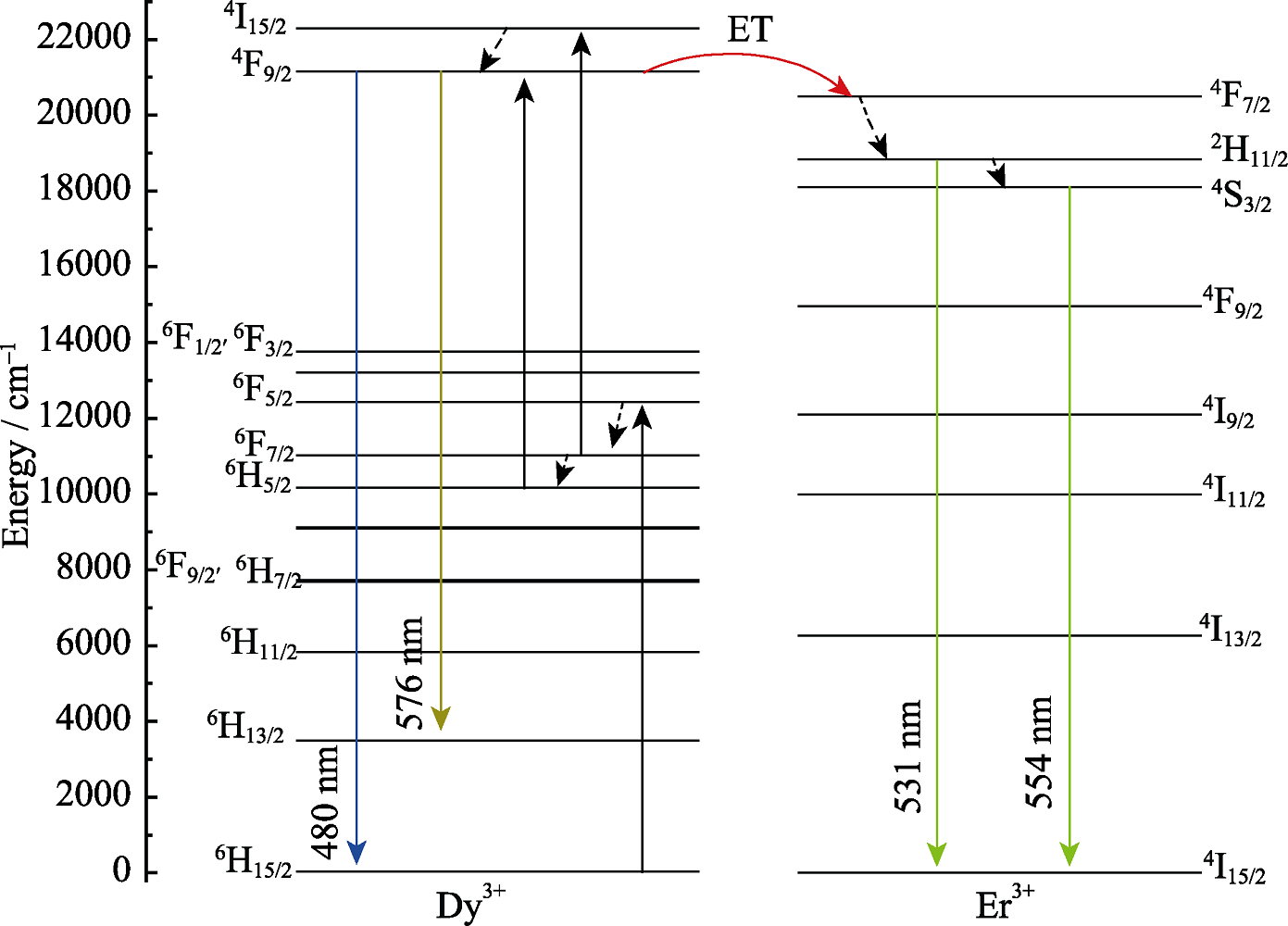

Fig. 9 Upconversion luminescence mechanism of NaY(WO4)2: Dy3+, Er3+ samples

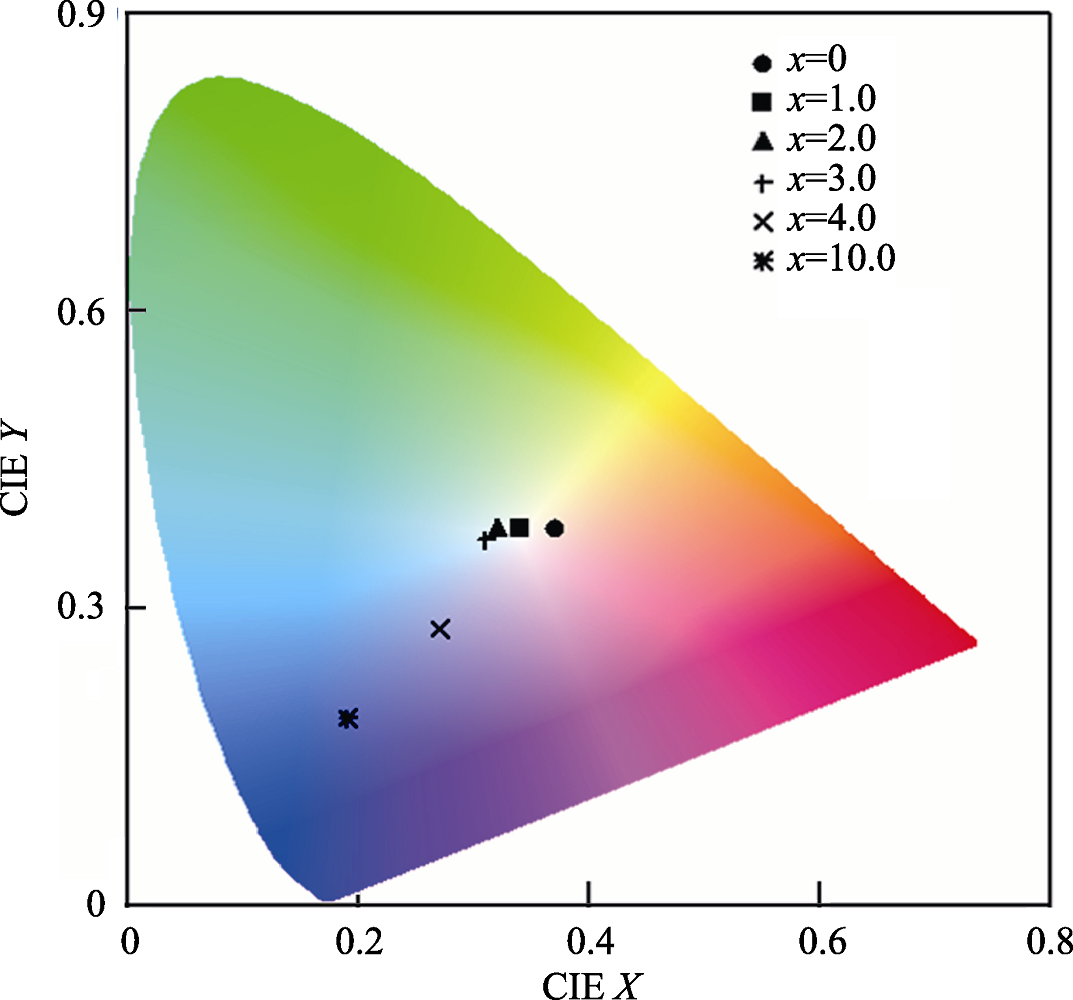

Fig. 10 CIE chromaticity diagram of NaY(WO4)2: 1.0mol% Dy3+, xmol% Er3+ (x=0-10.0) samples

References 18

[1]	GRZYB T, KUBASIEWICZ K, SZCZESZAK A, et al. Energy migration in YBO3: Yb3+, Tb3+ materials: down- and upconversion luminescence studies. Journal of Alloys and Compounds, 2016, 686: 951-961.
[2]	VENNERBERG D, LIN Z Q.Upconversion nanocrystals: synthesis, properties, assembly and applications.Science of Advanced Materials, 2011, 3(1): 26-40.
[3]	WANG D M, FAN H H, CHEN Z M,et al. Upconversion luminescence of Eu3+ ion in aluminoborate/NaYF4 vitreous composite matrix induced by 800 nm laser. Journal of Alloys and Compounds, 2016, 657: 115-121.
[4]	JIANG G C, ZHOU S S, WEI X T,et al. 794 nm excited core-shell upconversion nanoparticles for optical temperature sensing. RSC Advances, 2016, 6(14): 11795-11801.
[5]	LI J J, LI T, SUO H,et al. Up-conversion emission color tuning in NaLa(MoO4)2: Nd3+/Yb3+/Ho3+ excited at 808 nm. Ceramics International, 2017, 43: 6333-6339.
[6]	XUE X J, QING W P, ZHANG D S,et al. Synthesis and upconversion luminescence of NaYF4: Yb3+, Tm3+/TiO2 nanocrystal colloidal solution. Journal of Nanoscience and Nanotechnology, 2010, 10(3): 2028-2031.
[7]	ZHENG W, HUANG P, TU D T,et al. Lanthanide-doped upconversion nano-bioprobes: electronic structures, optical properties, and biodetection. Chemical Society Reviews, 2015, 44(6): 1379-1415.
	WANG D, XUE B, KONG X G,et al. 808 nm driven Nd3+-sensitized upconversion nanostructures for photodynamic therapy and simultaneous fluorescence imaging. Nanoscale, 2015, 7(1): 190-197.
[8]	TANG J F, GOU J, LI G N,et al. Tunable upconversion luminescence from the phosphors of Yb3+, Tm3+ and Ho3+ tri-doped Re2TeO6(Re = La, Gd, and Lu). Journal of Alloys and Compounds, 2016, 672: 1-6.
[9]	WANG Y F, LIU G Y, SUN L D,et al. Nd3+-sensitized upconversion nanophosphors: efficient in vivo bioimaging probes with minimized heating effect. ACS Nano, 2013, 7(8): 7200-7206.
[10]	ZHANG Z, WANG Y J, XIAO L J,et al. Research on upconversion spectra of NaYF4: Nd3+, Dy3+ nanoparticles. Journal of Shenyang University of Chemical Technology, 2012, 26(2): 106-109.
[11]	WANG Y J, SHI Z X, XIAO L J,et al. Upconversion luminesce particles of NaY(WO4)2: Dy3+, Ho3+ at 776 nm laser excitation. Journal of Central South University (Science and Technology), 2016, 47(8): 2608-2613.
[12]	LI X, LIU G X, DONG X T,et al. Preparation and properties of GdF3: Eu3+ luminescent nanomaterials with special morphology. Chemical Journal of Chinese Universities, 2011, 32(1): 23-27.
[13]	ZHANG X J, WANG J, HUANG L,et al. Tunable luminescent properties and concentration-dependent, site-preferable distribution of Eu2+ ions in silicate glass for white LEDs applications. ACS Applied Materials & Interfaces, 2015, 7(18): 10044-10054.
[14]	REN Q, WEI T Y, WU X L,et al. Influence of Eu3+ doping on luminescence properties of Na3Gd2(BO3)3: Tb3+ and the relevant energy transfer mechanism. Materials Review, 2017, 31(3): 7-10.
[15]	WANG Z, MI X Y, XIE L J,et al. Preparation and luminescent properties of Ca9Y(PO4)7: Ce3+, Tb3+ nano-phosphors. Chinese Journal of Inorganic Chemistry, 2016, 32(12): 2136-2142.
[16]	BLASSE G.Energy transfer in oxidic phosphors.Physics Letters A, 1968, 28(6): 444-445.
[17]	DEXTER D L, SCHULMAN J H.Theory of concentration quenching in inorganic phosphor.Journal of Chemical Physics, 1954, 22(6): 1063-1070.
[18]	CHEN J H, ZHAO W R, WANG J Q,et al. Energy transfer and thermal stability of K2Ba(WO4)2: Eu3+, Sm3+ phosphors. Ceramics International, 2015, 41(9): 11945-11952.
