Effect of Sintering Temperature on Structure and Electric Performance of La0.67Ca0.33-xSrxMnO3 Ceramic

doi:10.15541/jim20160025

Abstract

Abstract:

Double-doped La_0.67Ca_0.33-_xSr_xMnO₃(x=0, 0.05, 0.15) powders were synthesized by traditional solid-state reaction method. Effects of sintering temperature on structure, micro morphology and metal-insulator phase transition temperature of La_0.67Ca_0.33-_xSr_xMnO₃ ceramic were systemically studied. The results showed that sintering temperature had little influence on crystallinity or micro morphology of as-prepared ceramic, while double-doping effectively changed the phase transition temperature of the ceramics. When the ceramics sintered at 1400℃, the metal-insulator phase transition temperature increased from -20℃ to 6℃ and the ceramics stabilized in orthorhombic structure as the doping level varing from x=0 to x=0.05. At the doping level x=0.15, the crystal structure changed from rhombohedral to orthorhombic and the metal-insulator transition temperature was 17℃. Under the same doping concentration, the metal-insulator phase transition temperature of the ceramics increased with the increase of sintering temperature. The above mentioned material may be an ideal candidate for active thermal control technology of long life satellites.

Key words: La0.67Ca0.33-xSrxMnO3 ceramic, sintering temperature, The metal-insulator phase transition temperature

CLC Number:

TQ174

SUN Shu-Miao, YU Yang, MI Le, YU Yun, CAO Yun-Zhen, SONG Li-Xin. Effect of Sintering Temperature on Structure and Electric Performance of La_0.67Ca_0.33-_xSr_xMnO₃ Ceramic[J]. Journal of Inorganic Materials, 2016, 31(9): 943-947.

Figures/Tables 5

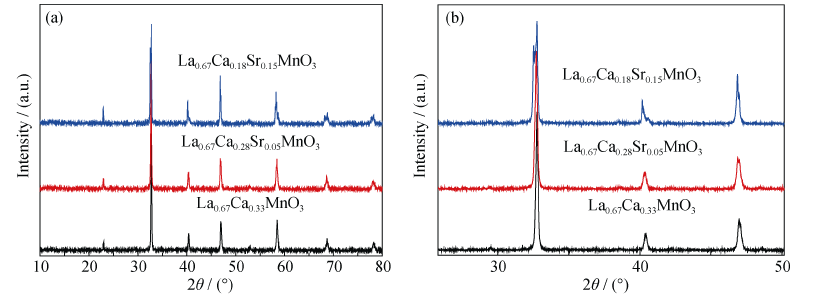

Fig. 1 (a) XRD patterns and (b) enlarged XRD patterns of La0.67Ca0.33-xSrxMnO3(x=0, 0.05, 0.15) powders

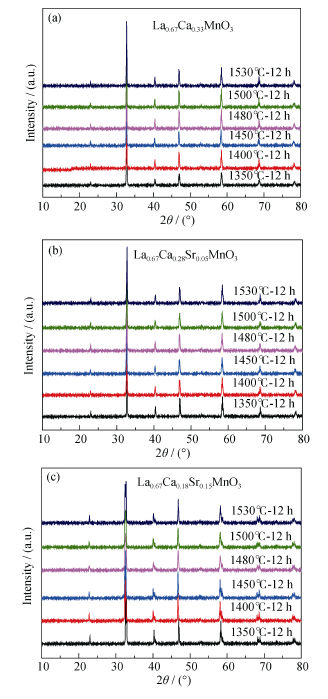

Fig. 2 XRD patterns of La0.67Ca0.33-xSrxMnO3 ceramic sintered at different temperatures(a) x=0; (b) x=0.05; (c) x=0.15

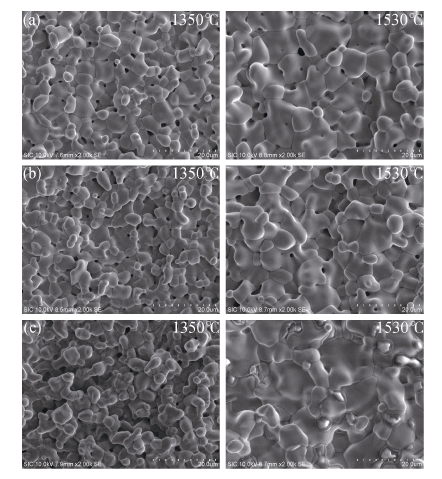

Fig. 3 SEM images of La0.67Ca0.33-xSrxMnO3 sintered at different temperatures for 12 h(a) x=0; (b) x=0.05; (c) x=0.15

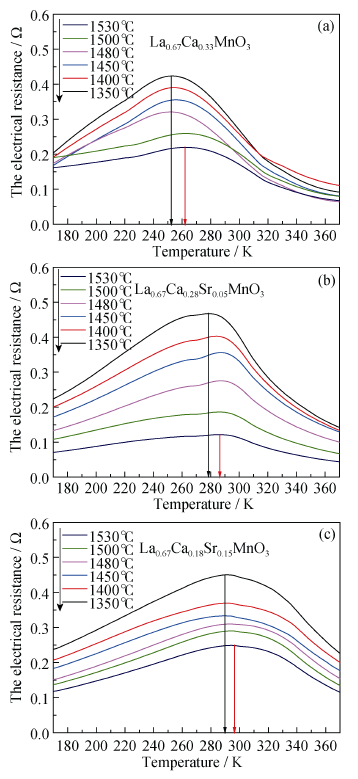

Fig. 4 Electrical resistance versus temperature of La0.67Ca0.33-x SrxMnO3 sintered at different temperatures for 12 h(a)x=0; (b) x=0.05; (c) x=0.15

Table 1 The metal-insulator transition temperatures of La0.67Ca0.33-xSrxMnO3 (x=0, 0.05, 0.15) sintered at different temperatures

Temperature/℃	1350	1400	1450	1480	1500	1530
La_0.67Ca_0.33MnO₃	-22	-20	-17	-16	-13	-12
La_0.67Ca_0.28Sr_0.05MnO₃	5	6	9	12	14	15
La_0.67Ca_0.18Sr_0.15MnO₃	15	17	20	21	22	24

References 19

[1]	SHEN Y J, WANG C B, LI L, et al.Effect of Sr doping on structure and emittance of La1-xSrxMnO3 smart thermal control films.Key Engineering Materials, 2014, 603(1): 902-905.
[2]	ZHENG Q, JIANG W H, YU Y, et al.Research of painting-type La1-xSrxMnO3 smart thermal control coating.Journal of Inorganic Materials, 2012, 27(3): 245-248.
[3]	TANG G, YU Y, CAO Y, et al.The electrical resistivity and thermal infrared properties of La1-xSrxMnO3 compounds. Journal of Alloys and Compounds, 2008, 461(1): 486-489.
[4]	TANG G, YU Y, CAO Y, et al.The thermochromic properties of La1-xSrxMnO3 compounds.Solar Energy Materials and Solar Cells, 2008, 92(10): 1298-1301.
[5]	FANG J, XUAN Y, LI Q, et al.Investigation on the coupling effect of thermochromism and microstructure on spectral properties of structured surfaces.Applied Surface Science, 2012, 258(18): 7140-7145.
[6]	FAN D, LI Q, XUAN Y,et al.Temperature-dependent infrared properties of Ca doped (La,Sr)MnO3 compositions with potential thermal control application.Applied Thermal Engineering, 2013, 51(1): 255-261.
[7]	TANG G, YU Y, CAO Y, et al.Thermochromic properties of manganese oxides La1-xAxMnO3 (A=Ca, Ba).Materials Letters, 2008, 62(17): 2914-2916.
[8]	OKUDA T, TOMIOKA Y, ASAMITSU A, et al.Low-temperature properties of La1-xCaxMnO3 single crystals: comparison with La1-xSrxMnO3.Physical Review B, 2000, 61(12): 8009-8015.
[9]	ALWI H A, EWE L S, IBRAHIM Z, et al.Thermal diffusivity and conductivity of La0.7Ca0.3-xSrxMnO3(x=0 to 0.10).Advanced Materials Research, 2012, 501(2): 319-323.
[10]	WANG X L, DOU S X, LIU H K, et al.Large low-field magnetoresistance over a wide temperature range induced by weak-link grain boundaries in La0.7Ca0.3MnO3.Applied Physics Letters, 1998, 73(3): 396-398.
[11]	HWANG H Y, CHEONG S W, ONG N P, et al.Spin-polarized intergrain tunneling in La2/3Sr1/3-xMnO3. Physical Review Letters, 1996, 77(10): 2041-2044.
[12]	ZI ZHENGHUA, SHI HAIYAN, ZHANG SHUBO, et al.Analysis of crystal structure about La2/3Ca1/3-xSrxMnO3 materials with Rietveld method.Physics Experimentation, 2001, 8(8): 17-20.
[13]	LI J H, XUE Y J, CHEN N, et al.Crystal structure study on La2/3Ca1/3Mn1-xCrxO3(x=0.0,0.1) by neutron diffraction.Atomic Energy Science and Technology, 2008, 42(11): 980-983.
[14]	SHEN Z J, BING L N.Influence of sintering temperature on the dielectric properties ofbarium titanate ceramics synthesized by solid state reaction.Bulletin of The Chinese Ceramic Society, 2015, 34(2): 320-325.
[15]	ULYANOV A, KIM J, KANG Y, et al.Oxygen deficiency as a driving force for metamagnetism and large low field magnetocaloriceffect in La0.7Ca0.3-xSrxMnO3-δ manganites.Journal of Applied Physics, 2008, 104(11): 113916.
[16]	JU HL, SOHN H.Role of grain boundaries in double exchange manganite oxides La1-xAxMnO3 (A = Ba, Ca).Solid State Communications, 1997, 102(6): 463-466.
[17]	MAHESH R, MAHENDIRAN R, RAYCHAUDHURI A K, et al.Effect of particle size on the giant magnetoresistance of La0.7Ca0.3 MnO3.Applied Physics Letters, 1996, 68(16): 2291-2293.
[18]	DEY P,NATH T K. Enhanced grain surface effect on the temperature-dependent behavior of spin-polarized tunneling magnetoresistance of nanometric manganites. Applied Physics Letters, 2005,87(16): 162501 1-3.
[19]	YUAN S L, LIN M H, LI Z Y, et al.Effect of annealing temperature on electrical transport in La2/3Ca1/3MnO3.Soild State Communications, 2002, 121(6): 291-294.
