PT含量变化对PMN-PT单晶的大功率性能影响

doi:10.15541/jim20240469

无机材料学报 ›› 2025, Vol. 40 ›› Issue (7): 840-846.DOI: 10.15541/jim20240469

• 研究快报 • 上一篇

PT含量变化对PMN-PT单晶的大功率性能影响

王晓波¹(), 朱于良¹, 薛稳超¹, 史汝川¹, 骆柏锋²(), 罗骋韬¹()

1.上海交通大学电子信息与电气工程学院, 上海 200240
2.南方电网数字电网研究院股份有限公司, 广州510000

收稿日期:2024-11-07 修回日期:2024-12-07 出版日期:2025-07-20 网络出版日期:2024-12-16
通讯作者: 罗骋韬, 副教授. E-mail: cluo1989@sjtu.edu.cn;
骆柏锋, 工程师. E-mail: mrlcsg@foxmail.com
作者简介:王晓波(1995-), 男, 博士研究生. E-mail: 022035910015@sjtu.edu.cn

Effect of PbTiO₃ Content Variation on High-power Performance of PMN-PT Single Crystal

WANG Xiaobo¹(), ZHU Yuliang¹, XUE Wenchao¹, SHI Ruchuan¹, LUO Bofeng²(), LUO Chengtao¹()

1. School of Electronic Information and Electrical Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
2. Southern Power Grid Digital Grid Research Institute Co., Ltd., Guangzhou 510000, China

Received:2024-11-07 Revised:2024-12-07 Published:2025-07-20 Online:2024-12-16
Contact: LUO Chengtao, associate professor. E-mail: cluo1989@sjtu.edu.cn;
LUO Bofeng, engineer. E-mail: mrlcsg@foxmail.com
About author:WANG Xiaobo (1995-), male, PhD candidate. E-mail: 022035910015@sjtu.edu.cn
Supported by:
Research and Development Project on Voltage Sensors by China Southern Power Grid Digital Research Institute(210000KK52220017)

摘要/Abstract

摘要：

PMN-PT(Pb(Mg_1/3Nb_2/3)O₃-PbTiO₃)压电单晶材料因其优异的性能而得到广泛的应用, 不同组分的配比含量会对PMN-PT压电单晶的性能产生较大影响。同时PMN-PT在大功率上的应用快速发展, 材料参数都是在小信号(1 V)下测试完成的, 而不同PT含量对PMN-PT单晶在大功率应用下的性能影响尚不明确。本研究基于恒压法搭建了完整的压电材料大功率测试平台, 对比测试不同PT含量的PMN-PT单晶在大功率电压激励下的性能表现, 以10 mm×3 mm×0.5 mm的PMN-PT单晶为例, 探究材料参数变化。结果显示: 不同PT含量的PMN-PT单晶在大功率激励下的材料参数变化趋势相同, 但变化程度有较大不同。以PT含量为26%(摩尔百分数)的PMN-PT单晶为例, 当功率达到7.90 W时, 压电系数$d_{31}$增加25%, 弹性耦合系数$s_{11}^{E}$增加13%, 机电耦合系数$k_{31}$增加17%, 机械品质因数$Q_{\mathrm{m}}$下降73%。随着PT含量增加, PMN-PT材料更易受温度的影响, 功率耐受性显著降低, 更易达到退极化温度, 导致压电性能消失。基于本工作的研究结果, 可以更好地明确PT含量对PMN-PT单晶在大功率应用下的影响规律, 从而为以PMN-PT为敏感元件的传感器或换能器设计提供可靠的数据支持。

关键词: 压电单晶, PMN-PT, 大功率测试, 恒压法, 材料参数

Abstract:

Lead magnesium niobate-lead titanate (PMN-PT) piezoelectric single crystals are widely utilized due to their outstanding performance, with varying compositions significantly impacting their properties. While application of PMN-PT in high-power settings is rapidly evolving, material parameters are typically tested under low signal conditions (1 V), and effects of different PT (PbTiO₃) contents on the performance of PMN-PT single crystals under high-power conditions remain unclear. This study developed a comprehensive high-power testing platform using the constant voltage method to evaluate performance of PMN-PT single crystals with different PT contents under high-power voltage stimulation. Using crystals sized at 10 mm×3 mm×0.5 mm as an example, this research explored changes in material parameters. The results exhibit that while trend of the parameter changes under high-power excitation was consistent across different PT contents, degree of the change varied significantly. For instance, a PMN-PT single crystal with 26% (in mol) PT content exhibited a 25% increase in the piezoelectric coefficient $d_{31}$, a 13% increase in the elastic compliance coefficient $s_{11}^{E}$, a 17% increase in the electromechanical coupling coefficient $k_{31}$, and a 73% decrease in the mechanical quality factor $Q_{\mathrm{m}}$ when the power reached 7.90 W. As the PT content increased, the PMN-PT materials became more susceptible to temperature influences, significantly reducing the power tolerance and more readily reaching the depolarization temperatures. This led to loss of piezoelectric performance. Based on these findings, a clearer understanding of impact of PT content on performance of PMN-PT single crystals under high-power applications has been established, providing reliable data to support design of sensors or transducers using PMN-PT as the sensitive element.

Key words: piezoelectric single crystal, PMN-PT, high-power testing, constant voltage method, material parameter

中图分类号:

TQ174

王晓波, 朱于良, 薛稳超, 史汝川, 骆柏锋, 罗骋韬. PT含量变化对PMN-PT单晶的大功率性能影响[J]. 无机材料学报, 2025, 40(7): 840-846.

WANG Xiaobo, ZHU Yuliang, XUE Wenchao, SHI Ruchuan, LUO Bofeng, LUO Chengtao. Effect of PbTiO₃ Content Variation on High-power Performance of PMN-PT Single Crystal[J]. Journal of Inorganic Materials, 2025, 40(7): 840-846.

图/表 10

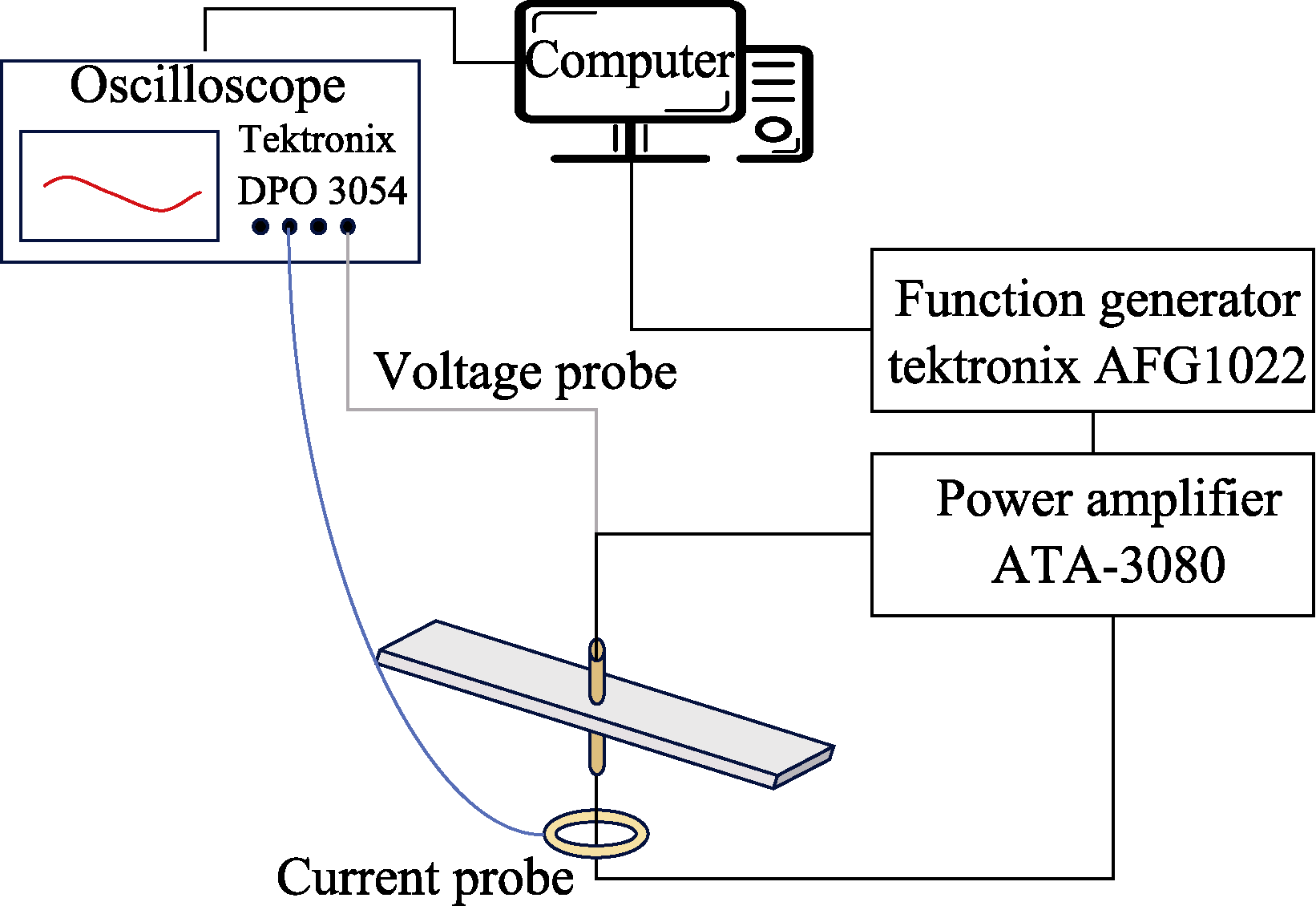

Fig. 1 Constant voltage method test system

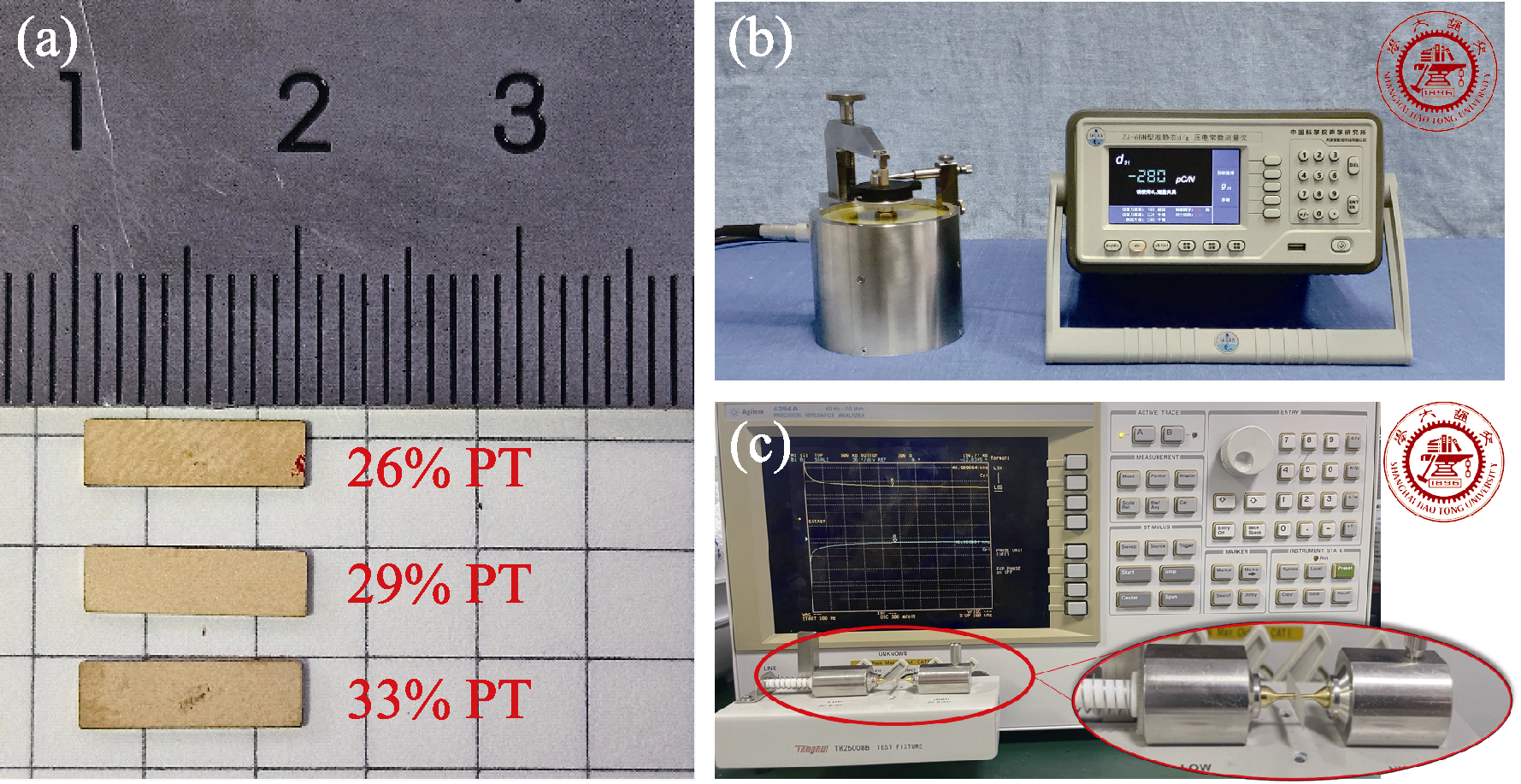

Fig. 2 PMN-PT samples and test equipments (a) PMN-PT samples; (b) $d_{33}$ instrument; (c) Impedance analyzer

Table 1 Small-signal material parameters of PMN-PT with different PT contents

PT content/%	Dielectric constant/ kHz	Capacitance/ nF	Loss tangent/%	$d_{33}^{*}$/ (pC·N^–1)
26	4518	2.4	0.9	1170
29	5082	2.7	0.9	1500
33	6776	3.6	1.6	2200

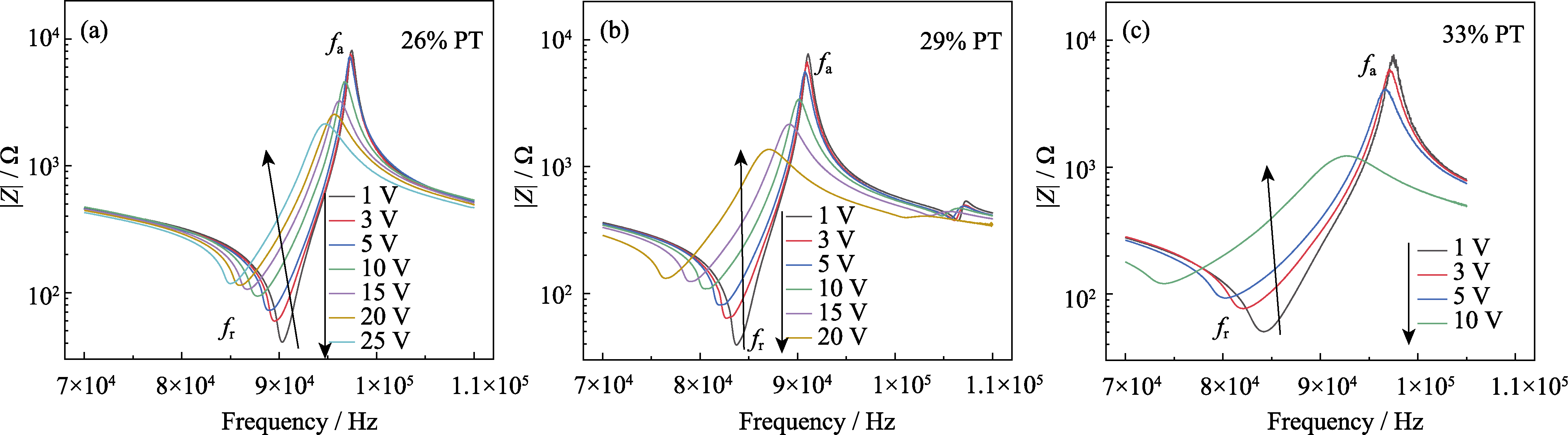

Fig. 3 Impedance curves of PMN-PT with different PT contents (a) 26% PT; (b) 29% PT; (c) 33% PT

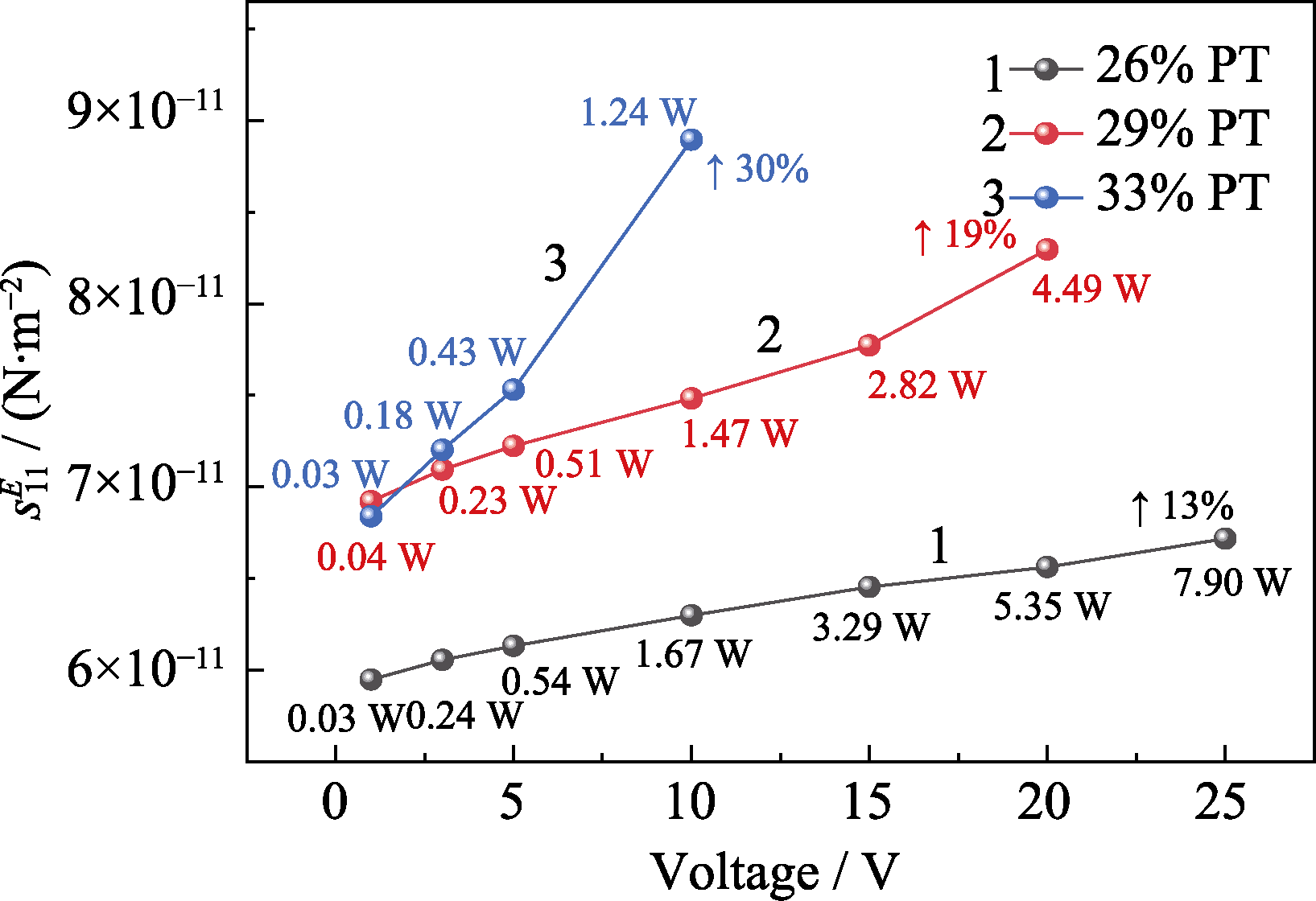

Fig. 4 $s_{11}^{E}$ curves of PMN-PT with different PT contents

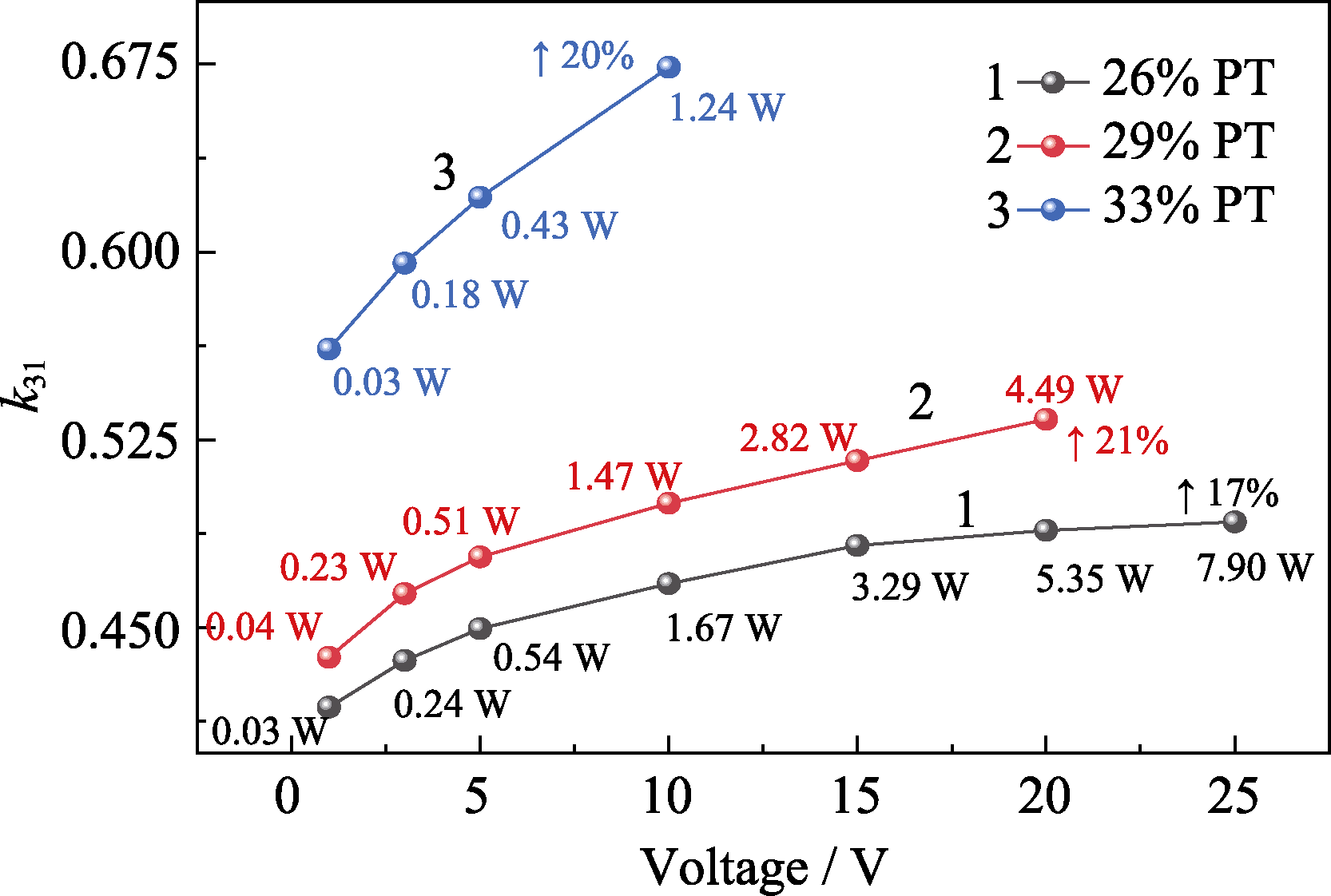

Fig. 5 $k_{31}$ curves of PMN-PT with different PT contents

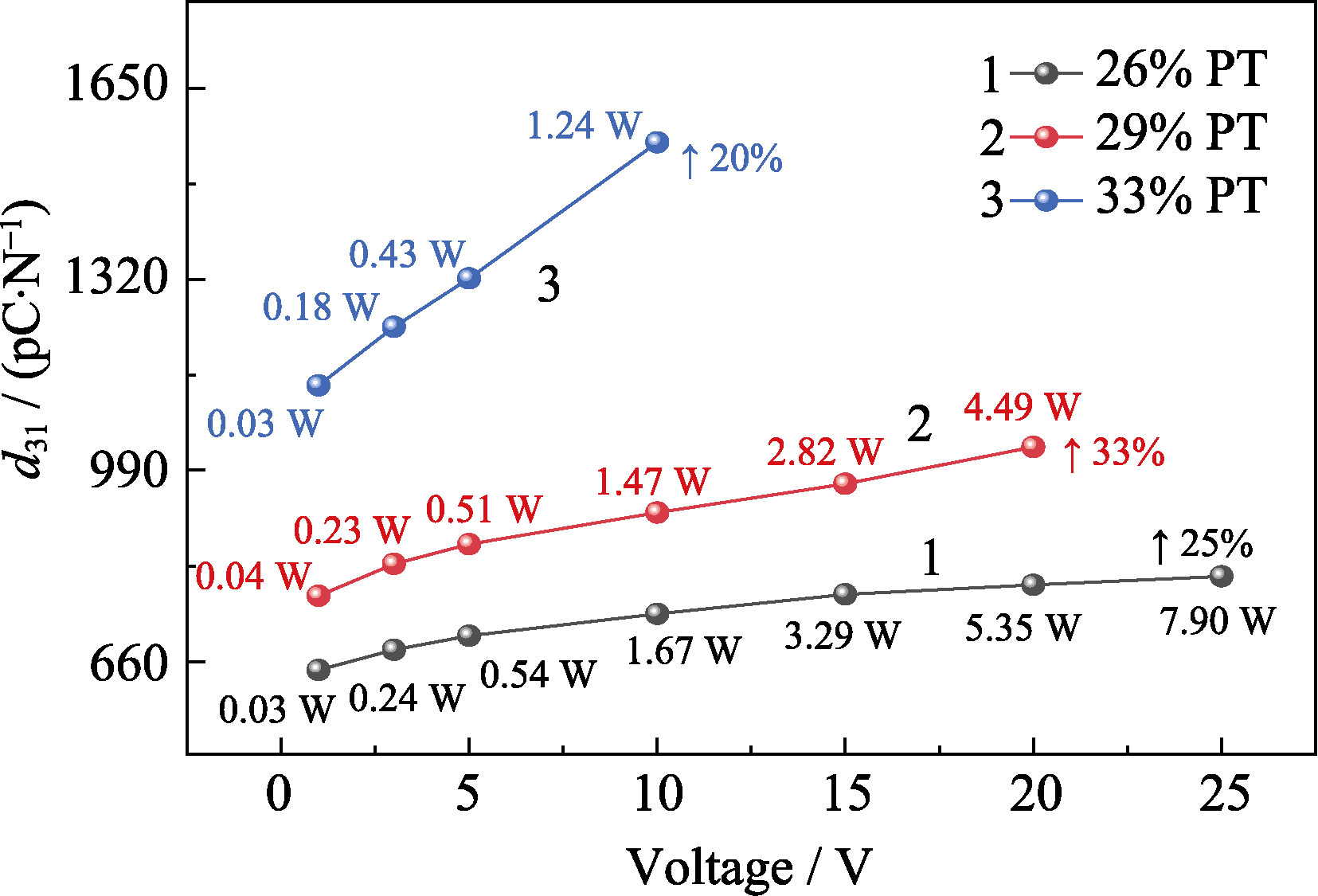

Fig. 6 $d_{31}$ curves of PMN-PT with different PT contents

Fig. 7 $Q_{\mathrm{m}}$ curves of PMN-PT with different PT content

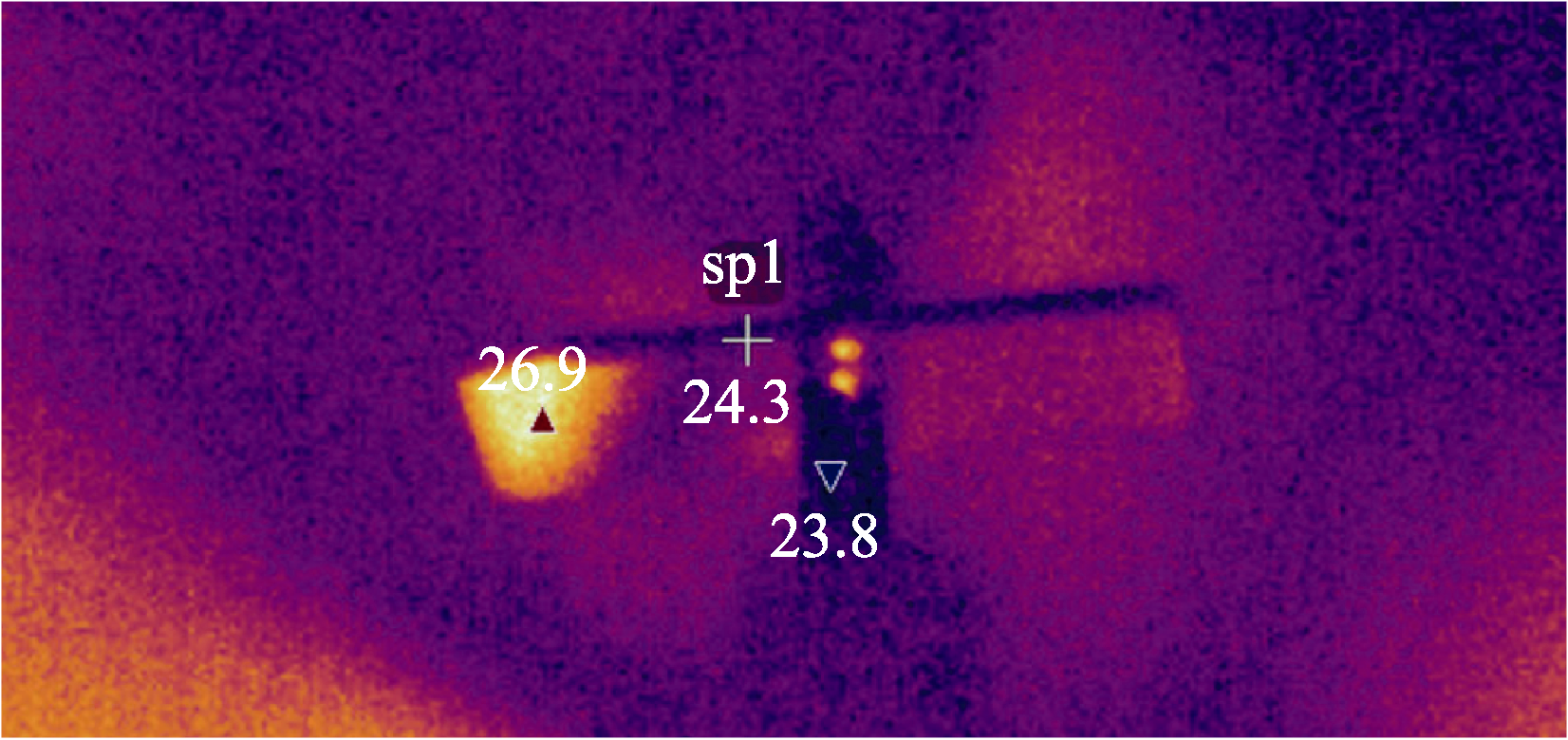

Fig. S1 Infrared temperature probe monitoring image

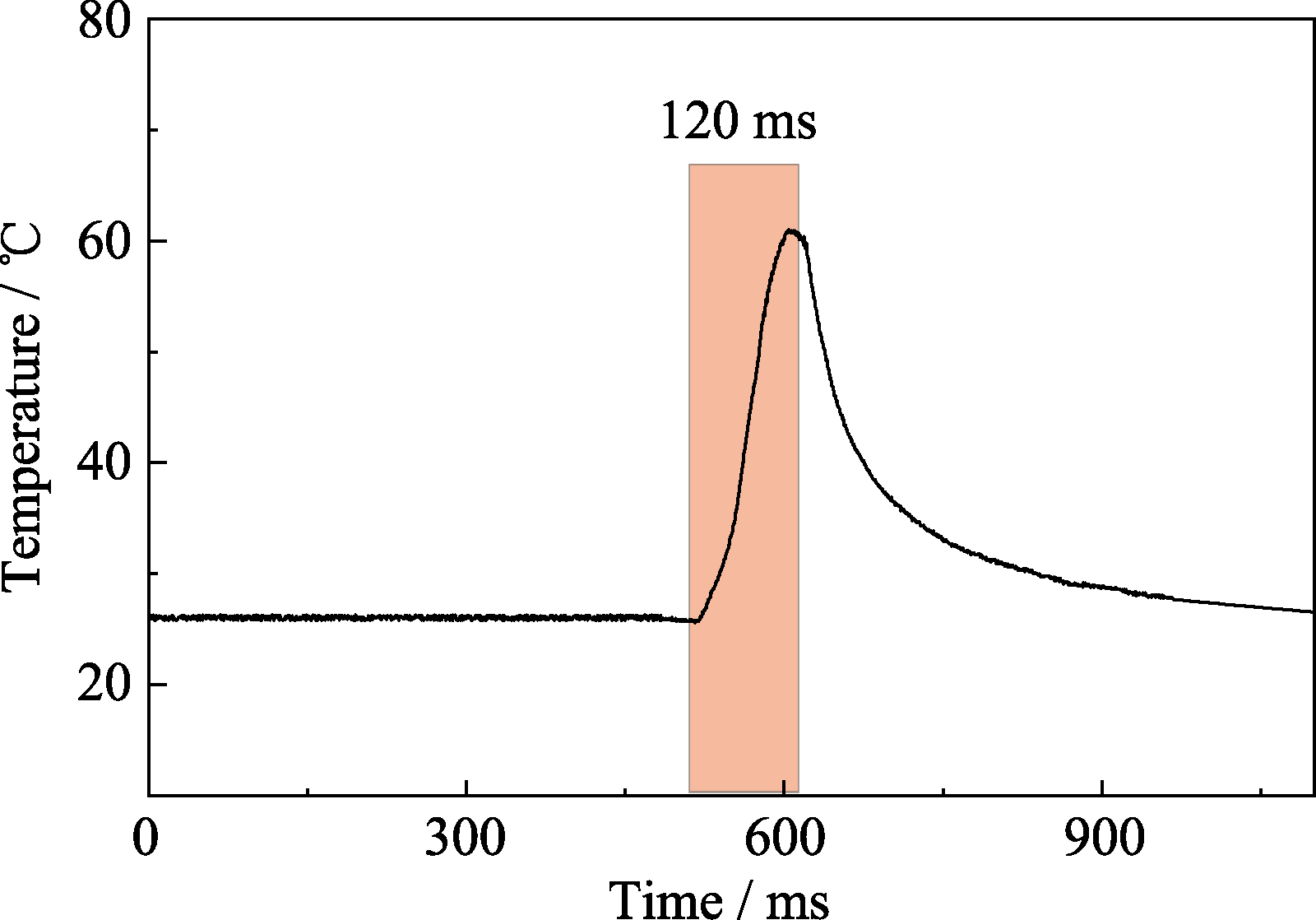

Fig. S2 Temperature curve of the piezoelectric material

参考文献 21

[1]	The Institute of Electrical and Electronics Engineers. IEEE Standard on Piezoelectricity: ANSI/IEEE Std 176-1987. New York: American National Standards Institute, 1987.
[2]	KOS T, SLABKI M, PETROVCIC J, et al. Measurement system for piezoelectric resonance impedance spectroscopy under combined AC and high-voltage DC loading. IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control, 2022, 69(11): 3137.
[3]	LI G, TIAN F H, GAO X Y, et al. Investigation of high-power properties of PIN-PMN-PT relaxor-based ferroelectric single crystals and PZT-4 piezoelectric ceramics. IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control, 2020, 67(8): 1641.
[4]	SAFAEI M, SODANO H A, ANTON S R. A review of energy harvesting using piezoelectric materials: state-of-the-art a decade later (2008-2018). Smart Materials and Structures, 2019, 28(11): 113001.
[5]	DAVIS M, DAMJANOVIC D, SETTER N. Electric-field, temperature, and stress-induced phase transitions in relaxor ferroelectric single crystals. Physical Review B, 2006, 73(1): 014115.
[6]	ZHANG S J, LUO J, WESLEY H, et al. Characterization of Pb (In_1/2Nb_1/2)O₃-Pb(Mg_1/3Nb_2/3)O₃-PbTiO₃ ferroelectric crystal with enhanced phase transition temperatures. Applied Physics Letters, 2008, 104(6): 4106.
[7]	IEEE Ultrasonics,Ferroelectronics and Frequency Control Society. IEEE Standard for Relaxor-based Single Crystals for Transducer and Actuator Applications: IEEE Std 1859-2017. New York: American National Standards Institute, 2017.
[8]	KENJI U. Loss mechanisms and high power piezoelectrics. Journal of Materials Science, 2006, 41(1): 217.
[9]	MORITA T. Evaluation method for high-power piezoelectric materials and devices. IEEE International Ultrasonics Symposium (IUS), Kobe, 2018: 1.
[10]	UCHINO K, ZHENG J H, JOSHI A, et al. High power characterization of piezoelectric materials. Journal of Electroceramics, 1998, 2(1): 33.
[11]	LEE H J, URAL S O, CHEN L, et al. High power characteristics of lead-free piezoelectric ceramics. Journal of the American Ceramic Society, 2012, 95(11): 3383.
[12]	SOMENO S, NAGATA H, TAKENAKA T. High-temperature and high-power piezoelectric characteristics of (Bi_0.5Na_0.5)TiO₃ based lead-free piezoelectric ceramics. Journal of the Ceramic Society of Japan, 2014, 122(1426): 406.
[13]	CHEN L, LIU H, QI H, et al. High-electromechanical performance for high-power piezoelectric applications: fundamental, progress, and perspective. Progress in Materials Science, 2022, 127: 100944.
[14]	XIA X J. Study on the fabrication and energy storage performance of relaxor ferroelectric thin films. Wuhan: Wuhan University of Technology Master's Thesis, 2022.
[15]	JIANG Z B, HOU C X. FEI C L, et al. Effects of composition segregation in PMN-PT crystals on ultrasound transducer performance. IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control, 2022, 69(2): 795.
[16]	WADA T. A study on jumping and dropping phenomena and their hysteresis of ceramic resonator. IEEJ Transactions on Fundamentals and Materials, 1999, 119(3): 246.
[17]	GONNARD P, PETIT L. Nonlinear effects in piezoelectric materials. Boletin de la Sociedad Espanola de Ceramica y Vidrio, 2002, 41(1): 107.
[18]	STEVENSON J, FENU N C, CHILLES J, et al. Characterisation of PZTs non-linear behaviour for high-power systems. IEEE International Ultrasonics Symposium (IUS), Xi’an, 2021: 1.
[19]	HIROSE S T. Vibration-level caracteristics of lead-zirconate-titanate ceramics. Japanese Journal of Applied Physics, 1992, 31(9S): 3055.
[20]	HIROSE S, YAMAYOSHI Y, TAGA M, et al. A method of measuring the vibration level dependence of impedance-type equivalent circuit constants. Japanese Journal of Applied Physics, 1991, 30(S1): 117.
[21]	KENJI U. Piezoelectric actuators and ultrasonic motors. 2nd edition. New York: Springer Science & Business Media, 1996: 38.
