可见光驱动RGO/g-C3N4活化过硫酸盐降解水中双酚A

doi:10.15541/jim20190334

无机材料学报 ›› 2020, Vol. 35 ›› Issue (3): 329-336.DOI: 10.15541/jim20190334 CSTR: 32189.14.10.15541/jim20190334

所属专题： 2020年环境材料论文精选(三)有机小分子去除

可见光驱动RGO/g-C₃N₄活化过硫酸盐降解水中双酚A

张塞,邹英桐,陈中山,李冰峰,顾鹏程,文涛()

华北电力大学环境科学与工程学院, 资源环境系统优化教育部重点实验室, 北京 102206

收稿日期:2019-07-03 修回日期:2019-08-22 出版日期:2020-03-20 网络出版日期:2019-09-04
作者简介:张塞(1992-), 男, 博士研究生. E-mail: saizhang0910@gmail.com
基金资助:
科技部纳米专项重点研发计划(2017YFA0207002);科技部纳米专项重点研发计划(2018YFC1900105);国家自然科学基金(21607042);国家自然科学基金(21876048);国家自然科学基金(21836001);中央高校基本科研业务费专项资金(2019QN080);中央高校基本科研业务费专项资金(2018ZD11);中央高校基本科研业务费专项资金(2018MS114)

Visible-light-driven Activation of Persulfate by RGO/g-C₃N₄ Composites for Degradation of BPA in Wastewater

ZHANG Sai,ZOU Yingtong,CHEN Zhongshen,LI Bingfeng,GU Pengcheng,WEN Tao()

MOE Key Laboratory of Resources and Environmental Systems Optimization, College of Environmental Science and Engineering, North China Electric Power University, Beijing 102206, China

Received:2019-07-03 Revised:2019-08-22 Published:2020-03-20 Online:2019-09-04
About author:ZHANG Sai, male, PhD candidate. E-mail: saizhang0910@gmail.com
Supported by:
National Key Research and Development Program of China(2017YFA0207002);National Key Research and Development Program of China(2018YFC1900105);National Natural Science Foundation of China(21607042);National Natural Science Foundation of China(21876048);National Natural Science Foundation of China(21836001);Fundamental Research Funds for the Central Universities(2019QN080);Fundamental Research Funds for the Central Universities(2018ZD11);Fundamental Research Funds for the Central Universities(2018MS114)

摘要/Abstract

摘要：

光催化氧化法能够高效去除水体中的持久性有机污染物, 在污水净化领域展现出广阔的应用前景。本研究分别以尿素和双氰胺为原料, 采用冷干辅助热聚合法制备了还原性氧化物石墨烯/氮化碳(RGO/g-C₃N₄)二元可见光催化剂, 并对样品的形貌结构和光学性能进行了分析表征。结果表明, 二维层状g-C₃N₄与RGO在异质结界面上紧密的结合在一起。同时以内分泌干扰物双酚A (BPA)为降解污染物, 研究了不同催化剂在可见光下活化过硫酸盐去除BPA的活性。光催化实验结果显示, 在可见光(λ>420 nm)照射下, 加入氧化剂过硫酸盐(PS)作为电子受体, 有效地增强了光催化剂可见光降解BPA的活性。以尿素为原料制备的RGO/g-C₃N₄催化剂在40 min内几乎完全去除溶液中的BPA。经过5次循环反应后, 可见光照射40 min, 该催化剂对BPA的去除率仍能达到80%以上, 表现出良好的稳定性。

关键词: 氮化碳, 还原性氧化物石墨烯, 可见光光催化, 过硫酸盐

Abstract:

Persistent organic pollutants can be effectively removed by photocatalytic oxidation, which reveals potential application prospects in the field of wastewater purification. Binary reduced graphene oxide and graphitic carbon nitride (RGO/g-C₃N₄) visible-light photocatalyst was successfully fabricated by the freeze drying assisted thermal polymerization method with urea and dicyandiamide as raw materials, respectively. The morphologies, structures and optical properties were characterized by various techniques. It was found that g-C₃N₄ and RGO nanostructures formed an intimate contact across the heterojunction interface. The photodegradation performances of catalysts were evaluated by removing bisphenol A (BPA) with the activation of persulfate (PS). The results indicated that the photocatalytic activities of photocatalysts were enhanced with the addition of PS as an oxidant and electron acceptor under visible light irradiation (λ>420 nm). Moreover, BPA was almost completely removed by RGO/g-C₃N₄ prepared with urea as raw material in 40 min. After five recovery tests, the removal efficiency of BPA for the catalyst was up to 80% within 40 min under visible light irradiation, which exhibited superior stability.

Key words: g-C₃N₄, reduced graphene oxide, visible-light photocatalysis, persulfate

中图分类号:

TQ174

张塞, 邹英桐, 陈中山, 李冰峰, 顾鹏程, 文涛. 可见光驱动RGO/g-C₃N₄活化过硫酸盐降解水中双酚A[J]. 无机材料学报, 2020, 35(3): 329-336.

ZHANG Sai, ZOU Yingtong, CHEN Zhongshen, LI Bingfeng, GU Pengcheng, WEN Tao. Visible-light-driven Activation of Persulfate by RGO/g-C₃N₄ Composites for Degradation of BPA in Wastewater[J]. Journal of Inorganic Materials, 2020, 35(3): 329-336.

图/表 10

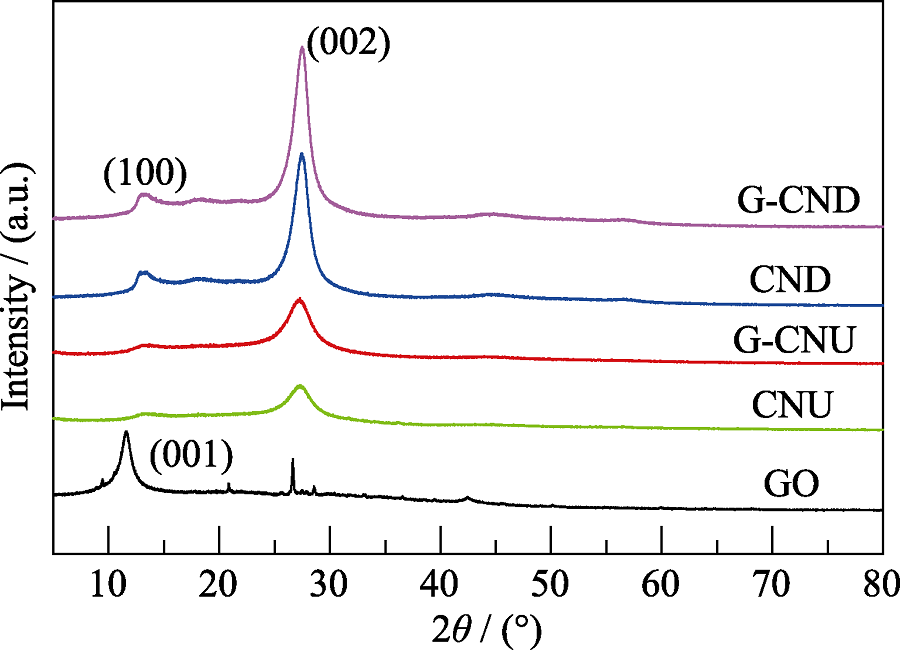

图1 GO、CND、G-CND、CNU和G-CNU样品的XRD谱图

Fig. 1 XRD patterns of GO, CNU, G-CNU, CND, and G-CND samples

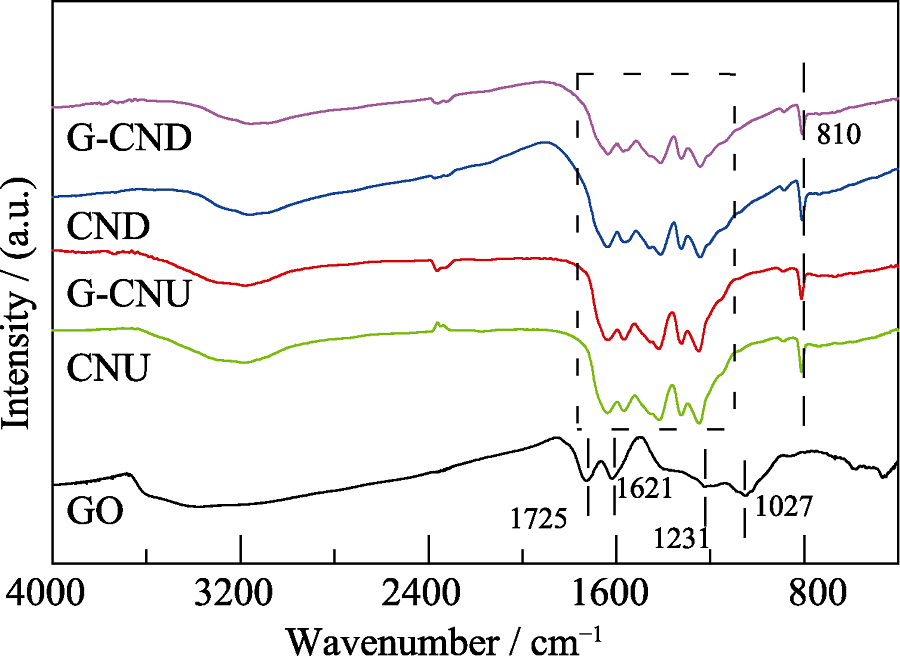

图2 GO、CND、G-CND、CNU和G-CNU样品的红外光谱图

Fig. 2 FT-IR spectra of GO, CNU, G-CNU, CND, and G-CND samples

图3 (a) CND、(b) G-CND、(c) CNU和(d) G-CNU催化剂的透射电镜照片

Fig. 3 TEM images of (a) CND, (b) G-CND, (c) CNU, and (d) G-CNU photocatalysts

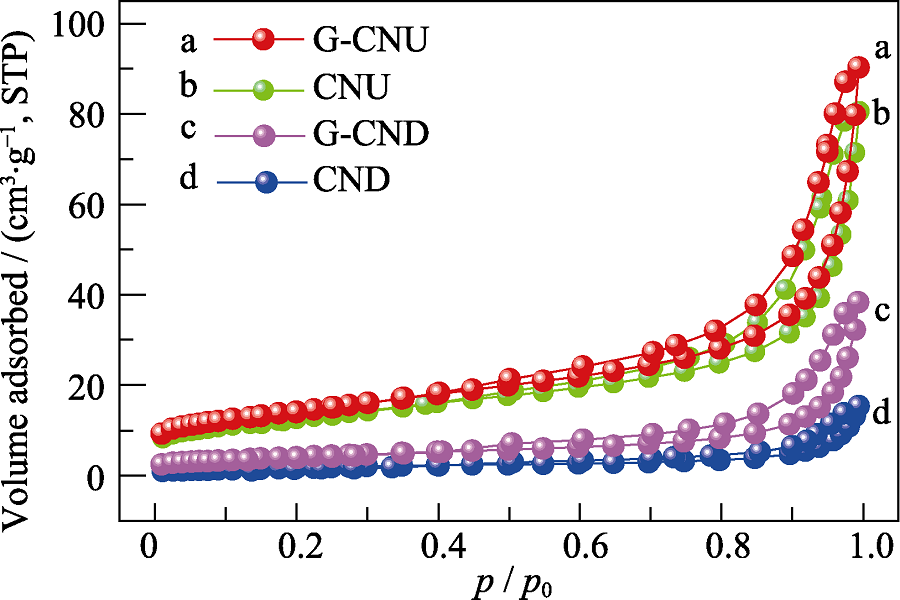

图4 CND、G-CND、CNU和G-CNU样品的N2吸附-脱附等温线

Fig. 4 N2 adsorption-desorption isotherms of CND, G-CND, CNU and G-CNU samples

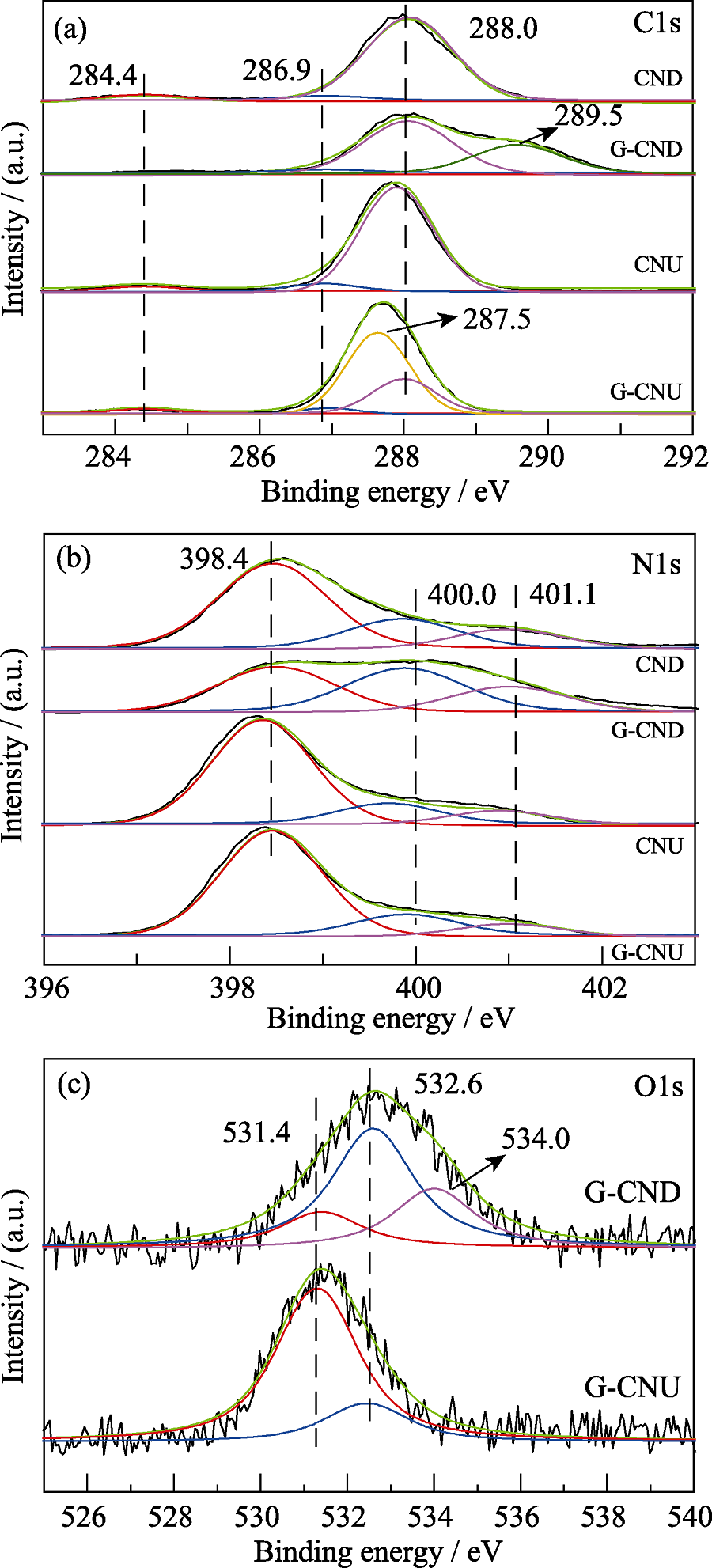

图5 CND、G-CND、CNU和G-CNU样品的(a) C1s、(b) N1s和(c) O1s XPS谱图

Fig. 5 (a) C1s, (b) N1s and (c) O1s XPS spectra of CND, G-CND, CNU and G-CNU samples

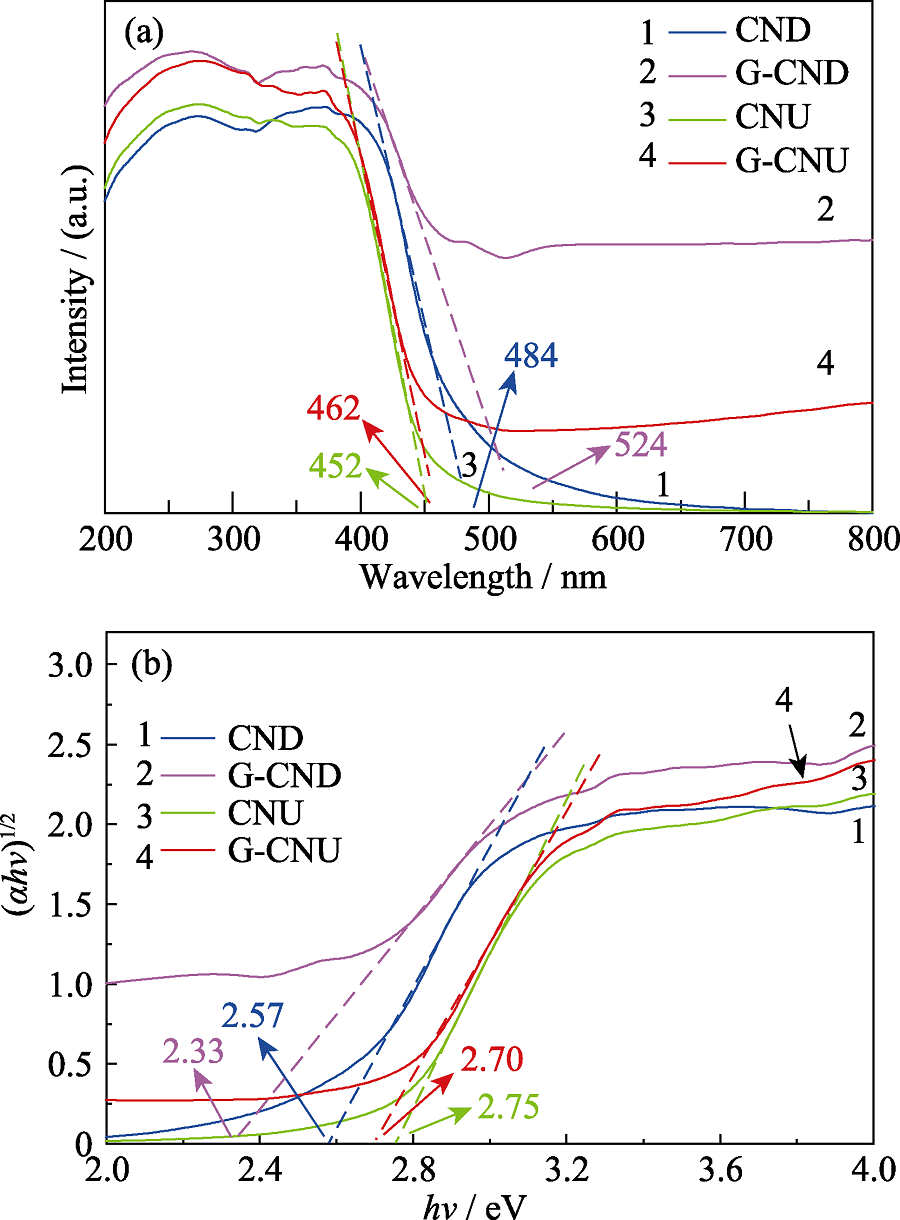

图6 CND、G-CND、CNU和G-CNU催化剂的(a)紫外-可见漫反射光谱和(b) (αhν)1/2随hν的变化曲线

Fig. 6 (a) The UV-Vis DRS and (b) the (αhν)1/2-hν curves of CND, G-CND, CNU and G-CNU photocatalysts

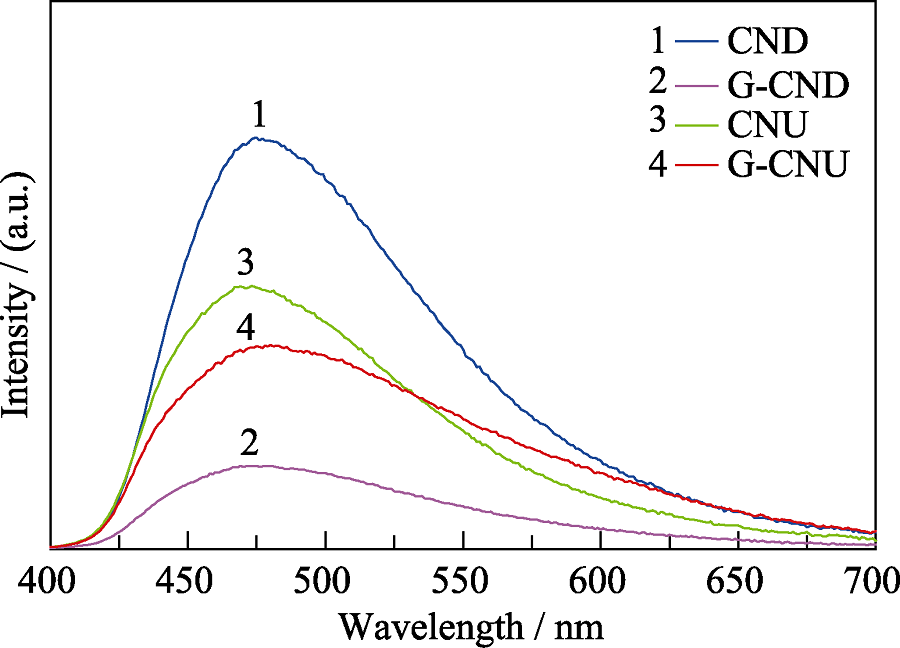

图7 不同催化剂的荧光发射光谱

Fig. 7 PL spectra of different photocatalysts

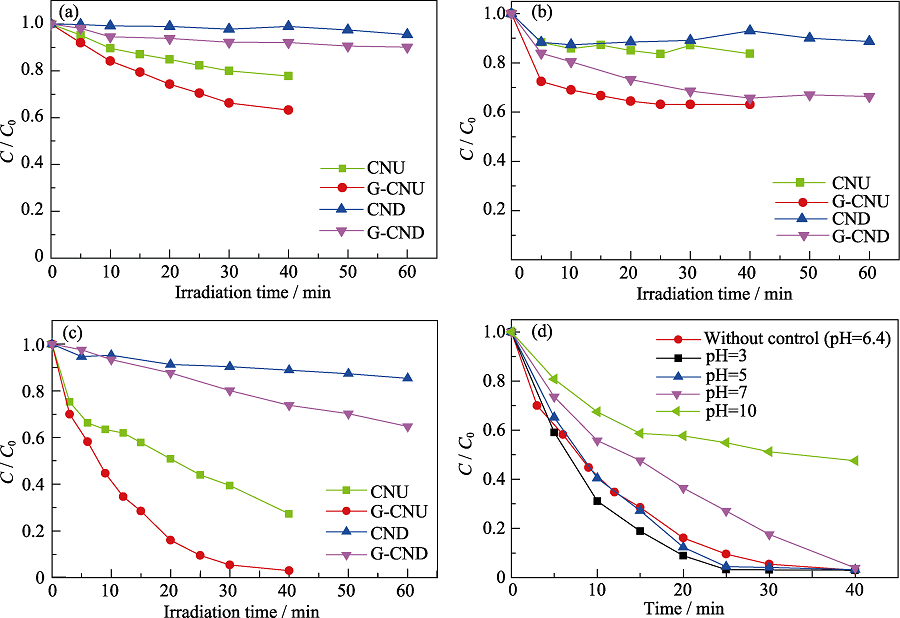

图8 光催化剂在不同条件下对BPA的降解性能(a~c)和溶液pH对G-CNU在可见光下活化PS降解BPA的影响(d)

Fig. 8 (a-c) Catalytic activities of photocatalysts for BPA degradation under different conditions, and (d) effects of solutionpH on BPA removal over G-CNU catalysts by activating PS under visible light irradiation (λ>420 nm) (a) Visible light; (b) PS and (c) visible light/PS; Reaction conditions: C0(BPA) = 10 mg·L-1, C0(catalyst) = 0.5 g·L-1, C0(PS) = 1.0 g·L-1

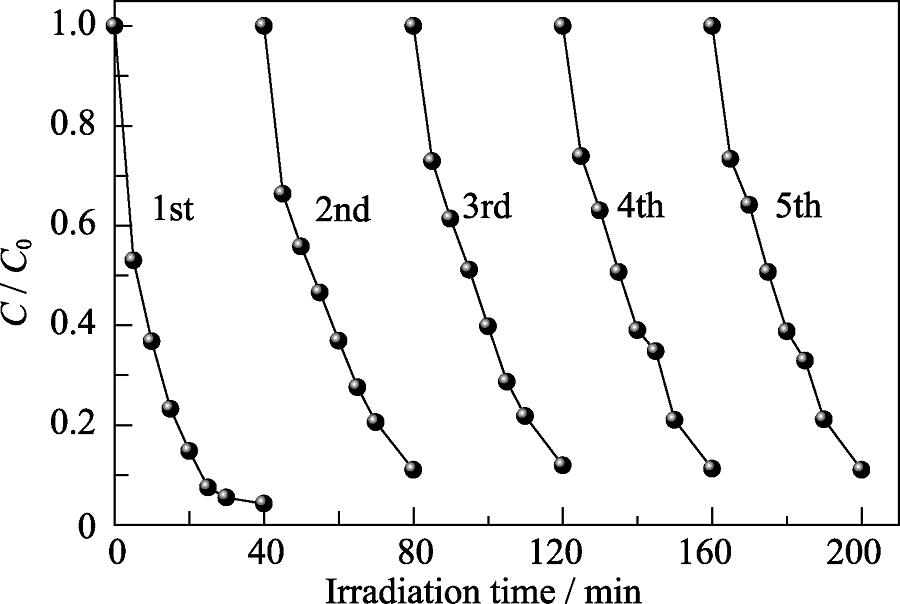

图9 G-CNU在可见光(λ>420 nm)下活化PS循环降解BPA的曲线图

Fig. 9 Cycling tests in degradation of BPA over G-CNU by PS activation under visible light irradiation (λ>420 nm)

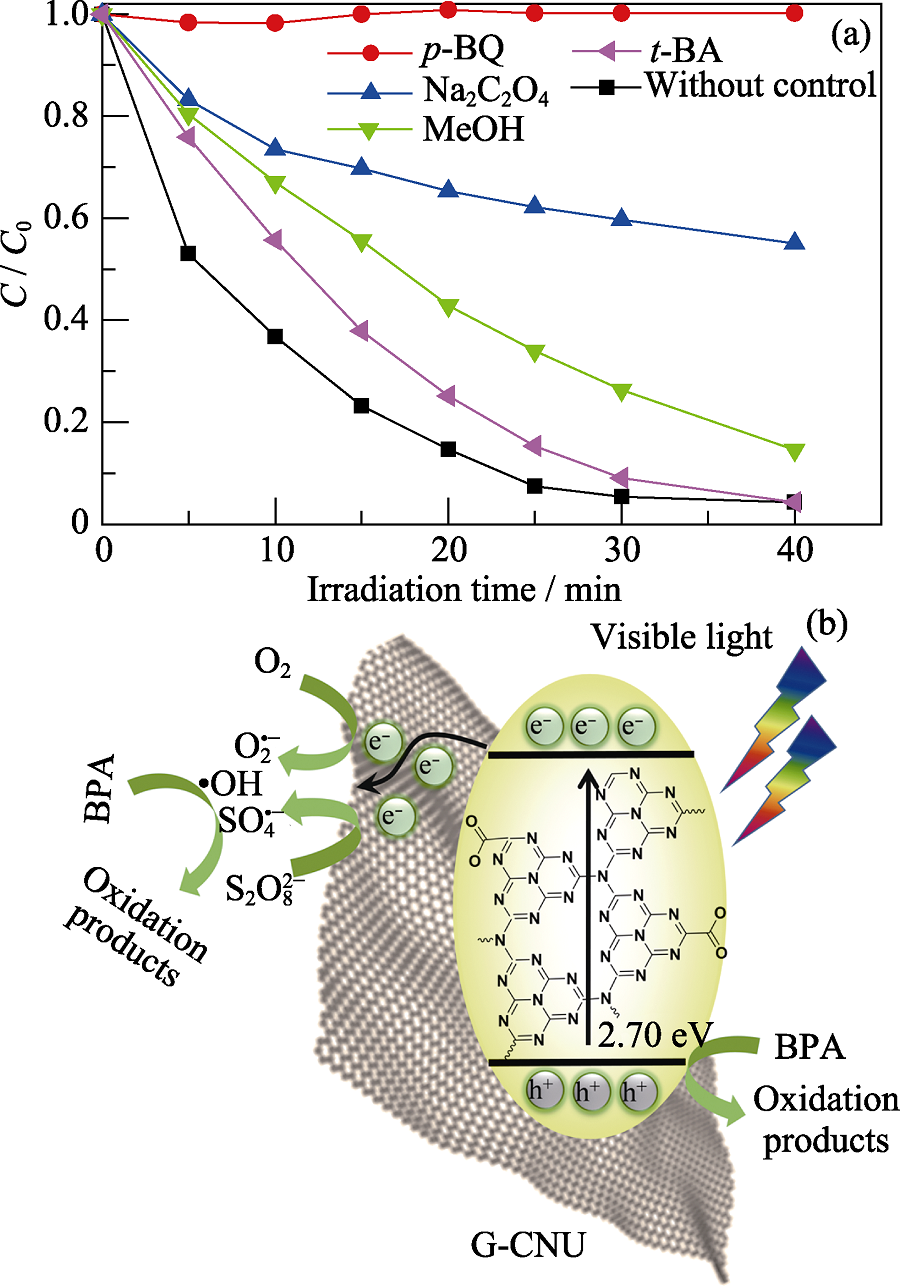

图10 不同捕获剂对G-CNU可见光活化PS降解BPA的影响(λ>420 nm) (a)及其光催化降解机理示意图(b)

Fig. 10 (a) Effect of different radical scavengers on BPA degradation in the G-CNU suspension under visible light irradiation (λ>420 nm) with the addition of PS, and (b) schematic diagram of photodegradation mechanism Reaction conditions: C0(BPA) = 10 mg·L-1, C0(catalyst) = 0.5 g·L-1, C0(PS) = 1.0 g·L-1

参考文献 31

[1]	ZHANG SAI, GU PENG-CHENG, MA RAN , et al. Recent developments in fabrication and structure regulation of visible- light-driven g-C₃N_4-based photocatalysts towards water purification: a critical review. Catalysis Today, 2019,335:65-77.
[2]	LI CUI-XIA, JIN HAI-ZE, YANG ZHI-ZHONG , et al. Preparation and photocatalytic properties of mesoporous RGO/TiO₂ composites. Journal of Inorganic Materials, 2017,32(4):357-364.
[3]	WANG XIN-CHEN, MAEDA K, THOMAS A , et al. A metal-free polymeric photocatalyst for hydrogen production from water under visible light. Nature Materials, 2009,8:76-80.
[4]	ONG W J, TAN L L, NG Y H , et al. Graphitic carbon nitride (g-C₃N₄)-based photocatalysts for artificial photosynthesis and environmental remediation: are we a step closer to achieving sustainability? Chemical Reviews, 2016,116(12):7159-7329.
[5]	YAN XIN, LU JIN-HUA, HUI XIAO-YAN , et al. Preparation and visible light photocatalytic property of g-C₃N₄/MoS₂ nanosheets/ GO ternary composite photocatalyst. Journal of Inorganic Materials, 2018,33(5):515-520.
[6]	XIANG QUAN-JUN, YU JIA-GUO, JARONIEC M . Preparation and enhanced visible-light photocatalytic H₂-production activity of graphene/C₃N₄ composites. The Journal of Physical Chemistry C, 2011,115(15):7355-7363.
[7]	ZHANG SAI, HU CHUN, JI HUAN-HUAN , et al. Facile synthesis of nitrogen-deficient mesoporous graphitic carbon nitride for highly efficient photocatalytic performance. Applied Surface Science, 2019,478:304-312.
[8]	HONG ZHEN-HUA, SHEN BIAO, CHEN YI-LIN , et al. Enhancement of photocatalytic H₂ evolution over nitrogen-deficient graphitic carbon nitride. Journal of Materials Chemistry A, 2013,1(38):11754-11761.
[9]	JIANG LONG-BO, YUAN XING-ZHONG, YANG PAN , et al. Doping of graphitic carbon nitride for photocatalysis: a review. Applied Catalysis B: Environmental, 2017,217:388-406.
[10]	ZHANG SAI, LIU YANG, GU PENG-CHENG , et al. Enhanced photodegradation of toxic organic pollutants using dual-oxygen- doped porous g-C₃N₄: mechanism exploration from both experimental and DFT studies. Applied Catalysis B: Environmental, 2019,248:1-10.
[11]	CHEN WEI, HE ZHI-CAI, HUANG GUO-BO , et al. Direct Z-scheme 2D/2D MnIn₂S₄/g-C₃N₄ architectures with highly efficient photocatalytic activities towards treatment of pharmaceutical wastewater and hydrogen evolution. Chemical Engineering Journal, 2019,359:244-253.
[12]	YANG YING, ZHAO HA-RUI, YANG HONGFEI , et al. In situ fabrication of reduced graphene oxide/mesoporous g-C₃N₄ nanosheets with excellent visible light activity. Journal of Environmental Chemical Engineering, 2018,6:890-897.
[13]	WANG JIAN, ZHU MING-YU, CHEN ZHONG-SHAN , et al. Polyacrylamide modified molybdenum disulfide composites for efficient removal of graphene oxide from aqueous solutions. Chemical Engineering Journal, 2019,361:651-659.
[14]	DONG SHU-YING, DING XU-HUI, GUO TENG , et al. Self- assembled hollow sphere shaped Bi₂WO₆/RGO composites for efficient sunlight-driven photocatalytic degradation of organic pollutants. Chemical Engineering Journal, 2017,316:778-789.
[15]	MONTEAGUDO J M, DURÁN A, SAN MARTÍN I , et al. Effect of sodium persulfate as electron acceptor on antipyrine degradation by solar TiO₂ or TiO₂/rGO photocatalysis. Chemical Engineering Journal, 2019,364:257-268.
[16]	LI YI-BING, ZHANG HAI-MIN, LIU PO-RUN , et al. Cross- linked g-C₃N₄/rGO nanocomposites with tunable band structure and enhanced visible light photocatalytic activity. Small, 2013,9(19):3336-3344.
[17]	GU YONG-PAN, YU YONG-ZHI, ZOU JING-YE , et al. The ultra- rapid synthesis of rGO/g-C₃N₄ composite via microwave heating with enhanced photocatalytic performance. Materials Letters, 2018,232:107-109.
[18]	ZHANG SAI, SONG SHUANG, GU PENG-CHENG , et al. Visible- light-driven activation of persulfate over cyano and hydroxyl group co-modified mesoporous g-C₃N₄ for boosting Bisphenol A degradation. Journal of Materials Chemistry A, 2019,7(10):5552-5560.
[19]	ANDREW LIN KUN-YI, ZHANG ZHI-YU . Degradation of Bisphenol A using peroxymonosulfate activated by one-step prepared sulfur-doped carbon nitride as a metal-free heterogeneous catalyst. Chemical Engineering Journal, 2017,313:1320-1327.
[20]	HUMMERS W S, OFFEMAN R E . Preparation of graphitic oxide. Journal of the American Chemical Society, 1958,80(6):1339-1339.
[21]	XIE YI, CHEN CHANG-LUN, REN XUE-MEI , et al. Coupling g-C₃N₄ nanosheets with metal-organic frameworks as 2D/3D composite for the synergetic removal of uranyl ions from aqueous solution. Journal of Colloid and Interface Science, 2019,550:117-127.
[22]	SHEN CONG-CONG, CHEN CHANG-LUN, WEN TAO , et al. Superior adsorption capacity of g-C₃N₄ for heavy metal ions from aqueous solutions. Journal of Colloid and Interface Science, 2015, 456:7-14.
[23]	LI XIAO-LIN, WANG HAI-LIANG, ROBINSON J T , et al. Simultaneous nitrogen doping and reduction of graphene oxide. Journal of the American Chemical Society, 2009,131(43):15939-15944.
[24]	LI JIANG-HUA, SHEN BIAO, HONG ZHEN-HUA , et al. A facile approach to synthesize novel oxygen-doped g-C₃N₄ with superior visible-light photoreactivity. Chemical Communications, 2012,48:12017-12019.
[25]	ZHANG LI-LI, SHI YI-LUN, WANG LIANG , et al. AgBr- wrapped Ag chelated on nitrogen-doped reduced graphene oxide for water purification under visible light. Applied Catalysis B: Environmental, 2018,220:118-125.
[26]	LAN HUA-CHUN, LI LI-LI, AN XIAO-QIANG , et al. Microstructure of carbon nitride affecting synergetic photocatalytic activity: hydrogen bonds vs. structural defects. Applied Catalysis B: Environmental, 2017,204:49-57.
[27]	WANG YAN-BIN, ZHAO XU, CAO DI , et al. Peroxymonosulfate enhanced visible light photocatalytic degradation Bisphenol A by single-atom dispersed Ag mesoporous g-C₃N₄ hybrid. Applied Catalysis B: Environmental, 2017,211:79-88.
[28]	WEI XIANG-NAN, OU CAI-LING, GUAN XIN-XIN , et al. Facile assembly of CdS-reduced graphene oxide heterojunction with enhanced elimination performance for organic pollutants in wastewater. Applied Surface Science, 2019,469:666-673.
[29]	OH W D, LOK L W, ANDREI V , et al. Enhanced photocatalytic degradation of Bisphenol A with Ag-decorated S-doped g-C₃N₄ under solar irradiation: performance and mechanistic studies. Chemical Engineering Journal, 2018,333:739-749.
[30]	LIU BO-CHUAN, QIAO MENG, WANG YAN-BIN , et al. Persulfate enhanced photocatalytic degradation of Bisphenol A by g-C₃N₄ nanosheets under visible light irradiation. Chemosphere, 2017,189:115-122.
[31]	ZHANG SHOU-WEI, GAO HUI-HUI, LIU XIA , et al. Hybrid 0D-2D Nanoheterostructures: in situ growth of amorphous silver silicates dots on g-C₃N₄ nanosheets for full-spectrum photocatalysis. ACS Applied Materials & Interfaces, 2016,8(51):35138-35149.
