镀铝改性对PS-PVD 7YSZ热障涂层抗CMAS腐蚀影响机制

doi:10.15541/jim20180529

无机材料学报 ›› 2019, Vol. 34 ›› Issue (9): 938-946.DOI: 10.15541/jim20180529 CSTR: 32189.14.10.15541/jim20180529

镀铝改性对PS-PVD 7YSZ热障涂层抗CMAS腐蚀影响机制

范佳锋^1,²,张小锋^1,²(),周克崧^1,²(),刘敏²,邓畅光²,邓春明²,牛少鹏²,邓子谦²

1.广东工业大学材料与能源学院, 广州 510006
2.广东省新材料研究所现代材料表面工程技术国家工程实验室, 广东省现代表面工程技术重点实验室, 广州 510650

收稿日期:2018-11-09 修回日期:2019-01-11 出版日期:2019-09-20 网络出版日期:2019-05-22
作者简介:范佳锋(1998-), 男, 硕士研究生. E-mail: 1577619201@qq.com
基金资助:
国家自然科技基金(51801034);国家自然科技基金(51771059);广东省自然科学基金(2017A030310315);广东省自然科学基金(2016A030312015);广州市及广东省项目(201707010455);广州市及广东省项目(2018GDASCX-0950);广州市及广东省项目(2017A070701027)

Influence of Al-modification on CMAS Corrosion Resistance of PS-PVD 7YSZ Thermal Barrier Coatings

FAN Jia-Feng^1,²,ZHANG Xiao-Feng^1,²(),ZHOU Ke-Song^1,²(),LIU Min²,DENG Chang-Guang²,DENG Chun-Ming²,NIU Shao-Peng²,DENG Zi-Qian²

1.School of Materials and Energy, Guangdong University of Technology, Guangzhou 510006, China
2.National Engineering Laboratory for Modern Materials Surface Engineering Technology, The Key Lab of Guangdong for Modern Surface Engineering Technology, Guangdong Institute of New Materials, Guangzhou 510650, China

Received:2018-11-09 Revised:2019-01-11 Published:2019-09-20 Online:2019-05-22
Supported by:
National Natural Science Foundation of China(51801034);National Natural Science Foundation of China(51771059);Guangdong Natural Science Foundation(2017A030310315);Guangdong Natural Science Foundation(2016A030312015);Guangzhou City & Guangdong Province Project(201707010455);Guangzhou City & Guangdong Province Project(2018GDASCX-0950);Guangzhou City & Guangdong Province Project(2017A070701027)

摘要/Abstract

摘要：

采用等离子喷涂-物理气相沉积(PS-PVD)方法制备了羽毛柱状结构7YSZ (氧化钇稳定氧化锆, 简称YSZ)热障涂层, 并对涂层进行了表面镀铝改性研究。在1050 ℃保温5 min、空冷5 min为一个热循环的条件下, 测试了改性前后热障涂层的热循环性能。此外, 在1200 ℃高温下对涂层进行了CMAS (CaO、MgO、Al₂O₃、SiO₂等硅酸铝盐物质的简称)腐蚀实验。采用扫描电子显微镜(SEM)、能谱仪(EDS)和X射线衍射仪(XRD)对涂层显微组织、元素分布及物相组成进行了表征。通过研究喷涂态涂层与镀铝改性涂层的CMAS腐蚀行为, 分析了涂层腐蚀机制, 并阐述了镀铝改性对涂层耐腐蚀的作用机理。结果表明: 镀铝改性后的涂层保持较好的热稳定性, 经过5200次热循环后未见涂层剥落。喷涂态涂层受CMAS腐蚀后, 产生了“波浪”状形变, CMAS完全渗透了7YSZ涂层; 而镀铝改性涂层, 由于通过Al与ZrO₂原位反应, 在涂层表面形成有耐腐蚀的α-Al₂O₃致密层, 涂层腐蚀情况得到了显著改善。研究发现, α-Al₂O₃致密层不仅对涂层形成机械保护, 还影响CMAS在涂层上的热化学反应, 使得CaO、Al₂O₃、SiO₂三种氧化物在涂层上的渗入受到抑制, 但MgO在涂层中的渗透未受到明显影响。此外, 本文还建立了以菲克第二定律为核心的数学模型, 以评估镀铝改性技术对涂层耐CMAS腐蚀能力的影响。

关键词: 等离子喷涂-物理气相沉积, 7YSZ, 镀铝改性, CMAS腐蚀

Abstract:

7YSZ thermal barrier coatings with feather-like columnar structure were prepared by plasma spray-physical vapor deposition (PS-PVD), and were carried out with Al-modification. After that, the as-sprayed and Al-modified 7YSZ TBCs were conducted with thermal cycling, heated at 1050 ℃ for 5 min and air-cooling for 5 min, respectively. And the CMAS corrosion tests were carried out at 1200 ℃. Microstructure, element and phase composition of the coating were analyzed by SEM, EDS and XRD. Corrosion mechanism of CMAS and the corrosion resistance mechanism of Al-modified coating were investigated. The results showed that the Al-modified coatings kept good thermal stability. And the coating had no apparent spallation, after 5200 thermal cycles. The as-sprayed coating was destroyed by CMAS, and "wave" deformation was observed. The 7YSZ coating was completely permeated by CMAS. Dense corrosion-resistant layer of α-Al₂O₃ was formed on the surface of the coating by Al-modification, and the corrosion of the coating was significantly improved. It was found that α-Al₂O₃ layer not only protected the coating by separating CMAS, but also had positive effect on the thermochemical reaction in CMAS corrosion. Due to formation of α-Al₂O₃ layer, the oxides of CaO, Al₂O₃ and SiO₂ were hard to penetrate the coating. However, the penetration of MgO was not significantly affected by Al-modification. In addition, a mathematical model based on Fick's second law was established to evaluate the effect of Al-modification on the CMAS corrosion resistance of 7YSZ coatings.

Key words: plasma spray-physical vapor deposition, 7YSZ, Al-modification, CMAS corrosion

中图分类号:

TQ174

范佳锋,张小锋,周克崧,刘敏,邓畅光,邓春明,牛少鹏,邓子谦. 镀铝改性对PS-PVD 7YSZ热障涂层抗CMAS腐蚀影响机制[J]. 无机材料学报, 2019, 34(9): 938-946.

FAN Jia-Feng,ZHANG Xiao-Feng,ZHOU Ke-Song,LIU Min,DENG Chang-Guang,DENG Chun-Ming,NIU Shao-Peng,DENG Zi-Qian. Influence of Al-modification on CMAS Corrosion Resistance of PS-PVD 7YSZ Thermal Barrier Coatings[J]. Journal of Inorganic Materials, 2019, 34(9): 938-946.

图/表 13

表1 PS-PVD喷涂7YSZ涂层参数

Table 1 Parameters of 7YSZ ceramic coating prepared by PS-PVD

Materials	Power/kW	Ar/nlpm	N₂/nlpm	Feed rate/ (g·min^-¹)	Carrier gas Ar/nlpm	Stand-off distance/mm	Pre-heating temperature/℃	Chamber pressure/Pa
7YSZ	127	35	60	2×9	16	950	900	1.5

表2 CMAS粉末成分

Table 2 Composition of CMAS powders

Oxides	CaO	MgO	Al₂O₃	SiO₂
Weight/wt%	37.1	3.5	7.1	52.3

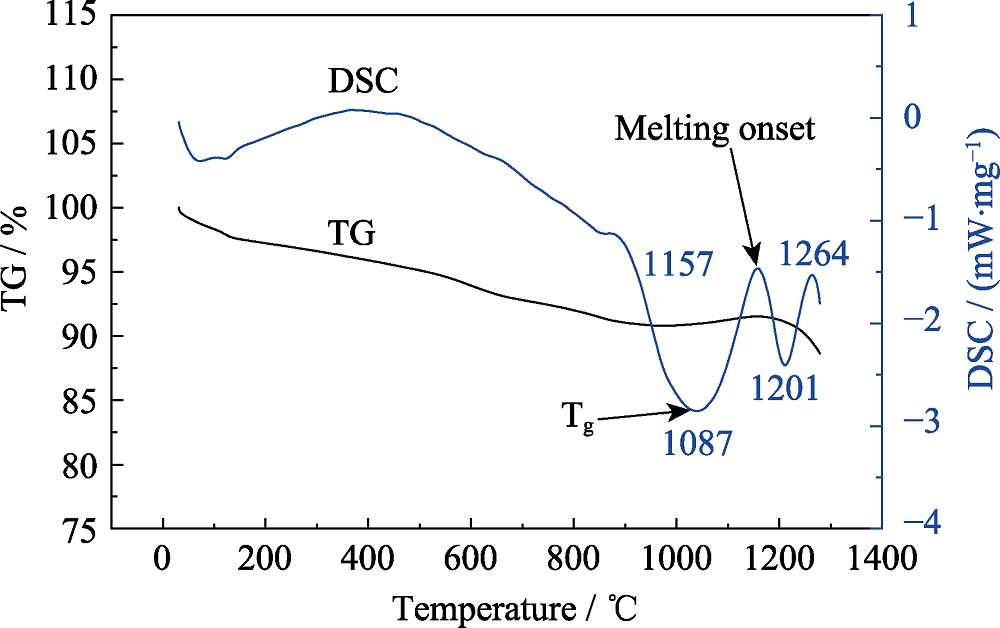

图1 CMAS粉末的DSC-TG分析

Fig. 1 DSC-TG analysis of CMAS powders

图2 PS-PVD 7YSZ热障涂层经镀铝后的截面SEM照片

Fig. 2 Cross-sectional SEM images of PS-PVD 7YSZ thermal barrier coatings after Al-deposition (a-b) Before heat-treatment; (c) After heat-treatment

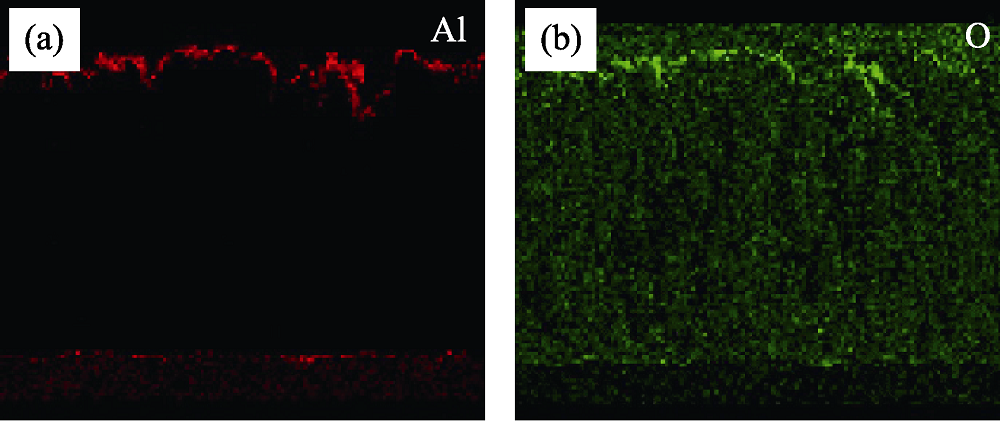

图3 7YSZ涂层热处理后横截面Al元素(a)和O元素(b)的EDS面扫描图

Fig. 3 EDS mapping of the 7YSZ coating after heat-treatment (a) Al; (b) O

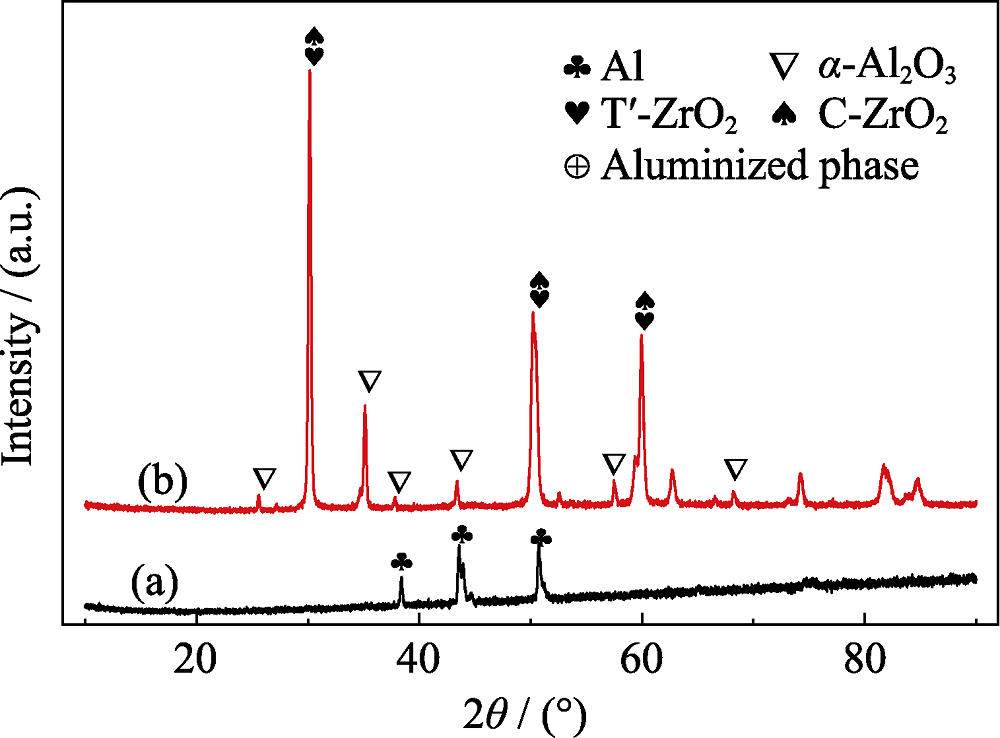

图4 经镀铝的7YSZ热障涂层表面的XRD图谱

Fig. 4 XRD patterns of Al-depositied 7YSZ TBCs (a) Before heat-treatment; (b) After heat-treatment

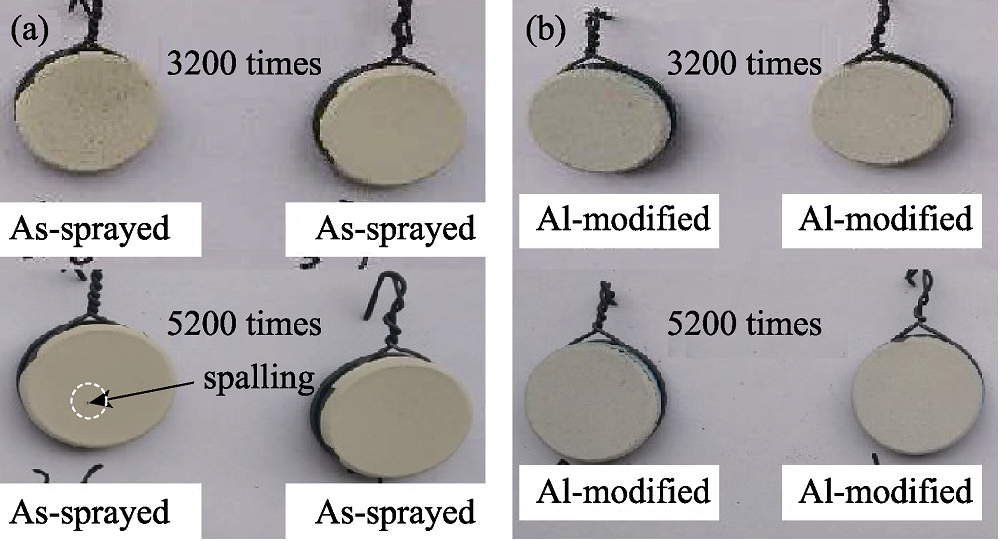

图5 热障涂层样品热循环后宏观形貌

Fig. 5 Macrographs of the coatings after thermal cycling (a) As-sprayed (3200, 5200 cycles); (b) Al-modified (3200, 5200 cycles)

图6 7YSZ涂层经CMAS腐蚀后喷涂态(a-c)与镀铝改性涂层(d-f)截面SEM照片

Fig. 6 Cross-sectional SEM images of the 7YSZ coatings after CMAS corrosion (a-c) As-sprayed; (d-f) Al-modified

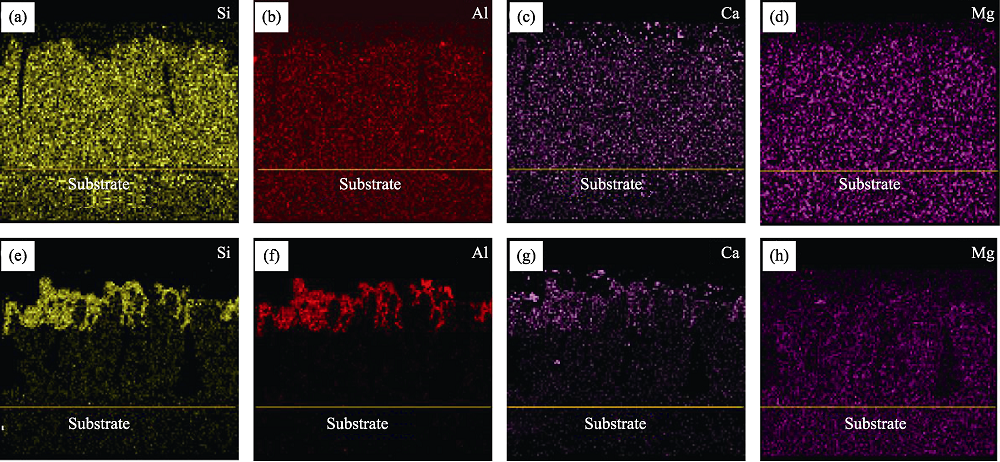

图7 喷涂态(a~d)与镀铝改性涂层(e~h)腐蚀后的EDS分析结果

Fig. 7 EDS analyis of the coating after CMAS corrosion (a-d) As-sprayed; (e-h) Al-modified

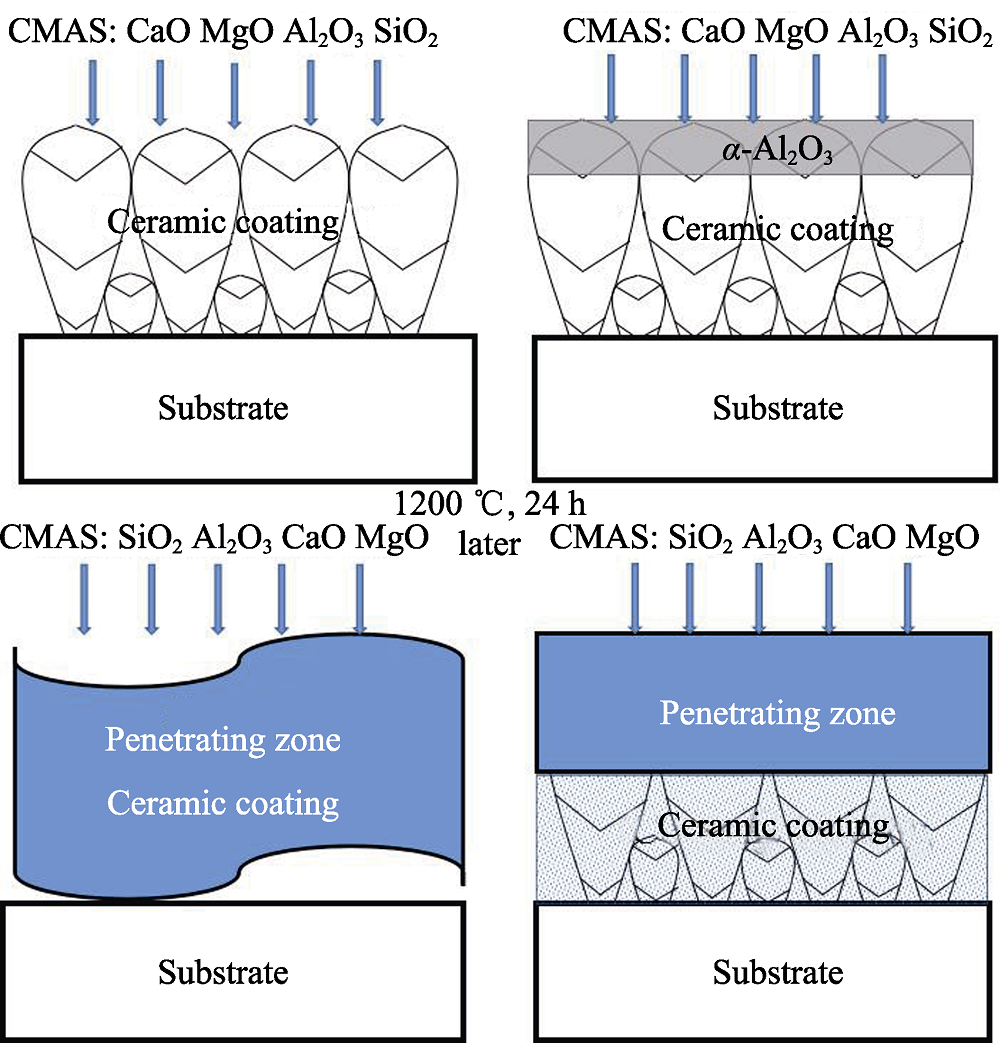

图8 CMAS腐蚀涂层示意图

Fig. 8 Schematic diagram of CMAS corrosion for the coating, (a) As-sprayed; (b) Al-modified

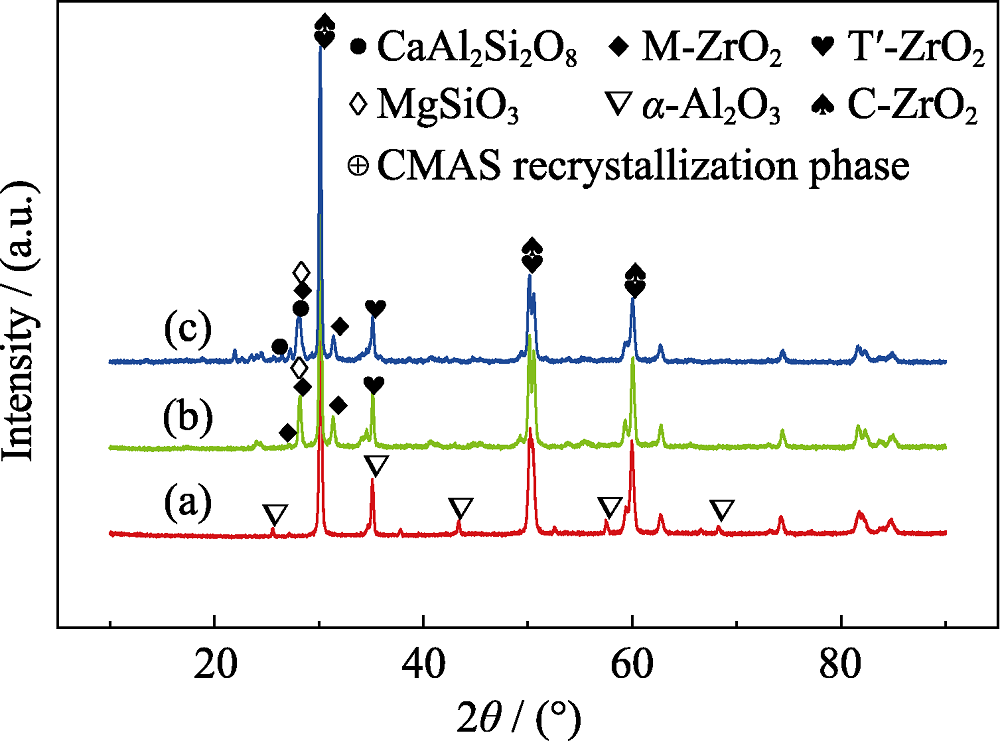

图9 7YSZ热障涂层XRD图谱

Fig. 9 XRD patterns of the surface of 7YSZ TBCs (a) Al-modified coating; (b) As-sprayed coating after corrosion; (c) Al- modified coating after corrosion

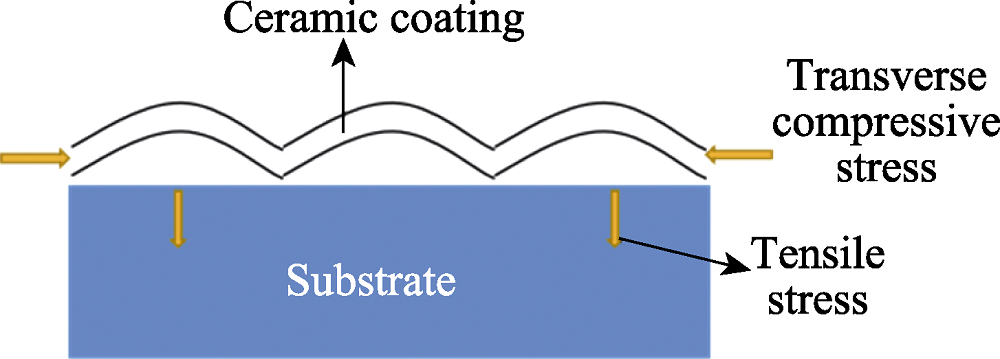

图10 喷涂态涂层波浪形变示意图

Fig. 10 Schematic diagram of wave deformation for the as-sprayed coating

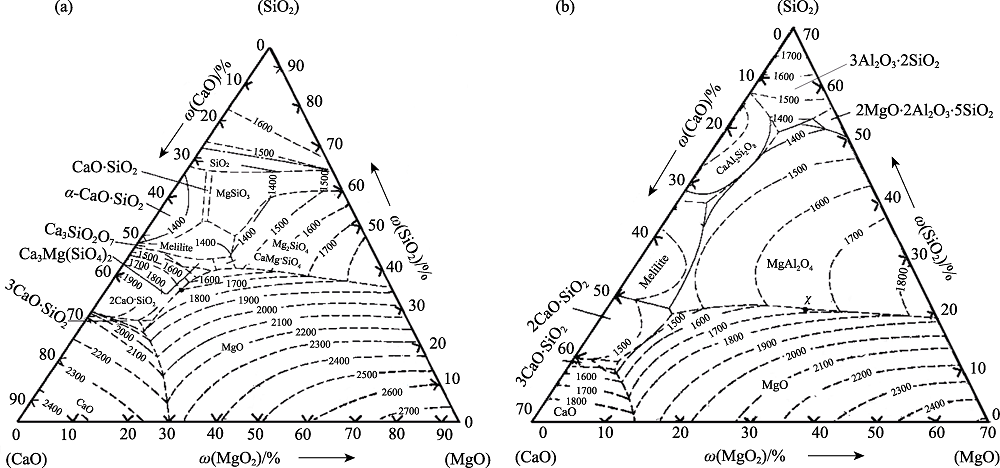

图11 (a) ω(Al2O3)=5%和(b) ω(Al2O3)=30%的CaO-SiO2-Al2O3-MgO四元系相图[30]

Fig. 11 Phase diagram of CaO-SiO2-Al2O3-MgO with (a) ω(Al2O3) at 5% and (b) ω(Al2O3) at 30%

参考文献 32

[1]	SEBASTIAN M, THOMAS D, HEIKO G ,et al. Method and process development of advanced atmospheric plasma spraying for thermal barrier coatings. Journal of Thermal Spray Technology, 2012,21(3):400-408.
[2]	LIN F, JIANG X L . Research progress on plasma spraying. Journal of Functional Materials, 2003,34(3):254-257.
[3]	QIN Q, MAO Z J, LIU Z F . Application and future prospect of high-temperature alloy in aero-engine industry. Tool Engineering, 2017,51(9):3-6.
[4]	EVANS A G, MUMM D R, HUTCHINSON J W ,et al. Mechanisms controlling the durability of thermal barrier coatings. Progress in Materials Science, 2001,46(5):505-553.
[5]	CLARKE D R, LEVI C G . Materials design for the next generation thermal barrier coatings. Annual Review of Materials Research, 2003,33(1):383-417.
[6]	WU R T, OSAWA M, YOKOKAWA T ,et al. Degradation mechanisms of an advanced jet engine service-retired TBC component. Journal of Solid Mechanics and Materials Engineering, 2010,4(2):119-130.
[7]	GUO S Q, FENG Y B, HE Y ,et al. Materials and fabrication technique of thermal barrier coatings for future aeroengines. Surface Technology, 2012,41(5):119-123.
[8]	STRANGEMAN T, RAYBOULD D, JAMEEL A ,et al. Damage mechanisms, life prediction, and development of EB-PVD thermal barrier coatings for turbine airfoils. Surface and Coatings Technology, 2007,202(4-7):658-664.
[9]	GUO H B, PENG L Q, GONG S K , et al. Progress in EB-PVD thermal barrier coatings. Thermal Spray Technology, 2009,1(2):7-14.
[10]	MAUER G, HOSPACH A VAßEN R, . Process development and coating characteristics of plasma spray-PVD. Surface and Coatings Technology, 2013,220(15):219-224.
[11]	HOSPACH A, MAUER G, VAßEN R , et al. Columnar-structured thermal barrier coatings (TBCs) by thin film low-pressure plasma spraying (LPPS-TF). Journal of Thermal Spray Technology, 2011,20(1):116-120.
[12]	NIESSEN K V, GINDRAT M, REFLE A . Vapor phase deposition using plasma spray-PVD. Journal of Thermal Spray Technology, 2010,19(1/2):502-509.
[13]	MAUER G., JARLIGO M O, REZANKA S ,et al. Novel opportunities for thermal spray by PS-PVD. Surface and Coatings Technology, 2015,268:52-57.
[14]	KRäMER S, YANG J, LEVI C G ,et al. Thermochemical interaction of thermal barrier coatings with molten CaO-MgO-Al₂O₃- SiO₂( CMAS) deposits. Journal of the American Ceramic Society, 2006,89(10):3167-3175.
[15]	DAROLIA R . Thermal barrier coatings technology: critical review, progress update, remaining challenges and prospects. International Materials Reviews, 2013,58(6):315-348.
[16]	LEVI C G, HUTCHINSON J W, VIDAL-SÉTIF M H , et al. Environmental degradation of thermal-barrier coatings by molten deposits. Materials Research Society Bulletin, 2012,37(10):932-941.
[17]	ZHANG X F, ZHOU K S, SONG J B ,et al. Deposition and CMAS corrosion mechanism of 7YSZ thermal barrier coatings prepared by plasma spray-physical vapor deposition. Journal of Inorganic Materials, 2015,30(3):287-293.
[18]	WANG W Z, FANG H J, HUANG J B . Research status on cracking of thermal barrier coating against CMAS corrosion. Surface Technology, 2018,47(8):23-29.
[19]	YANG S J, PENG H, GUO H B . Failure and protection of thermal barrier coating under CMAS attack. Journal of Aeronautical Materials, 2018,38(2):43-51.
[20]	GANG Y X, BAI Y, LIU K , et al. Corrosion failure mechanism of thermal barrier coatings after infiltration of CMAS deposits and countermeasure study. Rare Metal Materials and Engineering, 2017, 46(1):282-288.
[21]	MOHAN P, YAO B, PATTERSON T ,et al. Electrophoretically deposited alumina as protective overlay for thermal barrier coatings against CMAS degradation. Surface and Coatings Technology, 2009,204(6/7):797-801.
[22]	AYGUN A, VASILIEV A L, PADTURE N P ,et al. Novel thermal barrier coatings that are resistant to high-temperature attack by glassy deposits. Acta Materialia, 2007,55(20):6734-6745.
[23]	GUO L, GUO H B, PENG H ,et al. Thermophysical properties of Yb₂O₃ doped Gd₂Zr₂O₇ and thermal cycling durability of (Gd_0.9Yb_0.1)₂Zr₂O₇/YSZ thermal barrier coatings. Journal of the European Ceramic Society, 2014,34(5):1255-1263.
[24]	ZHANG X F, ZHOU K S, LIU M ,et al. Thermal shock analysis of surface Al-modified 7YSZ nano-thermal barrier coating. Journal of Inorganic Materials, 2017,32(9):973-979.
[25]	ZHANG X F . In-situ Synthsis of Al and ZrO₂ to Improve the Properties of Thermal Barrier Coating. Guangzhou: PhD thesis of South China University of Technology, 2016.
[26]	ZHANG X F, ZHOU K S, LIU M ,et al. Enhanced properties of Al-modified EB-PVD 7YSZ thermal barrier coatings. Ceramics International, 2016,42(12):13969-13975.
[27]	DREXLER J M, ORTIZ A L, PADTURE N P . Composition effects of thermal barrier coating ceramics on their interaction with molten Ca-Mg-Al-silicate (CMAS) glass. Acta Materialia, 2012,60(15):5437-5447.
[28]	ZHANG X F, ZHOU K S, XU W ,et al. In situ synthesis of α-alumina layer at top yttrium-stabilized zirconia thermal barrier coatings for oxygen barrier. Ceram Int., 2014,40(8):12703-12708.
[29]	SONG X W, YU H T, NIU X Q ,et al. Progress in rare earth oxides doped ZrO₂-based ceramic materials for thermal barrier coatings. Journal of Inner Mongolia University of Science and Technology, 2009,28(3):287-292.
[30]	陈肇友 . 相图与耐火材料. 北京: 冶金工业出版社, 2014: 91-96.
[31]	胡赓祥, 蔡珣, 戎咏华 . 材料科学基础, 3版. 上海: 上海交通大学出版社, 2010: 136-138.
[32]	HOWARD R E, LIDIARD A B . Matter transport in solids. Reports on Progress in Physics, 1964,27:161-162.
