Synthesis and Magnetoelectric Properties of NiFe2O4-BiFeO3 Nanotubes

doi:10.15541/jim20150460

Abstract

Abstract:

xNFO-(1-x)BFO (NFO-BFO) nanotube arrays were fabricated by means of Sol-Gel method utilizing nanochannel alumina as templates. Scanning electron microscopy study revealed that the outer diameter of nanotube was about 70 nm, and the internal diameter was about 50 nm, the length was about 80 μm. Meanwhile, ferroelectric phase BFO of perovskite structure and ferromagnetic phase NFO of spinel structure were formed through self-assembly growth in X-ray diffraction patterns. Significant ferromagnetic and polarized characteristics of nanotube arrays were demonstrated by means of magnetic and ferroelectric measurement at room temperature, and the direction of easy magnetization was along the long axis. With increasing ratio of NFO, the magnetic and polarized properties of nanotube arrays increased gradually. The calculation results of NFO’s ferromagnetic contribution indicated that magnetoelectric coupling effect existed in the NFO-BFO composite nanotube arrays.

Key words: multiferroic material, nanotube arrays, Sol-Gel, magnetoelectric properties

CLC Number:

TQ174

HAN Wei, YANG Shu-Min, LI Hai-Tao, QI Yun-Kai, GU Jian-Jun. Synthesis and Magnetoelectric Properties of NiFe₂O₄-BiFeO₃ Nanotubes[J]. Journal of Inorganic Materials, 2016, 31(4): 388-392.

Figures/Tables 5

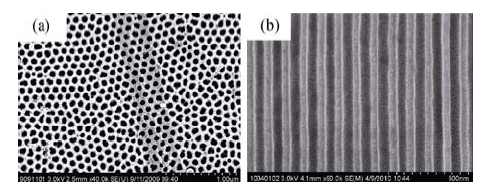

Fig. 1 SEM images of AAO template (a) Surface; (b) Cross profile

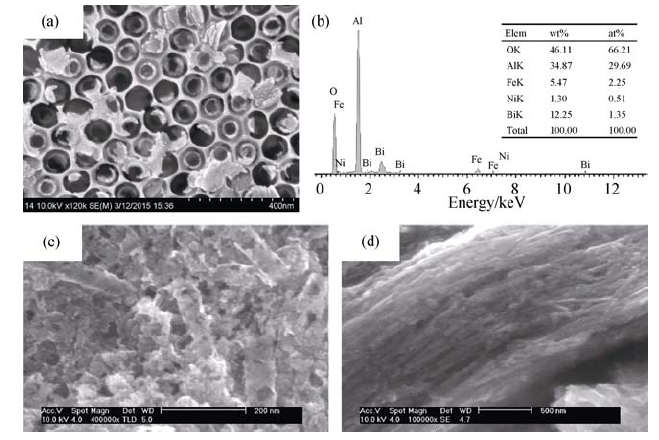

Fig. 2 SEM images and EDS pattern of 0.25NFO-0.75BFO nanotubes (a) Surface image; (b) EDS pattern; (c) Dispersed nanotubes; (d) Nanotubes cluster

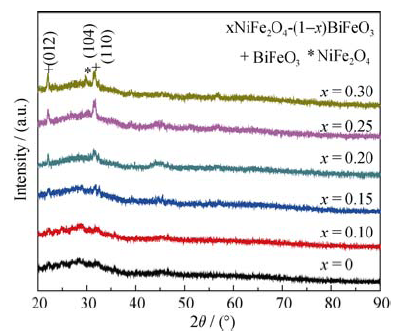

Fig. 3 XRD patterns for xNFO-(1-x)BFO nanotubes annealed at 600℃

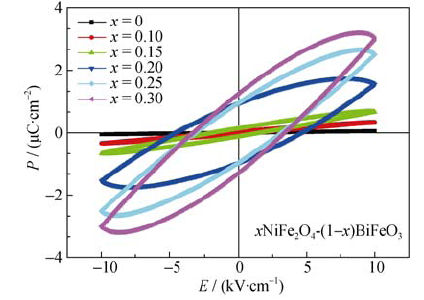

Fig. 4 P-E curves of xNFO-(1-x) BFO nanotubes at room temperature

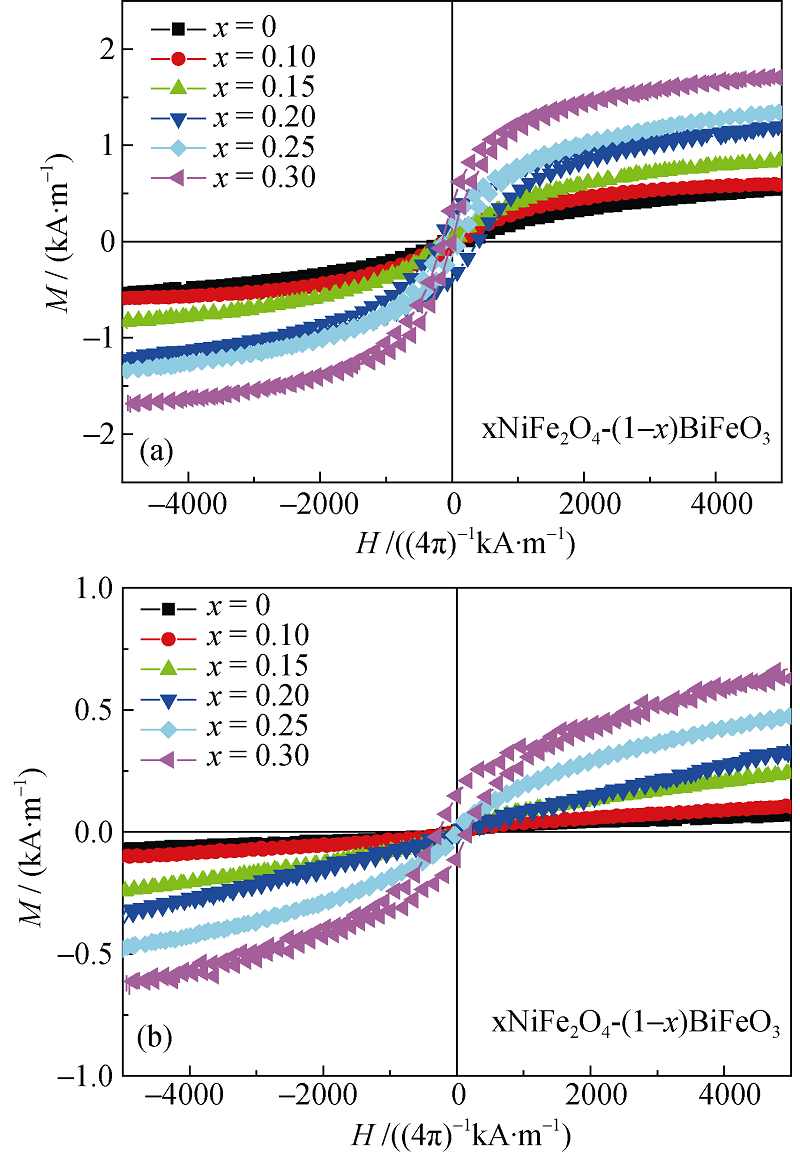

Fig. 5 M-H curves of xNFO-(1-x)BFO nanotubes at room temperature. (a) Magnetic field parallel to the long axis of nanotubes; (b) Magnetic field perpendicular to the long axis of nanotubes.

References 28
