Influence of Grain Size on Weibull Distribution of Fracture Strength in Atmospheric-pressure Solid-phase Sintered SiC Ceramics

doi:10.15541/jim20250209

Abstract

Abstract:

Silicon carbide (SiC) ceramics have found extensive application in strategic fields, such as semiconductor technology, nuclear energy, aerospace engineering, and marine engineering, due to their remarkable properties, which encompass excellent mechanical properties, resistance to high-temperature creep, acid and alkali corrosion, and high thermal conductivity. However, the fracture strength of these brittle ceramic materials typically exhibits significant discreteness, which adversely affects reliability and limits their wider application as engineering structural materials. In this work, reliability of fracture strength in solid-state sintered silicon carbide (SSiC) ceramics was enhanced through regulation of grain size. The influence of grain size on mechanical properties, Weibull distribution of fracture strength, and crack extension resistance curve (R-curve) characteristics of SSiC ceramics was systematically evaluated. Reliability regulatory mechanism for fracture strength of SSiC ceramics was analyzed. The results indicated that, with an increase in sintering temperature from 2100 ℃ to 2200 ℃, average grain size of SSiC ceramics increased from 3.01 µm to 8.45 µm, while coefficient of grain size distribution uniformity dropped from 0.70 to 0.62. As the average grain size was reduced from 8.45 µm to 3.01 µm, Weibull modulus of fracture strength for SSiC ceramics increased gradually from 8.5 to 12.2, representing a 44% increment. This clearly indicates the positive impact of grain refinement on reliability of fracture strength. Enhancement in Weibull modulus of fracture strength as a result of grain refinement can primarily be attributed to high-density grain boundary network, which effectively mitigates stress concentration via crack bifurcation and bridging mechanisms. Additionally, uniformity of grain distribution and reduced defect size contribute to an elevated energy threshold for crack propagation, leading to an ascending R-curve behavior. This work achieves a significant improvement in the fracture strength reliability of SiC ceramics through regulating grain size, which is expected to promote the wider engineering application of SiC ceramic materials.

Key words: silicon carbide ceramic, grain size, reliability, Weibull modulus, defect control

CLC Number:

TQ174
TB321

CAO Juan, WU Xishi, LIU Zehua, PEI Bingbing, HAN Jianshen, LIU Huan, YANG Yitian, WU Haibo, HUANG Zhengren. Influence of Grain Size on Weibull Distribution of Fracture Strength in Atmospheric-pressure Solid-phase Sintered SiC Ceramics[J]. Journal of Inorganic Materials, 2026, 41(2): 217-224.

Figures/Tables 11

Fig. 1 SEM images of silicon carbide (a) and boron carbide (b)

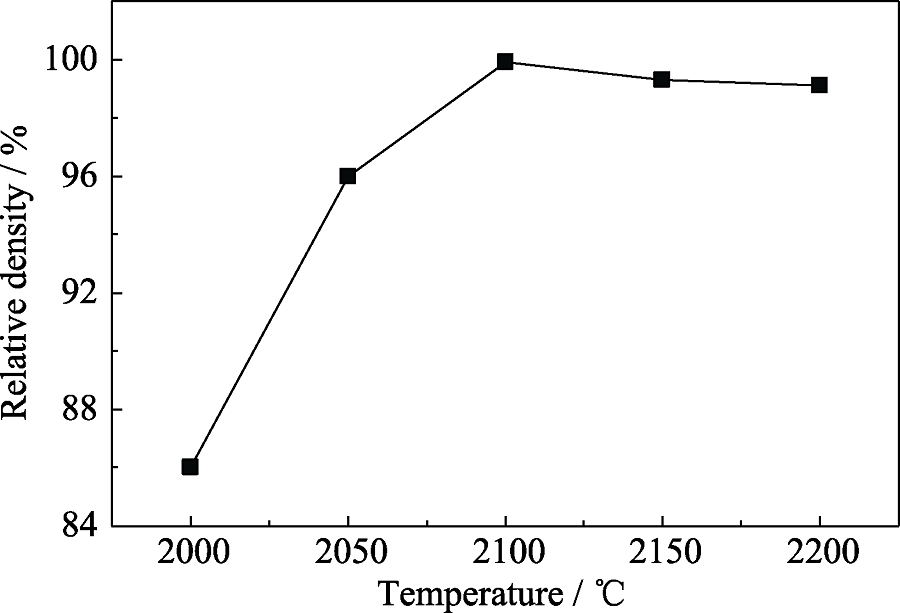

Fig. 2 Relative density of SSiC ceramics sintered at different temperatures

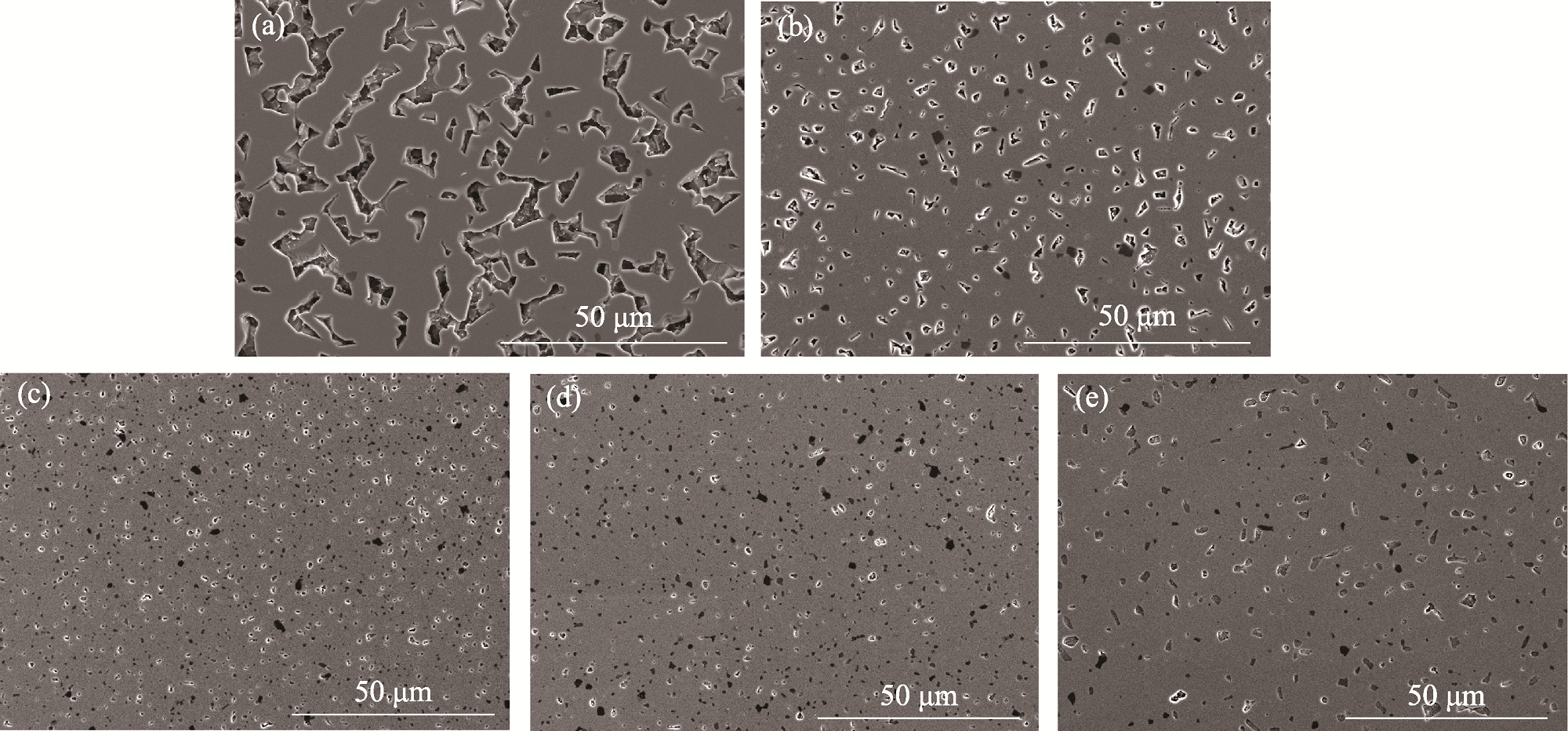

Fig. 3 Polished surface morphologies of SSiC ceramics sintered at different temperatures (a) 2000 ℃; (b) 2050 ℃; (c) 2100 ℃; (d) 2150 ℃; (e) 2200 ℃

Fig. 4 (a-c) Surface morphology and (d-e) grain distribution of SSiC after molten NaOH corrosion (a, d) SSiC-2100; (b, e) SSiC-2150; (c, f) SSiC-2200

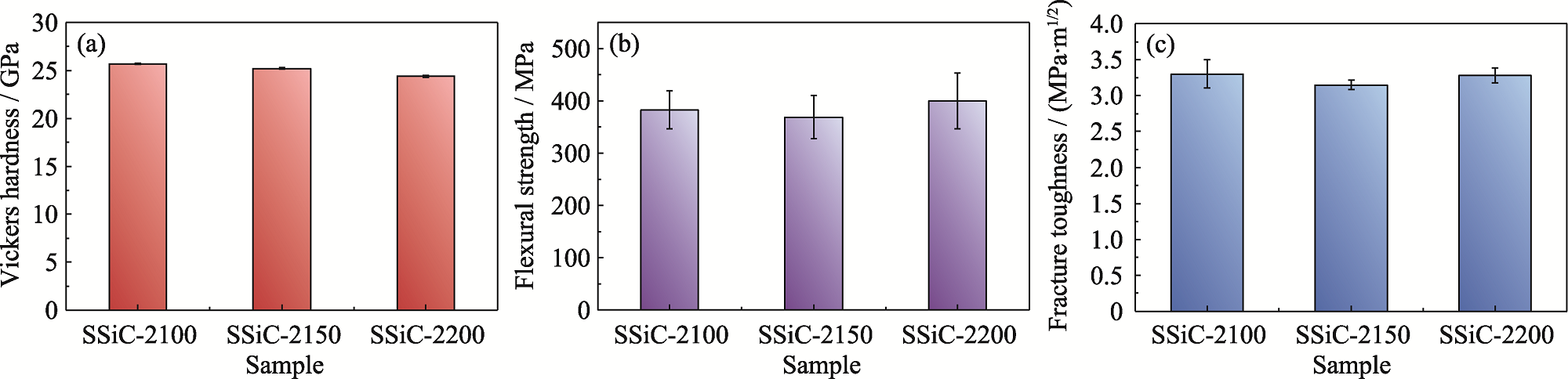

Fig. 5 Mechanical properties of SSiC ceramics with different grain sizes (a) Vickers hardness; (b) Flexural strength; (c) Fracture toughness

Fig. 6 Sectional morphologies of SSiC ceramics with different grain sizes (a) SSiC-2100; (b) SSiC-2150; (c) SSiC-2200

Fig. 7 Weibull modulus of flexural strength of SSiC ceramics with different grain sizes

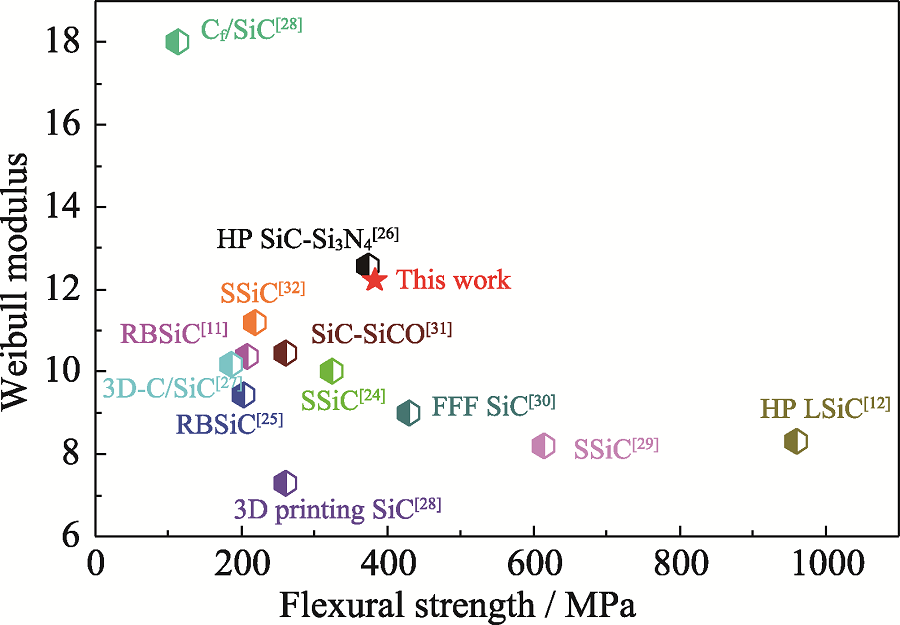

Fig. 8 Flexural strength and Weibull modulus of SiC-based ceramic materials reported in the literature versus in this work[11-12,24 -32]

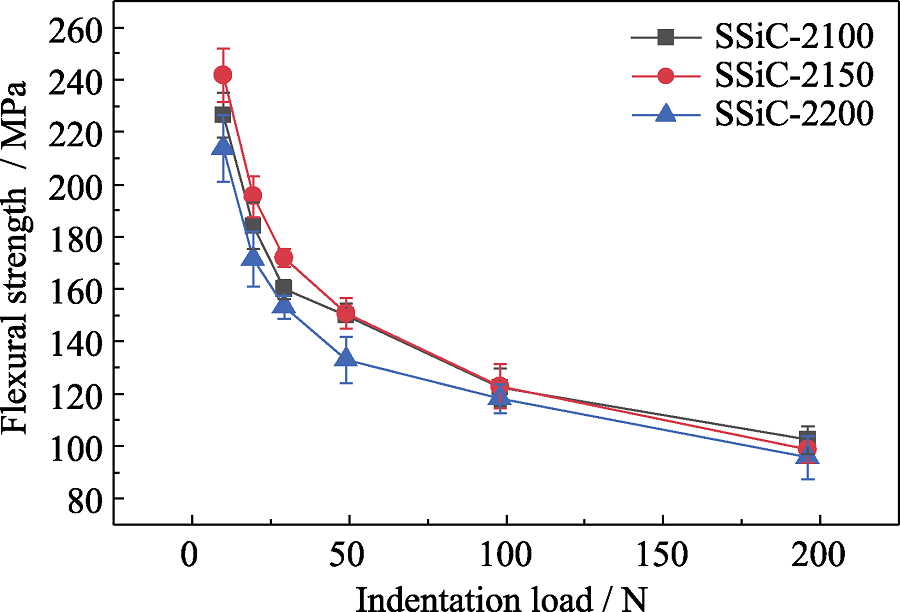

Fig. 9 Relationship between flexural strength and indentation load of SSiC ceramics with different grain sizes

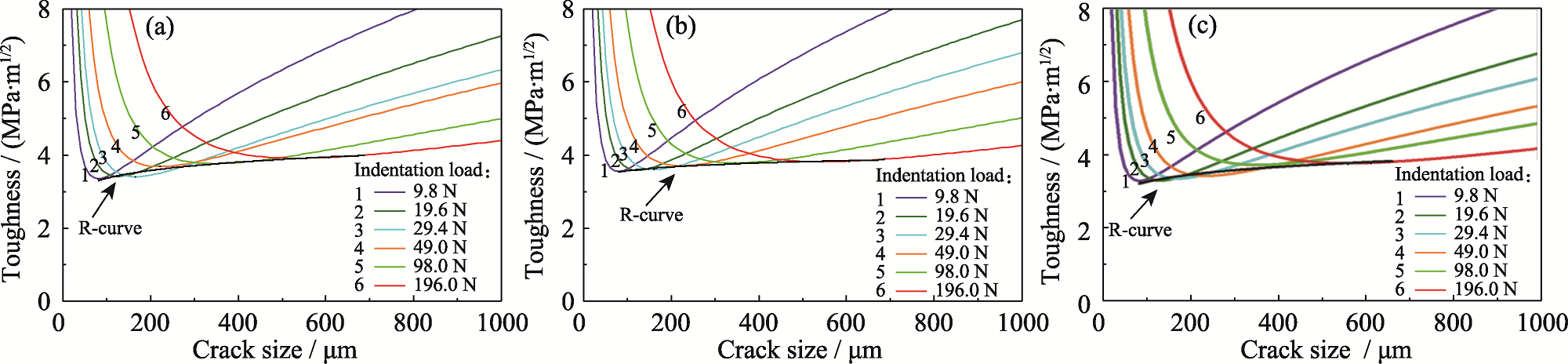

Fig. 10 R-curves of SSiC ceramics with different grain sizes (a) SSiC-2100; (b) SSiC-2150; (c) SSiC-2200

Fig. 11 Surface indentation crack propagation path of SSiC ceramics at different grain sizes (a, b) SSiC-2100; (c) SSiC-2150; (d) SSiC-2200
