Journal of Inorganic Materials



Electrolytic CO2 Performance of La0.3Sr0.6Ti1-xNixO3-δ based Fiber Fuel Electrode for Solid Oxide Electrolysis Cell

WANG Hongbin1, WANG Leying1, LUO Linghong1, CHENG Liang2, XU Xu1

  1. 1. School of Materials Science and Engineering, Jingdezhen Ceramic University, Jingdezhen
    333403, China;
    2. National Engineering Research Center for Domestic & Building Ceramics, Jingdezhen Ceramic University, Jingdezhen
    333001, China;
  • Received:2025-02-13 Revised:2025-04-13
  • Contact: WANG Leying, associate professor. E-mail: wly8858@163.com; LUO Linghong, professor. E-mail: luolinghong@tsinghua.org.cn
  • About author:WANG Hongbin (1998-), male, Master candidate. E-mail: wanghongbin612@163.com
  • Supported by:
    Jiangxi Provincial Natural Science Foundation (20242BAB20086,20224ACB204010); Science and Technology Landing Program of Jiangxi Provincial Education Department (KJLD13072); Science and Technology Project of Jingdezhen City (20234ST002, 2023GY001-06, 20234ST005)

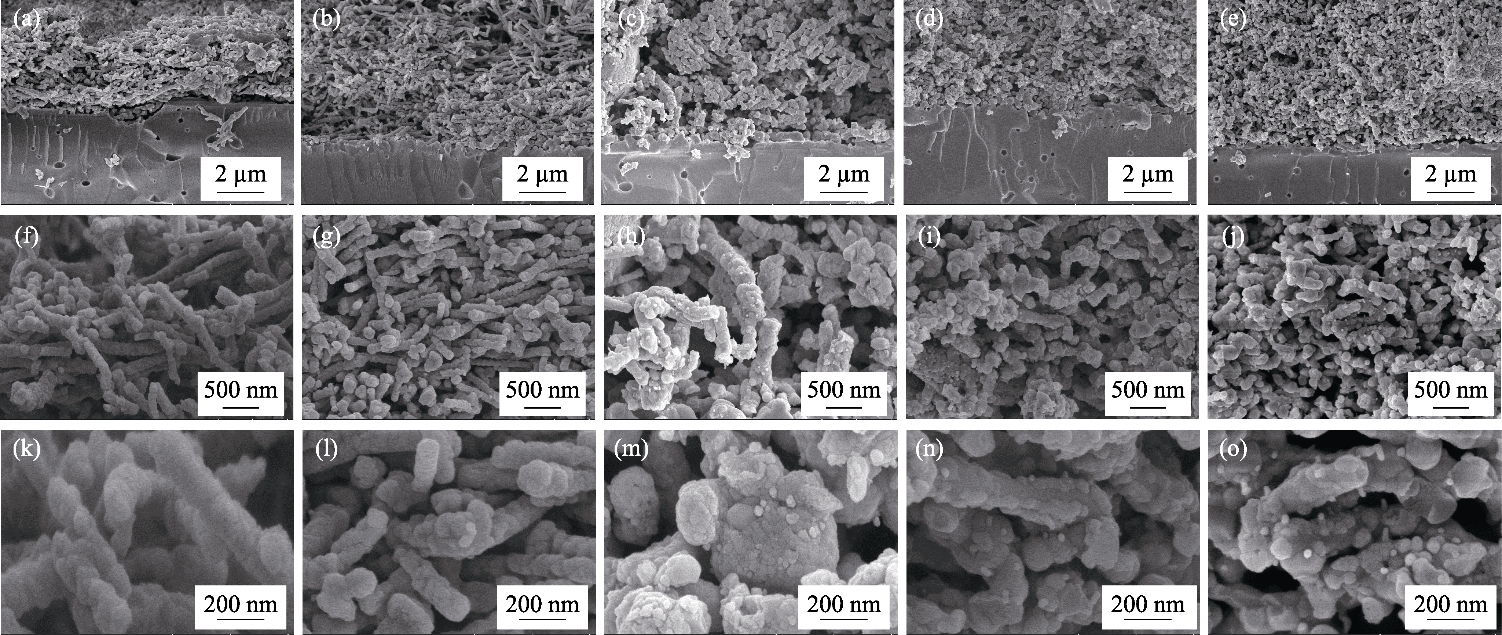

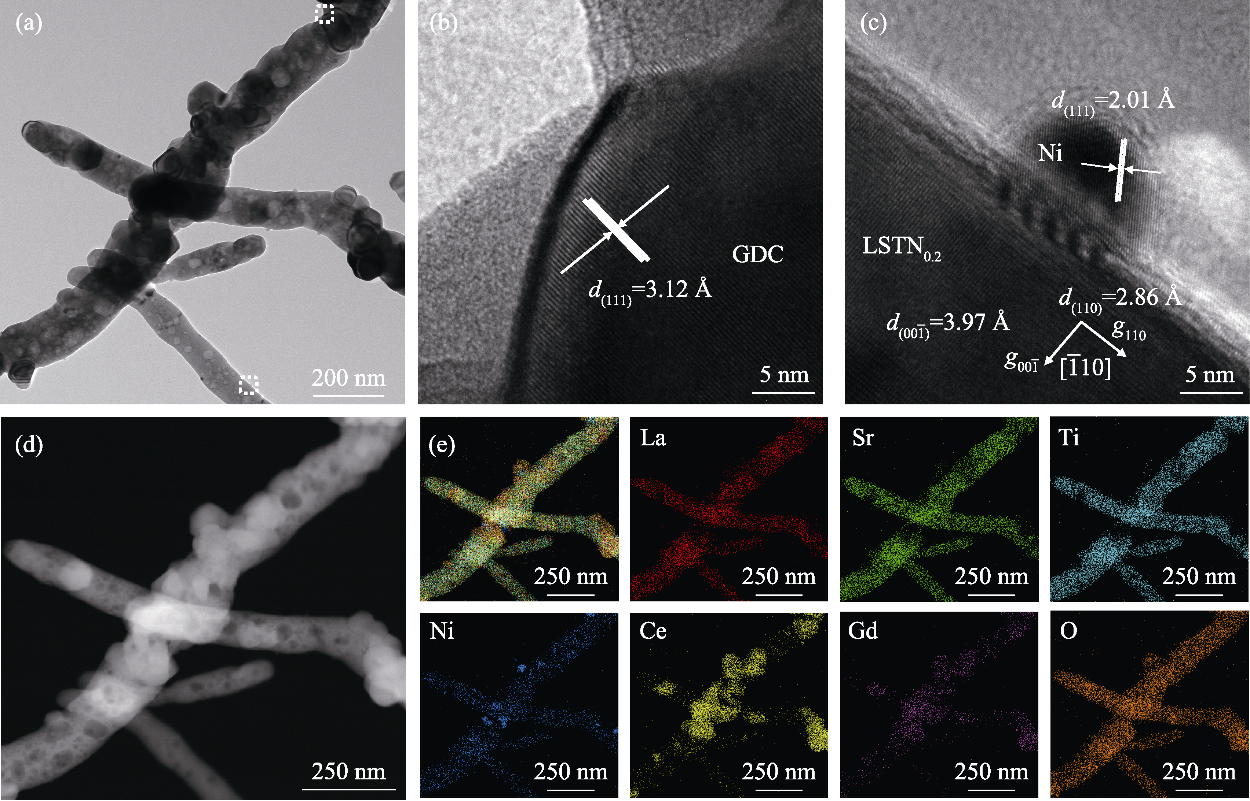

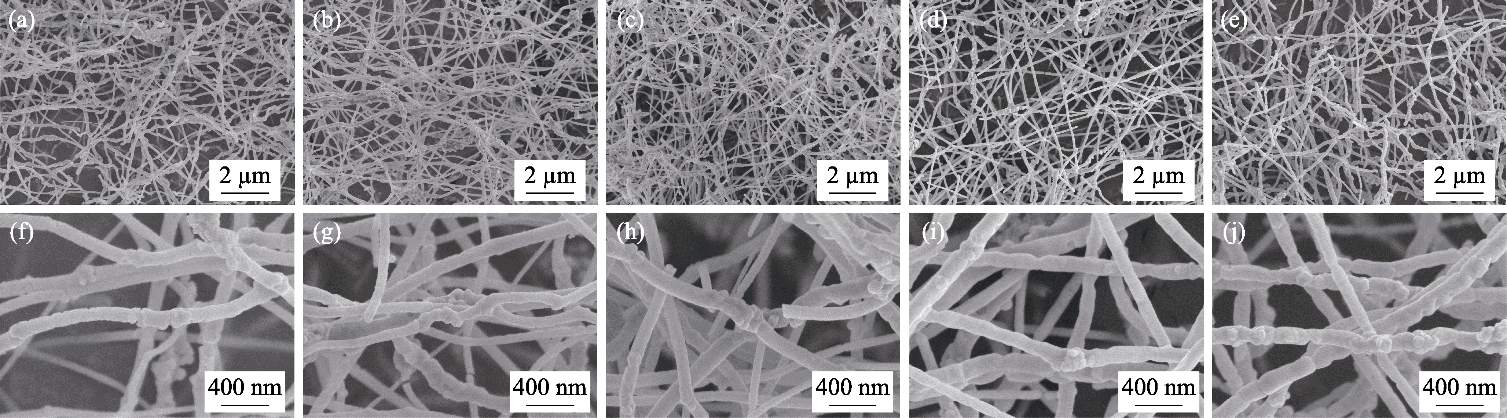

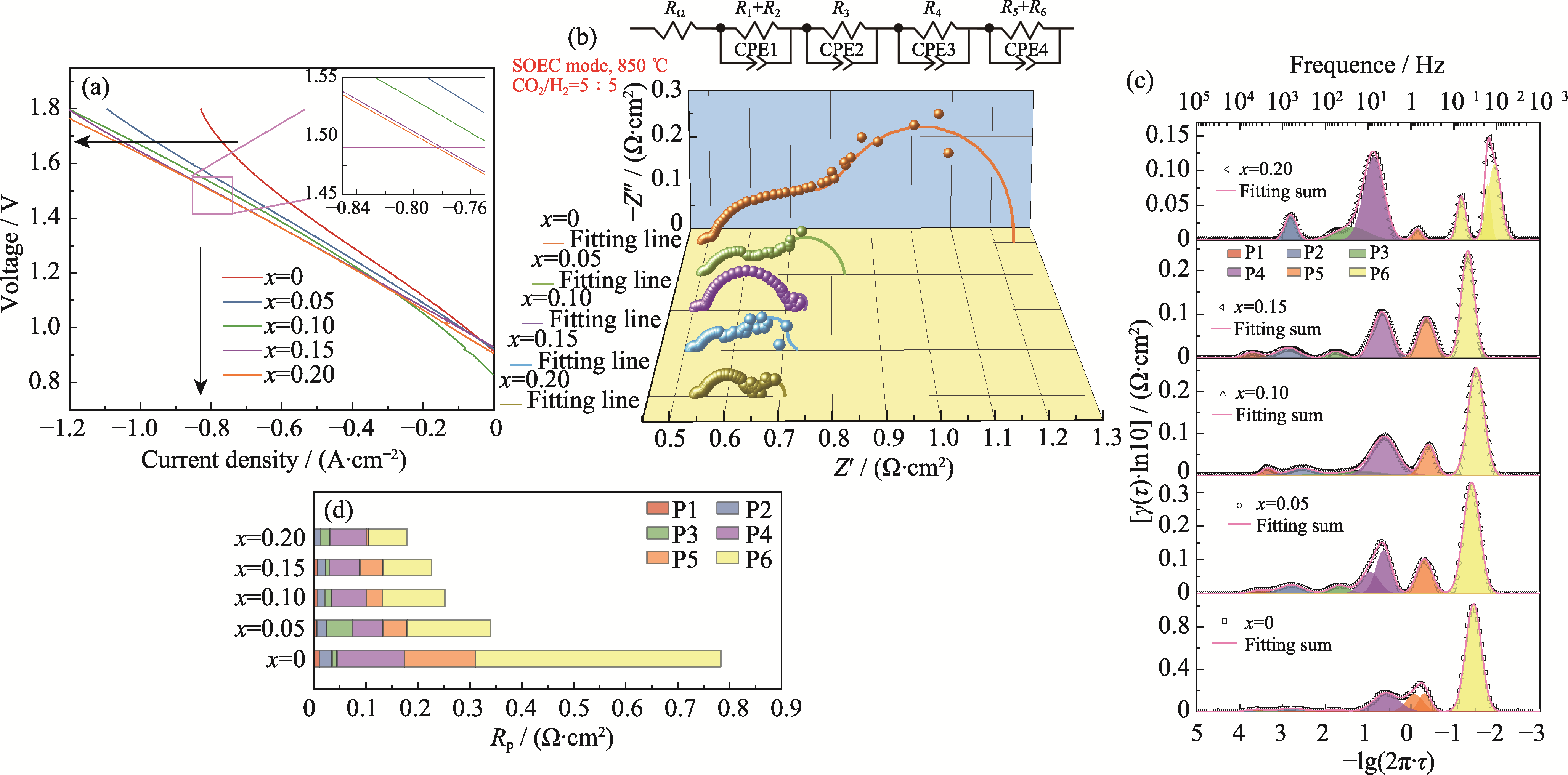

Abstract: Interface engineering is an effective strategy to develop fuel electrode materials with excellent catalytic activity of CO2 for solid oxide electrolysis cell. In this study, La0.3Sr0.6Ti1-xNixO3-δ/Ce0.9Gd0.1O2-δ (LSTNx/GDC) composite fibers were directly prepared by electrospinning technology, and the fiber-based fuel electrodes were constructed, which were composed of LSTNx electronic channel skeleton, GDC ion channel embedding and in-situ Ni exsolution nanoparticles. The effect of B-site Ni-doping on the morphology, structure and CO2 catalytic activity of fiber-based fuel electrode was studied. The results of Scanning Electron Microscope testing show that the LSTNx/GDC composite fibers with uniform diameter (100-150 nm) and no obvious particle agglomeration or fracture gap are successfully prepared when the Ni-doping is x=0.15 and 0.20. More in-situ B-site nickel nanoparticles (20-30 nm) could be exsolved from the prepared fuel electrode under the reducing atmosphere. The relaxation time distribution analysis confirms that in-situ exsolution of B-site nickel metal nanoparticles can not only provide more active sites, but also form rich heterointerfaces with composite fiber and impregnate to accelerate the interfacial charge transfer, and then significantly enhance the adsorption and catalytic ability of CO2. The electrolytic current density of the single cell with the doping of x=0.20 at 850 ℃, CO2 : H2=5 : 5 (in volume) under 1.5 V increases to 0.799 A·cm-², and the polarization impedance decreases to 0.171 Ω·cm², and presents excellent stability without significant current fluctuation for 70 h at 1.3 V, 850 ℃ under CO2 : H2=5 : 5 (in volume).

Key words: solid oxide electrolysis cell, fuel electrode, composite fiber, in-situ Ni exsolution, distribution of relaxation time

CLC Number:
