Journal of Inorganic Materials ›› 2023, Vol. 38 ›› Issue (6): 671-677.DOI: 10.15541/jim20220610
• RESEARCH ARTICLE • Previous Articles Next Articles
JIN Sai1(), LIU Xiaogen2(), QI Shuang2, ZHAO Runchang1, LI Zhijun1
Received:
2022-10-17
Revised:
2022-11-18
Published:
2022-12-27
Online:
2022-12-27
Contact:
LIU Xiaogen, professor. E-mail: xtlxg@163.comAbout author:
JIN Sai (1990-), male, Engineer. E-mail: saga_jinsai@163.com
Supported by:
CLC Number:

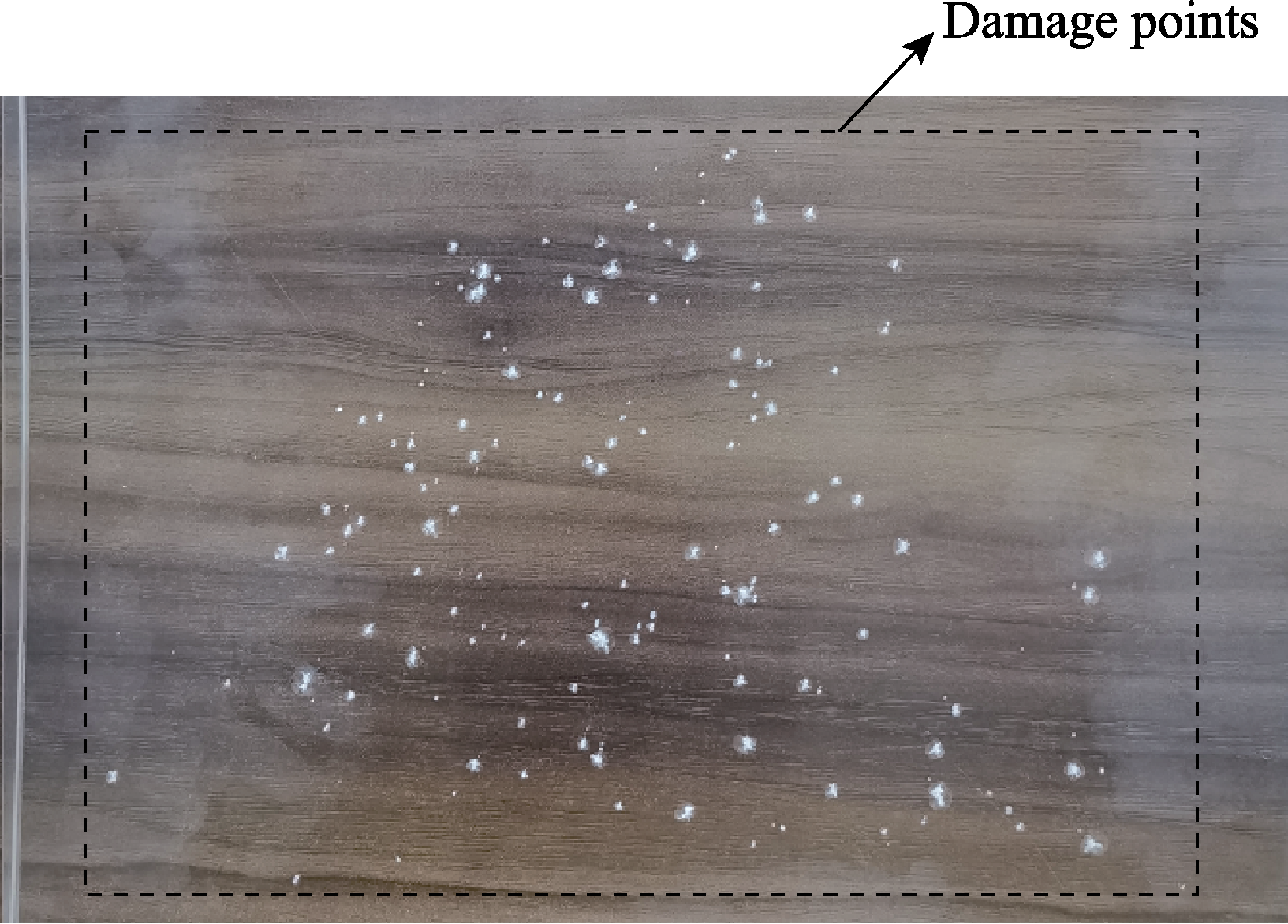

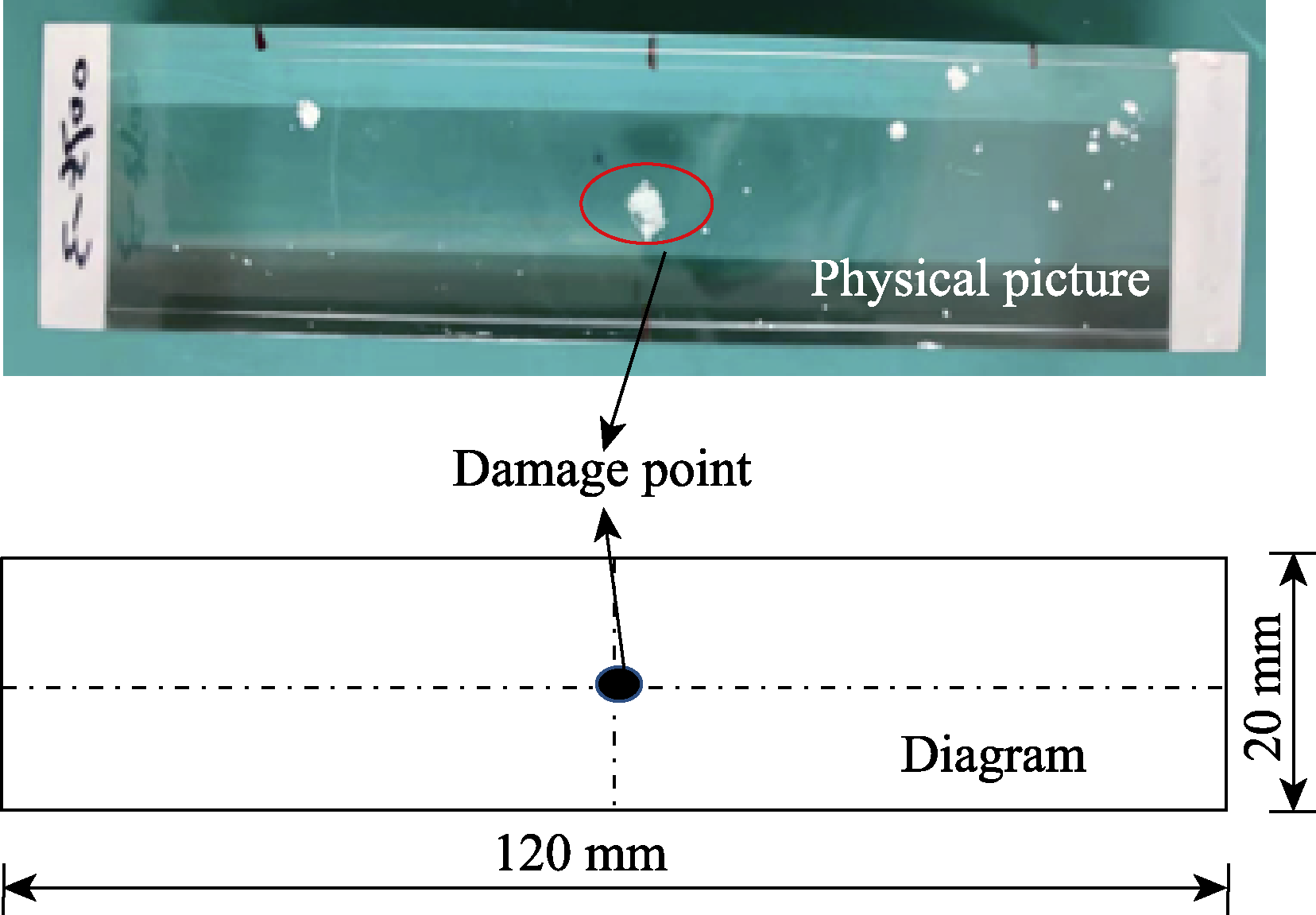

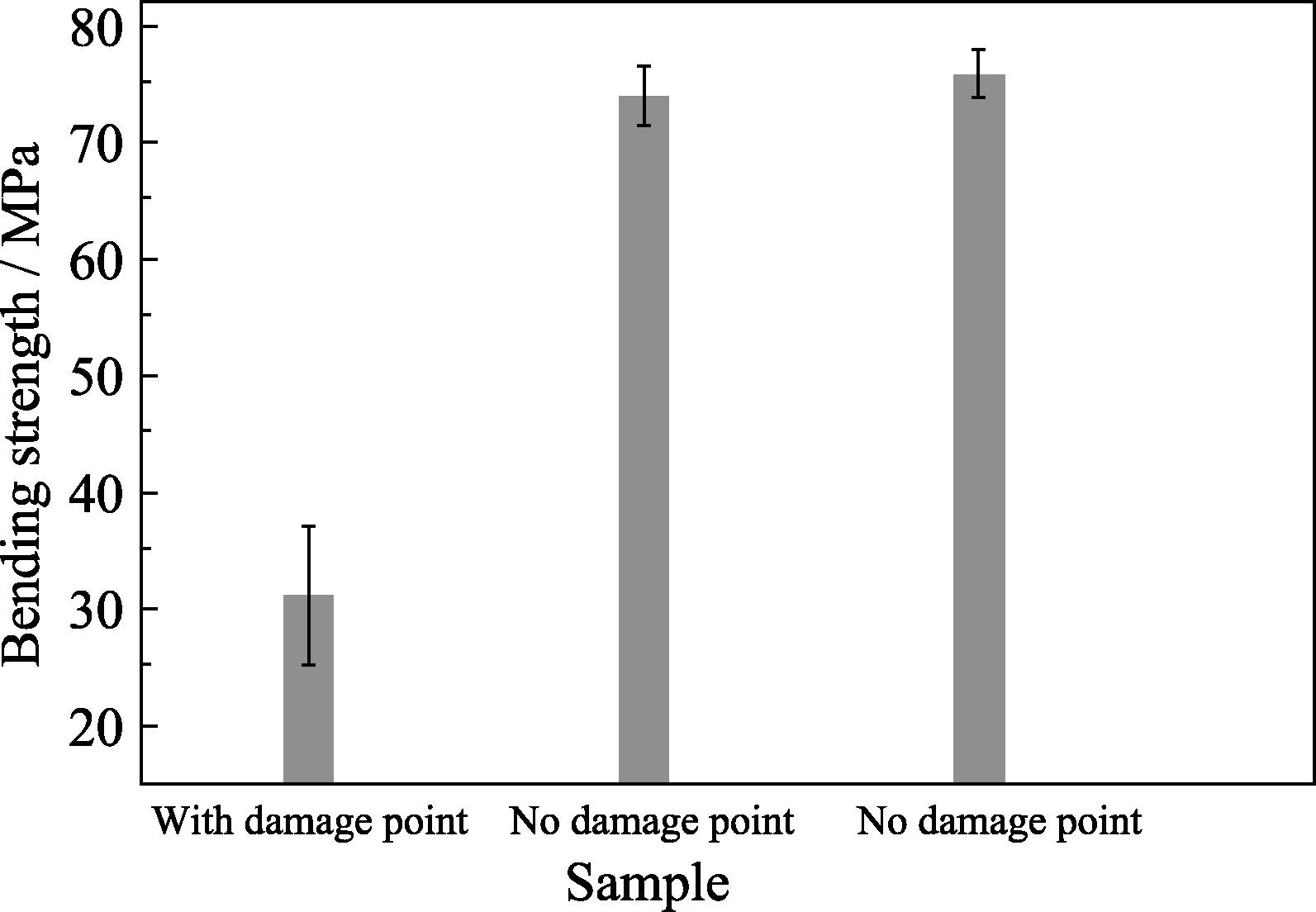

JIN Sai, LIU Xiaogen, QI Shuang, ZHAO Runchang, LI Zhijun. Fused Silica Glass: Laser-induced Damage on Bending Strength Weakening and Safety Design[J]. Journal of Inorganic Materials, 2023, 38(6): 671-677.
Length/mm | Bending strength/MPa | Length/mm | Bending strength/MPa |
---|---|---|---|
0 | 75.9 | 21 | 26.05 |
1 | 39.86 | 22 | 25.88 |
2 | 36.18 | 23 | 25.72 |
3 | 34.19 | 24 | 25.57 |
4 | 32.84 | 25 | 25.42 |
5 | 31.83 | 26 | 25.28 |
6 | 31.03 | 27 | 25.15 |
7 | 30.37 | 28 | 25.02 |
8 | 29.81 | 29 | 24.90 |
9 | 29.32 | 30 | 24.78 |
10 | 28.89 | 31 | 24.67 |
11 | 28.51 | 32 | 24.56 |
12 | 28.17 | 33 | 24.45 |
13 | 27.85 | 34 | 24.35 |
14 | 27.57 | 35 | 24.25 |
15 | 27.30 | 36 | 24.16 |
16 | 27.06 | 37 | 24.07 |
17 | 26.83 | 38 | 23.98 |
18 | 26.62 | 39 | 23.89 |
19 | 26.42 | 40 | 23.81 |
20 | 26.23 | - | - |

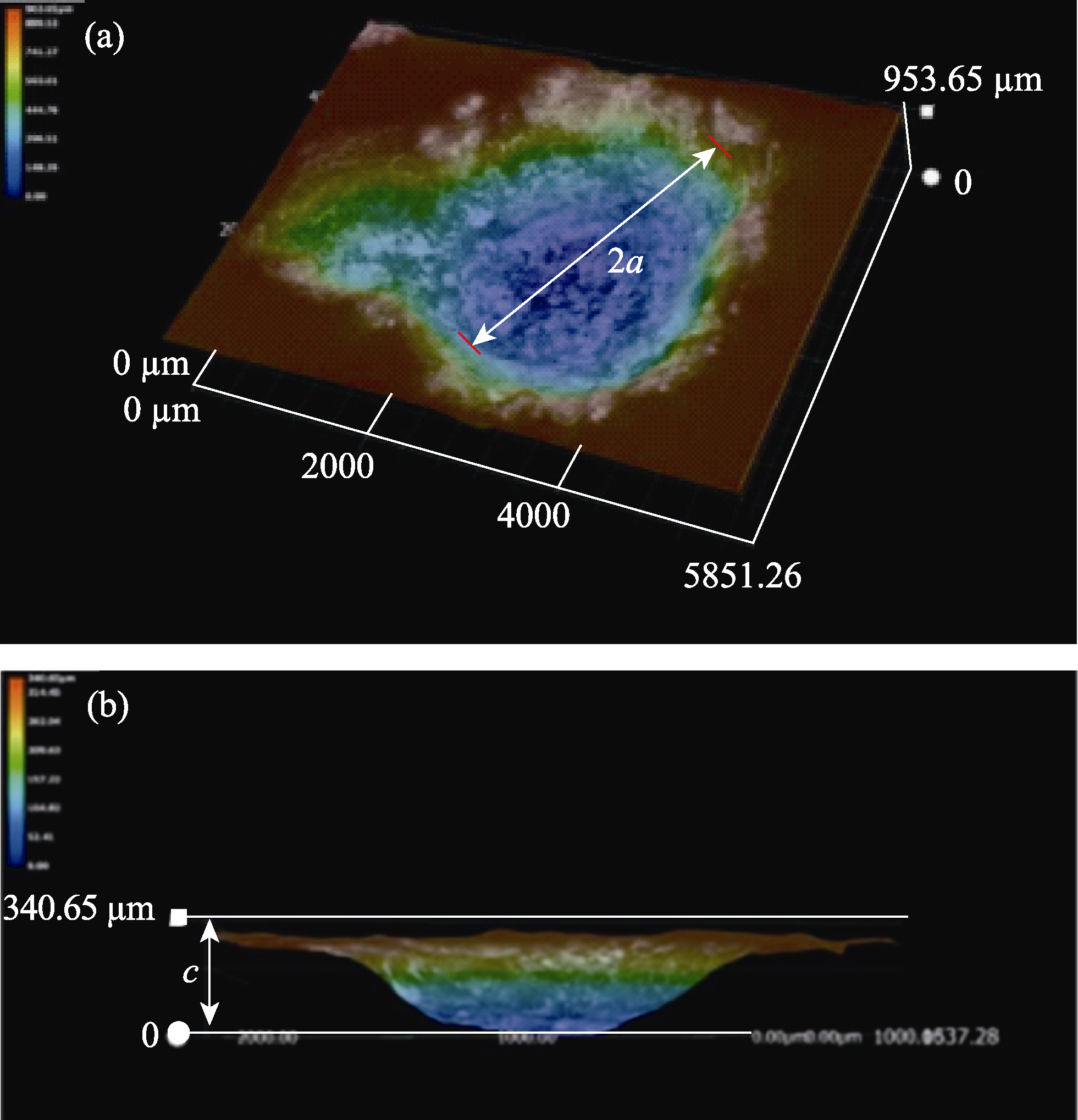

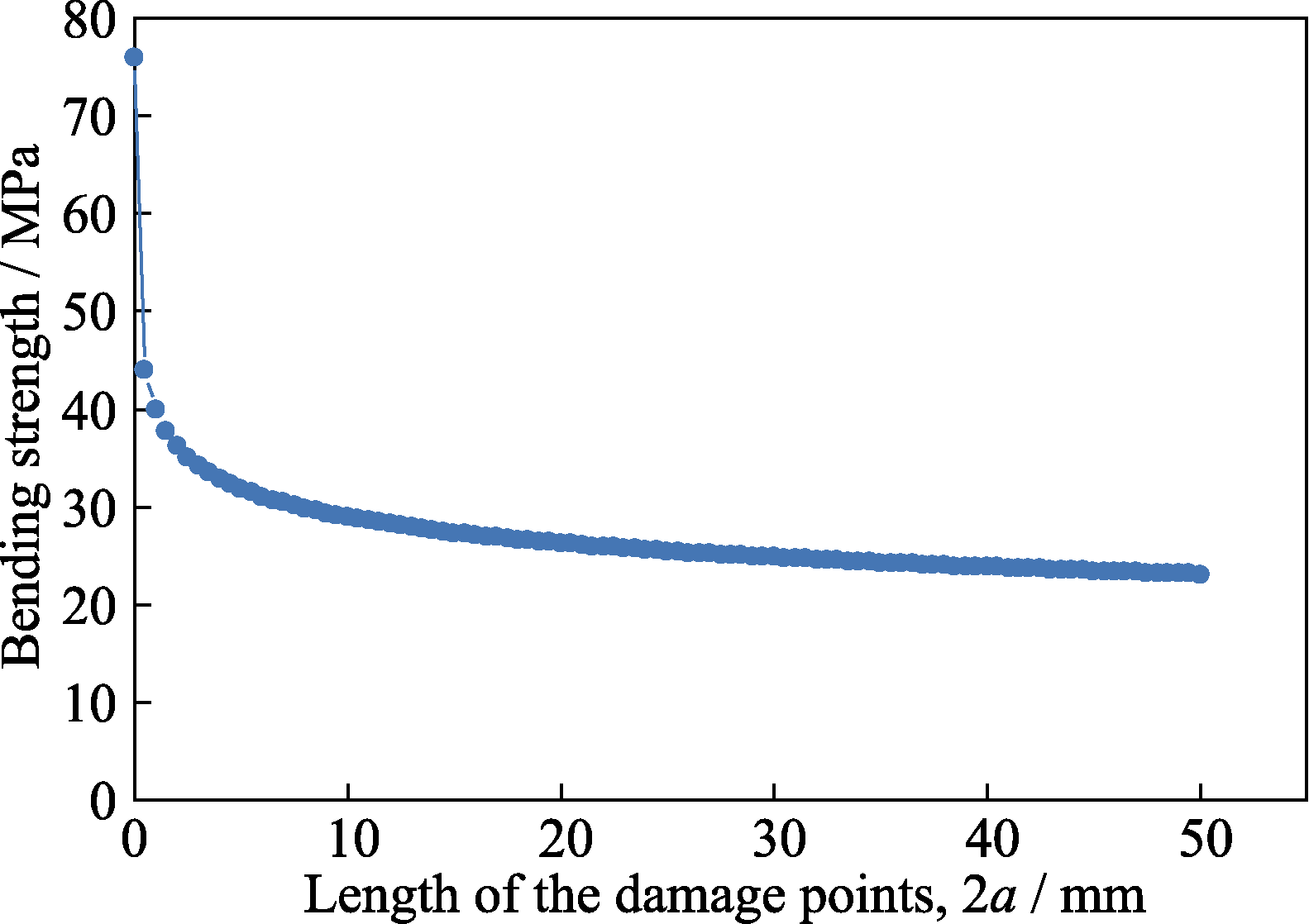

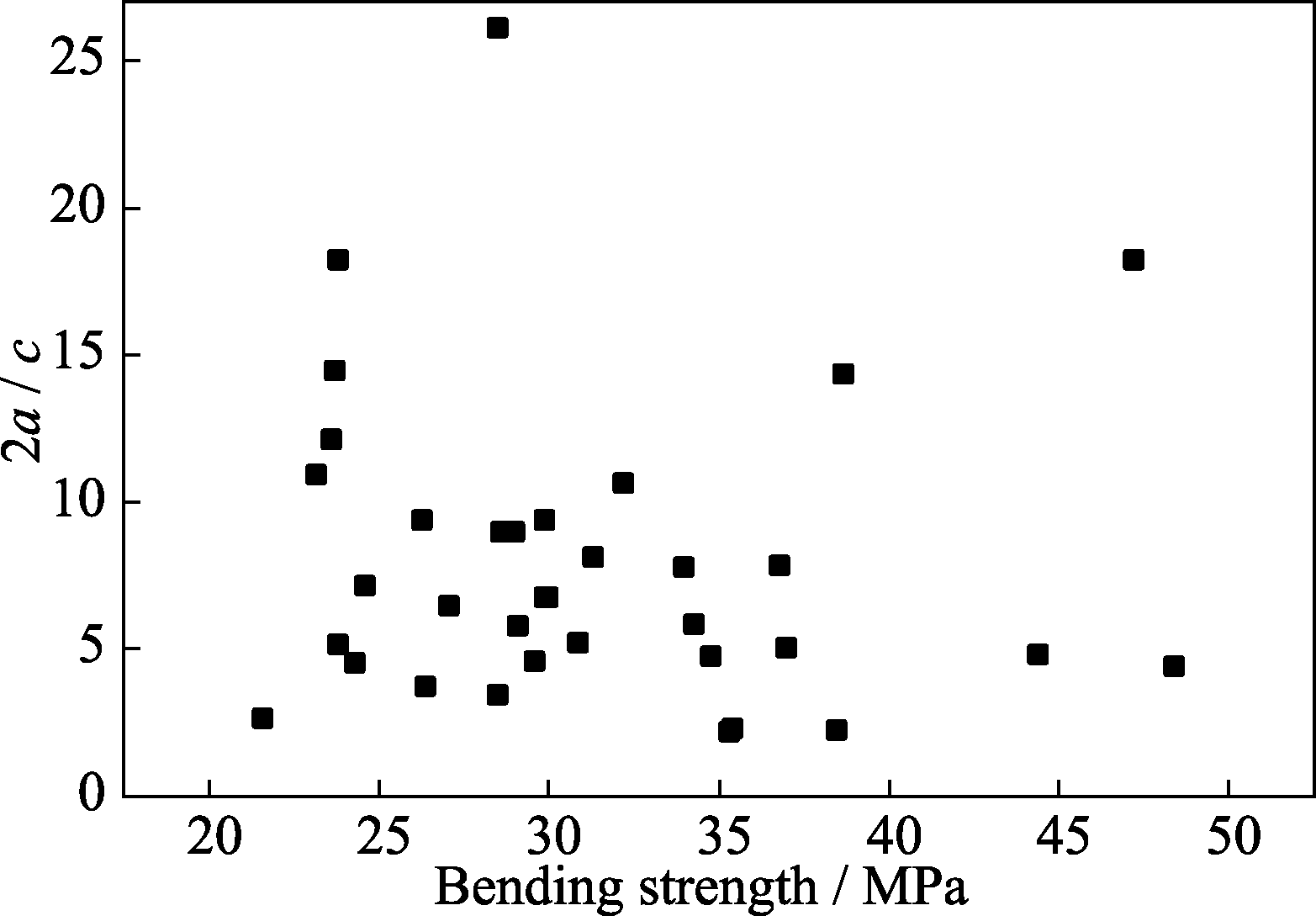

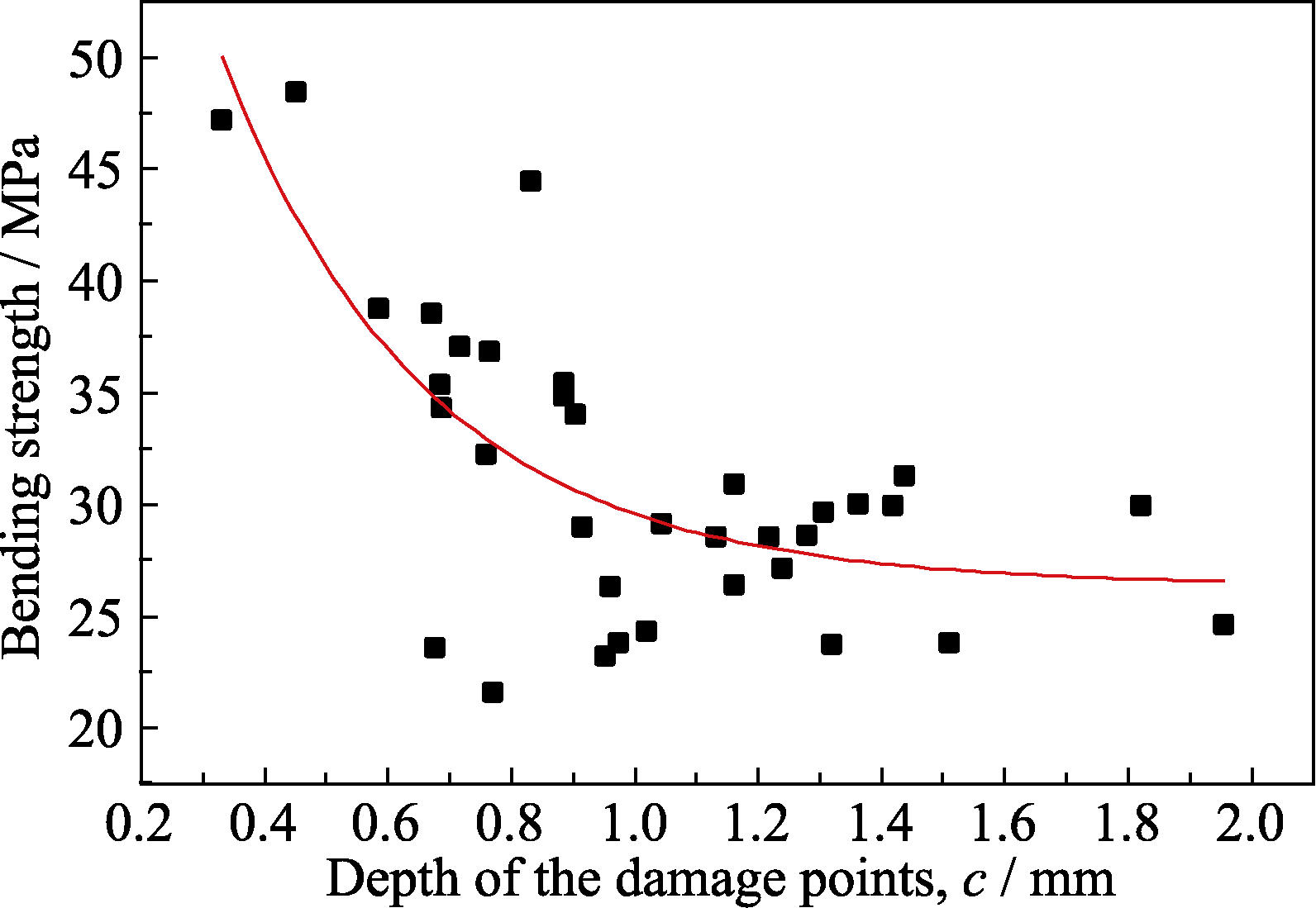

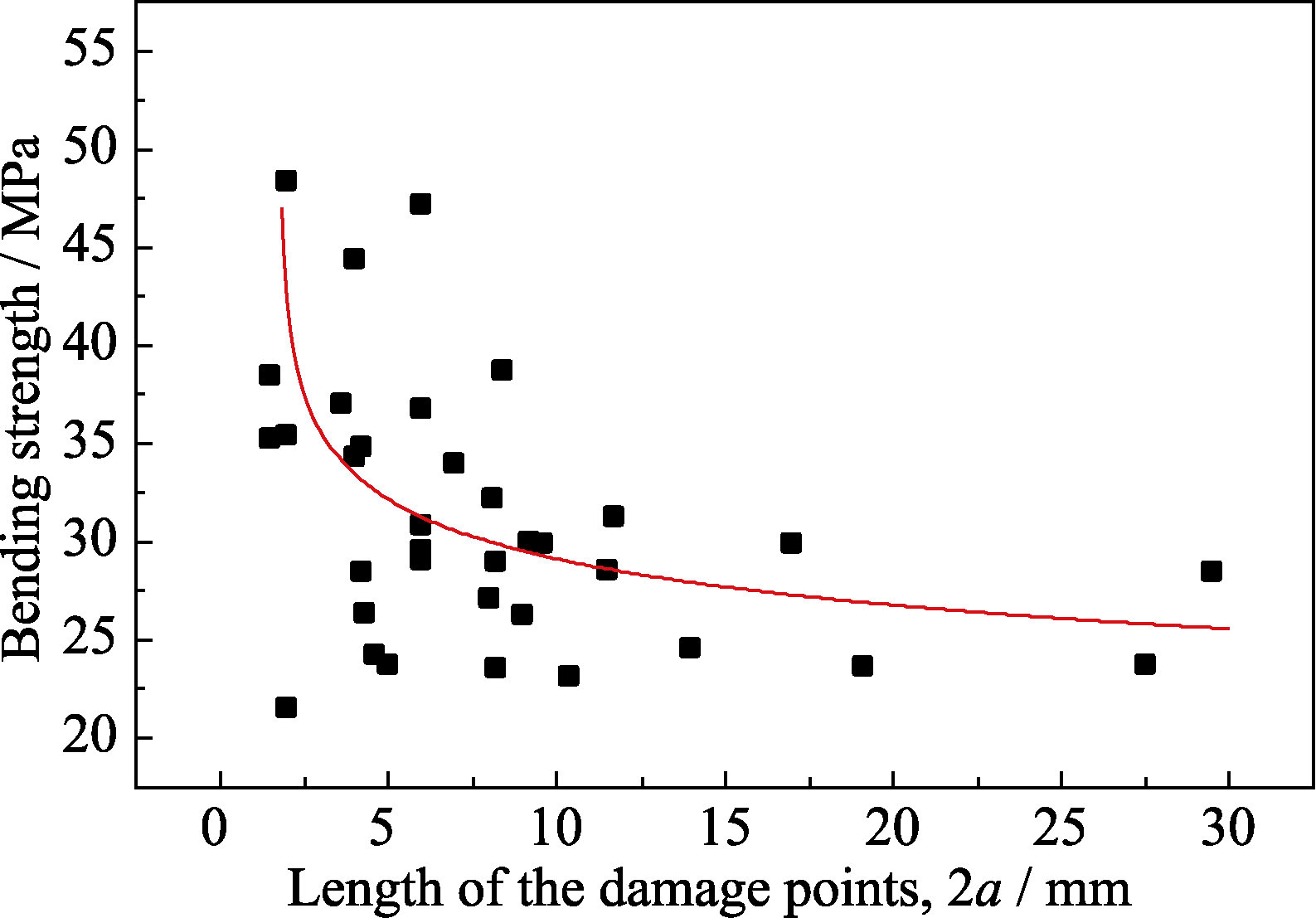

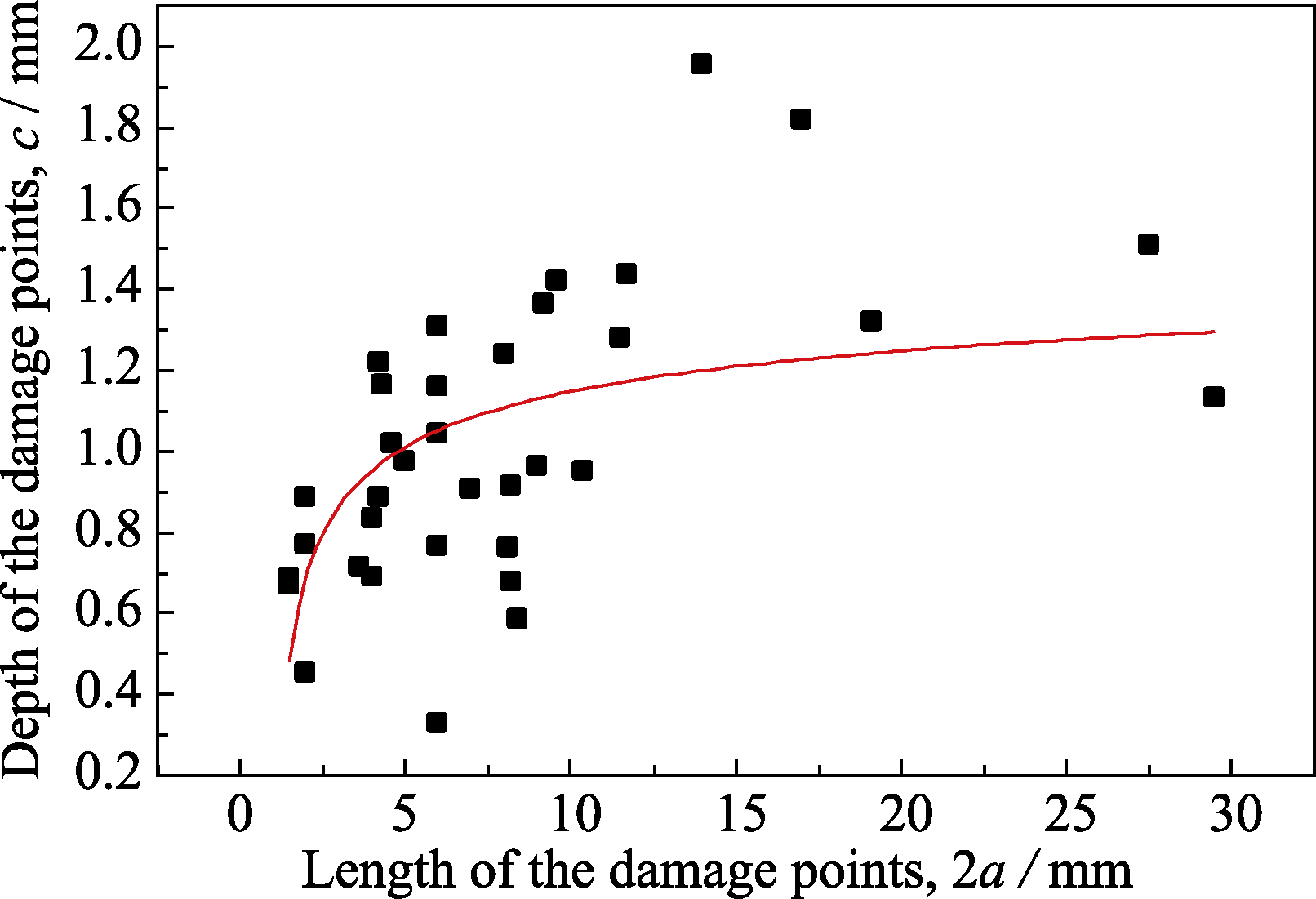

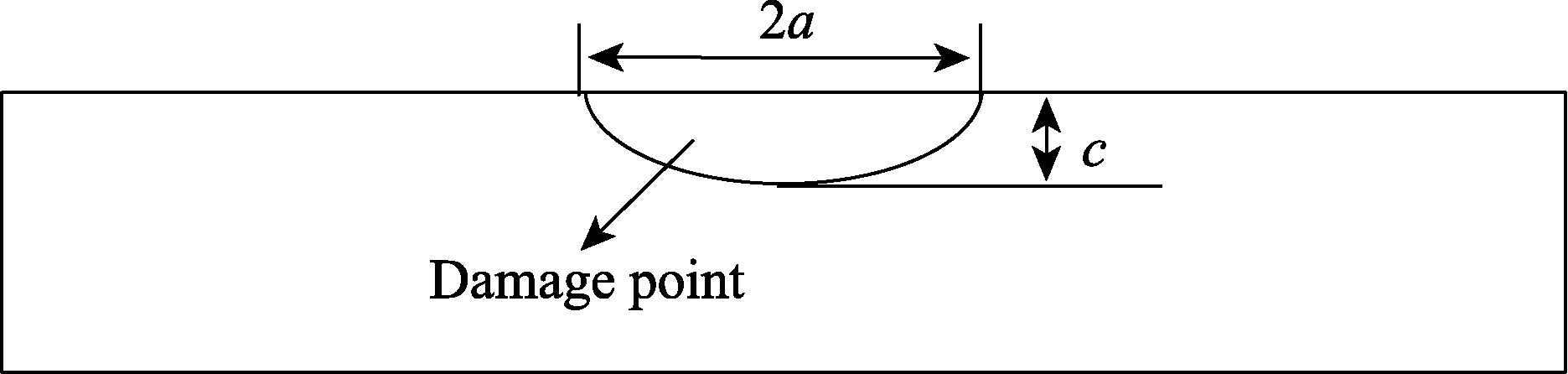

Table 1 Inversion values of bending strength of fused silica glass corresponding to different damage point sizes
Length/mm | Bending strength/MPa | Length/mm | Bending strength/MPa |
---|---|---|---|
0 | 75.9 | 21 | 26.05 |
1 | 39.86 | 22 | 25.88 |
2 | 36.18 | 23 | 25.72 |
3 | 34.19 | 24 | 25.57 |
4 | 32.84 | 25 | 25.42 |
5 | 31.83 | 26 | 25.28 |
6 | 31.03 | 27 | 25.15 |
7 | 30.37 | 28 | 25.02 |
8 | 29.81 | 29 | 24.90 |
9 | 29.32 | 30 | 24.78 |
10 | 28.89 | 31 | 24.67 |
11 | 28.51 | 32 | 24.56 |
12 | 28.17 | 33 | 24.45 |
13 | 27.85 | 34 | 24.35 |
14 | 27.57 | 35 | 24.25 |
15 | 27.30 | 36 | 24.16 |
16 | 27.06 | 37 | 24.07 |
17 | 26.83 | 38 | 23.98 |
18 | 26.62 | 39 | 23.89 |
19 | 26.42 | 40 | 23.81 |
20 | 26.23 | - | - |
Load action time | K1 | K2 | K |
---|---|---|---|
≤1 min | 2.5 | 1.00 | 2.50 |
1 d | 2.5 | 1.85 | 4.63 |
30 d | 2.5 | 2.27 | 5.68 |
180 d | 2.5 | 2.50 | 6.25 |
1 a | 2.5 | 2.63 | 6.58 |
3 a | 2.5 | 2.78 | 6.95 |
5 a | 2.5 | 2.94 | 7.35 |
Table 2 K2 and K values of the fused silica glass under various load action time
Load action time | K1 | K2 | K |
---|---|---|---|
≤1 min | 2.5 | 1.00 | 2.50 |
1 d | 2.5 | 1.85 | 4.63 |
30 d | 2.5 | 2.27 | 5.68 |
180 d | 2.5 | 2.50 | 6.25 |
1 a | 2.5 | 2.63 | 6.58 |
3 a | 2.5 | 2.78 | 6.95 |
5 a | 2.5 | 2.94 | 7.35 |
[1] |
JOHN N, LOWELL W, ALBERT T, et al. Laser compression of matter to super high densities: thermonuclear (CTR) applications. Nature, 1972, 239: 139.
DOI |
[2] | EDWARDS M J. The ignition physics campaign on NIF:status and progress. Journal of Physics: Conference Series, 2016, 688: 012017. |
[3] |
MIQUEL J L, PRENE E. LMJ & PETAL status and program overview. Nuclear Fusion, 2019, 59(3):032005.
DOI URL |
[4] | ZHENG W G, WEI X F, ZHU Q H, et al. Laser performance of the SG-III laser facility. High Power Laser Science and Engineering, 2016, 4: 5. |
[5] |
NEGRES R A, NORTON M A, CROSS D A, et al. Growth behavior of laser-induced damage on fused silica optics under UV, ns laser irradiation. Optics Express, 2010, 18(19):19966.
DOI PMID |
[6] |
HUANG W Q, HAN W, WANG F, et al. Laser-induced damage growth on larger aperture fused silica optical components at 351 nm. Chinese Physics Letters, 2009, 26(1):17901.
DOI URL |
[7] | 张立卫.应力条件下真空光学窗口激光损伤研究. 哈尔滨: 哈尔滨工业大学硕士学位论文, 2021. |
[8] | PAPERNOV S, SCHMID A W, OLIVER J B, et al. Damage thresholds and morphology of the front-and-back-irradiated SiO2 thin films containing gold nanoparticles as artificial absorbing defects. Proceedings of SPIE, 2008, 6720: 67200G. |
[9] | 史亚莉, 陶显, 周信达, 等. 光学元件激光损伤在线检测装置. 红外与激光工程, 2018, 47(4):23. |
[10] |
DIAZ R, CHAMBONNEAU M, GRUA P, et al. Influence of vacuum on nanosecond laser induced surface damage morphology in fused silica at 1064 nm. Applied Surface Science, 2016, 362: 290.
DOI URL |
[11] | CAMPBELL J H, EDWARDS G J, MARION J E. Damage and fracture in large aperture fused silica vacuum spatial filter lenses. Proceedings of SPIE, 1995, 2633: 522. |
[12] | SURATWALA T I, CAMPBELL J H, STEELE W A, et al. Fail safe design for square vacuum barrier windows. Proceedings of SPIE, 1999, 3492: 740. |
[13] | RIGATTI A L, SMITH D J, SCHMID A W, et al. Damage in fused silica spatial filter lenses on the OMEGA laser system. Proceedings of SPIE, 1999, 3578: 472. |
[14] |
CLEMENCE G, THOMAS L, LAURENT L, et al. Impact of mechanical stress induced in silica vacuum windows on laser induced damage. Optics Letters, 2018, 43(8):1706.
DOI URL |
[15] | 金宗哲, 包亦望. 脆性材料力学性能评价与设计. 中国铁道出版社, 1996. |
[16] | BAO Y W, JIN Z. Size effects and a mean strength criterion for ceramics. Fatigue & Fracture of Engineering Materials & Structures, 1993, 16(8):829. |
[17] | 刘小根, 刘正权, 包亦望, 等. 玻璃弯曲强度的厚度效应及超薄玻璃弯曲强度测试技术. 硅酸盐学报, 2016, 44(11):1641. |
[18] | LIU X G, BAO Y W, WAN D T, et al. Critical size on spontaneous breakage of tempered glass initiated by NiS particle. Journal of Inorganic Materials, 2020, 35(2):211. |
[19] | 胡锐峰, 韩敬华, 冯国英, 等. 使用多光谱手段研究熔石英断裂机理. 光谱学与光谱分析, 2017, 31(11):3327. |
[20] |
WONG J, FERRIERA J, LINDSEY E, et al. Morphology and microstructure in fused silica induced by high fluence ultraviolet 3ω (355 nm) laser pulses. Journal of Non-Crystalline Solids, 2006, 352(3):255.
DOI URL |
[21] |
WANG K, MA B, HAN J Q, et al. Morphological and damage growth characteristics of shell-type damage of fused silica optics induced by ultraviolet laser pulses. Applied Optics, 2019, 58(32):8882.
DOI URL |
[22] | GB/T 37781-2019, 玻璃材料弯曲强度试验方法. |
[23] |
FISCHER A C, COLLINS R E. Architectural glazing: design standards and failure models. Building and Environment, 1995, 30(1):29.
DOI URL |
[24] | 刘向阳, 刘锡良, 陈志华. 玻璃材料与新型建筑. 天津大学学报, 2001, 34(1):77. |
