HfN Formation and Phase Relationships in the Hf-Si-La-O-N System

doi:10.15541/jim20200382

Abstract

Abstract:

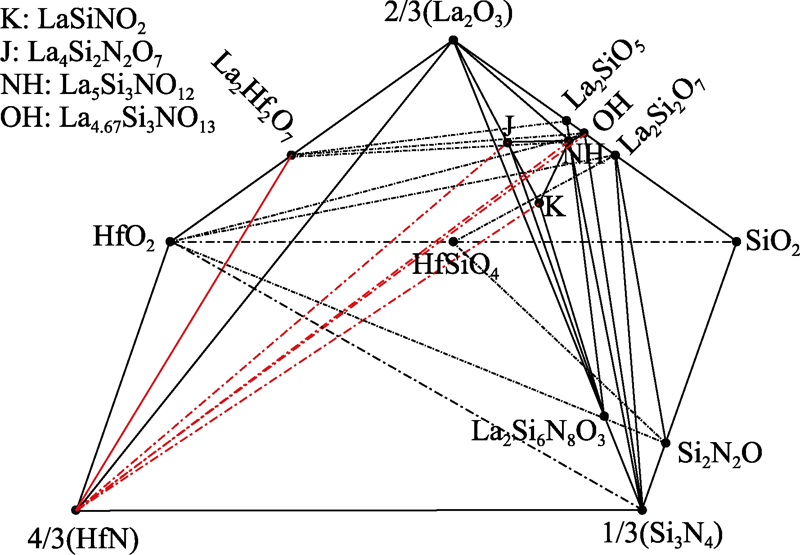

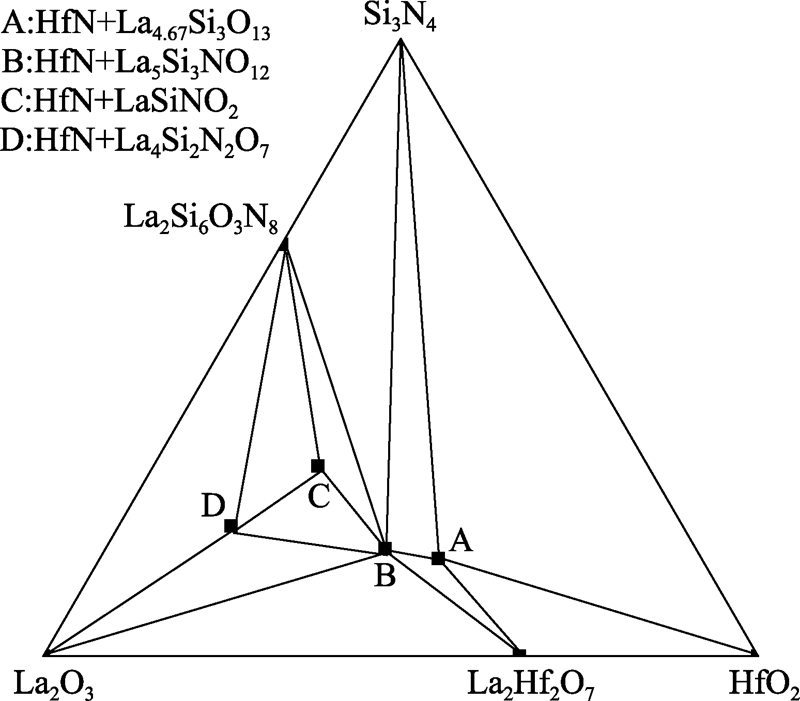

In this study, the synthesis is feasibility and formulation design of HfN composite lanthanum silicate ceramics were explored. The feasibility of HfN synthesis by ternary reaction of HfO₂-Si₃N₄-La₂O₃ system was verified by experiments, and the relationship between reaction pathway of HfO₂-Si₃N₄ binary system and Hf-Si-La-O-N was studied. Considering that the lanthanum silicate salt in the reaction of HfO₂-SiO₂-La₂O₃ ternary system was contained in the Si₃N₄-SiO₂-La₂O₃ system, lanthanum silicate was extended to the HfO₂-Si₃N₄-La₂O₃-SiO₂-HfN (Hf-Si-La-O-N) system, which clarified the coexistence of HfN and the lanthanum salt phases in the system. Experimental phase diagrams of HfO₂-SiO₂-La₂O₃ ternary system and Hf-Si-La-O-N system at 1500 ℃ were proposed. The results show that intermediate product Hf₇O₈N₄ formed in the synthesis of HfN at high temperature in HfO₂-Si₃N₄ binary system. Introduction of La₂O₃ promoted the system to generate HfN which was beneficial to reduce the burning loss rate of ceramics. There existed HfN and La_4.67Si₃O₁₃, La₅Si₃NO₁₂, LaSiNO₂, La₄Si₂N₂O₇, La₂Hf₂O₇ five lanthanum salt phases in the Hf-Si-La-O-N system.

Key words: hafnium nitride, hafnium oxide-silicon nitride-lanthanum oxide, phase relationship, composite phase

CLC Number:

TQ174

LIU Yang, LU Youjun, LI Yanrui, LIN Liqun, YUAN Zhenxia, HUANG Zhenkun. HfN Formation and Phase Relationships in the Hf-Si-La-O-N System[J]. Journal of Inorganic Materials, 2021, 36(4): 443-448.

Figures/Tables 12

References 24

[1]	FAHRENHOLTZ W G, HILMAS G E. Ultra-high temperature ceramics: materials for extreme environments. Scripta Materialia, 2017,129:94-99.
[2]	柳福提, 程晓洪. 氮化铪的弹性与热力学性质的第一性原理计算. 重庆师范大学学报(自然科学版), 2012,29(06):70-74.
[3]	STAIA M H, BHAT D G, PUCHI CABRERA, et al. Characterization of chemical vapor deposited HfN multilayer coatings on cemented carbide cutting tools. Wear, 2006,261(5/6):540-548.
[4]	JING A, JINPENG S, GUOXING LIANG, et al. Effects of HfB₂ and HfN additions on the microstructures and mechanical properties of TiB₂-based ceramic tool materials. Materials, 2017,10(5):461-471.
[5]	SONG J, CAO L, GAO J, et al. Effects of HfN content and metallic additives on the microstructure and mechanical properties of TiC_0.7N_0.3-based ceramic tool materials. Journal of Alloys & Compounds, 2018,753:85-92.
[6]	AILING B, HOGLUND C, HALL-WILTON R, et al. Mixing thermodynamics of TM_(1-x)Gd_xN(TM=Ti,Zr,Hf) from first principles. Applied Physics Letters, 2011,98(24):241911-1-3.
[7]	张小波. 岩盐结构氮化铪薄膜的结构与性质研究. 长春: 吉林大学硕士学位论文, 2015, 20-22.
[8]	BAB M A, MENDOZA-ZÉLIS L, DAMONTE L C, et al. Nanocrystalline HfN produced by mechanical milling: kinetic aspects. Acta Materialia, 2001,49(20):4205-4213.
[9]	小林秀彦, 下坂建一, 三田村孝. Mg還元テルミット法によるHfN微粉末の合成. 日本セラミックス協会学術論文誌, 1992,100:1338-1342.
[10]	PARLAK TUGBA TUNC, SÜKRAN DEMIRKIRAN A. Zeolite usage as source of silica to produce cordierite in MgO-Al₂O₃-SiO₂ system. Journal of Advanced Ceramics, 2018,7(4):84-93.
[11]	GHOSH G, VAYNMAN S, FINE M E, et al. Microstructure of a Sialon composite prepared by hot pressing and reactive sintering of β-Si₃N₄ coated with amorphous Al₂O₃. Ceramics International, 1999,25(7):649-659.
[12]	陆有军, 袁振侠, 李彦瑞, et al. SrO对Si₃N₄-ZrO₂-SrO系统反应合成ZrN的影响. 硅酸盐学报, 2018,46(6):823-828.
[13]	LI YAN-RUI, LU YOU-JUN, LIU YANG, et al. Reaction synthesizes of ZrN and phase diagram in the Si₃N₄-ZrO₂-La₂O₃ system. Journal of Inorganic Materials, 2020,35(7):822-826.
[14]	LI H, KOMEYA K, TATAMI J, et al. Effect of HfO₂ addition on sintering of Si₃N₄. Journal of the Ceramic Society of Japan, 2001,109(4):342-346.
[15]	WEISS J, GAUCKLER L J, TIEN T Y, et al. The system Si₃N₄- SiO₂-ZrN-ZrO₂. Journal of the American Ceramic Society, 1979,62(11/12):632-634.
[16]	MITOMO M, IZUMI F, HORIUCHI S, et al. Phase relationships in the system Si₃N₄-SiO₂-La₂O₃. Journal of Materials Science, 1982,17(8):2359-2364.
[17]	SUN W Z, CHENG J G, HUANG Z K, et al. ZrC formation and the phase relations in the Si-Zr-Mg-O-C system. Journal of Materials Science, 2016,51(17):8139-8147.
[18]	张晰. 稀土硅酸盐化合物改性氮化硼基复合材料的制备与性能研究. 北京: 中国科学院大学博士学位论文, 2015, 109-115.
[19]	田志林. 几种稀土硅酸盐陶瓷的预测、制备和性能研究. 北京: 中国科学院大学博士学位论文, 2016: 161-168.
[20]	LIU B, WANG J Y, LI F Z, et al. Theoretical elastic stiffness, structural stability and thermal conductivity of La₂T₂O₇ (T=Ge, Ti, Sn, Zr, Hf) pyrochlore. Acta Materialia, 2010,58(13):4369-4377.
[21]	PARFENENKOV V N, GREBENSHCHIKOV R G, DOMANSKII A I, et al. ChemInform abstract: mischkristalle im system Y₂O₃- HfO₂-SiO₂. Chemischer Informationsdienst, 1974,5(36):1071-1074.
[22]	KOMISSAROVA L N, WANG K S, SPITSYN I, et al. The La₂O₃- HfO₂ system. Zh. Neorg. Khim., 1964,9(3):693-697.
[23]	TOROPOV N A, BONDAR I A, AKAD IZV, et al. High-temperature solid solutions of silicates of the rare earth elements. Trans. Inter. Ceram. Congr. 8th Copenhagen, 1962,5:85-103.
[24]	WANG Z, ZHOU G, JIANG D, et al. Recent development of A₂B₂O₇ system transparent ceramics. Journal of Advanced Ceramics, 2018,7(4):289-306.

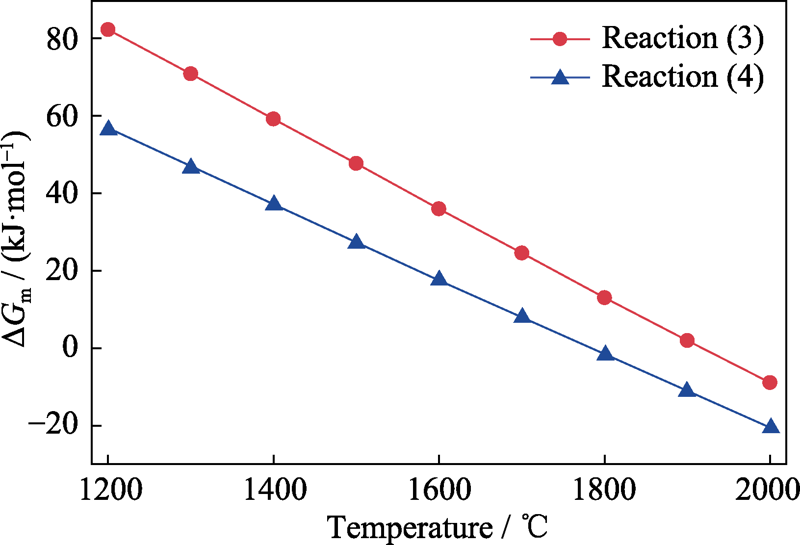

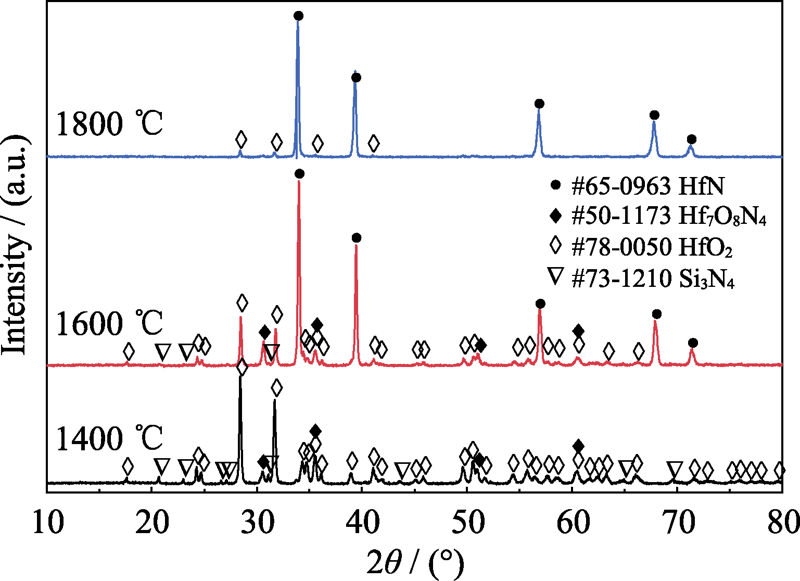

Sample	n(Si₃N₄) : n(HfO₂)	T/℃	Phase composition by XRD	Mass loss/%
1Si1.5Hf	1 : 1.5	1400	HfO₂, Hf₇O₈N₄, Si₃N₄	8.1
		1600	HfO₂, Hf₇O₈N₄, Si₃N₄, HfN	18.3
		1800	HfO₂, HfN	26.4

Sample	n(Si₃N₄) : n(HfO₂)	T/℃	Phase composition by XRD	Mass loss/%
1Si1.5Hf	1 : 1.5	1400	HfO₂, Hf₇O₈N₄, Si₃N₄	8.1
		1600	HfO₂, Hf₇O₈N₄, Si₃N₄, HfN	18.3
		1800	HfO₂, HfN	26.4

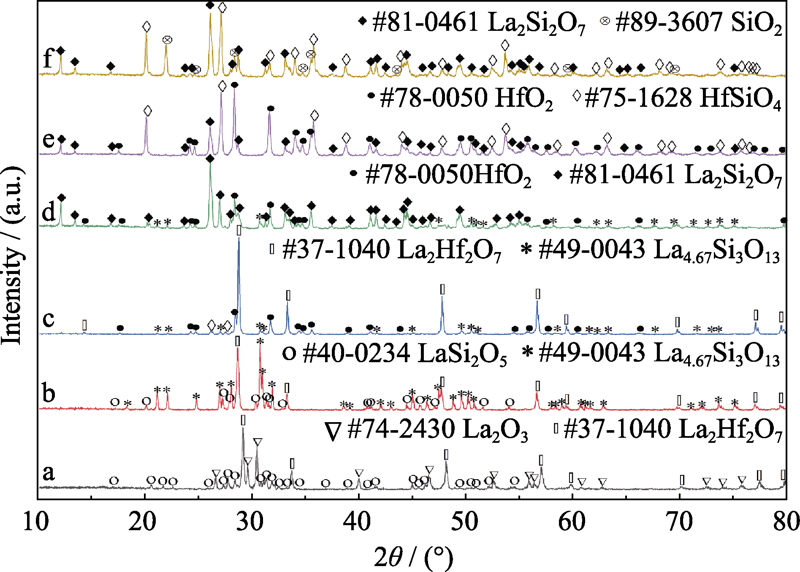

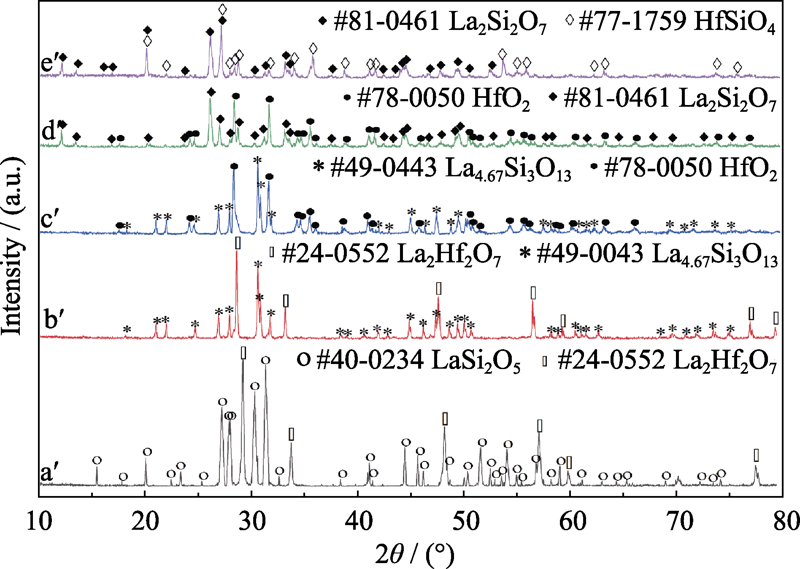

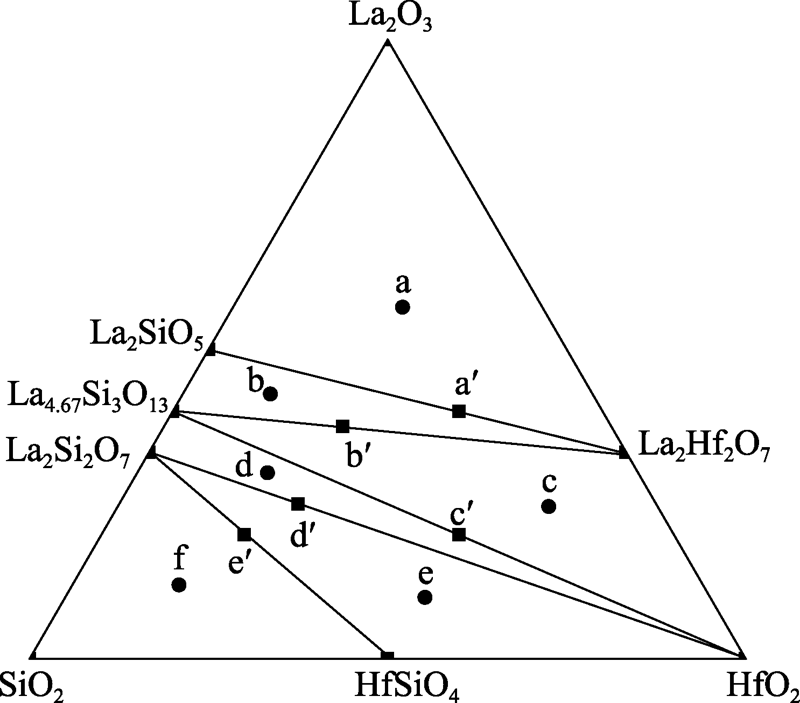

Sample	n(HfO₂) : n(SiO₂) : n(La₂O₃)	Phase composition by XRD (1500 ℃)	Mass loss/%
a	6 : 5 : 14	La₂O₃, La₂Hf₂O₇, La₂SiO₅	1.30
b	12 : 45 : 43	La₂Hf₂O₇, La_4.67Si₃O₁₃, La₂SiO₅	1.60
c	12 : 3 : 5	HfO₂, La₂Hf₂O₇, La_4.67Si₃O₁₃	0.80
d	9 : 26 : 15	HfO₂, La₂Si₂O₇, La_4.67Si₃O₁₃	1.10
e	5 : 4 : 1	HfO₂, La₂Si₂O₇, HfSiO₄	1.90
f	15 : 73 : 12	SiO₂, La₂Si₂O₇, HfSiO₄	2.30
a′	2 : 1 : 2	La₂SiO₅, La₂Hf₂O₇	1.13
b′	2 : 3 : 3	La_4.67Si₃O₁₃, La₂Hf₂O₇	0.96
c′	5 : 3 : 2	La_4.67Si₃O₁₃, HfO₂	0.87
d′	1 : 2 : 1	La₂Si₂O₇, HfO₂	0.23
e′	1 : 3 : 1	La₂Si₂O₇, HfSiO₄	1.20

Sample	n(HfO₂) : n(SiO₂) : n(La₂O₃)	Phase composition by XRD (1500 ℃)	Mass loss/%
a	6 : 5 : 14	La₂O₃, La₂Hf₂O₇, La₂SiO₅	1.30
b	12 : 45 : 43	La₂Hf₂O₇, La_4.67Si₃O₁₃, La₂SiO₅	1.60
c	12 : 3 : 5	HfO₂, La₂Hf₂O₇, La_4.67Si₃O₁₃	0.80
d	9 : 26 : 15	HfO₂, La₂Si₂O₇, La_4.67Si₃O₁₃	1.10
e	5 : 4 : 1	HfO₂, La₂Si₂O₇, HfSiO₄	1.90
f	15 : 73 : 12	SiO₂, La₂Si₂O₇, HfSiO₄	2.30
a′	2 : 1 : 2	La₂SiO₅, La₂Hf₂O₇	1.13
b′	2 : 3 : 3	La_4.67Si₃O₁₃, La₂Hf₂O₇	0.96
c′	5 : 3 : 2	La_4.67Si₃O₁₃, HfO₂	0.87
d′	1 : 2 : 1	La₂Si₂O₇, HfO₂	0.23
e′	1 : 3 : 1	La₂Si₂O₇, HfSiO₄	1.20

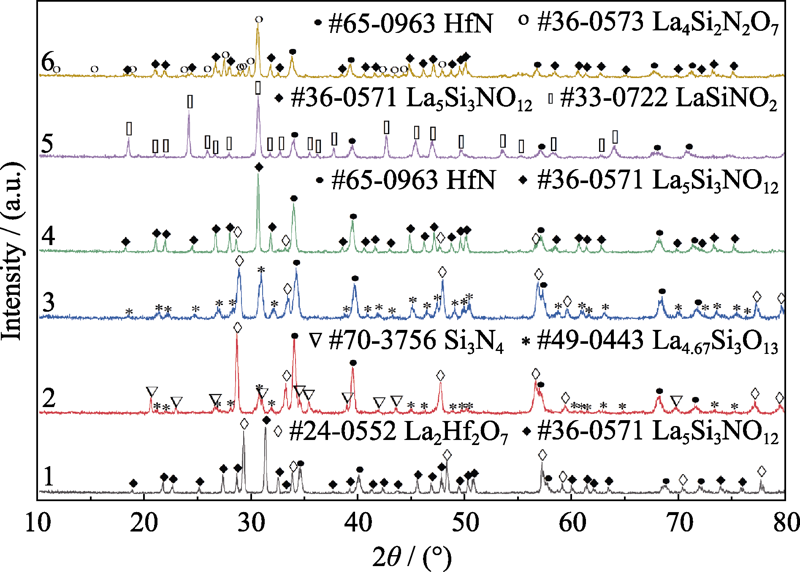

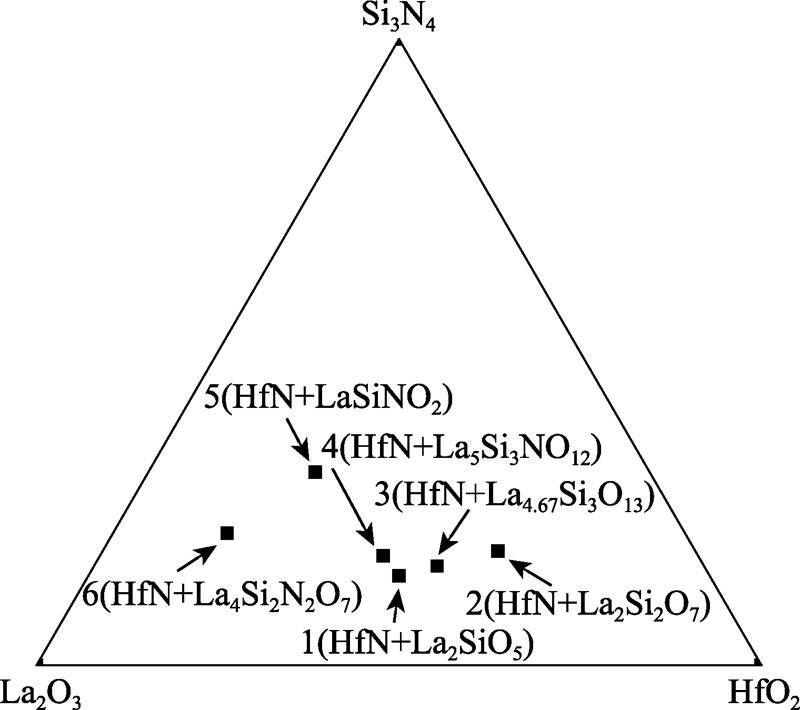

Sample	n(HfO₂) : n(Si₃N₄) : n(La₂O₃)	Expected product	Phase composition by XRD (1500 ℃)	Mass loss/%
1	1 : 1/3 : 1	HfN, La₂SiO₅	HfN(w), La₂Hf₂O₇(s), La₅Si₃NO₁₂(vs)	3.20
2	2 : 2/3 : 1	HfN, La₂Si₂O₇	HfN(vs), La₂Hf₂O₇(s), La_4.67Si₃O₁₃(w), Si₃N₄(vw)	2.40
3	3 : 1 : 7/3	HfN, La_4.67Si₃O₁₃	HfN(vs), La₂Hf₂O₇(s), La_4.67Si₃O₁₃(s)	4.70
4	9/4 : 1 : 5/2	HfN, La₅Si₃NO₁₂	HfN(s), La₅Si₃NO₁₂(vs), La₂Hf₂O₇(w)	4.20
5	1/4 : 1/3 : 1/2	HfN, LaSiNO₂	HfN(w), LaSiNO₂(vs)	3.70
6	1/2 : 2/3 : 2	HfN, La₄Si₂N₂O₇	HfN(w), La₅Si₃NO₁₂ (vw), La₄Si₂N₂O₇(s)	4.40
