Effect of Different Alkali-assisted Deposition Precipitation Methods on the Durability of Three-way Catalysts

doi:10.15541/jim20200357

Abstract

Abstract:

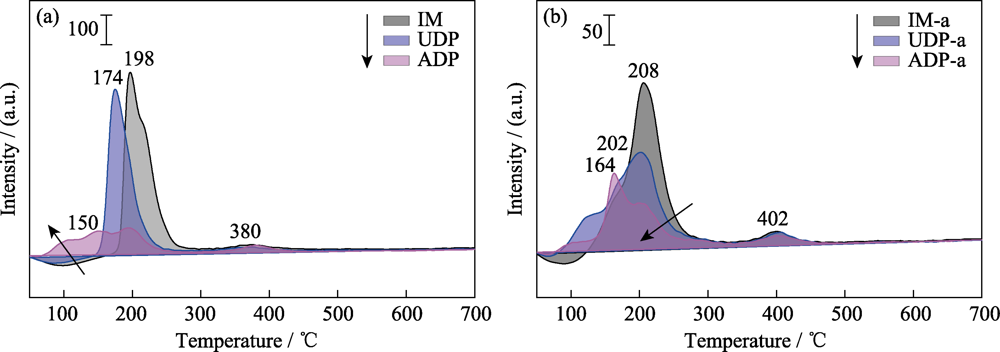

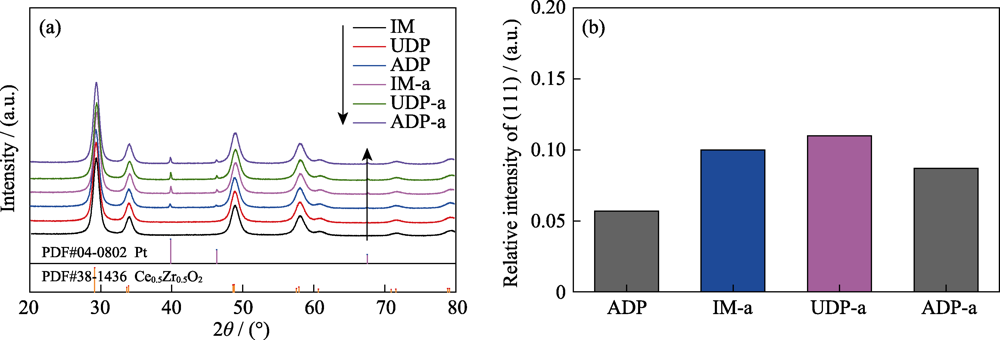

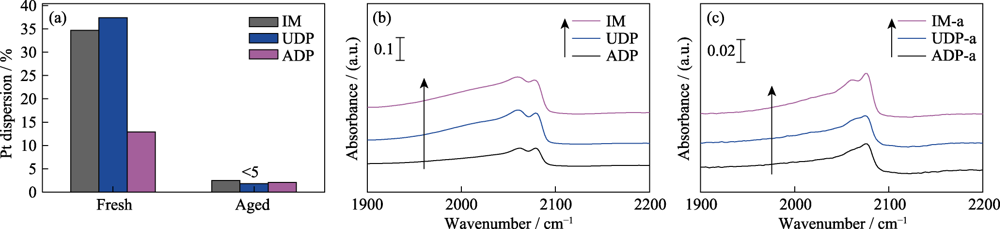

The aging treatment always brings about severe deactivation of three-way catalysts (TWCs) so that improving the durability is one goal of TWCs design. In this work, Pt/Ce_0.4Zr_0.5La_0.05Pr_0.05O₂ (Pt/CZ) TWCs were prepared by two different alkali-assisted deposition precipitation method, urea or ammonia. The effects of different alkali-assisted on the physicochemical properties, catalytic activity and durability were analyzed. It was found that the Pt/CZ catalyst prepared by urea-assisted deposition precipitation method (UDP) had poor aging resistance but the Pt/CZ catalyst prepared by ammonia-assisted (ADP) showed better anti-aging ability. Based on the results of XRD, CO adsorption, XPS and H₂-TPR, comparatively larger particle size of Pt species and stronger interaction for ADP make it more difficult to sinter together during the aging treatment, which is favorable for maintaining catalytic activity. Therefore, the ADP catalyst shows a bright future for industrialization.

Key words: three-way catalysts, deposition precipitation, alkali-assisted, durability

CLC Number:

O643

FAN Jun, JIANG Xue, JIAO Yi, CHEN Yusheng, WANG Jianli, CHEN Yaoqiang. Effect of Different Alkali-assisted Deposition Precipitation Methods on the Durability of Three-way Catalysts[J]. Journal of Inorganic Materials, 2021, 36(6): 659-664.

Figures/Tables 8

References 25

[1]	LI G F, WANG Q Y, ZHAO B, et al. A new insight into the role of transition metals doping with CeO₂-ZrO₂ and its application in Pd-only three-way catalysts for automotive emission control. Fuel, 2012,92:360-368. DOI URL
[2]	HANEDA M, SHINODA K, NAGANE A, et al. Catalytic performance of rhodium supported on ceria-zirconia mixed oxides for reduction of NO by propene. Journal of Catalysis, 2008,259:223-231. DOI URL
[3]	NAGAI Y, HIRABAYASHI T, DOHMAE K, et al. Sintering inhibition mechanism of platinum supported on ceria-based oxide and Pt-oxide-support interaction. Journal of Catalysis, 2006,242:103-109. DOI URL
[4]	ZHAN Z C, LIU X J, HE H, et al. Fabrication of a flower-like Pd/CeO₂ material with improved three-way catalytic performance. Journal of Rare Earths, 2013,31:750-758. DOI URL
[5]	FERNANDESA D M, SCOFIELDA C F, NETO A A, et al. Thermal deactivation of Pt/Rh commercial automotive catalysts. Chemical Engineering Journal, 2010,160:85-92. DOI URL
[6]	ESCHEMANN T O, BITTER J H, JONG K P. Effect of thermal ageing on the structure and catalytic activity of Pd/CeO₂ prepared using arc-plasma process. Catalysis Science Technology, 2014,4:2990-2996. DOI URL
[7]	YOON D Y, KIM Y J, LIM J H, et al. Thermal stability of Pd-containing LaAlO₃ perovskite as a modern TWC. Journal of Catalysis, 2015,330:71-83. DOI URL
[8]	TANABE T, NAGAI Y, DOHMAE K, et al. Sintering and redispersion behavior of Pt on Pt/MgO. Journal of Catalysis, 2008,257:117-124. DOI URL
[9]	WANG J H, CHEN H, HU Z C, et al. A review on the Pd-based three-way catalyst. Catalysis Reviews, 2014,57:79-144. DOI URL
[10]	HE J J, WANG H X, ZHENG T T, et al. Thermally induced deactivation and the corresponding strategies for improving durability in automotive three-way catalysts. Johnson Matthey Technology Review, 2016,60:196-203. DOI URL
[11]	LI H M, LAN L, CHEN S H, et al. Preparation of Ce_xZr₁-_xO₂ with combined composition for improved Pd-only three-way catalyst. Journal of Inorganic Materials, 2018,33(7):798-804. DOI URL
[12]	WU Q F, CUI Y J, ZHANG H L, et al. Preparation of ceria-zirconia mixed oxides with improved thermal stability for three-way catalysts by a modified co-precipitation method. Journal of Inorganic Materials, 2017,32(3):331-336. DOI URL
[13]	FAN J, CHEN Y S, JIANG X, et al. A simple and effective method to synthesize Pt/CeO₂ three-way catalysts with high activity and hydrothermal stability. Journal of Environmental Chemical Engineering, 2020,8:104236-104243. DOI URL
[14]	MUNNIK P, JONGH P E, JONG K P. Recent developments in the synthesis of supported catalysts. Chemical Reviews, 2015,115:6687-6718. DOI URL
[15]	ESCHEMANN T O, BITTER J H, JONG K P. Effects of loading and synthesis method of titania-supported cobalt catalysts for Fischer-Tropsch synthesis. Catalysis Today, 2014,228:89-95. DOI URL
[16]	MOREAU F, BOND G C. Gold on titania catalysts, influence of some physicochemical parameters on the activity and stability for the oxidation of carbon monoxide. Applied Catalysis A: General, 2006,302:110-117. DOI URL
[17]	PACELLA M, GARBUJO A, FABRO J, et al. PGM-free CuO/LaCoO₃ nanocomposites: new opportunities for TWC application. Applied Catalysis B: Environmental, 2018,227:446-458. DOI URL
[18]	CHENG T Q, WANG J L, WANG S N, et al. Citric acid induced promoted dispersion of Pt on the support and enhanced catalytic activities for a Pt-based catalyst. Applied Surface Science, 2017,426:745-754. DOI URL
[19]	BAZIN P, SAUR O, LAVALLEY J C, et al. FT-IR study of CO adsorption on Pt/CeO₂: characterisation and structural rearrangement of small Pt particles. Physical Chemistry Chemical Physics, 2005,7:187-194. DOI URL
[20]	SHEN M Q, LÜ L F, WANG J Q, et al. Study of Pt dispersion on Ce based supports and the influence on the CO oxidation reaction. Chemical Engineering Journal, 2014,255:40-48. DOI URL
[21]	FAN J, WU X D, YANG L, et al. The SMSI between supported platinum and CeO₂-ZrO₂-La₂O₃ mixed oxides in oxidative atmosphere. Catalysis Today, 2007,126:303-312. DOI URL
[22]	PENG R S, LI S J, SUN X B, et al. Size effect of Pt nanoparticles on the catalytic oxidation of toluene over Pt/CeO₂ catalysts. Applied Catalysis B: Environmental, 2018,220:462-470. DOI URL
[23]	FAN J, WU X D, WU X D, et al. Thermal ageing of Pt on low-surface-area CeO₂-ZrO₂-La₂O₃ mixed oxides: effect on the OSC performance. Applied Catalysis B: Environmental, 2008,81:38-48. DOI URL
[24]	WU X D, FAN J, RAN R, et al. Effect of preparation methods on the structure and redox behavior of platinum-ceria-zirconia catalysts. Chemical Engineering Journal, 2005,109:133-139. DOI URL
[25]	ZHANG H L, WANG J L, ZHANG Y H, et al. A study on H₂-TPR of Pt/Ce_0.27Zr_0.73O₂ and Pt/Ce_0.27Zr_0.70La_0.03O_x for soot oxidation. Applied Surface Science, 2016,377:48-55. DOI URL

Samples	Surface area/ (m²•g^-1)	Pore volume/ (mL•g^-1)	Average pore radius/nm
IM	60	0.23	7.5
UDP	63	0.22	7.5
ADP	61	0.23	7.7
IM-a	49	0.24	9.4
UDP-a	50	0.22	7.6
ADP-a	53	0.25	7.7
CZLP	64	0.25	8.7

Samples	Surface area/ (m²•g^-1)	Pore volume/ (mL•g^-1)	Average pore radius/nm
IM	60	0.23	7.5
UDP	63	0.22	7.5
ADP	61	0.23	7.7
IM-a	49	0.24	9.4
UDP-a	50	0.22	7.6
ADP-a	53	0.25	7.7
CZLP	64	0.25	8.7

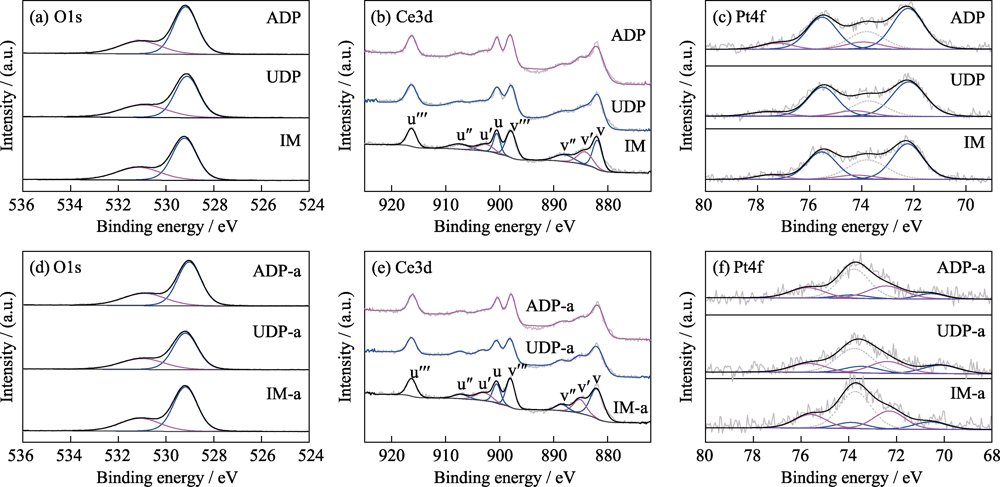

Sample	Pt⁰/Pt ratio	Pt²⁺/Pt ratio	Pt⁴⁺/Pt ratio	O_ads/O ratio	Ce³⁺/Ce ratio
IM	0	0.871	0.129	0.354	0.217
UDP	0	0.851	0.149	0.374	0.240
ADP	0	0.831	0.169	0.324	0.201
IM-a	0.302	0.698	0	0.329	0.195
UDP-a	0.421	0.579	0	0.350	0.187
ADP-a	0.234	0.766	0	0.336	0.214

Sample	Pt⁰/Pt ratio	Pt²⁺/Pt ratio	Pt⁴⁺/Pt ratio	O_ads/O ratio	Ce³⁺/Ce ratio
IM	0	0.871	0.129	0.354	0.217
UDP	0	0.851	0.149	0.374	0.240
ADP	0	0.831	0.169	0.324	0.201
IM-a	0.302	0.698	0	0.329	0.195
UDP-a	0.421	0.579	0	0.350	0.187
ADP-a	0.234	0.766	0	0.336	0.214

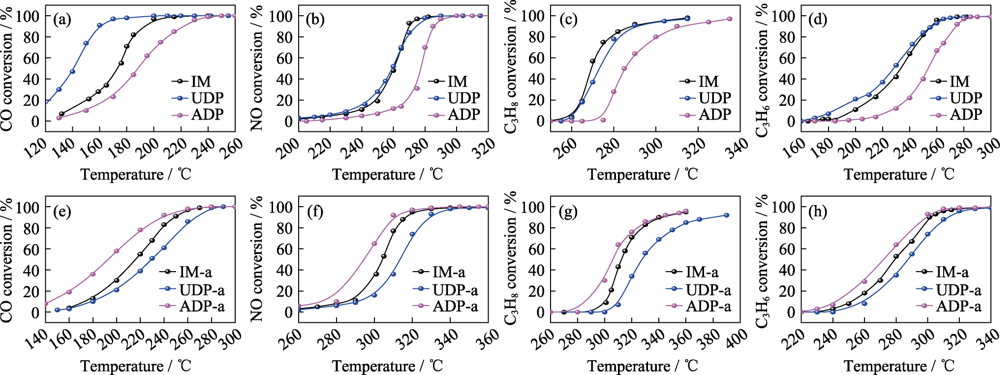

Sample	CO		NO		C₃H₈		C₃H₆
Sample	T₅₀/℃	ΔT /℃	T₅₀/℃	ΔT/℃	T₅₀/℃	ΔT/℃	T₅₀/℃	ΔT/℃
IM	174	-	260	-	269	-	234	-
UDP	142	-	259	-	273	-	228	-
ADP	187	-	277	-	284	-	254	-
IM-a	215	41	304	44	312	43	278	44
UDP-a	229	87	313	54	328	55	287	59
ADP-a	203	16	294	17	306	22	272	18
