Pt-Au Dendritic Nanoparticles with High Oxidase-like Activity for Detection of Ascorbic Acid

doi:10.15541/jim20200005

Abstract

Abstract:

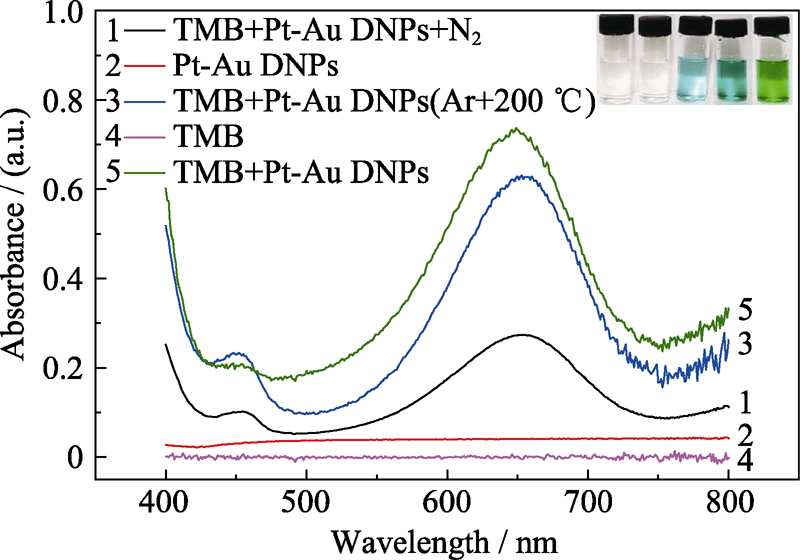

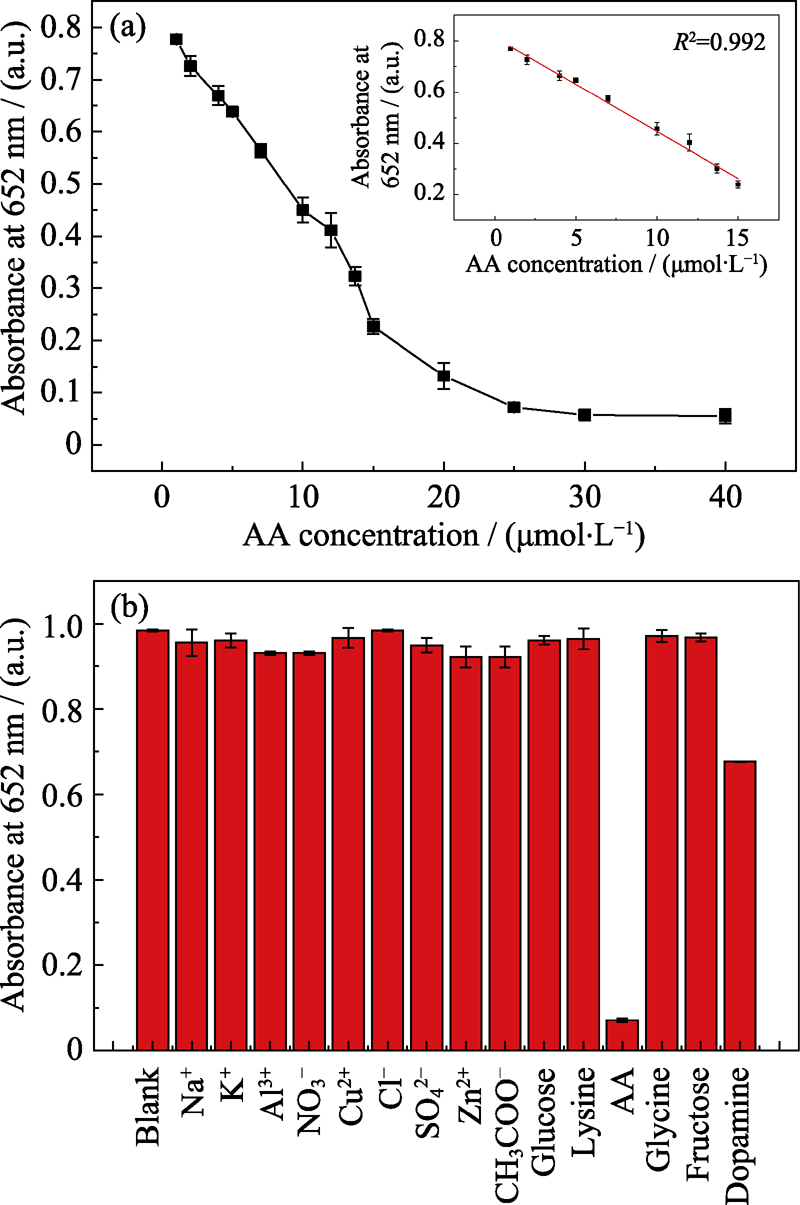

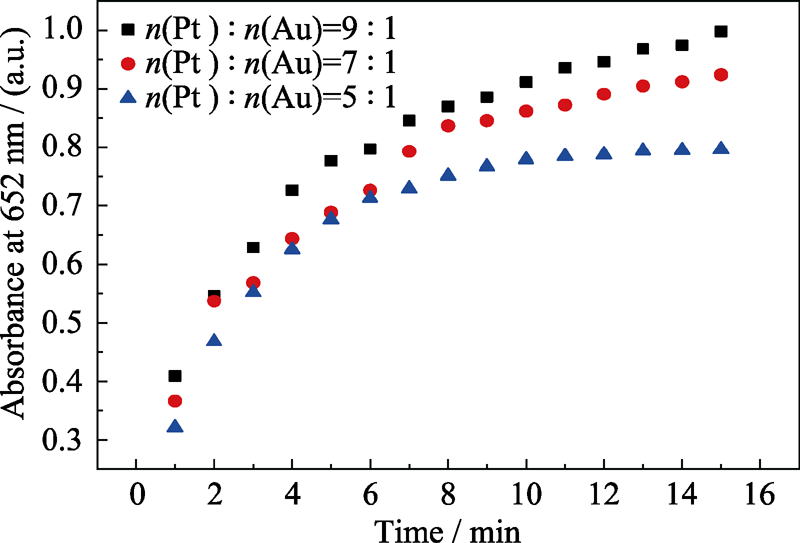

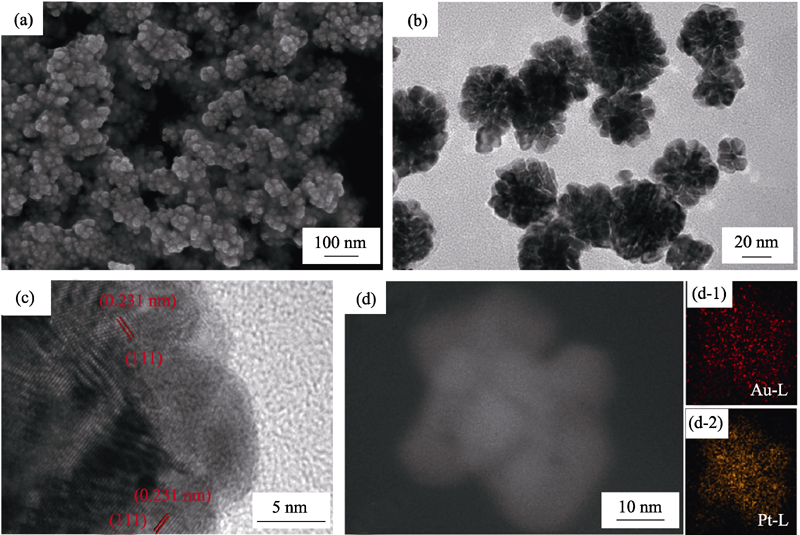

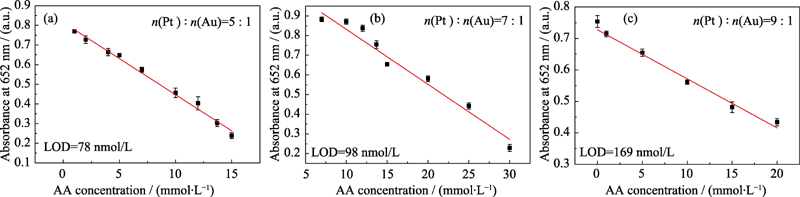

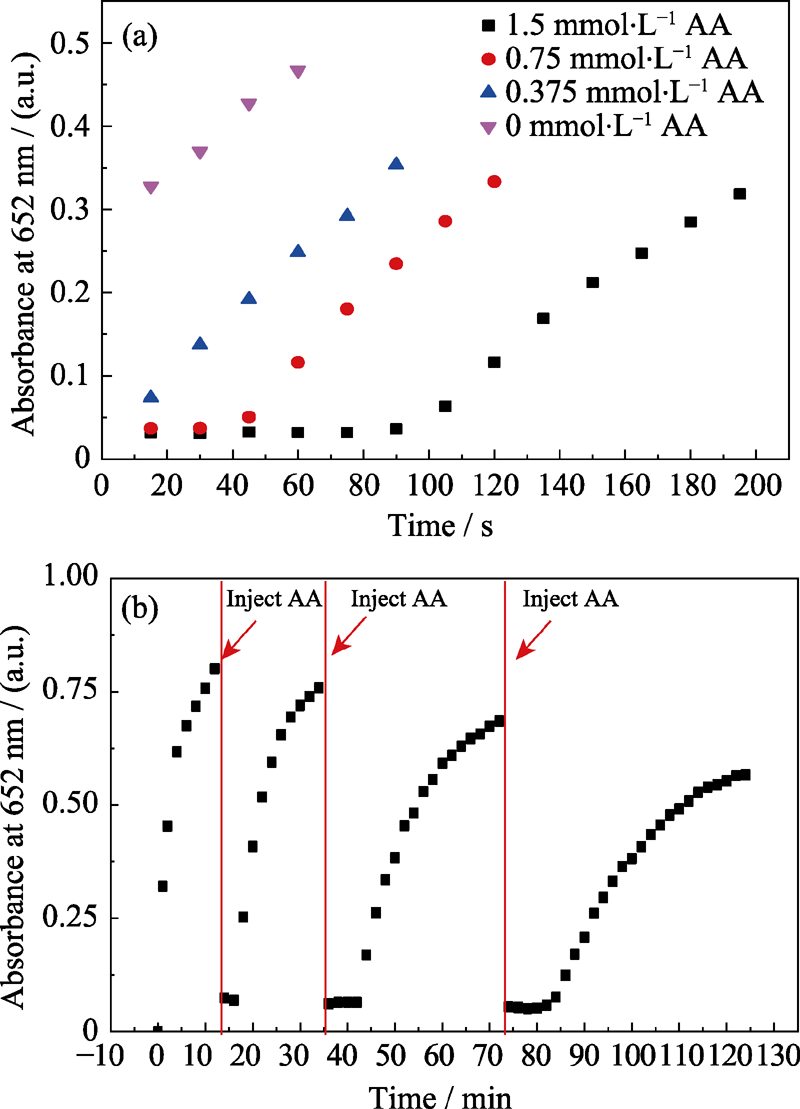

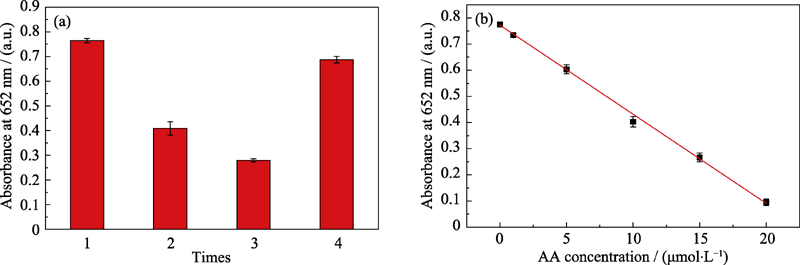

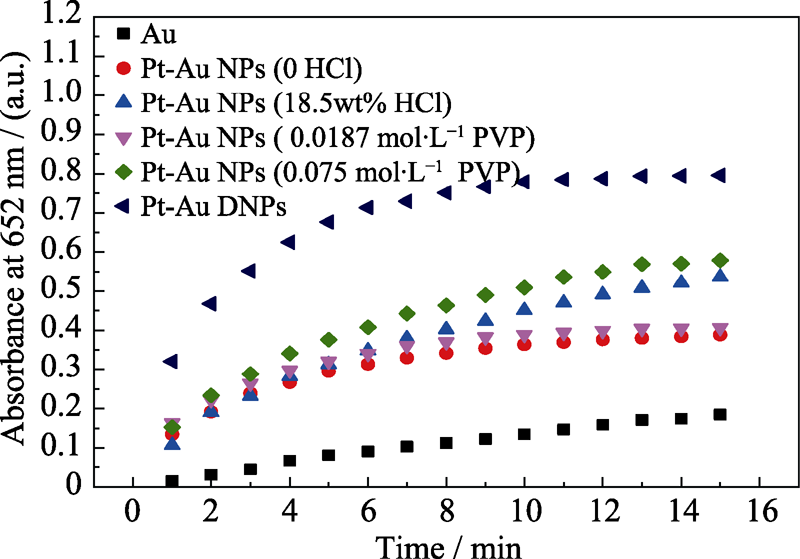

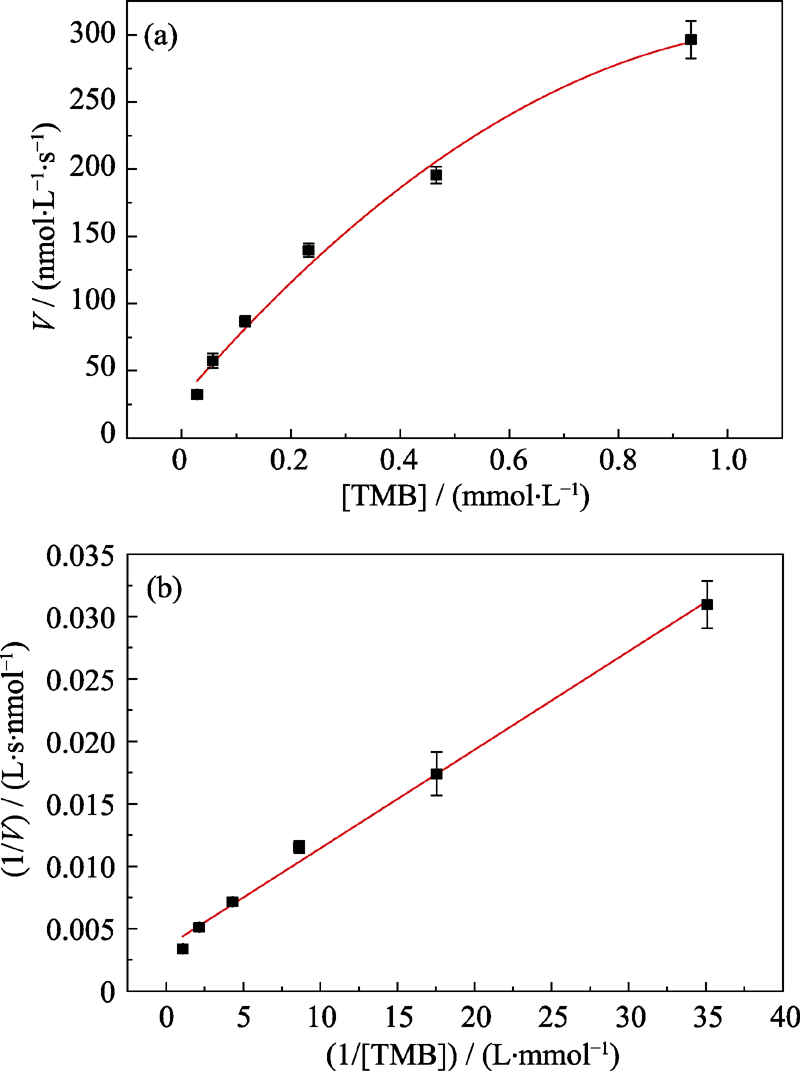

Due to high stability and sensitivity, inorganic nanomaterials with enzyme-like activity have brilliant application prospects. Tuning the enzyme-like activity plays great significance for promoting the development of nanozymes. In this work, Pt-Au dendritic nanoparticles (Pt-Au DNPs) with good uniformity and stability were synthesized by a simple liquid phase reduction method, and used to colorimetrically detect ascorbic acid (AA) by using their oxidase-like activity to catalyze the oxidation of TMB (3,3′,5,5′-tetramethylbenzidine). The oxidase-like activity was found to be highly influenced by the composition and structure of Pt-Au dendritic nanoparticles, and the relationship between kinetic parameters and nanoparticle structure was investigated. Quantitative analysis of ascorbic acid in the 1-15 μmol/L range was performed with good linear relationship, and the detection limit was 78 nmol/L. At the same time, it’s found that continuous reaction would reduce the catalytic performance of Pt-Au DNPs, but still has the potential to be reused, which is not common. Data from this research not only suggests a method for synthesizing Pt-Au DNPs, but also shows its potential for AA analysis in biological samples.

Key words: Pt-Au dendritic nanostructure, oxidase-like activity, colorimetric method, ascorbic acid

CLC Number:

TQ174

CHENG Qin, YANG Yong, YANG Lili. Pt-Au Dendritic Nanoparticles with High Oxidase-like Activity for Detection of Ascorbic Acid[J]. Journal of Inorganic Materials, 2020, 35(10): 1169-1176.

Figures/Tables 22

References 34

[1]	REYES A C, PLACHE D C, KOUDELKA A P , et al. Enzyme architecture: breaking down the catalytic cage that activates orotidine 5′-monophosphate decarboxylase for catalysis. Journal of the American Chemical Society, 2018,140:17580-17590. DOI URL PMID
[2]	LIU J, HU X, HOU S , et al. Au@Pt core/shell nanorods with peroxidase- and ascorbate oxidase-like activities for improved detection of glucose. Sensors and Actuators B-Chemical, 2012,166:708-714.
[3]	WU T, MA Z, LI P , et al. Colorimetric detection of ascorbic acid and alkaline phosphatase activity based on the novel oxidase mimetic of Fe-Co bimetallic alloy encapsulated porous carbon nanocages. Talanta, 2019,202:354-361. DOI URL PMID
[4]	CHEN M, WANG Z, SHU J , et al. Mimicking a natural enzyme system: cytochrome C oxidase-like activity of Cu₂O nanoparticles by receiving electrons from cytochrome C. Inorganic Chemistry, 2017,56(16):9400-9403. DOI URL PMID
[5]	HWANG E T, YTATAVAIRT R, CHUNG J , et al. New functional amorphous calcium phosphate nanocomposites by enzyme-assisted biomineralization. ACS Applied Materials & Interfaces, 2013,5(3):532-537. DOI URL PMID
[6]	LIU Y, WU H, CHONG Y , et al. Platinum nanoparticles: efficient and stable catechol oxidase mimetics. ACS Applied Materials & Interfaces, 2015,7(35):19709-19717. DOI URL PMID
[7]	LIU J B, JIANG X M, WANG L M , et al. Ferroxidase-like activity of Au nanorod/Pt nanodot structures and implications for cellular oxidative stress. Nano Research, 2015,8(12):4024-4037. DOI URL
[8]	ZHANG K, HU X, LIU J , et al. Formation of PdPt alloy nanodots on gold nanorods: tuning oxidase-like activities via composition. Langmuir, 2011,27(6):2796-2803. DOI URL PMID
[9]	GAO L Z, NIE L, ZHANG J B , et al. Intrinsic peroxidase-like activity of ferromagnetic nanoparticles. Nature Nanotechnology, 2007,2(9):577-583. DOI URL PMID
[10]	QIN W, SU L, YANG C , et al. Colorimetric detection of sulfite in foods by a TMB-O₂-Co₃O₄ nanoparticles detection system. Journal of Agricultural and Food Chemistry, 2014,62(25):5827-5834. DOI URL
[11]	VYADA P K, SINGH V K, CHANDRA S , et al. Green synthesis of fluorescent carbon quantum dots from azadirachta indica leaves and their peroxidase-mimetic activity for the detection of H₂O₂ and ascorbic acid in common fresh fruits. ACS Biomaterials Science & Engineering, 2019,5:623-632.
[12]	HU Y, GAO X J, ZHU Y , et al. Nitrogen-doped carbon nanomaterials as highly active and specific peroxidase mimics. Chemistry of Materials, 2018,30:6431-6439. DOI URL
[13]	WANG G L, XU X F, WU X M , et al. Visible-light-stimulated enzymelike activity of graphene oxide and its application for facile glucose sensing. Journal of Physical Chemistry C, 2014,118(48):28109-28117. DOI URL
[14]	CHEN W, FANG X, LI H , et al. DNA-mediated inhibition of peroxidase-like activities on platinum nanoparticles for simple and rapid colorimetric detection of nucleic acids. Biosensors & Bioelectronics, 2017,94:169-175. DOI URL PMID
[15]	ARAYSCHUKIAT S, KONGTES C, BARTHEL A , et al. Ascorbic acid as a bifunctional hydrogen bond donor for the synthesis of cyclic carbonates from CO₂ under ambient conditions. ACS Sustainable Chemistry & Engineering, 2017,5:6392-6397.
[16]	HATAMIE A, RAHMATI R, REZVANI E , et al, Yttrium hexacyanoferrate microflowers on freestanding three-dimensional graphene substrates for ascorbic acid detection. ACS Applied Nano Materials, 2019,2:2212-2221. DOI URL
[17]	ZHAO L, LIAO K, WONG L , et al. Electro-oxidation of ascorbic acid by cobalt core-shell nanoparticles on a H-terminated Si(100) and by nanostructured cobalt-coated Si nanowire electrodes. ACS Applied Materials & Interfaces , 2013,5(7):2410-2416. DOI URL PMID
[18]	JANG H I, LEE H G . Stability of chitosan nanoparticles for l-ascorbic acid during heat treatment in aqueous solution. Journal of Agricultural and Food Chemistry, 2008,56(6):1936-1941. DOI URL PMID
[19]	SINGH V, MONDAL P C, LAKSHMANAN J Y , et al. “Turn on” electron-transfer-based selective detection of ascorbic acid via copper complexes immobilized on glass. Analyst, 2012,137:3216-3219. DOI URL
[20]	MALASHIKJINA N, PAVLOV V . DNA-decorated nanoparticles as nanosensors for rapid detection of ascorbic acid. Biosensors & Bioelectronics, 2012,33(1):241-246. DOI URL PMID
[21]	GOKMEN V, KAHRAMAN N, DEMIR N , et al. Enzymatically validated liquid chromatographic method for the determination of ascorbic and dehydroascorbic acids in fruit and vegetables. Journal of Chromatography A, 2000,881(1):309-316. DOI URL
[22]	DU J, SHAO Q, YIN S , et al. Colorimetric chemodosimeter based on diazonium-gold-nanoparticle complexes for sulfite ion detection in solution. Small, 2012,8:3412-3416. DOI URL PMID
[23]	ZHANG X, HE S, CHEN Z , et al. CoFe₂O nanoparticles as oxidase mimic-mediated chemiluminescence of aqueous luminol for sulfite in white wines. Journal of Agricultural and Food Chemistry, 2013,61(4):840-847. DOI URL
[24]	WANG X, HAN Q, CAI S , et al. Excellent peroxidase mimicking property of CuO/Pt nanocomposites and their application as an ascorbic acid sensor. Analyst, 2017,142:2500-2506. DOI URL PMID
[25]	HE W, HAN X, JIA H , et al. AuPt alloy nanostructures with tunable composition and enzyme-like activities for colorimetric detection of bisulfide. Scientific Reports, 2017,7:40103. DOI URL PMID
[26]	ZHENG Y, ZENG J, RUDITSKIY A , et al. Oxidative etching and its role in manipulating the nucleation and growth of noble-metal nanocrystals. Chemistry of Materials, 2014,26:22-33. DOI URL
[27]	MA L, WANG C, GONG M , et al. Control over the branched structures of platinum nanocrystals for electrocatalytic applications ACS Nano, 2012,6:9797-9806. DOI URL PMID
[28]	XIONG Y J, CHEN J Y, WILEY B , et al. Understanding the role of oxidative etching in the polyol synthesis of Pd nanoparticles with uniform shape and size. Journal of the American Chemical Society , 2005,127(20):7332-7333. DOI URL PMID
[29]	RAM S, FECHT H J . Modulating up-energy transfer and violet- blue light emission in gold nanoparticles with surface adsorption of poly(vinyl pyrrolidone) molecules. Journal of Physical Chemistry C, 2011,115(16):7817-7828. DOI URL
[30]	TSUJI M, JIANG P, HIKINO S , et al. Toward to branched platinum nanoparticles by polyol reduction: a role of poly(vinylpyrrolidone) molecules. Colloids and Surfaces a-Physicochemical and Engineering Aspects, 2008,317:23-31.
[31]	XIONG Y, WASHIO I, CHEN J , et al. Poly(vinyl pyrrolidone): A dual functional reductant and stabilizer for the facile synthesis of noble metal nanoplates in aqueous solutions. Langmuir, 2006,22(20):8563-8570. DOI URL PMID
[32]	CAO Y, YANG Y, SHAN Y , et al. Large-scale template-free synthesis of ordered mesoporous platinum nanocubes and their electrocatalytic properties. Nanoscale, 2015,7(46):19461-19467. DOI URL PMID
[33]	ZHANG P, SUN D, CHO A , et al. Modified carbon nitride nanozyme as bifunctional glucose oxidase-peroxidase for metal- free bioinspired cascade photocatalysis. Nature Communications, 2019,10:940. DOI URL PMID
[34]	LAI W, ZHUANG J , et al. Novel colorimetric immunoassay for ultrasensitive monitoring of brevetoxin b based on enzyme- controlled chemical conversion of sulfite to sulfate. Journal of Agricultural and Food Chemistry, 2015,63(7):1982-1989. DOI URL PMID
	CHAI D H, MA Z, YAN H , et al. Synergistic effect of sandwich polyoxometalates and copper-imidazole complexes for enhancing the peroxidase-like activity. RSC Advances, 2015,5:78771-78779. DOI URL PMID

Sample	Added/(μmol·L^-1)	Found/(μmol·L^-1)	Recovery/%	RSD/(%, n=3)
Juice	0	5.53	-	4.1
	3.12	8.86	103.71	3.2
	6.25	12.01	103.68	3.4

Sample	Added/(μmol·L^-1)	Found/(μmol·L^-1)	Recovery/%	RSD/(%, n=3)
Juice	0	5.53	-	4.1
	3.12	8.86	103.71	3.2
	6.25	12.01	103.68	3.4

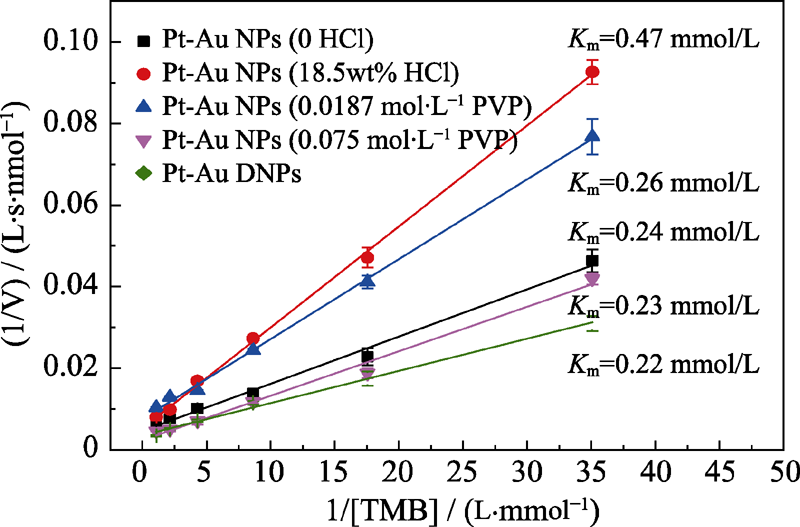

Catalyst	Substrate	K_m/(mmol·L^-1)	Ref.
BiW₉Cu₃	TMB	0.29	[1]
CeO₂		0.8-3.8	[2]
Hg^2+/Citrate-AgNPs		0.23	[3]
N-CQDs		0.515	[4]
Cu-Ag/rGO		0.634	[5]
Cu NPs		1.047	[6]
Lysozyme-PtNPs		0.63	[7]
Fe₃O₄@C		0.38	[8]
Pt-Au DNPs		0.22	This work

Catalyst	Substrate	K_m/(mmol·L^-1)	Ref.
BiW₉Cu₃	TMB	0.29	[1]
CeO₂		0.8-3.8	[2]
Hg^2+/Citrate-AgNPs		0.23	[3]
N-CQDs		0.515	[4]
Cu-Ag/rGO		0.634	[5]
Cu NPs		1.047	[6]
Lysozyme-PtNPs		0.63	[7]
Fe₃O₄@C		0.38	[8]
Pt-Au DNPs		0.22	This work

Catalyst	Linear range/(μmol·L^-1)	LOD/(μmol·L^-1)	Ref.
FeCo NPs@PNC	0.5-28	0.38	[9]
N-CQDs	5-40	1.773	[4]
Cu-Ag/rGO	1-30	3.6	[4]
Cu NPs	1-10	0.68	[6]
LaF₃:Ce,Tb	8-10	2.4	[10]
CuO/Pt	1-600	0.796	[11]
MIL-88	2.57-10.1	1.03	[12]
Pt-Au DNPs	1-15	0.078	This work
