磁性Ag2S/Ag/CoFe1.95Sm0.05O4 Z型异质结的制备及光催化降解性能

doi:10.15541/jim20220166

摘要/Abstract

摘要：

光催化降解水体中的有机污染物具有广阔的应用前景。本研究以CoFe_1.95Sm_0.05O₄作为载体, 通过原位沉积法和光还原法制备了Z型异质结Ag₂S/Ag/CoFe_1.95Sm_0.05O₄, 采用不同表征手段对样品的微观形貌、物相结构、光学和磁学性能进行表征分析。Ag₂S/Ag/CoFe_1.95Sm_0.05O₄复合物催化活性最高, 其光催化降解动力学常数(k)分别是Ag₂S/Ag, Ag₂S和CoFe_1.95Sm_0.05O₄的2.96, 3.71和8.24倍。引入CoFe_1.95Sm_0.05O₄可以有效地促进Ag₂S/Ag中光生载流子的分离效率。•O₂^-和 •OH^-是光催化过程中的主要活性物。此外, 在光催化反应后, 外加磁场可以将制备的Ag₂S/Ag/CoFe_1.95Sm_0.05O₄复合材料快速从溶液中分离出来。循环降解实验显示, Ag₂S/Ag/CoFe_1.95Sm_0.05O₄复合材料在光降解过程中具有稳定的降解能力和晶体结构。本研究为进一步开发高效、窄带隙和磁性的光催化剂提供了有效的解决思路。

关键词: Ag₂S/Ag/CoFe_1.95Sm_0.05O₄, Z型异质结, 光催化降解, 回收

Abstract:

Photocatalytic degradation of organic pollutants from water bodies can efficiently reduce the organic pollutants in wastewater, which has broad application prospects. In this study, using CoFe_1.95Sm_0.05O₄as a support, the Z-scheme heterojunction Ag₂S/Ag/CoFe_1.95Sm_0.05O₄was synthesized through a facile in situ deposition method followed by photo-reduction. Microstructure, phase structure, optical and magnetic properties of the samples were analyzed. Ag₂S/Ag/CoFe_1.95Sm_0.05O₄ composite exhibited the highest catalytic activity, which dynamic constant (k) was 1.96, 2.71 and 7.24 times higher than those of Ag₂S/Ag, Ag₂S and CoFe_1.95Sm_0.05O₄, respectively. Introduction of CoFe_1.95Sm_0.05O₄ could efﬁciently promote the separation efﬁciency of photogenerated charge carriers in Ag₂S/Ag. And •O₂^-and •OH^- were proved to be the main active substances in the photocatalytic process. In addition, the as-prepared Ag₂S/Ag/CoFe_1.95Sm_0.05O₄ composite could be quickly separated from the solution by an extra magnetic field after the photocatalytic reaction. Cyclic photodegradation test showed that the Ag₂S/Ag/CoFe_1.95Sm_0.05O₄ hybrid materials had the stable degradation ability and crystal structures in the photodegradation process. This research provides a useful approach to develop photocatalysts with high efficiency, narrow band gap and magnetism.

Key words: Ag₂S/Ag/CoFe_1.95Sm_0.05O₄, Z-scheme heterojunction, photocatalytic degradation, recycling

中图分类号:

TB333

陈士昆, 王楚楚, 陈晔, 李莉, 潘路, 文桂林. 磁性Ag₂S/Ag/CoFe_1.95Sm_0.05O₄ Z型异质结的制备及光催化降解性能[J]. 无机材料学报, 2022, 37(12): 1329-1336.

CHEN Shikun, WANG Chuchu, CHEN Ye, LI Li, PAN Lu, WEN Guilin. Magnetic Ag₂S/Ag/CoFe_1.95Sm_0.05O₄ Z-scheme Heterojunction: Preparation and Its Photocatalytic Degradation Property[J]. Journal of Inorganic Materials, 2022, 37(12): 1329-1336.

图/表 7

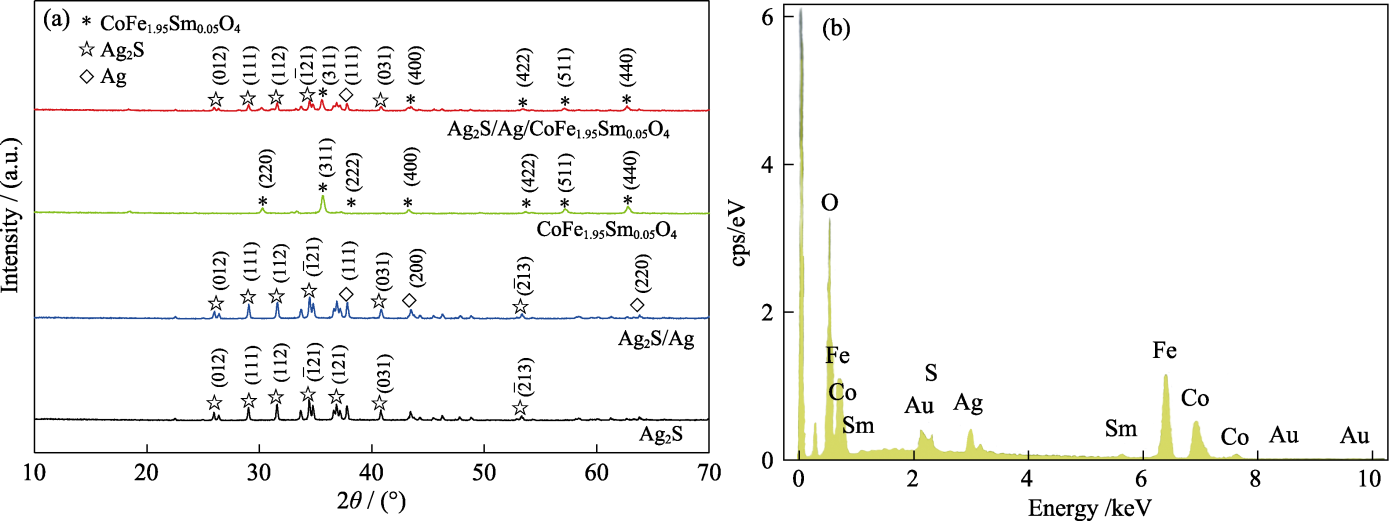

图1 不同样品的XRD谱图(a)和Ag2S/Ag/CoFe1.95Sm0.05O4 的EDS能谱图(b)

Fig. 1 XRD patterns of different samples (a) and EDS pattern of Ag2S/Ag/CoFe1.95Sm0.05O4 (b)

图2 Ag2S/Ag/CoFe1.95Sm0.05O4 的TEM 照片(a)及其HRTEM照片 (b, c)

Fig. 2 TEM (a) and HRTEM (b,c) images of Ag2S/Ag/CoFe1.95Sm0.05O4

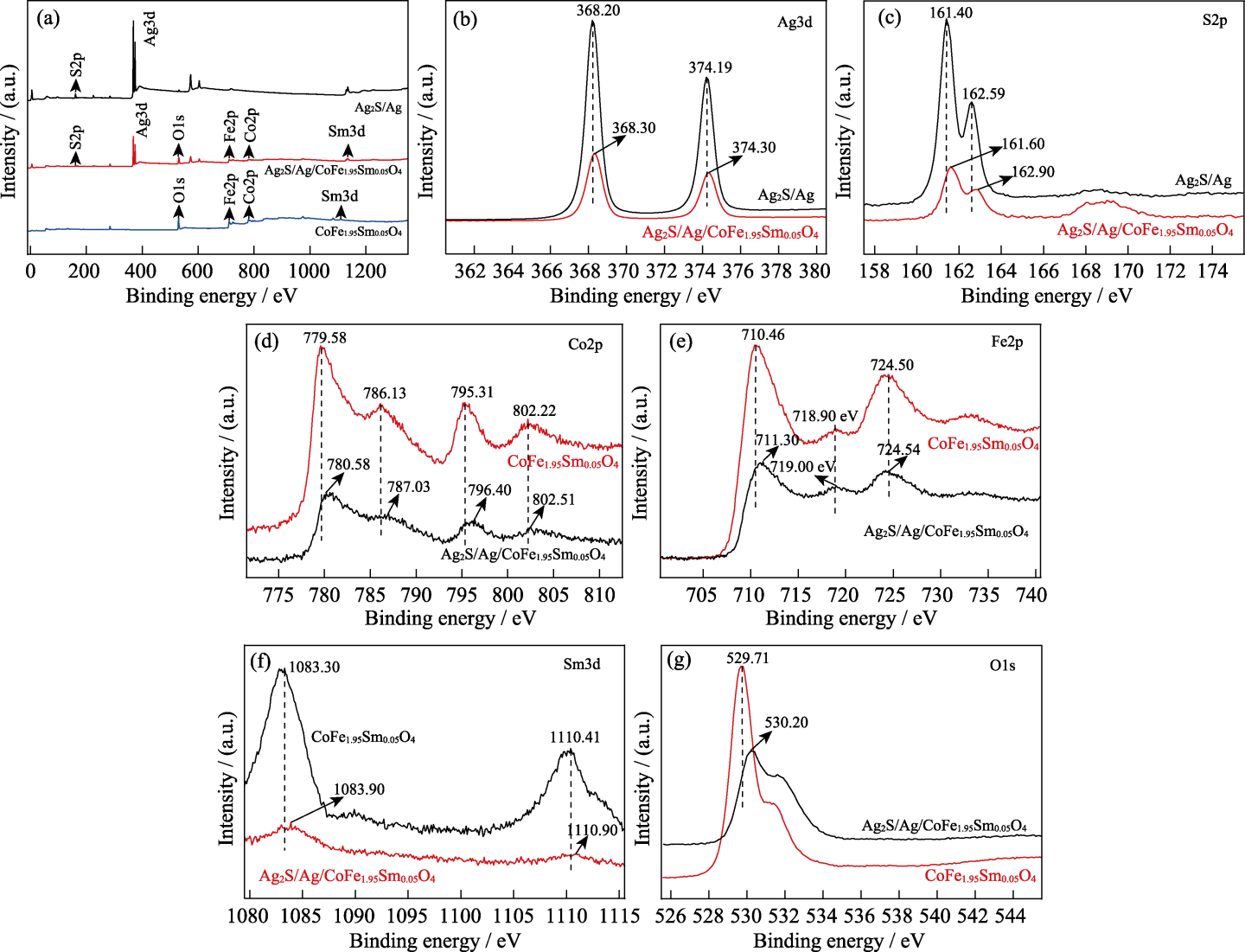

图3 不同样品的XPS全谱图(a); Ag2S/Ag/CoFe1.95Sm0.05O4复合材料Ag3d(b), S2p(c), Co2p(d), Fe2p(e), Sm3d(f)和O2p(g)的XPS谱图

Fig. 3 XPS survey spectra of different materials (a); Ag3d(b); S2p(c); Co2p (d); Fe2p(e); Sm3d (f) and O2p (g) XPS spectra of Ag2S/Ag/CoFe1.95Sm0.05O4

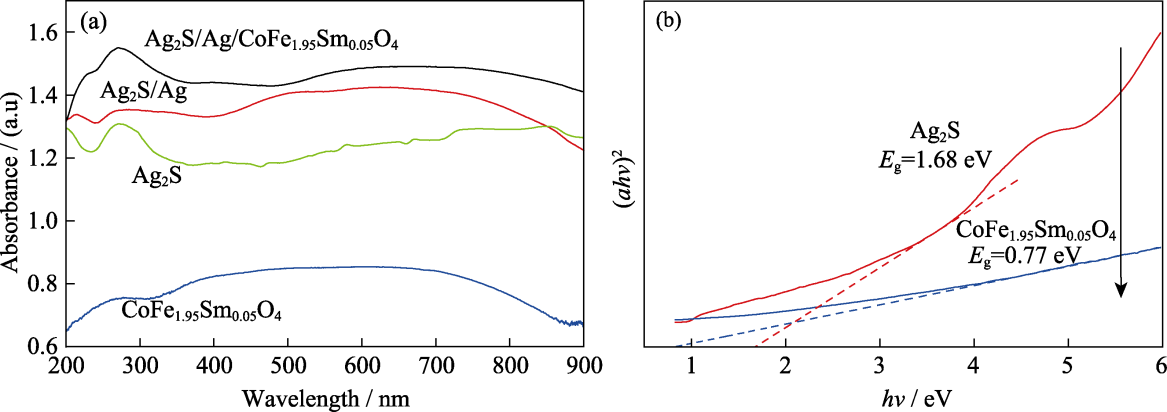

图4 样品的紫外-可见吸收光谱(a)和(αhv)2-hv关系图(b)

Fig. 4 UV-Vis absorption spectra (a) and plots of (αhν)2 versus hv (b) of samples

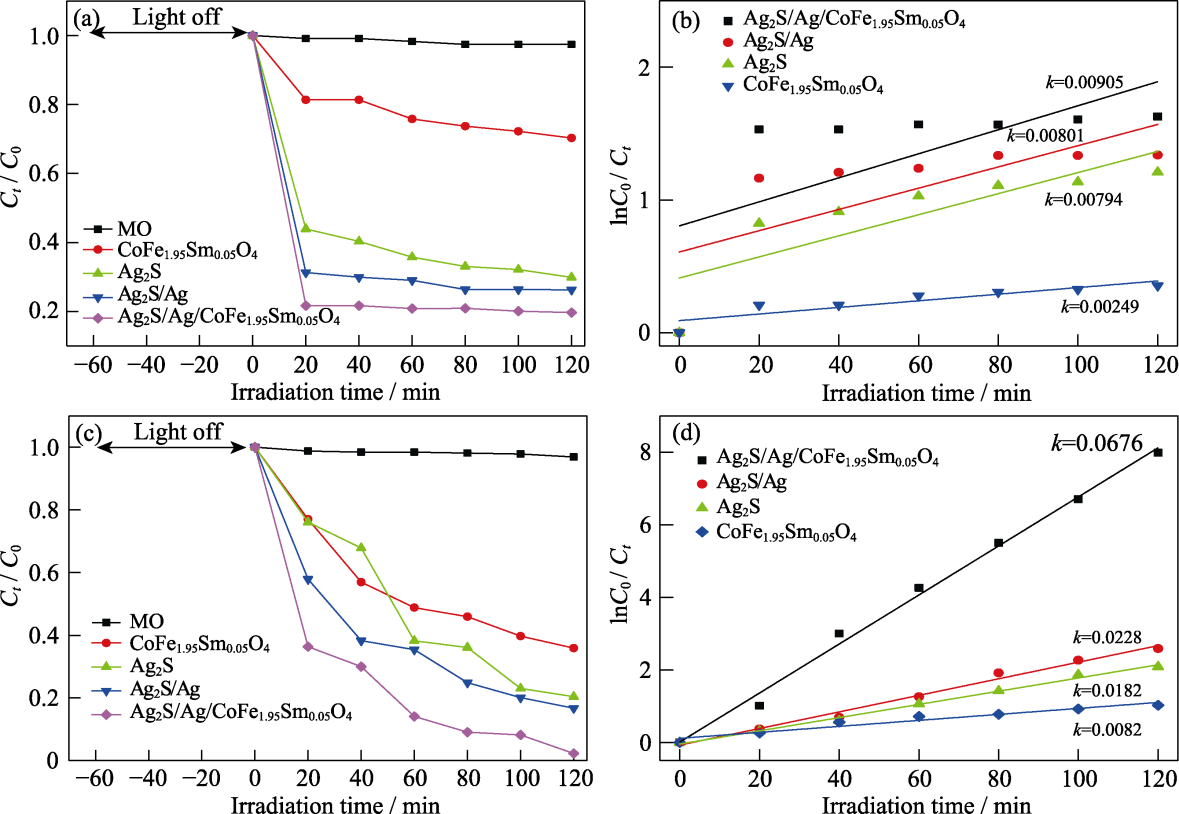

图5 不同样品可见光催化降解MO(a, c)和一级动力学曲线(b, d)

Fig. 5 Degradation curves of MO by different samples under visible light irradiation (a, c) and corresponding first-order kinetics (b, d)

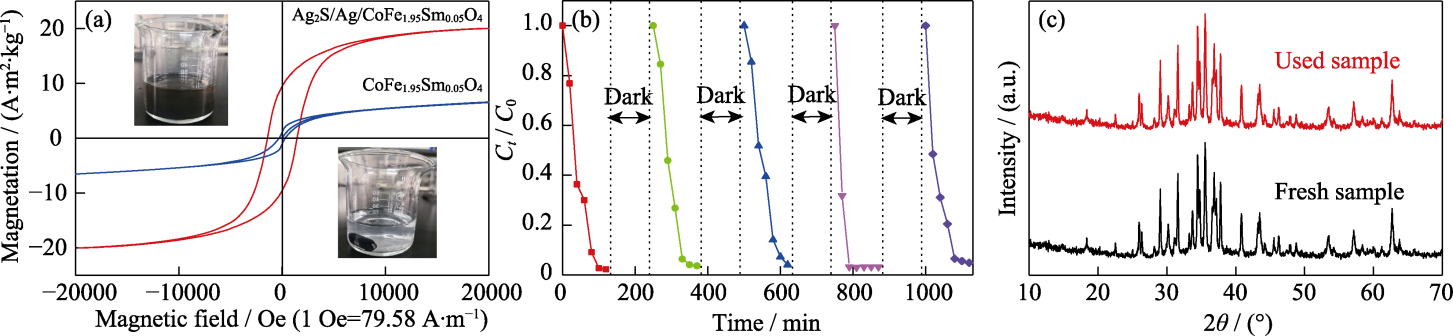

图6 样品的磁化曲线 (插图为外部磁场分离后的溶液的照片) (a), 样品对甲基橙降解的循环性能曲线(b)和循环试验前后Ag2S/Ag/CoFe1.95Sm0.05O4的XRD谱图(c)

Fig. 6 Magnetization curves of samples with inset showing the pictures of the solution after magnetic separation using an external magnetic (a), five cycling runs of the sample for MO degradation (b) and XRD patterns of Ag2S/Ag/CoFe1.95Sm0.05O4 before and after cyclic test (c)

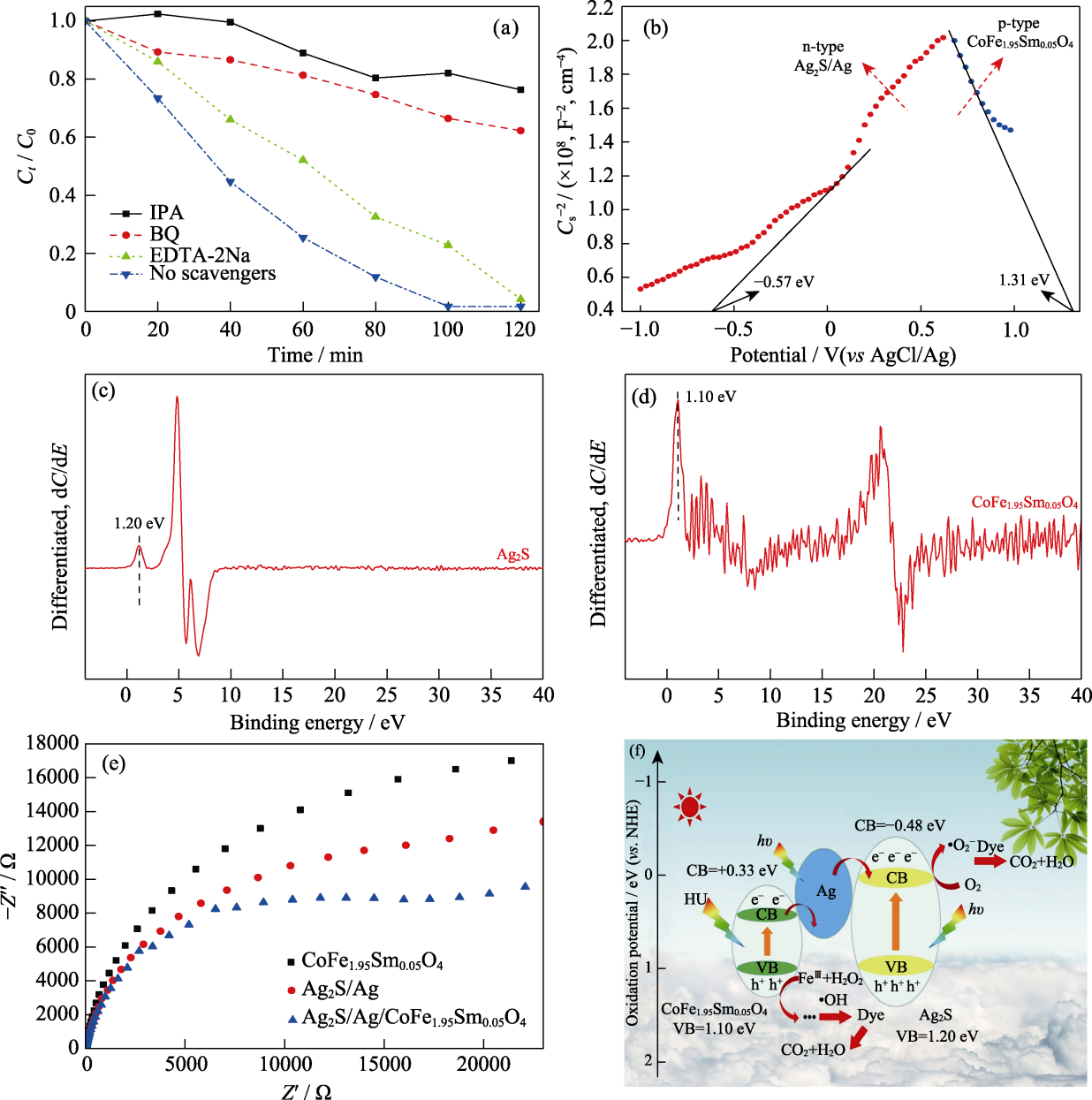

图7 Ag2S/Ag/CoFe1.95Sm0.05O4光催化自由基捕获降解(a), 样品的莫特-肖特基曲线(b), Ag2S, CoFe1.95Sm0.05O4的XPS价带谱图 (c,d), 制备样品的EIS图谱(e) 和Ag2S/Ag/CoFe1.95Sm0.05O4光催化MO降解机理图(f)

Fig. 7 Photocatalytic degradation of Ag2S/Ag/CoFe1.95Sm0.05O4 by free radical capture (a), Mott-Schottky curves of samples (b), Valence-band XPS spectra of Ag2S, CoFe1.95Sm0.05O4 (c,d), EIS spectra of as-prepared samples (e), and the proposed photocatalytic degradation mechanism of MO over Ag2S/Ag/CoFe1.95Sm0.05O4(f)

参考文献 40

[1]	SOLAKIDOU M, GIANNAKAS A, GEORGIOU Y, et al. Efficient photocatalytic water-splitting performance by ternary CdS/Pt-N-TiO₂ and CdS/Pt-N, F-TiO₂: interplay between CdS photocorrosion and TiO₂-dopping. Applied Catalysis B: Environmental, 2019, 254: 194-205. DOI URL
[2]	CHI C C, QU P P, REN C N, et al. Preparation of SiO₂@Ag@SiO₂@TiO₂ core-shell structure and its photocatalytic degradation. Journal of Inorganic Materials, 2022, 37(7): 750-756. DOI URL
[3]	ZHANG X, ZHANG C, JIANG W J, et al. Synthesis, electronic structure and visible-light catalytic performance of quaternary BiMnVO₅. Journal of Inorganic Materials, 2022, 37(1): 58-64. DOI
[4]	IKRAM S, ASHRAF F, ALZAID M, et al. Role of nature of rare earth ion dopants on structural, spectral, and magnetic properties in spinel ferrites. Journal of Superconductivity and Novel Magnetism, 2021, 34: 17451751.
[5]	CHEN S K, JIANG D C, ZENG G, et al. Dysprosium doped CoFe₂O₄with enhanced magnetic property and photodegradation activity of methyl orange. Materials Letters, 2021, 284: 128966. DOI URL
[6]	HAGIRI M, UCHIDA K, SASAKI M K, et al. Preparation and characterization of silver orthophosphate photocatalytic coating on glass substrate. Scientific Reports, 2021, 11(1): 13968. DOI PMID
[7]	MOHD T K, ABDULLAH A, MOHD S, et al. Effect of Ag₂S nanoparticles on optical,photophysical and electrical properties of P₃HT thin films. Luminescence, 2021, 36(3): 761-768. DOI URL
[8]	JIANG W, WU Z M, YUE X N, et al. Photocatalytic performance of Ag₂S under irradiation with visible and near-infrared light and its mechanism of degradation. RSC Advances, 2015, 5(31): 24064-24071. DOI URL
[9]	ZHAO W, DAI B L, ZHU F X, et al. A novel 3D plasmonic p-n heterojunction photocatalyst: Ag nanoparticles on flower-like p-Ag₂S/n-BiVO₄ and its excellent photocatalytic reduction and oxidation activities. Applied Catalysis B: Environmental, 2018, 229: 171-180. DOI URL
[10]	PRADYASTI A, KIM D H, BIUTTY M N, et al. Ag-Ag₂S hybrid nanoplates with unique heterostructures: facile synthesis and photocatalytic application. Journal of Alloys and Compounds, 2020, 8926: 154191.
[11]	PENG C, WU Z J. Preparation of α-Fe₂O₃/ZnFe₂O₄ composite powder and its photocatalytic degradation of methylene blue. Journal of Process Engineering, 2016, 16(5): 882-888.
[12]	ZENG Q H, ZHU Y M, TIAN W, et al. Recyclable CoFe₂O₄-Ag₂O magnetic photocatalyst and its visible light-driven photocatalytic performance. Research on Chemical Intermediates, 2017, 43: 4487-4502. DOI URL
[13]	SUN F J, ZENG Q H, TIAN W, et al. Magnetic MFe₂O₄-Ag₂O (M = Zn, Co, & Ni) composite photocatalysts and their application for dye wastewater treatment. Journal of Environmental Chemical Engineering, 2019, 7(2): 103011. DOI URL
[14]	ŠUTKA A, DÖBELIN N, JOOST U, et al. Facile synthesis of magnetically separable CoFe₂O₄/Ag₂O/Ag₂CO₃ nanoheterostructures with high photocatalytic performance under visible light and enhanced stability against photodegradation. Journal of Environmental Chemical Engineering, 2017, 5(4): 3455-3462. DOI URL
[15]	GAN L, XU L J, QIAN K. Preparation of core-shell structured CoFe₂O₄ incorporated Ag₃PO₄ nanocomposites for photocatalytic degradation of organic dyes. Materials and Design, 2016, 109: 354-360. DOI URL
[16]	FARHADI S, SIADATNASAB F. CoFe₂O₄/CdS nanocomposite: Preparation, characterization, and application in sonocatalytic degradation of organic dye pollutants. Chinese Journal of Catalysis, 2016, 37(9): 1487-1495. DOI URL
[17]	HE Y M, ZHANG L H, TENG B T, et al. New Application of Z-Scheme Ag₃PO₄/g-C₃N₄ composite in converting CO₂ to fuel. Environmental Science and Technology, 2015, 49(1): 649-656. DOI URL
[18]	LIU C, LIU F, HUANG F, et al. Preparation and photocatalytic properties of alga-based CDs-Cu-TiO₂ composite material. Journal of Inorganic Materials, 2021, 36 (11):1154-1162. DOI URL
[19]	XU Y G, ZHOU T, HUANG S Q, et al. Preparation of magnetic Ag/AgCl/CoFe₂O₄ composites with high photocatalytic and antibacterial ability. RSC Advances, 2015, 5(52): 41475-41483. DOI URL
[20]	LI J T, CUSHING S K, ZHENG P, et al. Solar hydrogen generation by a CdS-Au-TiO₂ sandwich nanorod array enhanced with Au nanoparticle as electron relay and plasmonic photosensitizer. Journal of the American Chemical Society, 2014, 136(23): 8438-8449. DOI URL
[21]	WANG Z P, LIN Z P, SHEN S J, et al. Advances in designing heterojunction photocatalytic materials. Chinese Journal of Catalysis, 2021, 42(5): 710-730. DOI URL
[22]	HOU Y H, HUANG Y L, HOU S J, et al. Structural, electronic and magnetic properties of RE³⁺-doping in CoFe₂O₄: a first-principles study. Journal of Magnetism and Magnetic Materials, 2017, 421: 300-305. DOI URL
[23]	HE D L, CHEN Y F, SITU Y, et al. Synthesis of ternary g-C₃N₄/Ag/γ-FeOOH photocatalyst: an integrated heterogeneous Fenton-like system for effectively degradation of azo dye methyl orange under visible light. Applied Surface Science, 2017, 425: 862-872. DOI URL
[24]	SHEN X F, YANG J Y, ZHENG T, et al. Plasmonic p-n heterojunction of Ag/Ag₂S/Ag₂MoO₄ with enhanced vis-NIR photocatalytic activity for purifying wastewater. Separation and Purification Technology, 2020, 251: 117347. DOI URL
[25]	ZHAO W, GUO Y, WANG S M, et al. A novel ternary plasmonic photocatalyst: ultrathin g-C₃N₄ nanosheet hybrided by Ag/AgVO₃ nanoribbons with enhanced visible-light photocatalytic performance. Applied Catalysis B: Environmental, 2015, 165: 335-343. DOI URL
[26]	JING H X, GAO M X, WANG X M, et al. Preparation and absorption properties of rare earth Ce³⁺ doped CoFe₂O₄ nanoparticles. Journal of Materials Research, 2018, 32(6): 449-454.
[27]	LIU Y, CHEN J J, ZHANG J F, et al. Z-scheme BiVO₄/Ag/Ag₂S composites with enhanced photocatalytic efficiency under visible light. RSC Advances, 2020, 10: 30245-30253. DOI URL
[28]	LIU Y, ZHANG T H, LI S S, et al. Geometric and electronic modification of the active Fe³⁺ sites of α-Fe₂O₃ for highly efficient toluene combustion. Journal of Hazardous Materials, 2020, 398: 123233. DOI URL
[29]	HELENA BRUNCKOVA, MARIA KANUCHOVA, HRISTO KOLEV, et al. XPS characterization of SmNbO₄ and SmTaO₄ precursors prepared by Sol-Gel method. Applied Surface Science, 2019, 473: 1-5. DOI URL
[30]	LI X Z, ZHANG Z S, YAO C, et al. Attapulgite-CeO₂/MoS₂ ternary nanocomposite for photocatalytic oxidative desulfurization. Applied Surface Science, 2016, 364: 589-596. DOI URL
[31]	SADOVNIKOV S I, GUSEV A I. Recent progress in nanostructured silver sulﬁde: from synthesis and nonstoichiometry to properties. Journal of Materials Chemistry, 2017, 5: 17617-17704.
[32]	BAI S, WANG L, LI Z, et al. Facet-engineered surface and interface design of photocatalytic materials. Advanced Science, 2017, 4: 1600216. DOI URL
[33]	SUN G S, XU H, LI X M, et al. Fabrication and characterization of visible-light induced photocatalyst Gd₂O₃/Ag₃VO₄. Reaction Kinetics, Mechanisms and Catalysis, 2010, 99: 471-484.
[34]	LIU C H, ZHOU Z D, YU X, et al. Preparation and characterization of Fe₃O₄/Ag composite magnetic nanoparticles. Inorganic Materials, 2008, 44(3): 291-295. DOI URL
[35]	LI X, KANG B, DONG F, et al. Enhanced photocatalytic degradation and H₂/H₂O₂ production performance of S-p CN/ WO_2.72 S-scheme heterojunction with appropriate surface oxygen vacancies. Nano Energy, 2021, 81: 105671. DOI URL
[36]	CHEN F F, WU C Y, WANG J N, et al. Highly efficient Z-scheme structured visible-light photocatalyst constructed by selective doping of Ag@AgBr and Co₃O₄ separately on {010} and {110} facets of BiVO₄: pre-separation channel and hole-sink effects. Applied Catalysis B: Environmental, 2019, 250: 31-41. DOI URL
[37]	DENG J M, XUE R T, HUANG C Y, et al. Preparation of Z-scheme Ag/AgBr/BiOBr composite photocatalyst for effective removal of organic pollutants. Chemical Physics, 2021, 548: 111228. DOI URL
[38]	XIONG J, LI X B, HUANG J T, et al. CN/rGO@BPQDs high-low junctions with stretching spatial charge separation ability for photocatalytic degradation and H₂O₂ production. Applied Catalysis B: Environmental, 2020, 266: 118602. DOI URL
[39]	TANG H, FU Y H, CHANG S F, et al. Construction of Ag₃PO₄/ Ag₂MoO₄ Z-cheme heterogeneous photocatalyst for the remediation of organic pollutants. Chinese Journal of Catalysis, 2017, 38: 337-347. DOI URL
[40]	LI L, WANG X, LAN Y, et al. Synthesis, photocatalytic and electrocatalytic activities of wormlike GdFeO₃ nanoparticles by a glycol-assisted Sol-Gel process. Industrial & Engineering Chemistry Research, 2013, 52: 9130-9136. DOI URL
