掺铋钇铁石榴石磁光陶瓷的热压烧结及其性能研究

doi:10.15541/jim20210603

摘要/Abstract

摘要：

钇铁石榴石(Y₃Fe₅O₁₂, YIG)材料因其优异的磁性能和磁光性能在微波通信、激光技术和光纤通讯等领域具有重要应用。离子掺杂是提高YIG材料磁光性能的有效途径之一, 本研究选择离子半径适配的Bi³⁺掺杂改性YIG陶瓷以提高材料的磁光性能。本工作采用固相法热压烧结制备Bi_xY_3-_xFe₅O₁₂ (x=0、0.3、0.6、0.9)陶瓷, 并研究Bi³⁺掺杂对YIG陶瓷材料相结构、微观形貌、红外透过性、磁性能以及磁光性能的影响。结果表明: 陶瓷样品均呈石榴石立方相结构; 显微结构致密, Bi³⁺掺杂后晶粒尺寸不同程度增大; 样品红外透过率良好, 随Bi³⁺掺杂量增大而降低; 陶瓷样品的法拉第旋转角随Bi³⁺掺杂量增加呈线性变化, Bi³⁺掺杂量每增加1% (原子分数), 在波长1064 nm和1550 nm处变化量分别约为-49.0 (°)/cm和-30.2 (°)/cm。Bi_0.6Y_2.4Fe₅O₁₂陶瓷样品在1064 nm和1550 nm波长下法拉第旋转角分别达到-703.3 (°)/cm和-461.5 (°)/cm, 绝对值远高于未掺杂YIG陶瓷的277.6 (°)/cm和172.0 (°)/cm。由此可见, 掺杂适量Bi³⁺可以显著增强YIG陶瓷材料的磁光性能。

关键词: 钇铁石榴石, 磁光陶瓷, 铋掺杂, 红外透光率, 法拉第旋转

Abstract:

Yttrium iron garnet (Y₃Fe₅O₁₂, YIG) materials with excellent magnetic and magneto-optical performances have been widely used in various fields such as the microwave communication, laser technology and optical fiber communication. Ion doping is considered as an effective method to improve the magneto-optical performance of YIG materials. In this study, Bi³⁺ with appropriate ion radius were selected to modify YIG ceramics to improve the magneto-optical properties of the materials. A series of Bi_xY_3-_xFe₅O₁₂ (x=0, 0.3, 0.6, 0.9) ceramics were prepared by the hot-pressing sintering process with the solid-state reaction. Phase structure, micro-morphology, infrared transmittance, magnetic and magneto-optical properties of the sintered Bi_xY_3-_xFe₅O₁₂ (x=0, 0.3, 0.6, 0.9) ceramics were investigated. All sintered Bi³⁺-doped YIG ceramic samples exhibit the pure garnet phase structure with dense microstructure, and the grain size increases with Bi³⁺ doping. The infrared transmittance of the sample is good, but it decreases with the increase of Bi³⁺ doping content. The Faraday rotation angle of the YIG ceramic sample changes linearly with the Bi³⁺ content increase. When the Bi³⁺ content increases about 1% (in atom), Faraday rotation angle changes about -49.0 (°)/cm and -30.2 (°)/cm at 1064 nm and 1550 nm wavelengths, respectively. Faraday rotation angles of Bi_0.6Y_2.4Fe₅O₁₂ceramic sample at wavelengths of 1064 nm and 1550 nm are -703.3 (°)/cm and -461.5 (°)/cm, respectively, which are much higher than that of the undoped YIG ceramics (277.6 (°)/cm and 172.0 (°)/cm, respectively). The magneto-optical performance of YIG ceramics is enhanced obviously by the Bi³⁺ doping.

Key words: yttrium iron garnet, magneto-optical ceramics, Bi-doped, infrared transmittance, Faraday rotation

中图分类号:

TM284

邹顺, 何夕云, 曾霞, 仇萍荪, 凌亮, 孙大志. 掺铋钇铁石榴石磁光陶瓷的热压烧结及其性能研究[J]. 无机材料学报, 2022, 37(7): 773-779.

ZOU Shun, HE Xiyun, ZENG Xia, QIU Pingsun, LING Liang, SUN Dazhi. Microstructure and Properties of Bi-doped Yttrium Iron Garnet Magneto-optical Ceramics Prepared by Hot-pressing Sintering Process[J]. Journal of Inorganic Materials, 2022, 37(7): 773-779.

图/表 9

图1 BixY1-xFe5O12陶瓷样品密度与烧结温度的关系曲线(a)和陶瓷样品实物照片(b)

Fig. 1 Density of BixY1-xFe5O12 ceramic samples varies with sintering temperatures (a) and photos of BixY1-xFe5O12 samples (b)

图2 不同烧结温度BixY1-xFe5O12陶瓷样品的红外透过率曲线(d=0.4 mm)

Fig. 2 Infrared transmittance curves of BixY1-xFe5O12 samples sintered at different temperatures (d=0.4 mm) Colorful figures are available on website

表1 最高密度陶瓷样品及最佳透过率陶瓷样品的烧结温度

Table 1 Sintering temperatures of the samples with the highest density and the highest transmittance

Bi_xY_1-_xFe₅O₁₂	Sintering temperature of the sample with the highest density/℃	Sintering temperature of the sample with the highest transmittance/℃
x=0	1300	1300
x=0.3	1250	1250
x=0.6	1250	1150
x=0.9	1150	1050

图3 Bi3+掺杂BixY1-xFe5O12陶瓷样品(d=0.4 mm)的最佳红外透过率曲线

Fig. 3 Best infrared transmittance curves of BixY1-xFe5O12 samples with Bi3+ doping (d=0.4 mm) Colorful figures are available on website

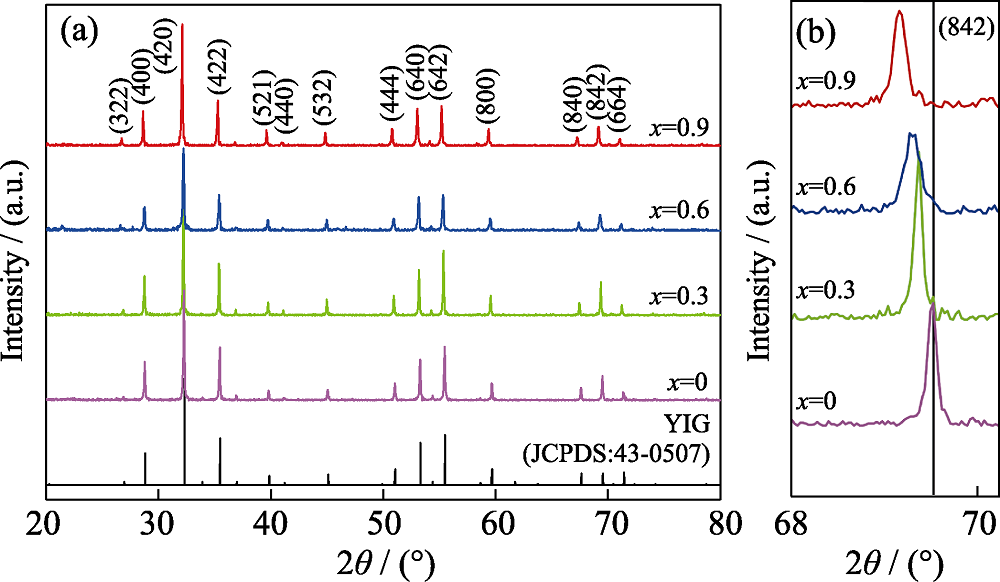

图4 BixY1-xFe5O12(x=0、0.3、0.6、0.9)样品的XRD图谱(a)及XRD谱图中2θ在68°~70°细节图谱(b)

Fig. 4 XRD patterns of BixY1-xFe5O12 (x=0, 0.3, 0.6, 0.9) samples (a) and the detail map at 2θ=68°-70° (b)

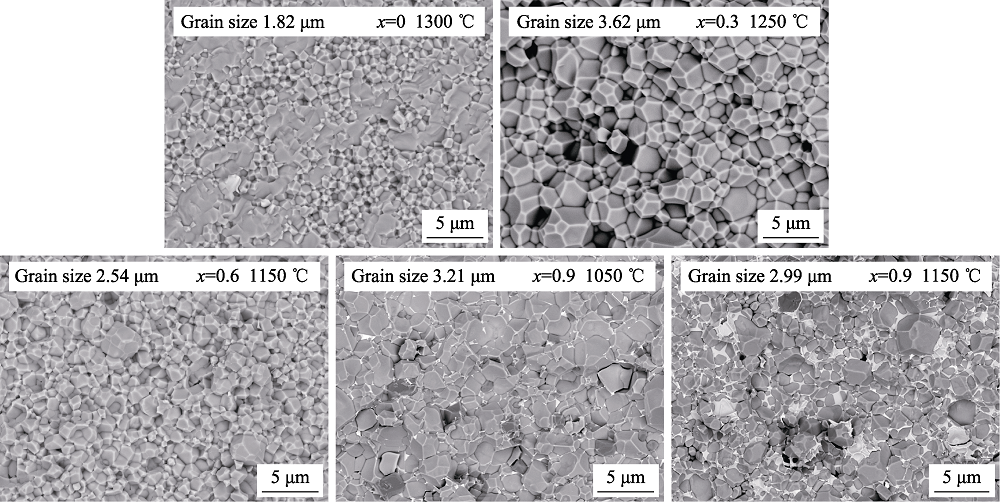

图5 BixY1-xFe5O12陶瓷样品的断面SEM照片

Fig. 5 Cross-section SEM images of the BixY1-xFe5O12 ceramic samples

图6 1050 ℃下烧结Bi0.9Y2.1Fe5O12陶瓷的SEM照片(a)和EDS谱图(b, c)

Fig. 6 SEM image (a) and EDS patterns of the Bi0.9Y2.1Fe5O12 ceramics sintered at 1050 ℃ (b, c) corresponding to the site of A and B in (a), respectively

图7 法拉第旋转角测试设备示意图(a), BixY1-xFe5O12陶瓷样品的磁滞回线(b), 以及陶瓷样品在1064和1550 nm处的θF与铋的相对含量的关系(c)

Fig. 7 Schematic diagram of Faraday rotation angle test equipment (a), hysteresis loops (b) of BixY1-xFe5O12 samples, and Faraday rotation angle of the ceramic sample varies with the proportion of bismuth at 1064 and 1550 nm (c) Colorful figures are available on website

表2 不同Bi3+掺杂量YIG陶瓷样品的磁性能参数

Table 2 Magnetic performance parameters of the sintered BixY1-xFe5O12 samples with different amounts of Bi3+doping

x	Residual magnetization, 4πM_r/T	Saturation magnetization, 4πM_s/T	Coercive field, H_c/ (A·m^-1)
0	1.32×10^-2	0.1543	6029.6
0.3	6.59×10^-3	0.1577	369.2
0.6	5.02×10^-4	0.1596	310.4
0.9	2.86×10^-4	0.1536	179.8
