陶瓷薄基板材料裂纹预制与断裂韧性评价

doi:10.15541/jim20200621

无机材料学报 ›› 2021, Vol. 36 ›› Issue (7): 733-737.DOI: 10.15541/jim20200621 CSTR: 32189.14.10.15541/jim20200621

陶瓷薄基板材料裂纹预制与断裂韧性评价

马德隆¹^,²(), 包亦望¹^,², 万德田¹^,², 邱岩², 郑德志², 付帅²

1.中国建筑材料科学研究总院有限公司绿色建筑材料国家重点实验室, 北京 100024
2.中国建材检验认证集团股份有限公司, 北京 100024

收稿日期:2020-11-02 修回日期:2020-11-27 出版日期:2021-07-20 网络出版日期:2020-12-10
通讯作者: 包亦望, 教授. E-mail:baoyw@ctc.ac.cn
作者简介:马德隆(1993-), 男, 博士研究生. E-mail:madelong@ctc.ac.cn
基金资助:
国家重点研发计划重大科学仪器设备开发专项(2018YFF01012404);国家自然科学基金重点项目(52032011)

Pre-crack and Fracture Toughness Evaluation of Ceramic Thin Plates

MA Delong¹^,²(), BAO Yiwang¹^,², WAN Detian¹^,², QIU Yan², ZHENG Dezhi², FU Shuai²

1. State Key Laboratory of Green Building Materials, China Building Materials Academy, Beijing 100024, China
2. China Building Material Test & Certification Group Co., Ltd., Beijing 100024, China

Received:2020-11-02 Revised:2020-11-27 Published:2021-07-20 Online:2020-12-10
Contact: BAO Yiwang, professor. E-mail:baoyw@ctc.ac.cn
About author:MA Delong(1993-), male, PhD candidate. E-mail:madelong@ctc.ac.cn
Supported by:
National Key R&D Program of China(2018YFF01012404);National Natural Science Foundation of China(52032011)

摘要/Abstract

摘要：

预制长度可控的裂纹以及原位观察裂纹扩展是研究陶瓷薄基板抗断裂行为的两大重点。本研究提出应变诱导法, 通过将基板与黄铜梁粘结形成复合体, 利用黄铜梁弯曲变形带动侧面陶瓷薄板受拉侧拉伸变形产生可控裂纹。在工具显微镜下对复合体进行四点弯曲, 原位观察样品的裂纹扩展情况, 通过调节黄铜梁宽度来控制初始裂纹长度, 在初始裂纹萌发后继续加载, 使裂纹达到测试断裂韧性的标准长度。将这种测试方法与块体材料断裂韧性的测试标准进行了对比, 结果表明: 采用该方法预制裂纹后测试断裂韧性具有简易性和可靠性。应变诱导法预制裂纹成功率高, 裂纹萌发位置及长度可控, 且操作方便, 可推广应用于超薄玻璃等其他超薄脆性材料的断裂韧性评价和分析裂纹扩展阻力。

关键词: 陶瓷薄基板, 预制裂纹, 原位观察, 断裂韧性

Abstract:

Controllable length of pre-crack and in-situ observation are two major difficulties in the research of fracture resistance of ceramic materials. In this study, a method of strain-induced cracking was proposed, in which the plate was bonded to a brass beam to form a composite. The bending deformation of brass beam derived the tension deformation in the tension zone of ceramic thin plate to induce the controllable crack. Four-point bending test was conducted under a tool microscope to perform in-situ observation of crack propagation. The initial crack length was controlled by adjusting the width of the tensile zone of the ceramic plate. After the crack initiation, loading continued to make the crack length meet the requirements of fracture toughness test for ceramics. Compared with standard test of fracture toughness of block materials, the above method is simple and reliable. The strain-induced method to pre-crack has high success rate, the position of crack initiation and the length of pre-crack are controllable and easy to operate. It can be widely applied to fracture toughness evaluation and crack propagation resistance analysis of ultra-thin glass and other ultra-thin brittle materials.

Key words: ceramic thin plates, pre-crack, in situ observation, fracture toughness

中图分类号:

TQ174

马德隆, 包亦望, 万德田, 邱岩, 郑德志, 付帅. 陶瓷薄基板材料裂纹预制与断裂韧性评价[J]. 无机材料学报, 2021, 36(7): 733-737.

MA Delong, BAO Yiwang, WAN Detian, QIU Yan, ZHENG Dezhi, FU Shuai. Pre-crack and Fracture Toughness Evaluation of Ceramic Thin Plates[J]. Journal of Inorganic Materials, 2021, 36(7): 733-737.

图/表 12

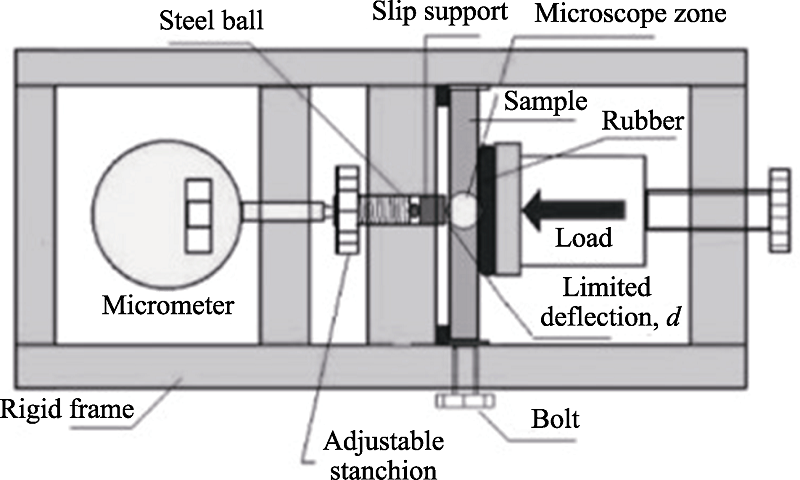

图1 应变控制法预制裂纹示意图[8]

Fig. 1 Schematic diagram of pre-cracking in strain control method

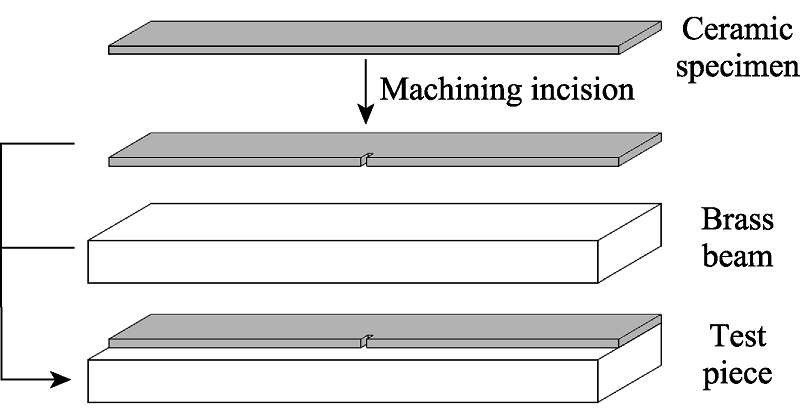

图2 测试样品组成示意图

Fig. 2 Schematic diagram of test piece composition

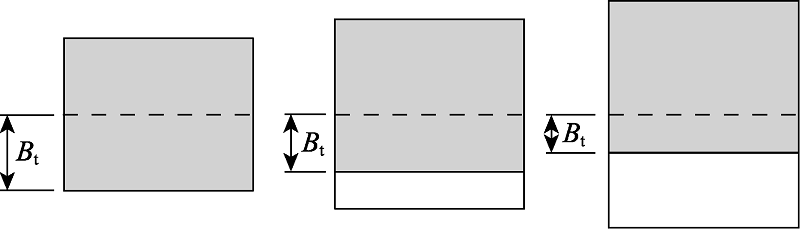

图3 受拉区宽度随黄铜梁宽度增加而减小

Fig. 3 Width of tensile zone decreases with increase of brass beam width

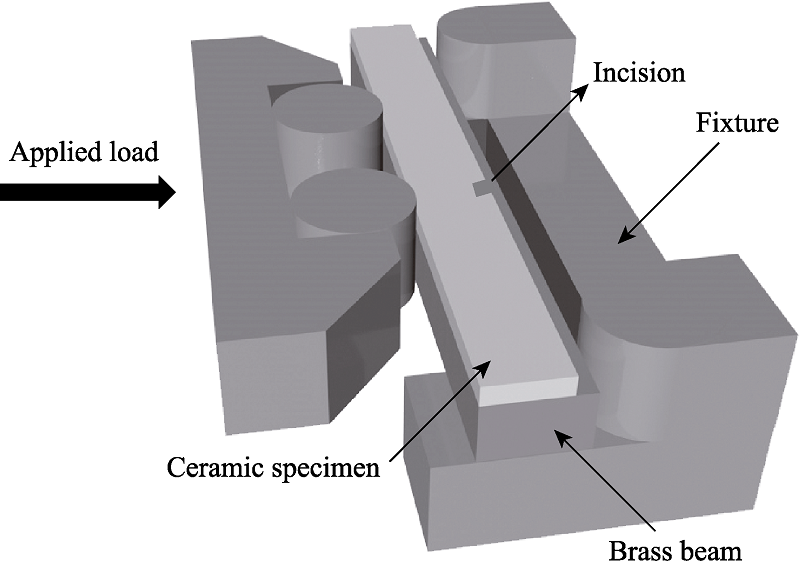

图4 水平加载四点弯曲预裂纹示意图

Fig. 4 Schematic diagram of pre-cracking by four-point bending test in horizontal direction

表1 陶瓷薄基板的基本力学性能

Table 1 Basic mechanical properties of three types of ceramic thin plates

Material	Elastic modulus/GPa	Bending strength/MPa	Vickers hardness/GPa
Al₂O₃	(305±10)	(315±20)	(19.8±0.1)
SiC	(360±12)	(340±28)	(20.1±0.3)
Si₃N₄	(280±8)	(425±33)	(15.9±0.6)

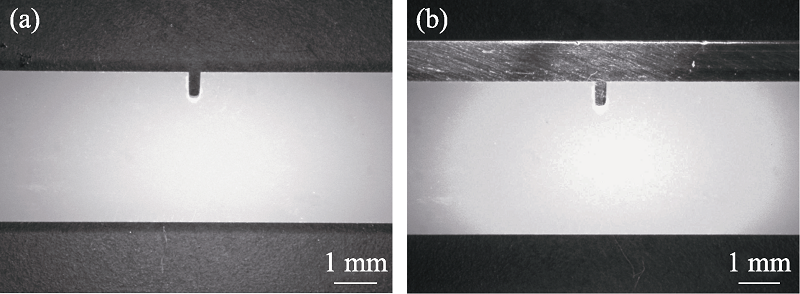

图5 陶瓷薄基板与黄铜梁粘结形成复合体

Fig. 5 Microscopic images of composite bonded by ceramic thin plate and brass beam (a) Machining incision in the edge of ceramic thin plate specimen; (b) Composite bonded by ceramic thin plate and brass beam bonded to form a composite

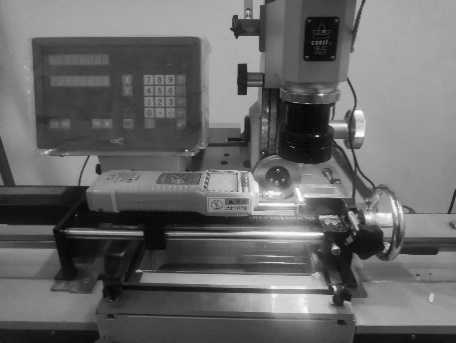

图6 工具显微镜下四点弯曲法预制裂纹

Fig. 6 Diagram of pre-cracking by four-point bending test under tool microscope

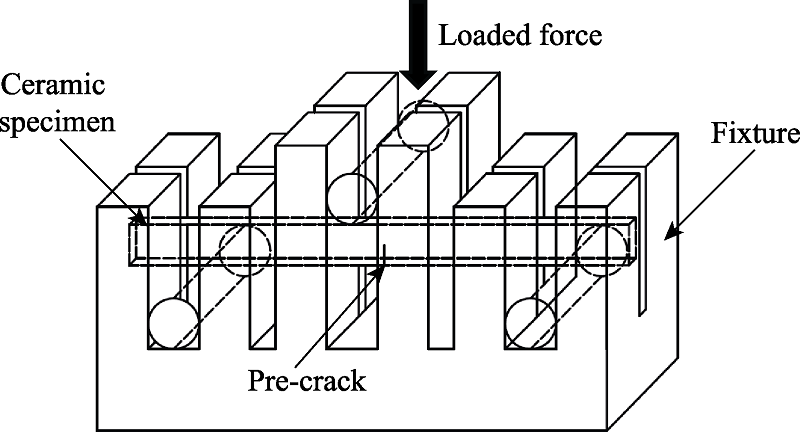

图7 采用三点弯曲法测试断裂韧性示意图

Fig. 7 Schematic diagram of three-point bending test of fracture toughness

图8 采用四点弯曲法预制氧化铝基板裂纹及扩展过程

Fig. 8 In- situ observation of crack initiation and extension in Al2O3 plate (a) Initial crack; (b) Continue loading until the crack meet the requirements of fracture toughness test; (c) Crack tip

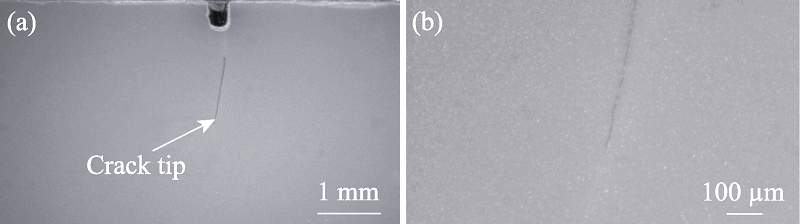

图9 采用三点弯曲法预制的裂纹

Fig. 9 Pre-crack by three-point bending test (a) Pre-crack; (b) Crack tip

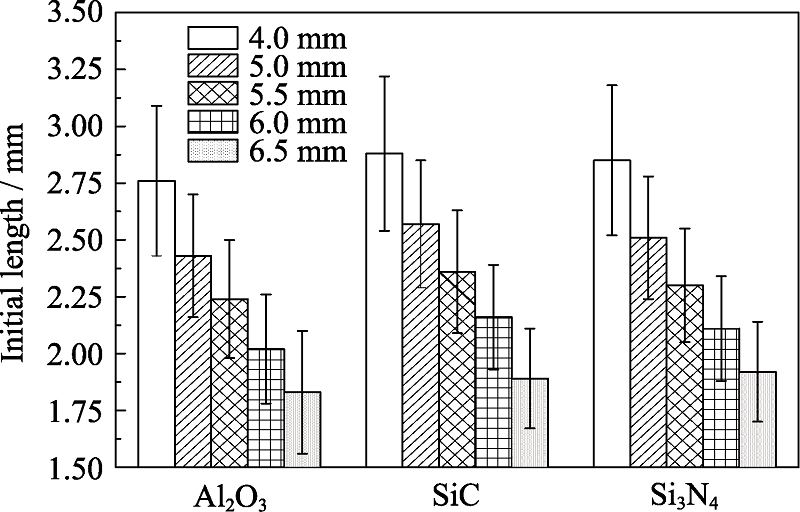

图10 不同宽度黄铜梁预制裂纹的初始长度

Fig. 10 Pre-crack initial length by using brass beam of different widths

表2 陶瓷薄基板与陶瓷块体断裂韧性对比

Table 2 Fracture toughness of ceramic thin plate and ceramic block

Material type	Thickness of the specimen/mm	Number of specimen	Number of successful pre-cracks	Fracture toughness/ (MPa∙m^1/2)
Al₂O₃	0.6	15	15	(4.17±0.26)
Al₂O₃	3	10	8	(4.21±0.25)
SiC	0.6	15	14	(3.81±0.24)
SiC	3	10	7	(3.72±0.22)
Si₃N₄	0.6	15	14	(5.28±0.31)
Si₃N₄	3	10	8	(5.36±0.33)

参考文献 14

[1]	KHAZAKA R, MENDIZABAL L, HENRY D, et al. Survey of high- temperature reliability of power electronics packaging components. IEEE Trans. Power Electron., 2015,30(5):2456-2464. DOI URL
[2]	MIYAZAKI H, YOSHIZAWA Y, HIRAO K, et al. Measurements of fracture toughness of ceramic thin plates through single-edge V-notch plate method. J. Eur. Ceram. Soc., 2016,36(16):4327-4331. DOI URL
[3]	曾小亮, 孙蓉, 于淑会, 等. 电子封装基板材料研究进展及发展趋势. 集成技术, 2014,3(6):76-83.
[4]	SMIRNOV S V, ROMANOV B P, STRELOV K K. The failure of thin ceramic plates under intensive heat flows. Ceram. Int., 1991,17(3):205-206. DOI URL
[5]	MIYAZAKI H, YOSHIZAWA Y I, HIRAO K, et al. Evaluation of fracture toughness of ceramic thin plates through modified single edge-precracked plate method. Scr. Mater., 2015,103:34-36. DOI URL
[6]	STROBL S, RASCHE S, KRAUTGASSER C, et al. Fracture toughness testing of small ceramic discs and plates. J. Eur. Ceram. Soc., 2014,34(6):1637-1642. DOI URL
[7]	MIYAZAKI H, YOSHIZAWA Y I, HIRAO K, et al. Round-robin test on the fracture toughness of ceramic thin plates through modified single edge-precracked plate method. J. Eur. Ceram. Soc., 2016,36(13):3245-3248. DOI URL
[8]	BAO Y W, ZHOU Y C. A new method for precracking beam for fracture toughness experiments. J. Am. Ceram. Soc., 2010,89(3):1118-1121. DOI URL
[9]	SAKAI M, BRADT R C. Fracture toughness testing of brittle materials. Metall. Rev., 1993,38(2):53-78. DOI URL
[10]	万德田, 魏永金, 包亦望, 等. 陶瓷断裂韧性测试方法准确性和简便性比较分析. 硅酸盐学报, 2019,47(8):1080-1088.
[11]	ISO 21113-2018, Fine ceramics (advanced ceramics, advanced technical ceramics)—Test method for fracture toughness of monolithic ceramic thin plates at room temperature.
[12]	AN K, CHEN L X, YAN X B, et al. Fracture strength and toughness of chemical-vapor-deposited polycrystalline diamond films. Ceram. Int., 2018,44(15):17845-17851. DOI URL
[13]	LU F X, JIANG Z, TANG W Z, et al. Accurate measurement of strength and fracture toughness for miniature-size thick diamond- film samples by three-point bending at constant loading rate. Diamond Relat. Mater., 2001,10(3-7):770-774. DOI URL
[14]	GB/T 23806-2009, 精细陶瓷断裂韧性试验方法单边预裂纹梁(SEPB)法.
