简易合成Bi/Bi2MoO6/TiO2复合纳米纤维及其增强的可见光催化性能

doi:10.15541/jim20180564

摘要/Abstract

摘要：

以电纺TiO₂纳米纤维为基质, 葡萄糖为还原剂, 采用简单一步溶剂热法制备了等离子体Bi/Bi₂MoO₆/TiO₂复合纳米纤维。利用X射线衍射、场发射扫描电镜、透射电子显微镜、X射线光电子能谱、紫外-可见漫反射光谱和光致发光谱等对样品进行表征。以RhB和4-CP为模拟有机污染物, 评价材料的光催化性能。结果表明: 部分Bi ³⁺被葡萄糖还原成金属Bi纳米粒子, 原位沉积在Bi₂MoO₆纳米片上, 同时构筑在TiO₂纳米纤维表面。金属Bi的等离子体共振效应, 有效提高了样品的光催化活性。可见光照50 min, 样品对RhB的降解率为95.8%, 五次循环后仍保持在92%以上; 可见光照180 min, 样品对4-CP的降解率达68.8%。证实该材料具有良好的可见光催化活性和稳定性。

关键词: 金属Bi, 等离子体共振效应, 复合纳米纤维, 可见光催化

Abstract:

The plasma Bi/Bi₂MoO₆/TiO₂ composite nanofibers were prepared via a facile one-step solvothermal method, using electrospun TiO₂ nanofibers as substrate, and glucose as reducing agent. The photocatalytic activity of the samples were evaluated by photodegradation of rhodamine B and 4-chlorophenol solution under visible light irradiation. The results showed that metal Bi nanoparticles were generated on the surface of Bi₂MoO₆ nanosheets via reduction of Bi ³⁺ in situ by glucose, meanwhile grew on the TiO₂ nanofibers surface. The photocatalytic activity of the Bi/Bi₂MoO₆/TiO₂ composites nanofibers can be further improved by depositing metallic Bi owing to its surface plasmon resonance. The RhB catalyzed by the sample was degraded by 95.8% under visible light irradiation for 50 min, and the degradation efficiency remained over 92% after 5 cycles while the 4-CP was degraded for 68.8% under visible light irradiation for 180 min. All above results suggest that the photocatalysts have good photocatalytic activity and stability.

Key words: metal Bi, plasma resonance effect, composite nanofibers, visible light photcatalysis

中图分类号:

O643

李晓萍, 李跃军, 曹铁平, 孙大伟, 王霞, 席啸天. 简易合成Bi/Bi₂MoO₆/TiO₂复合纳米纤维及其增强的可见光催化性能[J]. 无机材料学报, 2019, 34(11): 1193-1199.

LI Xiao-Ping, LI Yue-Jun, CAO Tie-Ping, SUN Da-Wei, WANG Xia, XI Xiao-Tian. Facile Synthesis of Bi/Bi₂MoO₆/TiO₂ Composite Nanofibers with Enhanced Photocatalytic Activity under Visible Light[J]. Journal of Inorganic Materials, 2019, 34(11): 1193-1199.

图/表 11

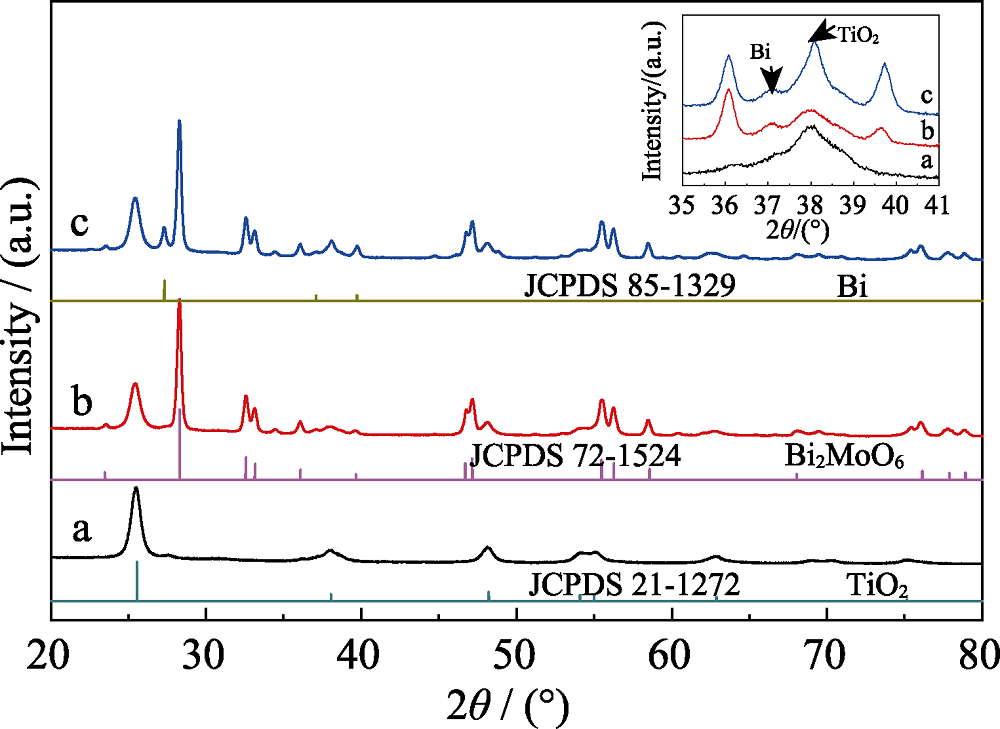

图1 不同样品的XRD图谱

Fig. 1 XRD patterns of different samples a: TiO2; b: BM/TO; c: Bi/BM/TO

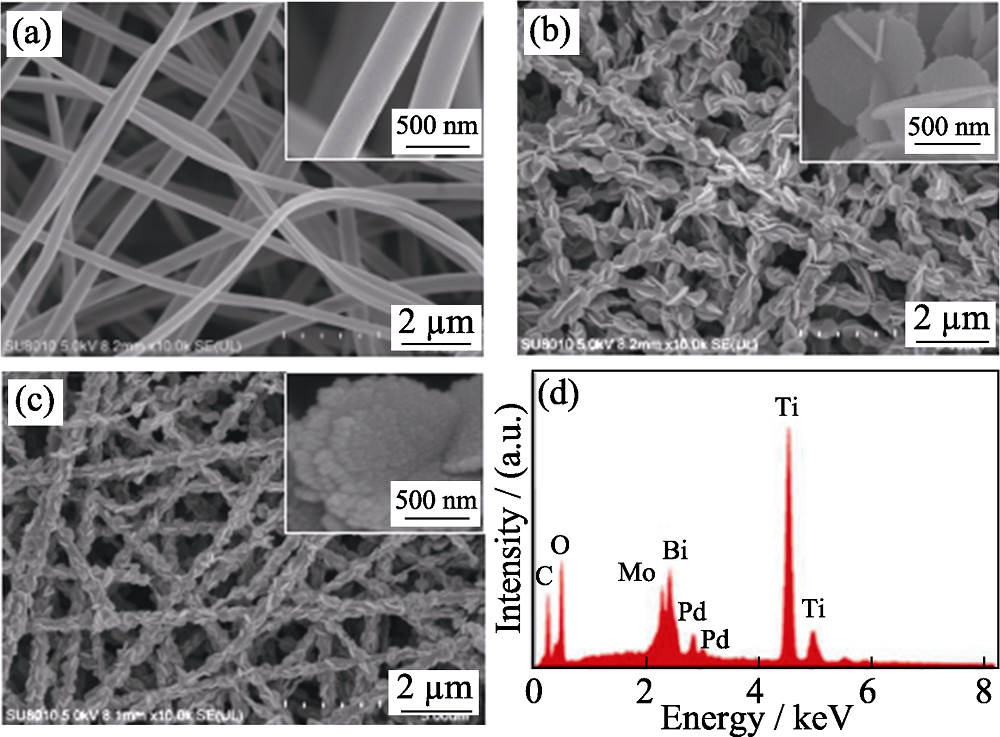

图2 TiO2(a)、BM/TO(b)和Bi/BM/TO(c)的SEM照片和样品Bi/BM/TO的EDS能谱图(d)

Fig. 2 SEM images of TiO2 (a), BM/TO (b), Bi/BM/TO (c) and EDS pattern of sample Bi/BM/TO (d)

图3 样品BM/TO(a, b)和Bi/BM/TO(c~f)的TEM和HRTEM照片

Fig. 3 TEM and HRTEM images of sample BM/TO(a, b) and Bi/BM/TO(c-f)

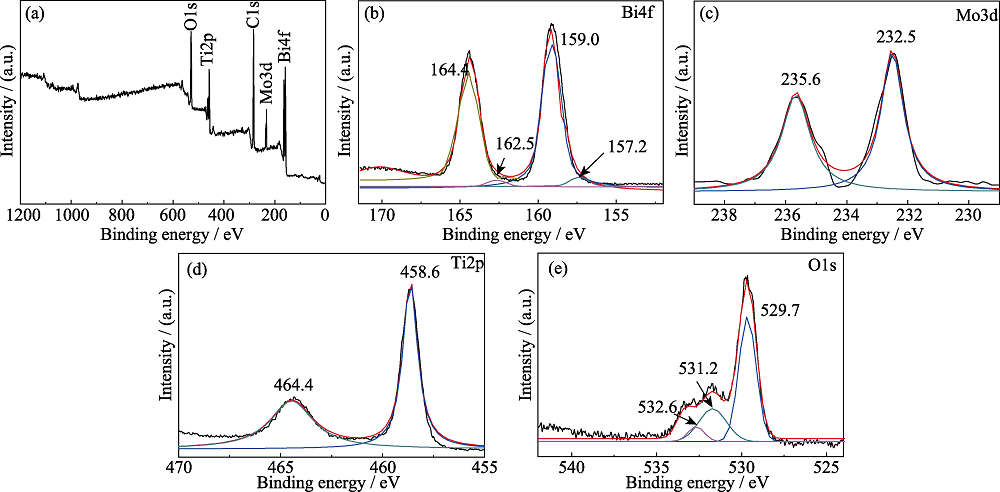

图4 样品Bi/BM/TO的XPS谱图

Fig. 4 XPS spectra of sample Bi/BM/TO (a) Survey scan; (b) Bi4f; (c) Mo3d; (d) Ti2p; (e) O1s

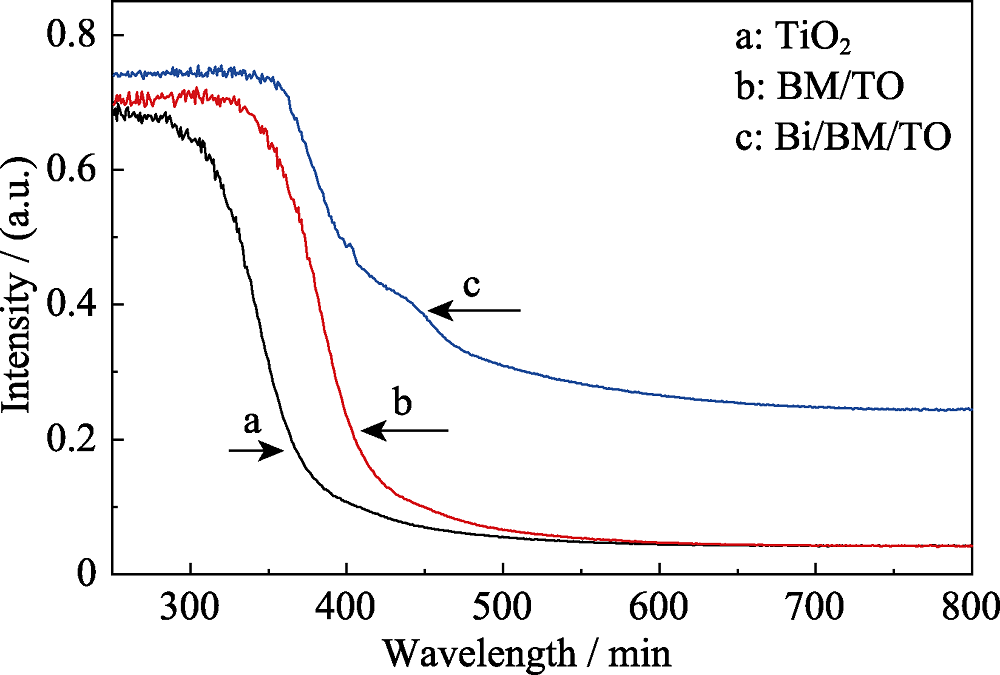

图5 不同样品的UV-Vis DRS谱图

Fig. 5 UV-Vis diffuses reflectance spectra of different samples

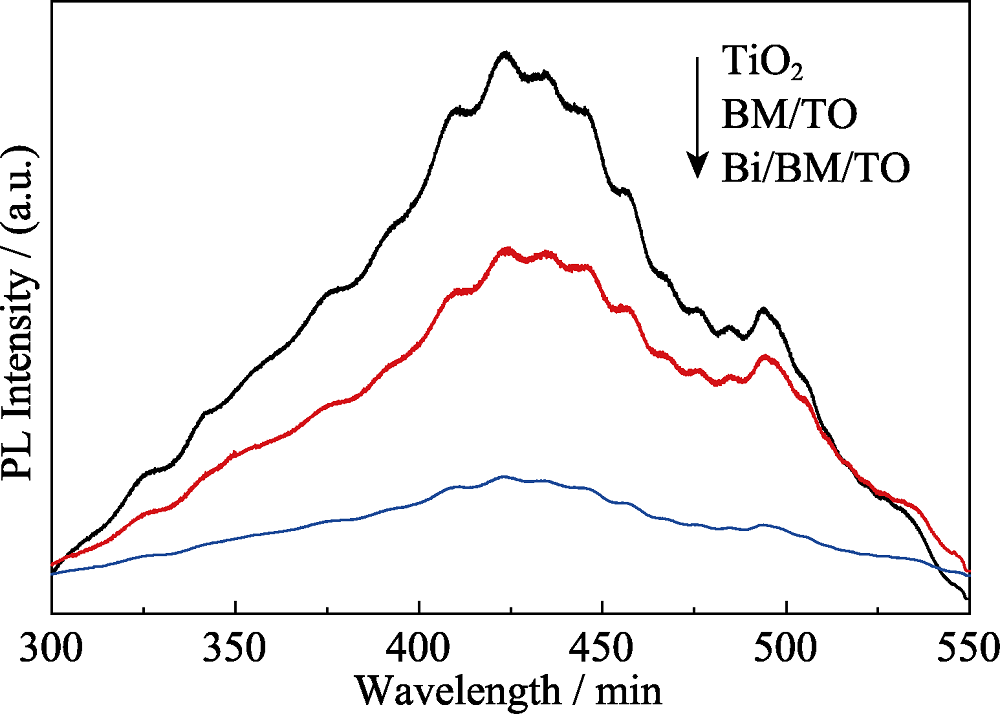

图6 不同样品的荧光(PL)光谱图

Fig. 6 PL spectra of different samples

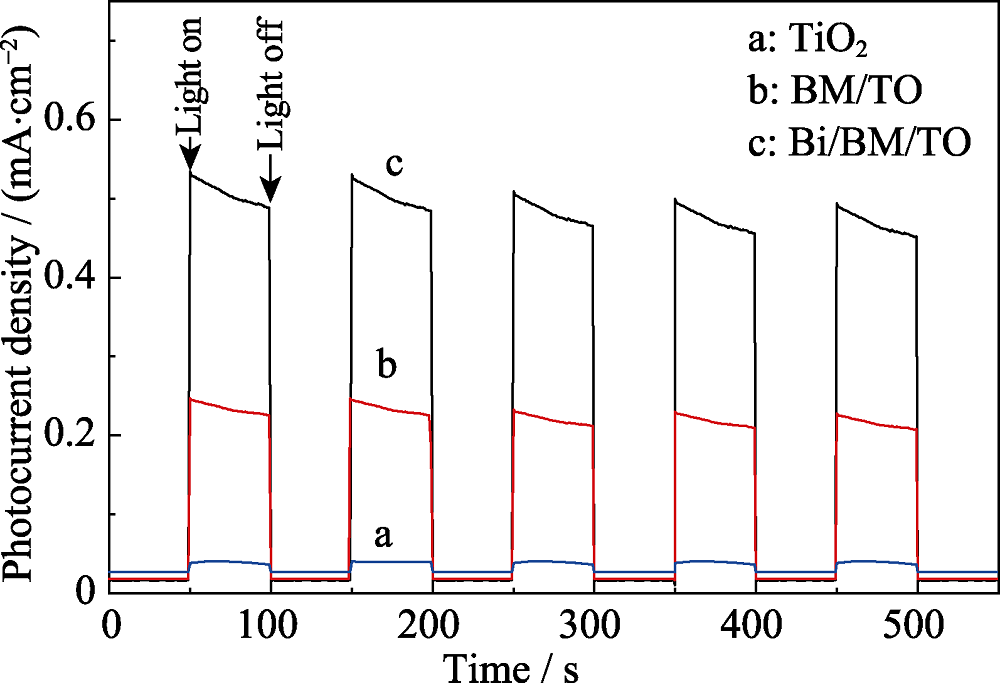

图7 不同样品的瞬态光电流响应图

Fig. 7 Photocurrent of different samples

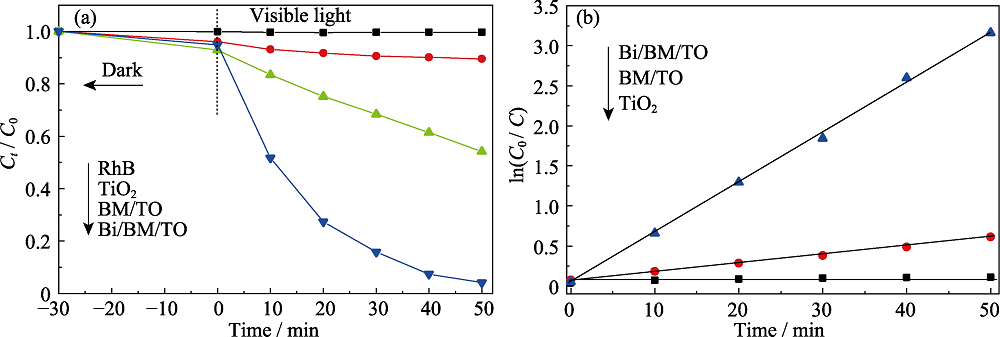

图8 不同样品可见光催化降解RhB(a)和一级动力学(b)曲线

Fig. 8 Degradation curves of RhB by different samples under visible light irradiation (a) and corresponding first-order kinetics (b)

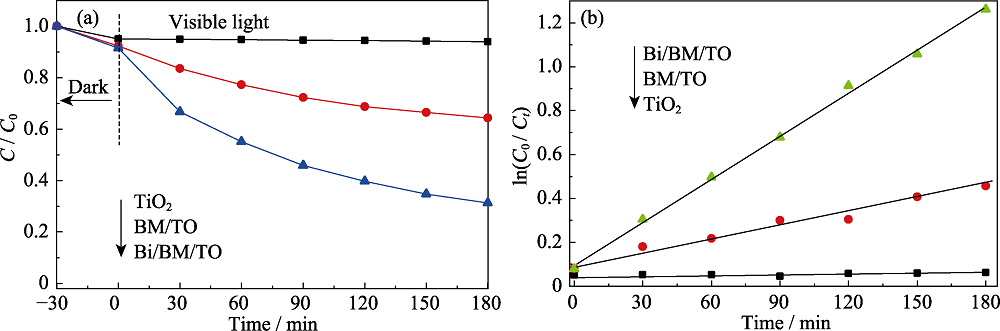

图9 不同样品可见光催化降解4-CP(a)和一级动力学(b)曲线

Fig. 9 Degradation curves of 4-CP by different samples under visible light irradiation (a) and corresponding first-order kinetics (b)

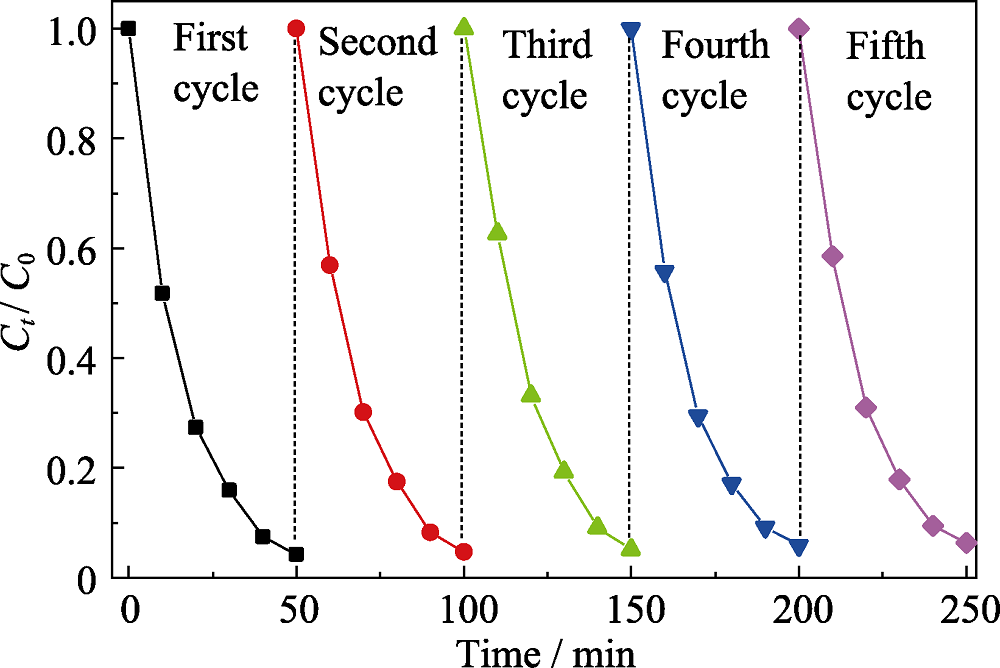

图10 可见光下Bi/BM/TO对RhB光催化的循环实验

Fig. 10 Cycling runs of the photocatalytic degradation of RhB over Bi/BM/TO under visible irradiation

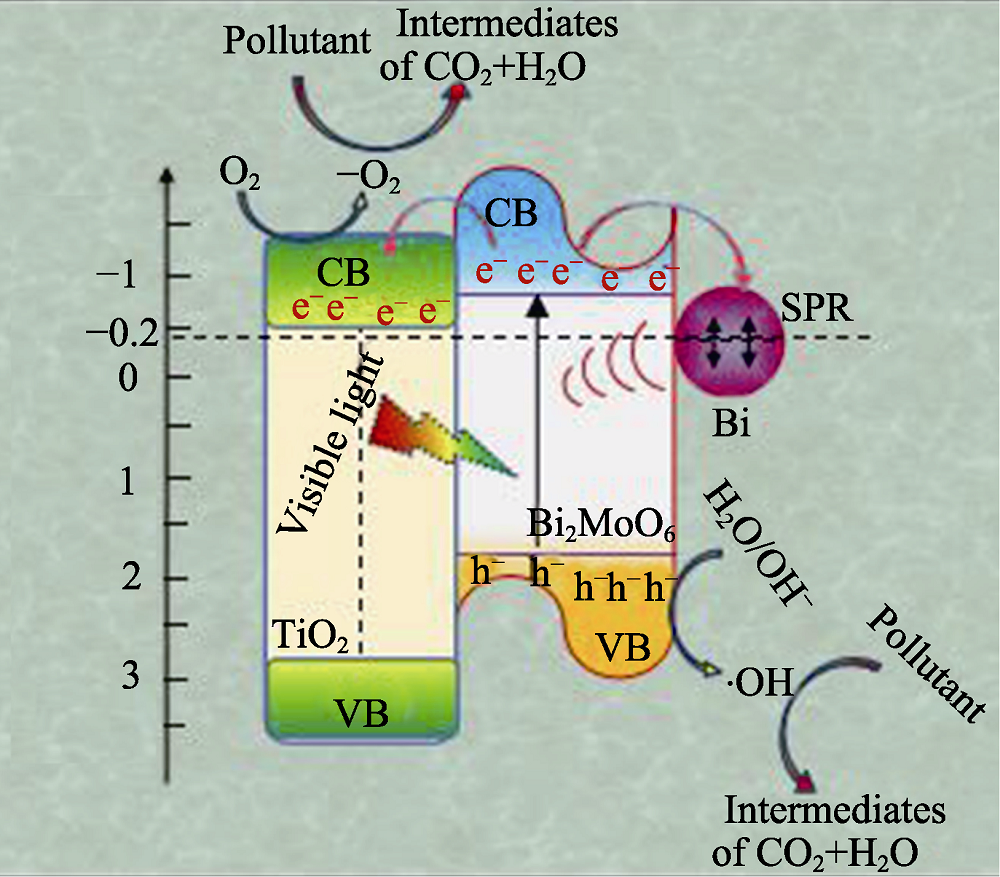

图11 示意图1 样品Bi/BM/TO可见光催化降解及能带结构图

Fig. 11 Scheme 1 Proposed photocatalytic mechanism for photodegradation of organic pollutants over Bi/BM/TO

参考文献 33

[1]	CHEN C C, MA W H, ZHAO J C . Semiconductor-mediated photodegradation of pollutants under visible-light irradiation. Chem. Soc. Rev., 2010,39(11):4206-4219.
[2]	LANG X J, CHEN X D, ZHAO J . Heterogeneous visible light photocatalysis for selective organic transformations. Chem. Soc. Rev., 2014,43(1):473-486.
[3]	CAO T P, LI Y J, SHAO C L , et al. A facile in situ hydrothermal method to SrTiO₃/TiO₂ nanofiber heterostructures with high photocatalytic activity. Langmuir, 2011,27(6):2946-2952.
[4]	TONG H, OUYANG S X, BI Y P , et al. Nano-photocatalytic materials: possibilities and challenges. Adv. Mater., 2012,24(2):229-251.
[5]	LI J, YU Y, ZHANG L Z . Bismuth oxyhalide nanomaterials: layered structures meet photocatalysis. Nanoscale, 2014,6(15):8473-8488.
[6]	TIAN J, HAO P, WEI N , et al. 3D Bi₂MoO₆ nanosheet/TiO₂ nanobelt heterostructure: enhanced photocatalytic activities and photoelectochemistry performance. ACS Catal., 2015,5(8):4530-4536.
[7]	LI X X, FANG S M, GE L , et al. Synthesis of flower-like Ag/AgCl-Bi₂MoO₆ plasmonic photocatalysts with enhanced visible-light photocatalytic performance. Appl. Catal. B: Environ.. Appl. Catal. B: Environ., 2015,176- 177:62-69.
[8]	WU M H, WANG Y X, XU Y , et al. Self-supported Bi₂MoO₆ nanowall for photoelectrochemical water splitting. ACS Appl. Mater. Interfaces, 2017,9(28):23647-23653.
[9]	SUN Y Y, WANG W Z, SUN S M , et al. A general synthesis strategy for one-dimensional Bi₂MO₆(M = Mo, W) photocatalysts using an electrospinning method. CrystEngComm, 2013,15(39):7959-7964.
[10]	DAI W L, YU J J, XU H , et al. Synthesis of hierarchical flower-like Bi₂MoO₆ microspheres as efficient photocatalyst for photoreduction of CO₂ into solar fuels under visible light. CrystEngComm, 2016,18(19):3472-3480.
[11]	ZHAO J, LU Q F, WANG C Q , et al. One-dimensional Bi₂MoO₆ nanotubes: controllable synthesis by electrospinning and enhanced simulated sunlight photocatalytic degradation performances. J. Nanopart. Res., 2015,17:189-199.
[12]	YU C L, WU Z, LIU R Y , et al. Novel fluorinated Bi₂MoO₆ nanocrystals for efficient photocatalytic removal of water organic pollutants under different light source illumination. Appl. Catal. B: Environ., 2017,209:1-11.
[13]	AWAZU K, FUJIMAKI M, ROCKSTUHL C , et al. A plasmonic photocatalyst ponsisting of silver nanoparticles embedded in titanium dioxide. J. Am. Chem. Soc., 2008,130(5):1676-1680.
[14]	MORI K, VERMA P, HAYASHI R , et al. Color-controlled Ag nanoparticles and nanorods within confined mesopores: microwave-assisted rapid synthesis and application in plasmonic catalysis under visible-light irradiation. Chem-A. Eur. J., 2015,21(33):11885-11893.
[15]	YANG J, WANG X H, CHEN Y M , et al. Enhanced photocatalytic activities of visible-light driven green synthesis in water and environmental remediation on Au/Bi₂WO₆ hybrid nanostructures. RSC Adv, 2015,5(13):9771-9782.
[16]	WU Q S, CUI Y, YANG L M , et al. Facile in-situ photocatalysis of Ag/Bi₂WO₆ heterostructure with obviously enhanced performance. Sep. Purif. Technol., 2015,142:168-175.
[17]	YU C L, BAI Y, CHEN J C , et al. Pt/Bi₂WO₆ composite microflowers: high visible light photocatalytic performance and easy recycle. Sep. Purif. Technol., 2015,154:115-122.
[18]	QIN F, WANG R M, LI G F , et al. Highly efficient photocatalytic reduction of Cr(VI) by bismuth hollow nanospheres. Catalysis Communications, 2013,42:14-19.
[19]	WANG Y W, KIM J S, KIM G H , et al. Quantum size effects in the volume plasmon excitation of bismuth nanoparticles investigated by electron energy loss spectroscopy. Appl. Phys. Lett., 2006,88(14):143106-143109.
[20]	LIU X W, CAO H Q, YIN JIE F , et al. Generation and photocatalytic activities of Bi@Bi₂O₃ microspheres. Nano Res., 2011,4(5):470-482.
[21]	WENG S X, CHEN B B, XIE L Y , et al. Facile in situ synthesis of a Bi/BiOCl nanocomposite with high photocatalytic activity. J. Mater. Chem. A, 2013,1(9):3068-3075.
[22]	GNAYEM H, SASSON Y . Nanostructured 3D sunflower-like bismuth doped BiOCl _xBr₁-_x solid dolutions with enhanced visible light photocatalytic activity as a remarkably efficient technology for water purification. J. Phys. Chem. C, 2015,119(33):19201-19209.
[23]	YANG J, WANG X H, ZHAO X L , et al. Synthesis of uniform Bi₂WO₆-reduced graphene oxide nanocomposites with significantly enhanced photocatalytic reduction activity. J. Phys. Chem. C, 2015,119:3068-3078.
[24]	LÜ W Z, HUANG D Z, CHEN Y M , et al. Synthesis and characterization of Mo-W co-doped VO₂(R) nano-powders by the microwave-assisted hydrothermal method. Ceram. Int., 2014,40(8):12661-12668.
[25]	REN W J, AI Z H, JIA F L , et al. Low temperature preparation and visible light photocatalytic activity of mesoporous carbon-doped crystalline TiO₂. Appl. Catal. B-Environ., 2007,69(34):138-144.
[26]	ZHOU Y G, ZHANG Y F, LIN M S , et al. Monolayered Bi₂WO₆ nanosheets mimicking heterojunction interface with open surfaces for photocatalysis. Nat. Commun., 2015,6:8340-8347.
[27]	ZHAO Z W, ZHANG W D, DONG F , et al. Bi cocatalyst/Bi₂MoO₆ microspheres nanohybrid with SPR-promoted visible-light photocatalysis. J. Phys. Chem. C, 2016,120(22):11889-11898.
[28]	LU S Y, YU Y N, BAO S J , et al. In situ synthesis and excellent photocatalytic activity of tiny Bi decorated bismuth tungstate nanorods. RSC Advances, 2015,5:85500-85505.
[29]	DONG F, LI Q Y, SUN Y J , et al. Noble metal-like behavior of plasmonic Bi particles as a cocatalyst deposited on (BiO)₂CO₃ microspheres for efficient visible light photocatalysis. ACS Catal., 2014,4(12):4341-4350
[30]	WANG Z, JIANG C L, HUANG R , et al. Investigation of optica and photocatalytic properties of bismuth nanospheres prepared by a facile thermolysis method. J. Phys. Chem. C, 2014,118(2):1155-1160.
[31]	YU Y, CAO C Y, LIU H , et al. A Bi/BiOCl heterojunction photocatalyst with enhanced electron-hole separation and excellent visible light photodegrading activity. J. Mater. Chem. A , 2014,2(6):1677-1681.
[32]	FENG H B, LI Y P, QIAN D , et al. Novel visible-light-responding InVO₄-Cu₂O-TiO₂ ternary nanoheterostructure: preparation and photocatalytic characteristics. Chinese Journal of Catalysis, 2016,37(6):855-862.
[33]	FURUBE A, DU L C, HARA K , et al. Ultrafast plasmon-induced electron transfer from gold nanodots into TiO₂ nanoparticles. J. Am. Chem. Soc., 2007,129(48):14852-14853.
