VO2(B)/ZnO异质复合纳米棒结构的室温NH3敏感性能研究

doi:10.15541/jim20180162

摘要/Abstract

摘要：

以VO₂(B)纳米棒为内核, 利用液相生长法制备了VO₂(B)/ZnO异质复合纳米棒, 研究了ZnO生长溶液浓度对复合结构微观形貌和气敏性能的影响规律。采用扫描电子显微镜和X射线衍射仪对复合结构样品的微观形貌和结晶取向进行表征, 并测试了复合结构对NH₃的敏感性能。实验结果表明, 随着ZnO种子液浓度的增大, ZnO逐渐由纳米颗粒生长为纳米棒结构, 当ZnO种子液浓度为0.01 mol/L时, ZnO呈棒状沿径向发散生长在VO₂(B)纳米棒表面, 形成树枝状VO₂(B)/ZnO异质复合纳米棒结构, 这一结构在室温下表现出对NH₃的高灵敏度和突出的选择性, 其灵敏度最大可达5.6, 对NH₃的响应时间最短仅为2 s。在室温下表现出的优良NH₃敏感性能, 主要与高密度的VO₂(B)/ZnO异质结和树枝状结构有关。研究结果为低功耗高灵敏度NH₃气敏传感器的研制提供了重要依据。

关键词: VO₂(B)纳米棒, ZnO纳米棒, 金属氧化物异质结, 氨气传感器

Abstract:

VO₂(B)/ZnO nanorods hierarchical heterogeneous composite was synthesized by solution growth method on VO₂(B) nanorods surface. Effects of ZnO seeds’ solution concentration on microstructure and NH₃ gas sensing properties of composite structures were investigated. X-ray diffractometer and scanning electron microscopy were used to characterize the crystal structure and surface morphology of the samples. NH₃ gas sensing properties of the composite was measured by the gas testing system at different temperatures and gas concentrations. The results show that ZnO grows on VO₂(B) surface and changes its shape from nanoparticle to nanorod as the ZnO seeds’ solution concentration increasing from 0.002 mol/L to 0.03 mol/L. ZnO nanorods radially grows on the VO₂(B) nanorod surface and branch-shaped hierarchical heterogeneous VO₂(B)/ZnO composite structures are formed when the solution concentration is 0.01 mol/L. The composite exhibits high gas response and outstanding selectivity at room temperature. The response value reaches 5.6 while the response time is reduced to 2 s at room temperature. This excellent NH₃ gas sensing performance is related to the highly dense VO₂(B)/ZnO hetero-junction and hierarchical structure. The present results may provide more information for design and fabrication of low power and high sensitive NH₃ gas sensors at room temperature.

Key words: VO₂(B) nanorods, ZnO nanorods, metal oxide heterojunction, NH₃ Gas sensors

中图分类号:

O649

梁继然, 张叶, 杨然, 赵一瑞, 郭津榜. VO₂(B)/ZnO异质复合纳米棒结构的室温NH₃敏感性能研究[J]. 无机材料学报, 2018, 33(12): 1323-1329.

LIANG Ji-Ran, ZHANG Ye, YANG Ran, ZHAO Yi-Rui, GUO Jin-Bang. Room-temperature NH₃ Gas Sensing Property of VO₂(B)/ZnO Hierarchical Heterogeneous Composite with Nanorod Structure[J]. Journal of Inorganic Materials, 2018, 33(12): 1323-1329.

图/表 10

表1 ZnO纳米棒生长溶液中溶质用量、溶液浓度与样品编号对应关系

Table 1 Relationship of the amount of solute, the concentration of solution and the sample number

Sample	n(Zn(NO₃)₂•6H₂O)/ mmol	n(C₆H₁₂N₄)/ mmol	c(sol)/ (mol·L^-1)
VZ1	0.4	0.4	0.002
VZ2	1.0	1.0	0.005
VZ3	2.0	2.0	0.010
VZ4	6.0	6.0	0.030

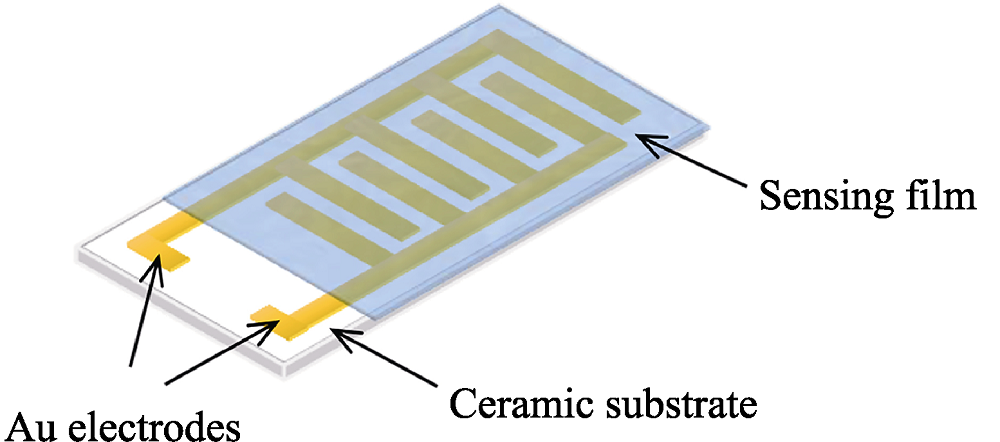

图1 气敏传感器的结构示意图

Fig. 1 Schematic structure of the gas sensor

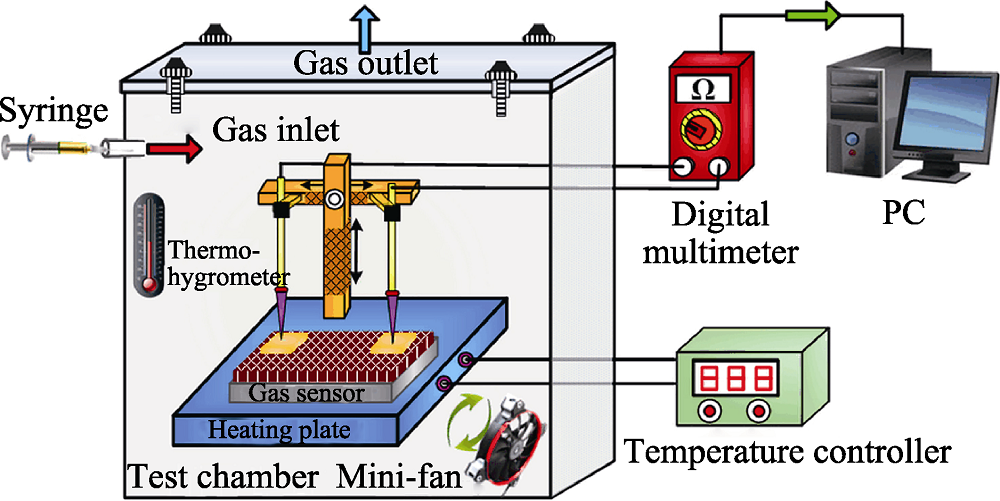

图2 气敏测试系统示意图

Fig. 2 Test system of gas sensitivity

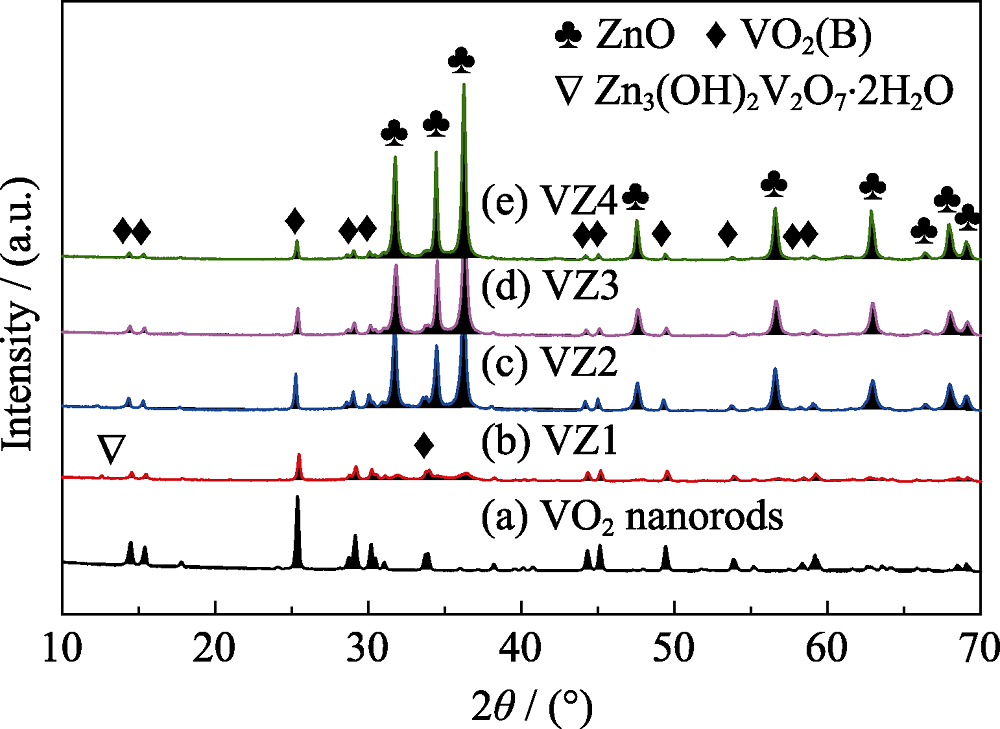

图3 VO2(B)纳米棒以及VO2(B)/ZnO复合结构的XRD图谱

Fig. 3 XRD patterns of VO2(B) nanorods and VO2(B)/ZnO composite structures

图4 (a)水热产物VO2(B)纳米棒的SEM照片和(b)局部放大照片

Fig. 4 SEM image (a) and corresponding high magnified image (b) of hydrothermal product VO2 (B) nanorods

图5 不同ZnO生长溶液浓度条件下VO2(B)/ZnO复合结构的SEM照片

Fig. 5 SEM images of VO2(B)/ZnO composite structures with different concentrations of ZnO growth solution(a, b) VZ1; (c, d) VZ2; (e, f) VZ3; (g, h) VZ4

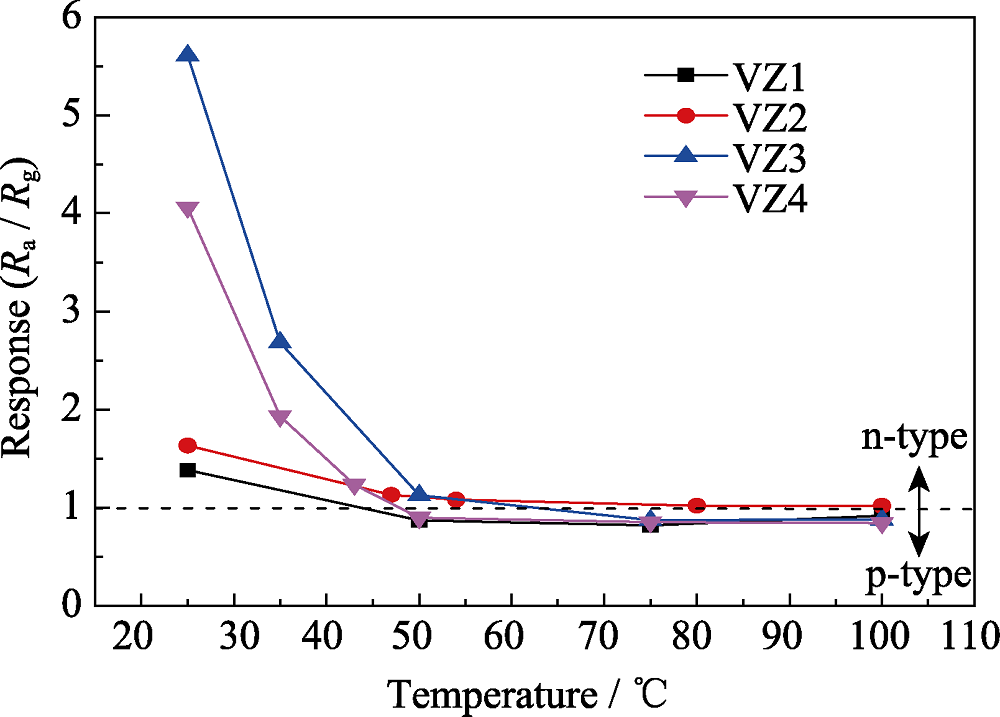

图6 VO2(B)/ZnO复合结构传感器在不同温度下对100× 10-6氨气的气体响应

Fig. 6 Gas responses of VO2(B)/ZnO composite structure sensors to 100×10-6 NH3 at different operating temperatures

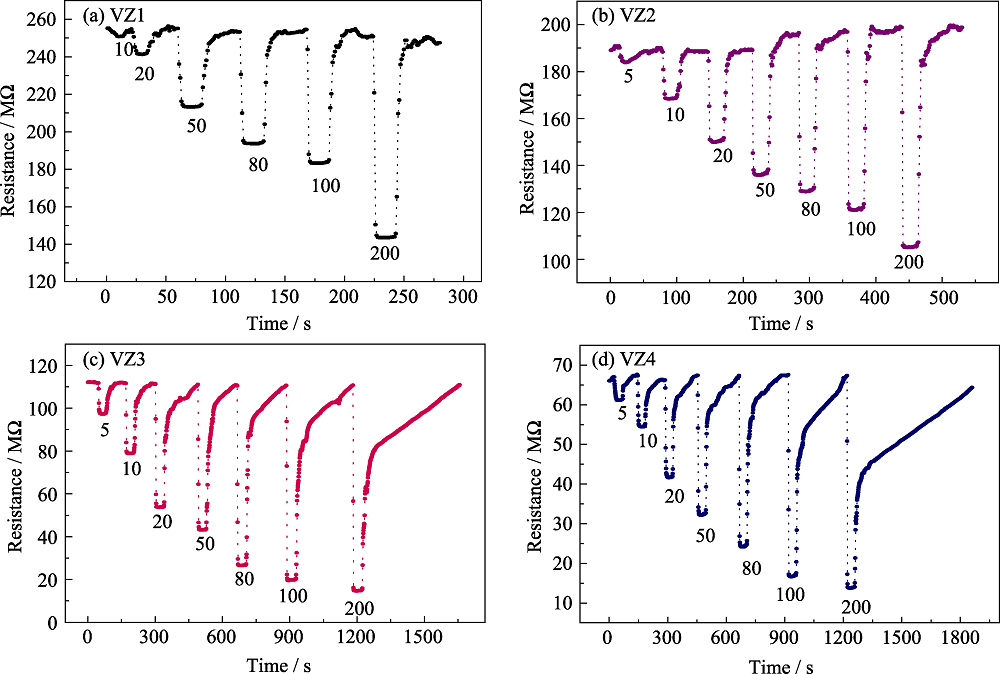

图7 VO2(B)/ZnO复合结构传感器电阻随时间动态变化曲线

Fig. 7 Dynamic resistance-time curves of VO2(B)/ZnO composite structure sensors

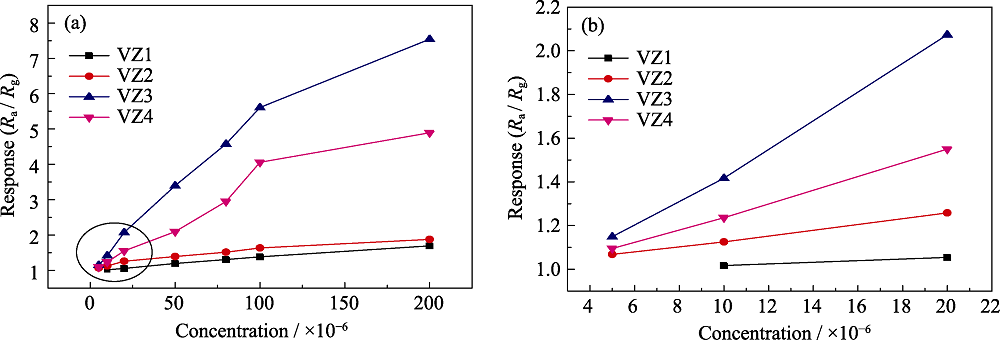

图8 VO2/ZnO复合结构传感器响应值与气体浓度关系(a)以及圆圈中部分的放大图(b)

Fig. 8 Relationship of the response value of VO2/ZnO composite sensors and gas concentrations (a), and high magnification figure of circle parts (b)

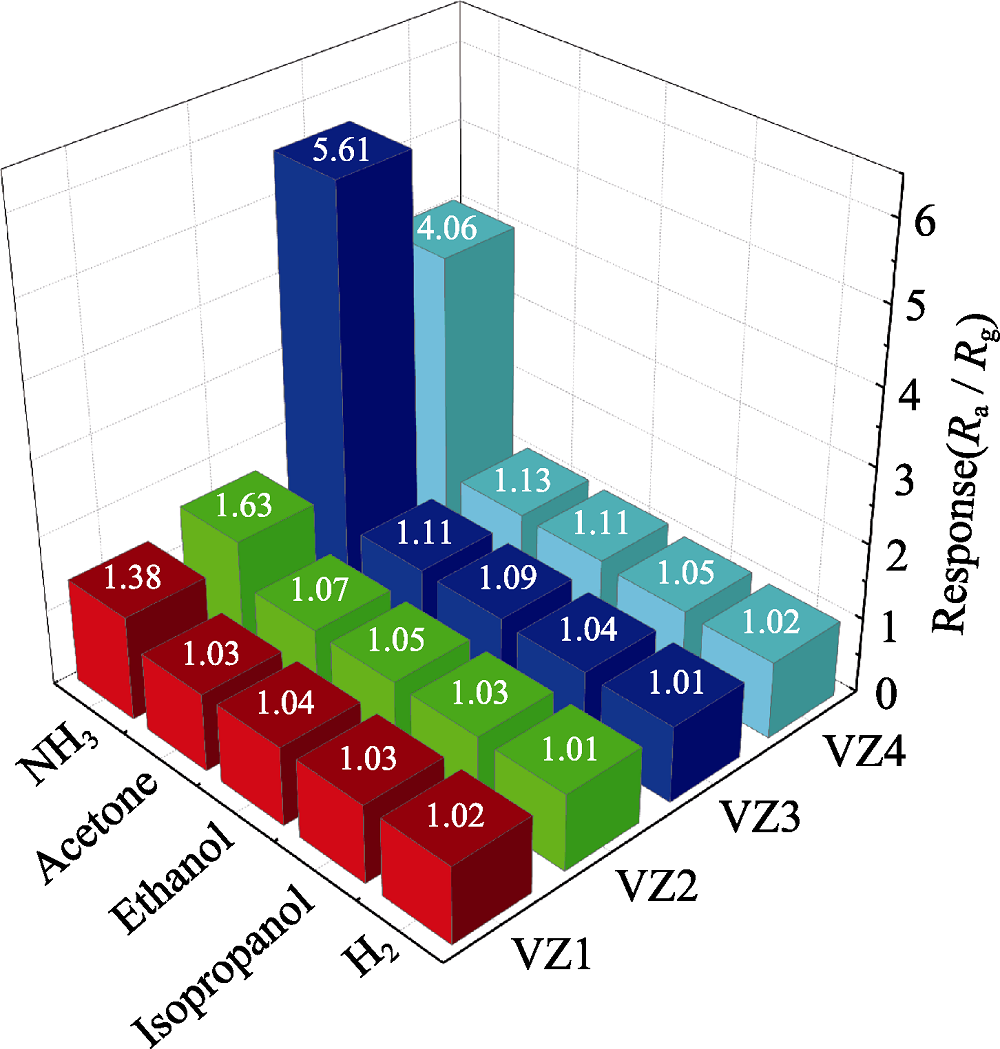

图9 VO2(B)/ZnO复合结构传感器在室温下对不同气体的气敏响应

Fig. 9 Gas responses of VO2(B)/ZnO composite structure sensors to different gases at room temperature

参考文献 24

[1]	唐伟, 王兢. 金属氧化物异质结气体传感器气敏增强机理. 物理化学学报, 2016, 32(5): 1087-1104.
[2]	SABOOR F H, KNODADADI A A, MORTAZAVI Y,et al. Microemulsion synthesized silica/ZnO stable core/shell sensors highly selective to ethanol with minimum sensitivity to humidity. Sensors & Actuators B Chemical, 2017, 238: 1070-1083.
[3]	SENTHIL T, ANANDHAO S.Structure-property relationship of Sol- Gel electrospun ZnO nanofibers developed for ammonia gas sensing.Journal of Colloid & Interface Science, 2014, 432(20): 285-296.
[4]	WEN X, FANG Y, PANG Q,et al. ZnO nanobelt arrays grown directly from and on zinc substrates: synthesis, characterization, and applications. Journal of Physical Chemistry B, 2005, 109(32): 15303-15308.
[5]	冯秋霞, 于鹏, 王兢, 等. Y掺杂的ZnO纳米纤维材料的制备及其气敏传感器作用机理(英文). 物理化学学报, 2015, 31(12): 2405-2412.
[6]	PRASAD M R, HARIS M, SRIDHARAN M.Structural, optical and ammonia sensing properties of nanostructured ZnO thin films deposited by spray pyrolysis technique. Journal of Materials Science Materials in Electronics, 2017, 28: 11367-11373.
[7]	MORIN F.Oxides which show a metal-to-insulator transition at the neel temperature.Physical Review Letters, 1959, 3(1): 34-36.
[8]	NETHRAVATHI C, RAJAMATHI C, RAJAMATHI M.N-doped graphene-VO2(B) nanosheet-built 3D flower hybrid for lithium ion battery.ACS Appl. Mater. Interfaces, 2013, 5(7): 2708-2714.
[9]	YIN H, YU K, Zhang Z,et al. Humidity sensing properties of flower-like VO2(B) and VO2(M) nanostructures Electroanalysis, 2011, 23(7): 1752-1758.
[10]	LIANG J, LI W, LIU J,et al. Room temperature NO2, sensing performance of free-standing mesh-structure vanadium dioxide nanorods by a chemical vapour deposition method. Journal of Alloys & Compounds, 2016, 687: 845-854.
[11]	胡瑞金, 王兢, 朱慧超. 修饰SnO2纳米纤维的制备及其气敏特性. 物理化学学报, 2015, 31(10): 1997-2004.
[12]	ZHANG Z, MENG G, XU Q,et al. Aligned ZnO nanorods with tunable size and field emission on native Si substrate achieved via simple electrodeposition. J. Phys. Chem. C, 2009, 114(1): 189-193.
[13]	YIN H, KE Y, ZHANG Z,et al. Morphology-control of VO2(B) nanostructures in hydrothermal synthesis and their field emission properties. Applied Surface Science, 2011, 257(21): 8840-8845.
[14]	YIN H, NI J, JIANG W,et al. Synthesis, field emission and humidity sensing characteristics of monoclinic VO2, nanostructures. Physica E: Low-dimensional Systems and Nanostructures, 2011, 43(9): 1720-1725.
[15]	ZENG W, LIU T, WANG Z.Sensitivity improvement of TiO2- doped SnO2, to volatile organic compounds.Physica E: Low- dimensional Systems and Nanostructures, 2010, 43(2): 633-638.
[16]	XING L, YUAN S, CHEN Z, ,et al. Enhanced gas sensing performance of SnO2/α-MoO3 heterostructure nanobelts. Nanotechnology, 2011, 22(22): 225502-1-6.
[17]	SIMO A, KAVIYARASU K, MWALIKUNGA B,et al. Room temperature volatile organic compound gas sensor based on vanadium oxide 1-dimension nanoparticles. Ceramics International, 2016, 43(1): 1347-1353.
[18]	LIU C, WANG B, LIU T,et al. Facile synthesis and gas sensing properties of the flower-like NiO-decorated ZnO microstructures. Sensors & Actuators B Chemical, 2016, 235: 294-301.
[19]	MILLER D R, AKBAR S A, MORRIS P A.Nanoscale metal oxide- based heterojunctions for gas sensing: a review.Sensors & Actuators B Chemical, 2014, 204: 250-272.
[20]	WOO H, NA C W, KIM I D, et al. Highly sensitive Highly sensitive and selective trimethylamine sensor using one-dimensional ZnO-Cr2O3 hetero- nanostructures. Nanotechnology, 2012, 23(24): 245501-1-10.
[21]	ZhOU J, ZhANG, REHMAN A U, et al. Synthesis, characterization, and ammonia gas sensing properties of Co3O4@CuO nanochains. Journal of Materials Science, 2016, 52(7): 1-14.
[22]	ZENG W, LI Y, ZHANG H.Hierarchical WO3 porous microspheres and their sensing properties.Journal of Materials Science: Materials in Electronics, 2014, 25(3): 1512-1516.
[23]	SIMO A, MWAKIKUNGA B, SONEB T,et al. VO2 nanostructures based chemiresistors for low power energy consumption hydrogen sensing. International Journal of Hydrogen Energy, 2014, 39(15): 8147-8157.
[24]	LIANG, J, LIU, J F, LI N,et al. Magnetron sputtered Au-decorated vanadium oxides composite thin films for methane-sensing properties at room temperature. J. Alloys Compd., 2016, 671: 283-290.
