还原氧化石墨烯原位包覆纳米MnTiO3颗粒的简易合成及储锂性能研究

doi:10.15541/jim20180143

无机材料学报 ›› 2018, Vol. 33 ›› Issue (9): 1022-1028.DOI: 10.15541/jim20180143 CSTR: 32189.14.10.15541/jim20180143

还原氧化石墨烯原位包覆纳米MnTiO₃颗粒的简易合成及储锂性能研究

刘焕龙^{1, 2}, 赵伟², 李睿哲², 黄谢意², 唐宇峰², 李冬梅¹, 黄富强^{2, 3}

1. 上海大学材料科学与工程学院, 上海 200444;
2.中国科学院上海硅酸盐研究所, 高性能陶瓷和超微结构国家重点实验室, 上海 200050;
3. 北京大学化学与分子工程学院, 北京分子科学国家实验室, 稀土材料化学及应用国家重点实验室, 北京 100871

收稿日期:2018-04-03 修回日期:2018-05-01 出版日期:2018-09-20 网络出版日期:2018-08-14
作者简介:刘焕龙. E-mail: huanlongliu@outlook.com

Facile Synthesis of Reduced Graphene Oxide In-situ Wrapped MnTiO₃ Nanoparticles for Excellent Lithium Storage

LIU Huan-Long^{1, 2}, ZHAO Wei², LI Rui-Zhe², HUANG Xie-Yi², TANG Yu-Feng², LI Dong-Mei¹, HUANG Fu-Qiang^{2, 3}

1. School of Material Science and Engineering, Shanghai University, Shanghai 200444, China;
2. State Key Laboratory of High Performance Ceramics and Superfine Microstructure, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China;
3. Beijing National Laboratory for Molecular Sciences and State Key Laboratory of Rare Earth Materials Chemistry and Applications, College of Chemistry and Molecular Engineering, Peking University, Beijing 100871, China

Received:2018-04-03 Revised:2018-05-01 Published:2018-09-20 Online:2018-08-14
About author:LIU Huan-Long (1990-), male, candidate of Master degree. E-mail: huanlongliu@outlook.com
Supported by:
National Key Research and Development Program (2016YFB0901600);Science and Technology Commission of Shanghai (16ZR1440500, 16JC1401700);National Science Foundation of China (51672301);Key Research Program of Chinese Academy of Sciences (QYZDJ-SSW-JSC013, KGZD-EW-T06);Youth Innovation Promotion Association CAS

摘要/Abstract

摘要：

对于高能量密度的锂离子电池而言, 研究稳定、高容量负极材料的需求十分迫切。基于此, 本工作设计了一种简单有效的溶胶-凝胶法, 来合成高性能的被还原石墨烯氧化物原位包覆的MnTiO₃纳米颗粒(MnTiO₃@rGO)。合成的MnTiO₃纳米粒子分散均匀, 被少层的石墨烯包裹。由于还原氧化石墨烯的高电导率, MnTiO₃@rGO作为锂离子电池负极表现出优异的倍率性能, 在5.0 A·g^-1的高电流密度时, MnTiO₃@rGO展现出了286 mAh·g^-1的比容量。此外, 得益于MnTiO₃@rGO的多孔结构和柔性的还原氧化石墨烯外层, MnTiO₃@rGO负极具有显著的长期循环稳定性。在500个循环后, 比容量仍保持在441 mAh·g^-1, 仅损失了8.4%。结果表明, 该方法对提高金属氧化物负极的导电性和循环稳定性具有较高的应用价值。

关键词: 原位包覆, 还原氧化石墨烯, MnTiO₃纳米颗粒, 锂离子电池负极

Abstract:

The stable high-capacity anode has been an urgent demand for high energy density lithium-ion batteries (LIBs). Herein, a simple and effective strategy to synthesize high-performance reduced graphene oxide (rGO) in-situ wrapped MnTiO₃ nanoparticles (MnTiO₃@rGO) by Sol-Gel method is designed. The MnTiO₃ nanoparticles are uniformly dispersed and wrapped by few-layer graphene. Due to high conductivity of rGO, MnTiO₃@rGO nanoparticles show excellent rate performance, with a specific capacity of 286 mAh·g^-1 being displayed at the higher rate of 5.0 A·g^-1. Moreover, benefited from porous structure and flexible rGO shell, the MnTiO₃@rGO anode delivers a remarkable long-term cycling stability. The specific capacity maintains 441 mAh·g^-1 after 500 cycles at 0.5 A·g^-1, only losing 8.4%. Therefore, the results demonstrate that the facile synthetic strategy is highly desirable for improving the conductivity and stability of metal oxide anodes.

Key words: in-situ wrapped, reduced oxide graphene, MnTiO₃ nanoparticles, lithium-ion batteries anode

中图分类号:

TQ174

刘焕龙, 赵伟, 李睿哲, 黄谢意, 唐宇峰, 李冬梅, 黄富强. 还原氧化石墨烯原位包覆纳米MnTiO₃颗粒的简易合成及储锂性能研究[J]. 无机材料学报, 2018, 33(9): 1022-1028.

LIU Huan-Long, ZHAO Wei, LI Rui-Zhe, HUANG Xie-Yi, TANG Yu-Feng, LI Dong-Mei, HUANG Fu-Qiang. Facile Synthesis of Reduced Graphene Oxide In-situ Wrapped MnTiO₃ Nanoparticles for Excellent Lithium Storage[J]. Journal of Inorganic Materials, 2018, 33(9): 1022-1028.

图/表 5

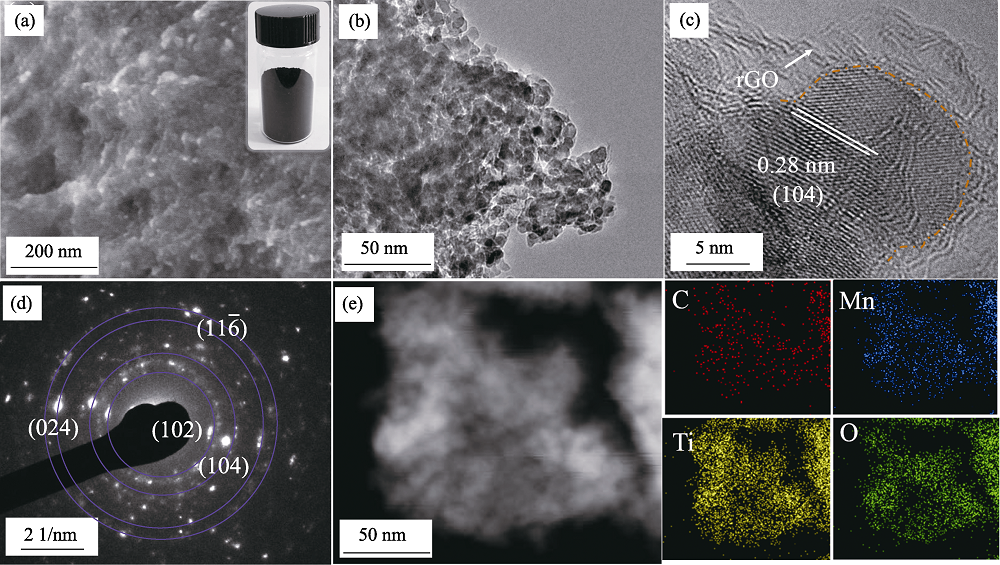

Fig. 1 (a) SEM image with inset showing the optical photograph of MnTiO3@rGO powder, (b) TEM image, (c) HRTEM image, and (d) SAED pattern, (e) high-angle annular dark field (HAADF) of MnTiO3@rGO, and EDS mapping of C, Mn, Ti, and O elements which indicates uniformly elemental distribution in the MnTiO3@rGO

Table 1 EDS data of MnTiO3@rGO

Materials	C/wt%	O/wt%	Ti/wt%	Mn/wt%
MnTiO₃@rGO	9.01	18.87	32.11	40.01

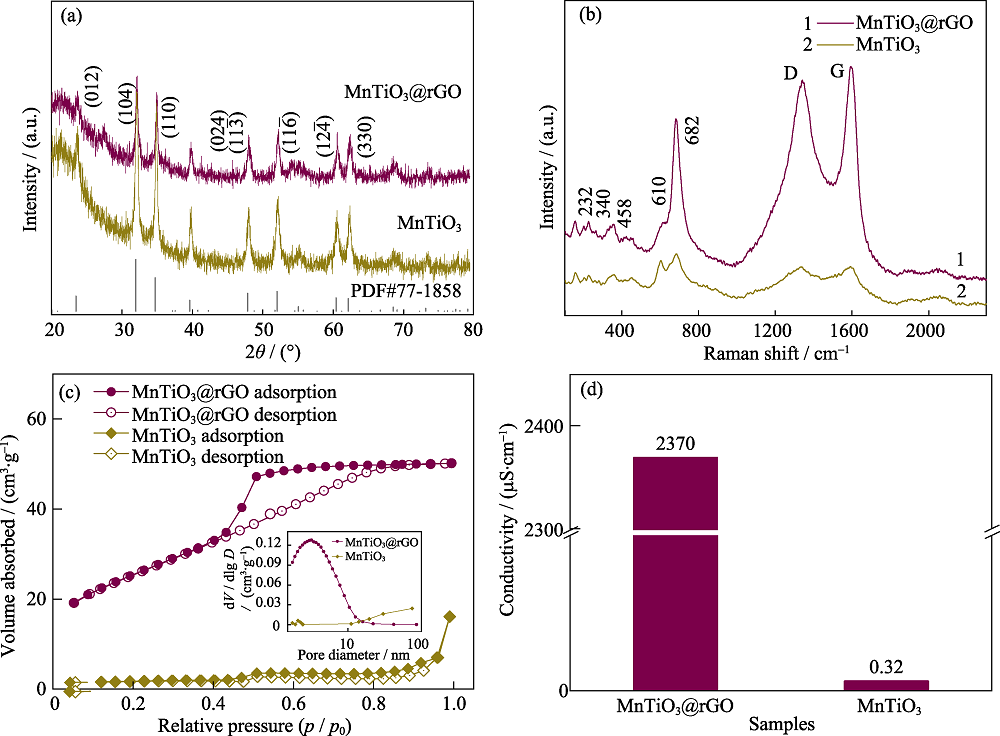

Fig. 2 (a) XRD patterns, (b) Raman spectra in the range of 100-2000 cm-1, (c) nitrogen sorption isotherms and corresponding pore size distribution curves (inset), and (d) electrical conductivity of as-obtained materials

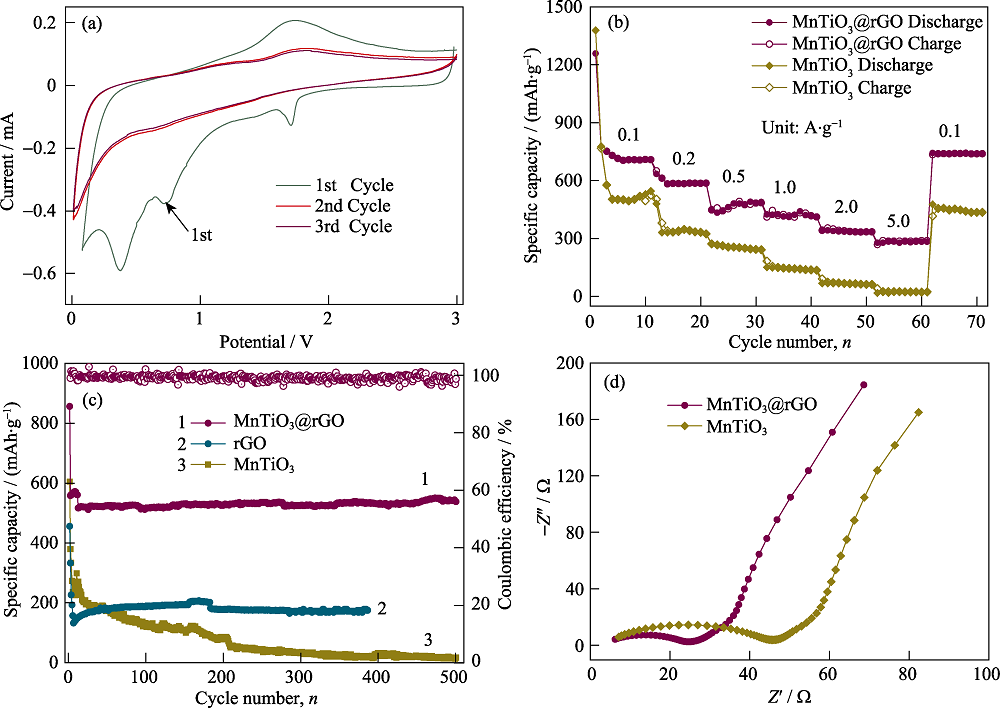

Fig. 3 Electrochemical measurements of samples(a) CV curves of MnTiO3@rGO electrode; (b) Comparison of the specific capacity at different rates; (c) Cycling performance at 0.5 A·g-1 between MnTiO3@rGO, rGO and MnTiO3 electrodes; (d) Nyquist plots of electrodes of MnTiO3@rGO and MnTiO3 after 3 cyclingAll of the measurements were conducted using a voltage window of 0.01 V-3.0 V

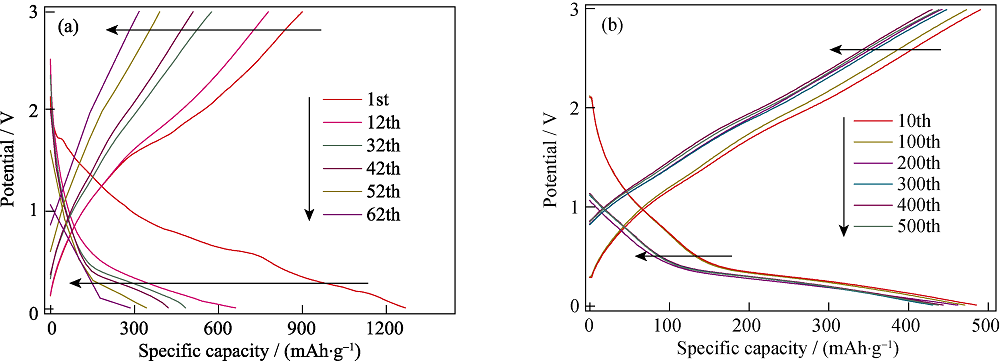

Fig. 4 (a) Capacity retention curves versus various current densities, and (b) capacity retention curves versus various cycles of MnTiO3@rGO anodes

参考文献 35

[1]	KANG D, LIU Q, SI R,et al. Crosslinking-derived MnO/carbon hybrid with ultrasmall nanoparticles for increasing lithium storage capacity during cycling. Carbon, 2016, 99: 138-147.
[2]	JIANG Y, ZHANG D, LI Y,et al. Amorphous Fe2O3 as a high- capacity, high-rate and long-life anode material for lithium ion batteries. Nano Energy, 2014, 4: 23-30.
[3]	PETNIKOTA S, MARKA S K, BANERJEE A,et al. Graphenothermal reduction synthesis of ‘exfoliated graphene oxide/iron (II) oxide’ composite for anode application in lithium ion batteries. Journal of Power Sources, 2015, 293: 253-263.
[4]	DO J S, WENG C H.Preparation and characterization of CoO used as anodic material of lithium battery.Journal of Power Sources, 2005, 146(1): 482-486.
[5]	VARGHESE B, REDDY M V, YANWU Z,et al. Fabrication of NiO nanowall electrodes for high performance lithium ion battery. Chemistry of Materials, 2008, 20(10): 3360-3367.
[6]	LI B, HAO W, WEN X G.Semi-hollow/solid ZnMn2O4 microspheres: synthesis and performance in Li ion battery.Journal of Inorganic Materials, 2018, 33(3): 307-312.
[7]	CAI J X, LI Z P, LI W,et al. Synthesis and electrochemical performance of Fe2O3 nanofibers as anode materials for LIBs. Journal of Inorganic Materials, 2018, 33(3): 301-306.
[8]	LIU S Y, XU L, CHEN X,et al. Cluster structural CoFe2O4 particles loaded onto graphene and its Li-storage performance. Journal of Inorganic Materials, 2017, 32(9): 904-908.
[9]	GUO Y G, HU J S, WAN L J.Nanostructured materials for electrochemical energy conversion and storage devices.Advanced Materials, 2008, 20(15): 2878-2887.
[10]	KIM A, PARK E, LEE H,et al. Highly reversible insertion of lithium into MoO2 as an anode material for lithium ion battery. Journal of Alloys and Compounds, 2016, 681: 301-306.
[11]	YAO Y, MCDOWELL M T, RYU I,et al. Interconnected silicon hollow nanospheres for lithium-ion battery anodes with long cycle life. Nano Letters, 2011, 11(7): 2949-2954.
[12]	CUI L F, RUFFO R, CH C K,et al. Crystalline-amorphous core-shell silicon nanowires for high capacity and high current battery electrodes. Nano Letters, 2009, 9(1): 491-495.
[13]	GUAN C, SUMBOJA A, WU H, et al. Hollow Co3O4 nanosphere embedded in carbon arrays for stable and flexible solid-state zinc-air batteries. Advanced Materials, 2017, 29(44): 1704117-1-9.
[14]	HASSOUN J, DERRIEN G, PANERO S,et al. A nanostructured Sn-C composite lithium battery electrode with unique stability and high electrochemical performance. Advanced Materials, 2008, 20(16): 3169-3175.
[15]	LIAO L X, WANG M, FANG T,et al. Synthesis and characterization of ZnFe2O4 anode for lithium ion battery. Journal of Inorganic Materials, 2016, 31(1): 34-38.
[16]	WANG Y P, LIU J J, LIU C X,et al. Morphology-controlled synthesis of hollow core-shell structural alpha-MoO3-SnO2 with superior lithium storage. Journal of Inorganic Materials, 2015, 30(9): 919-924.
[17]	WANG Y G, CHENG L, XIA Y Y.Electrochemical profile of nano-particle CoAl double hydroxide/active carbon supercapacitor using KOH electrolyte solution.Journal of Power Sources, 2006, 153(1): 191-196.
[18]	HAO Y, QIAN M, XU J,et al. Porous cotton-derived carbon: synthesis, microstructure and supercapacitive performance. Journal of Inorganic Materials, 2018, 33(1): 93-99.
[19]	WANG B, XIN H, LI X,et al. Mesoporous CNT@TiO2-C nanocable with extremely durable high rate capability for lithium-ion battery anodes. Scientific Reports, 2014, 4: 3729.
[20]	XU J, DONG W, SONG C,et al. Black rutile (Sn, Ti)O2 initializing electrochemically reversible Sn nanodots embedded in amorphous lithiated titania matrix for efficient lithium storage. Journal of Materials Chemistry A, 2016, 4(40): 15698-15704.
[21]	TAN X, CUI C, WU S,et al. Nitrogen-doped mesoporous carbon- encapsulated MoO2 nanobelts as a high-capacity and stable host for lithium-ion storage. Chemistry, an Asian Journal, 2017, 12(1): 36-40.
[22]	HOLZAPFEL M, BUQA H, SCHEIFELE W, et al. A new type of nano-sized silicon/carbon composite electrode for reversible lithium insertion. Chemical Communications, 2005(12): 1566-1568.
[23]	LI J, ZHANG L, ZHANG L,et al. In-situ growth of graphene decorations for high-performance LiFePO4 cathode through solid-state reaction. Journal of Power Sources, 2014, 249: 311-319.
[24]	LI W, ZHANG Y J, WANG X P,et al. Synthesis and electrochemical performance of LiMn0.6Fe0.4PO4/C cathode for lithium- ion batteries. Journal of Inorganic Materials, 2017, 32(5): 476-482.
[25]	YANG T, LI X, TIAN X D,et al. Preparation and electrochemical performance of Si@C/SiOx as anode material for lithium-ion batteries. Journal of Inorganic Materials, 2017, 32(7): 699-704.
[26]	LIANG P, XING S, SHU H B,et al. Analogous three-dimensional MoS2/graphene composites for reversible Li storage. Journal of Inorganic Materials, 2016, 31(6): 575-580.
[27]	XU J, DING W, ZHAO W,et al. In situ growth enabling ideal graphene encapsulation upon mesocrystalline MTiO3(M = Ni, Co, Fe) nanorods for stable lithium storage. ACS Energy Letters, 2017, 2(3): 659-663.
[28]	GEIM A, KNOVOSELOV K S.The rise of graphene.Nature Materials, 2007, 6: 183-191.
[29]	EDA G, FANCHINI G, CHHOWALLA M.Large-area ultrathin films of reduced graphene oxide as a transparent and flexible electronic material.Nature Nanotechnology, 2008, 3: 270-274.
[30]	ZHU X, ZHU Y, MURALI S,et al. Nanostructured reduced graphene oxide/Fe2O3 composite as a high-performance anode material for lithium ion batteries. ACS Nano, 2011, 5(4): 3333-3338.
[31]	YUAN T, JIANG Y, SUN W,et al. Ever-increasing pseudocapacitance in RGO-MnO-RGO sandwich nanostructures for ultrahigh- rate lithium storage. Advanced Functional Materials, 2016, 26(13): 2198-2206.
[32]	BAI X, LI T, ZHAO X Y,et al. Al2O3-modified Ti-Mn-O nanocomposite coated with nitrogen-doped carbon as anode material for high power lithium-ion battery. RSC Advances, 2016, 6(47): 40953-40961.
[33]	GUO S, LIU J, QIU S,et al. Porous ternary TiO2/MnTiO3@C hybrid microspheres as anode materials with enhanced electrochemical performances. Journal of Materials Chemistry A, 2015, 3(47): 23895-23904.
[34]	YANG L, ZHANG X, LI Y,et al. Graphene-encapsulated Li2MnTi3O8 nanoparticles as a high rate anode material for lithium- ion batteries. Electrochimica Acta, 2015, 155: 272-278.
[35]	LIU Z, TANG Y F, LIN T Q,et al. Preparation and characterization of graphene-MoS2 composite anode materials. Journal of Inorganic Materials, 2016, 31(4): 345-350.
