纯钛表面立方介孔SiO2薄膜诱导沉积碳磷灰石层

doi:10.15541/jim20150038

摘要/Abstract

摘要：

采用浸渍-提拉法在预处理纯钛表面制备立方介孔SiO₂薄膜, 通过评价体外诱导类骨碳磷灰石层形成能力研究其生物活性。利用小角X射线衍射、傅立叶变换红外光谱、N₂吸附、电镜和能谱等测试技术对模板剂去除前后、模拟体液浸泡前后介孔薄膜结构、组成与形貌进行了研究; 利用固体表面Zeta电位仪研究薄膜表面荷电性质。结果表明, 介孔薄膜具有三维立方介孔结构, 在模拟体液(1.5SBF)中浸泡14 d即能诱导碳磷灰石层在其表面沉积, 显示出良好的生物活性。介孔薄膜独特的孔道结构以及孔表面Si-OH在体液中呈负电性对其生物活性起关键作用。

关键词: 纯钛, 立方相, 介孔SiO2薄膜, 浸渍-提拉, 碳磷灰石

Abstract:

Cubic mesoporous silica thin films were synthesized on pure titanium by dip-coating method and then their bioactivity were evaluated through the induced deposition of bone-like carbonated hydroxyapatite (CHA) layer in vitro. The composition, microstructure and morphology of the films were characterized by small-angel X-ray diffraction, Fourier transform infrared spectrum, nitrogen adsorption, electron microscopes and energy dispersive spectroscopy, etc. The surface Zeta potential of the films was investigated by electrokinetic analyzer for solid surface analysis. The results reveal that the films have three-dimensional cubic mesostructure. The mesoporous silica films are covered with a thin CHA layer after being soaked in a simulated body fluid (1.5 SBF) for 14 d, indicating its good bioactivity. The unique mesostructure and the presence of abundant electronegative silanol groups in physiological solution may be responsible for the bioactivity.

Key words: pure titanium, cubic phase, mesoporous silica thin films, dip-coating, carbonated hydroxyapatite

中图分类号:

TQ127

张珍容, 姚异渊, 罗凯, 万隆, 刘宣勇. 纯钛表面立方介孔SiO₂薄膜诱导沉积碳磷灰石层[J]. 无机材料学报, 2015, 30(7): 725-731.

ZHANG Zhen-Rong, YAO Yi-Yuan, LUO Kai, WAN Long, LIU Xuan-Yong. Cubic Mesoporous Silica Thin Films Coated on Titanium to Induce Carbonated Hydroxyapatite Deposition[J]. Journal of Inorganic Materials, 2015, 30(7): 725-731.

图/表 10

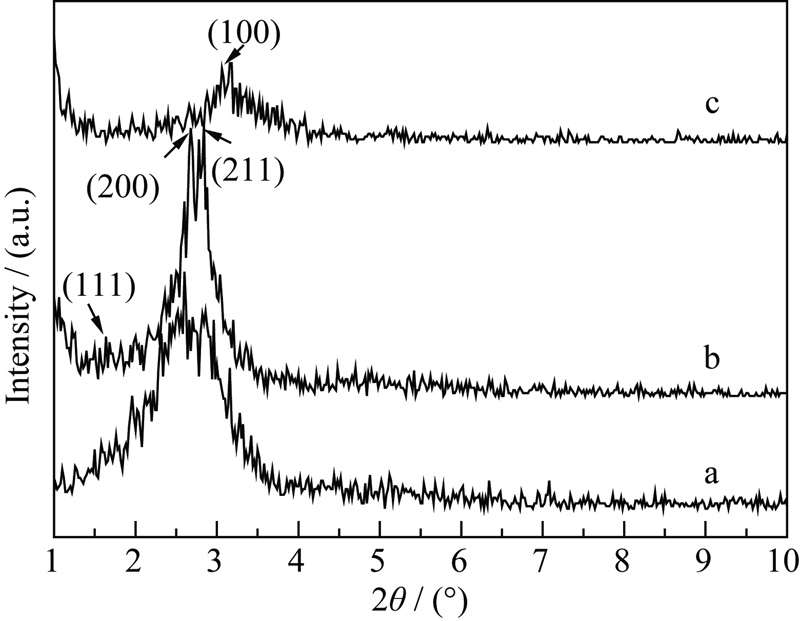

图1 (a) 未去除模板剂, (b) 萃取和(c) 焙烧薄膜样品的小角XRD图谱

Fig. 1 Small-angle X-ray diffraction patterns of the films peeled off from the as-synthesized (a), extracted (b) and calcined (c) samples

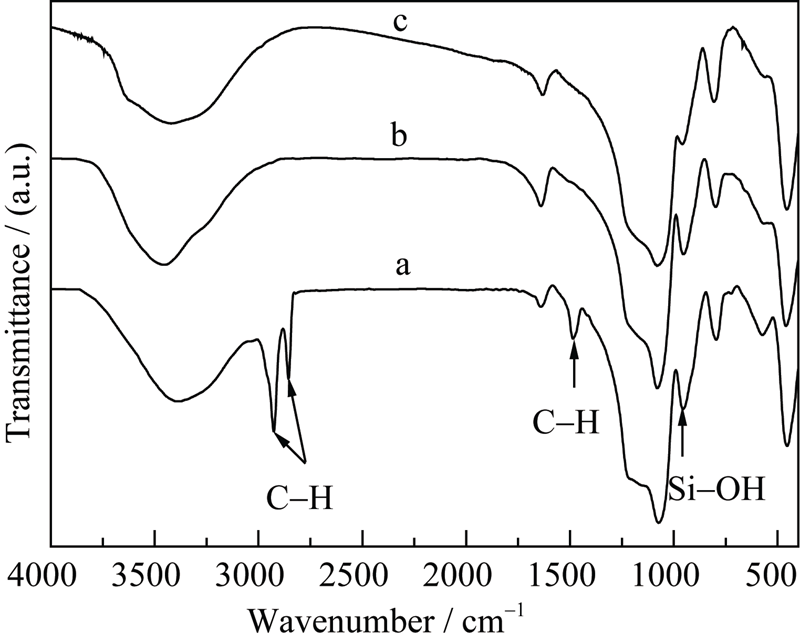

图2 (a) 未去除模板剂, (b) 萃取和(c) 焙烧介孔SiO2薄膜样品的FTIR光谱

Fig. 2 FTIR spectra of the mesoporous silica films peeled off from the as-synthesized (a), extracted (b) and calcined (c) samples

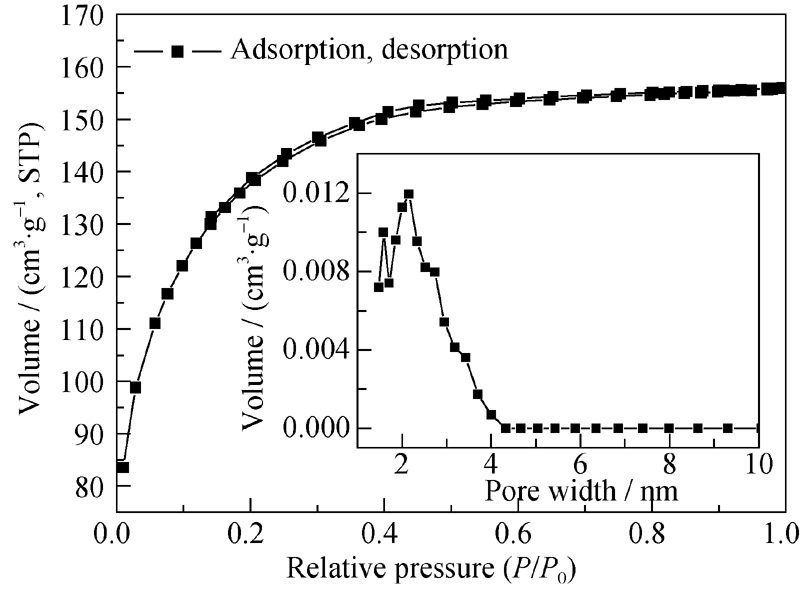

图3 萃取后薄膜样品的N2吸附/脱附等温线及孔径分布图

Fig. 3 Nitrogen adsorption-desorption isotherms and the corresponding pore size distribution curve (inset) of the film peeled off from the extracted sample

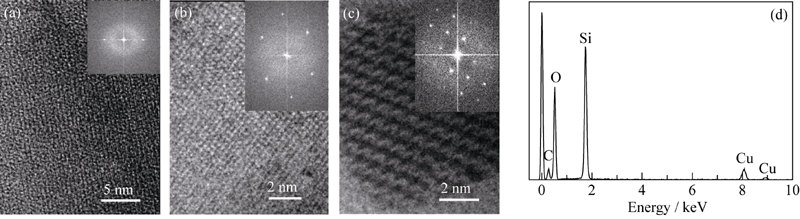

图4 萃取后薄膜样品的HRTEM照片与傅立叶变换图

Fig. 4 HRTEM images and Fourier transform of the extracted films (a) One-dimensional lattice and diffraction spot; (b) Two-dimensional lattice and hexagonal diffraction spot; (c) Three-dimensional lattice and matrix diffraction spot, and (d) EDS analysis

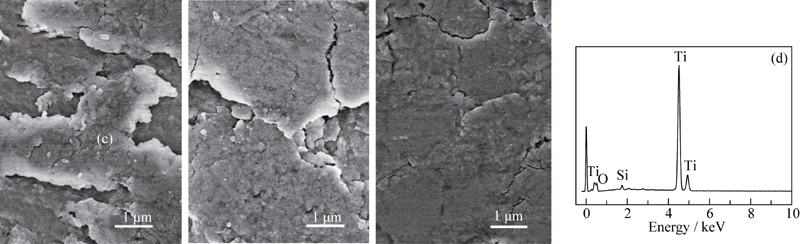

图5 钛片在SiO2溶胶-凝胶中浸渍-提拉1次(a)、2次(b)和3次(c)所得薄膜表面形貌和EDS图谱(d)

Fig. 5 Surface morphologies of the extracted films on Ti substrate by dip-coating method for one time (a), two times (b), three times (c) and EDS pattern of the sample in (d)

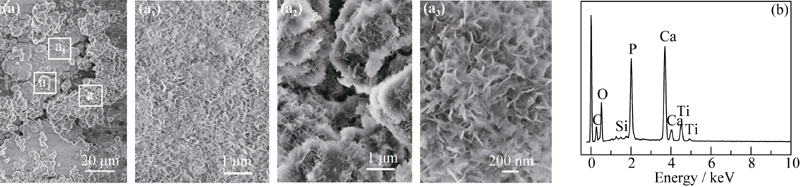

图6 1.5SBF浸泡14d后薄膜表面沉积物的形貌和EDS图谱

Fig. 6 Surface morphologies and EDS analysis of the deposition on the mesoporous silica films after soaking in 1.5SBF for 14 d (a) Surface morphologies of the deposition on the films at low magnification, (a1) The thin layer with needle-like formation covering the films, (a2) The Ca-P layer with spherical formation gathering on the thin layer, (a3) The same surface at higher magnification, a spherical texture with needle-like formation can be observed, and (b) EDS spectrum of spherical formation

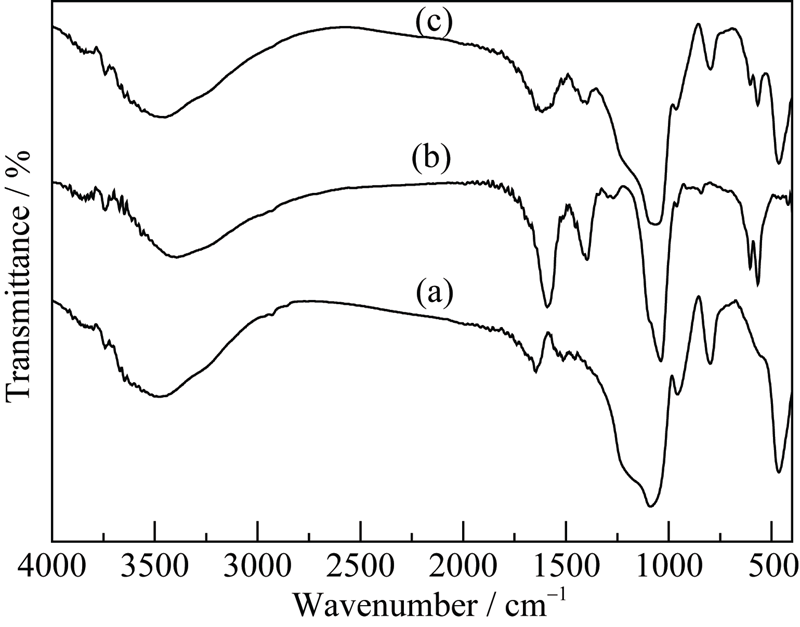

图7 (a) 介孔SiO2薄膜、(b) 纳米羟基磷灰石和(c) 薄膜表面沉积物的FTIR光谱

Fig. 7 FTIR spectra of (a) mesoporous silica films peeled off the substrate, (b) nano-hydroxyapatite powder, and (c) the deposition on the films soaked in 1.5SBF for 14 d

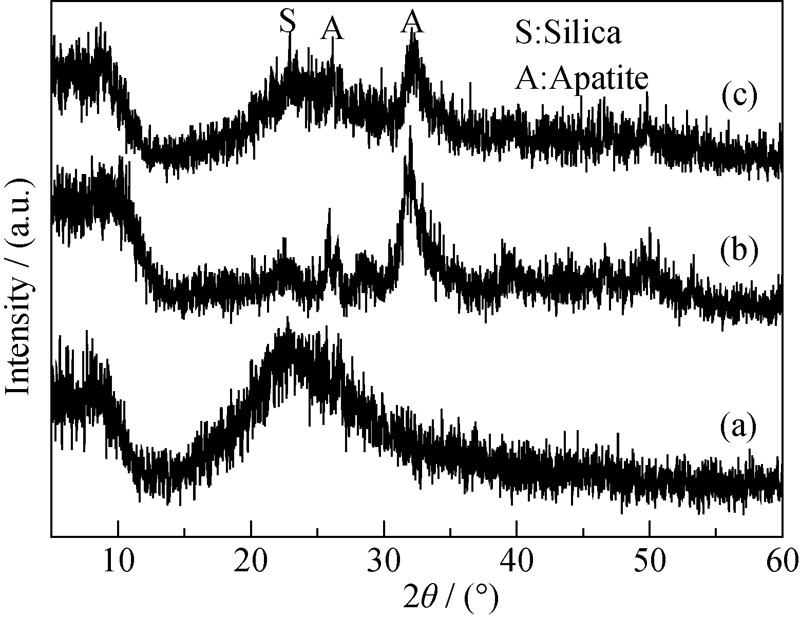

图8 (a)介孔SiO2薄膜, (b)纳米羟基磷灰石和(c)薄膜表面沉积物的XRD图谱

Fig. 8 XRD patterns of mesoporous silica films peeled off the substrate (a), nano-hydroxyapatite powder (b), and the deposition peeled off the films (c)

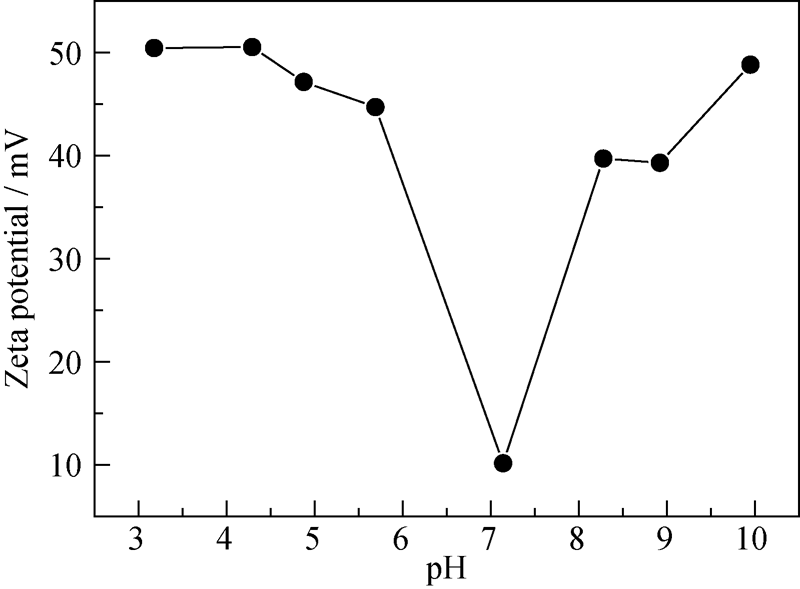

图9 介孔SiO2薄膜表面Zeta电位与电解液pH的关系

Fig. 9 Zeta potential vs. electrolyte’s pH of the mesoporous silica films

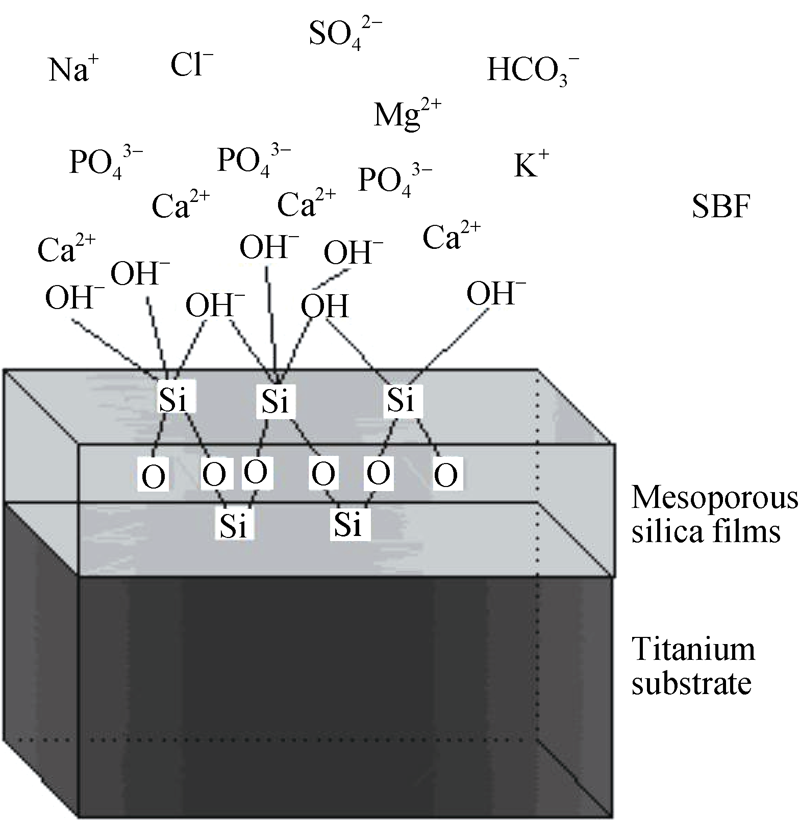

图10 介孔SiO2薄膜诱导碳磷灰石层形成过程示意图

Fig. 10 Schematic illustration for the growth of carbonated hydroxyapatite layer on the mesoporous silica films after soaking in a simulated body fluid

参考文献 23

[1]	CAO HUI-LIANG, LIU XUAN-YONG, DING CHUAN-XIAN.Progress in surface modification of titanium alloys for biomedical applications.Materials China, 2009, 28(9/10): 9-17.
[2]	PAITAL S R, DAHOTRE N B.Calcium phosphate coatings for bio-implant applications: materials, performance factors, and methodologies.Materials Science and Engineering: R: Reports, 2009, 66(1/2/3): 1-70.
[3]	LIU X Y, DING C X, WANG Z Y.Apatite formed on the surface of plasma-sprayed wollastonite coating immersed in simulated body fluid.Biomaterials, 2001, 22: 2007-2012.
[4]	RAKNGARM A, MUTOH Y.Electrochemical depositions of calcium phosphate film on commercial pure titanium and Ti- 6A1-4V in two types of electrolyte at room temperature.Materials Science and Engineering C, 2009, 29(1): 275-283.
[5]	CUI X, KIM H M, KAWASHITA M, et al.Preparation of bioactive titania films on titanium metal via anodic oxidation.Dental Materials, 2009, 25(1): 80-86.
[6]	LIU X Y, ZHAO X B, CHU P K, et a1. Plasma-treated nanostructured TiO2 surface supporting biomimetic growth of apatite.Biomaterials, 2005, 26: 6143-6150.
[7]	WANG G C, LIU X Y, DING C X, et al.In vitro bioactivity and phase stability of plasma-sprayed nanostructured 3Y-TZP coatings.Acta Biomaterialia, 2009, 5(6): 2270-2278.
[8]	SZILI E J, KUMAR S, SMART R S C, et al. Plasma enhanced chemical vapour deposition of silica onto titanium: analysis of surface chemistry, morphology and hydroxylation.Surface Science, 2008, 602(14): 2402-2411.
[9]	SZILI E J, KUMAR S, VOELCKER N H, et al.Generation of a stable surface concentration of amino groups on silica coated onto titanium substrates by the plasma enhanced chemical vapor deposition method.Applied Surface Science, 2009, 255(15): 6846-6850.
[10]	LIU RONG-FANG, XIAO XIU-FENG, LIN LAN, et al.Study on the bonding strength and thermal stability of electrodeposition HA/TiO2 composite coating.Chinese Journal of Inorganic Chemistry, 2004, 20(2):225-230.
[11]	ZHENG XUE-BIN, DING CHUAN-XIAN.Plasma sprayed HA/ZrO2 composite coatings. Journal of Inorganic Materials, 2000, 15(2): 341-346.
[12]	LI JIN-BO, LIU XUAN-YONG, LI WEI-FENG, et al.Preparation and characterization of bioactive poly (Lactic Acid)/SiO2-CaO composite membranes.Journal of Inorganic Materials, 2011, 26(9): 998-1002.
[13]	GAO YAN-JIAO, LIU RONG-FANG, XIAO XIU-FENG.Preparation and bioactivity of silica films coated on titanium.Chinese Journal of Applied Chemistry, 2006, 23(3): 313-318.
[14]	SHEN J, OUYANG L, LIN X J, et al.Preparation of low-k and low-n mesoporous silica films via Sol-Gel process.Rare Metal Materials and Engineering, 2008, 37(Supp. 2):76-79.
[15]	YANG BO, LI XIAO-FEI, HU PENG-HUI, et al.Preparation and application of SiO2 mesoporous thin films. Guangzhou Chemical Industry, 2013, 41(12): 29-31.
[16]	GOMEZ-VEGA J M, HOZUMI A, SUGIMURA H, et al. Ordered mesoporous silica coatings that induce apatite formation in vitro.Adv. Mater., 2001, 13(11): 822-825.
[17]	KOKUBO T, KUSHITANI H, SAKKA S, et al.Solutions able to reproduce in vivo surface-structure changes in bioactive glass-ceramic A-W.J. Biomed. Mater. Res. A, 1990, 24(6): 721-734.
[18]	YU YI-XUAN, LIU JIAN, CAI QIANG, et al.Synthesis and characteristic of pore size-tailored self-supporting mesoporousfilm via solvent evaporation induced self-assembly.Chemical Journal of Chinese Universities, 2010, 31(11): 2136-2140.
[19]	ZHAO LI, YU JIA-GUO, ZHAO XIU-JIAN, et al.Research and development of mesoporous nanostructured materials.Rare Metal Materials and Engineering, 2004, 33(1): 5-10.
[20]	LU Y F, GANGULI R, DREWIENF C A, et al.Continuous formation of supported cubic and hexagonal mesoporous films by Sol-Gel dip-coating. Nature, 1997, 389(6649): 364-368.
[21]	ZHAO LI, LIN KAI-LI, CHANG JIANG.Microstructure and formation of HCA on the surface of bioactive ceramics. Journal of Inorganic Materials, 2003, 6(18): 1280-1286.
[22]	HAN JI-MEI, LI YU-BAO, LIANG XIN-JIE, et al.Comparison of compositional and structural characterizations of synthetic nano-hydroxyapatite and mineral phase from human teeth. Journal of Functional Materials, 2005, 36(7): 1069-1071.
[23]	ZHONG J P, GREENSPAN D C.Processing and properties of Sol-Gel bioactive glasses.J. Biomed. Mater. Res. B: Appl. Biomater., 2000, 53(6): 694-701.
