Manganese dioxide/Biocarbon Composite Photothermal Material: Synthesis and Its Performance in Solar Interface Water Evaporation

doi:10.15541/jim20250365

Abstract

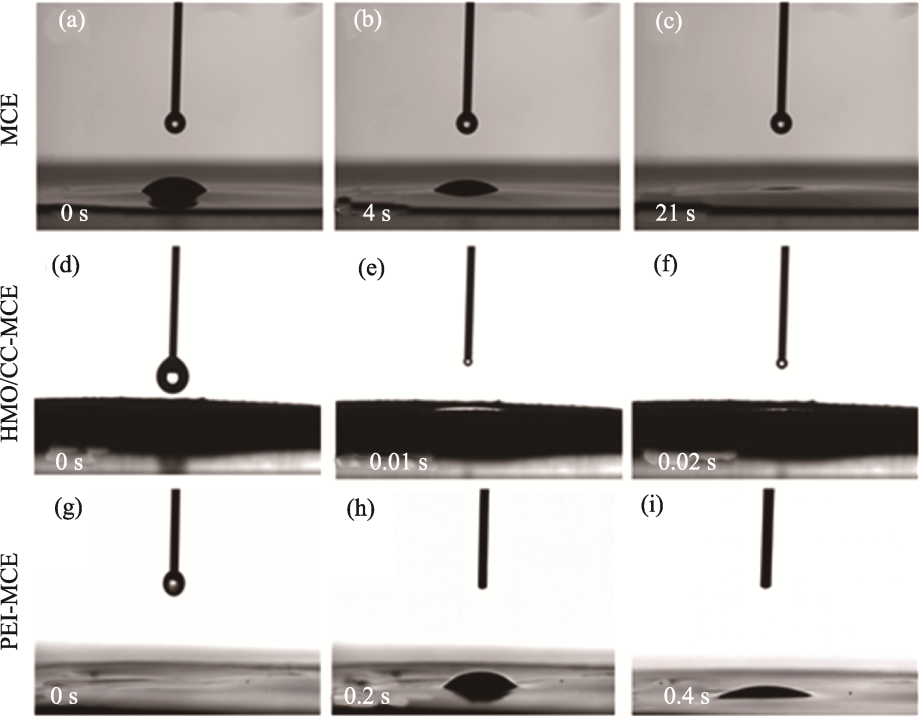

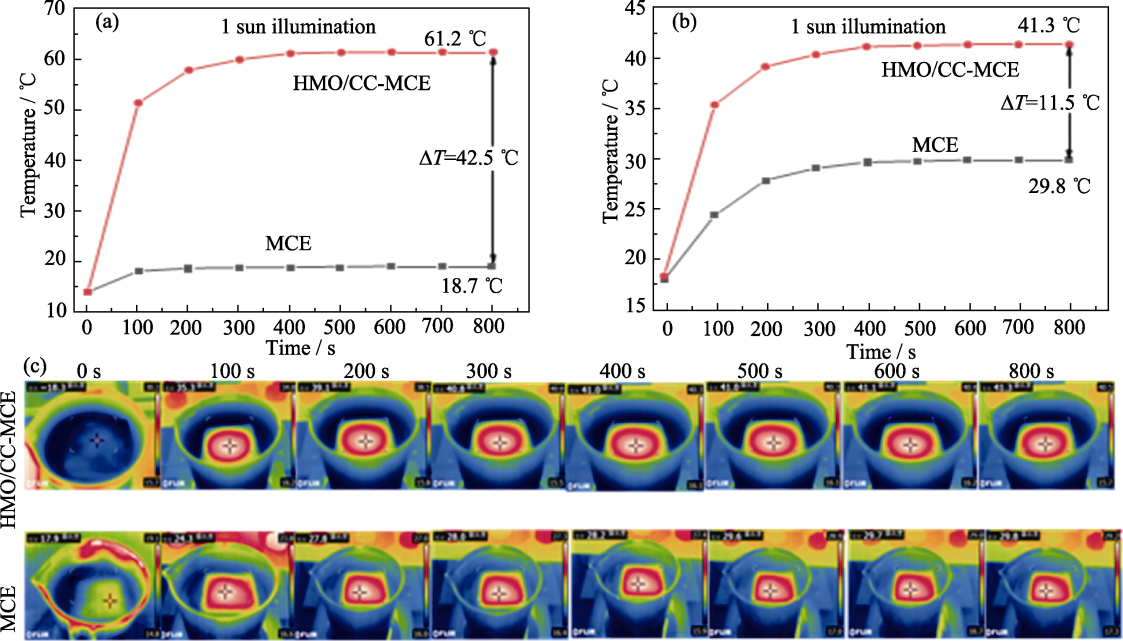

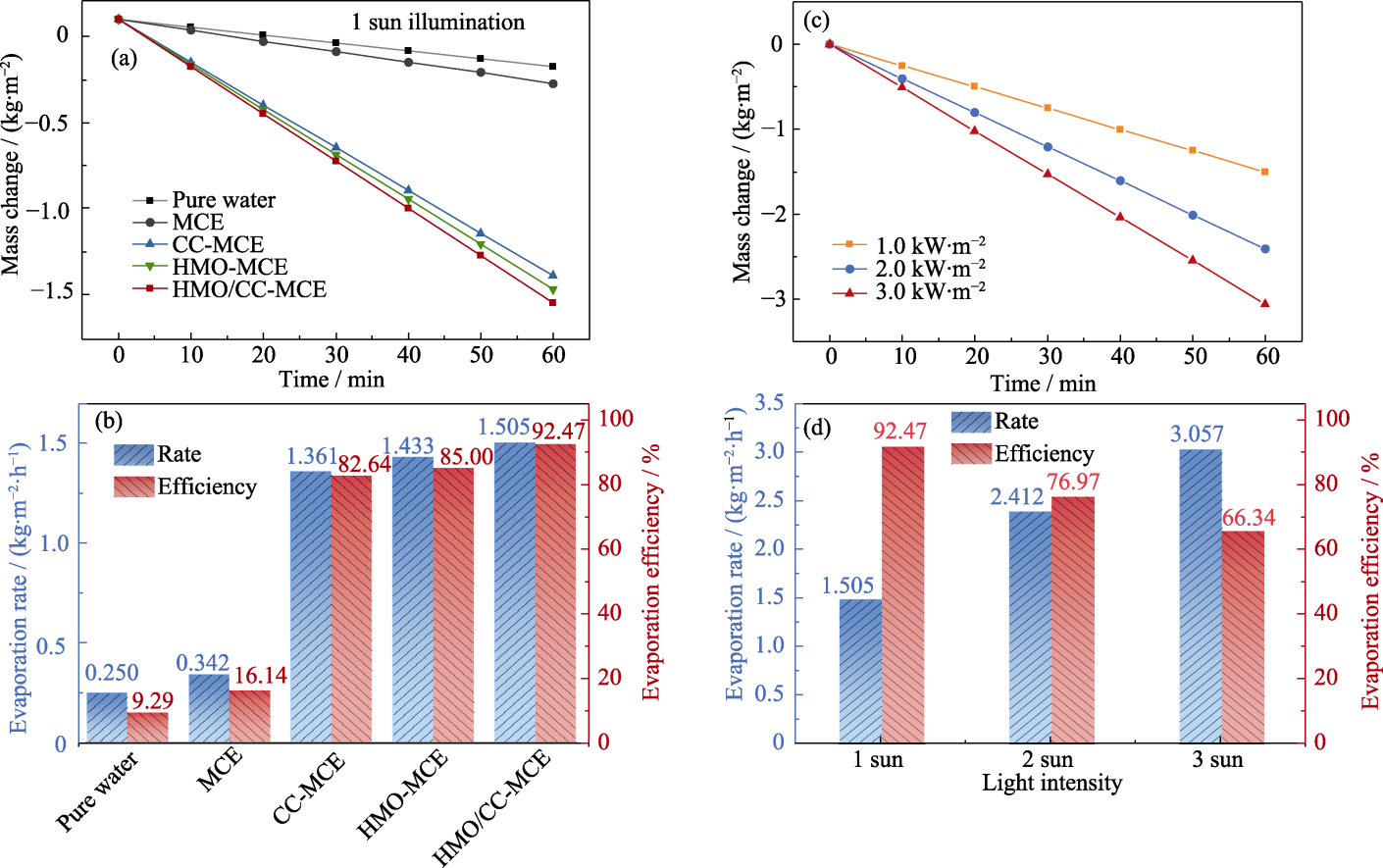

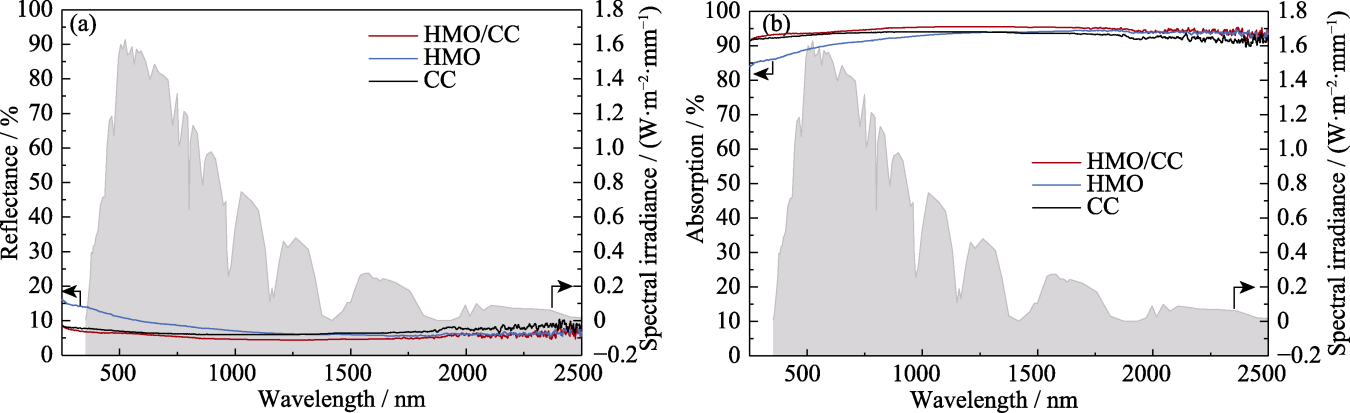

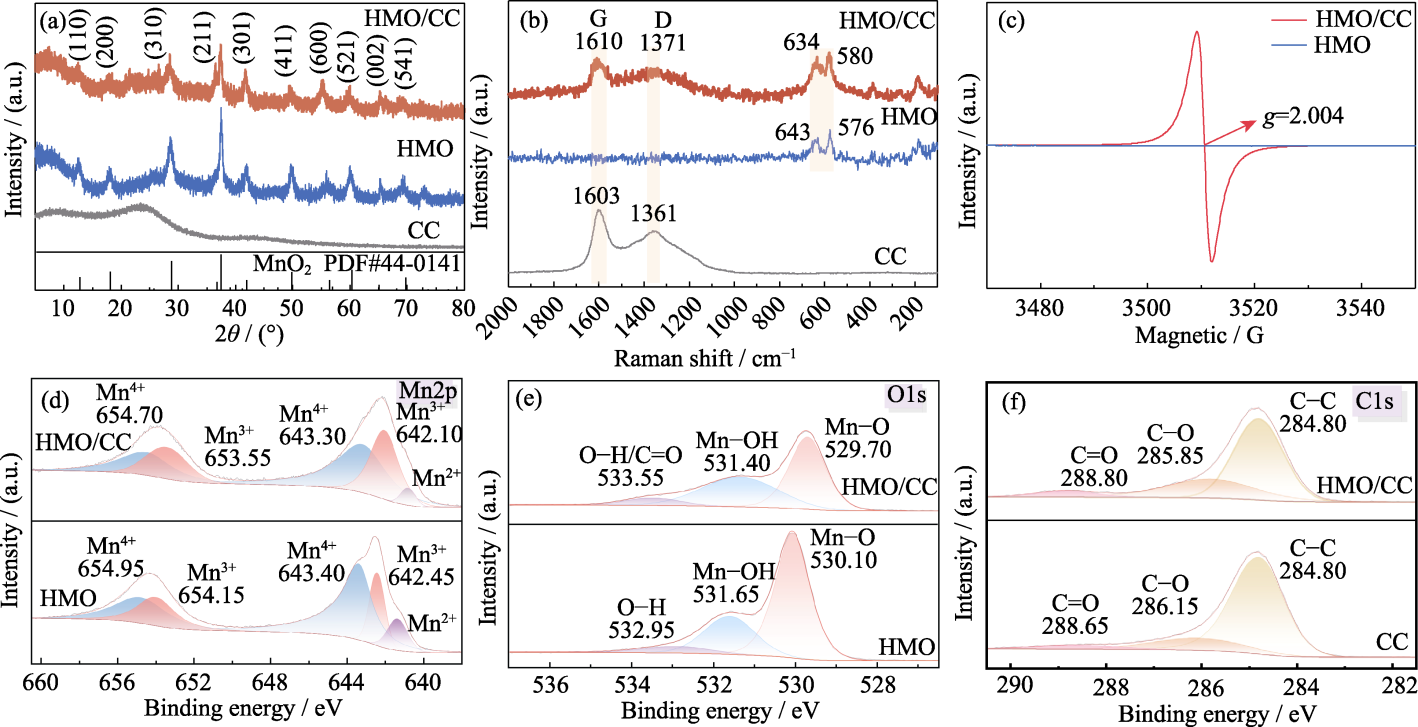

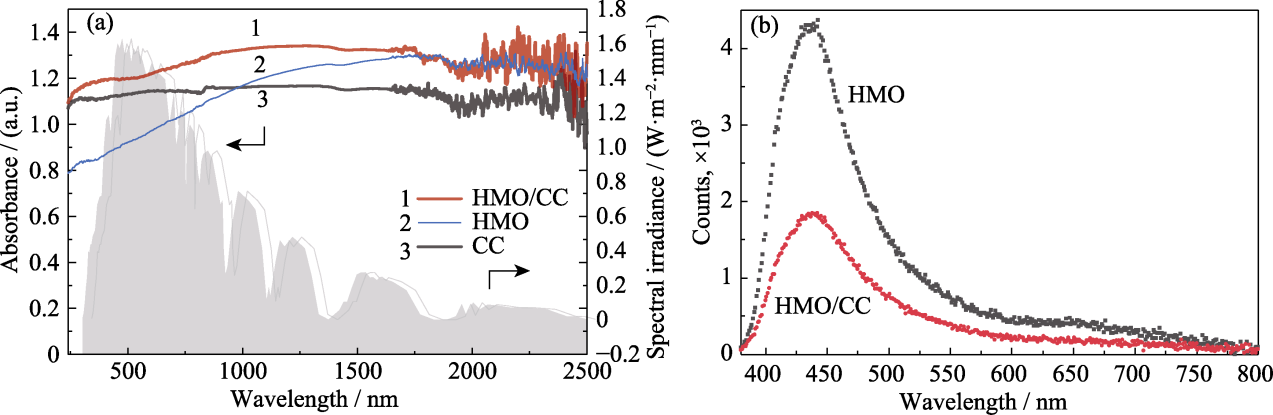

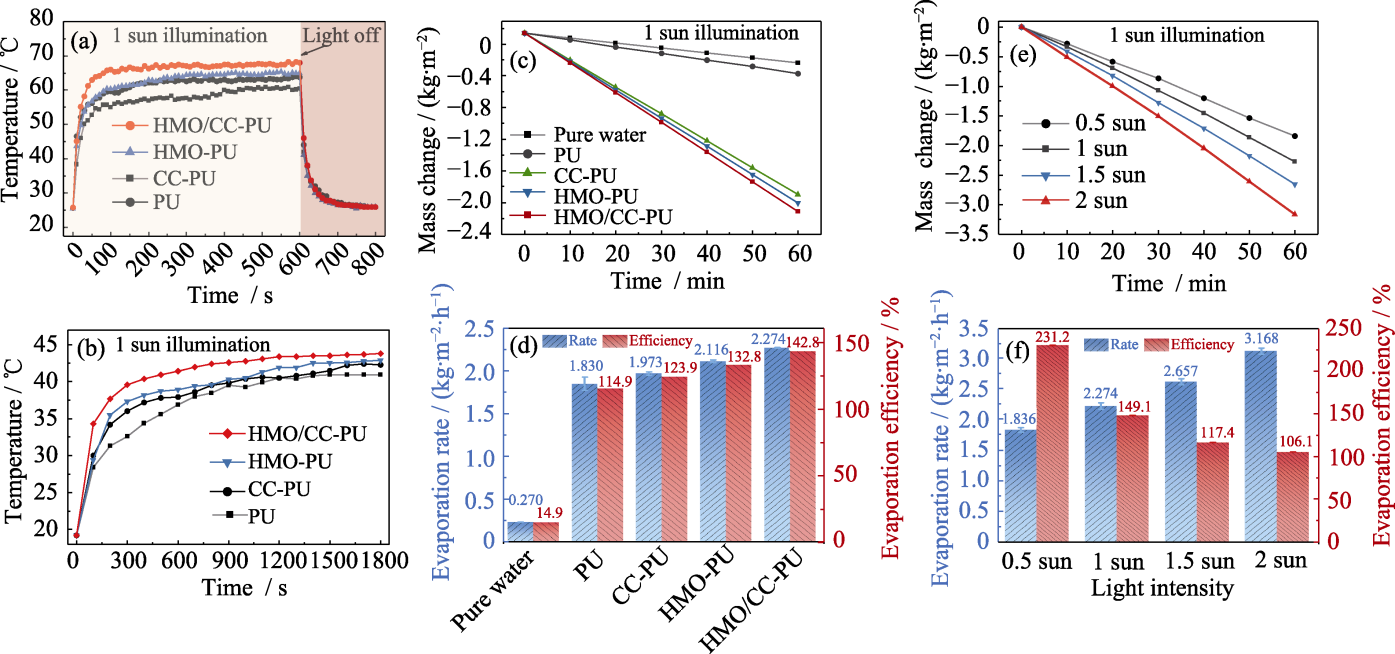

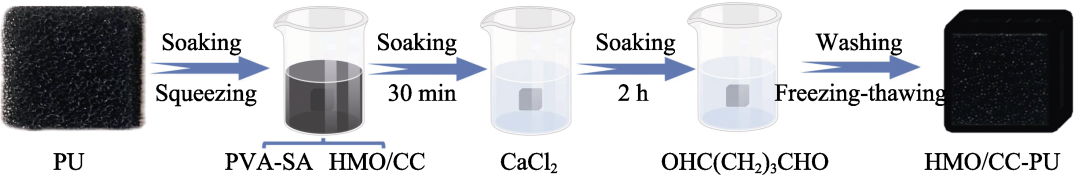

Abstract: Solar-driven interfacial water evaporation technology, as an important approach for efficiently and sustainably generating clean water, is one of the hot research topics in the fields of materials and environment. However, low-cost, high-efficiency photothermal materials are essential for the widespread application of this technology, which currently remains a key challenge. In this study, manganese dioxide (HMO) was uniformly grown onto biocarbon, forming a manganese dioxide/biocarbon composite with low crystallinity and rich defects, by using camellia-derived biocarbon (CC) as the support and structure-directing agent. The resulting HMO/CC exhibits a high solar absorption efficiency of 94.2% in the 250-2500 nm range, as well as superior photothermal conversion capability to single-component HMO. The HMO/CC-MCE photothermal membrane assembled from this composite and mixed cellulose ester (MCE) filter membrane displays excellent hydrophilicity and photothermal conversion capability, achieving an evaporation rate of 1.505 kg·m^-2·h^-1 and an evaporation efficiency of 92.5% under 1 kW·m^-2 solar irradiation, which is better than those of HMO (85.0%) and CC (82.6%), and 9.9 times that of pure water without membrane. A three-dimensional HMO/CC-PU evaporator was then fabricated by integrating HMO/CC with polyurethane (PU) sponge, which can achieve a surface temperature of 68.3 °C within 600 s and an enhanced evaporation rate of 2.274 kg·m^-2·h^-1. Additionally, the device maintained stable evaporation rate of 2.271 kg·m^-2·h^-1 after 15 cycles in a model seawater. In this study, the approach using biomass-derived carbon as a template to construct composites, provides valuable reference for the development of novel photothermal materials and their applications in desalination and wastewater treatment.

Key words: MnO₂/C, photothermal materials, solar-driven interface water evaporation, desalination

CLC Number:

TQ174

FAN Shengqiang, ZHOU Shuhao, QIAN Junchao, MA Ruguang, WU Zhengying. Manganese dioxide/Biocarbon Composite Photothermal Material: Synthesis and Its Performance in Solar Interface Water Evaporation[J]. Journal of Inorganic Materials, DOI: 10.15541/jim20250365.

References

[1] YANG L, LI N, GUO C, et al. Marine biomass-derived composite aerogels for efficient and durable solar-driven interfacial evaporation and desalination. Chemical Engineering Journal, 2021, 417: 128051
[2] MEKONNEN M M, HOEKSTRA A Y.Four billion people facing severe water scarcity.Science Advances, 2016, 2(2): e1500323.
[3] ZHOU X, LI J, LIU C, et al. Carbonized tofu as photothermal material for highly efficient solar steam generation. International Journal of Energy Research, 2020, 44(11): 9213.
[4] ZHOU M, ZHANG L, TAO S, et al. Recent research advances in efficient solar-driven interfacial evaporation. Chemical Engineering Journal, 2024, 489: 151157.
[5] JING X X, WU Z Y, SUN L B, et al. Research progress on photothermal materials and their application in solar desalination. Chinese Journal of Inorganic Chemistry, 2024,40(6): 1033.
[6] ZHOU L, LI X Q, NI G W, et al. The revival of thermal utilization from the sun: interfacial solar vapor generation. National Science Review, 2019, 6(3): 562.
[7] LI S, YANG X, HE Y, et al. Hierarchical porous aero-cryogels for wind energy enhanced solar vapor generation. Cellulose, 2022, 29(2): 953.
[8] WEI W H, HARADA K, YOSHIDA M, et al. Mn-MIL-100 derived MnO₂@carbon for the photo-induced thermal catalytic HCHO oxidation. Separation and Purification Technology, 2025, 360: 131129.
[9] WANG R, HAO Q, FENG J, et al. Enhanced separation of photogenerated charge carriers and catalytic properties of ZnO-MnO₂ composites by microwave and photothermal effect. Journal of Alloys and Compounds, 2019, 786: 418.
[10] ZHENG N, CHEN C, TANG M, et al. Ultrahigh compressibility and superior elasticity carbon framework derived from shaddock peel for high-performance pressure sensing. RSC Advances, 2021, 11(46): 28621.
[11] ZHANG C, XIAO P, NI F, et al. Converting pomelo peel into eco-friendly and low-consumption photothermic biomass sponge toward multifunctioal solar-to-heat conversion. ACS Sustainable Chemistry & Engineering, 2020, 8(13): 5328.
[12] TIAN H, YU M, LIU X, et al. Plant-cell oriented few-layer MoS₂/C as high performance anodes for lithium-ion batteries. Electrochimica Acta, 2022, 424: 140685.
[13] BELLARDITA M, GARLISI C, OZER L Y, et al. Highly stable defective TiO₂-_x with tuned exposed facets induced by fluorine: impact of surface and bulk properties on selective UV/visible alcohol photo-oxidation. Applied Surface Science, 2020, 510: 145419.
[14] MAJIDI M R, FARAHANI F S, HOSSEINI M, et al. Low-cost nanowired α-MnO₂/C as an ORR catalyst in air-cathode microbial fuel cell. Bioelectrochemistry, 2019, 125: 38.
[15] YANG L W, TIAN X Y, LIU Z Y, et al. Performance and mechanism of lanthanum-modified MnO for defluoridation from water: the role of Mn crystal forms. Chemical Engineering Journal, 2024, 492: 152343.
[16] LIU J, WANG J, ZHAO M, et al. Engineering defective Mn^δ+-O_V active structure in α-MnO₂ for efficient low-temperature CO oxidation. Applied Surface Science, 2024, 670: 160602.
[17] WANG L, GUAN S Y, WENG Y Z W, et al. Highly efficient vacancy-driven photothermal therapy mediated by ultrathin MnO₂ nanosheets. ACS Applied Materials & Interfaces, 2019, 11(6): 6267.
[18] JIANG J, LAI X, FANG Y, et al. “One stone two birds” strategy for sustainable water purification: bifunctional photothermic-catalytic manganese oxide/carbon composites enabling solar evaporation, seawater desalination and periodate activation. Desalination, 2025, 597: 118402.
[19] WANG G, XU H, LU L, et al. One-step synthesis of mesoporous MnO₂/carbon sphere composites for asymmetric electrochemical capacitors. Journal of Materials Chemistry A, 2015, 3(3): 1127.
[20] JIA J, LI L, LIAN X, et al. A mild reduction of Co-doped MnO₂ to create abundant oxygen vacancies and active sites for enhanced oxygen evolution reaction. Nanoscale, 2021, 13(25): 11120.
[21] SAMPATHKUMAR P, MONICA M S, GIRIBABU K, et al. Influence of phase structure of MnO₂ for enhancing the electrochemical sensitivity of environmental pollutant chlortetracycline. Next Materials, 2024, 2: 100079.
[22] JIANG C, GE Y, CHEN W, et al. Hierarchically-structured TiO₂/MnO₂ hollow spheres exhibiting the complete mineralization of phenol. Catalysts, 2019, 9(4): 390.
[23] YANG W, PENG Y, WANG Y, et al. Controllable redox-induced in-situ growth of MnO₂ over Mn₂O₃ for toluene oxidation: active heterostructure interfaces. Applied Catalysis B: Environmental, 2020, 278: 119279.
[24] ZHANG Y-H, ZHANG S, HU N, et al. Oxygen vacancy chemistry in oxide cathodes. Chemical Society Reviews, 2024, 53(7): 3302.
[25] MU G, XIE H, JIAN Y, et al. Facile construction and enhanced catalytic activity of Co-Mn oxide with rich amorphous/crystalline interfaces for propane oxidation. Separation and Purification Technology, 2024, 348: 127699.
[26] KONG J, CHEN H, LI Z, et al. Synergistic defect engineering in β-MnO₂ nanorods for energy-efficient photocatalytic air purification. Chemical Engineering Journal, 2025, 522: 167730.
[27] QIU Y, LEE M, CHEN J, et al. Effect of light intensity on solar-driven interfacial steam generation. Nanoscale, 2021, 13: 20387.
[28] ZHOU X, ZHAO F, GUO Y, et al. A hydrogel-based antifouling solar evaporator for highly efficient water desalination. Energy &Environmental Science, 2018, 11(8): 1985.
[29] ZHOU X, GUO Y, ZHAO F, et al. Topology-controlled hydration of polymer network in hydrogels for solar-driven wastewater treatment. Advanced Materials, 2020, 32(52): 2007012.
[30] YANG Y, ZHAO Y, SHI F, et al. Synergistic photothermal-bubbly driving effect on MnO₂/carbon microsphere micromotors assisted by photocatalytic H₂O₂ decomposition. Catalysis Today, 2025, 460: 115487.
[31] XU Z, ZHANG L, ZHAO L, et al. Ultrahigh-efficiency desalination via a thermally-localized multistage solar still. Energy & Environmental Science, 2020, 13(3): 830.
[32] KIM H T, PHILIP L, MCDONAGH A, et al. Recent advances in high-rate solar-driven interfacial evaporation. Advanced Science, 2024, 11(26): 2401322.
[33] LU F, WU S L, QUAN L N, et al. Twisting two-dimensional photothermal sponges for boosting solar steam generation. Chemical Engineering Journal, 2023, 474: 145747.
