Adsorption of Eu(III) on Alkalized Ti3C2Tx MXene Studied by Batch Experiment and Its Mechanism Investigation

doi:10.15541/jim20190073

Abstract

Abstract:

In order to rapidly remove Eu(III) from aqueous solution, an alkalized two-dimensional titanium carbide, Na-Ti₃C₂T_x, was successfully prepared by treating inorganic two-dimensional transition metal carbide (MXene) with NaOH. Adsorption behavior of Eu(III) on Na-Ti₃C₂T_x was systematically investigated by batch experiments. The results show that the adsorption process is greatly affected by pH and ionic strength of the solution, and reached equilibrium within 5 min. Based on Langmuir model fitting results, the maximum adsorption capacity of Eu(III) on Na-Ti₃C₂T_x was calculated to be 54.05 mg/g at pH 4.0 under 298 K. The thermodynamic results suggested that the adsorption process was a spontaneous and endothermic reaction. The adsorption mechanism was further analyzed by energy dispersive X-ray spectroscopy (EDS), powder X-ray diffraction (XRD) and extended X-ray absorption fine structure spectroscopy (EXAFS). These data revealed that Na ⁺ ions inside MXene galleries were exchanged by Eu ³⁺ ions and Eu(III) existed dominately in under outer-sphere surface complexation after adsorption under acidic pH conditions, but in inner-sphere surface complexation under near-neutral pH conditions. Due to its cost-effective prepatation and excellent sorption performance, Na-Ti₃C₂T_x may be a promising candidate for the efficient removal of trivalent minor actinides and lanthanides from radioactive wastewater.

Key words: Na-Ti₃C₂T_x, Eu(III), removal, interaction mechanism

CLC Number:

TQ174

SONG Huan, WANG Lin, WANG Hong-Qing, SHI Wei-Qun. Adsorption of Eu(III) on Alkalized Ti₃C₂T_x MXene Studied by Batch Experiment and Its Mechanism Investigation[J]. Journal of Inorganic Materials, 2020, 35(1): 65-72.

Figures/Tables 11

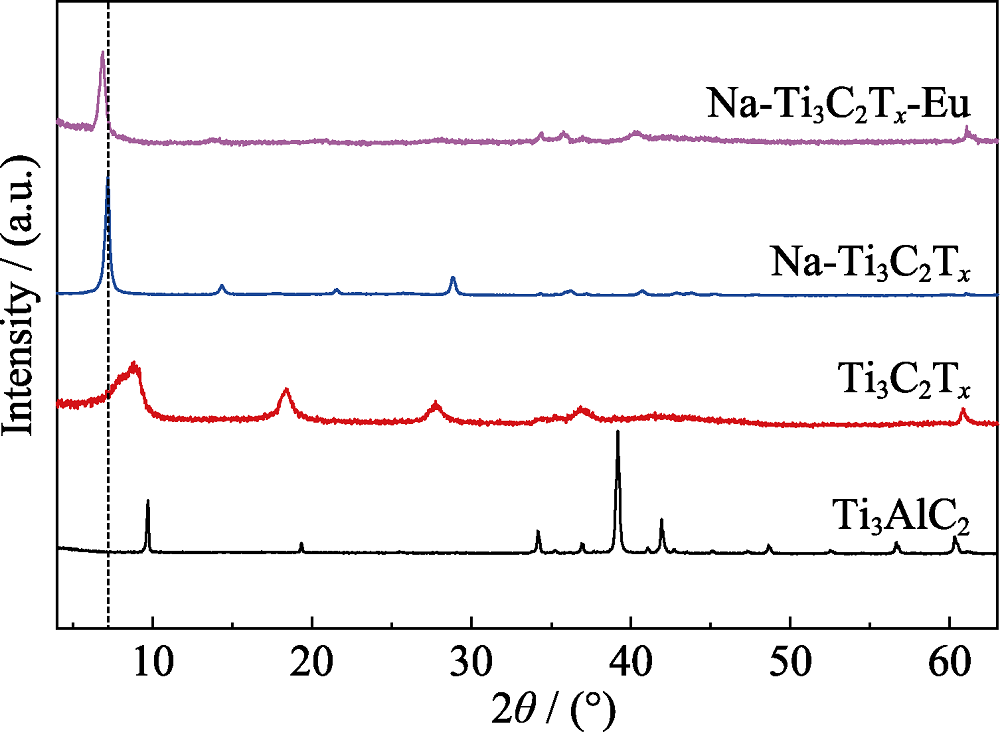

Fig. 1 XRD patterns of the synthesized Ti3AlC2, Ti3C2Tx, Na-Ti3C2Tx and Na-Ti3C2Tx-Eu

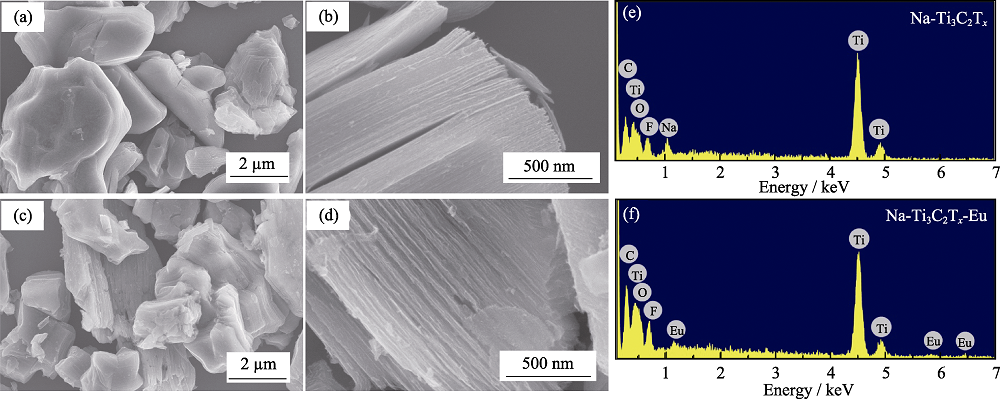

Fig. 2 SEM images of Na-Ti3C2Tx before (a-b), and after (c-d) adsorption of Eu(III), with EDS analysis resulted of Na-Ti3C2Tx before (e) and after (f) adsorption of Eu(III)

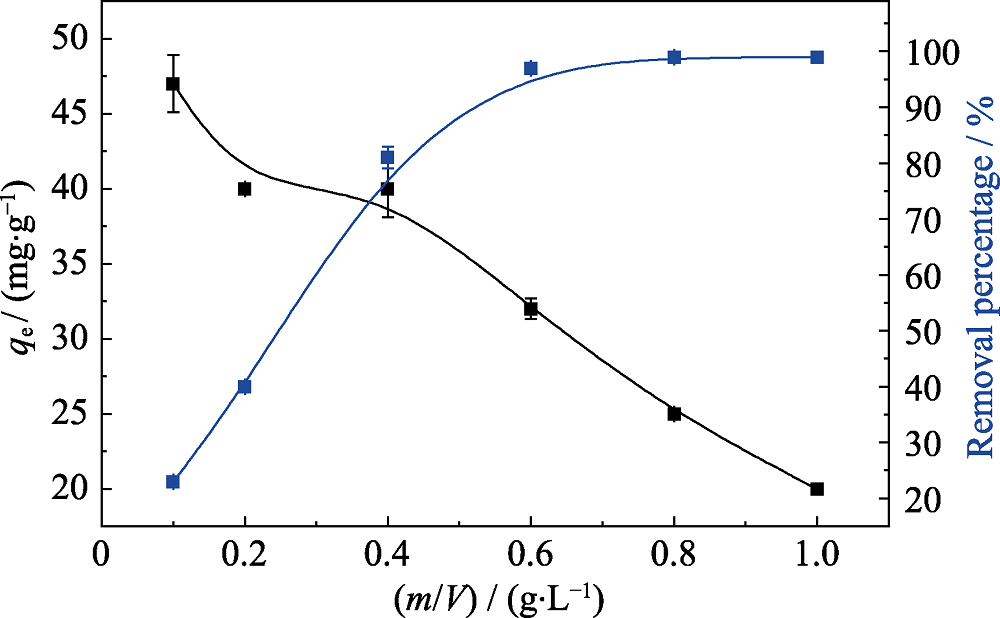

Fig. 3 Effect of sorbent dose on Eu(III) removal by Na-Ti3C2Tx (pH=(4.0±0.1), C0=20 mg/L)

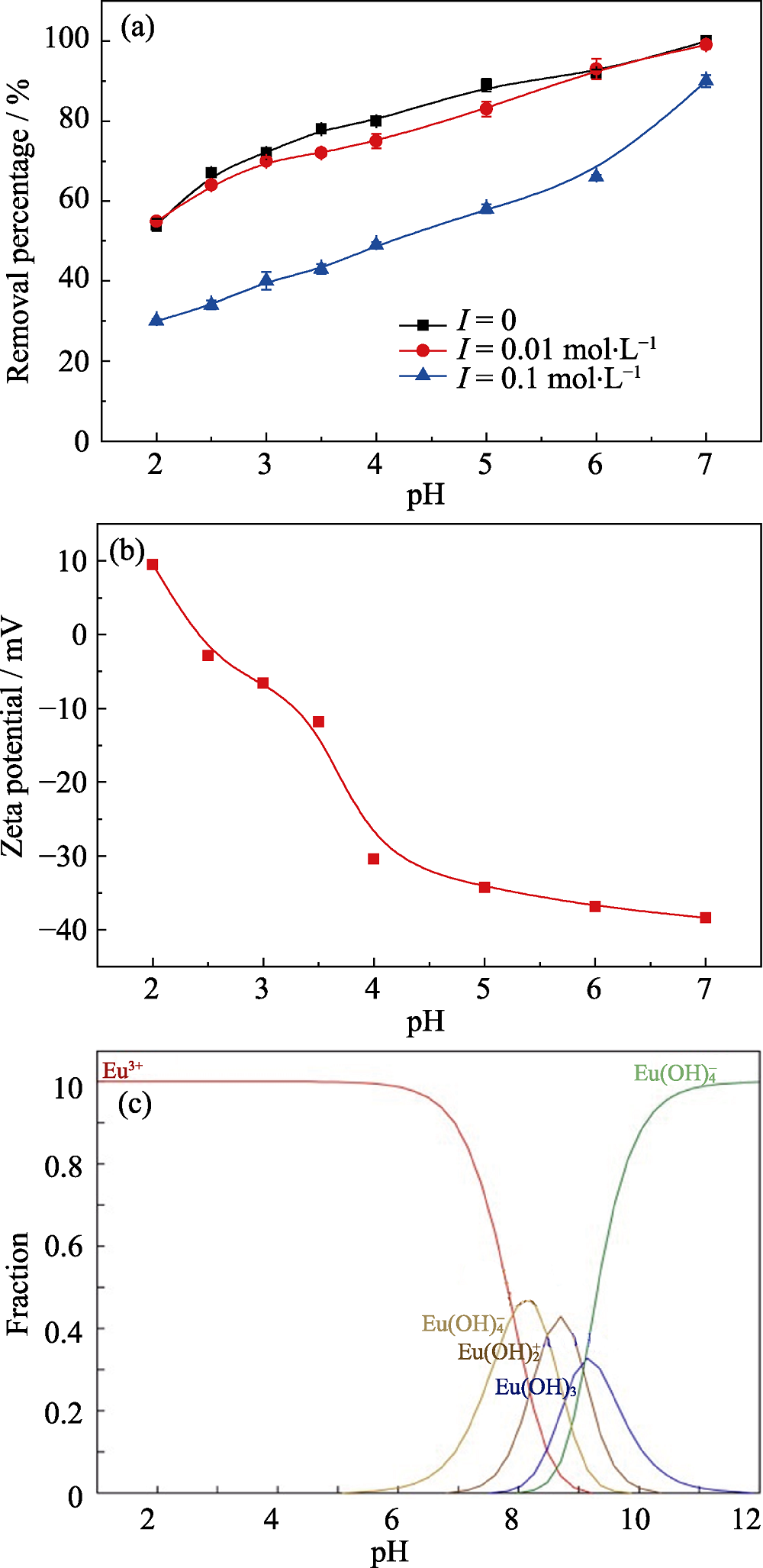

Fig. 4 Effect of solution pH and ionic strength on removal of Eu(III) by Na-Ti3C2Tx (a), Zeta potential of Na-Ti3C2Tx (b), and distribution of Eu(III) species in aqueous solution as a function of pH calculated using the MEDUSA program (c)

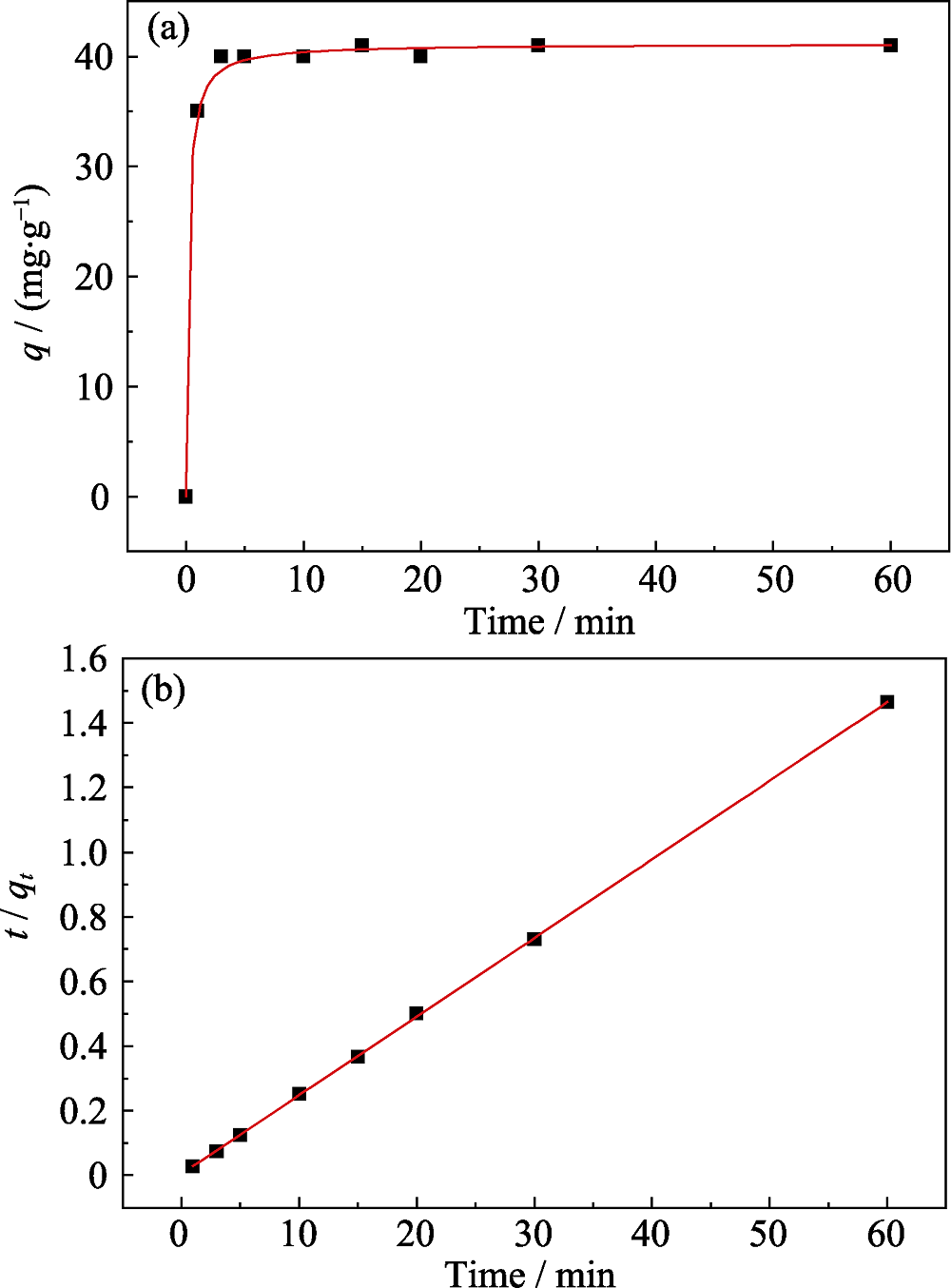

Fig. 5 Time-dependent adsorption of Eu(III) on Na-Ti3C2Tx (pH= (4.0±0.1), T = 293 K, m/V = 0.4 g/L) (a), and pseudo-second- order kinetic plots of Eu(III) on Na-Ti3C2Tx (b)

Table 1 Optimized parameters of pseudo-first-order and pseudo-second-order kinetic models

Sample	Pseudo-first-order model		Pseudo-second-order model
Na-Ti₃C₂T_x	k₁/min^-1	R²	k₂/(g·mg^-1·min^-1)	R²
Na-Ti₃C₂T_x	0.0212	0.4111	0.1312	0.9999

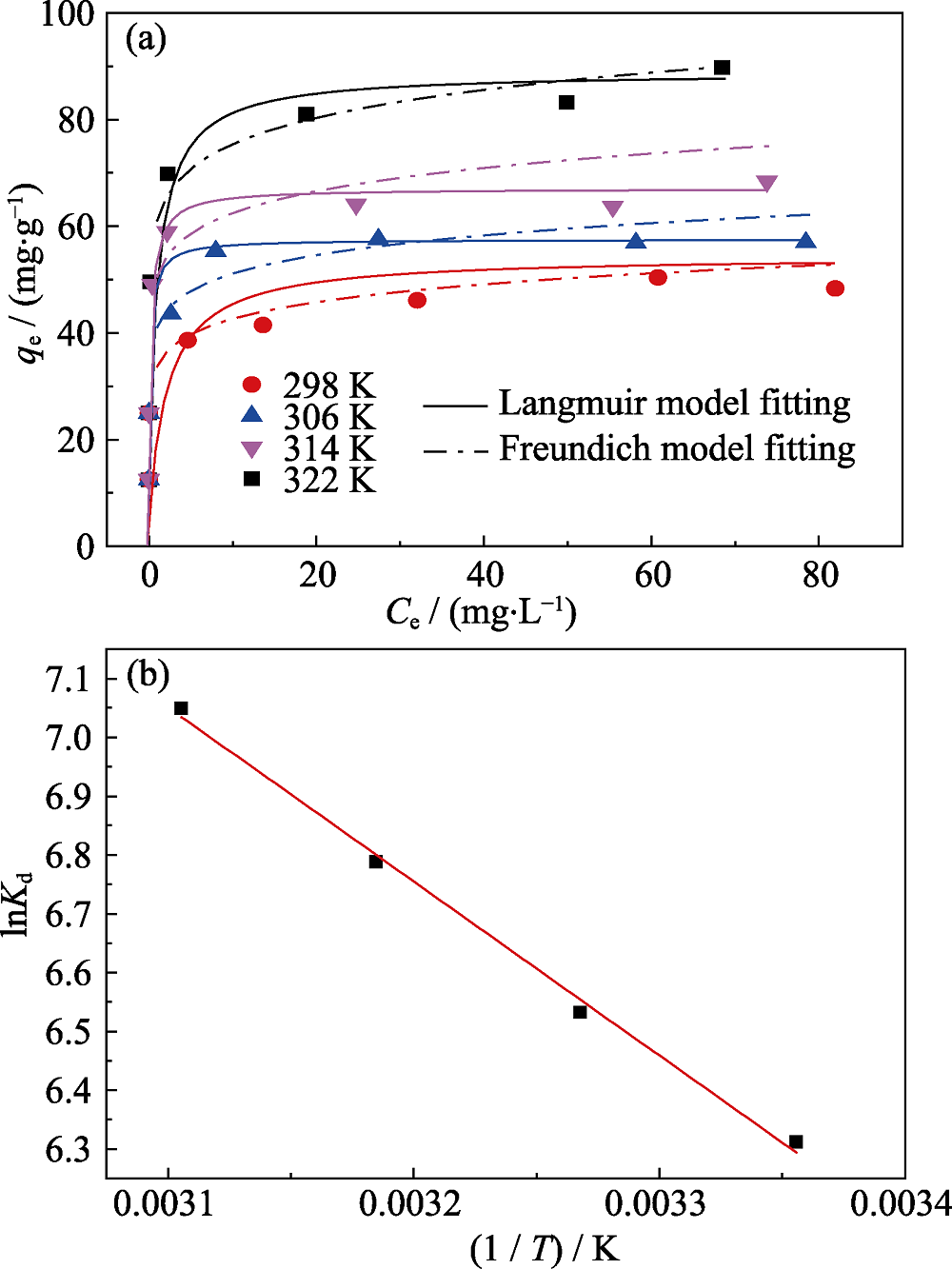

Fig. 6 (a) Isotherms of Na-Ti3C2Tx towards Eu(III) under the conditions of pH (4.0±0.1) and m/V=0.40 g/L, and (b) plot of lnKd vs 1/T

Table 2 Fitting parameters of Langmuir and Freundlich models

Models	Parameters	Temperature/K
Models	Parameters	298	306	314	322
Langmuir	q_m/(mg·g^-1)	54.05	57.14	66.67	88.50
	K_L/(L·mg^-1)	0.49	5.00	3.49	1.04
	R²	0.9931	0.9999	0.9981	0.9973
Freundlich	K_F/(mg^1-ⁿ·Lⁿ·g^-1)	33.52	40.87	50.37	60.87
	1/n	9.78	10.50	10.88	10.92
	R²	0.9436	0.9487	0.9212	0.9645

Table 3 Thermodynamic parameters for removal of Eu(III) by Na-Ti3C2Tx

Temperature/K	ΔH/(kJ·mol^-1)	ΔS/(J·mol^-1·K^-1)	ΔG/(kJ·mol^-1)
298	24.539	134.81	-15.57
306			-16.65
314			-17.73
322			-18.80

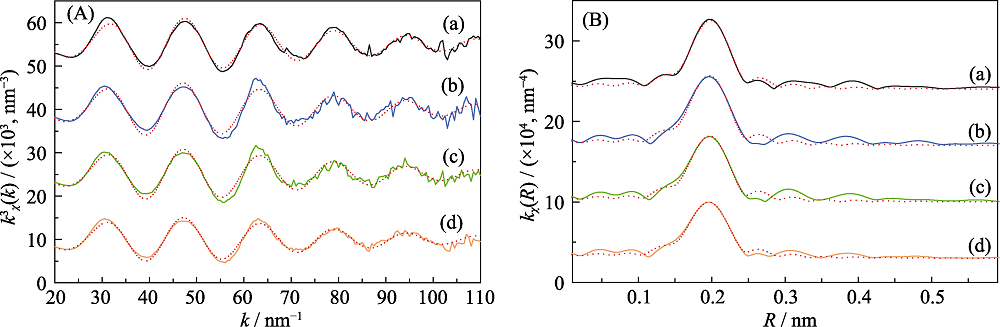

Fig. 7 (A) Eu L 3 edge k3-weighted EXAFS spectra (solid lines) and the best theoretical fits (dots lines) of Eu-loaded Na-Ti3C2Tx samples under different solution pH, and (B) corresponding non-phase shift corrected Fourier transforms

Table 4 Fitting parameters extracted from least-squares fitting analysis of EXAFS spectra

Sample	Path	CN^a	R^b/nm	σ^2c/(×10^-4, nm²)	ΔE^d/eV	R-factor^e
Eu³⁺(aq)	Eu-O	(9.0±0.6)	(0.243±0.001)	0.8	(3.9±0.6)	0.006
pH=4.0	Eu-O	(9.1±1.6)	(0.243±0.002)	0.9	(2.4±1.6)	0.019
pH=5.0	Eu-O	(8.7±1.4)	(0.243±0.001)	0.9	(2.6±1.5)	0.016
pH=6.0	Eu-O	(7.8±0.9)	(0.242±0.001)	1.0	(2.2±1.1)	0.008

References 46

[1]	JOHNSTONE E V, HOFMSNN S, CHERKOUK A , et al. Study of the interaction of Eu³+ with microbiologically induced calcium carbonate precipitates using TRLFS. Environmental Science & Technology, 2016,50(22):12411-12420. DOI URL PMID
[2]	ZHANG W, HE X, YE G , et al. Americium(III) capture using phosphonic acid-functionalized silicas with different mesoporous morphologies: adsorption behavior study and mechanism investigation by EXAFS/XPS. Environmental Science & Technology, 2014,48(12):6874-6881. DOI URL PMID
[3]	XU L, ZHENG T, YANG S , et al. Uptake mechanisms of Eu(III) on hydroxyapatite: a potential permeable reactive barrier backfill material for trapping trivalent minor actinides. Environmental Science & Technology, 2016,50(7):3852-3859. DOI URL PMID
[4]	WANG X, YU S, WANG X K . Removal of radionuclides by metal-organic framework-based materials. Journal of Inorganic Materials, 2019,34(1):17-26. DOI URL
[5]	WANG X, PANG H, WU Y , et al. >Removal of radionuclides by layered double hydroxides materials. Sci. Sin. Chim., 2019,49(1):2-11. DOI URL PMID
[6]	WANG S, YU S, WU Y ,et al. Highly efficient removal of radioactive uranium on polyaniline modified carbon nanofiber composites. Sci. Sin. Chim., 2019,49(1):71-79.
[7]	YAO W, WU Y, PANG H , et al. In-situ reduction synthesis of manganese dioxide@polypyrrole core/shell nanomaterial for highly efficient enrichment of U(VI) and Eu(III). Sci. China Chem., 2018,61(7):812-823.
[8]	KUMAR S, GODBOLE S V, TOMAR B S . Speciation of Am(III)/Eu (III) sorbed on gammaalumina: effect of metal ion concentration. Radiochimica Acta, 2013,101(2):73-80. DOI URL
[9]	TAN X L, WANG X K, GECKEIS H , et al. Sorption of Eu(III) on humic acid or fulvic acid bound to hydrous alumina studied by SEM-E DS, XPS, TRLFS, and batch techniques. Environmental Science & Technology, 2008,42(17):6532-6537. DOI URL PMID
[10]	NOEMIE J, BENEDETTI M F, REILLER P E . Colloidal α-Al₂O₃ europium (III) and humic substances interactions: a macroscopic and spectroscopic study. Environmental Science & Technology, 2011,45(8):3224-3230. DOI URL PMID
[11]	TAN X, FAN Q, WANG X , et al. Eu(III) sorption to TiO₂(anatase and rutile): batch, XPS, and EXAFS studies. Environmental Science & Technology, 2009,43(9):3115-3121. DOI URL PMID
[12]	BOUBY M, LUTZENKIRCHEN J, DARDENNE K , et al. Sorption of Eu(III) onto titanium dioxide: measurements and modeling. J. Colloid Interface Sci., 2010,350(2):551-561. DOI URL PMID
[13]	RABUNG T, PIERRET MC, BAUER A , et al. Sorption of Eu(III)/Cm(III) on Ca-montmorillonite and Na-illite. Part 1: batch sorption and time-resolved laser fluorescence spectroscopy experiments. Geochimica Et Cosmochimica Acta, 2005,69(23):5393-5402. DOI URL
[14]	FAN Q H, TAN X L, LI J X , et al. Sorption of Eu(III) on attapulgite studied by batch, XPS, and EXAFS techniques. Environmental Science & Technology, 2009,43(15):5776-5782. DOI URL PMID
[15]	GALUNIN E, ALBA M D, SANTOS M J , et al. Lanthanide sorption on smectitic clays in presence of cement leachates. Geochimica Et Cosmochimica Acta, 2010,74(3):862-875. DOI URL
[16]	GAD H M H, AWWAD N S . Factors affecting on the sorption/ desorption of Eu (III) using activated carbon. Separation Science & Technology, 2007,42(16):3657-3680. DOI URL PMID
[17]	ACCORSI G, ARMAROLI N, PARISINI A , et al. Wet adsorption of a luminescent Eu(III) complex on carbon nanotubes sidewalls. Advanced Functional Materials, 2010,17(15):2975-2982. DOI URL
[18]	CHEN C L, WANG X K, NAGATSU M . Europium adsorption on multiwall carbon nanotube/iron oxide magnetic composite in the presence of polyacrylicacid. Environmental Science & Technology, 2009,43(7):2362-2367. DOI URL PMID
[19]	SUN Y, WANG Q, CHEN C , et al. Interaction between Eu(III) and graphene oxide nanosheets investigated by batch and extended X-ray absorption fine structure spectroscopy and by modeling techniques. Environmental Science & Technology, 2012,46(11):6020-6027. DOI URL PMID
[20]	XIE Y, NAGUIB M, MOCHALIN V N , et al. Role of surface structure on Li-ion energy storage capacity of two-dimensional transition-metal carbides. Journal of the American Chemical Society, 2014,136(17):6385-6394. DOI URL
[21]	ZHAO S, WEI K, XUE J . Role of strain and concentration on the Li adsorption and diffusion properties on Ti₂C layer. Journal of Physical Chemistry Cv, 2014,118(27):14983-14990. DOI URL
[22]	EAMES C, ISLAM M S . Ion intercalation into two-dimensional transition-metal carbides: global screening for new high-capacity battery materials. Journal of the American Chemical Society, 2015,46(14):16270-16276. DOI URL PMID
[23]	HU M, LI Z, ZHANG H , et al. Self-assembled Ti₃C₂T_x MXene film with high gravimetric capacitance. Chem. Commun., 2015,51(70):13531-13533. DOI URL PMID
[24]	ZHU M, HUANG Y, DENG Q , et al. Highly flexible, freestanding supercapacitor electrode with enhanced performance obtained by hybridizing polypyrrole chains with MXene. Advanced Energy Materials, 2016,6(21):1600969. DOI URL
[25]	ZHI W S, FREDRICKSON K D, ANASORI B , et al. Two- dimensional molybdenum carbide (MXene) as an efficient electrocatalyst for hydrogen evolution. ACS Energy Letters, 2016,1(3):589-594. DOI URL
[26]	LING C, SHI L, OUYANG Y , et al. Transition metal-promoted V₂CO₂(MXenes): a new and highly active catalyst for hydrogen evolution reaction. Advanced Science, 2016,3(11):1600180. DOI URL PMID
[27]	MA T Y, CAO J L, JARONIEC M , et al. Interacting carbon nitride and titanium carbide nanosheets for high-performance oxygen evolution. Angewandte Chemie International Edition, 2016,128(3):1150-1154. DOI URL PMID
[28]	SHAHZAD F, ALHABEB M, HATTER C B , et al. Electromagnetic interference shielding with 2D transition metal carbides (MXenes). Science, 2016,353(6304):1137-1140. DOI URL PMID
[29]	HAN M, YIN X, WU H , et al. Ti₃C₂ MXenes with modified surface for high-performance electromagnetic absorption and shielding in the X-band. ACS Applied Materials & Interfaces, 2016,8(32):21011-21019. DOI URL PMID
[30]	QING Y, ZHOU W, LUO F , et al. Titanium carbide (MXene) nanosheets as promising microwave absorbers. Ceramics International, 2016,42(14):16412-16416. DOI URL
[31]	YU X F, LI Y, CHENG J B , et al. Monolayer Ti₂CO₂: a promising candidate for NH₃ sensor or capturer with high sensitivity and selectivity. ACS Applied Materials & Interfaces, 2015,7(24):13707-13713. DOI URL PMID
[32]	LIU H, DUAN C, YANG C , et al. A novel nitrite biosensor based on the direct electrochemistry of hemoglobin immobilized on MXene- Ti₃C₂. Sensors & Actuators B Chemical, 2015,218:60-66. DOI URL PMID
[33]	FAN M, WANG L, PEI C , et al. Alkalization intercalation of MXene for electrochemical detection of uranyl ion. Journal of Inorganic Materials, 2019,34(1):85-90. DOI URL
[34]	MICHAEL N, MURAT K, VOLKER P , et al. Two-dimensional nanocrystals produced by exfoliation of Ti₃AlC₂. Advanced Materials, 2011,23(37):4248-4253. DOI URL PMID
[35]	MINOLI G . Cation intercalation and high volumetric capacitance of two-dimensional titanium carbide. Science, 2013,341(6153):1502-1505. DOI URL
[36]	MASHTALIR O, NAGUIB M, MOCHALIN V N , et al. Intercalation and delamination of layered carbides and carbonitrides. Nature Communications, 2013,4(2):1716. DOI URL PMID
[37]	PENG Q, GUO J, ZHANG Q , et al. Unique lead adsorption behavior of activated hydroxyl group in two-dimensional titanium carbide. Journal of the American Chemical Society, 2014,136(11):4113-4116. DOI URL
[38]	SHAHZAD A, RASOOL K, MIRAN W , et al. Mercuric ion capturing by recoverable titanium carbide magnetic nanocomposite. Journal of Hazardous Materials, 2017,344:811-818. DOI URL PMID
[39]	WANG L, SONG H, YUAN L , et al. Efficient U(VI) reduction and sequestration by Ti₂CT_x MXene. Environmental Science & Technology, 2018,52(18):10748-10756. DOI URL PMID
[40]	WANG L, TAO W, YUAN L , et al. Rational control of the interlayer space inside two-dimensional titanium carbides for highly efficient uranium removal and imprisonment. Chem. Commun., 2017,53(89):12084-12087. DOI URL PMID
[41]	MU W, DU S, YU Q , et al. Improving barium ions adsorption on two-dimensional titanium carbide by surface modification. Dalton Transactions, 2018,47(25):8375-8381. DOI URL PMID
[42]	WANG L, YUAN L, CHEN K , et al. Loading actinides in multiayered structures for nuclear waste treatment: the first case study of uranium capture with vanadium carbide MXene. ACS Appl Mater Interfaces, 2016,8(25):16396-16403. DOI URL PMID
[43]	FAN M, WANG L, ZHANG Y , et al. Research progress of MXene materials in radioactive element and heavy metal ion sequestration. Sci. Sin. Chim., 2019,49(1):27-38.
[44]	SCHLEGEL M L, INGMAR P, NATHALIE C , et al. Mechanism of europium retention by calcium silicate hydrates: an EXAFS study. Environmental Science & Technology, 2004,38(16):4423-4431. DOI URL PMID
[45]	MONTAVON G, MARKAI S, ANDRES Y , et al. Complexation studies of Eu(III) with alumina-bound polymaleic acid: effect of organic polymer loading and metal ion concentration. Environmental Science & Technology, 2002,36(15):3303-3309. DOI URL PMID
[46]	SHENG G D, YANG S T, ZHAO D L , et al. Adsorption of Eu (III) on titanate nanotubes studied by a combination of batch and EXAFS techique. Science China Chemistry, 2012,55(1):182-194. DOI URL
