Effect of Sb Doping on Thermoelectric Property of N-type Half-Heusler Compounds

FAN Yi^1,2, LI Xiao-Ya², JIANG Yong-Fen¹, BAO Ye-Feng¹

(1. Mechanical and Electrical Engineering Institute, Changzhou Campus Hohai University, Changzhou 213022, China; 2. CAS Key Laboratory for Energy Conversion Materials, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China)

Received:2013-12-12 Revised:2014-02-07 Published:2014-09-17 Online:2014-08-21
About author:FAN Yi. E-mail: wdfan_123@126.com
Supported by:
National Natural Science Foundation of China (51372261);National Basic Research program of China (2013CB632504)

摘要/Abstract

摘要：

研究了Sb掺杂对N型half-Heusler化合物Zr_0.25Hf_0.25Ti_0.5NiSn_1-_xSb_x (x=0、0.002、0.005、0.01、0.02、0.03)热电传输特性的影响。结果显示, 随着Sb掺杂量增加, 材料的载流子浓度提高, 电阻率降低, 尤其是低温(<300 K)电阻率下降显著, 赛贝克系数降低, 且取得最大赛贝克系数的温度向高温端移动, 最大功率因子增加~20%, 材料的热导率增大, 主要是电子热导率提高的贡献, 晶格热导率影响不大; 当Sb掺杂量较低时(x<0.01), 材料的最大热电性能优值ZT值在0.77左右, 掺杂量x=0.005的样品ZT值在整个温度区间内最优。

关键词: N型Half-Heusler, Sb掺杂, 热电传输特性

Abstract:

The effect of Sb doping on thermoelectric transport properties of N-type half-Heusler compounds Zr_0.25Hf_0.25Ti_0.5NiSn_1-_xSb_x (x=0, 0.002, 0.005, 0.01, 0.02, 0.03) was studied. Results show that with increasing Sb doping amount, the carrier concentration of the samples increases while the electrical resistivity decreases, especially sharply at low temperature range (~300 K). The Seebeck coefficient decreases, and the temperatures at which the Seebeck coefficient reaches climax move to higher ones. Therefore, the power factor increases by ~20%. The total thermal conductivity increases mainly due to the enhancement of electrical thermal conductivity, the lattice thermal conductivity remains almost unchanged. For the samples with x<0.01, the maximum ZT value is about 0.77 at 800 K, and among the samples, the one with x=0.005 performs the best in the whole temperature range.

Key words: N-type half-Heusler, Sb doping, thermoelectric transport property

中图分类号:

O482
TN37

樊毅, 李小亚, 蒋永锋, 包晔峰. Sb掺杂对N型half-Heusler材料热电性能的影响[J]. 无机材料学报, 2014, 29(9): 931-935.

FAN Yi, LI Xiao-Ya, JIANG Yong-Fen, BAO Ye-Feng. Effect of Sb Doping on Thermoelectric Property of N-type Half-Heusler Compounds[J]. Journal of Inorganic Materials, 2014, 29(9): 931-935.

图/表 8

表1 N型Half-Heusler体系的最佳Sb掺杂量

Table 1 The optimal Sb doping amount in different N-type Half-Heusler systems

Systems	Optimal Sb doping amount	Reference
Zr_0.5Hf_0.5NiSn_1-_xSb_x	0.005-0.010	[1]
TiNiSn_1-_xSb_x	0.01-0.05	[6]
Zr_0.25Hf_0.25Ti_0.5NiSn_1-_xSb_x	0.002	[7]
Zr_0.25Hf_0.25Ti_0.5NiSn_1-_xSb_x	0.002	[8]
Hf_0.75Zr_0.25NiSn_1-_xSb_x	0.025	[9]
Hf_0.6Zr_0.4NiSn_1-_xSb_x	0.020	[10]
Hf_0.75Zr_0.25NiSn_1-_xSb_x	0.010	[11]

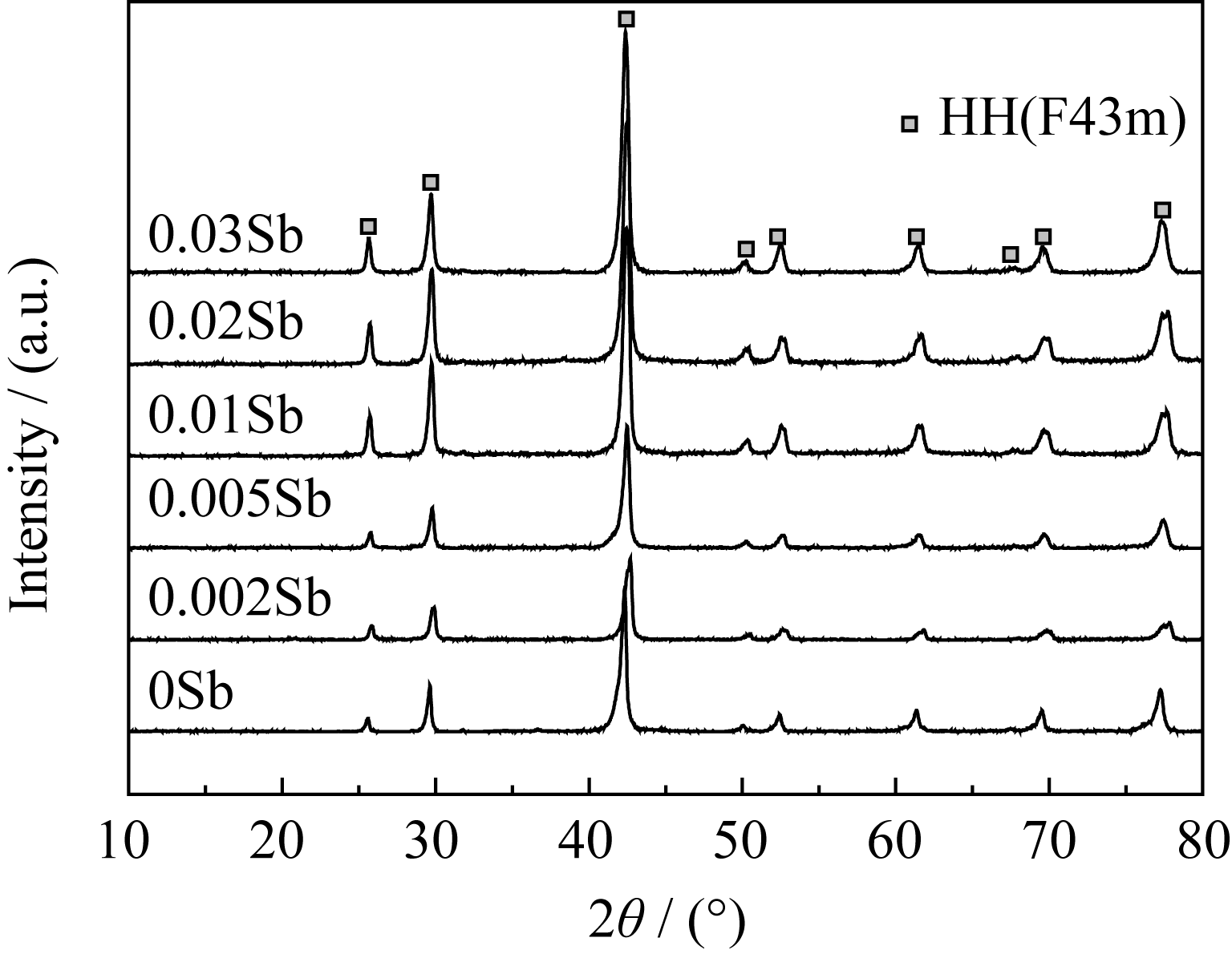

图1 Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0~0.03) SPS烧结样品的XRD图谱

Fig. 1 XRD patterns of the SPSed samples of Zr0.25Hf0.25Ti0.5 NiSn1-x Sbx (x=0-0.03)

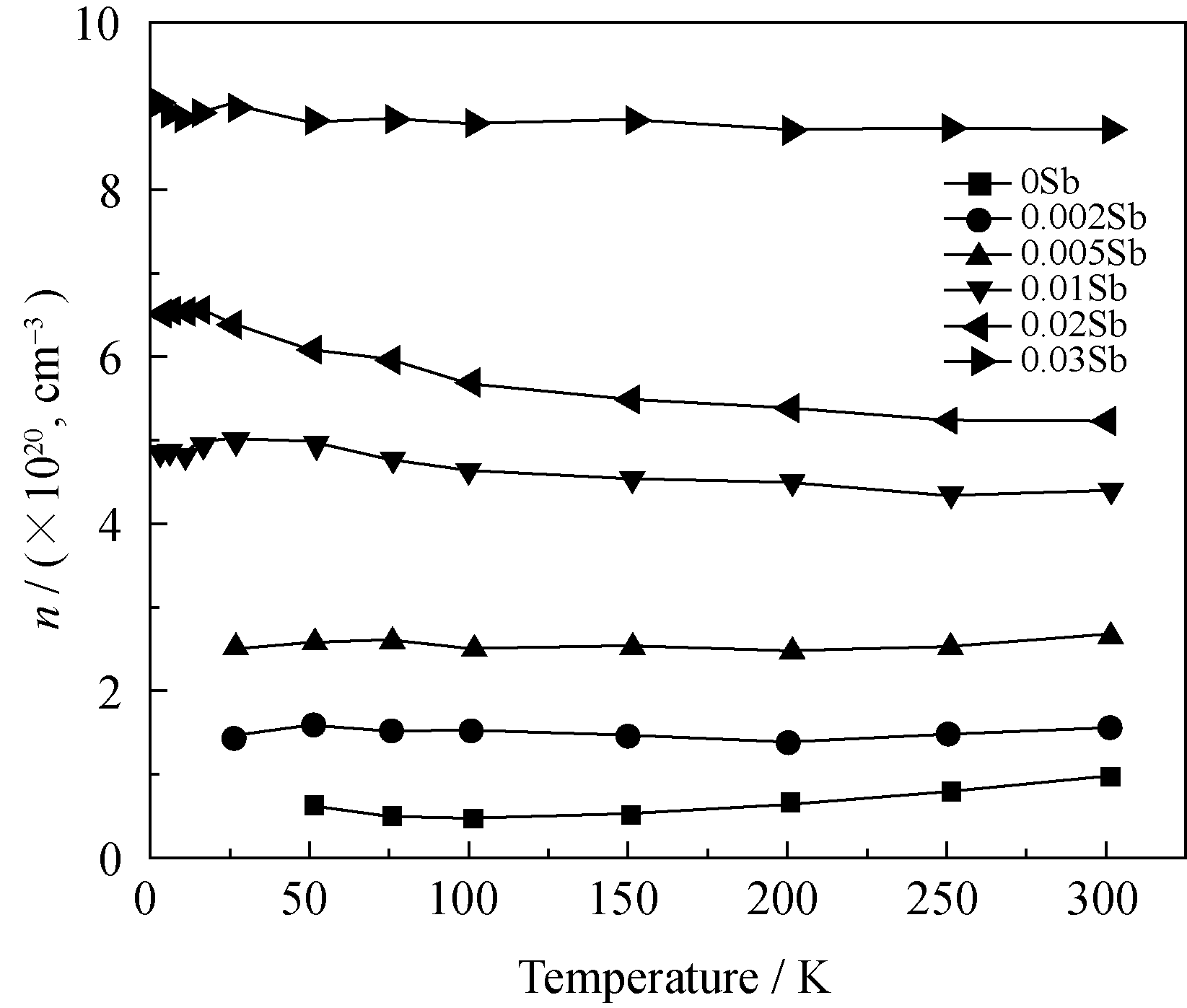

图2 Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0~0.03)样品载流子浓度随温度的变化

Fig. 2 Temperature dependence of carrier concentration for the Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0-0.03) samples

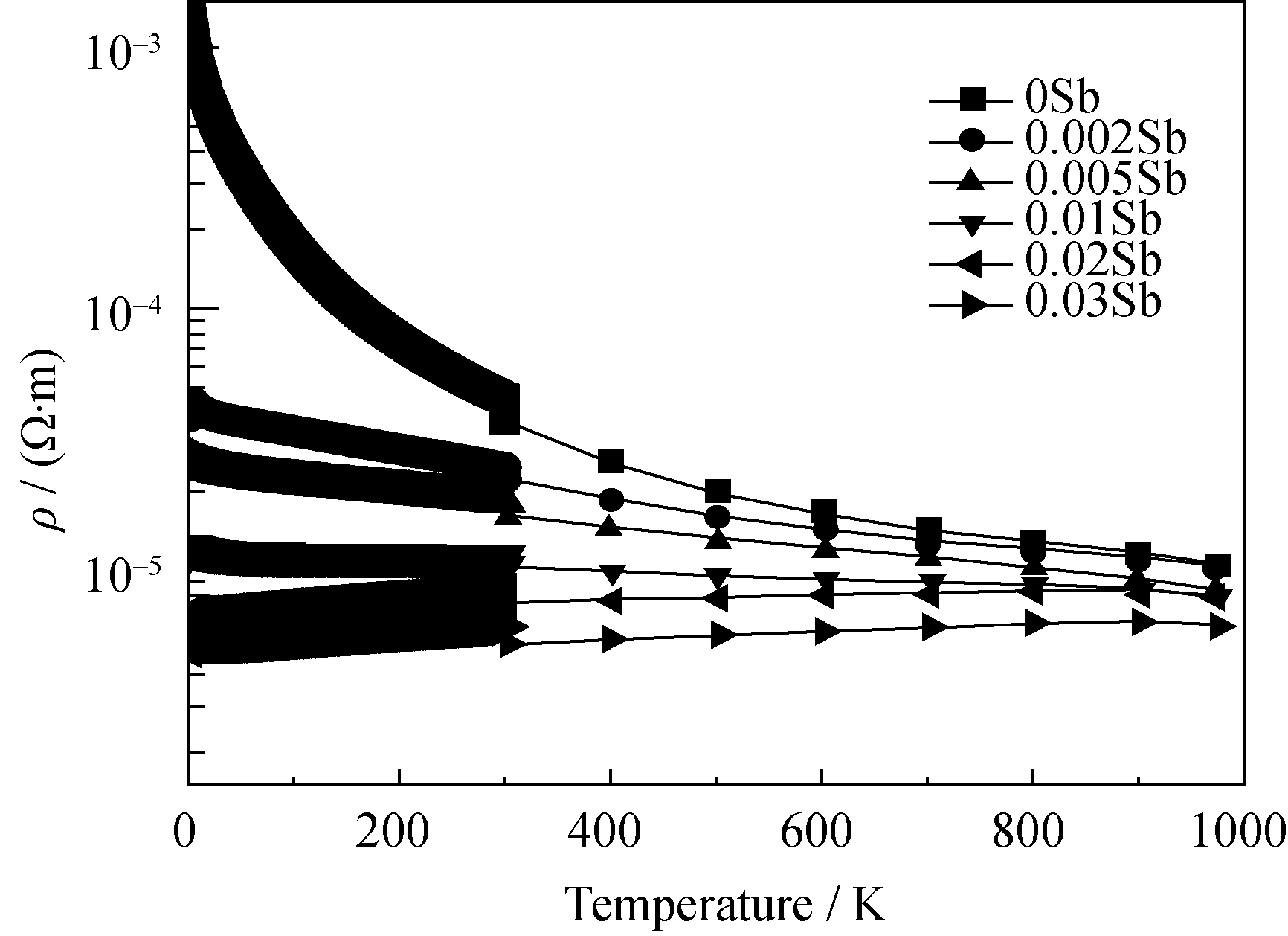

图3 Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0~0.03)样品电阻率随温度的变化

Fig. 3 Temperature dependence of electrical resistivity for the Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0-0.03) samples

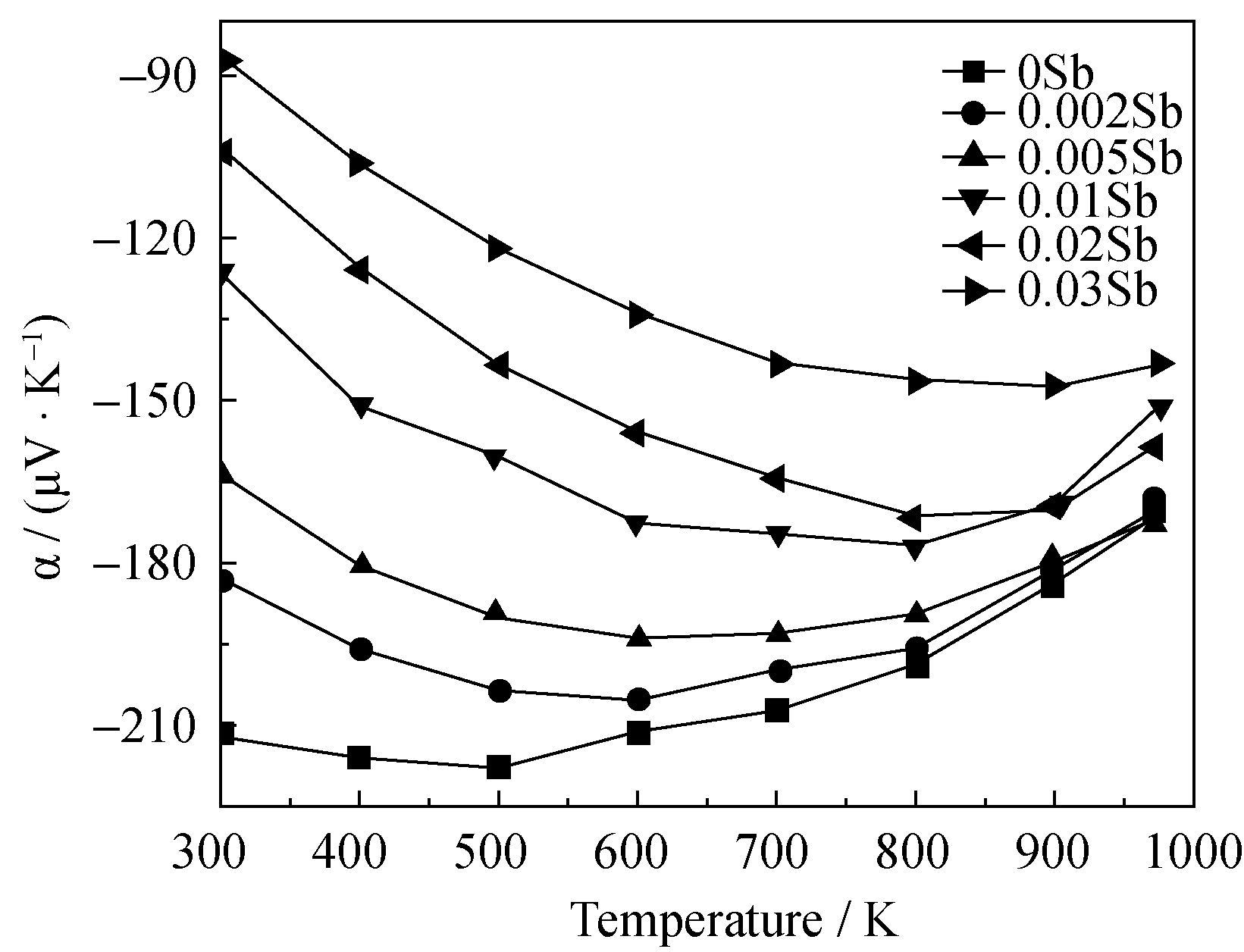

图4 Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0~0.03)样品塞贝克系数随温度的变化

Fig. 4 Temperature dependence of Seebeck coefficients for the Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0-0.03) samples

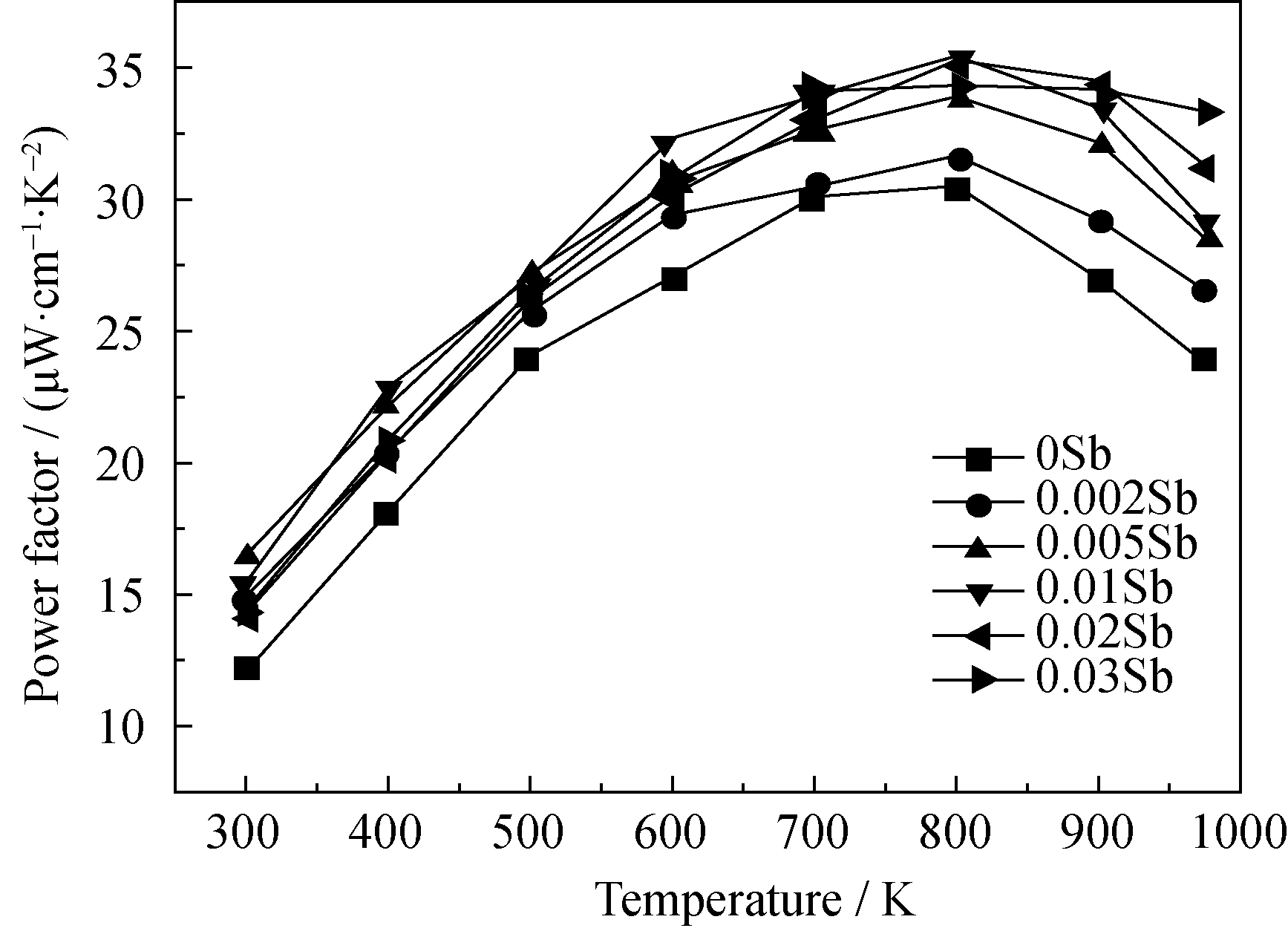

图5 Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0~0.03)样品功率因子随温度的变化

Fig. 5 Temperature dependence of power factor for the Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0-0.03) samples

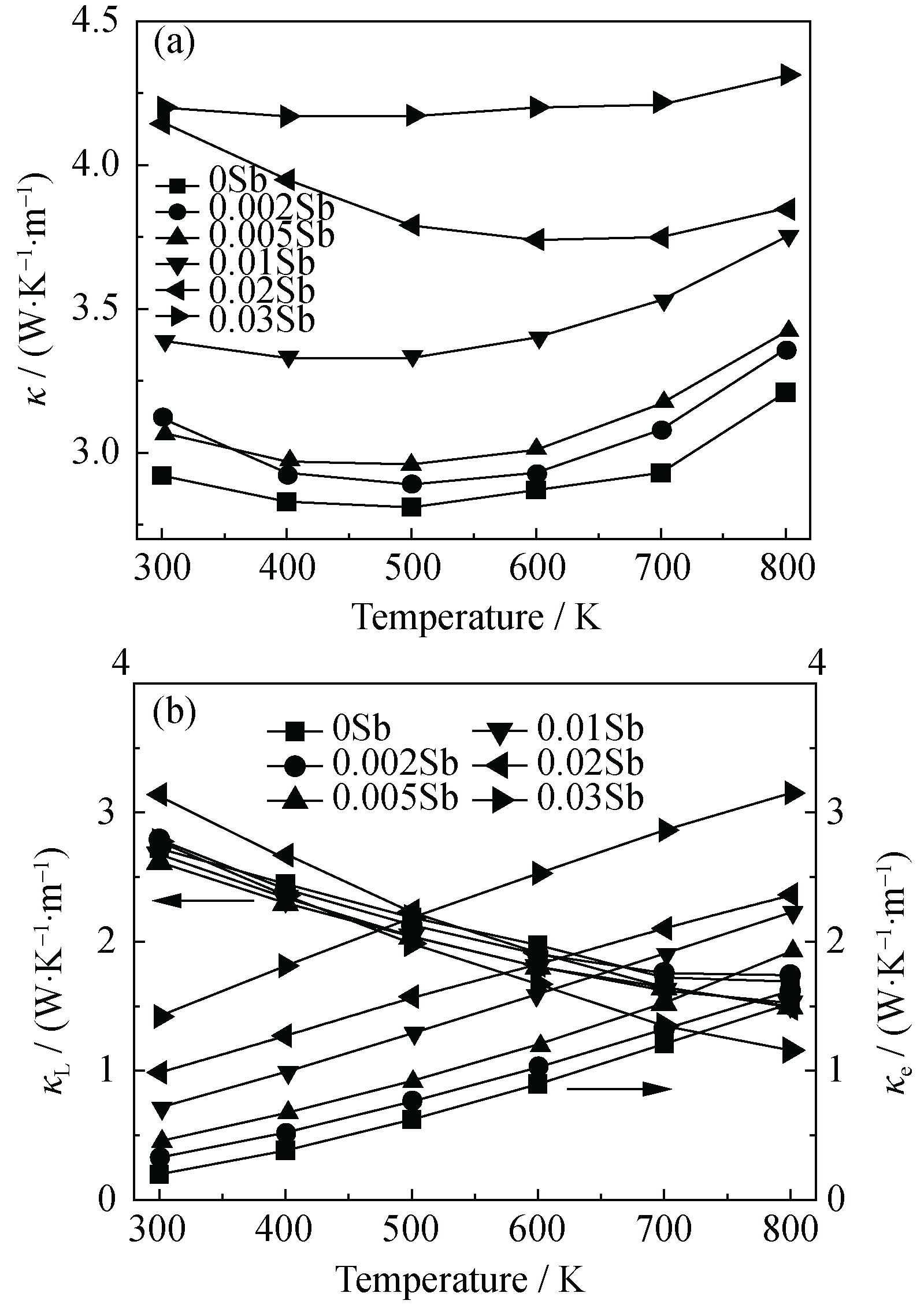

图6 Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0~0.03)样品热导率随温度的变化

Fig. 6 Temperature dependence of thermal conductivity for the Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0~0.03) samples (a) Total thermal conductivity; (b) Lattice and electronic contribution to the total thermal conductivity

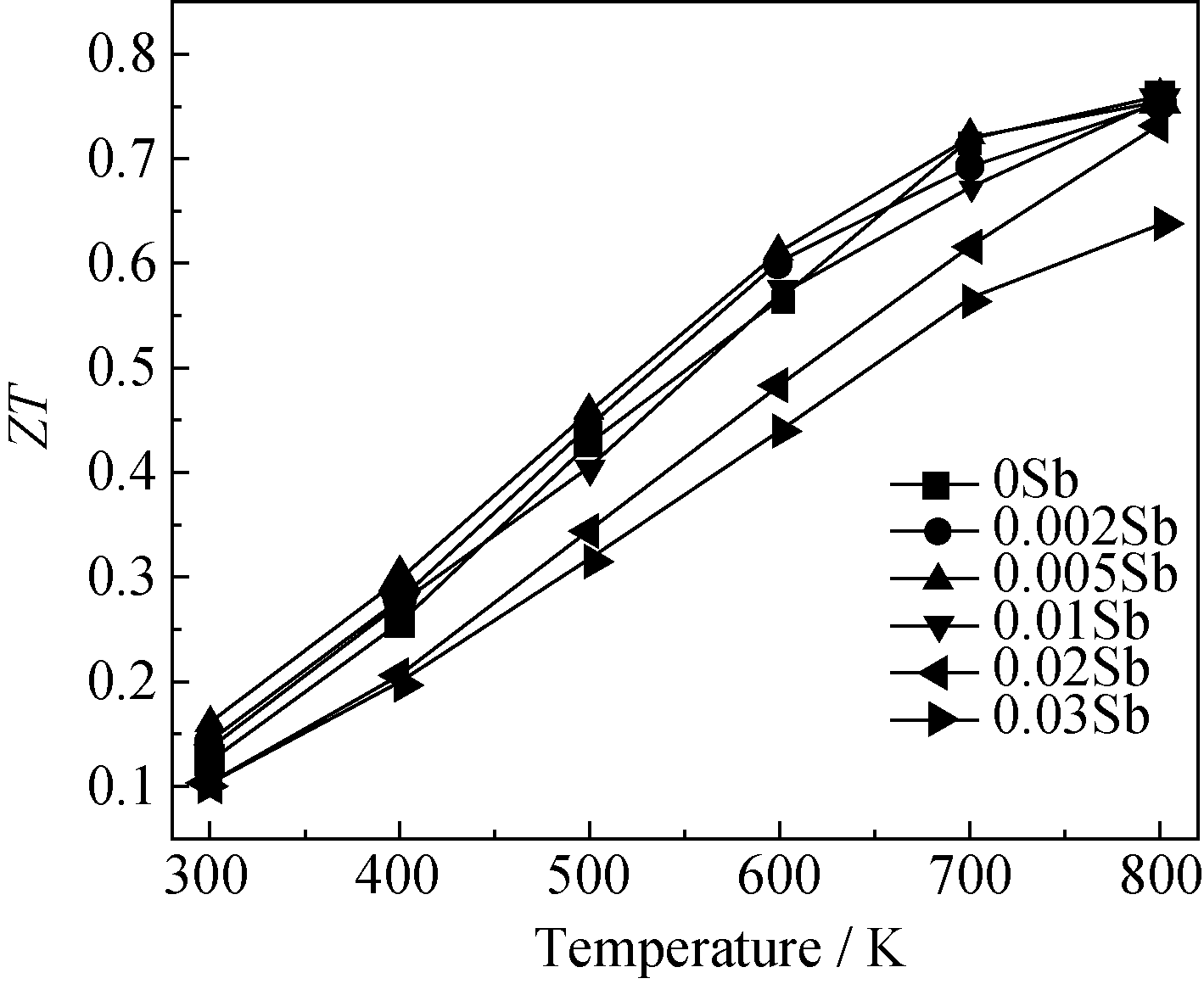

图7 Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0~0.03)样品的热电性能优值ZT值随温度的变化

Fig. 7 Temperature dependence of figure of merit, ZT value for the Zr0.25Hf0.25Ti0.5NiSn1-xSbx(x=0~0.03) samples
