Cs2AgBiBr6钙钛矿太阳能电池研究进展

张伦,, 吕梅, 朱俊,

合肥工业大学 仪器科学与光电工程学院, 测量理论与精密仪器安徽省重点实验室, 合肥 230009

Research Progress of Cs2AgBiBr6 Perovskite Solar Cell

ZHANG Lun,, LYU Mei, ZHU Jun,

Anhui Province Key Laboratory of Measuring Theory and Precision Instrument, School of Instrument Science and Optoelectronics Engineering, Hefei University of Technology, Hefei 230009, China

通讯作者: 朱 俊, 教授. E-mail:jzhu@hfut.edu.cn

收稿日期: 2023-01-31   修回日期: 2023-04-28   网络出版日期: 2023-06-02

基金资助: 国家重点研发计划(2019YFE0101300)
中央高校基本科研专项资金(JZ2022HGTA0327)
中央高校基本科研专项资金(JZ2021HGQA0264)

Corresponding authors: ZHU Jun, professor. E-mail:jzhu@hfut.edu.cn

Received: 2023-01-31   Revised: 2023-04-28   Online: 2023-06-02

Fund supported: National Key R&D Program of China(2019YFE0101300)
Fundamental Research Funds for the Central Universities(JZ2022HGTA0327)
Fundamental Research Funds for the Central Universities(JZ2021HGQA0264)

摘要

近年来, 有机-无机杂化钙钛矿太阳能电池以其优异的性能和低廉的制造成本受到了广泛关注。然而, 其含有铅元素的毒性以及稳定性阻碍了进一步商业化应用。双钙钛矿材料Cs2AgBiBr6具有稳定性优异、毒性低、载流子寿命长和载流子有效质量小的优势, 是一种颇具潜力的光伏材料, 已被应用于太阳能电池并展现出良好的性能。但是Cs2AgBiBr6钙钛矿太阳能电池的光电转换效率还无法与有机-无机杂化钙钛矿太阳能电池相媲美, 发展仍面临诸多挑战。本文首先介绍了Cs2AgBiBr6的晶体结构及容忍因子等结构参数; 然后介绍了溶液法、反溶剂辅助成膜法、气相法、真空辅助成膜法以及喷涂法等薄膜制备工艺的进展, 评述了各种薄膜制备工艺的优缺点; 接着从元素掺杂、添加剂工程及界面工程(界面能级匹配和界面缺陷钝化)三方面介绍了Cs2AgBiBr6钙钛矿太阳能电池的性能优化策略, 结合近年来的研究进展进行了评述; 最后指出Cs2AgBiBr6钙钛矿太阳能电池面临的挑战, 并从前驱体溶剂工程、带隙工程以及器件降解机理三方面展望了未来研究方向。

关键词： Cs2AgBiBr6; 太阳能电池; 光电转换效率; 双钙钛矿; 综述

Abstract

In recent years, organic-inorganic hybrid perovskite solar cells have received a lot of attention for their excellent performance and low manufacturing cost. However, the toxicity of lead in organic-inorganic hybrid perovskite solar cells and instability inhibits its further commercialization. Double perovskite Cs2AgBiBr6 possess excellent stability, low toxicity, long carrier lifetime, and small effective carrier mass, and is considered as a promising photovoltaic material. It has been applied in solar cells and displayed superior performance. However, the power conversion efficiency of Cs2AgBiBr6 perovskite solar cell still lags behind organic-inorganic hybrid perovskite solar cells, and its development faces various challenges. This review firstly introduces the crystal structure and the structural parameters such as tolerance factor of Cs2AgBiBr6. And then, the progress of thin film preparation technologies such as solution processing method, anti-solvent assisted film forming method, vapor deposition processing method, vacuum-assisted film forming method, spray-coating method are summarized, and the advantages and disadvantages of various preparation technologies are discussed. The performance optimization strategies of Cs2AgBiBr6 perovskite solar cells are analyzed from three aspects: element doping, additive engineering, and interface engineering (interface energy level matching and interface defect passivation), and the research progress in recent years is reviewed. Finally, the challenges faced by Cs2AgBiBr6 perovskite solar cells are pointed out, and future research directions are prospected from three aspects: precursor solvent engineering, bandgap engineering, and device degradation mechanism.

Keywords： Cs2AgBiBr6; solar cell; power conversion efficiency; double perovskites; review

PDF (7454KB) 元数据 多维度评价 相关文章 导出 EndNote| Ris| Bibtex  收藏本文

本文引用格式

张伦, 吕梅, 朱俊. Cs2AgBiBr6钙钛矿太阳能电池研究进展. 无机材料学报, 2023, 38(9): 1044-1054 DOI:10.15541/jim20230049

ZHANG Lun, LYU Mei, ZHU Jun. Research Progress of Cs2AgBiBr6 Perovskite Solar Cell. Journal of Inorganic Materials, 2023, 38(9): 1044-1054 DOI:10.15541/jim20230049

人类进入21世纪, 随着科学技术的发展日新月异, 物质文明的快速进步消耗了大量化石资源, 能源紧缺、环境破坏与气候变暖的问题日益突出。太阳能是一种清洁且储量丰富的可再生能源, 发展太阳能不仅有助于解决人类面临的化石资源紧缺的问题, 而且对治理环境及缓解全球变暖都具有重要意义。2009年, 钙钛矿太阳能电池最早由日本科学家报道[1], 目前光电转换效率已经达到25.8%[2], 展现出巨大的应用前景。

高效率的钙钛矿太阳能电池一般使用含有铅的钙钛矿组分, 发展无铅钙钛矿材料及太阳能电池有利于人体健康和环境保护。近年来, 研究者已经发现了若干种无铅钙钛矿材料[3⇓⇓⇓-7]。其中锡和铅属于同一主族, 具有相似的电子结构, 优势明显[8-9], 锡基钙钛矿太阳能电池目前的光电转换效率已经超过14%[10⇓-12]。但是锡基钙钛矿材料中的Sn2+很容易被氧化为Sn4+, 在空气中极不稳定, 限制了它的应用前景。

与锡基钙钛矿相比, 双钙钛矿作为一种新型无铅钙钛矿材料, 具有优异的稳定性[13⇓⇓⇓-17]和良好的光伏特性[18⇓-20]。其中, Cs2AgBiBr6具有长的载流子寿命、小的载流子有效质量, 在高温(430 ℃)下不会发生相变, 并且在60%相对湿度的环境中存放三个月以上依然能保持原有性能[13-14]。2017年, Greul等[21]首次报道了Cs2AgBiBr6钙钛矿太阳能电池, 光电转换效率为2.43%, 且具有优异的稳定性。目前Cs2AgBiBr6钙钛矿太阳能电池的最高光电转换效率已达到6.37%[22]。

相比于铅基钙钛矿太阳能电池[2,23⇓⇓-26], Cs2AgBiBr6钙钛矿太阳能电池的光电转换效率还有非常大的上升空间[20,27⇓-29]。本文简要综述了近年来Cs2AgBiBr6钙钛矿太阳能电池的研究进展, 总结Cs2AgBiBr6薄膜的制备工艺、元素掺杂、添加剂工程和界面工程方面取得的成就, 最后展望了Cs2AgBiBr6钙钛矿太阳能电池未来的发展方向。

1 Cs2AgBiBr6晶体结构

卤化物钙钛矿的化学式为ABX3, 其中A(Cs+, CH3NH3+ (MA+), CH(NH2)2+ (FA+)等)为半径较大的无机或有机一价阳离子, B(Pb2+, Sn2+等)为二价阳离子, X(Cl-, Br-, I-等)为一价卤素或拟卤素阴离子。在ABX3的晶体结构中, A位阳离子位于立方体的顶角, B位阳离子位于立方晶胞体心, X位阴离子位于立方体面心(图1(a))。双钙钛矿的化学式为A2B+B3+X6, 用一对异价金属阳离子(B+/B3+)取代两个B位二价阳离子, 形成了具有交替八面体结构的晶格堆积(图1(b))。为了使A2B+B3+X6的晶体结构具有更好的稳定性和更高的缺陷容忍度, 常见的化学组分一般采用Cs+(A位), Ag+、Cu+、Au+(B+位), Bi3+、Sb3+、In3+(B3+位)和Cl-、Br- (X位)等[13⇓⇓⇓-17]。其中Cs2AgBiBr6具有环境友好性和长期稳定性, 晶格中的B+和B3+位分别被Ag+和Bi3+离子占据。由于Ag+(129 pm)和Bi3+(117 pm)半径不同, 导致Ag-Br和Bi-Br的键长略有差异, 但并没有引起晶格畸变[30]。

图1

新窗口打开| 下载原图ZIP| 生成PPT

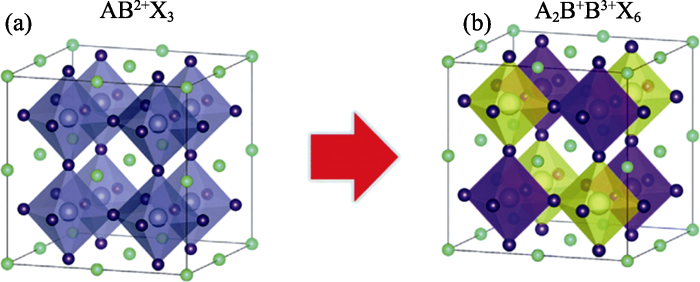

图1   (a)钙钛矿ABX3和(b)双钙钛矿A2B+B3+X6晶体结构示意图[30]

Fig. 1   (a) Crystal structure diagrams of perovskite ABX3 and (b) double perovskite A2B+B3+X6[30]


钙钛矿晶格结构的稳定性通常由两个经验参数来描述, 即八面体因子$\mu $和Goldschmidt容忍因子$t$。式(1)和式(2)中${{r}_{\text{A}}}$、${{r}_{\text{B}}}$和${{r}_{\text{x}}}$分别代表A、B和X位的离子半径。研究表明, 一般情况下, 在0.44<$\mu $< 0.90和0.81<$t$<1.11[31]时, 钙钛矿的晶体结构是稳定的。

$\mu =~\frac{{{r}_{\text{B}}}}{{{r}_{\text{x}}}}$
$t=~\frac{({{r}_{\text{A}}}+{{r}_{\text{x}}})}{\sqrt{2}({{r}_{\text{B}}}+{{r}_{\text{x}}})}$

为了更精确地描述钙钛矿的稳定性, 研究者们对上述因子参数进行了一些改进和修正, 比如Bartel等[32]引入容忍因子τ(式(3))。

$\tau =~\frac{{{r}_{x}}}{{{r}_{\text{B}}}}-{{n}_{\text{A}}}\left({{n}_{\text{A}}}-\frac{{{r}_{\text{A}}}/{{r}_{\text{B}}}}{\text{ln}({{r}_{\text{A}}}/{{r}_{\text{B}}})} \right)$

其中, ${{n}_{\text{A}}}$代表A的氧化数, ${{r}_{\text{A}}}$、${{r}_{\text{B}}}$和${{r}_{\text{x}}}$分别代表A、B和X位的离子半径(pm)。钙钛矿的结构稳定性随着τ增大而降低, 与τ呈现出单调依赖性, 当1.20﹤τ﹤4.18时(图2), 有望获得稳定的钙钛矿结构[30]。计算得到CsPbI3的t、μ和τ分别为0.85、0.61、4.3[30], 超出了稳定区间。相应地, Cs2AgBiBr6的t、μ和τ分别为0.89、0.56和3.96[33], 表明它的晶体结构是稳定的。

图2

新窗口打开| 下载原图ZIP| 生成PPT

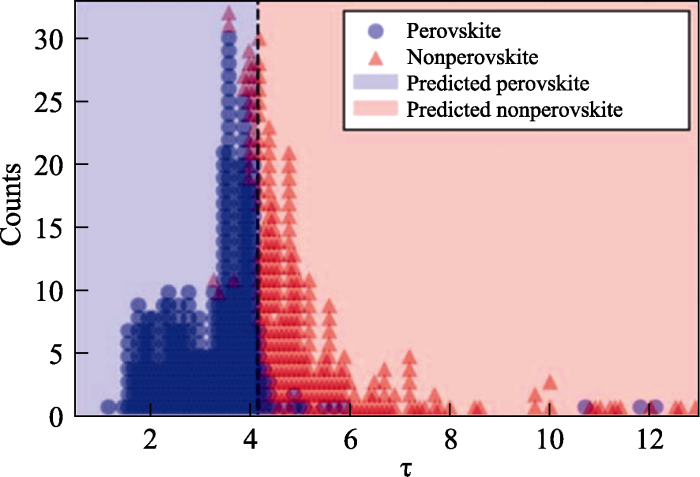

图2   公式(3)中τ的取值范围[32]

Fig. 2   Value range of τ in Eq. (3)[32]


2 Cs2AgBiBr6薄膜的制备工艺

Cs2AgBiBr6薄膜作为吸光层是太阳能电池重要组成部分, 其制备方法以及薄膜表面形貌和覆盖率直接影响太阳能电池光电转换效率。目前, Cs2AgBiBr6薄膜的制备方法有以下五种: 溶液法(图3(a))[19,34]、反溶剂辅助成膜法(图3(b))[8]、气相法(图3(c))[35-36]、真空辅助成膜法(图3(d))[37]以及喷涂法(图3(e))[38]。

图3

新窗口打开| 下载原图ZIP| 生成PPT

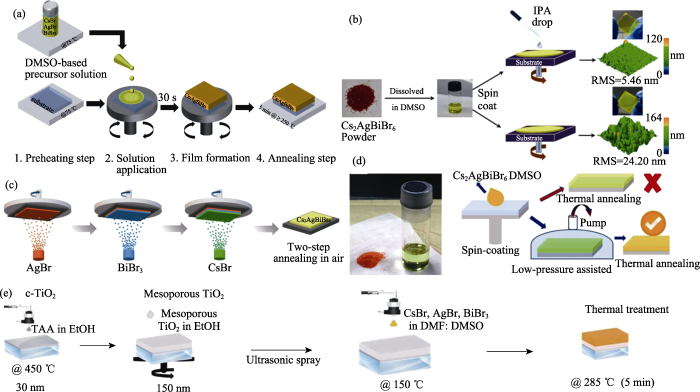

图3   Cs2AgBiBr6薄膜的制备工艺

Fig. 3   Fabrication processes of Cs2AgBiBr6 films

(a) Solution processing method[19]; (b) Anti-solvent assisted film forming method[8]; (c) Vapor deposition processing method[35]; (d) Vacuum-assisted film forming method[37]; (e) Spray-coating method[38]


溶液法: 将钙钛矿前驱体溶液旋涂在基底上并通过退火促进晶体生长, 最后获得钙钛矿薄膜。Greul等[19]首次通过溶液法制备了Cs2AgBiBr6钙钛矿太阳能电池。由于Cs2AgBiBr6结晶速度快, 因此在薄膜表面形成了大量的团聚物, 需要对Cs2AgBiBr6薄膜的制备方法进一步优化。钙钛矿前驱体溶剂会对钙钛矿薄膜的形貌产生显著影响[39]。在配制前驱体溶液时, 通常选择具有高溶解性、低沸点和高蒸汽压的有机溶剂[40-41]。研究发现, 二甲基亚砜(DMSO)溶剂对Cs2AgBiBr6有较高的溶解度[8], 常被用作沉积Cs2AgBiBr6薄膜的前驱体溶剂[42⇓-44]。然而, DMSO的沸点高(189 ℃)、蒸气压低(20 ℃时为56 Pa), 不利于制备高质量的Cs2AgBiBr6薄膜(图4(a))[34,45⇓-47]。为了解决这一问题, 研究者向DMSO中加入了具有低沸点(153 ℃)和高蒸气压(20 ℃时为360 Pa)的N,N-二甲基甲酰胺(DMF), 通过溶液法制备了高质量的Cs2AgBiB6薄膜(图4(b))[34]。

图4

新窗口打开| 下载原图ZIP| 生成PPT

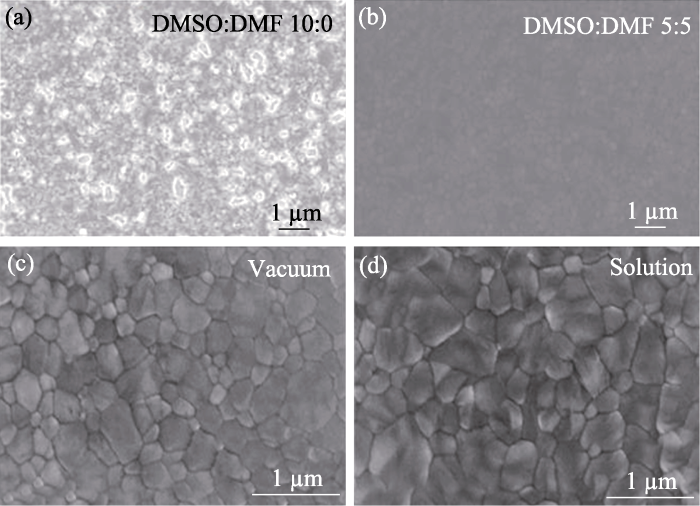

图4   采用(a) DMSO和(b) DMSO+DMF作为前驱溶剂沉积的Cs2AgBiBr6膜的SEM照片[34]; (c)气相法和(d)溶液法制备的Cs2AgBiBr6薄膜的SEM照片[36]

Fig. 4   SEM images of Cs2AgBiBr6 films deposited using (a) DMSO and (b) DMSO+DMF as precursor solvents[34] and prepared by (c) vapor deposition and (d) solution processing[36]


反溶剂辅助成膜法: 在旋涂钙钛矿薄膜过程中, 通过滴加非极性反溶剂快速冲洗前驱液的溶剂, 使前驱液呈现出过饱和状态并加速钙钛矿成核和结晶, 从而获得高质量钙钛矿薄膜。选择反溶剂必须考虑极性、沸点、相容性等因素。Gao等[8]选取甲苯、氯苯、异丙醇、乙醇和甲醇作为反溶剂, 研究了它们对Cs2AgBiBr6薄膜形貌的影响。由于异丙醇具有合适的极性(甲醇>乙醇>异丙醇>氯苯>甲苯)和沸点(氯苯>甲苯>异丙醇>乙醇>甲醇), 作为反溶剂的效果较好, 最终获得了表面光滑、无针孔的Cs2AgBiBr6薄膜。另外, 该方法受反溶剂滴加时间影响较大, 工艺重复性有待提升。

气相法: 将卤化物前驱物放置于蒸发热源中, 然后通过控制热源的温度调控卤化物前驱体的沉积速率, 最终获得钙钛矿薄膜。Wang等[35]利用连续气相法, 通过优化反应物的比例以及退火工艺制备出了大晶粒尺寸的Cs2AgBiBr6薄膜。研究发现, 在制备钙钛矿薄膜过程中提高BiBr3含量更有利于钙钛矿晶体生长, 其钙钛矿太阳能电池的光电转换效率达到了1.37%。Igbari等[36]对比了溶液法和气相法的差异, 发现溶液法制备的Cs2AgBiBr6薄膜具有更精确的化学计量比, 更容易形成高结晶度、大晶粒尺寸的钙钛矿薄膜(图4(c, d)), 两种方法制备的太阳能电池的光电转换效率分别为2.51%和1.41%。气相法制备钙钛矿薄膜仍需进一步优化, 例如, 通过精确调控反应物的化学计量比减少杂质相。另外,气相法对真空沉积设备的需求一定程度上限制了它的广泛应用。

真空辅助成膜法: 将溶液沉积的钙钛矿薄膜快速转移到真空腔室中, 在设定真空度下对薄膜进行低压处理, 最后通过退火获得高质量钙钛矿薄膜。Wu等[37]采用真空辅助成膜法制备的Cs2AgBiBr6薄膜比溶液法制备的薄膜具有更高的结晶度, 相应钙钛矿太阳能电池的光电转换效率达到了1.44%。他们通过调节低压设备的压力, 优化了钙钛矿薄膜中残留溶剂的蒸发速率, 从而制备出致密、均匀和全覆盖的钙钛矿薄膜[48]。同样, 该方法必须使用真空设备。

喷涂法: 利用超声喷雾将钙钛矿前驱液均匀地喷涂到基底上, 形成钙钛矿薄膜。喷涂设备中的压电传感器能够产生微米级的液滴, 有利于提升钙钛矿薄膜的均匀性[49]。Cloots课题组[38]比较了喷涂法和溶液法的差异, 发现喷涂法制备的Cs2AgBiBr6薄膜的晶粒连接更紧密, 并且荧光更强, 更有利于抑制载流子的非辐射复合, 相应器件的开路电压从0.83 V提升到1.09 V。但是, 喷涂法的溶液使用量较大, 且易产生大量溶剂蒸汽。

3 Cs2AgBiBr6钙钛矿太阳能电池的性能优化策略

3.1 元素掺杂

各组分的比例变化都会对钙钛矿的结构、薄膜的形貌以及光电性质产生显著影响[9,50⇓-52]。研究发现, 采用少量的一价金属离子取代A位的Cs+离子, 不仅能够改善钙钛矿薄膜的形貌, 而且能够调控钙钛矿薄膜的带隙[53-54]。Zhang等[53]首次报道了Rb+离子掺杂对Cs2AgBiBr6钙钛矿太阳能电池性能的影响, 发现采用适量的Rb+离子取代Cs+离子既可以提高Cs2AgBiBr6薄膜的质量, 又可以增强Cs2AgBiBr6薄膜的吸光能力。但Rb+浓度过量后, Cs2AgBiBr6薄膜的表面会形成针孔, 导致器件性能降低。适量Rb+离子取代将钙钛矿太阳能电池的短路电流从1.73 mA/cm2提升到1.94 mA/cm2, 光电转换效率从1.21%提升到1.39%。Li等[54]通过调控碱金属离子(Li+, Na+, K+, Rb+)的掺杂比例, 制备出表面光滑的Cs2AgBiBr6薄膜(图5(a)), 其中采用Li掺杂的Cs2AgBiBr6薄膜的带隙从1.89 eV减小到1.82 eV, 相应钙钛矿太阳能电池的短路电流从2.43 mA/cm2提升到3.15 mA/cm2, 光电转换效率从1.77%提高到2.57%, 如图5(b)所示。

图5

新窗口打开| 下载原图ZIP| 生成PPT

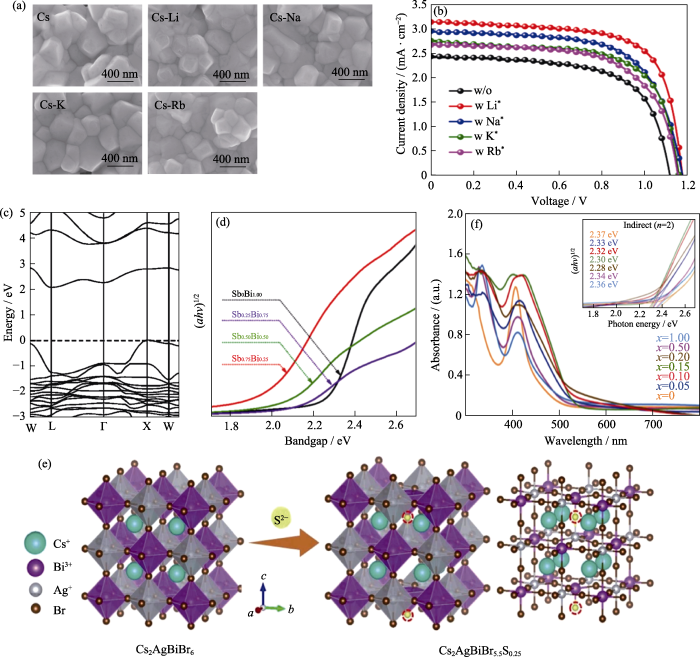

图5   离子掺杂优化Cs2AgBiBr6钙钛矿太阳能电池

Fig. 5   Ion doped Cs2AgBiBr6 perovskite solar cells

(a) SEM images of Cs2AgBiBr6, Cs1.99Li0.01AgBiBr6(Cs), Cs1.99Na0.01AgBiBr6(Cs-Li), Cs1.99K0.01AgBiBr6(Cs-Na), and Cs1.99Rb0.01AgBiBr6(Cs-K) films; (b) J-V curves of Cs2AgBiBr6 perovskite solar cells (w/o: Cs2AgBiBr6, w Li+: Cs1.99Li0.01AgBiBr6, w Na+: Cs1.99Na0.01AgBiBr6, w K+: Cs1.99K0.01AgBiBr6, w Rb+: Cs1.99Rb0.01AgBiBr6)[54]; (c) Band structure diagram for Cs2AgBiBr6[57]; (d) Tauc plots of Cs2AgSbxBi1-xBr6 (x=0, 0.25, 0.50, 0.75) films[58]; (e) Crystal structure diagram of Cs2AgBiBr6-2xSx; (f) UV-Vis absorption spectra with inset showing corresponding Tauc plots (right) of Cs2AgBiBr6-2xSx film[60]. Colorful figures are available on website


Cs2AgBiBr6能带(图5(c))的密度泛函理论(DFT)计算结果发现Cs2AgBiBr6具有大的间接带隙(2.06 eV)[55⇓-57], 与单结太阳能电池的理想带隙1.3 eV相差较大, 且间接带隙会导致光吸收系数不高, 不利于制备高效率的单结太阳能电池。B位上掺杂金属离子可以改变带隙。Liu等[58]在Cs2AgBiBr6晶格中掺杂Sb, 拓宽了Cs2AgBiBr6薄膜的吸光范围, 将薄膜的间接带隙从2.22 eV降低至1.97 eV(图5(d))。然而Cs2AgSbxBi1-xBr6薄膜覆盖率差且存在许多针孔, 导致钙钛矿太阳能电池的光电转换效率仅达到0.25%。并且Pantaler等[59]发现Sb掺杂虽然能够调控Cs2AgBiBr6薄膜的带隙, 但是Sb取代Bi会在Cs2AgBiBr6薄膜中产生大量空位等缺陷, 最终只获得光电转换效率为0.28%的钙钛矿太阳能电池。今后还需要进一步优化Sb掺杂策略, 以避免额外产生的空位等缺陷。

X位上的阴离子种类对双钙钛矿材料的带隙也有显著的影响。除了卤素阴离子, Pai等[60]将硫化物引入Cs2AgBiBr6钙钛矿前驱体溶液中, 制备了Cs2AgBiBr6-2xSx (x = 0.05, 0.10, 0.15, 0.20, 0.50, 1.0)薄膜, 发现S2-离子进入钙钛矿晶格后, 能够显著提高Cs2AgBiBr6薄膜的结晶度和吸光能力, 薄膜的带隙从2.37 eV降至2.28 eV, 如图5(e, f)所示。相应钙钛矿太阳能电池的短路电流从2.10 mA/cm2提升到3.20 mA/cm2, 光电转换效率从1.40%提高到1.90%。

最近, Zhang等[22]采用氢化法将氢原子掺入到了Cs2AgBiBr6晶格间隙, 通过密度泛函理论计算发现氢原子的能带与Cs2AgBiBr6的价带能级和导带能级进行耦合, 价带能级从-6.20 eV上移至-5.33 eV, 导带能级从-4.06 eV上移至-3.72 eV, 氢化后Cs2AgBiBr6的带隙从2.18 eV减小到1.64 eV, 吸光范围显著拓宽, 相应器件的短路电流从1.03 mA/cm2提升到11.40 mA/cm2, 光电转换效率从0.55%提升至6.37%, 达到目前Cs2AgBiBr6钙钛矿太阳能电池的最高值。这项工作为制备低带隙的无铅双钙钛矿提供了一种有效的间位掺杂策略。

3.2 添加剂工程

添加剂工程是提高钙钛矿太阳能电池光电转换效率的有效策略[61⇓⇓-64], 受到了研究者的广泛关注。一般地, 添加剂能够与钙钛矿前驱物发生相互作用, 从而影响钙钛矿薄膜的成核和晶体生长[65], 对调控钙钛矿薄膜的形貌以及缺陷钝化具有重要的作用。

有机阳离子与卤素(拟卤素)阴离子形成的有机盐是一种常见的添加剂, 可以显著提升有机-无机杂化钙钛矿太阳能电池的光电转换效率。在Cs2AgBiBr6钙钛矿太阳能电池中, Wu等[66]将甲胺溴(MABr)添加到Cs2AgBiBr6前驱体溶液中, 能够诱导Cs2AgBiBr6形成Cs2-xMAxAgBiBr6中间相(图6(a)), 延缓Cs2AgBiBr6薄膜的结晶过程, 高温退火后, 如图6(b)所示, 与对照组相比, Cs2AgBiBr6薄膜的针孔消失, 薄膜晶粒尺寸从420 nm增加到640 nm。最后器件的开路电压从0.92 V增大至0.95 V, 短路电流从2.35 mA/cm2提升到3.50 mA/cm2, 光电转换效率从1.43%提升到2.53%。Shao课题组[67]在Cs2AgBiBr6前驱体溶液中添加硫氰酸胍(GuaSCN), 发现SCN-能够与Ag+/Bi3+配位(图6(c)), 延缓Cs2AgBiBr6薄膜的结晶过程, 减少Cs2AgBiBr6薄膜表面的团簇数量(图6(d)), 相应器件的开路电压从1.01 V增大至1.04 V, 短路电流从4.81 mA/cm2提升到5.42 mA/cm2, 光电转换效率从2.55%提升到3.19%。本课题组分别采用醋酸甲脒[68]和硫脲[69]作为添加剂, 它们对于形成中间相、调控结晶过程以及钝化缺陷都有良好的效果, 使用醋酸甲脒添加剂制备钙钛矿太阳能电池的开路电压可以达到1.23 V, 是文献报道的较高水平。

图6

新窗口打开| 下载原图ZIP| 生成PPT

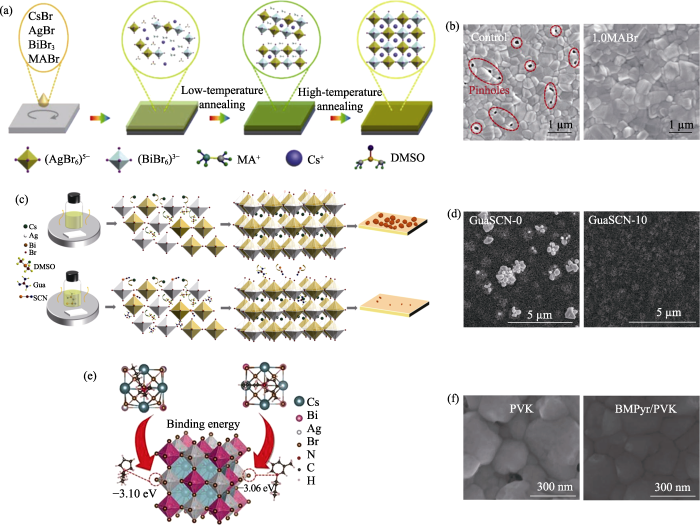

图6   添加剂工程优化Cs2AgBiBr6薄膜

Fig. 6   Additive engineering optimization of Cs2AgBiBr6 films

(a) Schematic illustration of MABr additive assisted Cs2AgBiBr6 crystallization process; (b) SEM images of Cs2AgBiBr6 films prepared (left) without and (right) with MABr[66]; (c) Schematic diagram of the mechanism of additive GuaSCN in the formation process of Cs2AgBiBr6 film; (d) SEM images of Cs2AgBiBr6 films prepared (left) without and (right) with GuaSCN [67]; (e) Schematic illustration of BMPyr+-Br- interaction between ionic liquid BMPyrCl and Cs2AgBiBr6 perovskite; (f) SEM images of Cs2AgBiBr6 films prepared (left) without and (right) with BMPyrCl[70]. Colorful figures are available on website


离子液体是一种近年来得到重视并引起广泛兴趣的添加剂。Shen课题组[70]在Cs2AgBiBr6前体溶液中引入离子液体1-丁基-1-甲基吡咯烷氯化铵(BMPyrCl), 发现BMPyrCl中吡咯阳离子与Cs2AgBiBr6中的溴离子之间具有较高的结合能(图6(e)), 可以有效抑制溴离子迁移, 降低薄膜的缺陷。在单电子器件的电流-电压测试中, 极限填充电压与缺陷浓度具有线性关系, 添加BMPyrCl后, 极限填充电压从1.43 V降低到1.09 V。同时引入BMPyrCl后还可以获得具有大晶粒尺寸、无针孔的Cs2AgBiBr6薄膜, 如图6(f)所示。相应器件的开路电压从1.13 V提高到1.20 V, 短路电流从2.26 mA/cm2提升到2.61 mA/cm2, 光电转换效率从1.71%提升到2.22%。

3.3 界面工程

钙钛矿太阳能电池是所谓的“三明治”结构, 不同功能层之间的界面对于器件性能有重要影响。一方面, 界面两侧材料的能级排列是决定电荷转移性能的关键因素; 另一方面, 界面上存在大量悬挂键, 有时甚至存在孔洞, 这些缺陷会导致严重的界面非辐射复合, 阻碍电池性能。下面将从界面能级匹配[71⇓-73]和界面缺陷钝化[74⇓⇓⇓-78]两个方面介绍Cs2AgBiBr6钙钛矿太阳能电池界面工程的研究进展。

3.3.1 界面能级匹配

界面能级匹配通过调节钙钛矿太阳能电池中吸光层的价带与空穴传输层的价带(或吸光层的导带与电子传输层的导带)之间的能级差, 为界面处的电荷转移提供足够的势能并抑制界面电荷复合。Cs2AgBiBr6钙钛矿与有机-无机杂化钙钛矿的能带位置不同, 导致双钙钛矿与电荷传输层之间的能级失配, 从而制约了器件的开路电压[72]。选择合适的电荷传输材料优化能级排列可以解决能级失配的问题。

在钙钛矿/空穴传输层的界面上, Yang课题组[71]选取无机空穴传输材料Cu2O(价带: -5.58 eV, 导带: -3.04 eV)取代2,2′,7,7′-四[N,N-二(4-甲氧基苯基)氨基]-9,9′-螺二芴(Spiro-OMeTAD, HOMO能级: -5.20 eV, LUMO能级: -2.21 eV)作为Cs2AgBiBr6钙钛矿太阳能电池的空穴传输层(图7(a)), 空穴转移时间从0.63 ns缩短至 0.14 ns, 表明Cu2O空穴传输材料更有利于空穴转移。相应太阳能电池的开路电压从1.083 V提升到1.198 V, 短路电流从1.35 mA/cm2提升到1.66 mA/cm2, 光电转换效率从1.03%提升到1.52%。Zhang等[72]设计了三种空穴传输层材料: 单一的聚(3-己基噻吩)(P3HT, HTL-1), 双复合空穴传输材料P3HT/聚[双(4-苯基)(2,4,6-三甲基苯基)胺](PTAA) (HTL-2)和三复合空穴传输材料P3HT/MoO3/PTAA (HTL-3)(图7(b))。由于HTL-2和HTL-3的HOMO能级具有梯度排列的特征, 使Cs2AgBiBr6/HTL-2和Cs2AgBiBr6/HTL-3的荧光强度明显降低, 空穴转移得到加强。相应器件的短路电流从2.04 mA/cm2提升到2.29 mA/cm2和2.66 mA/cm2, 光电转换效率从1.36%提升到1.62%和1.82%。总的来说, 由于Cs2AgBiBr6的价带位置较深, 在有机-无机杂化钙钛矿太阳能电池中应用广泛的Spiro-OMeTAD和PTAA空穴传输层的价带匹配并不理想, 迫切需要开发具有较深HOMO能级的空穴传输层材料。

图7

新窗口打开| 下载原图ZIP| 生成PPT

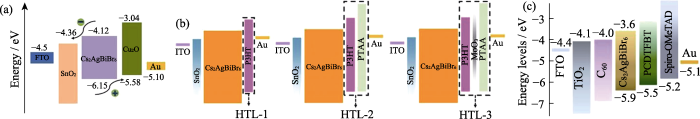

图7   Cs2AgBiBr6钙钛矿太阳能电池界面能级匹配示意图

Fig. 7   Schematic diagrams of the interface energy level alignments in Cs2AgBiBr6 solar cells

(a) Cu2O[71] and (b) HTL-1, HTL-2 or HTL-3[72] as hole transport layers; (c) C60/TiO2 as electron transport layers[73]


在钙钛矿/电子传输层的界面上，Luo等[73]制备了具有双电子传输层(C60/TiO2)的Cs2AgBiBr6钙钛矿太阳能电池，由于C60的导带(-4.0 eV)介于TiO2的导带(-4.1 eV)和Cs2AgBiBr6的导带(-3.6 eV)之间(图7(c))，形成了能级梯度，因此电子转移时间从50 ns缩短至 7.9 ns，电子转移大大加快。相应器件的开路电压从0.87 V提升到1.01 V，短路电流从1.54 mA/cm2增大到2.25 mA/cm2，光电转换效率从0.93%提升到1.57%。另外，在有机-无机杂化钙钛矿太阳能电池中SnO2电子传输层已得到广泛应用，并创造了若干光电转换效率的纪录。SnO2导带位置比TiO2导带低0.4 eV左右，其与Cs2AgBiBr6的导带匹配时的电子转移等研究具有重要的意义，但目前尚无深入报道。

3.3.2 界面缺陷钝化

Cs2AgBiBr6薄膜表面中存在许多缺陷, 采用适当的表面钝化可以减少界面处载流子复合。例如, Li等[74]选取聚甲基丙烯酸甲酯(PMMA)作为Cs2AgBiBr6/空穴传输层的界面层, 发现PMMA分子中的-C=O官能团能够与Cs2AgBiBr6薄膜表面欠配位的Ag+发生相互作用, 钝化银空位缺陷, 如图8(a)所示。在PMMA钝化界面后, 极限填充电压从0.99 V降低到0.89 V, 器件的开路电压从1.14 V提升到1.18 V, 光电转换效率从1.78%提升到2.25%。Li等[75]将稠环分子Y-6添加在乙酸乙酯反溶剂中, 在Cs2AgBiBr6/空穴传输层界面上引入Y-6分子中间层。Y-6分子中的-C≡N和-N=C-S-官能团能够钝化Ag+迁移产生的Ag间位(Agi)和银铋反位(AgBi)缺陷(图8(b)), 缺陷密度从4.05×1016 cm-3降低到3.14×1016 cm-3, 相应器件的开路电压从1.08 V提升到1.28 V, 光电转换效率从 2.50%提升到3.31%。此外, Yang等[76]选取有机染料二(四丁基铵)顺式-双(异硫氰基)双(2,2′-联吡啶-4,4′-二羧酸)钌(II)(N719)钝化Cs2AgBiBr6/空穴传输层界面, 单电子器件的极限填充电压从1.88 V降低到0.53 V, 缺陷密度大大降低。另外, 引入N719后, 界面空穴转移时间从0.83 ns缩短到 0.59 ns, 空穴转移也得到增强(图8(c)), 相应器件的开路电压从0.998 V提升到1.06 V,光电转换效率从2.10%提升到2.84%。

图8

新窗口打开| 下载原图ZIP| 生成PPT

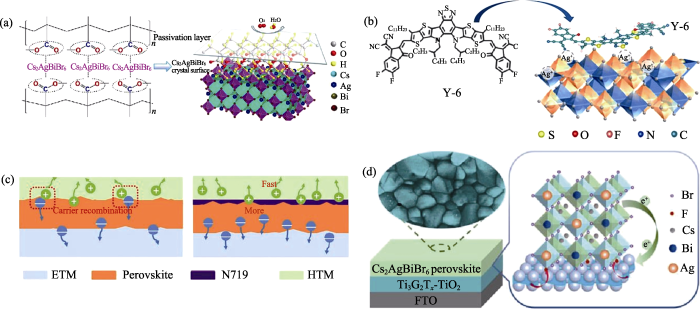

图8   Cs2AgBiBr6钙钛矿太阳能电池界面缺陷钝化示意图

Fig. 8   Schematic diagrams of interface defect passivation in Cs2AgBiBr6 solar cells

(a) PMMA[74], (b) Y-6[75] and (c) N719[76] passivating Cs2AgBiBr6/HTL interfaces; (d) MXene passivating Cs2AgBiBr6/ETL interface[77]. Colorful figures are available on website


埋底界面是钙钛矿太阳能电池的受光面, 持续光照下易遭到破坏。此外, 在制备过程中埋底界面也会影响后续沉积的钙钛矿薄膜的质量。在有机-无机杂化钙钛矿太阳能电池中埋底界面近年来逐渐得到重视并已有一些深入研究。在Cs2AgBiBr6钙钛矿太阳能电池中, Li等[77]将MXene(Ti3C2Tx)掺入到TiO2中形成多功能电子传输层Ti3C2Tx@TiO2, 发现Ti3C2Tx中的-F能够钝化Cs2AgBiBr6薄膜的溴空位(图8(d)), 缺陷密度从1.58×1016 cm-3降低到4.23×1015 cm-3。相应器件的开路电压从0.93 V提升到0.96 V, 光电转换效率从2.00% 提升到2.81%。Wang等[78]使用羧基-叶绿素衍生物(C-Chl)敏化m-TiO2薄膜, 发现C-Chl能够抑制Cs2AgBiBr6/电子传输层的埋底界面的电子-空穴复合, 钙钛矿太阳能电池的界面转移阻抗从1731.0 Ω降低到318.5 Ω, 开路电压从1.02 V增加到1.04 V, 光电转换效率从2.28%提升到3.11%。

界面缺陷钝化的研究需要进一步深入, 首先是结合第一性原理计算明确缺陷的种类、形成能、能级位置等性质, 其次通过热导纳谱、深能级瞬态谱以及热刺激电流等方法对缺陷的位置以及密度开展深入表征, 并利用可视化平台技术揭示缺陷浓度以及空间分布等性质, 发展新型界面钝化及修复技术, 如利用有机盐、离子液体以及染料单分子层等。

4 结束语

Cs2AgBiBr6钙钛矿太阳能电池具有优异的稳定性和环境友好性, 在光电领域展现出了良好的应用前景, 但仍存在许多问题阻碍其性能提升。例如, Cs2AgBiBr6的制膜技术还不够完善, 很难制备高质量的钙钛矿薄膜; Cs2AgBiBr6具有较大的间接带隙, 不利于产生和提取光生载流子; Cs2AgBiBr6钙钛矿太阳能电池中离子迁移诱导的降解等都会影响器件性能。鉴于上述挑战, 根据材料自身特点以及研究现状, Cs2AgBiBr6钙钛矿太阳能电池的后续研究会在以下方向进一步展开。

1) Cs2AgBiBr6的前驱体溶剂工程。研究者已经开发了旋涂和喷涂等溶液工艺制备Cs2AgBiBr6薄膜。但是目前溶液工艺中溶剂工程的研究匮乏, CsBr、AgBr及BiBr3等前驱物与溶剂是否形成中间相、中间相的种类及晶体结构、中间相向钙钛矿相的演变机制都不清楚。需深入研究溶剂工程, 揭示成膜过程中的结晶动力学, 从而制备高质量的Cs2AgBiBr6薄膜。

2) Cs2AgBiBr6的带隙工程。Cs2AgBiBr6的带隙距离太阳能电池的理想带隙有很大距离, 不利于充分捕获太阳光谱。为了减小Cs2AgBiBr6的带隙, 在制备Cs2AgBiBr6的过程中可以尝试引入不同金属阳离子(Co2+、Mn2+、Ni2+、Fe3+和In3+等), 形成新的金属卤化物八面体堆积, 改变原有的能带组成和结构, 这对于拓展电池的吸收光谱、提高短路电流具有重要意义。

3) Cs2AgBiBr6钙钛矿太阳能电池的降解机理。卤化铅钙钛矿中的离子迁移是导致器件稳定性变差的重要影响因素。有关双钙钛矿离子迁移的报道却非常有限, 大多都是理论预测。双钙钛矿中B+X6和B3+X6八面体堆积方式与卤化铅钙钛矿中B2+X6八面体堆积方式不同, 具有不同的离子迁移特征, Ag+和Br-离子很容易迁移, 产生大量空位, 导致薄膜缓慢降解。因此, 在制备Cs2AgBiBr6太阳能电池的过程中, 需要选择适合的材料(如聚氨酯、离子液体等)用于抑制Ag+和Br-的迁移, 对于进一步提升Cs2AgBiBr6钙钛矿太阳能电池的稳定性具有重要意义。
