面向5G小型化环行器的低磁矩高介电常数Bi-YIG旋磁铁氧体设计与实现

doi:10.15541/jim20260010

无机材料学报 ›› 2026, Vol. 41 ›› Issue (10): 1489-1496.DOI: 10.15541/jim20260010

面向5G小型化环行器的低磁矩高介电常数Bi-YIG旋磁铁氧体设计与实现

赵建伟¹^,²(), 程泽来³, 梁吉³, 邱委华², 苏桦³(), 李化义¹()

¹ 哈尔滨工业大学卫星技术研究所, 哈尔滨 150080
² 山东航天电子技术研究所, 烟台 264670
³ 电子科技大学电子科学与工程学院, 成都 611731

收稿日期:2026-01-09 修回日期:2026-02-15 出版日期:2026-10-20 网络出版日期:2026-05-08
通讯作者: 李化义, 教授. E-mail: lihuayi@hit.edu.cn;
苏桦, 教授. E-mail: uestcsh77@163.com
作者简介:赵建伟(1983-), 男, 硕士研究生. E-mail: 21B918143@stu.hit.edu.cn
基金资助:
四川省科技厅项目(2025ZHCG0019)

Design and Implementation of Bi-YIG Gyromagnetic Ferrites with Low Magnetic Moment and High Dielectric Constant for 5G Miniaturized Circulators

ZHAO Jianwei¹^,²(), CHENG Zelai³, LIANG Ji³, QIU Weihua², SU Hua³(), LI Huayi¹()

¹ Research Center of Satellite Technology, Harbin Institute of Technology, Harbin 150080, China
² Shandong Astronautics Electronic Technology Institute, Yantai 264670, China
³ School of Electronic Science and Engineering, University of Electronic Science and Technology of China, Chengdu 611731, China

Received:2026-01-09 Revised:2026-02-15 Published:2026-10-20 Online:2026-05-08
Contact: LI Huayi, professor. E-mail: lihuayi@hit.edu.cn;
SU Hua, professor. E-mail: uestcsh77@163.com
About author:ZHAO Jianwei (1983-), male, Master candidate. E-mail: 21B918143@stu.hit.edu.cn
Supported by:
Sichuan Science and Technology Program(2025ZHCG0019)

摘要/Abstract

摘要：

随着5G通信对高集成度器件的需求日益增长, 开发兼具高介电常数与低饱和磁化强度的旋磁铁氧体成为研究关键。本研究旨在通过多离子协同取代策略, 设计并制备一种适用于3.0~3.6 GHz频段的石榴石铁氧体。采用固相反应法制备了Bi_1.4Gd_0.2Ca_1.4Zr_0.2Al_nV_0.6Fe_4.2-_nO₁₂ (n=0~0.20)系列样品, 系统研究了Al³⁺取代对其微观结构、磁性能与介电性能的影响。所有样品均保持纯石榴石相, 无第二相产生, 微结构致密、均匀, 粒界清晰。当n=0.10时, 材料获得最佳综合性能: 饱和磁化强度(Saturation magnetization, 4πM_s)降至774 G (1 G=10^-4 T), 铁磁共振线宽(Ferromagnetic resonance linewidth, ΔH)优化至83 Oe (1 Oe=1000/4π A/m≈79.577 A/m), 介电常数(Dielectric constant, ε_r)达26.31, 介电损耗(Dielectric loss, tanδ_ε)为8.49×10^-4。基于此材料研制的双Y结环行器在3.0~3.6 GHz频段内的插入损耗为0.27~0.31 dB, 回波损耗与隔离度均优于20 dB, 且在-40~85 ℃宽温范围内性能保持稳定。Al³⁺取代通过稀释磁性离子与弱化磁晶各向异性, 协同降低了4πM_s与ΔH。本工作为5G小型化环行器提供了一种高性能的铁氧体材料解决方案。

关键词: 旋磁铁氧体, 环行器, Bi-YIG, 低饱和磁化强度

Abstract:

With the increasing demand for highly integrated devices in 5G communication, the development of gyromagnetic ferrites combining high dielectric constant and low saturation magnetization has become a research focus. This study aims to design and prepare a garnet ferrite suitable for the 3.0-3.6 GHz band through a multi-ion co-substitution strategy. A series of Bi_1.4Gd_0.2Ca_1.4Zr_0.2Al_nV_0.6Fe_4.2-_nO₁₂ (n=0-0.20) samples were synthesized by the solid-state reaction method. The effects of Al³⁺ substitution on the microstructure, magnetic properties, and dielectric properties were systematically investigated. All samples maintain a pure garnet phase without secondary phases. Dense and uniform microstructures with clear grain boundaries are observed. The results show that the optimal comprehensive performance is achieved at n=0.10: the saturation magnetization (4πM_s) is significantly reduced to 774 G (1 G=10^-4 T), the ferromagnetic resonance linewidth (ΔH) is optimized to 83 Oe (1 Oe=1000/4π A/m≈ 79.577 A/m), the dielectric constant (ε_r) reaches 26.31, and the dielectric loss (tanδ_ε) is as low as 8.49×10^-4. A dual-Y-junction circulator fabricated based on this optimized material exhibits excellent microwave performance within the 3.0-3.6 GHz band, with an insertion loss of 0.27 to 0.31 dB, return loss and isolation both better than 20 dB. Moreover, the device demonstrates stable performance over a wide temperature range from -40 ℃ to 85 ℃, indicating its reliability for practical engineering applications. The Al³⁺ substitution synergistically reduces both 4πM_s and ΔH by diluting magnetic ions and weakening magnetocrystalline anisotropy. This work provides a high-performance ferrite material solution for miniaturized 5G circulators and contributes to the advancement of integrated microwave devices for next-generation communication systems.

Key words: gyromagnetic ferrite, circulator, Bi-YIG, low saturation magnetization

中图分类号:

TM277

赵建伟, 程泽来, 梁吉, 邱委华, 苏桦, 李化义. 面向5G小型化环行器的低磁矩高介电常数Bi-YIG旋磁铁氧体设计与实现[J]. 无机材料学报, 2026, 41(10): 1489-1496.

ZHAO Jianwei, CHENG Zelai, LIANG Ji, QIU Weihua, SU Hua, LI Huayi. Design and Implementation of Bi-YIG Gyromagnetic Ferrites with Low Magnetic Moment and High Dielectric Constant for 5G Miniaturized Circulators[J]. Journal of Inorganic Materials, 2026, 41(10): 1489-1496.

图/表 11

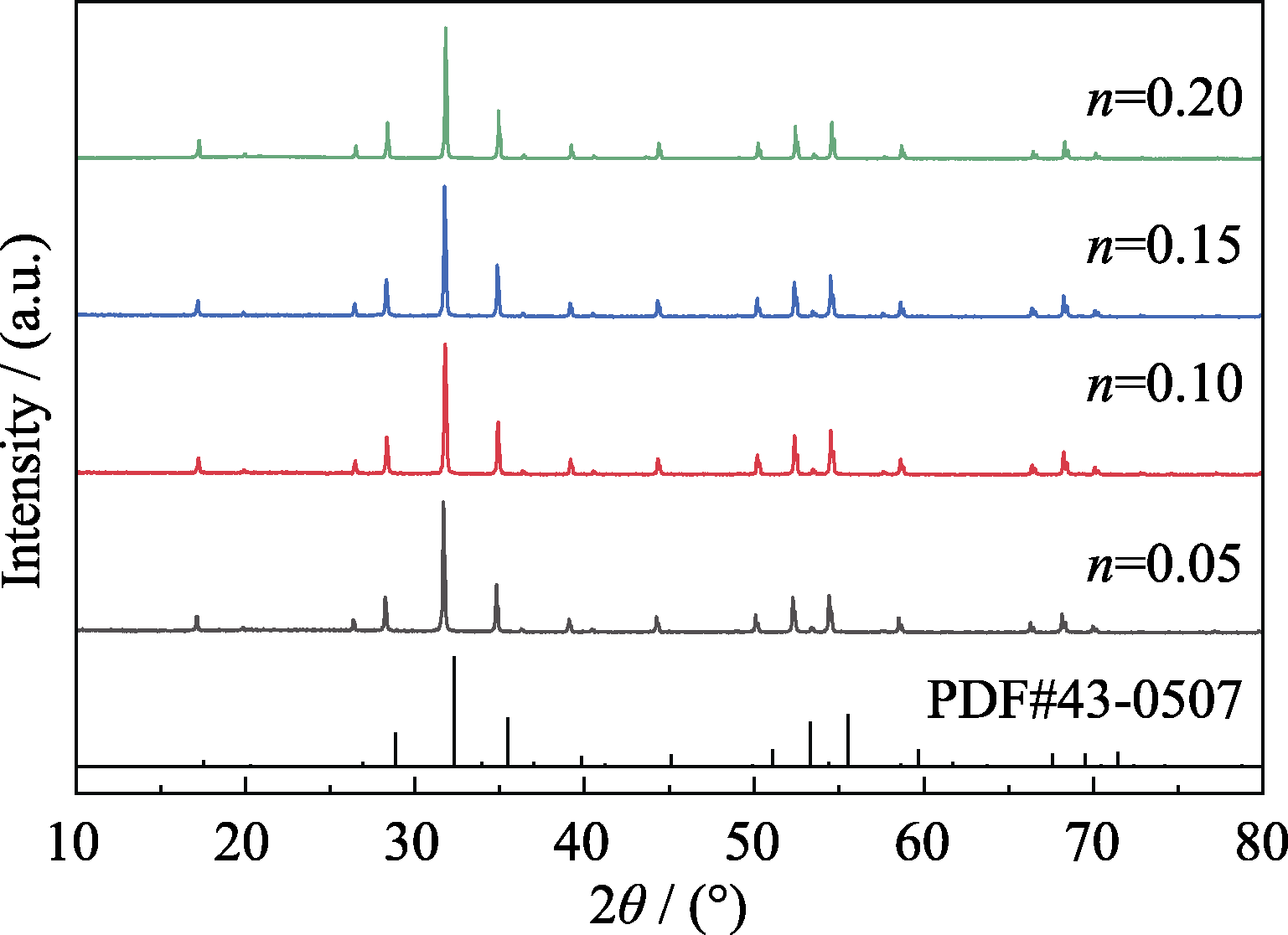

图1 900 ℃烧结BGYIG+nAl系列样品的XRD图谱

Fig. 1 XRD patterns of the BGYIG+nAl samples sintered at 900 ℃

图2 900 ℃下烧结BGYIG+nAl系列样品的断面SEM照片

Fig. 2 Cross-sectional SEM images of the BGYIG+nAl samples sintered at 900 ℃ (a) n=0.05; (b) n=0.10; (c) n=0.15; (d) n=0.20

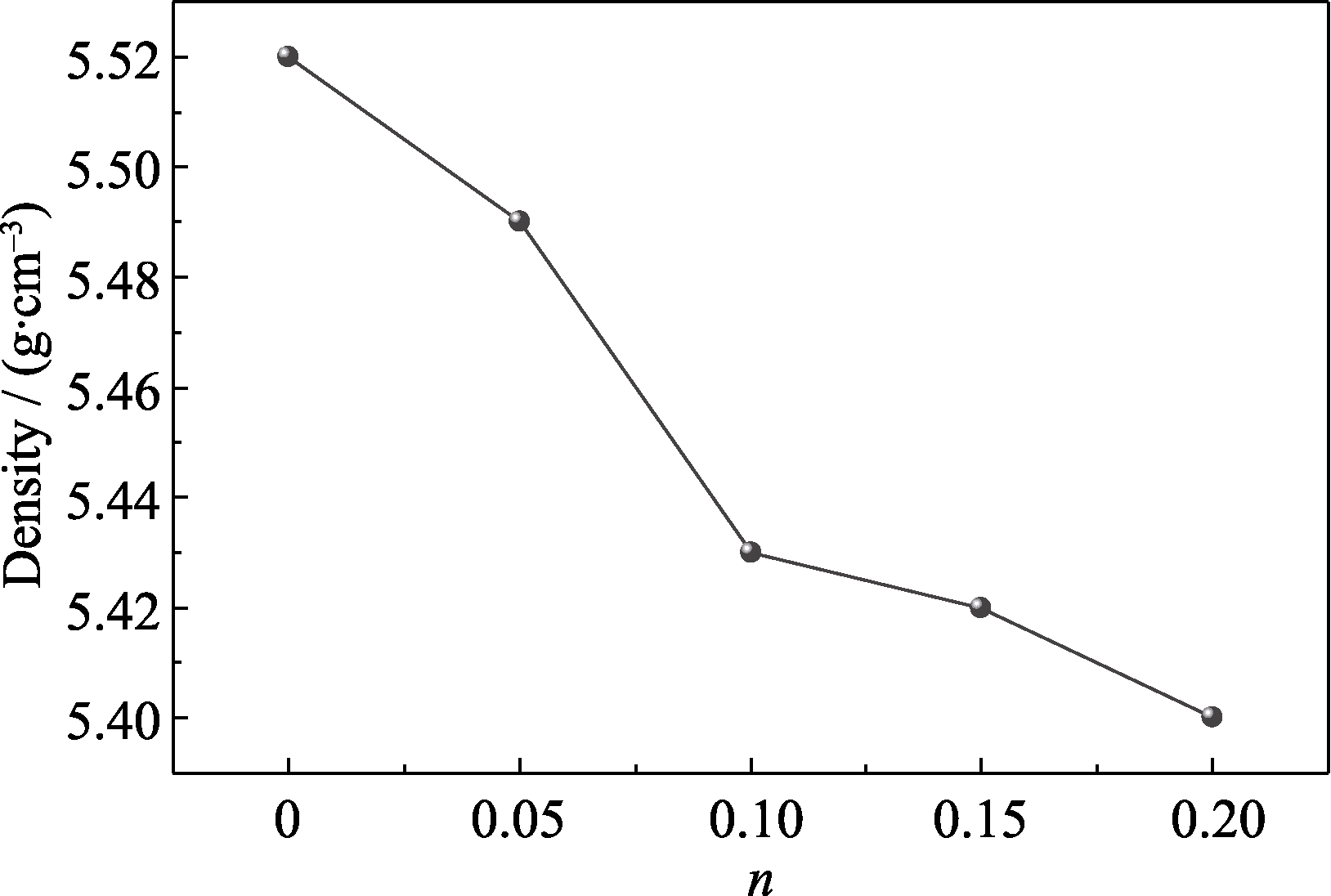

图3 900 ℃下烧结BGYIG+nAl系列样品的密度

Fig. 3 Densities of the BGYIG+nAl samples sintered at 900 ℃

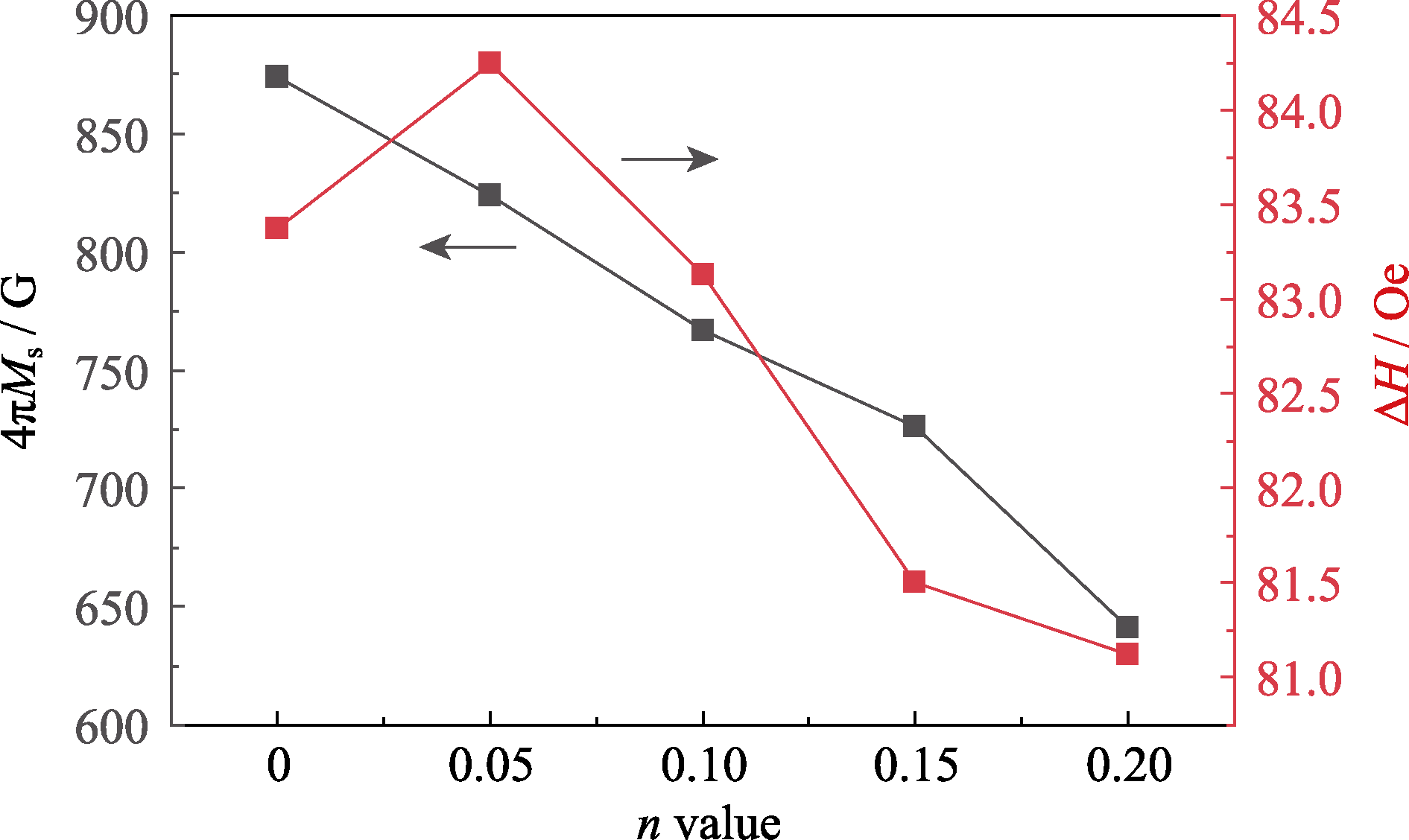

图4 900 ℃下烧结BGYIG+nAl系列样品的4πMs和ΔH

Fig. 4 4πMs and ΔH of the BGYIG+nAl samples sintered at 900 ℃

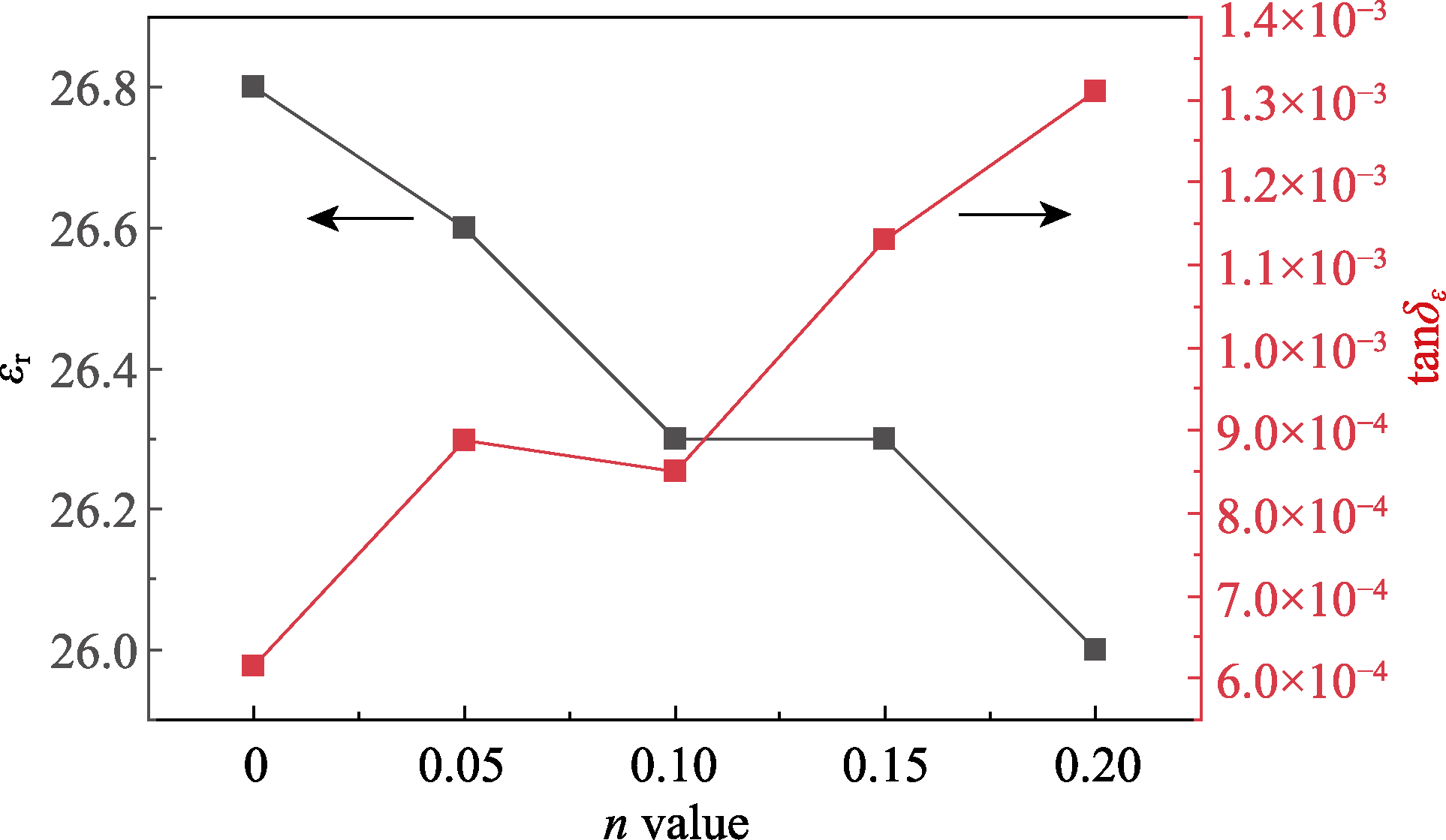

图5 900 ℃下烧结BGYIG+nAl系列样品的介电性能

Fig. 5 Dielectric properties of the BGYIG+nAl samples sintered at 900 ℃

表1 YIG基旋磁铁氧体的性能总结

Table 1 Summary of properties of YIG-based gyromagnetic ferrites

Microwave ferrite	4πM_s/G	ΔH/Oe	ε_r	tanδ_ε	Ref.
Y_1.38Gd_1.5Dy_0.02Ca_0.1In_0.3Ge_0.1Fe_4.6O₁₂	900	130	-	-	[23]
Y₂BiFe_4.94Al_0.06O₁₂	1291	336	18.3	-	[24]
Bi_1.2Y_0.57Ca_1.23Zr_0.41V_0.41Fe_4.18O₁₂	1271	98	24.3	-	[25]
Y_1.8Bi_1.2Fe₅O₁₂	926	400	-	-	[6]
Y_1.65BiCa_0.35Fe_4.65Zr_0.15Ge_0.2O₁₂	1373	254	22.0	5.54×10^-3	[17]
Y₂CaTiFe₄O₁₂	1125	375	20.0	-	[26]
Bi_0.6CaY_1.4Sn_0.4V_0.3Fe_4.3O₁₂	1437	80	17.4	4.74×10^-4	[18]
Bi_1.4Gd_0.2Ca_1.4Zr_0.2Al_0.1V_0.6Fe_4.1O₁₂	774	83	26.3	8.49×10^-4	This work

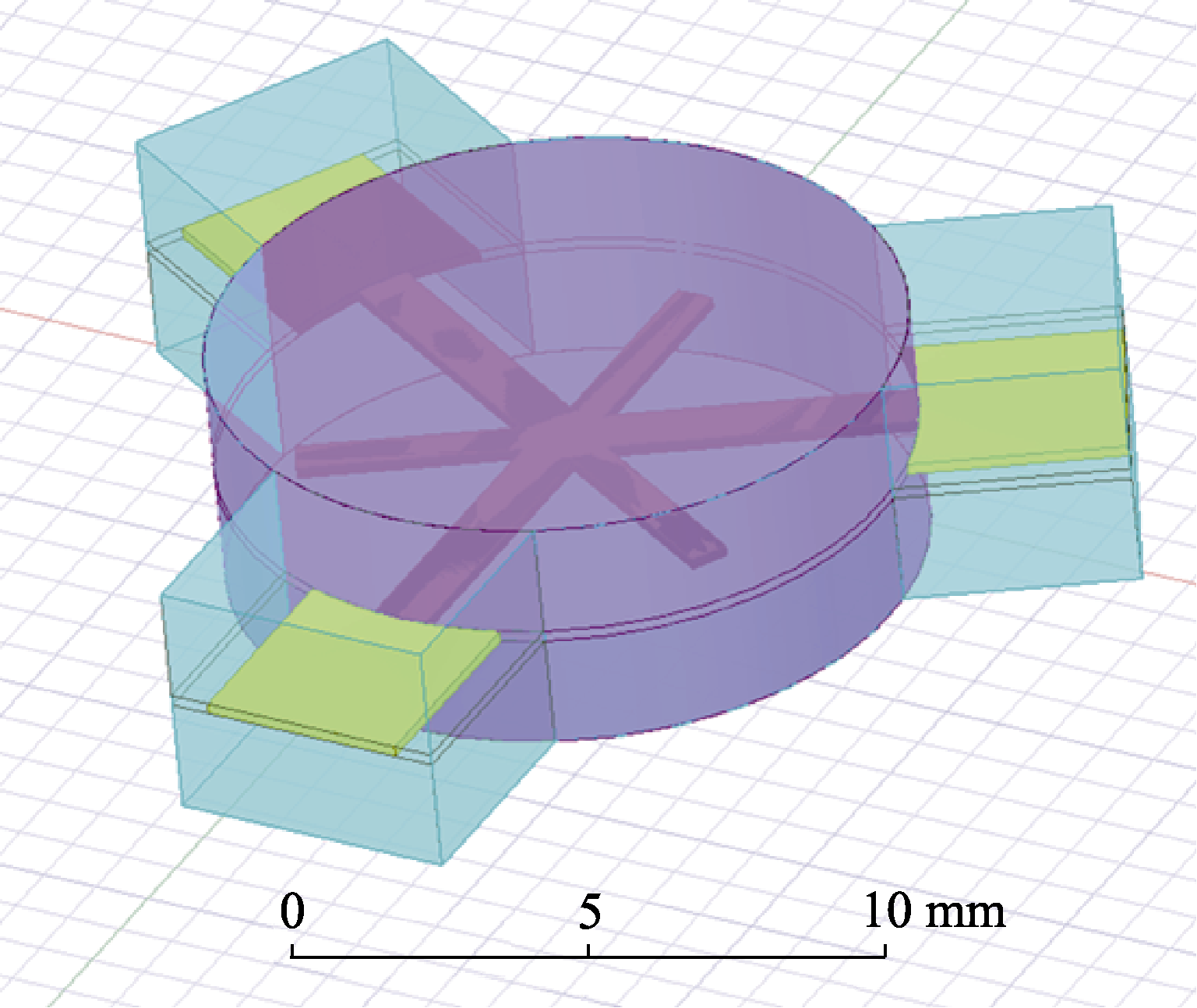

图6 双Y结环行器模型

Fig. 6 Schematic of the dual-Y-junction circulator

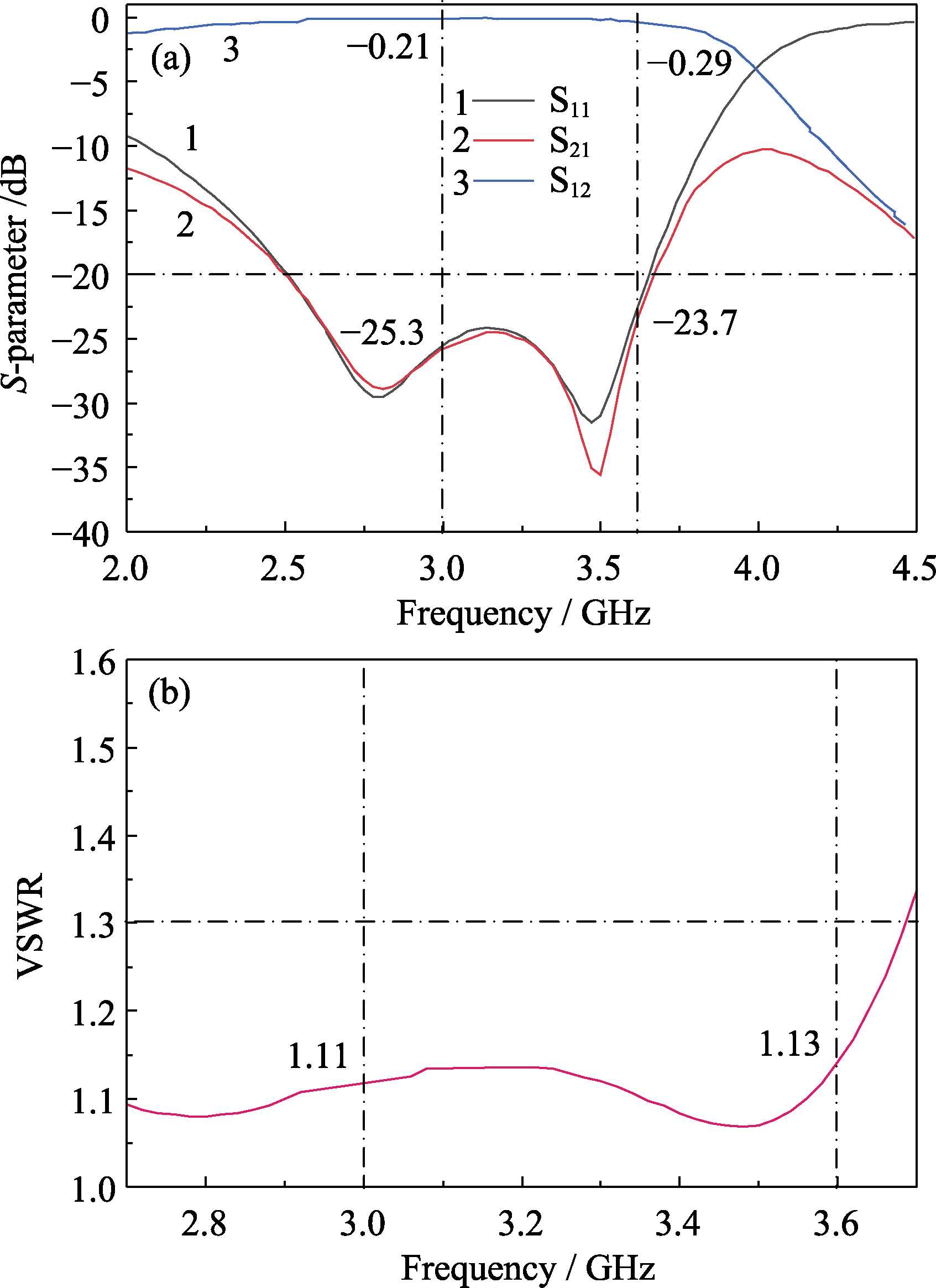

图7 双Y结环行器仿真结果

Fig. 7 Simulated results of dual-Y-junction circulator (a) S-parameters; (b) Voltage standing wave ratio (VSWR)

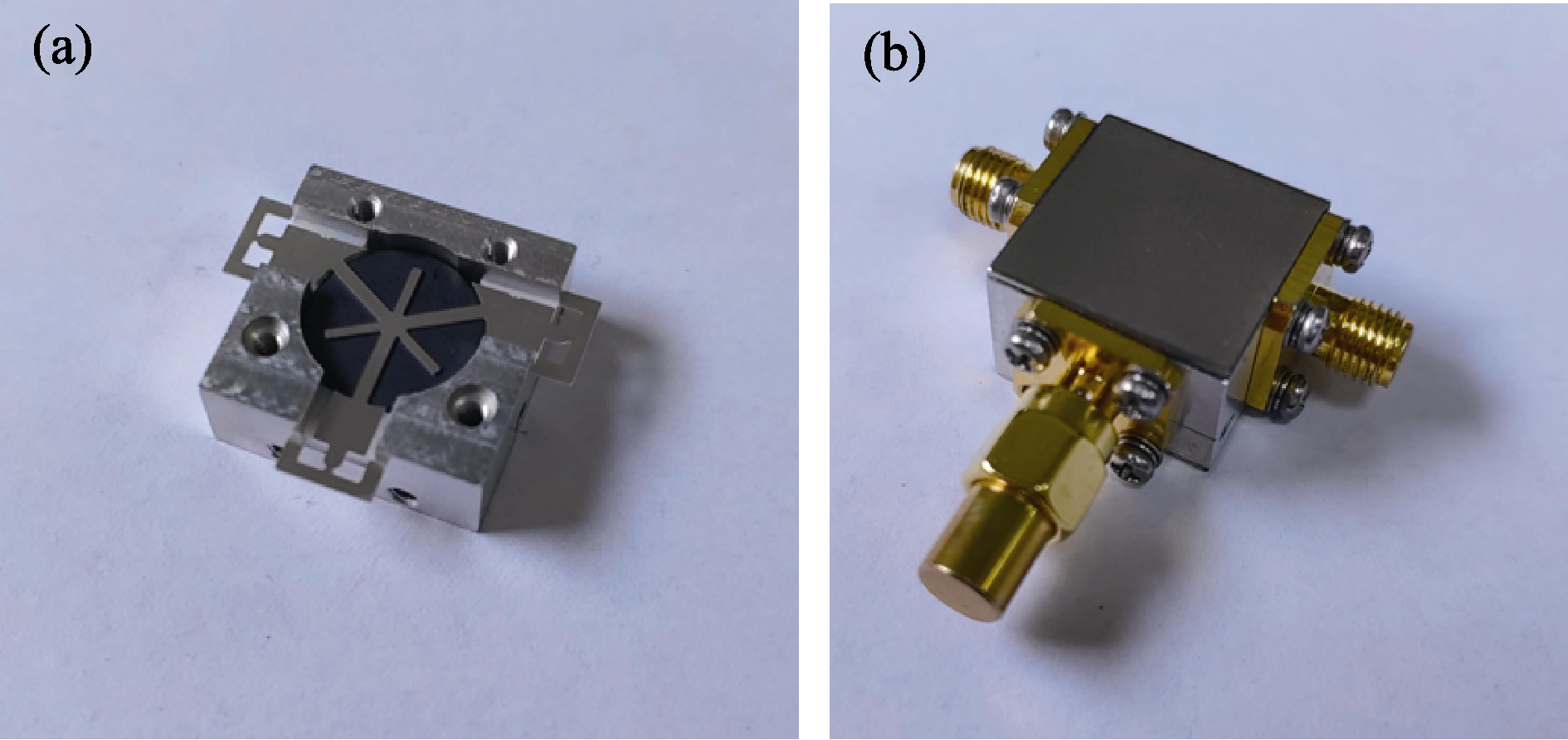

图8 双Y结环行器原型实物

Fig. 8 Prototype of the dual-Y-junction circulator (a) Internal view; (b) External view

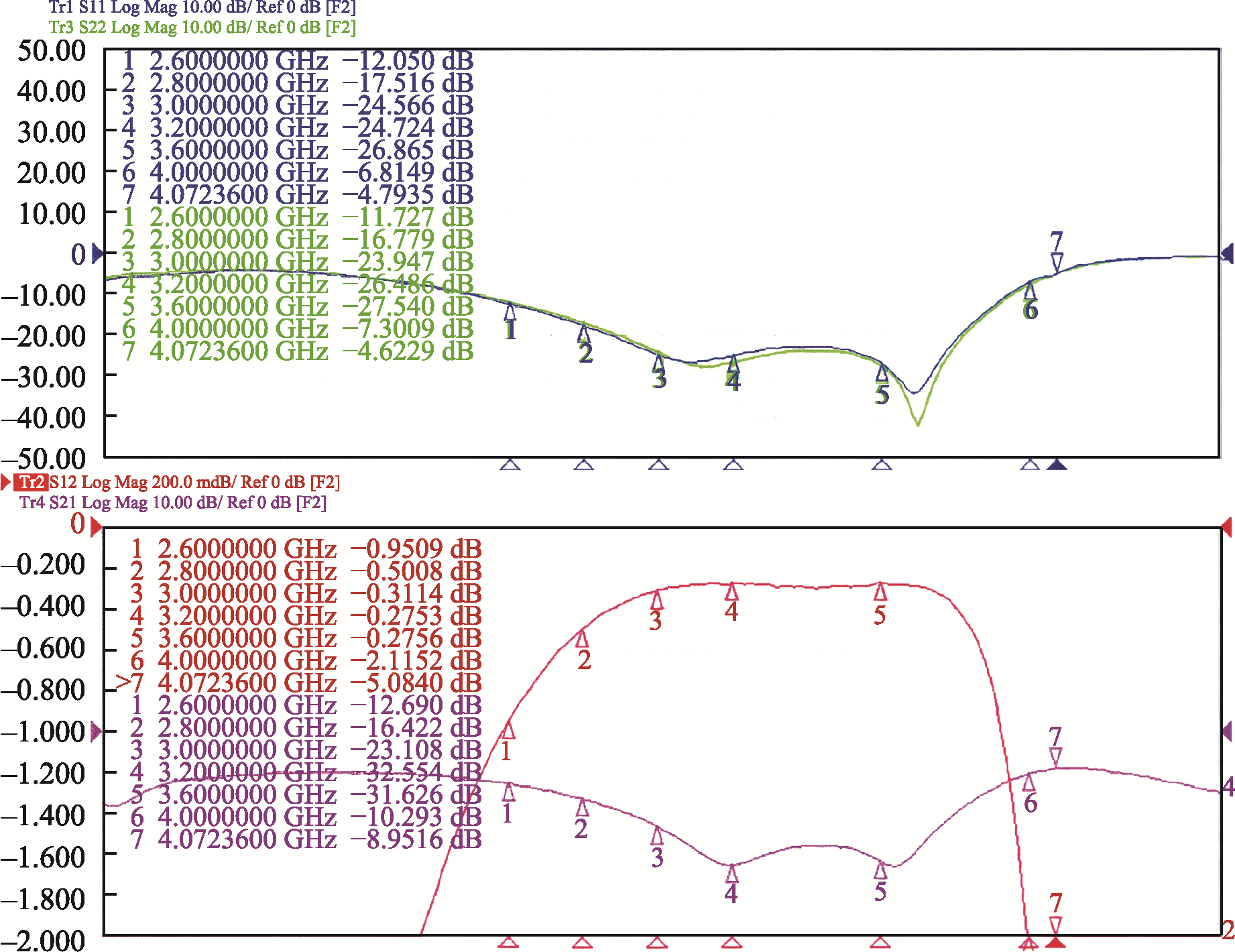

图9 双Y结环行器实物测试结果

Fig. 9 Measured frequency response of the dual-Y-junction circulator prototype

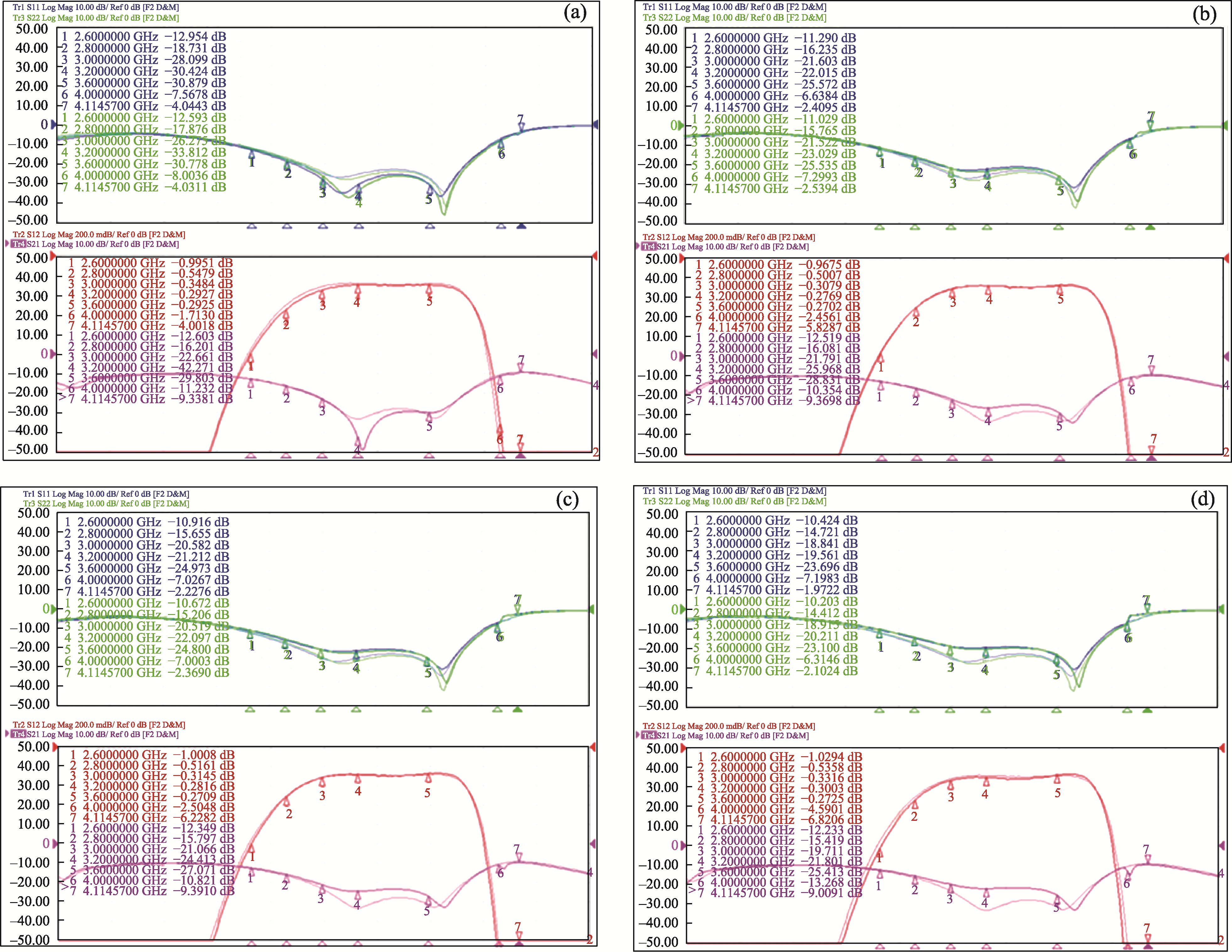

图10 不同温度下环行器样品的S参数

Fig. 10 Measured S-parameters of the circulator prototype under various temperatures (a) -40 ℃; (b) 70 ℃; (c) 85 ℃; (d) 110 ℃

参考文献 26

[1]	HILL M D, CRUICKSHANK D B, MACFARLANE I A. Perspective on ceramic materials for 5G wireless communication systems. Applied Physics Letters, 2021, 118(12): 120501. DOI URL
[2]	GEILER A L, HARRIS V G. Atom magnetism: ferrite circulators-past, present, and future. IEEE Microwave Magazine, 2014, 15(6): 66.
[3]	ÖZGÜR Ü, ALIVOV Y, MORKOÇ H. Microwave ferrites, part 1: fundamental properties. Journal of Materials Science: Materials in Electronics, 2009, 20(9): 789. DOI URL
[4]	HARRIS V G. Modern microwave ferrites. IEEE Transactions on Magnetics, 2012, 48(3): 1075. DOI URL
[5]	张国荣. 微波铁氧体材料与器件. 北京: 电子工业出版社, 1995.
[6]	JIA N, HUAIWU Z, LI J, et al. Polycrystalline Bi substituted YIG ferrite processed via low temperature sintering. Journal of Alloys and Compounds, 2017, 695: 931. DOI URL
[7]	JIA N, ZHANG H, HARRIS V G. Iron-depleted Bi-YIG having enhanced gyromagnetic properties suitable for LTCC processing. Journal of the American Ceramic Society, 2018, 102(3): 1180. DOI URL
[8]	HAN Z. Review to the development in the dielectric constant of microwave ferrite. Journal of Magnetic Materials and Devices, 2019, 50(1): 61.
[9]	ZHOU Y, YANG F, REN S. Effect of Bi³⁺ substitution on the properties of polycrystallinegarnet ferrite material. Journal of Magnetic Materials and Devices, 2020, 51(2): 6.
[10]	JIANG F, LAN J, WEI Z, et al. Cooperation effect of indium and vanadium co-doped into bismuth-iron garnets on magnetic properties. Materials Research Express, 2021, 8(1): 016104. DOI
[11]	HUONG V T H, DUONG N P, NGUYET D T T, et al. Local structural change and magnetic dilution effect in (Ca²⁺, V⁵⁺) co- substituted yttrium iron garnet prepared by Sol-Gel route. Journal of Alloys and Compounds, 2019, 775: 1259. DOI URL
[12]	KHEIRDOUST H, NIYAIFAR M, HASANPOUR A, et al. Magnetic and structural characteristic of Gd-YIG. Solid State Communications, 2022, 351: 114793. DOI URL
[13]	SHARMA M, YADAV S, SAINI J, et al. Broadband microwave devices based on Bi and Gd co-doped YIG ferrites. Journal of Materials Science: Materials in Electronics, 2025, 36(17): 1030. DOI
[14]	THONGMEE S, WINOTAI P, TANG I M. Local field fluctuations in the substituted aluminum iron garnets, Y₃Fe_5-_xAl_xO₁₂. Solid State Communications, 1999, 109(7): 471. DOI URL
[15]	DING Y, JIANG X, JIAO B, et al. Effects of Al³⁺ substitution on the sintering behavior of low saturation magnetization yttrium iron garnet ferrite. Journal of Magnetic Materials and Devices, 2020, 51(3): 24.
[16]	SHARMA V, KUMARI S, KUANR B K. Exchange-coupled hard-soft ferrites: a new microwave material. Journal of Alloys and Compounds, 2018, 736: 266. DOI URL
[17]	CHEN Y, LI J, XIAO Y, et al. Ca-Ge co-substituted BiZr- Y₃Fe₅O₁₂ ferrite with high dielectric constant and low loss for miniaturized microwave device application. Journal of Alloys and Compounds, 2024, 1005: 175912. DOI URL
[18]	XIAO Y, LI J, PENG Z, et al. High-dielectric-constant, low-loss YIG ferrites for miniaturized microwave devices through multi-ion substitution composite regulation. Journal of the European Ceramic Society, 2024, 45(5): 117105. DOI URL
[19]	ZHANG X, LI Q, WU T, et al. Site-controlled multi-ion substitution enabling low-loss and high-permittivity microwave ferrites. Journal of Advanced Ceramics, 2025, 14(5): 9221076. DOI URL
[20]	XIAO Y, LI J, ZHOU T, et al. Mechanism of the impact of Ca-Ge co-substitution on the FMR linewidth in BiV-YIG ferrites. Ceramics International, 2024, 50(11): 20144. DOI URL
[21]	XIAO Y, LI J, YANG Y, et al. Reducing the FMR Linewidth of high-dielectric-constant BiZr-YIG ferrites by adjusting the pre- sintering temperature. Ceramics International, 2025, 51(18): 25042. DOI URL
[22]	SHANNON R D. Dielectric polarizabilities of ions in oxides and fluorides. Journal of Applied Physics, 1993, 73(1): 348. DOI URL
[23]	LI Q, NI H, WU C, et al. Vacancy-engineered Gd³⁺-substituted yttrium iron garnet with narrow ferrimagnetic linewidth and high Curie temperature. Journal of Alloys and Compounds, 2023, 935: 168169. DOI URL
[24]	WEN D, ZHANG J, KULIKOV A, et al. The effect of Al³⁺ ion substitution on microwave dielectric and magnetic properties of YIG ferrites. Ceramics International, 2024, 51(5): 6272. DOI URL
[25]	HUANG X, JIANG X, SUN K, et al. Effects of Zr⁴⁺-V⁵⁺ co-substitution on the properties of high dielectric constant garnet ferrites. Journal of Magnetic Materials and Devices, 2024, 55(4): 1.
[26]	LIAO Y, CHEN J, KONG W, et al. Effect of Ti⁴⁺ substitution on the microwave properties of garnet ferrite material. Journal of Functional Materials and Devices, 2022, 28(3): 249.
