Cansas-II SiCf/SiC复合材料的高温拉伸蠕变行为

doi:10.15541/jim20220441

无机材料学报 ›› 2023, Vol. 38 ›› Issue (2): 177-183.DOI: 10.15541/jim20220441

Cansas-II SiC_f/SiC复合材料的高温拉伸蠕变行为

荆开开¹(), 管皞阳¹, 朱思雨¹, 张超¹^,², 刘永胜¹^,³, 王波²^,⁴, 王晶¹^,³, 李玫¹, 张程煜¹^,²()

1.西北工业大学材料学院 NPU-SAS联合研究中心, 西安 710072
2.西北工业大学极端力学研究院,, 西安 710072
3.西北工业大学超高温结构复合材料重点实验室, 西安 710072
4.西北工业大学航空学院, 西安 710072

收稿日期:2022-07-29 修回日期:2022-09-10 出版日期:2023-02-20 网络出版日期:2022-09-15
通讯作者: 张程煜, 教授. E-mail: cyzhang@nwpu.edu.cn
作者简介:荆开开(1997-), 男, 硕士研究生. E-mail: 2247436229@qq.com
基金资助:
国家自然科学基金(U2241239);国家自然科学基金(51572224);国家自然科学基金(12102336);高等学校学科创新引智计划(BP0820014);陕西省科技重点项目(2017KW-019)

Tensile Creep Behavior of Cansas-II SiC_f/SiC Composites at High Temperatures

JING Kaikai¹(), GUAN Haoyang¹, ZHU Siyu¹, ZHANG Chao¹^,², LIU Yongsheng¹^,³, WANG Bo²^,⁴, WANG Jing¹^,³, LI Mei¹, ZHANG Chengyu¹^,²()

1. NPU-SAS Joint Research Center, School of Materials, Northwestern Polytechnical University, Xi’an 710072, China
2. Institute of Extreme Mechanics, Northwestern Polytechnical University, Xi’an 710072, China
3. Key Laboratory of Ultra-High Temperature Structural Composites, Northwestern Polytechnical University, Xi’an 710072, China
4. School of Aeronautics, Northwestern Polytechnical University, Xi’an 710072, China

Received:2022-07-29 Revised:2022-09-10 Published:2023-02-20 Online:2022-09-15
Contact: ZHANG Chengyu, professor. E-mail: cyzhang@nwpu.edu.cn
About author:JING Kaikai (1997-), male, Master candidate. E-mail: 2247436229@qq.com
Supported by:
National Natural Science Foundation of China(U2241239);National Natural Science Foundation of China(51572224);National Natural Science Foundation of China(12102336);Disciplinary Innovation and Talent Introducing Plan for Colleges and Universities(BP0820014);Key Project of Science and Technology of Shaanxi Province(2017KW-019)

摘要/Abstract

摘要：

连续碳化硅纤维增强碳化硅复合材料(SiC_f/SiC)是发展先进航空发动机的关键材料, 航空发动机长时服役要求材料具有优异的高温蠕变性能。本工作研究了平纹编织Cansas-II碳化硅纤维增强碳化硅复合材料(2D-SiC_f/SiC)在空气中的高温蠕变行为, 蠕变温度为1200~1400 ℃, 应力水平为80~140 MPa。利用扫描电子显微镜(SEM)观察了2D-SiC_f/SiC复合材料的微观组织和断口形貌, 使用能谱分析仪(EDS)进行了成分分析。结果表明: 当蠕变应力低于比例极限应力(σ_PLS)时, 2D-SiC_f/SiC的蠕变断裂时间超过500 h, 稳态蠕变速率为1×10^-10~5×10^-10 /s, 蠕变行为由基体和纤维共同控制。当蠕变应力高于σ_PLS时, 复合材料的基体、纤维和界面均发生氧化, 蠕变断裂时间显著降低, 稳态蠕变速率提高一个数量级, 蠕变行为主要由纤维控制。

关键词: Cansas-II SiC_f/SiC复合材料, 蠕变, 蠕变断裂时间, 稳态蠕变速率, 基体开裂

Abstract:

Continuous silicon carbide fiber reinforced silicon carbide composite (SiC_f/SiC) is a key material for the advanced aero-engines. It is required to possess excellent high-temperature creep resistance for SiC_f/SiC to meet the long-term service lifetime of the aero-engines. Here, tensile creep behaviors of a plain woven Cansas-II SiC_f/SiC (2D-SiC_f/SiC) were investiged in the temperature of 1200-1400 ℃ with the stress levels of 80 to 140 MPa. Its microstructure and fracture morphology were observed, and composition was analyzed. Results show that creep-rupture time of 2D-SiC_f/SiC is more than 500 h and steady-state creep rate is 1×10^-10-5×10^-10 /s at stresses lower than the proportional limit stress (σ_PLS). The creep behaviors are controlled by matrix and fibers. The creep-rupture time is significantly reduced, and the steady-state creep rate is increased by an order of magnitude when the stress is higher than the σ_PLS. The matrix, fibers and interfaces of the composite are greatly oxidized, and the creep behaviors are mainly controlled by the fibers.

Key words: Cansas-II SiC_f/SiC, creep, creep rupture time, steady-state creep rate, matrix cracking

中图分类号:

TB332

荆开开, 管皞阳, 朱思雨, 张超, 刘永胜, 王波, 王晶, 李玫, 张程煜. Cansas-II SiC_f/SiC复合材料的高温拉伸蠕变行为[J]. 无机材料学报, 2023, 38(2): 177-183.

JING Kaikai, GUAN Haoyang, ZHU Siyu, ZHANG Chao, LIU Yongsheng, WANG Bo, WANG Jing, LI Mei, ZHANG Chengyu. Tensile Creep Behavior of Cansas-II SiC_f/SiC Composites at High Temperatures[J]. Journal of Inorganic Materials, 2023, 38(2): 177-183.

图/表 12

表1 国产二代Cansas-II碳化硅纤维的基本性能

Table 1 Basic properties of domestic second-generation Cansas-II silicon carbide fibers

Diameter/ μm	Density/ (g·cm^-3)	Tensile strength/GPa	Tensile modulus/GPa
14	2.74	2.7	270

表2 2D-SiCf/SiC的拉伸性能

Table 2 Tensile properties of 2D-SiCf/SiC composites

Temperature/℃	E/GPa	σ_PLS/MPa	σ_UTS/MPa	ε/%
RT	273	115	282	0.57
1200	259	110	249	0.74
1300	223	92	229	0.60

图1 拉伸和拉伸蠕变试样形状与尺寸(单位: mm)

Fig. 1 Dimensions and shape of tensile and tensile creep specimen (unit: mm)

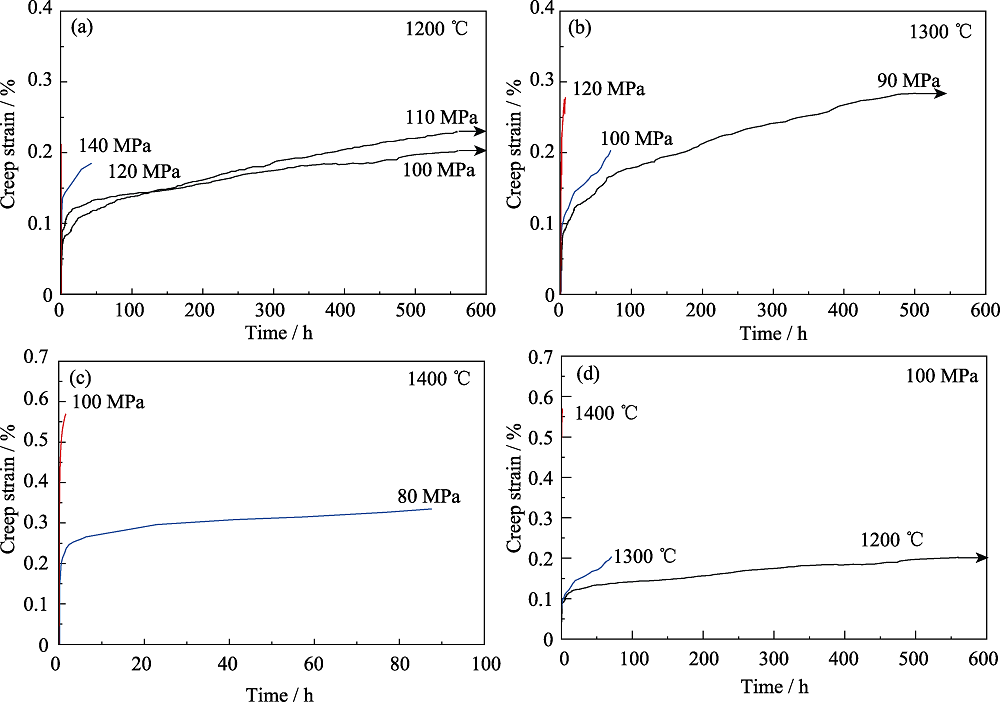

图2 2D-SiCf/SiC的高温拉伸蠕变曲线

Fig. 2 Tensile creep curves of 2D-SiCf/SiC at high temperatures (a) 1200 ℃, different stress; (b) 1300 ℃, different stress; (c) 1400 ℃, different stress; (d) Different temperatures, 100 MPa

表3 2D-SiCf/SiC复合材料在空气中的高温拉伸蠕变性能

Table 3 Tensile creep properties of 2D-SiCf/SiC composites in air at high temperatures

Specimen	Tempera- ture/℃	Stress/ MPa	Steady-state creep strain rate/s^-1	Creep rupture time/h	Creep strain/%
2D-SiC_f/SiC	1200	100	1.86×10^-10	>560	0.20
	1200	110	4.95×10^-10	>560	0.23
	1200	120	2.16×10^-9	42	0.18
	1200	140	8.45×10^-7	0.1	0.21
	1300	90	5.62×10^-10	>500	0.28
	1300	100	1.73×10^-9	70	0.20
	1300	120	1.86×10^-8	6	0.28
	1400	80	1.32×10^-9	88	0.33
	1400	100	1.46×10^-8	1.6	0.57
CVI-SiC_f/SiC^[13]	1300	75	2.3×10^-9	111.1	—
	1300	90	6.2×10^-8	33.4	—
	1300	120	3.6×10^-7	0.83	—
	1300	150	3.0×10^-6	0.14	—
MI-SiC_f/SiC^[15]	1204	125	3.0×10^-11	>1000	0.25
	1204	140	2.3×10^-10	>1000	0.31
	1204	150	—	82.1	0.29

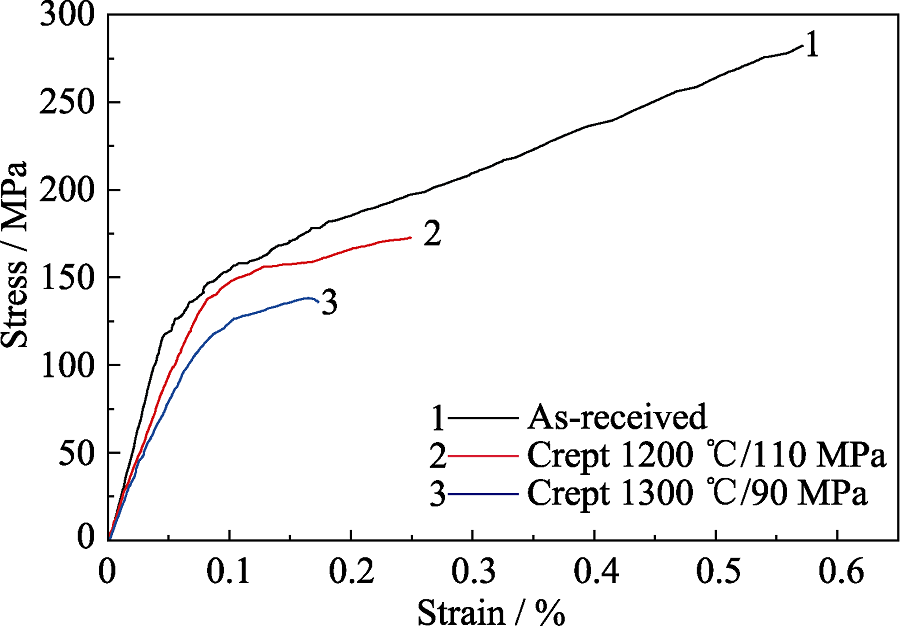

图3 不同状态的2D-SiCf/SiC的拉伸应力-应变曲线

Fig. 3 Tensile stress-strain curves of as-received and crept 2D-SiCf/SiC

表4 2D-SiCf/SiC蠕变后的剩余拉伸性能

Table 4 Residual tensile properties of 2D-SiCf/SiC after creeping

		σ_UTS/MPa	E/GPa	σ_PLS/MPa	ε/%
As-received		282	273	115	0.57
Crept	1200 ℃/100 MPa	211	—	—	—
	1200 ℃/110 MPa	173	209	89	0.25
	1300 ℃/90 MPa	138	157	55	0.17

图4 2D-SiCf/SiC在不同条件下的断口宏观形貌

Fig. 4 Macroscopic morphologies of fractures of 2D-SiCf/SiC under different conditions (a) As-received; (b) Crept at 1200 ℃/110 MPa for 560 h; (c) Crept at 1200 ℃/120 MPa; (d) Crept at 1200 ℃/140 MPa

图5 2D-SiCf/SiC在不同条件蠕变断裂的断口氧化区形貌

Fig. 5 Morphologies of fracture oxidation zone of 2D-SiCf/SiC under different creep rupture conditions (a) 1200 ℃/120 MPa; (b) 1300 ℃/100 MPa; (c) 1400 ℃/80 MPa

图6 1300 ℃/100 MPa 蠕变过程中2D-SiCf/SiC中发生的界面和纤维损伤

Fig. 6 Interface and fiber damage in 2D-SiCf/SiC during creeping at 1300 ℃/100 MPa (a) SiO2 filled; (b) SiO2 unfilled

图7 2D-SiCf/SiC蠕变后的纵向纤维微观组织

Fig. 7 Longitudinal fiber microstructures of 2D-SiCf/SiC after crept (a)1200 ℃/110 MPa for 560 h; (b)1300 ℃/90 MPa for 500 h

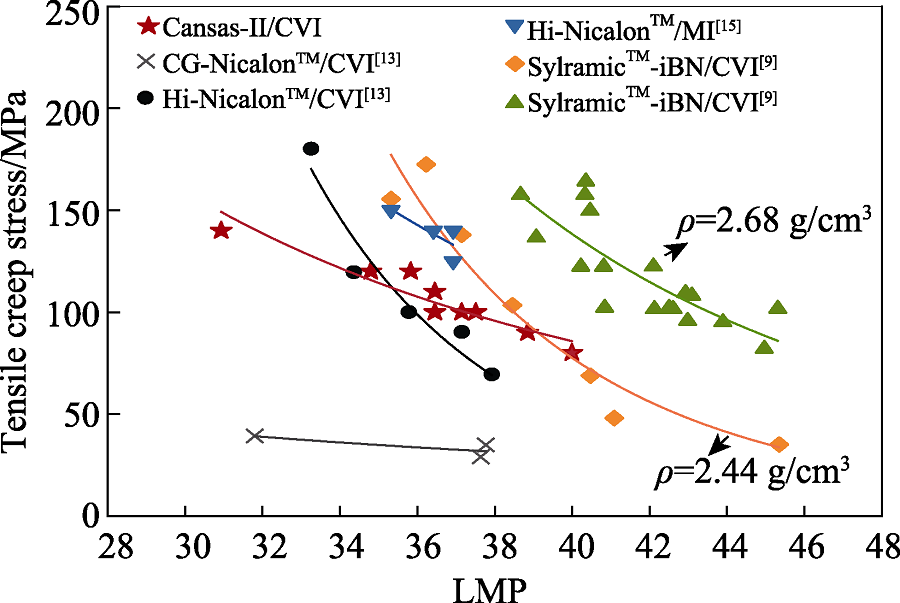

图8 2D-SiCf/SiC的Larson-Miller曲线

Fig. 8 Larson-Miller plots for 2D-SiCf/SiC

参考文献 20

[1]	ALMANSOUR A. Characterizing ceramic-matrix composites to improve durability. American Ceramic Society Bulletin, 2016, 95(5): 35.
[2]	YUAN Q, SONG Y C. Research and development of continuous SiC fibers and SiC_f/SiC composites. Journal of Inorganic Materials, 2016, 31(11): 1157. DOI
[3]	ZHAO S, YANG Z C, ZHOU X G. Fracture behavior of SiC/SiC composites with different interfaces. Journal of Inorganic Materials, 2016, 31(1): 58. DOI
[4]	WANG X, SONG Z L, CHENG Z, et al. Tensile creep properties and damage mechanisms of 2D-SiC_f/SiC composites reinforced with low-oxygen high-carbon type SiC fiber. Journal of the European Ceramic Society, 2020, 40(14): 4872. DOI URL
[5]	ALMANSOUR A, MAILET E, RAMASAMY S, et al. Effect of fiber content on single tow SiC minicomposite mechanical and damage properties using acoustic emission. Journal of the European Ceramic Society, 2015, 35(13): 3389. DOI URL
[6]	PRYCE A W, SMITH P A. Matrix cracking in crossply ceramic matrix composites under quasi-static and cyclic loading. Acta Metallurgica Et Materialia, 1993, 42(3): 861. DOI URL
[7]	CAO J, MIZUNO M, NAGANO Y. The stress dependence damage mechanism during tensile creep and fatigue in a SiC/SiC composite at 1400 ℃. 22nd Annual Conference on Composites, Advanced Ceramics, Materials, and Structures: A. Florida, 1998: 251.
[8]	FARIZY G, CHERMANT J L, VICENS J, et al. Understanding of the behaviour and the influence of oxidation during creep of SiC_f-SiBC composites in air. Advanced Engineering Materials, 2005, 7(6): 529. DOI URL
[9]	BHATT R T, KISER J D. Creep behavior and failure mechanisms of CVI and PIP SiC/SiC composites at temperatures to 1650 ℃ in air. Journal of the European Ceramic Society, 2021, 41(13): 6196. DOI URL
[10]	WANG X, WANG K J, BAI H, et al. Creep properties and damage mechanisms of 2D-SiC_f/SiC compositer prepared by CVI. Journal of Inorganic Materials, 2020, 35(7): 817. DOI
[11]	MORSCHER G N. Tensile creep and rupture of 2D-woven SiC/SiC composites for high temperature applications. Journal of the European Ceramic Society, 2010, 30(11): 2209. DOI URL
[12]	ZHU S, MIZUNO M, KAGAWA Y, et al. Creep and fatigue behavior in Hi-Nicalon^TM-fiber-reinforced silicon carbide composites at high temperatures. Journal of the American Ceramic Society, 1999, 82(1): 117. DOI URL
[13]	ZHU S, MIZUNO M, KAGAWA Y, et al. Monotonic tension, fatigue and creep behavior of SiC-fiber-reinforced SiC-matrix composites: a review. Composites Science and Technology, 1999, 59(6): 833. DOI URL
[14]	ZHU S, MIZUNO M, NAGANO Y, et al. Tensile creep behavior of a SiC-fiber/SiC composite at elevated temperatures. Composites Science and Technology, 1998, 57(12): 1629. DOI URL
[15]	GREGORY S C, KRISHAN L L. GE Global Research. Melt Infiltrated Ceramic Composites (Hipercomp®) For Gas Turbine Engine Applications. Continuous Fiber Ceramic Composites Program Phase II Final Report, 2006: 153.
[16]	MORSCHER G N, CAWLEY J D. Intermediate temperature strength degradation in SiC/SiC composites. Journal of the European Ceramic Society, 2002, 22(14/15): 2777. DOI URL
[17]	LU Z L, YUE J, FU Z Y, et al. Microstructure and mechanical performance of SiC_f/BN/SiC mini-composites oxidized at elevated temperature from ambient temperature to 1500 ℃ in air. Journal of the European Ceramic Society, 2020, 40(8): 2821. DOI URL
[18]	MORSCHER G N, Stress-environmental effects on fiber reinforced SiC-based composites. The American Ceramic Society. Ceramic Matrix Composites: Materials, Modeling and Technology. Hoboken, New Jersey: John Wiley & Sons, Inc., 2014: 334.
[19]	OGBUJI L U J T, OPILA E J, et al. A comparison of the oxidation kinetics of SiC and SiN. Journal of the Electrochemical Society, 1995, 142: 925. DOI URL
[20]	DICARLO J A. Creep of chemically vapor-deposited SiC fibers. Journal of Materials Science. 1986, 21(1): 217. DOI URL
