基于石墨烯森林电极的摩擦纳米发电机

doi:10.15541/jim20180521

无机材料学报 ›› 2019, Vol. 34 ›› Issue (8): 839-843.DOI: 10.15541/jim20180521 CSTR: 32189.14.10.15541/jim20180521

基于石墨烯森林电极的摩擦纳米发电机

韩杰敏,王梅,仝召民,马一飞()

山西大学激光光谱研究所, 极端光学协同创新中心, 量子光学与光量子器件国家重点实验室, 太原 030006

收稿日期:2018-11-07 修回日期:2018-12-19 出版日期:2019-08-20 网络出版日期:2019-05-29
作者简介:韩杰敏(1992-), 男, 硕士研究生. E-mail: jiemin. <email>han@foxmail.com</email>
基金资助:
国家自然科学基金青年项目(21805174);山西省百人计划青年项目;山西省重点研发计划(国际科技合作)项目(201803D421082);山西省应用基础研究计划项目(201801D221100)

Triboelectric Nanogenerator Based on Graphene Forest Electrodes

HAN Jie-Min,WANG Mei,TONG Zhao-Min,MA Yi-Fei()

State Key Laboratory of Quantum Optics and Optics Quantum Devices, Collaborative Innovation Center of Extreme Optics, Institute of Laser Spectroscopy, Shanxi University, Taiyuan 030006, China

Received:2018-11-07 Revised:2018-12-19 Published:2019-08-20 Online:2019-05-29
Supported by:
National Natural Science Foundation of China(21805174);Shanxi Province 100-Plan Talents Program;Key Research and Development Program of Shanxi Province for International Cooperation(201803D421082);Applied Basic Research Project of Shanxi Province(201801D221100)

摘要/Abstract

摘要：

本研究提出并制备了一种以石墨烯森林为电极的摩擦纳米发电机。利用等离子体增强化学气相沉积工艺制备了与其它墙形竖直薄片状的石墨烯形貌差异较大的石墨烯森林。此石墨烯森林具有低薄膜电阻((110±5) Ω/□)以及独特的离散“树状”结构, 有利于石墨烯森林与其他电极材料之间的接触和摩擦。根据石墨烯森林的形貌优势, 将聚酰亚胺膜和石墨烯森林膜作为电极组装摩擦纳米发电机, 其开路电压可达20 V, 短路电流可达0.75 μA。此外, 还讨论了基于石墨烯森林的摩擦纳米发电机的工作原理。最后, 利用此纳米发电机点亮了演示电路中三个不同颜色的LED, 证明了石墨烯森林在摩擦纳米发电机中的有效应用。

关键词: 石墨烯森林, 等离子体增强化学气相沉积, 摩擦纳米发电机

Abstract:

This study presents a triboelectric nanogenerator (TENG) with graphene forest as electrode. Graphene forest was fabricated by plasma enhanced chemical vapor deposition (PECVD) process, which shows great different morphology compared with other ‘wall-like’ vertically oriented graphene so far. Graphene forest films are composed of graphene nanoflakes, exhibiting not only low sheet resistance ((110±5) Ω/□) but also uniquely discrete ‘tree-like’ morphology, which are favorable to contact and friction with other materials. According to its morphology superiority, Kapton film and graphene forest film were utilized as electrodes for triboelectric nanogenerator, in which an open circuit voltage of 20 V and a short circuit current of 0.75 μA are obtained. Furthermore, the working principle of the graphene forest based triboelectric nanogenerator was discussed. At last, three LEDs of different color in demo circuit were lighted up by as-prepared nanogenerator, which proves the effective application of graphene forest in triboelectric nanogenerator.

Key words: graphene forest, plasma enhanced chemical vapor deposition, triboelectric nanogenerator

中图分类号:

TM31

韩杰敏, 王梅, 仝召民, 马一飞. 基于石墨烯森林电极的摩擦纳米发电机[J]. 无机材料学报, 2019, 34(8): 839-843.

HAN Jie-Min, WANG Mei, TONG Zhao-Min, MA Yi-Fei. Triboelectric Nanogenerator Based on Graphene Forest Electrodes[J]. Journal of Inorganic Materials, 2019, 34(8): 839-843.

图/表 6

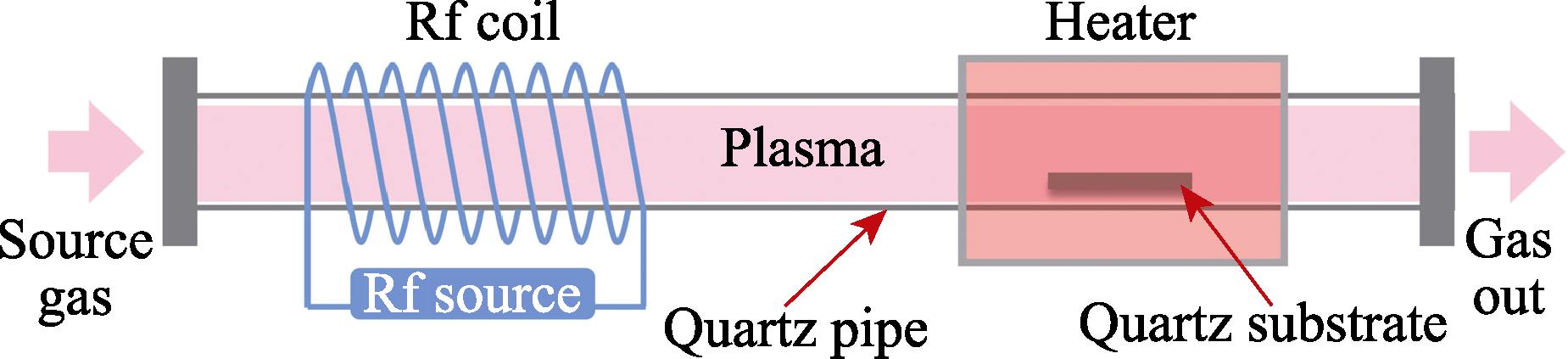

图1 等离子体增强化学气相沉积(PECVD)系统的结构示意图

Fig. 1 Scheme of the plasema enhanced chemical vapor deposition system

图2 基于石墨烯森林的摩擦纳米发电机的结构示意图

Fig. 2 Schematic diagram of GF-based triboelectric nanogenerator

图3 石英基底上GF侧视(a)~(b)和顶视(c)~(d) SEM照片, 以及GF的高分辨TEM照片(e)~(f)

Fig. 3 SEM images of graphene forest on a quartz substrate from side-view (a-b) and top-view (c-d), and HRTEM images of graphene forest in different magnifications (e-f)

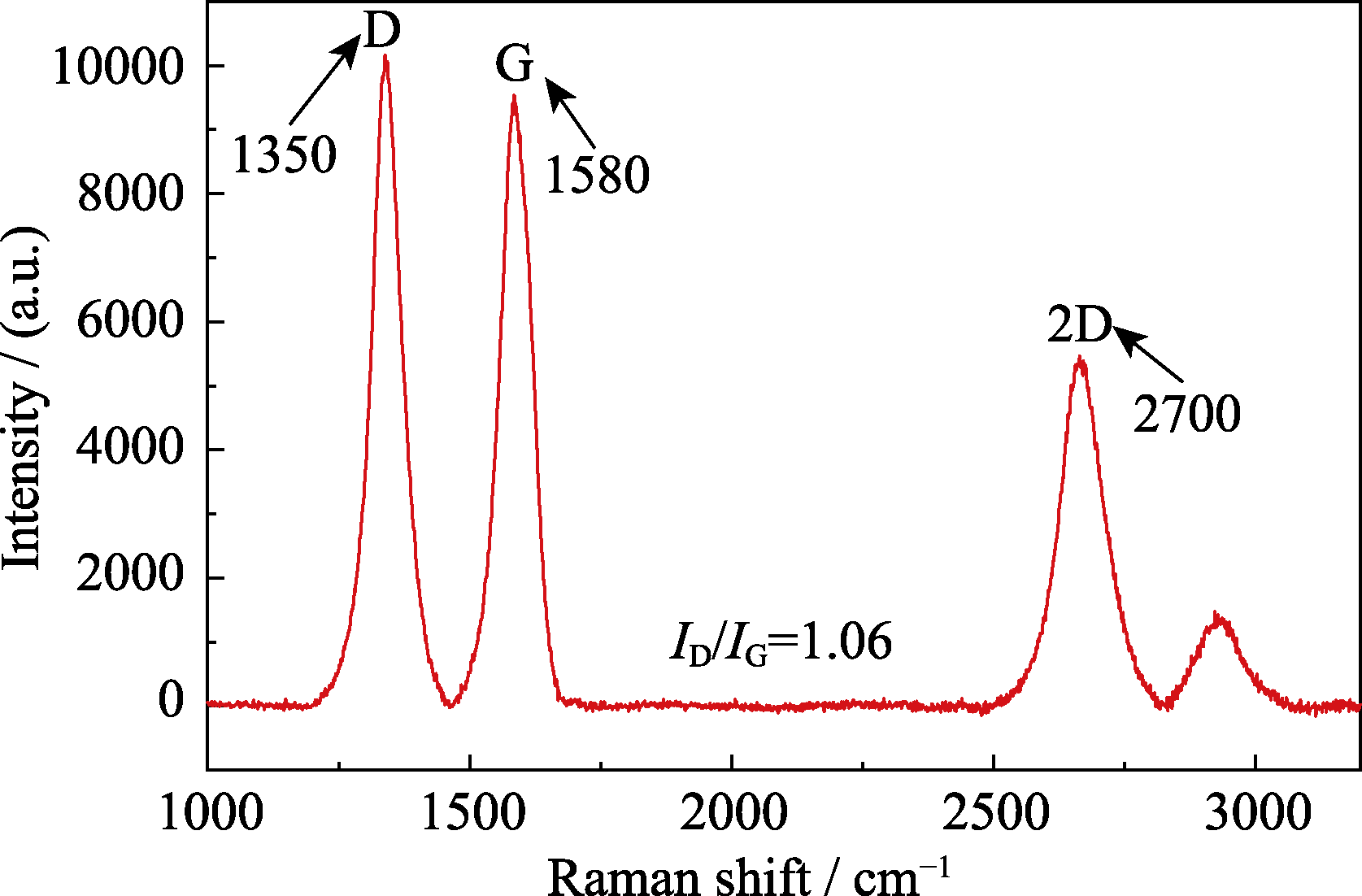

图4 石墨烯森林的拉曼光谱图

Fig. 4 Raman spectrum of the graphene forest

图5 基于石墨烯森林的摩擦纳米发电机的工作原理(a); 基于石墨烯森林的摩擦纳米发电机的开路电压输出(b)和短电流输出(c), 插图为其单一周期的曲线

Fig. 5 Working mechanism of GF based TENG (a), open circuit voltage output (b) and short circuit current output (c) of graphene forest based triboelectric nanogenerator with insets showing the representative cycle of each plot

图6 基于GF的TENG点亮不同颜色的LED

Fig. 6 LEDs of different color powered by graphene forest based triboelectric nanogenerator with a simple circuit

参考文献 28

[1]	DE S, COLEMAN J N . Are there fundamental limitations on the sheet resistance and transmittance of thin graphene films? ACS Nano, 2010,4(5):2713-2720. DOI URL
[2]	ZHU Y, MURALI S, STOLLER M D , et al. Carbon-based supercapacitors produced by activation of graphene. Science, 2011,332(6037):1537-1541.
[3]	CHEN Z, REN W, GAO L ,et al. Three-dimensional flexible and conductive interconnected graphene networks grown by chemical vapour deposition. Nature Materials, 2011,10(6):424-428.
[4]	GUO Y, LIN L, ZHAO S , et al. 2D hybrid nanostructured dirac materials for broadband transparent electrodes. Advanced Materials, 2015,27(29):4315-4321.
[5]	VAZQUEZMENA O, BOSCO J P, ERGEN O ,et al. Performance enhancement of a graphene-zinc phosphide solar cell using the electric field-effect. Nano Letters, 2014,14(8):4280-4285.
[6]	BO Z, ZHU W, MA W , et al. Vertically oriented graphene bridging active-layer/current-collector interface for ultrahigh rate supercapacitors. Advanced Materials, 2013,25(40):5799-5806.
[7]	CHANG J, HUANG X, ZHOU G , et al. Multilayered Si nanoparticle/ reduced graphene oxide hybrid as a high-performance lithium-ion battery anode. Advanced Materials, 2014,26(5):758-764.
[8]	BO Z, YANG Y, CHEN J , et al. Plasma-enhanced chemical vapor deposition synthesis of vertically oriented graphene nanosheets. Nanoscale, 2013,5(12):5180-5204.
[9]	SHENG L, WEI T, LIANG Y , et al. Vertically oriented graphene nanoribbon fibers for high-volumetric energy density all-solid-state asymmetric supercapacitors. Small, 2017, 13(22): 1700371-1-9.
[10]	BELLUCCI S, MALESEVIC A, MICCIULLA F ,et al. Comparative field emission from vertically aligned few-layer graphene and carbon nanotubes. Nanoscience and Nanotechnology Letters, 2011,3(6):907-912.
[11]	MALESEVIC A, KEMPS R, VANHULSEL A , et al. Field emission from vertically aligned few-layer graphene. Journal of Applied Physics, 2008, 104(8): 084301-1-6.
[12]	MAO S, YU K, CHANG J , et al. Direct growth of vertically- oriented graphene for field-effect transistor biosensor. Scientific Reports, 2013, 3: 1696-1-6.
[13]	ZHU M Y, OUTLAW R A, BAGGE-HANSEN M , et al. Enhanced field emission of vertically oriented carbon nanosheets synthesized by C₂H₂/H₂ plasma enhanced CVD. Carbon, 2011,49(7):2526-2531.
[14]	SHUAI X, BO Z, KONG J , et al. Wettability of vertically-oriented graphenes with different intersheet distances. RSC Advances, 2017,7(5):2667-2675.
[15]	OUYANG B, ZHANG Y, ZHANG Z , et al. Green synthesis of vertical graphene nanosheets and their application in high- performance supercapacitors. RSC Advances, 2016,6(28):23968-23973.
[16]	MA Y, WANG M, KIM N , et al. A flexible supercapacitor based on vertically oriented ‘graphene forest’ electrodes. Journal of Materials Chemistry A, 2015,3(43):21875-21881.
[17]	WANG M, MA Y . Nitrogen-doped graphene forests as electrodes for high-performance wearable supercapacitors. Electrochimica Acta, 2017,250:320-326. DOI URL
[18]	WANG Z L . Triboelectric nanogenerators as new energy technology for self-powered systems and as active mechanical and chemical sensors. ACS Nano, 2013,7(11):9533-9557. DOI URL
[19]	ZHU G, PAN C, GUO W ,et al. Triboelectric-generator-driven pulse electrodeposition for micropatterning. Nano Letters, 2012,12(9):4960-4965.
[20]	TANG W, JIANG T, FAN F R ,et al. Liquid-metal electrode for high-performance triboelectric nanogenerator at an instantaneous energy conversion efficiency of 70.6%. Advanced Functional Materials, 2015,25(24):3718-3725.
[21]	ZHU G, LIN Z H, JING Q , et al. Toward large-scale energy harvesting by a nanoparticle-enhanced triboelectric nanogenerator. Nano Letters, 2013,13(2):847-853.
[22]	HE X, ZI Y, GUO H , et al. A highly stretchable fiber-based triboelectric nanogenerator for self-powered wearable electronics. Advanced Functional Materials, 2017, 27(4): 1604378-1-8.
[23]	PU X, LIU M, CHEN X , et al. Ultrastretchable. Ultrastretchable, transparent triboelectric nanogenerator as electronic skin for biomechanical energy harvesting and tactile sensing. Science Advances, 2017, 3(5): e1700015-1-11. DOI URL
[24]	KIM S, GUPTA M K, LEE K Y , et al. Transparent flexible graphene triboelectric nanogenerators. Advanced Materials, 2014,26(23):3918-3925.
[25]	YANG J, LIU P, WEI X , et al. Surface engineering of graphene composite transparent electrodes for high performance flexible triboelectric nanogenerators and self-powered sensors. ACS Applied Materials & Interfaces, 2017,9(41):36017-36025.
[26]	FERRARI A C, BASKO D M . Raman spectroscopy as a versatile tool for studying the properties of graphene. Nature Nanotechnology, 2013,8(4):235-246. DOI
[27]	MALARD L M PIMENTA M A A DRESSELHAUS G , et al. Raman spectroscopy in graphene. Physics Reports, 2009,473(5/6):51-87.
[28]	REINA A, JIA X, HO J , et al. Large area, few-layer graphene films on arbitrary substrates by chemical vapor deposition. Nano Letters, 2009,9(1):30-35.
