[100]、[110]、[111] CeB6单晶区熔生长与热电子发射性能研究

doi:10.15541/jim20170539

摘要/Abstract

摘要：

结合放电等离子烧结技术和光学区熔法成功制备了CeB₆单晶, 采用X射线劳埃定向系统对单晶的晶向进行分析并精密切割, 获得了[100]、[110]、[111] 取向的CeB₆单晶, 重点对[100] CeB₆单晶的结构和晶体质量进行系统表征和分析, 结果表明获得的[100] CeB₆单晶晶体质量高, 完整性好, 半高宽仅为0.24^o。热电子发射性能测试结果表明, 随着阴极温度从1773 K增加到1973 K, [100]、[110]、[111] 单晶的最大发射电流密度分别增加了2.6、3.2、1.5倍。[100] CeB₆单晶具有最好的热发射性能, 在阴极加热温度T=1973 K、外加电压4 kV时, 最大发射电流密度达到64.77 A·cm^-2, 有效逸出功为2.821 eV, 其最大发射电流密度值高于目前文献已报道水平。实验结果显示, 实验制备得到的[100] CeB₆单晶的热电子发射性能非常优异, 具有良好的应用前景。

关键词: 光学区熔法, CeB₆单晶, 热电子发射性能, [100] CeB₆单晶

Abstract:

High-quality CeB₆ single crystal was successfully prepared by optical floating zone method combining spark plasma sintering. [100], [110], [111] CeB₆ single crystals were obtained by X-ray Laue directional system equipped with precision cutting system. The structure and crystal quality of [100] CeB₆ single crystal was given emphasis to analyze and characterize. The results show that [100] CeB₆ single crystal exhibits good quality with the full width at half-maxmium (FWHM) of 0.24^o. With the increase of the cathode temperature from 1773 K to 1973 K, the maxmium emission current density of [100], [110], [111] single crystal improved by 3.6, 4.2 and 2.5 times, respectively. [100] CeB₆ single crystal possesses the best thermionic emission performance: the maxmium emission current density reaches 64.77 A·cm^-2 at 1973 K and applied voltage of 4 kV, which is larger than that of reported values in the literature up to now, and the effective work function is 2.821 eV. Therefore, [100] CeB₆ single crystal with excellent thermionic emission properties will have proming application prospects.

Key words: optical floating zone method, CeB₆ single crystal, thermionic emission properties, [100] CeB₆single crystal

中图分类号:

TQ174

王衍, 张久兴, 杨新宇, 赵晶晶, 宁舒羽, 李志. [100]、[110]、[111] CeB₆单晶区熔生长与热电子发射性能研究[J]. 无机材料学报, 2018, 33(9): 981-986.

WANG Yan, ZHANG Jiu-Xing, YANG Xin-Yu, ZHAO Jing-Jing, NING Shu-Yu, LI Zhi. Floating Zone Growth and Thermionic Emission Property of [100], [110], [111] CeB₆ Single Crystal[J]. Journal of Inorganic Materials, 2018, 33(9): 981-986.

图/表 10

图1 熔区状态照片

Fig. 1 Photograph of molten zone state(a) Feed and seed rod began to melt; (b) Stable molten zone formed; (c) Orientated growth of CeB6 single crystal; (d) Molten zone narrowed down

图2 CeB6单晶实物照片

Fig. 2 Photograph of CeB6 single crystal

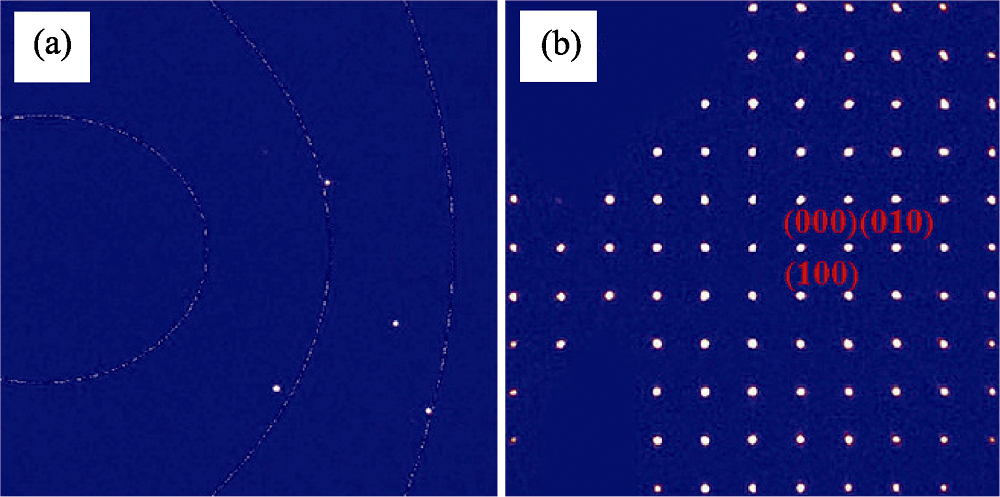

图3 单晶X射线衍射图谱

Fig. 3 Single crystal X-ray diffraction photographs==(a) Typical diffraction pattern; (b) Diffraction pattern along the <001> direction

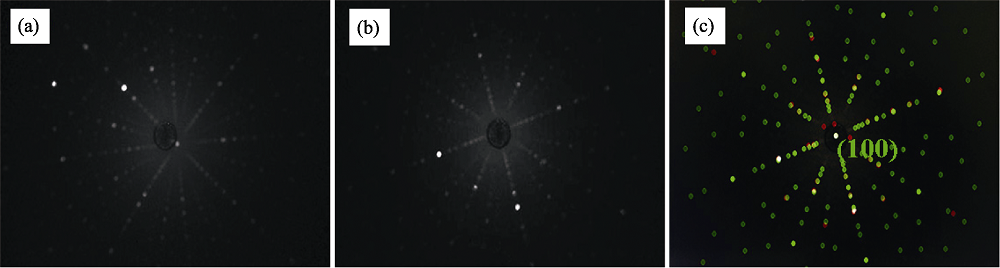

图4 CeB6单晶劳埃衍射照片

Fig. 4 Laue diffraction patterns of CeB6 single crystal(a) Laue diffraction spots of growth plane; (b) Laue diffraction spots of [100] CeB6 single crystal; (c) Comparison diagram of [100] CeB6 single crystal with standard diffraction spots

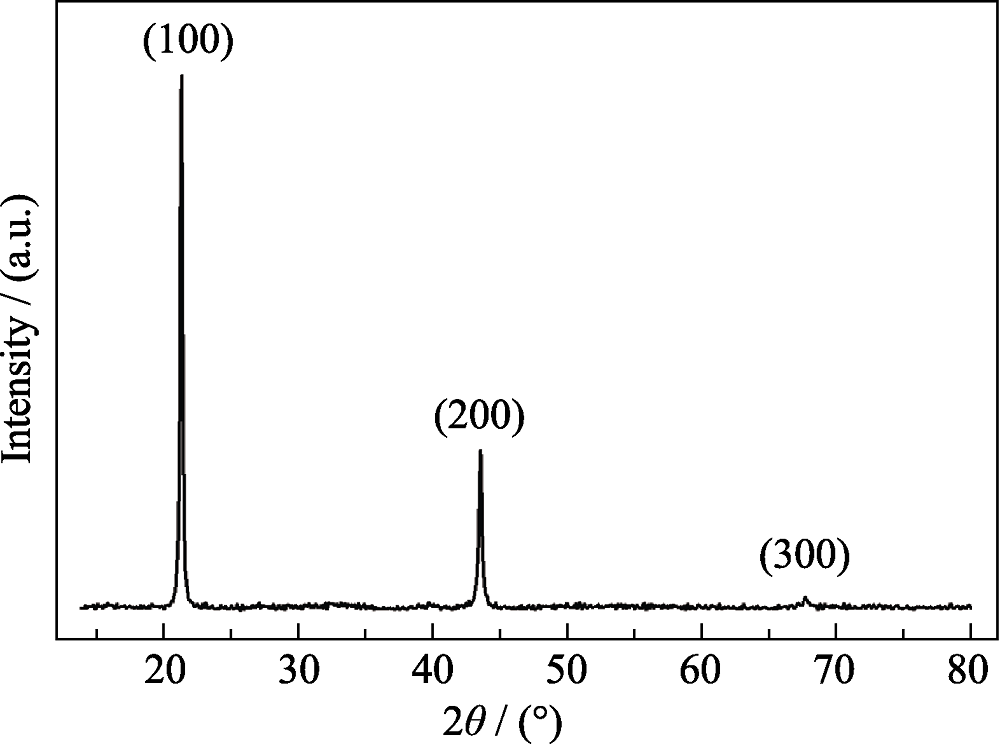

图5 [100] CeB6单晶XRD图谱

Fig. 5 XRD pattern of [100] CeB6 single crystal

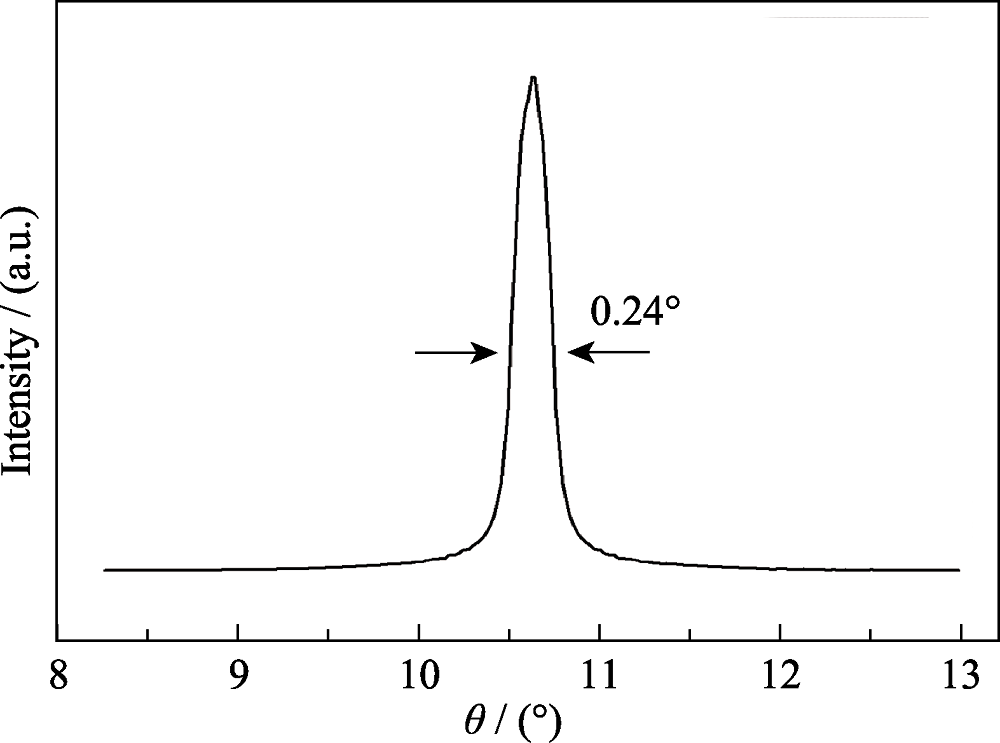

图6 [100] CeB6单晶摇摆曲线图

Fig. 6 X-ray rocking curve of [100] CeB6 single crystal

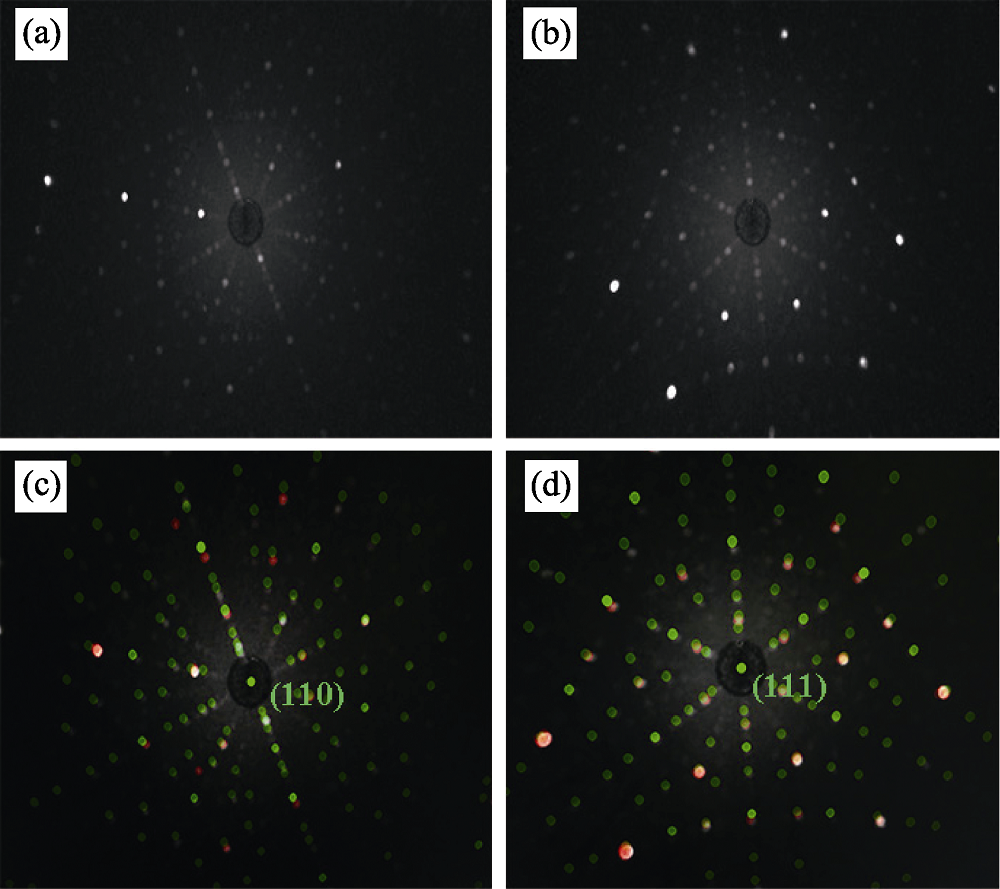

图7 [110](a)和[111](b) CeB6单晶的劳埃衍射照片

Fig. 7 Laue diffraction patterns of [110] (a) and [111] (b) CeB6 single crystal; (c) Comparison diagram of [110] single crystal; (d) Comparison diagram of [111] single crystal

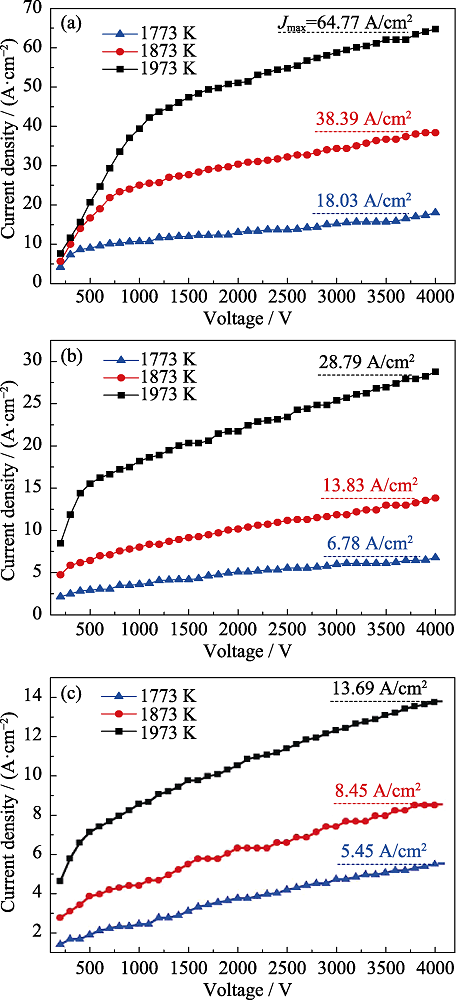

图8 [100]、[110]和[111] CeB6单晶的J-U曲线图

Fig. 8 J-U curves of CeB6 single crystal(a) [100]; (b) [110]; (c) [111]

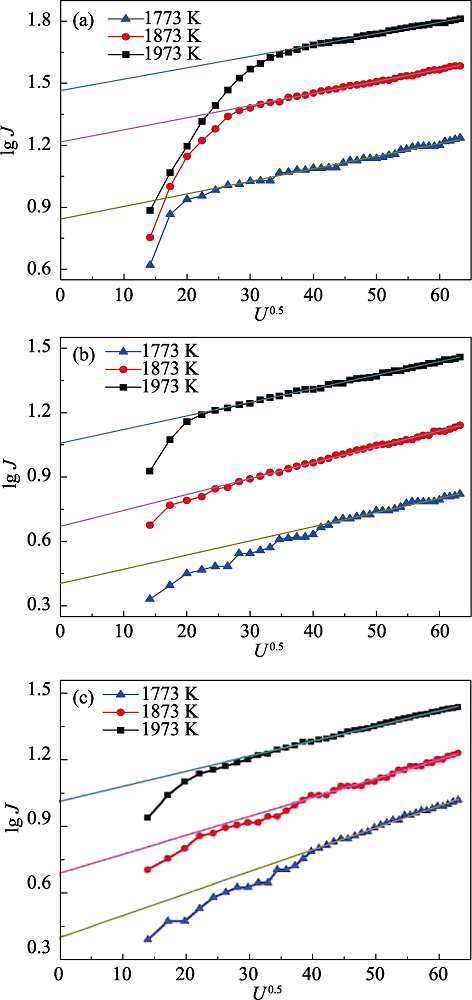

图9 [100]、[110]、[111] CeB6单晶的lgJ-U0.5曲线图

Fig. 9 lgJ-U0.5 curves of CeB6 single crystal(a) [100]; (b) [110]; (c) [111]

表1 [100]、[110]、[111] CeB6单晶不同阴极温度时的零场发射电流密度J0和有效逸出功Φeff值

Table 1 Zero emission current density J0 and effective work function Φeff of [100], [110], [111] CeB6 single crystal at different temperatures

T/K	lg J₀			J₀/(A·cm^-2)			Φ_eff/eV
T/K	[100]	[110]	[111]	[100]	[110]	[111]	[100]	[110]	[111]
1773	0.844	0.405	0.143	6.975	2.540	1.389	2.721	2.875	2.968
1873	1.216	0.671	0.419	16.455	4.683	2.626	2.754	2.956	3.050
1973	1.465	1.058	0.730	29.182	11.428	5.373	2.821	2.980	3.109

参考文献 27

[1]	LAFFERTY J M.Boride cathodes.Journal of Applied Physics, 1951, 22(3): 299-309.
[2]	MANDRUS D, SALES B C, JIN R. Localized vibrational mode analysis of the resistivity and specific heat of LaB6. Phys. Rev. B, 2001, 64(1): 012302-1-4.
[3]	BAI L, MA N, LIU F.Structure and chemical bond characteristics of LaB6.Physical B Condensed Matter, 2009, 404(21): 4086-4089.
[4]	MONNIER R, DELLEY B. Properties of LaB6 elucidated by density functional theory. Phys. Rev. B, 2004, 70(19): 193403-1-4.
[5]	WANG P, ZHANG J, YANG X, et al. Preparation and properties of (Ce0.4La0.2Pr0.2Nd0.2)B6 single-crystal by the optical float-zone traveling solvent technique. Crystal Research & Technology, 2017, 52(11): 1700159-1-5.
[6]	OGITA N, NAGAI S, UDAGAWA M,et al. Raman scattering study of rare-earth hexaboride. Physica B Physics of Condensed Matter, 2005, 359(361): 941-943.
[7]	TANAKA Y, STAUB U, NARUMI Y,et al. Non-resonant X-ray Bragg diffraction by CeB6. Physica B Condensed Matter, 2004, 345: 78-81.
[8]	BAKR M, KAWAI M, KII T,et al. CeB6: emission performance and uniformity compared with LaB6 for thermionic RF guns. IEEE Transactions on Electron Devices, 2016, 63(3): 1326-1332.
[9]	ZHANG FAN-XING, ZHANG XIN, ZHANG JIU-XING,et al. Synthesis and properties of single crystal Ce1-xPrxB6 by floating zone melting. Journal of Inorganic Materials, 2014, 29(10): 1073-1076.
[10]	GAO RUI-LAN, YU HUA-SHUN, YU PU-LIAN,et al. Preparation of LaB6 polycrystalline materials. Journal of Shandong University (Engineering Science), 2002, 32(6): 593-596.
[11]	KARTHISELVA N S, MURTY B S, BAKSHI S R.Low temperature synthesis of dense and ultrafine grained zirconium diboride compacts by reactive spark plasma sintering.Scripta Materialia, 2016, 110: 78-81.
[12]	ZHOU SHEN-LIN, ZHANG JIU-XING, LIU DAN-MIN,et al. Properties of CeB6 cathode fabricated by spark plasma reactive liquid phase sintering method. Journal of Inorganic Materials, 2009, 24(4): 793-797.
[13]	LI LU-LU, ZHANG XIN, LIU HONG-LIANG,et al. Synthesis and thermionic emission performance of single crystal La1-xNdxB6. Mater. Rev., 2017, 31(18): 21-24.
[14]	LU QING-LIANG, MIN GUANG-HUI, YU HUA-SHUN,et al. Development and character of preparation methods of LaB6 single crystal. Mater. Rev., 2005, 19(9): 5-7.
[15]	ZHANG H, ZHANG Q, TANG J,et al. Single-crystalline CeB6 nanowires. Journal of the American Chemical Society, 2005, 127(22): 8002-8003.
[16]	FUTAMOTO M, NAKAZAWA M, KAWABE U.Thermionic emission properties of hexaborides.Surface Science, 1980, 100(3): 470-480.
[17]	HOHN F J, CHANG T H P, BROERS A N,et al. Fabrication and testing of single-crystal lanthanum hexaboride rod cathodes. Journal of Applied Physics, 1982, 53(3): 1283-1296.
[18]	OTANI S, NAKAGAWA H, NISHI Y,et al. Floating zone growth and high temperature hardness of rare-earth hexaboride crystals: LaB6, CeB6, PrB6, NdB6 and SmB6. Journal of Solid State Chemistry, 2000, 154(1): 238-241.
[19]	BAO L H, ZHANG J X, ZHOU S L,et al. Floating zone growth and thermionic emission property of single crystal CeB6. Chinese Physics Letters, 2011, 28(8): 1-4.
[20]	SCHMIDT P H, JOY D C.Low work function electron emitter hexaborides.Journal of Vacuum Science & Technology, 1978, 15(6): 1809-1810.
[21]	UIJTTEWAAL M A, DE WIJS G A, DE GROOT R A. Ab initio and work function and surface energy anisotropy of LaB6.Journal of Physical Chemistry B, 2006, 110(37): 18459-18465.
[22]	YAMAMOTO N, ROKUTA E, HASEGAWA Y,et al. Oxygen adsorption sites on the PrB6(100) and LaB6, 1996, 348: 133-142.
[23]	OTANI S, ISHIZAWA Y.Thermionic emission properties of boron-rich LaB6 and CeB6 crystal cathodes.Journal of Alloys & Compounds, 1996, 245: L18-L20.
[24]	SMITH A L, BREIWIESER R.Richardson-Dushman equation monograph.Journal of Applied Physics, 1970, 41(1): 436-437.
[25]	BACK T C, SCHMID A K, FAIRCHILD S B,et al. Work function characterization of directionally solidified LaB6-VB2 eutectic. Ultramicroscopy, 2017, 183: 67-71.
[26]	CHEN X, SANAMARTIN J R. Low work-function thermionic emission and orbital-motion-limited ion collection at bare-tether cathodic contact. Physics of Plasmas, 2015, 22(5): 053504-1-10.
[27]	YAO JIAN-FENG, CHEN XU, JIANG JIAN-PING,et al. Experimental study on the emission property of the monocrystal and polycrystal LaB6 cathodes. Vacuum Electronics, 2002, 1: 1-4.
