TiO2微波碳热合成纳米TiC及其转化过程研

doi:10.15541/jim20160642

无机材料学报 ›› 2017, Vol. 32 ›› Issue (9): 991-996.DOI: 10.15541/jim20160642 CSTR: 32189.14.10.15541/jim20160642

TiO₂微波碳热合成纳米TiC及其转化过程研

袁振侠¹, 陆有军^{1, 2}, 陈炜晔¹, 吴澜尔^{1, 2}

(北方民族大学 1. 材料科学与工程学院; 2. 粉体材料与特种陶瓷省部共建重点实验室, 银川750021)

收稿日期:2016-11-25 修回日期:2016-01-05 出版日期:2017-09-30 网络出版日期:2017-08-29
作者简介:袁振侠(1992-), 男, 硕士研究生. E-mail: 2394053570@qq.com
基金资助:
国家自然科学基金(51662002);国家民委科研项目(14BFZ006);2015年宁夏回族自治区科技创新领军人才项目

Preparation of TiC Nano-particles and Transformation of TiO₂ via Microwave Carbothermic Reduction Rout

YUAN Zhen-Xia¹, LU You-Jun^{1, 2}, CHEN Wei-Ye¹, WU Lan-Er^{1, 2}

(1. School of Material Science and Engineering, Beifang University of Nationalities, Yinchuan 750021, China 2. Key Laboratory of Powder Materials & Special Ceramics, Beifang University of Nationalities, Yinchuan 750021, China)

Received:2016-11-25 Revised:2016-01-05 Published:2017-09-30 Online:2017-08-29
About author:YUAN Zhen-Xia. E-mail: 2394053570@qq.com
Supported by:
National Natural Science Foundation of China (51662002);Project of State Ethnic Affairs Commission (14BFZ006);Innovative Talents of Ningxia

摘要/Abstract

摘要：

以TiO₂和纳米炭黑为原料, 机械干法混合后, 在Ar气氛下微波碳热合成纳米TiC。合成产物通过XRD和SEM进行表征, 研究了TiO₂粒径、反应温度、保温时间对微波碳热合成纳米TiC物相、显微形貌和TiO₂自身转化率的影响。实验结果表明, 微波碳热还原合成纳米TiC经1300℃保温40 min和1400℃保温30 min可使TiO₂充分反应, 且粒径为40 nm的TiO₂的转化率可达到98.2%, 合成的TiC粒度分布均匀, 平均粒径约小于100 nm。此外, 根据固相扩散机制对不同反应温度下两种粒径TiO₂转化率随时间的变化进行了Avrami方程拟合, 并绘制了两种粒径TiO₂的转化曲线, 为TiO₂与纳米炭黑微波合成纳米TiC提供理论参考。

关键词: 纳米TiC, 微波合成, 物相分析, 扩散机制

Abstract:

TiC powders were prepared via microwave carbothermic reduction in Ar with TiO₂ and nano-carbon black as starting materials. Effects of TiO₂ particle sizes, temperature and holding time on phase compositions, particle morphologies and TiC yields in the reaction products were investigated by means of X-ray diffraction (XRD) and scanning electron microscopy (SEM). Avrami equation was fitted to the change of TiO₂ conversion with time at different temperatures. Results show that TiO₂ powders with average diameters ranging from 40 to 400 nm were fully reduced at 1300-1400℃ for 30-40 min with TiC yield as high as 98.2%. TiC powder with uniform particle size less than 100 nm was obtained in case of reaction at 1400℃ for 30 min by using 40 nm TiO₂ as starting material. Transformation curves of TiO₂ were prepared for the synthesis of nano-TiC by microwave carbothermic reduction.

Key words: nano-TiC, microwave synthesis, phase analysis, diffusion mechanism

中图分类号:

TQ174

袁振侠, 陆有军, 陈炜晔, 吴澜尔. TiO₂微波碳热合成纳米TiC及其转化过程研[J]. 无机材料学报, 2017, 32(9): 991-996.

YUAN Zhen-Xia, LU You-Jun, CHEN Wei-Ye, WU Lan-Er. Preparation of TiC Nano-particles and Transformation of TiO₂ via Microwave Carbothermic Reduction Rout[J]. Journal of Inorganic Materials, 2017, 32(9): 991-996.

图/表 7

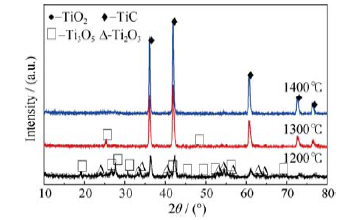

图1 40 nm的TiO2在不同温度反应30 min产物的XRD图谱

Fig. 1 XRD patterns of the products synthesized at different temperatures for 30 min by using 40 nm TiO2 powders

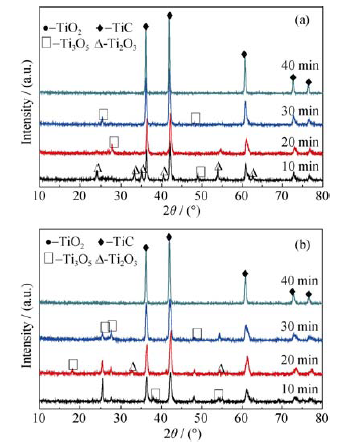

图2 40 nm(a)和400 nm(b)的TiO2在1300℃合成产物的XRD图谱

Fig. 2 XRD patterns of products synthesized at 1300℃ using 40 nm (a) and 400 nm (b) TiO2 powders as raw material

图3 不同粒径TiO2 1300℃-40min合成产物的XRD图谱

Fig. 3 XRD patterns of products synthesized at 1300℃ for 40 min using TiO2 powders with different particle sizes as raw material

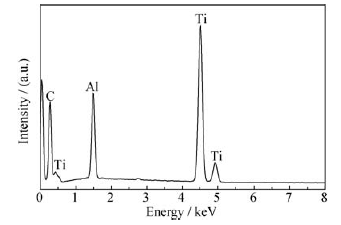

图4 合成TiC颗粒的EDS能谱图

Fig. 4 EDS spectrum of the synthesized TiC grain

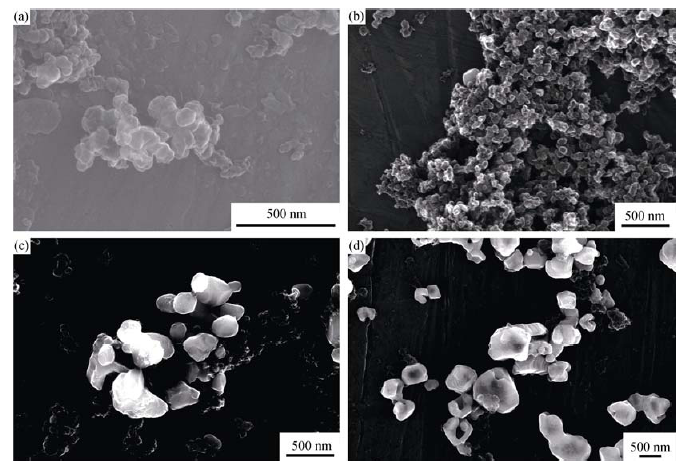

图5 不同条件下合成TiC的SEM照片

Fig. 5 SEM images of TiC powder prepared under different conditions (a) 40 nm TiO2, 1400℃-30 min; (b) 400 nm TiO2, 1400℃-30 min; (c) 40 nm TiO2, 1300℃-40 min; (d) 400 nm TiO2, 1300℃-40 min

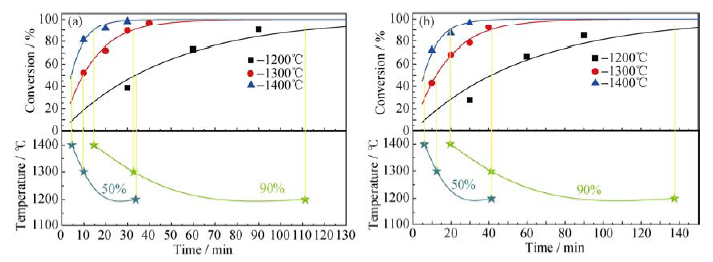

图6 40 nm(a)和400 nm(b) 的TiO2不同温度Avrami方程拟合图及其温度-时间-转化曲线

Fig. 6 Fitting curves of Avrami equation at different temperature and the Temperature-Time-Conversion graph using 40 nm (a) and 400 nm (b) TiO2 powders as raw material

表1 40 nm和400 nm TiO2不同温度下反应的扩散系数

Table 1 Diffusion coefficient of the reaction system at different temperature using 40 nm TiO2 and 400 nm TiO2 powders as raw material

d₅₀/nm	Temperature/℃	D	Standard error
40	1200	0.02063	0.00255
	1300	0.07091	0.00353
	1400	0.15901	0.01508
400	1200	0.01677	0.00288
	1300	0.05615	0.00221
	1400	0.11888	0.00899

参考文献 35

[1]	MAO J, LI S, ZHANG Y,et al. The stability of TiC surfaces in the environment with various carbon chemical potential and surface defect. Applied Surface Science, 2016, 386: 202-209.
[2]	Li Y L, TAKAMASA I.Incongruent vaporization of titanium carbide in thermal plasm.Materials Science & Engineering A, 2003, 345(1/2): 301-308.
[3]	XUE J X, LIU J X, ZHANG G J,et al. Improvement in mechanical/physical properties of TiC-based ceramics sintered at 1500℃ for inert matrix fuel. Scripta Materialia, 2016, 114(3): 5-8.
[4]	DING L, XIANG D P, PAN Y L,et al. In situ synthesis of TiC cermet by spark plasma reaction sintering.Journal of Alloys & Compounds, 2015, 661: 136-140.
[5]	ACHARYA S, DEBATA M, ACHARYA T S,et al. Influence of nickel boride addition on sintering behaviour and mechanical properties of TiC-Ni based cermet. Journal of Alloys & Compounds, 2016, 685: 905-912.
[6]	WANG Z, LIN T, HE X,et al. Fabrication and properties of the TiC reinforced high-strength steel matrix composit. International Journal of Refractory Metals & Hard Materials, 2016, 58: 14-21.
[7]	MIAO S, XIE Z M, ZHANG T,et al. Mechanical properties and thermal stability of rolled W-0.5wt% TiC alloy. Materials Science & Engineering A, 2016, 671: 87-95.
[8]	YOSHIOKA S, BOATEMAA L, ZWAAG S V D,et al.On the use of TiC as high-temperature healing particles in alumina based composite. Journal of the European Ceramic Society, 2016, 36(16): 4155-4162.
[9]	LU JUN, ZHENG ZHI-XIANG, DING HOU-FU,et al.Surface crack-healing of Al2O3 ceramic-matrix composite. Journal of Inorganic Materials, 2001, 16(3): 535-540.
[10]	OLÁH N, FOGARASSY Z, SULYOK A,et al. Ceramic TiC/a: C protective nanocomposite coatings: Structure and composition versus mechanical properties and tribolog. Ceramics International, 2016, 42(10): 12215-12220.
[11]	SAHOO C K, SONI L, MASANTA M.Evaluation of microstructure and mechanical properties of TiC/TiC-steel composite coating produced by gas tungsten arc (GTA) coating proces.Surface & Coatings Technology, 2016, 307: 17-27.
[12]	ZHAO X, ZHUO Y, LIU S,et al. Investigation on WC/TiC interface relationship in wear-resistant coating by first-principle. Surface & Coatings Technology, 2016, 305: 200-207.
[13]	SHAHBAHRAMI B, HAKAMI M, BASTAMI H,et al. Synthesis of titanium carbide powder by carbothermic reduction metho. Material Research Innovations, 2010, 14(1): 87-88.
[14]	REN R M, YANG Z G, SHAW L L.Synthesis of nanostructured TiC via carbothermic reduction enhanced by mechanical activatio. Scripta Materialia, 1998, 38(5): 735-741.
[15]	KOC R, FOLMER J S.Synthesis of submicrometer titanium carbide powder. Journal of the American Ceramic Society, 1997, 80(4): 952-956.
[16]	BENOIT C, ELLEN H, NIKHIL K,et al. TiC nucleation/growth processes during SHS reaction. Powder Technology, 2005, 157(1): 92-99.
[17]	YU YIN-HU, WANG TAO, ZHANG HONG-MIN,et al. Low temperature combustion synthesis of TiC powder induced by PTF. Journal of Inorganic Materials, 2015, 30(3): 272-276.
[18]	CETINKAYA S, EROGLU S.Chemical vapor deposition of carbon on particulate TiO2, from CH4, and subsequent carbothermal reduction for the synthesis of nanocrystalline TiC powder.Journal of the European Ceramic Society, 2011, 31(5): 869-876.
[19]	PREISS H, BERGER L M, SCHULTZE D.Studies on the carbothermal preparation of titanium carbide from different gel precursor.Journal of the European Ceramic Society, 1999, 19(17): 195-206.
[20]	LEE D W, ALEXANDROVSKII S, KIM B K.Mg-thermal reduction of TiCl4+CxCl4, solution for producing ultrafine titanium carbid.Materials Chemistry & Physics, 2004, 88(l): 23-26.
[21]	CLICHE G, DALLAIRE S.Synthesis of TiC and (Ti, W)C in solvent metal.Material Science & Engineering A, 1991 , 148(2): 319-328.
[22]	RAHAEI M B, RAD R Y, KAZEMZADEH A,et al. Mechanochemical synthesis of nano TiC powder by mechanical milling of titanium and graphite powder. Powder Technology, 2012, 217(2): 369-376.
[23]	MOHAPATRA S, MISHRA D K, SINGH S K.Microscopic and spectroscopic analyses of TiC powder synthesized by thermal plasma techniqu.Powder Technology, 2013, 237(176): 41-45.
[24]	GUNNEWIEK R F K, SOUTO P M, KIMINAMI R H G A. Microwave-assisted synthesis of TiC by carbothermal reductio.Processing and Properties of Advanced Ceramics and Composites IV: Ceramic Transactions, 2012, 234: 93.
[25]	AHMAD I, DALTON R, CLARK D.Unique application of microwave energy to the processing of ceramic material.Microwave Power and Electromagnetic Energy, 1991, 26(3): 128-138.
[26]	HASSINE N A, BINNER J G P, CROSS T E. Synthesis of refractory metal carbide powdersvia microwave carbothermal reductio. International Journal of Refractory Metals & Hard Materials, 1995, 13(6): 353-358.
[27]	LIU YANG, ZENG LING-KE, HU XIAO-LI.Thermodynamic studies on microwave synthesis of nano-TiC powder.China Ceramic Industry, 2003, 10(3): 20-23.
[28]	刘韩星, 欧阳世翕. 无机材料微波固相合成方法与原理. 北京: 科学出版社, 2006: 104.
[29]	KARAMANOV A, AVRAMOV I, ARRIZZA L,et al. Variation of Avrami parameter during non-isothermal surface crystallization of glass powders with different size. Journal of Non-Crystalline Solids, 2012, 358(12/13): 1486-1490.
[30]	CELIK F A, KAZANC S.Crystallization analysis and determination of Avrami exponents of CuAlNi alloy by molecular dynamics simulatio.Physica B Condensed Matter, 2013, 409(1): 63-70.
[31]	KARMAKAR P, SUBUDHI A K, BISWAS K,et al.Crystallization kinetics analysis of BaF2, and BaGdF5, nanocrystals precipitated from oxyfluoride glass systems: a comparative stud. The- mochimica Acta, 2015, 610: 1-9.
[32]	ARSHAD M A, MAAROUFI A K.Relationship between Johnson- Mehl-Avrami and Šesták-Berggren models in the kinetics of crys-tallization in amorphous material.Journal of Non-Crystalline Solids, 2015, 413(6/7): 53-58.
[33]	ZHOU YI-MING, XIN XIN-QUAN.Synthetic chemistry for solid state reaction at low-heating temperature.Chinese Journal Of Inorganic Chemistry, 1999, 15(3): 273-292.
[34]	YUAN ZHENG-XIA, LU YOU-JUN, WU LAN-ER.Synthesis SiC powder from silicon and carbon blackvia microwave heating route. Advanced Ceramics, 2016, 37(3): 190-197.
[35]	AFIR A, ACHOUR M, SAOULA N.X-ray diffraction study of Ti-O-C system at high temperature and in a continuous vacuu.Journal of Alloys & Compounds, 1999, 288(1/2): 124-140.
