UiO-67基导电复合材料的制备及其热电性能研究
UiO-67 Based Conductive Composites: Preparation and Thermoelectric Performance
通讯作者: 王连军, 教授. E-mail:wanglj@dhu.edu.cn;郑 琦, 副教授. E-mail:qi.zheng@dhu.edu.cn
收稿日期: 2023-04-18 修回日期: 2023-05-23 网络出版日期: 2023-06-16
基金资助: |
|
Corresponding authors: WANG Lianjun, professor. E-mail:wanglj@dhu.edu.cn;ZHEN Qi, associate professor. E-mail:qi.zheng@dhu.edu.cn
Received: 2023-04-18 Revised: 2023-05-23 Online: 2023-06-16
Fund supported: |
|
热电材料能够实现热能与电能之间直接转换, 在绿色制冷、废热回收等领域具有广阔的应用前景。目前, 对热电材料的研究主要集中在无机半导体材料和导电高分子材料上, 虽然取得了很大进展, 但探索其它新型热电材料仍具有重要意义。金属-有机框架(Metal-Organic frameworks, MOFs)是一种由有机配体和金属离子或团簇通过配位键形成的晶态多孔材料, 具有独特的多孔结构以及组分结构可调等优势, 在一定程度上可以满足“电子晶体-声子玻璃”的要求。本研究采用导电客体分子促进电荷传输的策略, 将导电高分子聚3,4-乙烯二氧噻吩(PEDOT)原位聚合到锆基MOFs材料UiO-67中, 利用MOFs的有序孔道对PEDOT分子链的限域作用, 提升复合材料的电子传导能力。制备得到的PEDOT/UiO-67的电学性能研究表明, 该复合材料室温电导率最高可达5.96×10−3 S·cm−1, 比PEDOT高出1个数量级。同时, 该材料具有热电性能响应, 室温功率因子(Power Factor, PF)最高可达3.67×10−2 nW·m−1·K−2。本工作以MOF的有序孔道为反应平台, 通过简单的原位聚合合成方法构建了导电聚合物/ MOFs导电材料, 为进一步开发MOFs基热电材料提供了参考。
关键词:
Thermoelectric materials are functional materials that can realize the direct conversion between heat and electricity, which have great prospects in the field of green refrigeration and waste heat recovery. To date, researches on thermoelectric materials mainly focus on semiconducting inorganic materials and conductive polymers. Although great progress has been made regarding material design and performance improvement, it is still of great significance to explore and expand thermoelectric candidates for potential application. Metal-organic frameworks (MOFs) are porous extended solids formed by coordination bonds between organic ligands and metal ions or metal clusters. They are promising candidates in the field of thermoelectrics due to their unique porous structure as well as tunable composition and structure, which could meet the requirement of "electron crystal-phonon glass". In this work, conductive polymer, poly(3, 4-vinyl dioxythiophene) (PEDOT) was in-situ polymerized in Zr-based MOFs UiO-67 through “conductive guest-promoted transport” approach. The confined effects originated from porous structures of MOFs on molecular chains of PEDOT effectively improve electrical conductivity of the composites. As a result, the prepared composites exhibit an electrical conductivity up to 5.96×10−3 S·cm−1 at room temperature, which is one order of magnitude higher than the corresponding PEDOT. Correspondingly, their power factor (PF) is up to 3.67×10−2 nW·m−1·K−2 at room temperature. In conclusion, this work uses ordered porous structures of MOFs as reaction platform and constructs conductive polymer/MOFs conductive materials by facile in-situ polymerization methods, providing a reference for further development of MOFs-based thermoelectric materials.
Keywords:
本文引用格式
江润璐, 吴鑫, 郭昊骋, 郑琦, 王连军, 江莞.
JIANG Runlu, WU Xin, GUO Haocheng, ZHENG Qi, WANG Lianjun, JIANG Wan.
迄今为止, 热电材料的研究大多集中于导电聚合物[4-5]和无机半导体材料[6-7], 虽然取得了显著进展, 但探索具有优异热电性能的新型材料仍具有重要意义。金属-有机框架(Metal-Organic Frameworks, MOFs)是一种由金属离子或团簇和有机配体通过配位键形成的晶态多孔材料[8], 具有比表面积高、结构组分可调等优势, 在催化[9]、气体存储[10]、分离[11]等领域应用广泛。MOFs的多孔结构会强烈散射声子[12], 使其具有本征低热导率。此外, 由于电子和声子的波长不同, 连续的非孔区域仍可提供有效的电荷传输路径[13-14], 在一定程度上满足“电子晶体-声子玻璃”, 即理想热电材料的要求[14], 因而近年来MOF基热电材料引起了广泛关注。然而, MOFs固有的低电导率限制了其在热电材料的发展。目前主要通过两种策略提高MOFs的电导率, 第一种策略是开发本征导电的MOFs基热电材料, 即通过合理选择金属离子和配体种类促进相邻的共轭基团或金属-配体之间电荷转移, 或形成框架拓扑结构设计合成2D导电MOF基热电材料[15]。例如, Dincǎ课题组[16]报道了高导电的2D MOF Ni3(HITP)2 (HITP= 2,3,6,7,10,11-六氨基三苯), 电导率可达50 S·cm-1, 尽管其塞贝克系数较低, 仅为11.9 μV·K-1, 但Ni3(HITP)2本征周期性的微孔结构可以有效散射声子, 降低热导率(κ=0.21 W·m-1·K-1), 提高热电性能, MOF基热电材料在室温下获得了较高的ZT(1.19×10-3)。朱道本课题组[17]制备了二维拓扑结扑结构的Ni-PTC(PTC=1,2,3,4,5,6,7,8,9,10,11,12-过硫醇化六苯并苯), 其电导率和塞贝克系数分别为9 S·cm-1和47 μV·K-1, 具有良好的热电性能。第二种策略是将导电客体分子, 如导电聚合物、氧化还原活性分子等与MOFs复合, 构建客体分子/MOF基复合体系, 从而提升MOFs的电导率。Talin课题组[18]将四氰基对醌二甲烷(TCNQ)引入Cu3(BTC)2中, 随着TCNQ含量增大, 复合薄膜的电导率从10-8 S·cm-1提升至0.07 S·cm-1, 塞贝克系数可达375 μV·K-1,同时该薄膜还具有0.27 W·m-1·K-1的低热导率。Le Ouay等[13]将导电聚合物PEDOT引入Cr-MIL-101的孔道中, 通过调控PEDOT含量, 使PEDOT@Cr-MIL-101的电导率最高可达1.1×10-3 S·cm-1。相比于利用拓展共轭策略构建本征导电的MOFs, 第二种策略合成工艺更简便, 同时可通过调控导电客体分子种类、MOF孔结构调节复合体系的电导率。例如, 已有研究发现MOF的孔道类型也可直接影响复合材料的电导率, 相比于三维孔道结构的MOFs, 当PEDOT与一维通道的La(BTC)复合时, 电导率显著下降, 仅为2.3×10-8 S·cm-1[13], 这是由于三维骨架结构可容纳更丰富的导电高分子, 链间的相互作用有利于提升电子传输。导电MOF材料目前还处于起步阶段, 相关热电性能的研究仍有限, 但其电荷传输途径可调谐、导热率低和空隙率高等优势使MOFs成为潜在的新型热电材料[16,18-19]。
本工作选取聚3,4-乙烯二氧噻吩(PEDOT)为导电客体, Zr基MOFs材料UiO-67为主体多孔框架, 采用原位聚合的方式制备PEDOT/UiO-67复合材料。通过调节PEDOT含量优化电导率, 并研究其复合物的热电性能, 为设计及开发MOFs基热电材料提供参考。
1 实验方法
1.1 实验试剂
3,4-乙烯二氧噻吩(EDOT)为分析纯, 购于西格玛奥德里奇(上海)贸易有限公司; 八水合氯氧化锆(ZrOCl2·8H2O)、4,4'-联苯二甲酸、碘单质、N,N-二甲基甲酰胺、丙酮、乙醚和甲酸均为分析纯, 购于国药集团上海化学试剂有限公司。
1.2 实验仪器
采用场发射扫描电子显微镜(TESCAN MAIA 3, 捷克共和国)表征样品的微观形貌; 采用具有Cu Kα辐射源(40 kV 200 mA)的DX 2700B型X射线衍射仪(XRD)表征样品结晶特性及物相; 采用UV3600型紫外-可见-近红外光谱仪并以BaSO4作为内标物, 测试样品在300~1500 nm波长范围内的吸收强度; 采用激发波长532 nm的Renishow inVia Reflex型共焦拉曼光谱仪记录样品在500~2000 cm-1波长范围内的拉曼光谱; 采用Quadrachrome型吸附仪测试样品的N2吸附脱附曲线, 并通过Brunauer-Emmett- Teller(BET)模型分析其比表面积; 采用Sinkuriko ZEM-3型热电性能综合测试系统表征样品压片在不同温度下的电导率和塞贝克系数。
1.3 UiO-67的制备
称取0.6 g ZrOCl2·8H2O溶解在50 mL DMF和2.0 mL甲酸的混合溶液中, 在其中加入0.5 g 4,4'-联苯二甲酸, 超声至完全溶解, 随后将溶液转移至100 mL聚四氟乙烯内衬反应釜, 在120 ℃反应24 h, 待反应结束自然冷却至室温。离心收集沉淀, 依次用DMF和丙酮洗涤, 并在120 ℃真空干燥10~15 h, 制得UiO-67粉末[20]。
1.4 PEDOT/UiO-67的制备
在Jadhav等[21]工作的基础上优化UiO-67/PEDOT的合成步骤。分别量取63、94.5、126 μL EDOT溶解在10 mL乙醚中, 并将300 mg UiO-67粉末加入到EDOT的乙醚溶液中, 搅拌45~60 min至混合均匀并室温静置48 h, 在减压条件下抽空处理该悬浮液以除去多余的EDOT单体, 随后将EDOT/UiO-67置于90 ℃密闭环境的碘蒸气中反应48 h。待反应结束自然冷却至室温, 离心收集沉淀, 用正己烷、丙酮、去离子水和正己烷依次洗涤, 并在120 ℃真空干燥12~15 h, 制得PEDOT/UiO-67粉末。取出150 mg样品放入ϕ10 mm的模具中, 利用普通液压机压制成10 mm×10 mm的方形压片用于热电性能测试。根据EDOT的含量, 将制备得到的复合物分别命名为PEDOT/UiO-67(63 μL), PEDOT/UiO-67(94.5 μL), PEDOT/UiO-67(126 μL)。
2 结果与讨论
2.1 PEDOT/UiO-67复合材料的物相和形貌分析
图1
图2
图2

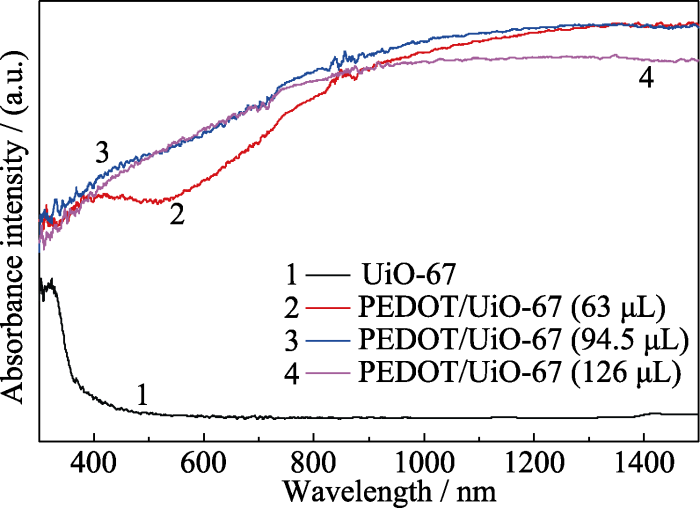

UiO-67和PEDOT /UiO-67的紫外-可见光谱图
Fig. 2
UV-Vis spectra of UiO-67 and PEDOT/UiO-67
Colorful figures are available on website
图3
图3

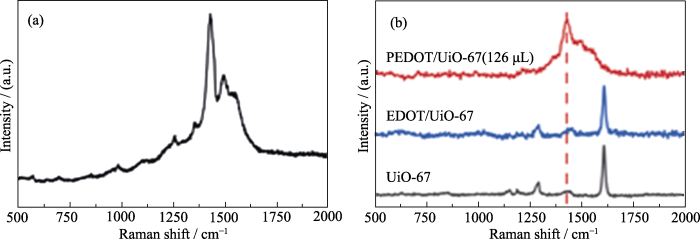

(a)PEDOT、(b)UiO-67、EDOT/UiO-67和PEDOT/UiO-67(126 μL)的拉曼光谱图
Fig. 3
Raman spectra of (a) PEDOT, and (b) UiO-67, EDOT/UiO-67 and PEDOT/UiO-67(126 μL)
图4为PEDOT/UiO-67的场发射扫描电子显微镜(FESEM)照片, 图中显示, UiO-67纳米颗粒呈不规则球状, ϕ(400~500) nm, PEDOT/UiO-67纳米颗粒形貌相似, ~ϕ500 nm, 说明PEDOT含量对复合材料形貌和尺寸影响不大。
图4
图4

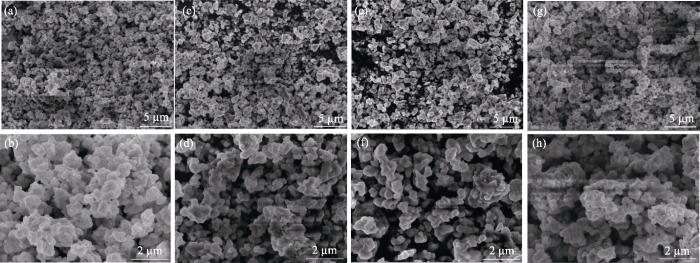

(a, b)PEDOT/UiO-67(63 μL), (c, d)PEDOT/UiO-67(94.5 μL), (e, f)PEDOT/UiO-67(126 μL)和(g, h)UiO-67的SEM照片
Fig. 4
SEM images of (a, b) PEDOT/UiO-67(63 μL), (c, d) PEDOT/UiO-67(94.5 μL), (e, f) PEDOT/UiO-67(126 μL) and (g, h) UiO-67
通过能量色散X射线光谱(EDS)表征元素分布(图5)。其中, S和Zr分别为来自PEDOT和UiO-67的特征元素。PEDOT/UiO-67(126 μL)的EDS元素分布图可以看出, 复合材料表面C、Zr、S和O元素皆均匀分布, 没有出现任何元素组成偏析, 说明PEDOT与UiO-67复合均匀。
图5
图5

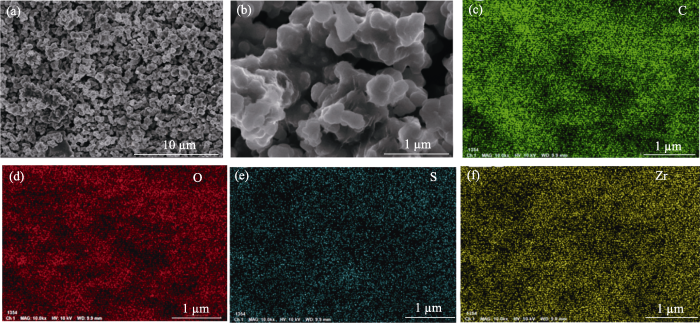

PEDOT/UiO-67(126 μL)的(a, b)SEM照片和(c~f)C, O, S, Zr EDS元素分布映射图
Fig. 5
(a, b) SEM images, and (c-f) C, O, S, Zr EDS elemental mappings of PEDOT/UiO-67(126 μL)
图6
图6

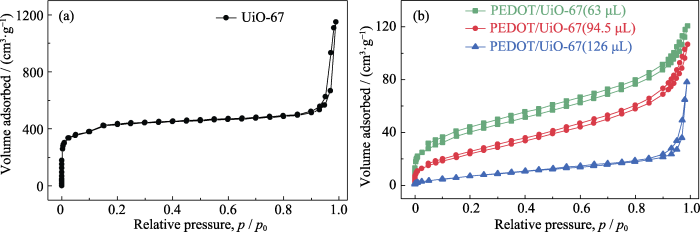

(a)UiO-67和(b)PEDOT/UiO-67的N2吸附脱附曲线
Fig. 6
Nitrogen adsorption-desorption isotherms of (a) UiO-67 and (b) PEDOT/UiO-67
2.2 PEDOT/UiO-67复合材料的热电性能研究
图7为室温下PEDOT/UiO-67的塞贝克系数、电导率和功率因子随PEDOT含量的变化关系。当EDOT含量为63、94.5和126 μL时, PEDOT/UiO-67的室温电导率分别为2.86×10-4、3.03×10-3和5.96×10-3 S·cm-1, 可见引入PEDOT可提升MOF的电导率, 并且改变导电聚合物含量可调控复合体系的电导率。此外, 相比于纯PEDOT的电导率(仅为2.70×10-4 S·cm-1), PEDOT/UiO-67的电子传输性能提高了一个数量级, 这可能与MOF的有序多孔结构对PEDOT链的限域作用有关, 孔道有效提高了聚合物链的有序性, 促进形成连续的载流子运输通路, 有助于复合材料的电荷传输。表1总结了目前所报道的“导电聚合物@MOF”的室温电导率。其中, 本工作制备得到的PEDOT/ UiO-67的电导率总体处于较高水平。
图7
图7

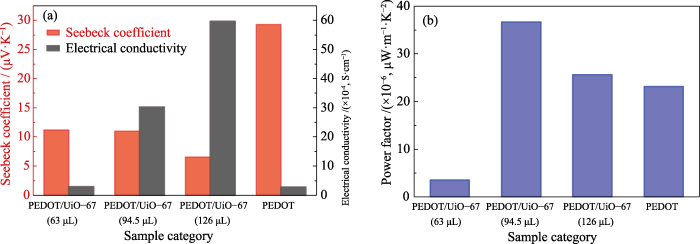

PEDOT/UiO-67和PEDOT的热电性能
Fig. 7
Thermoelectric properties of PEDOT and PEDOT/UiO-67 with various PEDOT contents
(a) Electrical conductivity and Seebeck coefficient; (b) Power factor. Colorful figures are available on website
表1 文献报道的MOFs-导电聚合物基复合材料室温电导率
Table 1
MOF composite | Conductivity/ (S·cm-1) | Method | Ref. |
---|---|---|---|
MIL-101-PEDOT | 1.1×10-3 | EISa | [13] |
La(BTC)-PEDOT | 2.3×10-8 | EISa | [13] |
UiO-66-PEDOT | ~1×10-3 | 4-Probe | [21] |
MIL-101-PANI | 10-6 | - | [26] |
NU-1000-polythiophene | 1.3×10-7 | EIS | [27] |
UiO-66-PPy | ~2×10-2 | 4-Probe | [21] |
Cd2(NDC)(PCA)2-PPy | 0.2 | Hall bar | [28] |
Cd2(NDC)(PCA)2-PPy | 1×10-3 | 4-Probe | [28] |
PEDOT/UiO-67 | 3.0×10-3 | 4-Probe | This work |
aEIS: Electrochemical Impedance Spectroscopy
图8
图8

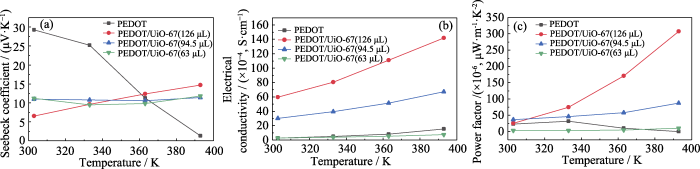

PEDOT /UiO-67和PEDOT在不同温度下的热电性能
Fig.8
Temperature-dependent thermoelectric properties of PEDOT and PEDOT /UiO-67
(a) Seebeck coefficient; (b) Electrical conductivity; (c) Power factor
3 结论
本工作采用导电客体分子促进电荷传输策略将PEDOT原位聚合到锆基金属-有机框架UiO-67中, 制备得到PEDOT/UiO-67复合材料, 并研究了PEDOT含量和温度对其电导率和热电性能的影响。PEDOT/UiO-67的电导率随着温度升高和PEDOT含量增大而增大, 在120 ℃下, EDOT为126 μL时, PEDOT/UiO-67的电导率最高可达1.42×10-2 S·cm-1, 比PEDOT高一个数量级, 且优于多数已报道的MOF基复合材料, 这主要是由于有序的MOFs孔道有效提高了聚合物链的有序性, 促进形成连续的载流子运输通路, 从而有助于复合材料的电荷传输。PEDOT/UiO-67的塞贝克系数在不同温度和PEDOT含量条件下无明显变化。当EDOT含量为94.5 μL时热电性能最佳, 室温功率因子最高为3.67×10-2 nW·m-1·K−2, 是PEDOT的1.5倍。综上, 本研究通过简单的原位聚合合成方法构建了导电聚合物/MOF复合材料, 基于孔道限域效应, 该复合材料表现出较好的电导率并展现出热电性能响应, 为进一步开发MOFs基热电材料提供了参考。
参考文献
Thermoelectric materials, phenomena, and applications: a bird's eye view
High-efficiency thermoelectric (TE) materials are important for power-generation devices that are designed to convert waste heat into electrical energy.They can also be used in solid-state refrigeration devices.The conversion of waste heat into electrical energy may play an important role in our current challenge to develop alternative energy technologies to reduce our dependence on fossil fuels and reduce greenhouse gas emissions.
Complex thermoelectric materials
Thermoelectric materials, which can generate electricity from waste heat or be used as solid-state Peltier coolers, could play an important role in a global sustainable energy solution. Such a development is contingent on identifying materials with higher thermoelectric efficiency than available at present, which is a challenge owing to the conflicting combination of material traits that are required. Nevertheless, because of modern synthesis and characterization techniques, particularly for nanoscale materials, a new era of complex thermoelectric materials is approaching. We review recent advances in the field, highlighting the strategies used to improve the thermopower and reduce the thermal conductivity.
Thermoelectric power waves from stored chemical energy
Improvement of the thermoelectric properties of PEDOT:PSS films via DMSO addition and DMSO/salt post-treatment resolved from a fundamental view
One-step post-treatment boosts thermoelectric properties of PEDOT:PSS flexible thin films
Recent advances in SnSe nanostructures beyond thermoelectricity
Polycrystalline SnSe with a thermoelectric figure of merit greater than the single crystal
Thermoelectric materials generate electric energy from waste heat, with conversion efficiency governed by the dimensionless figure of merit, ZT. Single-crystal tin selenide (SnSe) was discovered to exhibit a high ZT of roughly 2.2-2.6 at 913 K, but more practical and deployable polycrystal versions of the same compound suffer from much poorer overall ZT, thereby thwarting prospects for cost-effective lead-free thermoelectrics. The poor polycrystal bulk performance is attributed to traces of tin oxides covering the surface of SnSe powders, which increases thermal conductivity, reduces electrical conductivity and thereby reduces ZT. Here, we report that hole-doped SnSe polycrystalline samples with reagents carefully purified and tin oxides removed exhibit an ZT of roughly 3.1 at 783 K. Its lattice thermal conductivity is ultralow at roughly 0.07 W m K at 783 K, lower than the single crystals. The path to ultrahigh thermoelectric performance in polycrystalline samples is the proper removal of the deleterious thermally conductive oxides from the surface of SnSe grains. These results could open an era of high-performance practical thermoelectrics from this high-performance material.© 2021. The Author(s).
Metal-organic framework (MOF) materials as polymerization catalysts: a review and recent advances
Synthetic polymers are ubiquitous across both the industrial and consumer segments of the world economy. Catalysts enable rapid, efficient, selective, and even stereoselective, formation of desired polymers from any of a host of candidate monomers. While numerous molecular catalysts have been shown to be effective for these reactions, separation of the catalysts from reaction products is typically difficult - a potentially problematic complication that suggests instead the use of heterogeneous catalysts. Many of the most effective heterogeneous catalysts, however, comprise supported collections of reaction centres that are decidedly nonuniform in their composition, siting, and activity. Nonuniformity complicates atomic-scale evaluation of the basis for catalytic activity and thus impedes scientific hypothesis-driven understanding and development of superior catalysts. In view of the fundamental desirability of structural and chemical uniformity at the meso, nano, and even atomic scale, crystallographically well-defined, high-porosity metal-organic frameworks (MOFs) have attracted attention as model catalysts and/or catalyst-supports for a wide variety of chemical transformations. In the realm of synthetic polymers, catalyst-functionalized MOFs have been studied for reactions ranging from coordination-mediated polymerization of ethylene to visible-light initiated radical polymerizations. Nevertheless, many polymerization reactions remain to be explored - and, no doubt, will be explored, given the remarkable structural and compositional diversity of attainable MOFs. Noteworthy emerging studies include work directed toward more sophisticated catalytic schemes such as polymer templating using MOF pore architectures and tandem copolymerizations using MOF-supported reaction centres. Finally, it is appropriate to recognize that MOFs themselves are synthetic polymers - albeit, uncoventional ones.
Ambient- temperature hydrogen storage via vanadium(II)-dihydrogen complexation in a metal-organic framework
Selective adsorption-based separation of flue gas and natural gas in zirconium metal-organic frameworks nanocrystals
Carbon capture from flue gas and natural gas offers a green path to construct a net-zero emissions economic system. Selective adsorption-based gas separation by employing metal-organic frameworks (MOFs) is regarded as a promising technology due to the advantages of simple processing, easy regeneration and high efficiency. We synthesized two Zirconium MOFs (UiO-66 and UiO-66-NH2) nanocrystals for selective capture and further removal of CO2 from flue gas and natural gas. In particular, UiO-66-NH2 nanocrystals have a smaller grain size, a large amount of defects, and pending –NH2 groups inside their pores which display effective CO2 selective adsorption abilities over CH4 and N2 with the theoretical separation factors of 20 and 7. This breakthrough experiment further verified the selective adsorption-based separation process of natural gas and flue gas. In one further step, we used the Monte Carlo simulation to investigate the optimized adsorption sites and energy of CO2, N2 and CH4 molecules in the gas mixture. The significantly large adsorption energy of CO2 (0.32 eV) over N2 (0.19 eV) and N2 (0.2 eV) may help us to reveal the selective adsorption mechanism.
Effects of nanoscale porosity on thermoelectric properties of SiGe
The recent achievement of the high thermoelectric figure of merit in nanograined materials is attributed to the successful optimization of the consolidation process. Despite a thermal conductivity reduction, it has been experimentally observed that the porous nanograined materials have lower thermoelectric figure of merit than their bulk counterpart due to significant reduction in the electrical conductivity. In this paper, nanoscale porosity effects on electron and phonon transport are modeled to predict and explain thermoelectric properties in porous nanograined materials. Electron scattering at the pores is treated quantum mechanically while phonon transport is treated using a classical picture. The modeling results show that the charge carriers are scattered more severely in nanograined materials than the macroscale porous materials, due to a higher number density of scattering sites. Porous nanograined materials have enhanced Seebeck coefficient due to energy filtering effect and low thermal conductivity, which are favorable for thermoelectric applications. However, the benefit is not large enough to overcome the deficit in the electrical conductivity, so that a high sample density is necessary for nanograined SiGe.
Nanostructuration of PEDOT in porous coordination polymers for tunable porosity and conductivity
A series of conductive porous composites were obtained by the polymerization of 3,4-ethylenedioxythiophene (EDOT) in the cavities of MIL-101(Cr). By controlling the amount of EDOT loaded into the host framework, it was possible to modulate the conductivity as well as the porosity of the composite. This approach yields materials with a reasonable electronic conductivity (1.1 × 10(-3) S·cm(-1)) while maintaining high porosity (SBET = 803 m(2)/g). This serves as a promising strategy for obtaining highly nanotextured conductive polymers with very high accessibility for small gas molecules, which are beneficial to the fabrication of a chemiresistive sensor for the detection of NO2.
Bulk nanostructured thermoelectric materials: current research and future prospects
Electrically conductive metal-organic frameworks
Metal-organic frameworks (MOFs) are intrinsically porous extended solids formed by coordination bonding between organic ligands and metal ions or clusters. High electrical conductivity is rare in MOFs, yet it allows for diverse applications in electrocatalysis, charge storage, and chemiresistive sensing, among others. In this Review, we discuss the efforts undertaken so far to achieve efficient charge transport in MOFs. We focus on four common strategies that have been harnessed toward high conductivities. In the "through-bond" approach, continuous chains of coordination bonds between the metal centers and ligands' functional groups create charge transport pathways. In the "extended conjugation" approach, the metals and entire ligands form large delocalized systems. The "through-space" approach harnesses the π-π stacking interactions between organic moieties. The "guest-promoted" approach utilizes the inherent porosity of MOFs and host-guest interactions. Studies utilizing less defined transport pathways are also evaluated. For each approach, we give a systematic overview of the structures and transport properties of relevant materials. We consider the benefits and limitations of strategies developed thus far and provide an overview of outstanding challenges in conductive MOFs.
A microporous and naturally nanostructured thermoelectric metal-organic framework with ultralow thermal conductivity
Nanorods of a novel highly conductive 2D metal-organic framework based on perthiolated coronene for thermoelectric conversion
Thin film thermoelectric metal-organic framework with high Seebeck coefficient and low thermal conductivity
Electrochemical deposition and thermoelectric characterisation of a semiconducting 2-D metal-organic framework thin film
Metal-organic framework (MOF) defects under control: insights into the missing linker sites and their implication in the reactivity of zirconium-based frameworks
For three-dimensional (3D) metal-organic frameworks (MOFs), the presence and nature of structural defects has been recognized as a key factor shaping the material's physical and chemical behavior. In this work, the formation of the "missing linker" defects has been addressed in the model biphenyl-4,4'-dicarboxylate (bpdc)-based Zr MOF, UiO-67. The defect showed strong dependence on the nature of the modulator acid used in the MOF synthesis; the defects, in turn, were found to correlate with the MOF physical and chemical properties. The dynamic nature of the Zr6 (node)-monocarboxylate bond showed promise in defect functionalization and "healing", including the formation of X-ray-quality "defect-free" UiO-67 single crystals. Chemical transformations at defect sites have also been explored. The study was also extended to the isoreticular UiO-66 and UiO-68' systems.
Imparting multifunctionality by utilizing biporosity in a zirconium-based metal-organic framework
Optical properties of conducting polymers
Recent progress in 2D group IV-IV monochalcogenides: synthesis, properties and applications
Electrochemical synthesis of poly (3, 4-ethylenedioxythiophene) in aqueous dispersion of high porosity reduced graphene oxide
Partial and complete substitution of the 1,4-benzenedicarboxylate linker in UiO-66 with 1,4-naphthalenedicarboxylate: synthesis, characterization, and H2-adsorption properties
Polyaniline-intercalated MIL-101: selective CO2 sorption and supercapacitor properties
Rendering high surface area, mesoporous metal-organic frameworks electronically conductive
/
〈 |
|
〉 |
