Electrochromic devices (ECDs) can reversibly change their light transmittance via external voltage-induced redox reactions, and show potential applications in smart windows, electrochromic displays, switching mirrors, sensors, supercapacitors and so on^[1]. To stabilize ECDs, the internal resistance of ECDs must be remarkably reduced, which requires anionic conductivity higher than 1 mS∙cm^-1[2]. Liquid electrolytes usually deliver high conductivity and high switching speed^[3], but ECDs using liquid electrolytes suffer from persistent problems, such as electrolyte leakage, flammability and chemical stability issues.

To overcome the above mentioned problems, gel polymer electrolytes (GPEs) have been developed; these GPEs generally show a much higher conductivity than solid polymer electrolytes (> 10^-4vs 10^-8 S∙cm^-1)^[4]. GPEs refer to a family of polymer-based electrolytes that are prepared by dissolving polymer matrices into liquid electrolytes or trapping liquid electrolytes into the network of polymer matrices^[5]. The most commonly used matrices in GPEs are poly(ethylene oxide) (PEO)^[6], poly(acrylonitrile) (PAN)^[7], poly(vinylidene fluoride) (PVDF)^[8], poly (vinylidene fluoride-hexafluoropropylene) (PVDF-HFP)^[9] and polymethyl methacrylate (PMMA)^[2,8], additionally, the common plasticizers are propylene carbonate (PC), ethylene carbonate (EC), ethyl methyl carbonate (EMC) or their mixtures. The crystalline structure of the matrices provides the backbone of the gel, and the amorphous phase of the matrices forms the continuous phase to transport ions in the GPEs.

It is well accepted that fillers play an important role in Li⁺ transport, but the apparent discrepancy in electrochemical performances can partially be ascribed to the difference in electrolyte materials (polymers, salt, filler type), along with their concentration and preparation conditions. The addition of nanoparticles (such as TiO₂^[10], CeO₂^[11], Al₂O₃^[12], and palygorskite^[13]) can not only improve the mechanical strength of GPEs, but also increase their conductivity by increasing the volume fraction of the amorphous phase. However, the ionic conductivity of these composite electrolytes ranges from 10^-4 to 10^-5 S·cm^-1 at ambient temperature, which is still too low for commercial applications^[14].

Fumed SiO₂ has been widely adopted as a filler to improve the conductivity and mechanical stability of GPEs, because of its branched three-dimensional structure and the flexibly-tunable surface functionalities^[10]. Currently, most studies are conducted on the development of hydrophilic fumed SiO₂ as GPEs additive (with a large amount of silanol groups on the surface), because of its ionizing lithium salt and ability to increase the amorphous phase content of the polymer matrix. However, hydrophilic SiO₂ with polar silanol groups tends to aggregate^[15].Moreover, hydrophilic SiO₂ presents a low compatibility with organic GPEs. Therefore, employing hydrophobic SiO₂ may be a better choice for their application in GPEs due to its high dispersibility in organic matrices.

In this study, we investigate the effect of a hydrophobic fumed SiO₂/PMMA/PC/LiClO₄ GPE (H-SiO₂ GPE) and their applications in ECDs. It is demonstrated that hydrophobic fumed SiO₂ is more efficient in increasing the ionic conductivity of electrolytes, because of the hydrophobic- hydrophobic attractions between the hydrophobic groups on the SiO₂ surfaces and solvents in the GPE.The ECD assembled with H-SiO₂ GPE exhibits a fast switching speed (t_bleaching=4 vs 8 s and t_coloring=14 vs 16 s). To compare, the effect of a hydrophobic fumed SiO₂/LiClO₄/ PC/liquid electrolyte is explored. This work demonstrates that the addition of hydrophobic fumed SiO₂ in electrolytes provides great potential for the application in ECDs and other energy devices.

Propylene carbonate (PC, 99%), lithium perchlorate (LiClO₄, 99.9%), hydrophobic fumed SiO₂ (Aladdin, 7-40 nm, pH=4.5), polymethyl methacrylate (PMMA, Aldrich, Mw≈1000, 000) were obtained and used.

The liquid electrolyte was prepared by dissolving 0.1 mol·L^-1 LiClO₄ in 7.41 mL propylene carbonate under stirring. Afterward, 0, 20, 50, 80 and 100 mg of hydrophobic fumed SiO₂ was dispersed into 10 g of liquid electrolyte with ultrasonication. This process provided hydrophobic fumed SiO₂/LiClO₄/PC liquid electrolyte with 0, 0.2wt%, 0.5wt%, 0.8wt% and 1.0wt% fumed SiO₂. Hydrophobic fumed SiO₂/polymethyl methacrylate (PMMA)/PC/LiClO₄ GPEs (H-SiO₂ GPEs) were prepared by dissolving 1 g of PMMA (vacuum dried at 90 ℃ for 24 h) into 9 g of liquid electrolyte under stirring at 90 ℃.

WO₃ nanoparticles were synthesized using the reported hydrothermal process^[16]. In a typical experiment, 0.815 g of Na₂WO₄·2H₂O was dissolved in 10 mL of deionized water. Then the Na₂WO₄ solution was acidified to pH 2.0 using HCl solution at room temperature. Afterward, the solution was transferred into a Teflon-lined autoclave and heat-treated at 180 ℃ for 24 h. Finally, the final products were sequentially washed with deionized water and ethanol to remove the sulfate ions and other remnants by centrifugation.

WO₃ electrochromic films were deposited on clean ITO glasses by a wire-bar coating method, as reported in our previous work^[17]. When using the liquid electrolytes, the ECDs were sealed with 3M tape while leaving one small gap in which the LiClO₄/PC liquid electrolytes (with/without hydrophobic fumed SiO₂) were injected into the device by a syringe. Finally, the injection ports were sealed with UV curing glue. In regard to the GPEs, GPEs with/without hydrophobic fumed SiO₂ were cast into WO₃ electrochromic layers, and finally, these ECDs were also sealed with 3M tape.

Viscosity measurements were determined by rotary rheometer (HAAKE MARS60) under shear rate of 0.1- 100 s^-1 at room temperature. The morphology of WO₃ films was characterized by scanning electron microscope (SEM, S-4800, Hitachi, Tokyo, Japan) and transmission electron microscope (TEM, JEOL, JEM-2100, 200 kV)_. The morphologies of the gel electrolyte were characterized by FE-SEM (JEOL, JSM6700F, Tokyo). The crystal structure of the electrochromic film was required by X-ray diffraction (XRD; 3kW Bruker D8 Advance X-ray diffractometer with Cu Kα irradiation, λ=0.154 nm). The optical transmittance of the electrochromic devices was characterized by UV spectrophotometer (UH4150; Hitachi, Japan) at 633 nm. The ionic conductivity was measured by Mettler Seven compact conductivity meter. Electrochemical measurements were performed on electrochemical workstation (CHI760E, CHI Instruments, China). Electrochemical impedance spectroscopy (EIS) of the electrochromic film was recorded from 10^-1 to 10⁶ Hz at an amplitude of 5 mV.

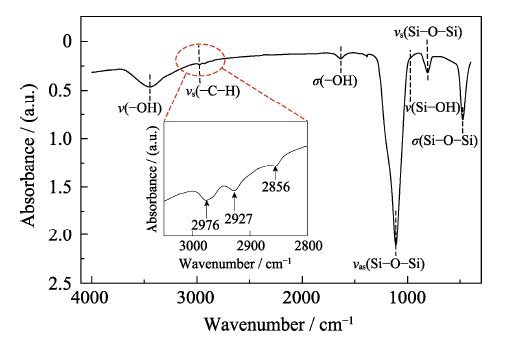

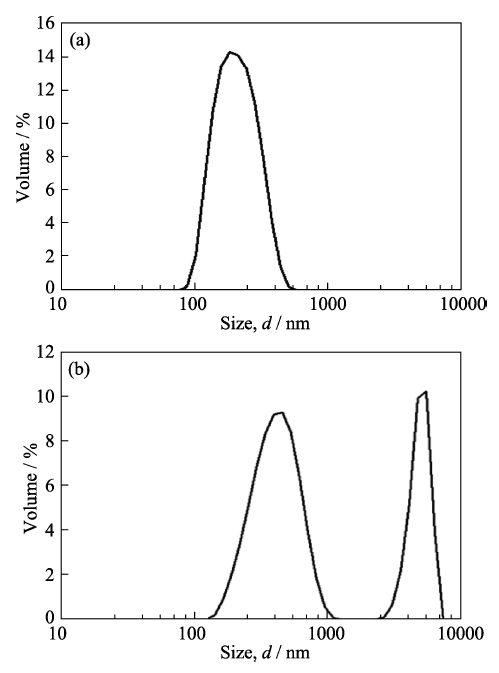

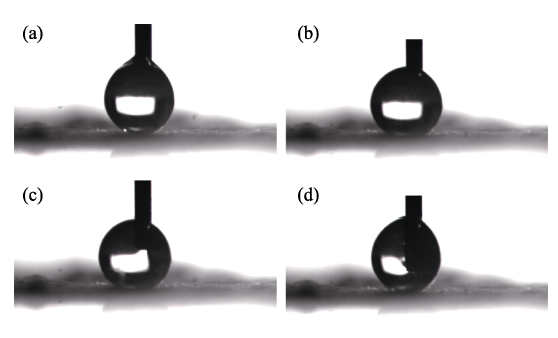

The hydrophobicity of SiO₂ is investigated by the contact angle test, as presented in Fig. S1. Regardless of how the needle moves, water droplets cannot adhere to the surface of hydrophobic fumed SiO₂. Fig. 1 shows the FT-IR spectrum of the hydrophobic fumed SiO₂. The broad peaks at 3446 and 1631 cm^-1 are the -OH stretching and bending vibration peaks of adsorbed water, respectively. The peaks at 808 and 478 cm^-1 are the symmetric stretching vibrations and bending vibrations of Si-O bonds. The strong and wide absorption band at 1110 cm^-1 is the anti- symmetric stretching vibration peak of Si-O-Si. The peak at 979 cm^-1 is the stretching vibration of Si-OH, indicating the possibility for further reaction as a proton donor^[18]. Peaks at 2976, 2927, and 2856 cm^-1 are the stretching vibration peaks of the -CH₃, and -CH₂- groups. Due to the existence of -CH₃, -CH₂- terminals, this fumed SiO₂ shows hydrophobic properties and good dispersibility in organic matrices, as revealed in Fig. S2. The particle size distribution of hydrophilic fumed SiO₂ shows two peaks in PC, and a strong peak in the range of 1000-10000 nm. These results indicate that hydrophilic fumed -SiO₂ can agglomerate in PC. In contrast, hydrophobic fumed-SiO₂ is mainly distributed between 100 and 1000 nm. It can be concluded that the hydrophobic fumed SiO₂ has better uniformity in PC. The scanning electron micrographs of the prepared pure GPEs and

2.2.1 Measurements of the ionic conductivities of H-SiO₂ GPEs

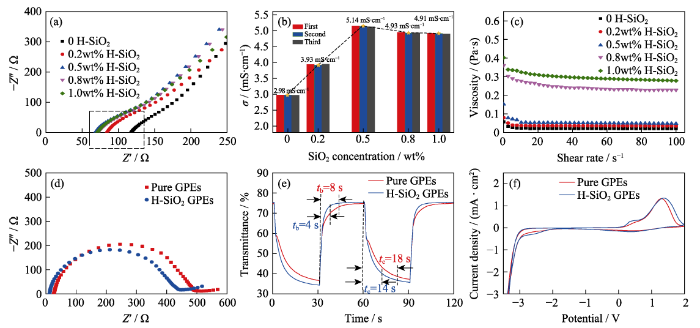

A high ionic conductivity facilitates the transportation of ions into and out of an EC film to initiate a color change, which is the key indicator of an electrolyte. The ionic conductivities of these GPEs are calculated by the formula σ = L/R_bA, where L is the thickness of the GPE electrolyte, A is the contact area between the electrolyte and the electrode, and the bulk resistance (R_b) is the intercept of the curve and the Z’ axis in the AC impedances (Fig. 2(a))^[19]. The measurement was conducted at 25 ℃ and 40% humidity. The experiments were repeated three times to reduce the measuring and experimental error, and an average value was obtained for the final results. The conductivity of the H-SiO₂ GPE first increases and then decreases with an increasing concentration of fumed SiO₂. The GPE shows a maximum conductivity of 5.14 mS∙cm^-1 at 0.5wt% concentration of fumed SiO₂ (Fig. 2(b)), which is clearly higher than the previously reported values in the literature (Table S1). The conductivity evolution of the GPEs with different SiO₂ concentrations can be explained by the trade-off between the improved dissociation of lithium perchlorate and the increase in viscosity (Fig. 2(c)). Specifically, there are a large number of methyl groups on the surface of hydrophobic SiO₂, which is the main reason for its hydrophobicity. These methyl groups can form mutual hydrophobic-hydrophobic attractions with the organic groups in organic solvents to promote the dispersion of SiO₂, thus improving the dissociation of lithium perchlorate and providing the GPE a high transparency. Moreover, it is noted that the polarity difference between SiO₂ with a large number of hydroxyl groups and an organic electrolyte can affect the dispersion of SiO₂ in PMMA matrices^[15], further decreasing the ionic conductivity (Table 1). Additionally, as the viscosity continues to increase, the polar end of the molecule is gradually adsorbed on the silica surface, which halts further network formation at this site and hinders the motion of Li⁺.

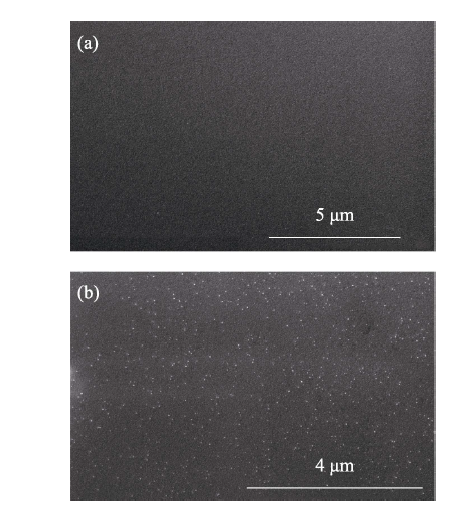

H-SiO₂ GPEs are shown in Fig. S3. H-SiO₂ evenly distributes in the main body of the GPEs.

2.2.2 Electrochromic performances of ECDs based on H-SiO₂ GPEs

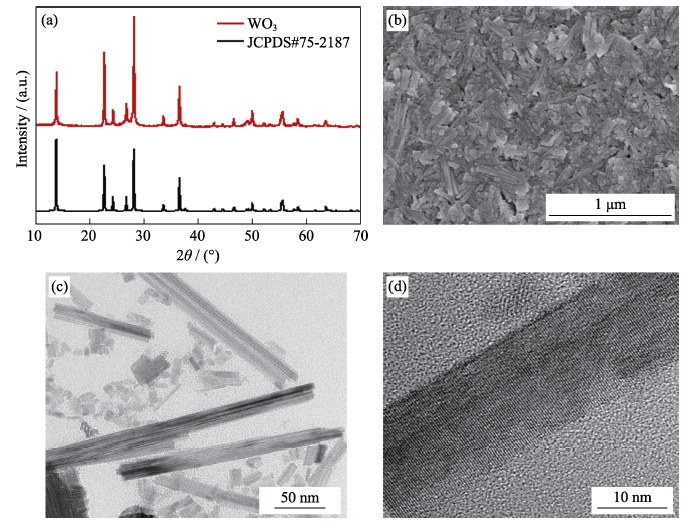

To explore the effect of H-SiO₂ GPEs on electrochromism, the ECDs were assembled by WO₃ coated on ITO glass^[17] and using GPEs with/without hydrophobic fumed SiO₂. The specific details of WO₃ are shown in Fig. S4. The electrochemical behaviors of the ECDs were characterized by electrochemical impedance spectroscopy in the colored state (EIS, Fig. 2(d)). Each of the EIS spectra is composed of a semicircle part at high frequencies and a diagonal part at low frequencies. The semicircle part reflects the charge transfer resistance between the electrochromic film and electrolyte. The diagonal part represents the Warburg impedance that is associated with the ion diffusion process. In other words, the larger the slope of the line is, the faster the ion transfer process. Therefore, it is obvious that the resistance is low and the ion diffusion is good with H-SiO₂ GPEs.

To further investigate the electrochromic performances of ECDs, as shown in Fig. 2(e). An ECD with H-SiO₂ GPEs switches faster than that without SiO₂. More precisely, the switching time sare 16/14 s (coloring) and 8/4s (bleaching) for ECDs with pure GPEs and H-SiO₂ GPEs, respectively. Compared with other similar constructions of ECDs (using WO₃, ITO glass and a gel electrolyte as electrochromic layers, substrates and ion transport layers, respectively), H-SiO₂ GPEs exhibit faster speeds than previously reported results for PVdF- HFP-based (t_coloring=17 s/t_bleaching=28 s)^[20], PMMA-based (t_coloring=62.6 s/t_bleaching=41.2 s)^[21], ionic-liquid-based (t_coloring= 15 s/t_bleaching=15 s)^[22] and PVB-based (t_coloring=16.5 s/t_bleaching= 9.5 s)^[23] gel electrolytes. In addition, the transmittance modulation of ECDs increases from 38.3% to 41.2%, which is higher than that reported above (41.2% vs 35%^[20]vs 24%^[22] vs 18%^[19]). The enhanced electrochromic performance can be attributed to the above mentioned high ionic conductivity and shear thinning behavior. The viscosity follows a linear correlation with respect to the shear rate. The viscosity as a function of shear rate for the GPE with various fumed silica contents is shown in Fig. 2(c). At a low shear rate, it exhibits a solid-like behavior with a high viscosity value due to the formation of a network structure by the induction of a siloxane linkage in the polymer matrix. At a high shear rate, because the orientation of the siloxane linkage is preferential parallel to the flow direction, the viscosity decreases. Shear thinning occurs because the bonds composing the network structure are physically weak, which can be disturbed by shear^[24]. Thus, the H-SiO₂ GPEs are proven to be physical gels with a three-dimensional network^[14]. As presented in Fig. 3, hydrophobic fumed SiO₂ can be attracted to the PMMA chains, forming a three-dimensional network structure, while providing ion transport channels so that ions can transport more quickly and easily to the interface of the WO₃ films and electrolyte.

In addition, the CV curves of the ECDs with different GPEs are shown in Fig. 2(f). The CV curve of the SiO₂-free ECD has a cathode current peak at -3.3 V and an anodic current peak at 1.3 V. In contrast, the CV curves of the SiO₂ containing ECDs show cathode current peaks at +0.37 V, and anodic current peaks at -2.6 V. These new peaks may be attributed to different binding sites on the WO₃ film^[25], indicating a better reactivity of the electrochromic WO₃ films at a low bias voltage. According to a previous report^[26], the introduction of cations can decrease the reaction voltage of WO₃. The addition of fumed SiO₂ enhances the concentration of Li⁺ near the WO₃ film, thus leading to better electrochromic performance.

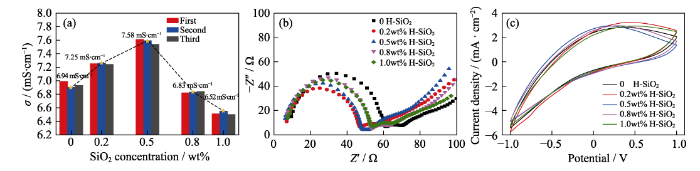

For a LiClO₄/PC liquid electrolyte, the PC solvent has a strong solvation effect on Li⁺ cations, but the perchlorate anions are difficult to coordinate or solvate, limiting the achievement of high conductivity in this system. The conductivity of liquid electrolytes was measured by a conductivity meter, and the results show a similar trend to that of gel electrolytes. To increase the accuracy of data, the experiment was repeated three times (Fig. 4(a)). With SiO₂ additives from 0 to 0.5wt%, the ionic conductivity of the liquid electrolyte increases up to a maximum of 7.58 mS∙cm^-1, which is higher than hydrophilic fumed SiO₂ or other additives as fillers (no more than 7.0 mS∙cm^-1)^[10,14]. The increase of conductivity can be attributed to the reasons discussed in the section on GPEs. The good dispersion of hydrophobic fumed SiO₂ homogenizes the electrical field^[27]. However, further increasing the SiO₂ concentration leads to a decrease in conductivity, possibly due to the increase in electrolyte viscosity and the aggregation of fumed SiO₂.

The effects of the hydrophobic fumed SiO₂ composite electrolyte on the electrochemical behaviors of WO₃ films were characterized by electrochemical impedance spectroscopy in the colored state (EIS, Fig. 4(b)). As shown in Fig. 4(b), both the charge transfer resistance and ion diffusion resistance reach a minimum at a SiO₂ concentration of 0.5wt%, which is consistent with the conductivity variation. Fig. 4(c) further presents the CV curves of the WO₃ films in SiO₂ electrolytes at different concentrations. In all of CV curves, clear cathodic current peaks appear with potential sweeping from +1 V to -1 V. Moreover, the colorless WO₃ film appears blue, due to the reduction of W⁶⁺→W⁵⁺ after Li⁺ insertion. The film returns to be colorless after reverse sweeping the potential back to +1 V, suggesting the occurrence of the W⁵⁺→W⁶⁺ oxidation reaction accompanied by Li⁺ extraction. Therefore, the WO₃ film demonstrates the largest CV curve in the highly conductive electrolyte containing the addition of 0.5wt% fumed SiO₂, confirming the beneficial influence of the fumed SiO₂ additive on the electrochemical reactions of the WO₃ film.

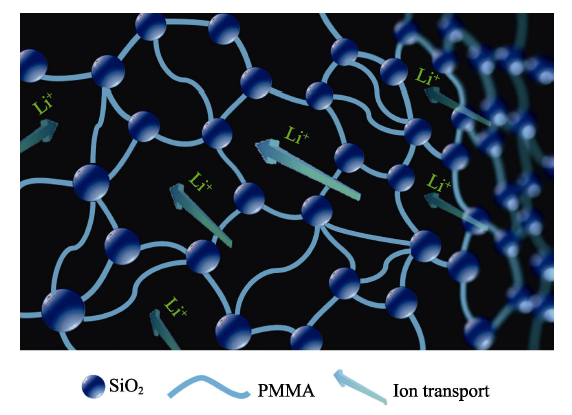

In conclusion, the introduction of hydrophobic fumed SiO₂ into GPEs can effectively increase the conductivity from 3.99 to 5.14 mS∙cm^-1, because of the attractive force of hydrophobic groups. These interactions are beneficial for increasing the compatibility between SiO₂ and GPEs, thereby promoting the dissociation of lithium perchlorate, and improving the ionic conductivity. The assembled ECDs using H-SiO₂ GPEs exhibit lower cathode interface impedances, better electrochemical behaviors, and faster switching times, as compared with those of the unmodified GPEs (t_bleaching=4 vs 8 s and t_coloring=14 vs 16 s). These observations are owing to that H-SiO₂ GPEs form a three-dimensional network structure, thereby providing an ion transport channel. Similarly, the ionic conductivity of the LiClO₄/PC/liquid electrolyte without/with hydrophobic fumed SiO₂ increases from 6.94 mS∙cm^-1 (without hydrophobic fumed SiO₂) to 7.58 mS∙cm^-1. This work demonstrates that the introduction of hydrophobic SiO₂ has a positive effect on electrolytes, which is an important step for their application in ECDs.

High-conductivity Hydrophobic Fumed-SiO₂ Composite Gel Electrolyte for High Performance Electrochromic Devices

ZHAO Qi¹, QIAO Ke¹, YAO Yongji¹, CHEN Zhang¹, CHEN Dongchu², GAO Yanfeng¹

1. School of Materials Science and Engineering, Shanghai University, Shanghai 200444, China; 2. School of Materials Science and Energy Engineering, Foshan University, Foshan 528000, China
