VO2 Thermochromic Smart Window: Status, Challenges and Prospects
XU Fang,1,2, JIN Pingshi1, LUO Hongjie3, CAO Xun,1,2
1. State Key Laboratory of High Performance Ceramics and Superfine Microstructure, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
3. School of Materials Science and Engineering, Shanghai University, Shanghai 200444, China
National Natural Science Foundation of China(51572284) National Natural Science Foundation of China(51972328) National Natural Science Foundation of China(51903244) Youth Innovation Promotion Association, Chinese Academy of Sciences(2018288) Science Foundation for Youth Scholar of State Key Laboratory of High Performance Ceramics and Superfine Microstructures(SKL201703) Shanghai Pujiang Program(18PJD051) Key Research and Development Plan of Anhui Province(1804a09020061)
Vanadium dioxide (VO2), as a transition metal oxide, has thermochromic property, which undergoes metal to insulator transition (MIT) in response to external temperature changes, and is accompanied by numerous changes in physical property. It has attracted widespread attention in the field of smart windows. In recent years, research on the preparation method of VO2, the phase change mechanism, and the improvement of optical performance are quite rich. However, practical applications still face technical bottlenecks and challenges such as higher intrinsic transition temperature (Tc), lower luminous transmittance (Tlum), insufficient solar modulation ability (ΔTsol), nonideal metastability and durability, and uncomfortable color for human eyes (brownish yellow). At present, there are many researches related to the improvement of the performance of VO2 itself owing to its insufficient optical property, and general methods for improving its performance such as elements doping, multilayer film structure design, and microstructure design have been widely adopted. This review summarizes the general performance improvement strategies of VO2 film, and highlights the latest research progress of VO2-based smart window service performance, low-temperature flexible preparation and color modulation in practical applications. Future development trends are also discussed in terms of skin comfort and environmental friendliness.
XU Fang, JIN Pingshi, LUO Hongjie, CAO Xun. VO2 Thermochromic Smart Window: Status, Challenges and Prospects. Journal of Inorganic Materials[J], 2021, 36(10): 1013-1021 DOI:10.15541/jim20210070

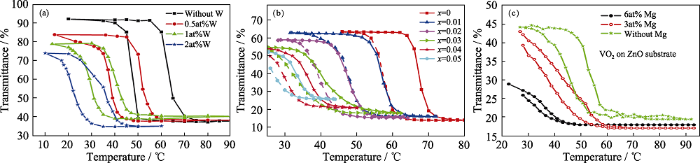

(a) Comparison of the optical hysteresis at 2000 nm of VO2 film and W-doped VO2 film[9]; (b) Transmittance hysteresis loops at λ=2000 nm for V1-xMoxO2 films[10]; (c) Temperature dependent transition hysteresis loops for the pure and Mg-doped VO2 films grown on ZnO substrates[14]

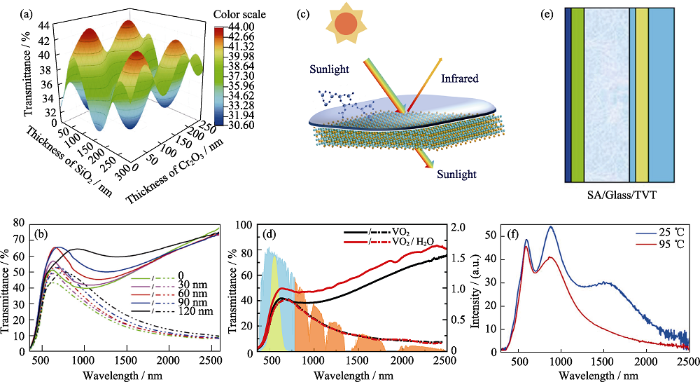

(a) 3D surface image of the luminous transmittance (Tlum, lt) calculation of the Cr2O3/VO2 (80 nm)/SiO2 multilayer structure on the thickness design of Cr2O3 (bottom layer) and SiO2 (top layer); (b) Transmittance spectra (350-2600 nm) at 25 (solid lines) and 90 ℃ (dashed lines) for the CVS structures with various thicknesses of SiO2 layers[26]; (c) Schematic illustration of H2O/VO2 film; (d) Transmittance spectra of VO2 films with and without H2O layer[24]; (e) Schematic illustration of SA/Glass/TVT structure; (f) Transmittance spectra in visible-NIR region at room temperature (25 ℃) and 95 ℃ of SA/Glass/TVT structure[25]. SA: SiO2/AZO (300 nm)/Glass Colourful figures are available on website

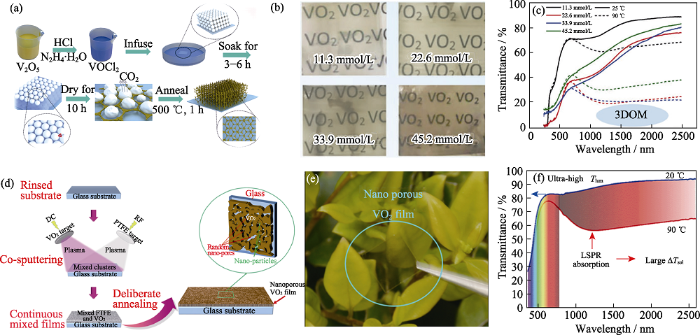

(a) Schematic illustration of the as-prepared 3DOM (3D Ordered Macroporous) VO2 (M) film; (b) Photographs of the VO2(M) films on glass slides; (c) Optical transmittance spectra of the VO2 (M) films with 3DOM structures[31]; (d) Schematic of fabrication route for nanoporous VO2 films; (e) Optical photograph of the nanoporous VO2 films on quartz; (f) Transmittance spectra of the nanoporous VO2 films[32]
Fig. 5

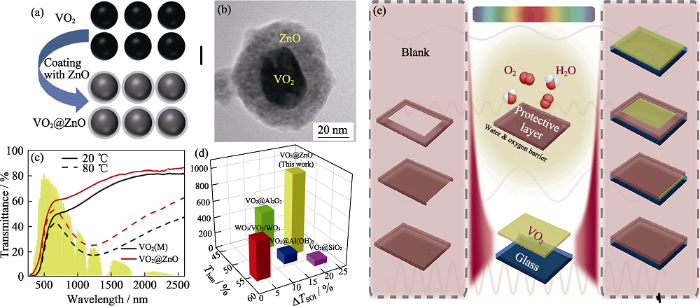

(a) Experimental flow chart for the synthesis of VO2@ZnO core-shell structure nanoparticles, (b)TEM image of VO2@ZnO core-shell structure nanoparticle; (c) Optical transmittance spectra at 20 and 80 ℃ of uncoated VO2 film and VO2@ZnO film; (d) Solar regulation efficiency (ΔTsol), luminous transmittance (Tlum), and durability at constant temperature (60 ℃) and humidity (90%) of different VO2-based smart window coatings[36]; (e) Schematic illustrations of four types of sample[39]
Fig. 6
Flexible films and their preparation flow chart

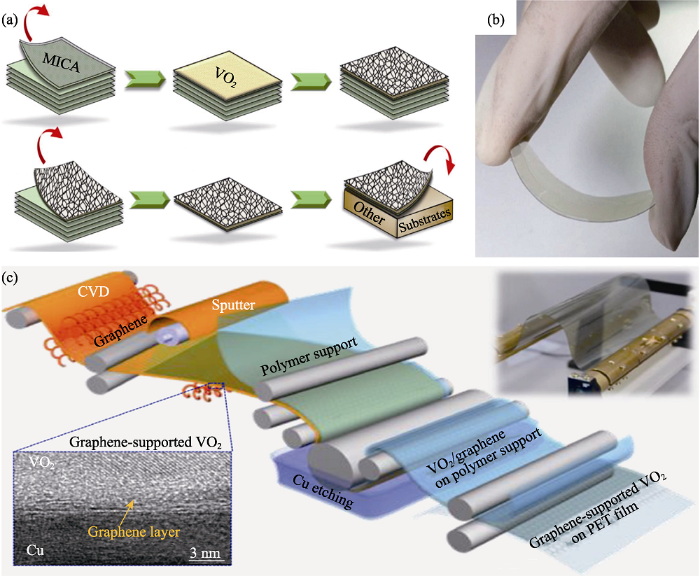

(a) Schematic illustration of the fabrication process for the SWNTs/VO2/mica hierarchical film; (b) Thin VO2/mica film showing excellent flexibility[45]; (c) Schematic illustration of the graphene-supported VO2 film[46]

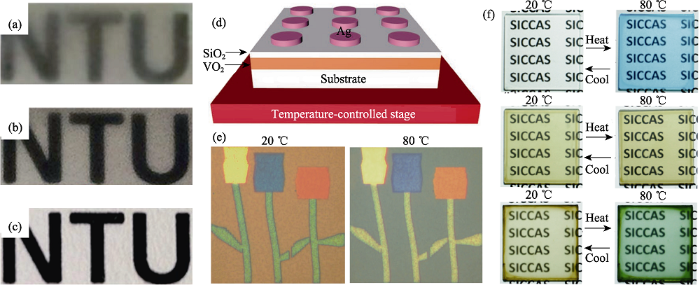

(a) Pure hydrogel thin film at room temperature (25 ℃); (b) VO2/hydrogel hybrid at room temperature (25 ℃) and (c) 35 ℃[47]; (d) Model of the VO2 film comprising periodic silver-nanodisk array; (e) Reflection images of the pattern at 20 and 80 ℃, respectively[52]; (f) Photographs of pure IL-Ni-Cl complexes film, pure VO2 nanoparticles film, and VO2/IL-Ni-Cl composite film at 20 (left) and 80 ℃ (right)[48]
