晶种诱导合成ZSM-5多晶聚集体及其在甲醇制碳氢化合物中的催化性能

王旭昌, 焦楚钰, 季卓, 焦其瑞, 秦波, 杜艳泽, 郑家军, 李瑞丰

Polycrystalline ZSM-5 Aggregates Induced by Seed and Catalytic Performance in Methanol to Hydrocarbon

WANG Xuchang, JIAO Chuyu, JI Zhuo, JIAO Qirui, QIN Bo, DU Yanze, ZHENG Jiajun, LI Ruifeng

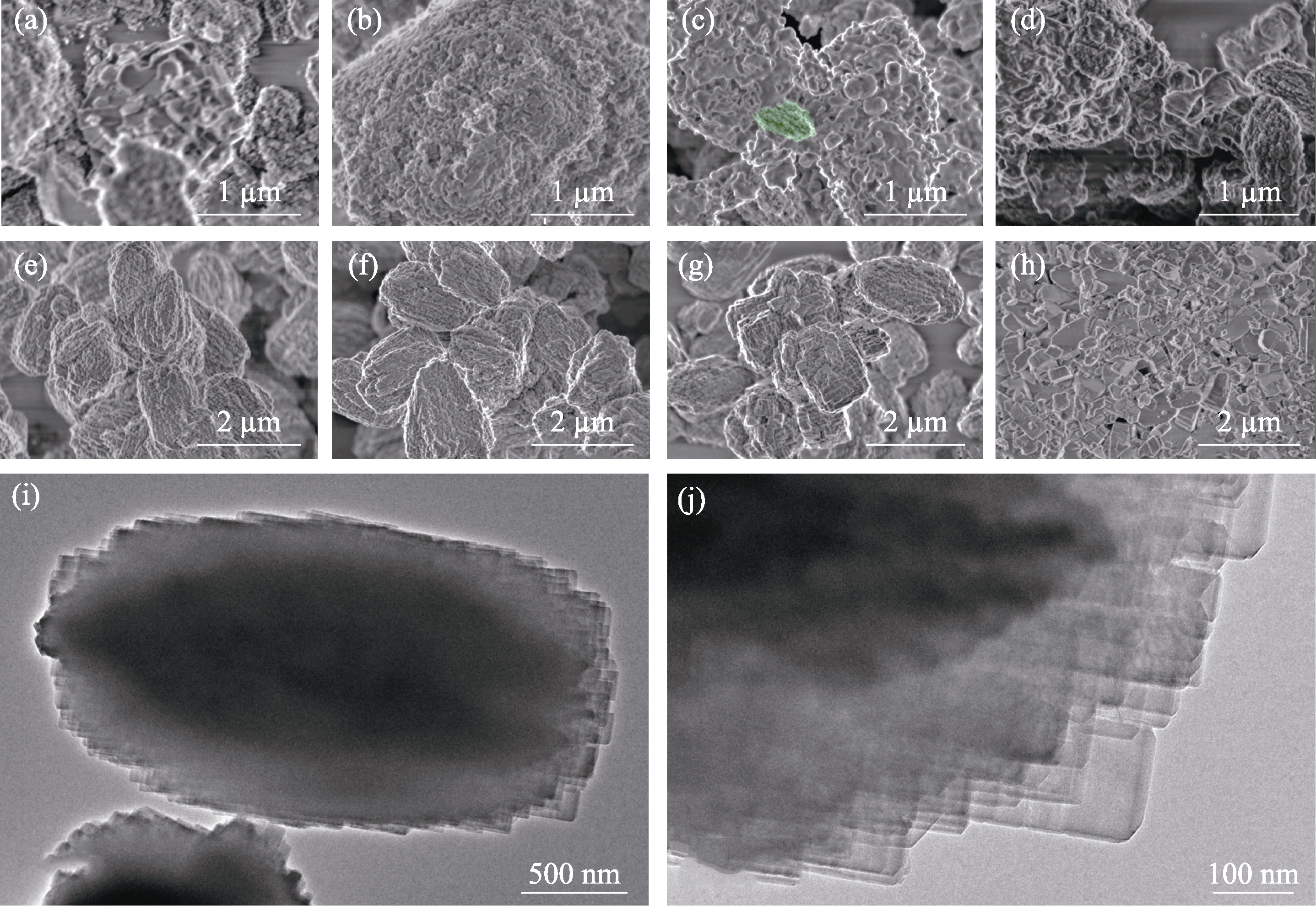

Fig. 5 SEM and TEM images of the as-synthesized samples with different crystallization time SEM images of (a) Z518-5.6-0, (b) Z518-5.6-4, (c) Z518-5.6-8, (d) Z518-5.6-12, (e) Z518-5.6-14, (f) Z518-5.6-24, (g) Z518-5.6-48 and (h) NK-18; (i, j) TEM images of Z518-5.6-48
